APPLICATION EXAMPLE

Fuel station lighting with FLORENCE-3R-IP and FLORENCE2


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

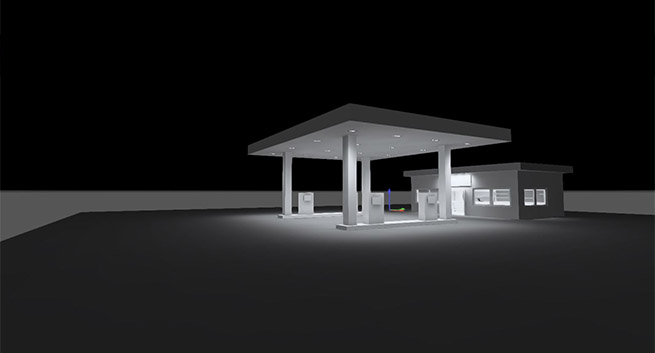

Pump area

SETUP:

Application: Fuel station lighting
LED: 5050 flat plastic package

Pump area:
Luminaire size: L: 400 mm / W: 200 mm / H: 100 mm
Optics: FLORENCE-3R-IP-Z60
Number of optics in a luminaire: 2 pcs
Number of luminaires: 16 pcs
Luminaire arrangement: 4 x 4
Mounting height: 4.7 m (recessed)
Luminous flux (Luminaire): 2600 lm
Power (Luminaire): 19 W
Luminaire efficiency: 137 lm/W (Incl. optics 90 % and driver 95 %)

Indoors:
Luminaire size: L: 400 mm / W: 200 mm / H: 50 mm
Optics: FLORENCE2-Z60
Number of optics in a luminaire: 1 pcs
Number of luminaires: 12 pcs
Luminaire arrangement: 3 x 4
Mounting height: 3.3 m (recessed)
Luminous flux (Luminaire): 2500 lm
Power (Luminaire): 18 W
Luminaire efficiency: 137 lm/W (Incl. optics 90 % and driver 95 %)

RESULTS:

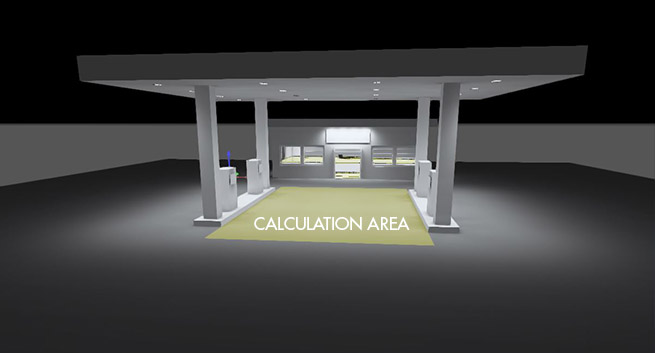

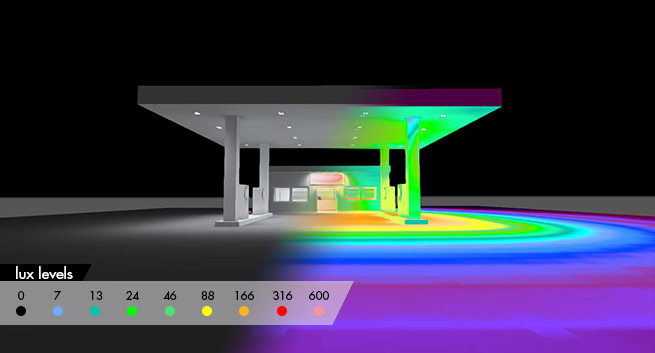

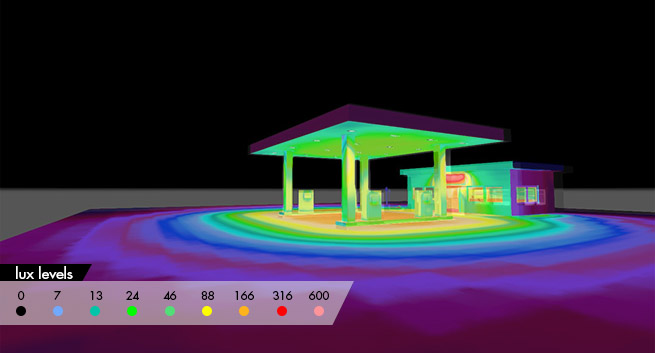

Pump area / Canopy
Average: 171 lx
Average target: ≥150 lx
Uo: 0.71
Uo target: ≥0.4
UGR: 18

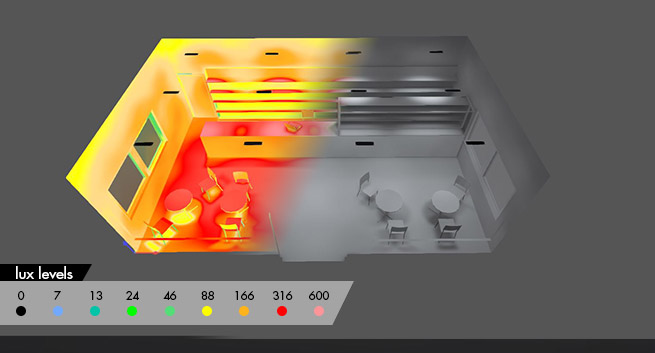

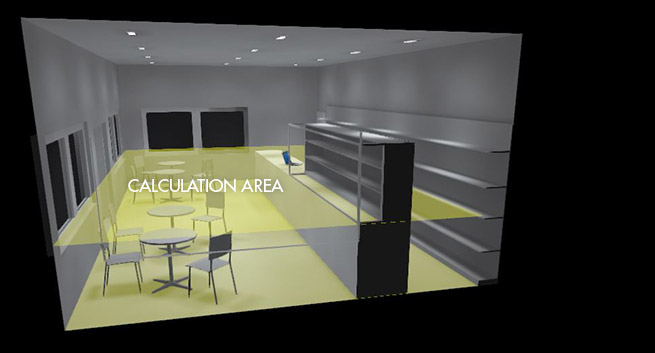

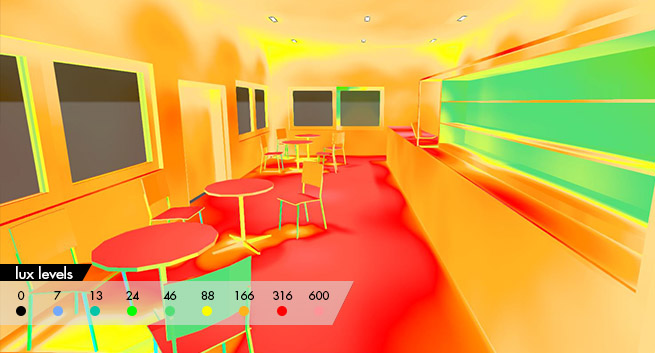

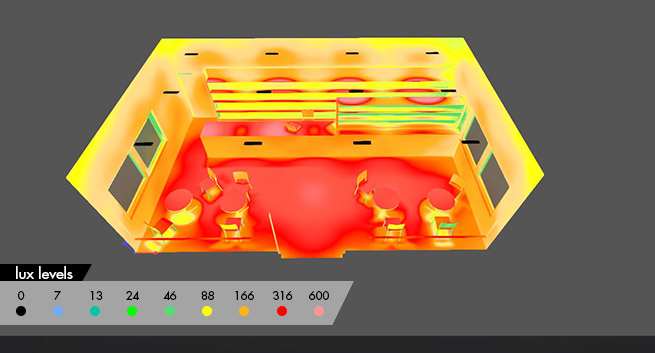

Indoors:
Average (floor): 300 lx
Average (tables at 1m): 425 lx
Uo: 0.69
UGR: 17
