FS15786_FLORENCE-3R-IP-Z60
Print
~60° wide beam
Component Materials
- FLORENCE-3R-IP-Z60Linear lensPC
- FLORENCE-3R-IP-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

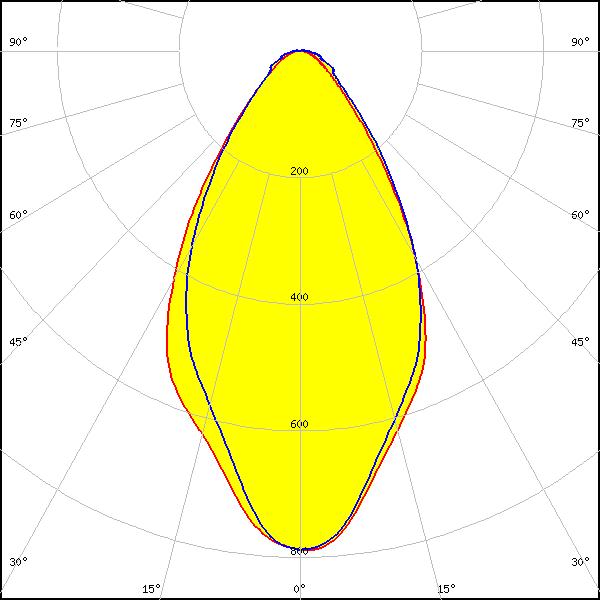

Optical results

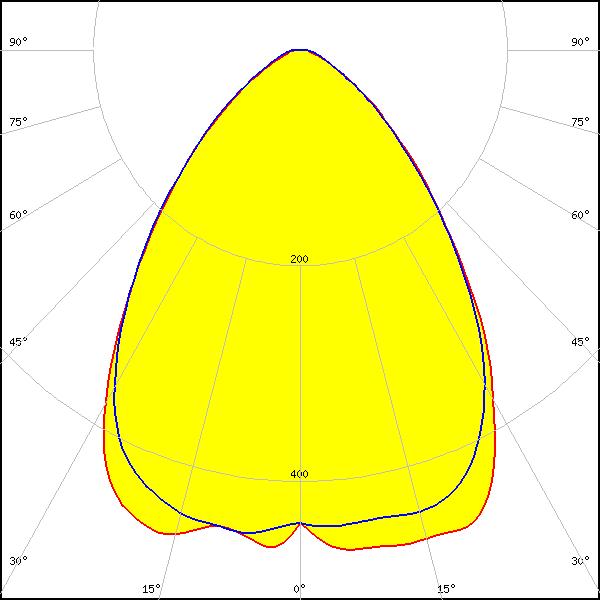

LED:
Bridgelux SMD 5050
FWHM:
79°
FWTM:
123°
Peak intensity:
0.470 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

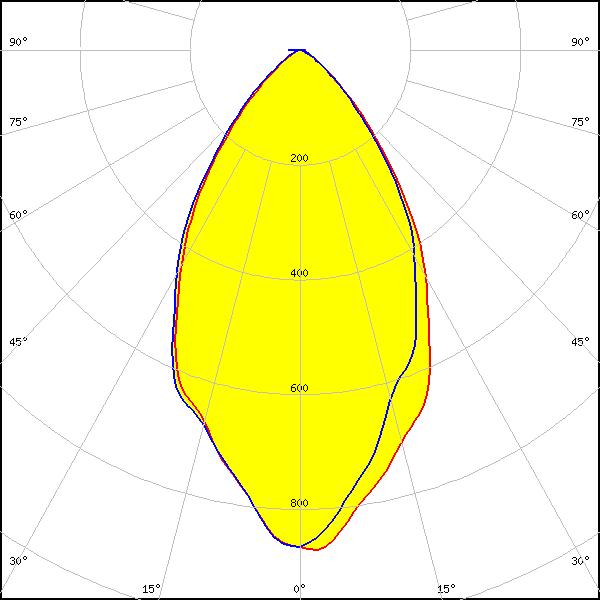

LED:

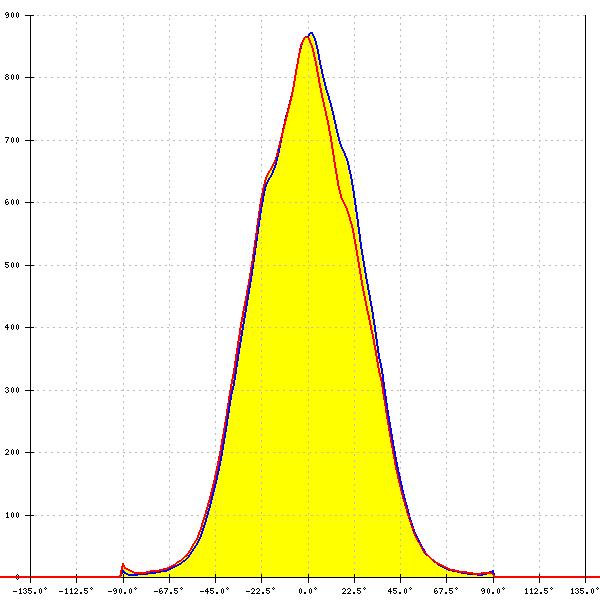

XP-G2
FWHM:
60°
FWTM:
102°
Peak intensity:
0.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

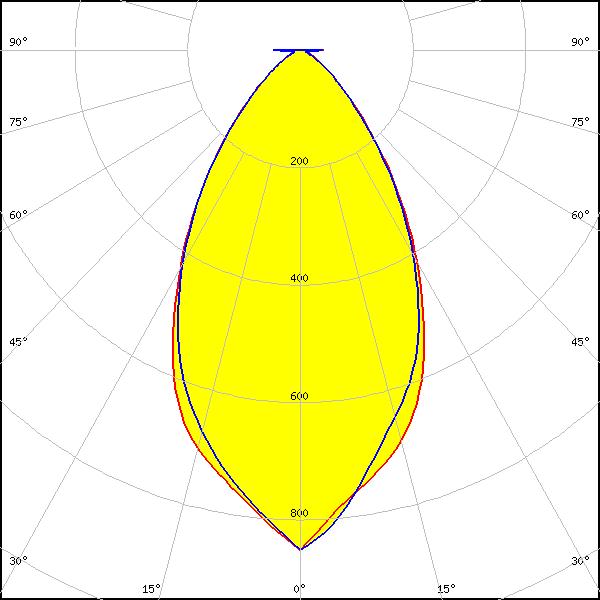

LED:

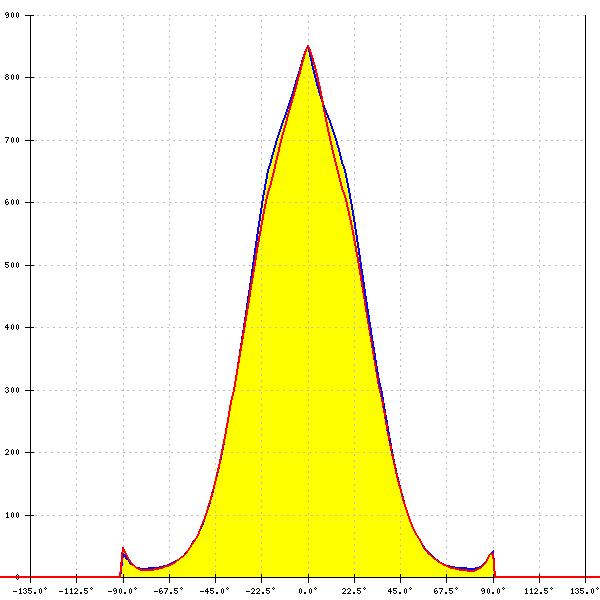

XP-G3
FWHM:
59°
FWTM:
102°
Peak intensity:
0.850 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

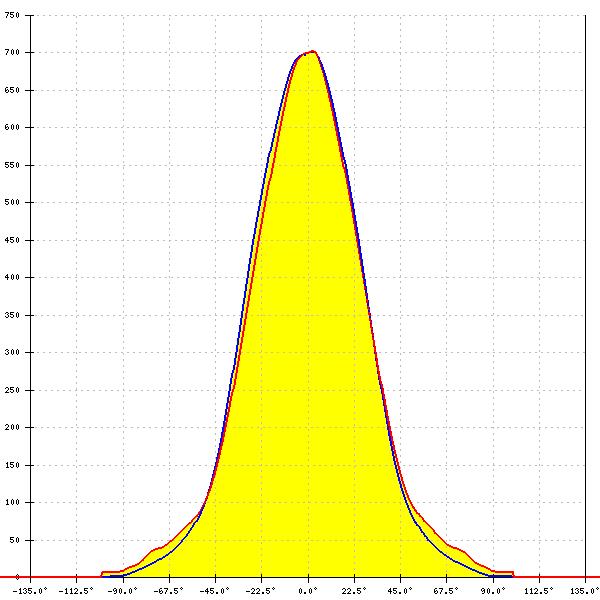

LED:

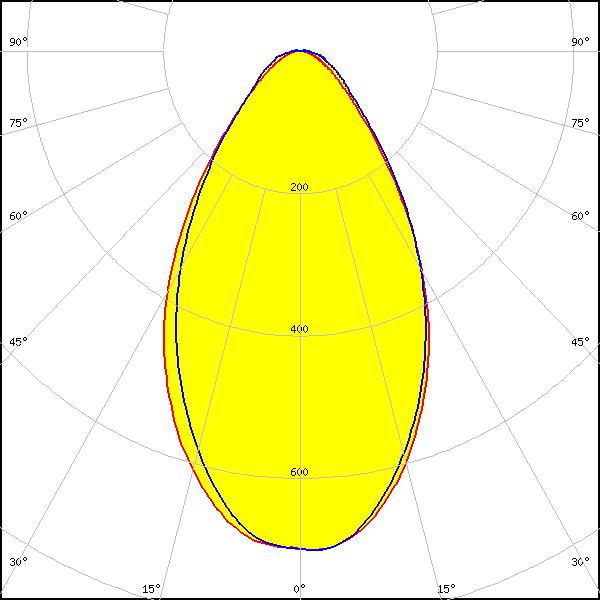

LUXEON 5050 Round LES
FWHM:
63° + 60°
FWTM:
109° + 116°
Peak intensity:
0.702 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
LEDs/each optic:
1
Light colour/type:
White
LED:

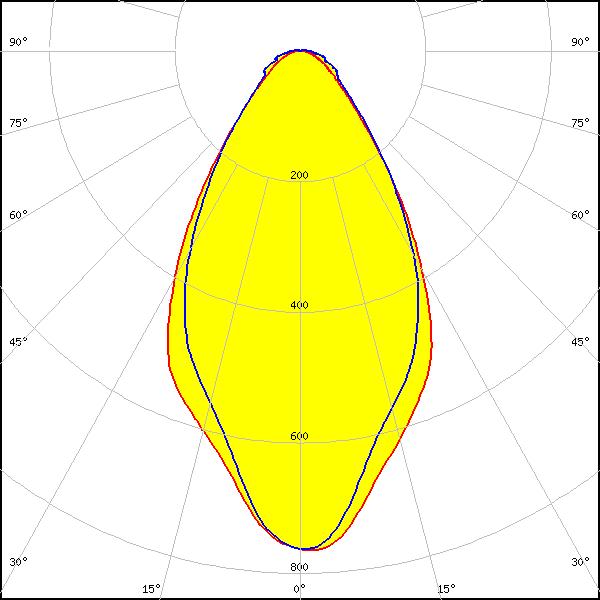

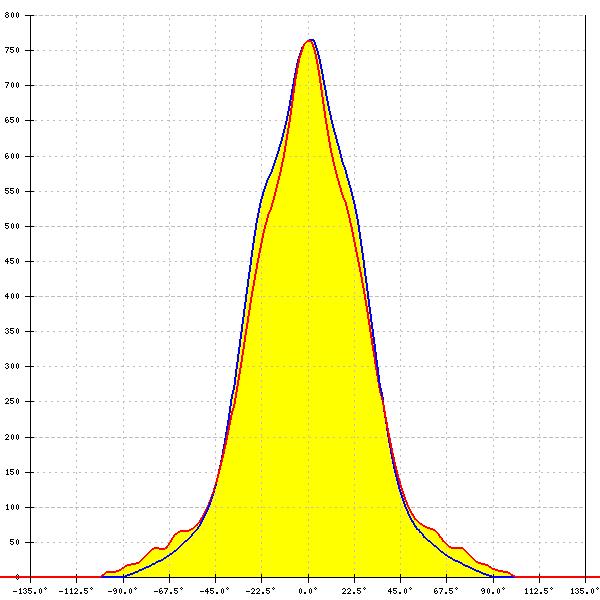

SST-10-B130
FWHM:
61°
FWTM:
104°
Peak intensity:
0.765 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Deep Red

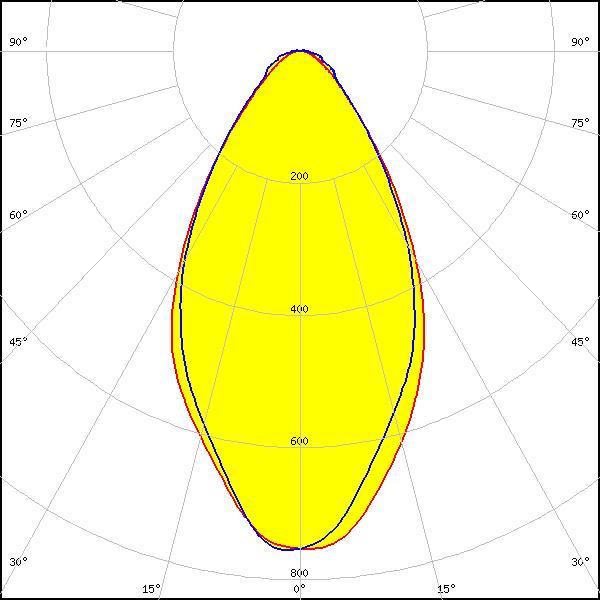

LED:

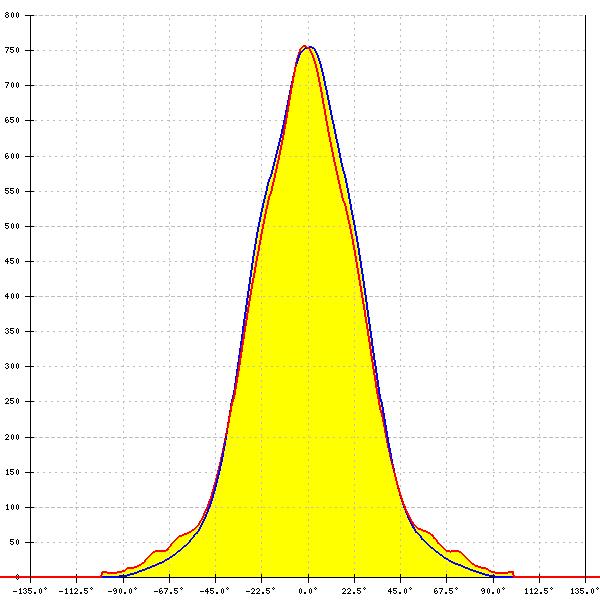

LinLED 280x55mm 1100lm 840 3x11 33V Opt G2
FWHM:
60° + 57°
FWTM:
103° + 105°
Peak intensity:
0.756 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

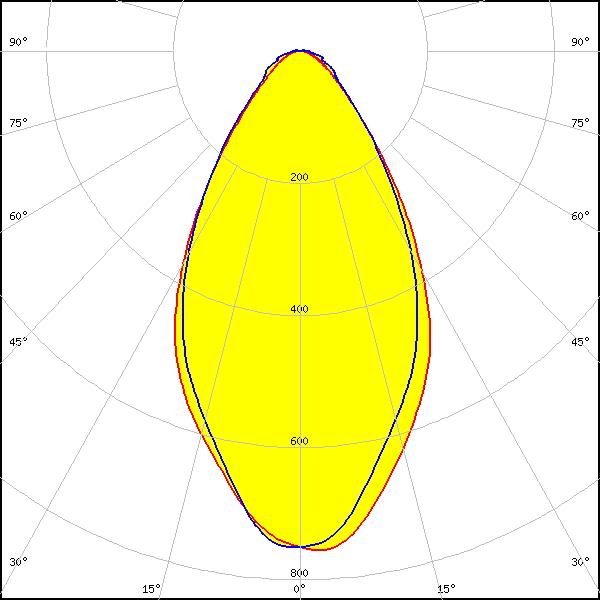

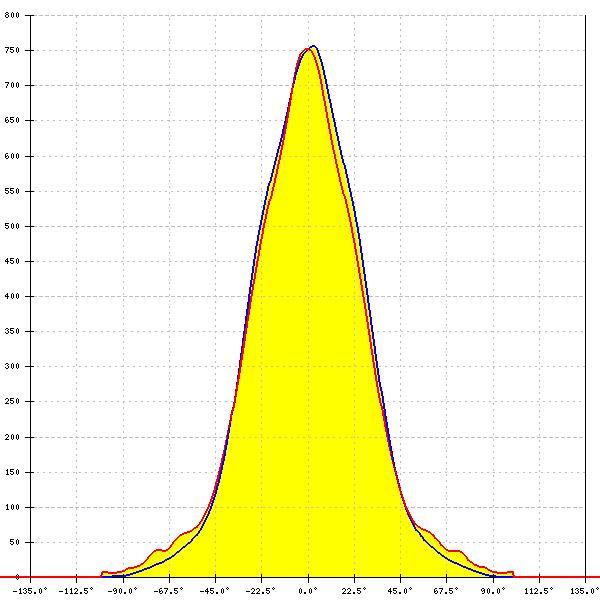

LinLED 280x55mm 2000lm 830 33V Opt G1
FWHM:
60° + 57°
FWTM:
102° + 106°
Peak intensity:
0.756 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

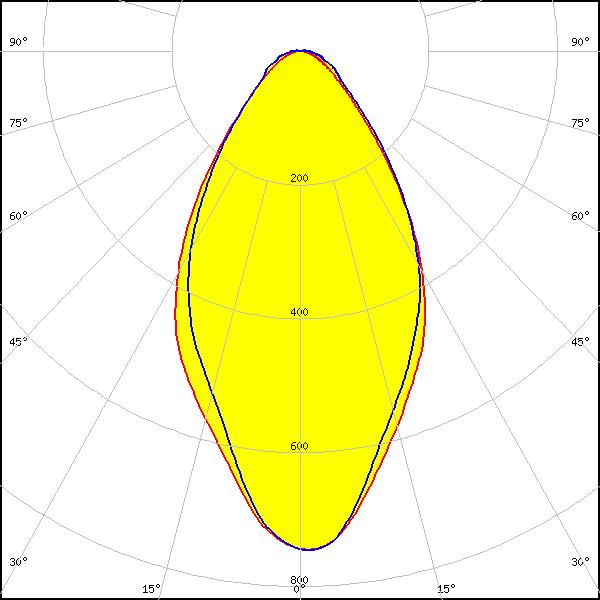

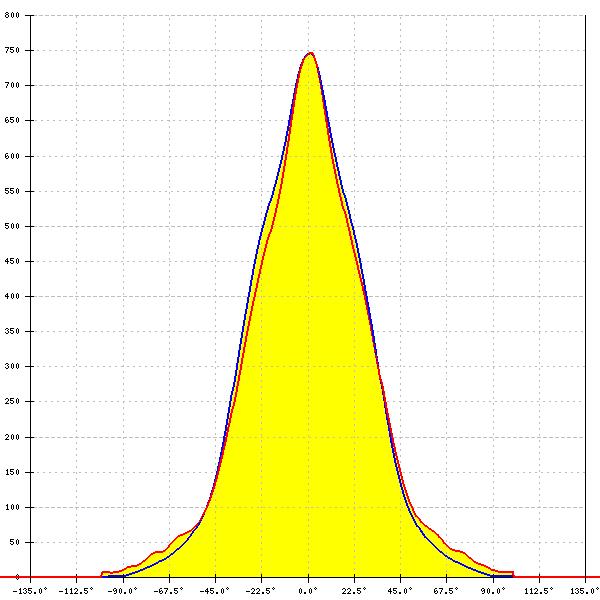

LED:
NVSxx19B/NVSxx19C
FWHM:
59°
FWTM:
109°
Peak intensity:
0.750 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

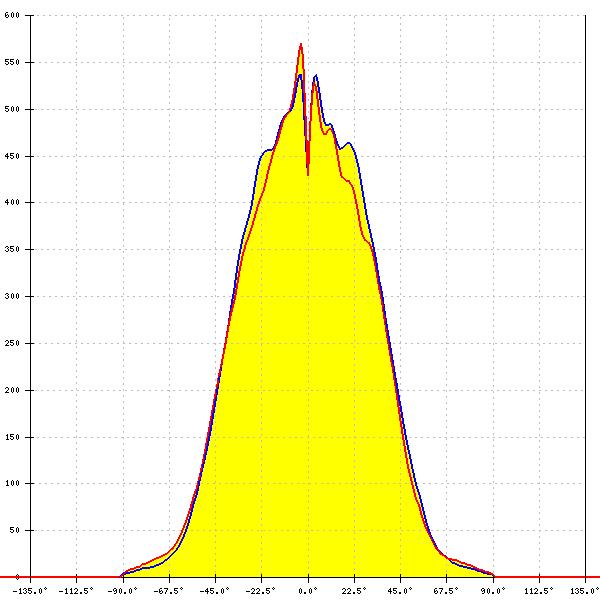

Duris E 2835
FWHM:
74°
FWTM:
116°
Peak intensity:
0.580 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

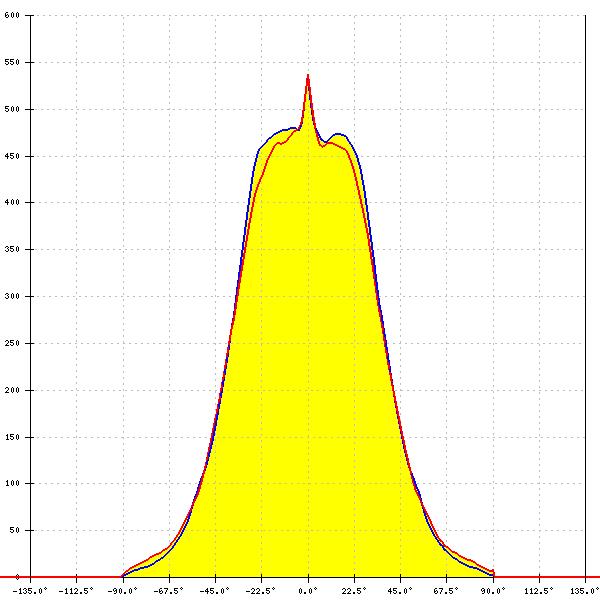

LED:

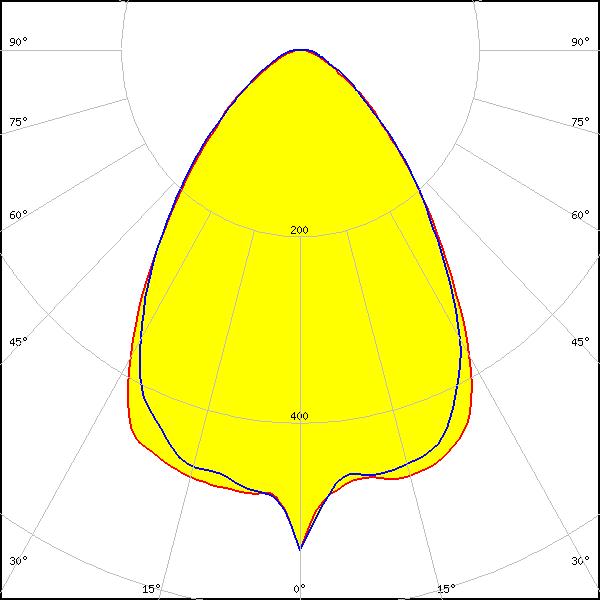

Duris S10
FWHM:
74°
FWTM:
120°
Peak intensity:
0.537 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

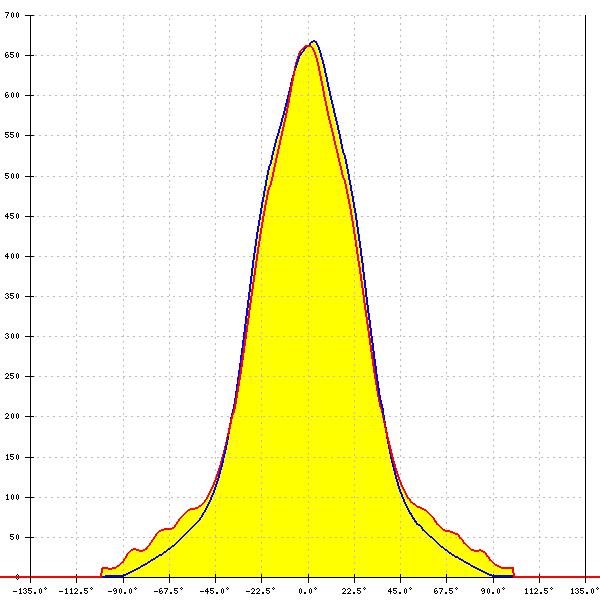

LED:

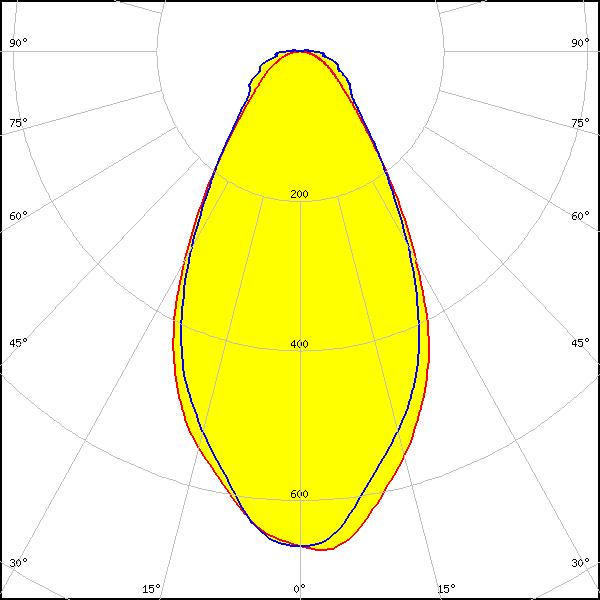

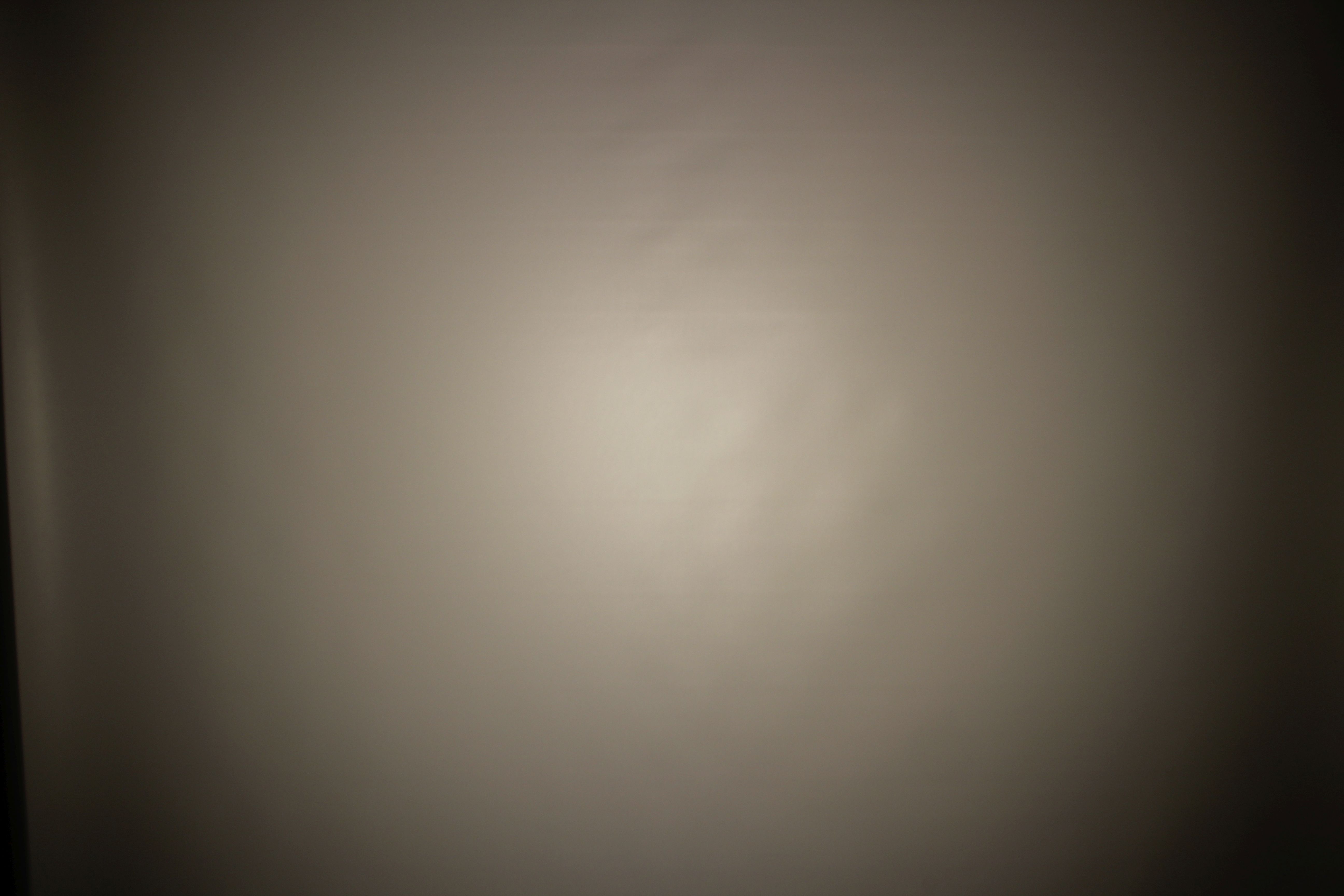

Duris S2
FWHM:
58°
FWTM:
117°
Peak intensity:
0.667 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

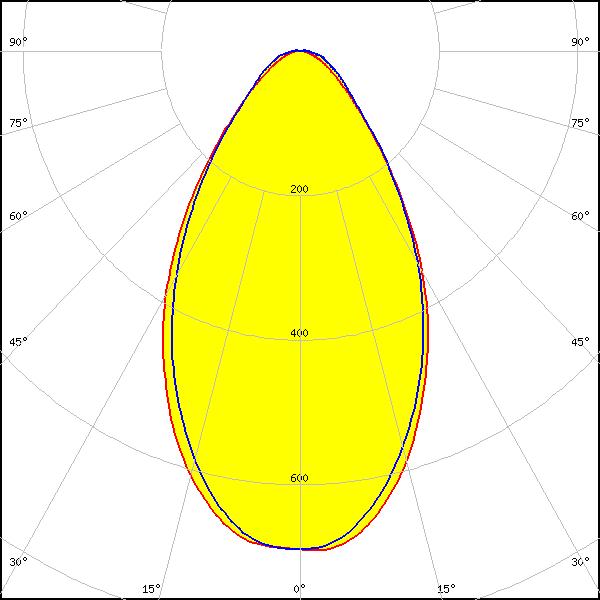

LED:

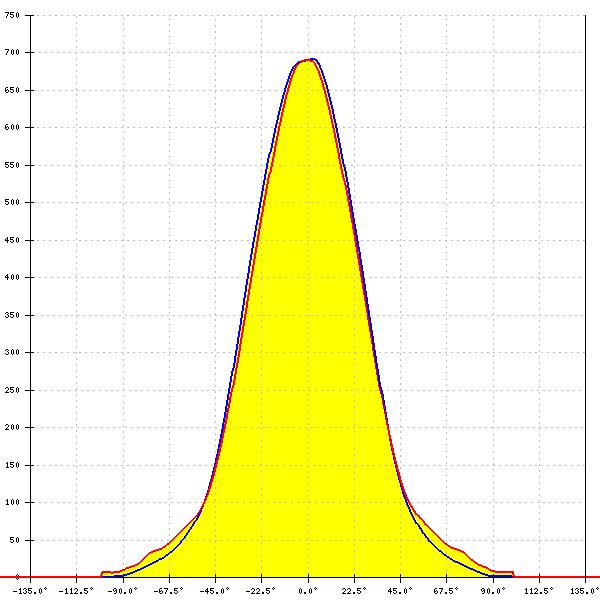

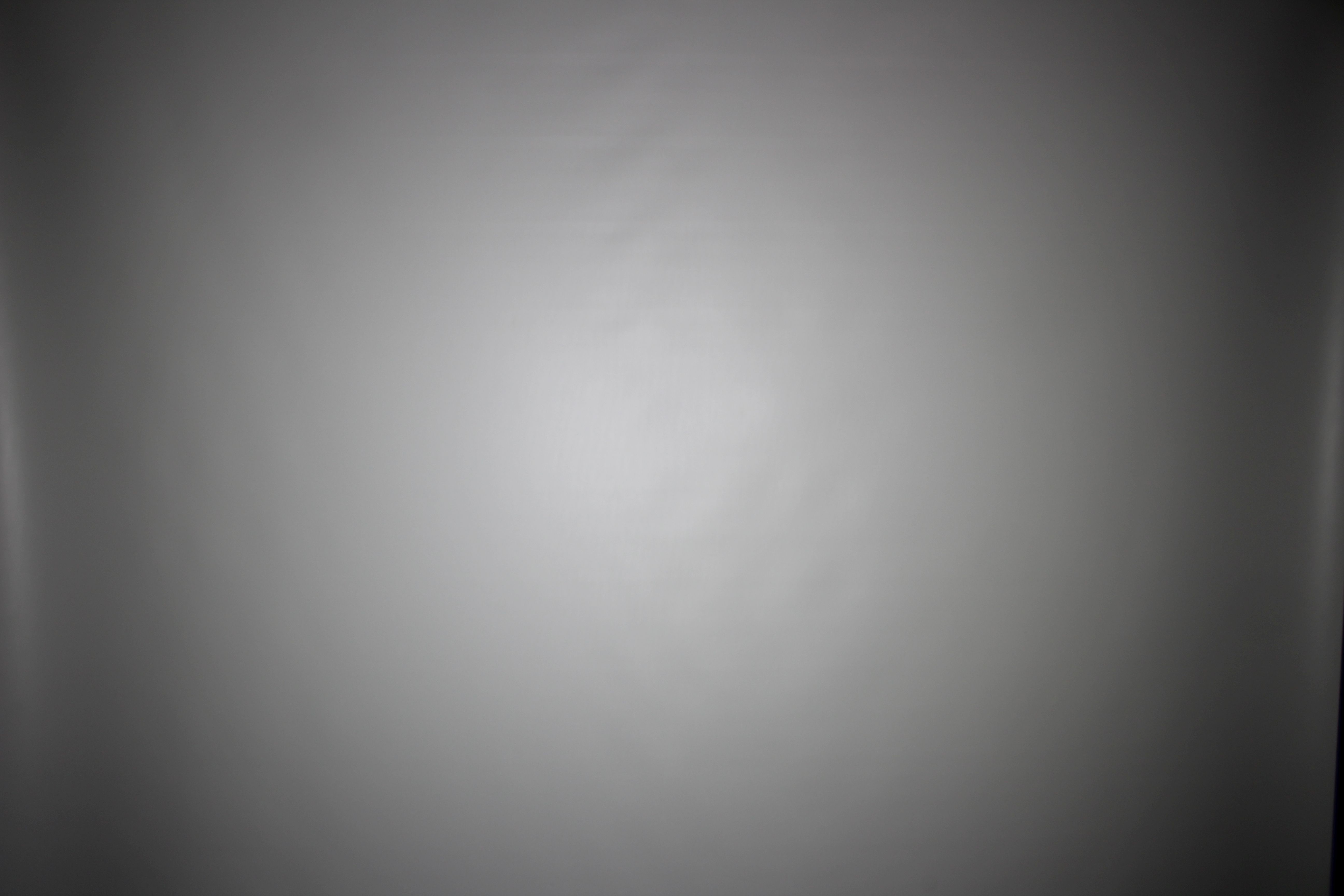

Duris S8
FWHM:
62°
FWTM:
113°
Peak intensity:
0.690 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

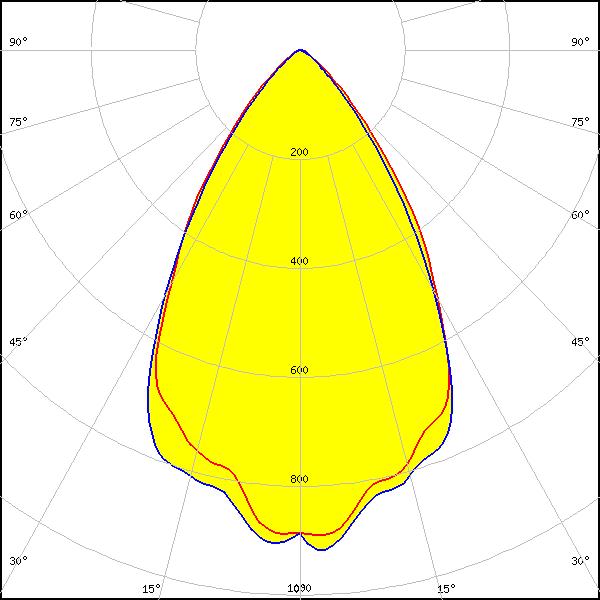

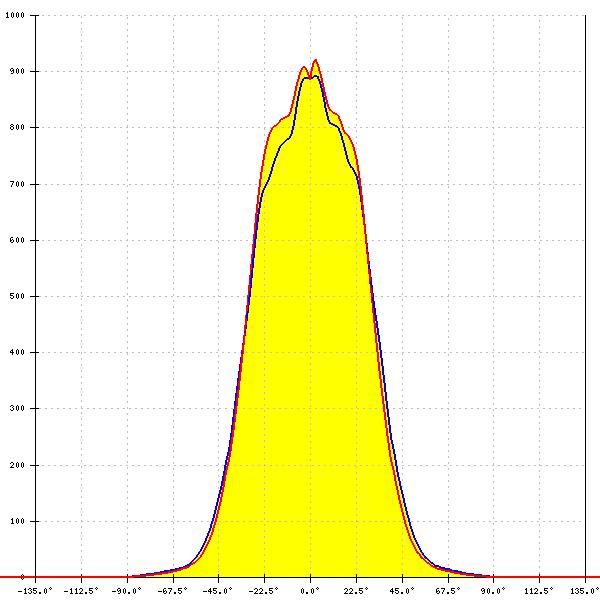

OSCONIQ P 3030
FWHM:
64°
FWTM:
96°
Peak intensity:
0.830 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Hyper Red
LED:

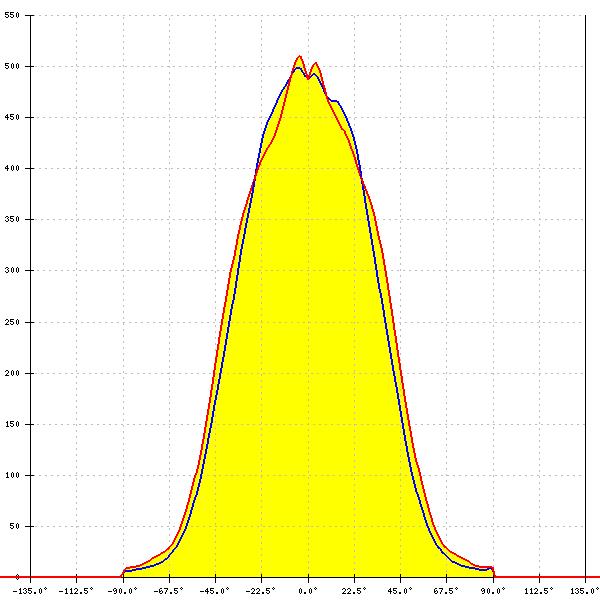

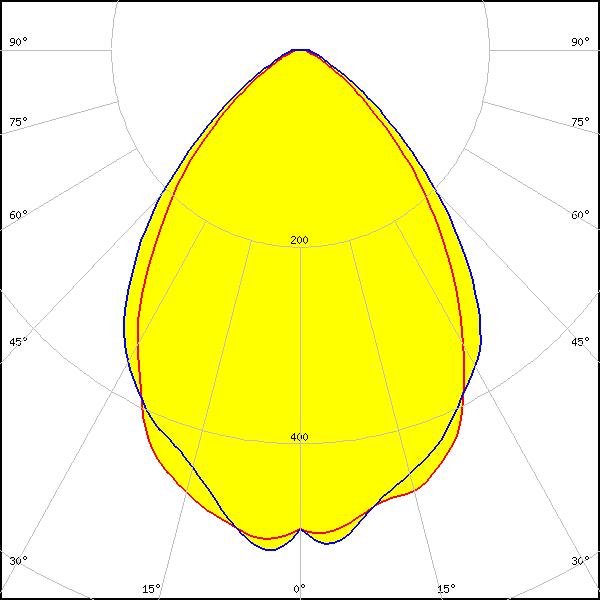

OSCONIQ P 3737 (2W version)
FWHM:
78°
FWTM:
120°
Peak intensity:
0.520 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

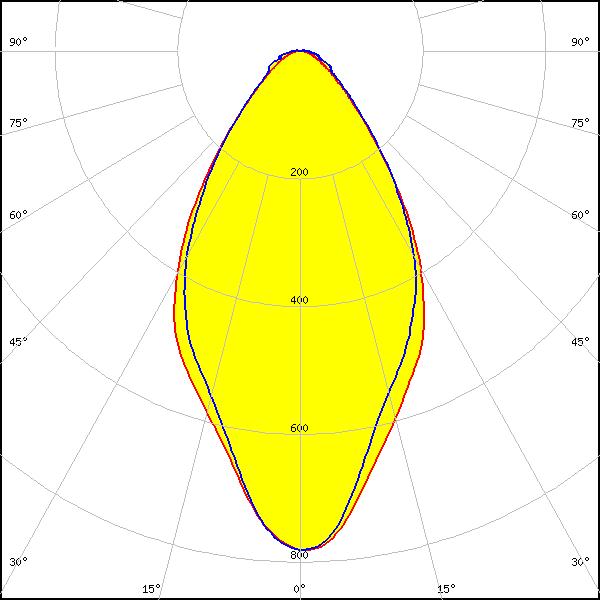

OSLON Square CSSRM2/CSSRM3
FWHM:
59°
FWTM:
105°
Peak intensity:
0.780 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

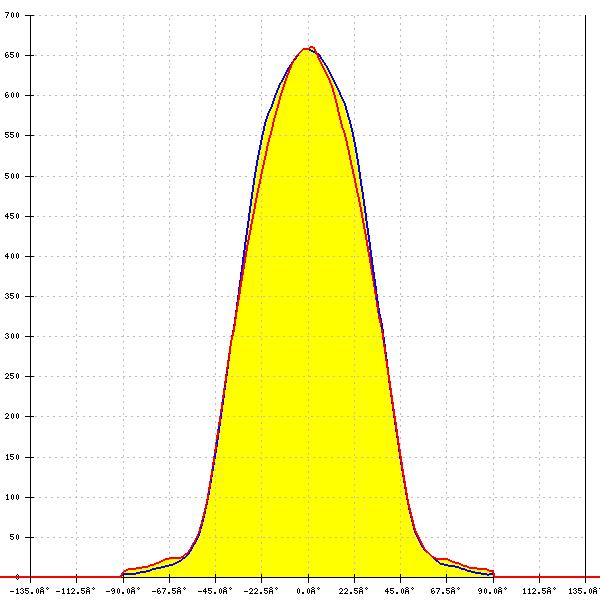

LED:

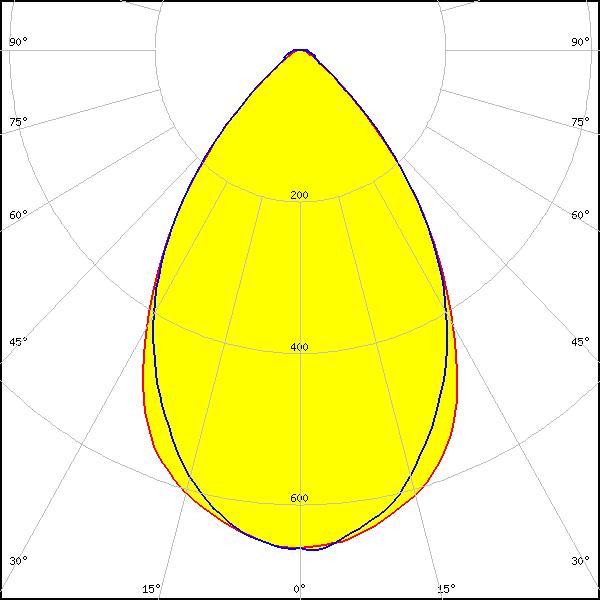

LH502D
FWHM:
70°
FWTM:
104°
Peak intensity:
0.663 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

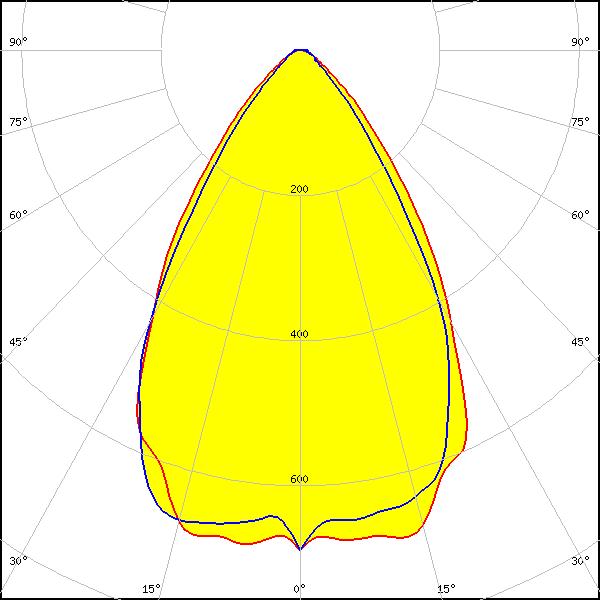

LM302Z
FWHM:
68° + 64°
FWTM:
104° + 94°
Peak intensity:
0.690 cd/lm
Efficiency:
85 %
LEDs/each optic:
2
Light colour/type:
White

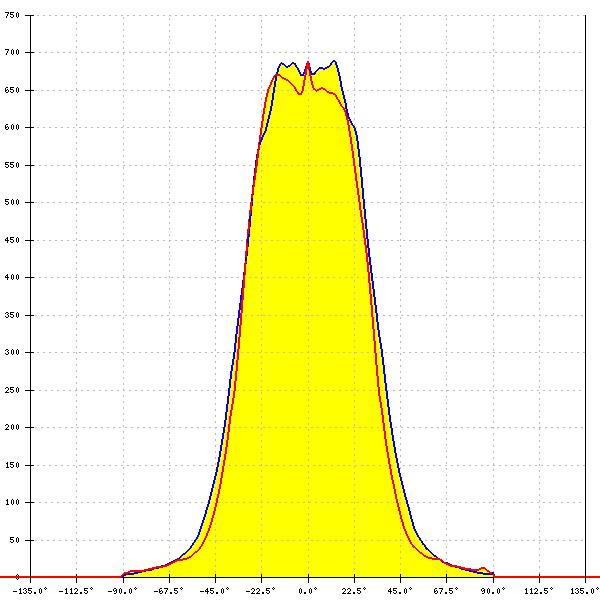

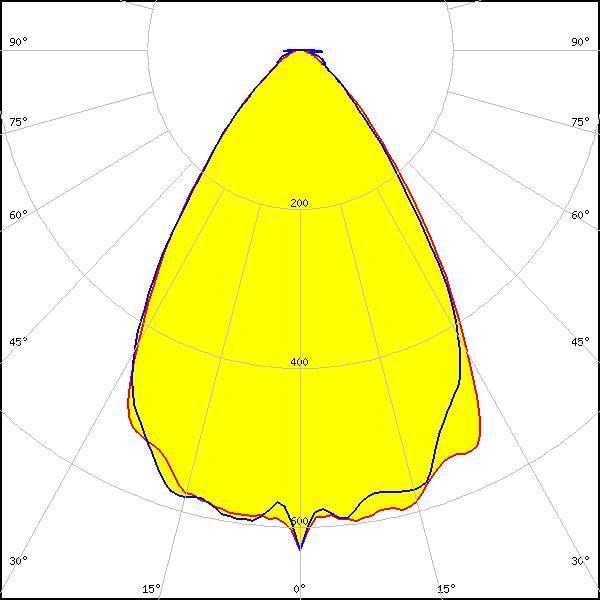

LED:

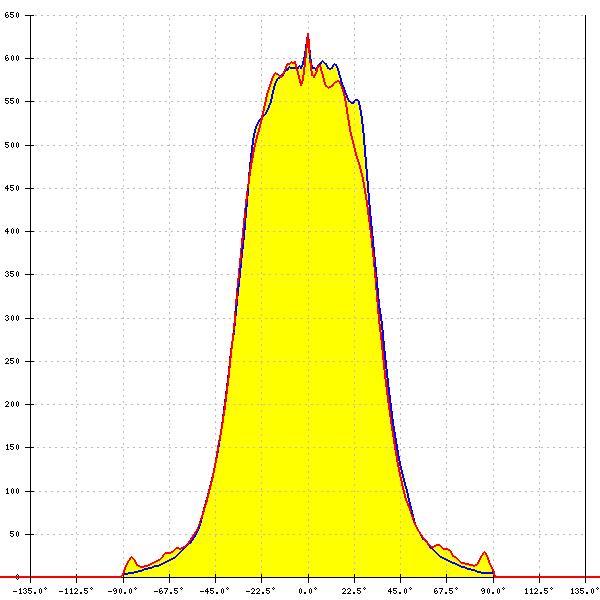

LM302Z
FWHM:
70° + 69°
FWTM:
105° + 105°
Peak intensity:
0.640 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
White

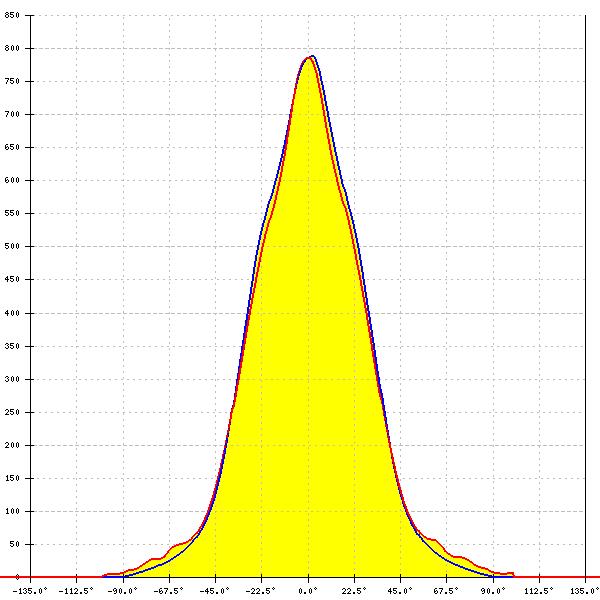

LED:

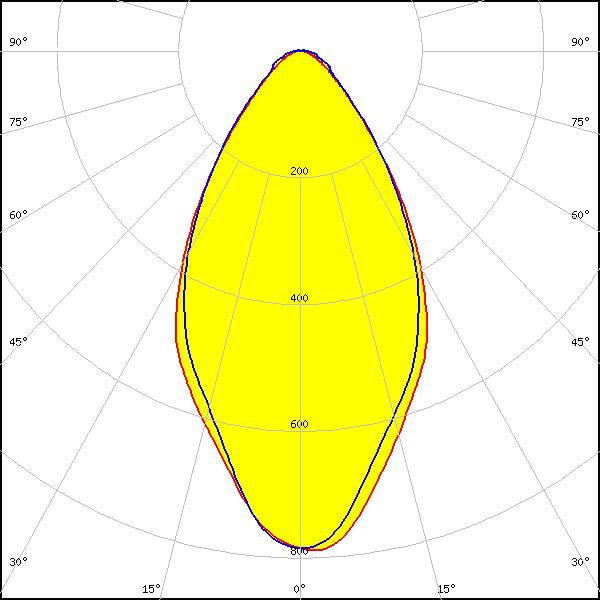

SEOUL 5630C
FWHM:
59°
FWTM:
103°
Peak intensity:
0.790 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
60° + 57°
FWTM:
101° + 104°
Peak intensity:
0.790 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

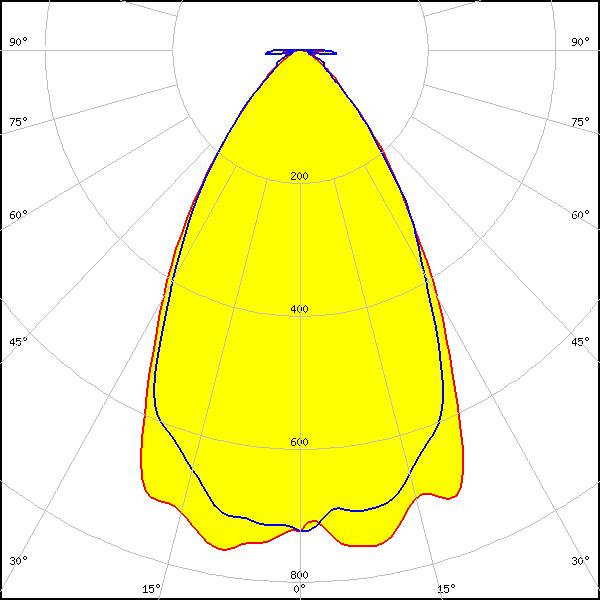

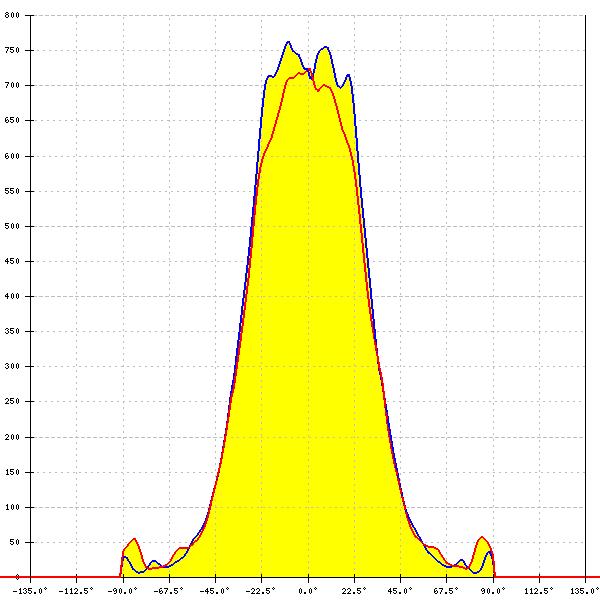

Z8Y22
FWHM:
62°
FWTM:
100°
Peak intensity:
0.770 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

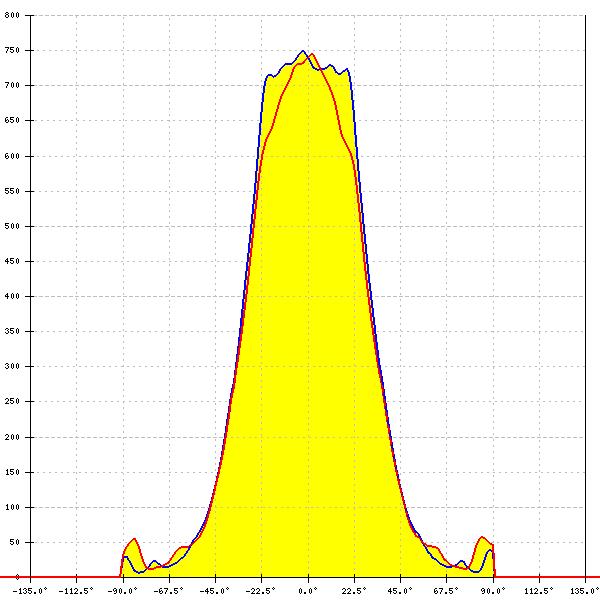

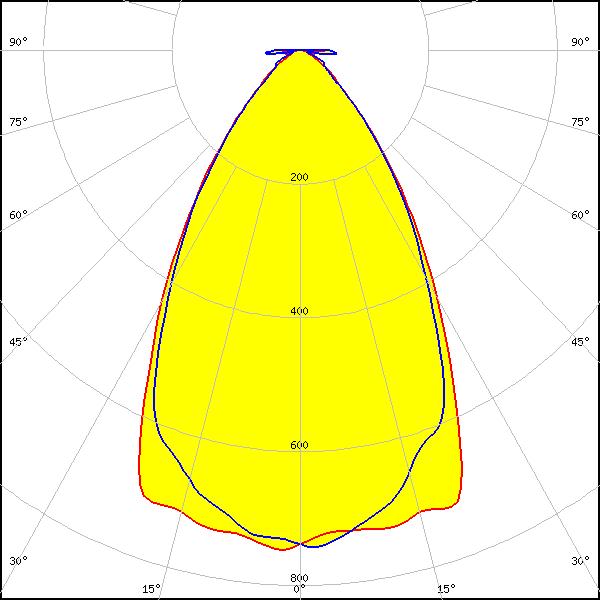

LED:
Z8Y22P
FWHM:
63°
FWTM:
101°
Peak intensity:
0.750 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

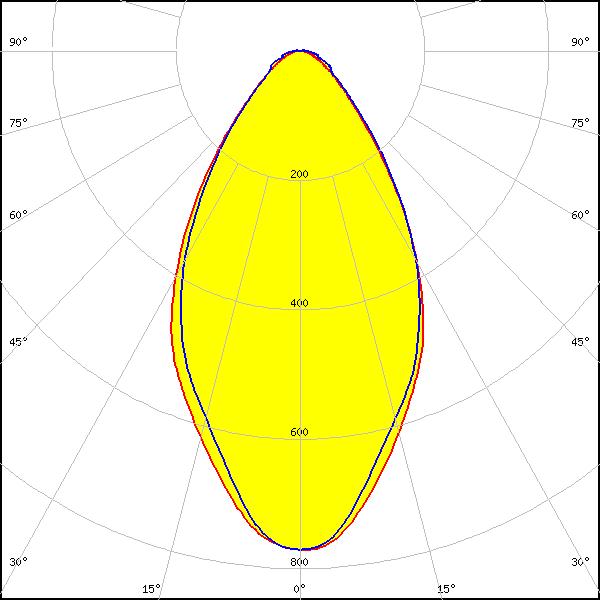

LED:

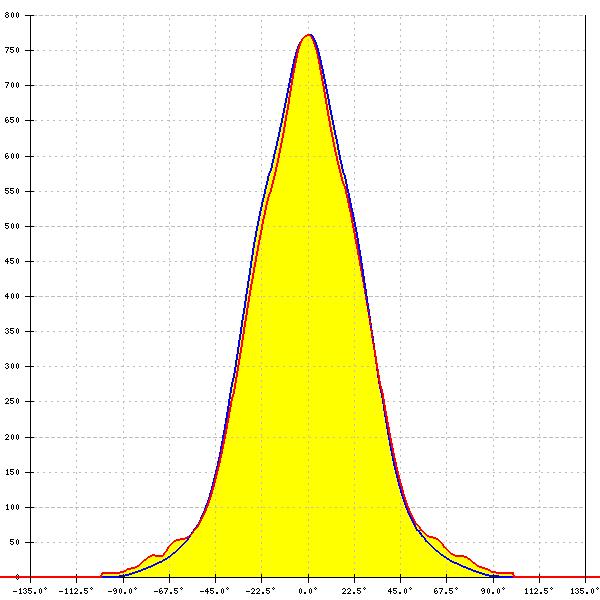

LLE G2 55x280mm 2000lm
FWHM:
59°
FWTM:
105°
Peak intensity:
0.770 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
