F16008_FLORENCE2-Z60
Print
~60° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
J Series 2835
FWHM:
53°
FWTM:
72°
Peak intensity:
1.228 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White
LED:
J Series 2835
FWHM:
56°
FWTM:
75°
Peak intensity:
1.160 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LED-Modul 280 x 55 mm 1B
FWHM:
48°
FWTM:
73°
Peak intensity:
1.348 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LED-Modul 280 x 55 mm 2F
FWHM:
51°
FWTM:
75°
Peak intensity:
1.274 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-BAR-G3 1100 280x55
FWHM:
54°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Square LES)
FWHM:
50°
FWTM:
68°
Peak intensity:
1.408 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
58°
FWTM:
99°
Peak intensity:
0.844 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
60°
FWTM:
81°
Peak intensity:
0.886 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM:
56°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFSW757H
FWHM:
56°
FWTM:
77°
Peak intensity:
1.127 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris E5
FWHM:
56°
FWTM:
78°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

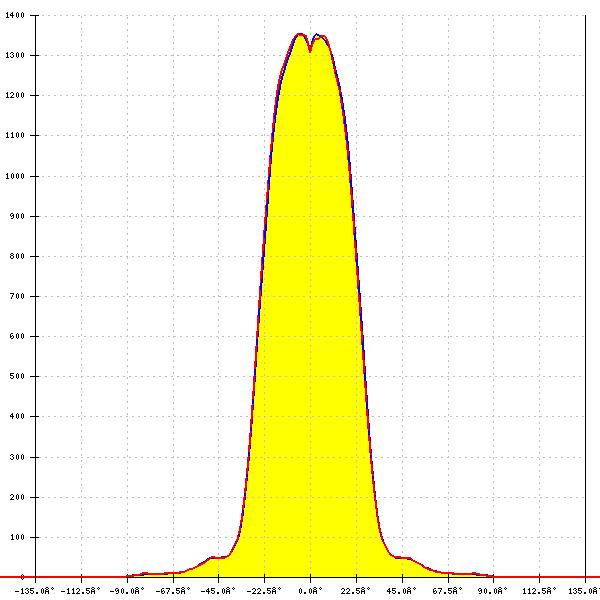

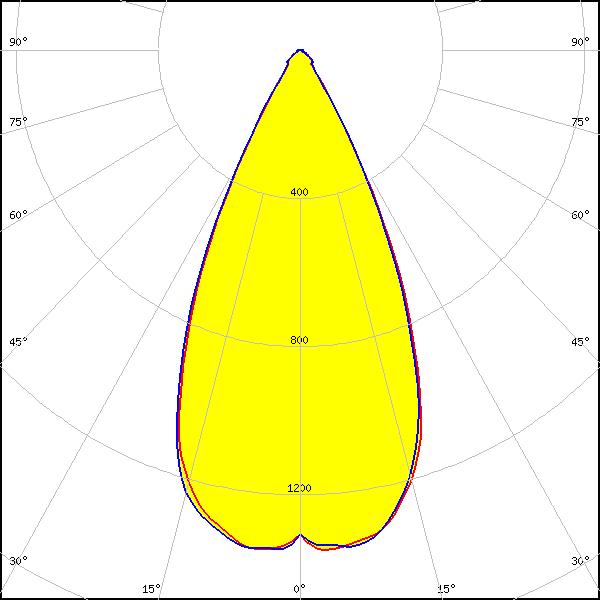

DURIS S5 (Single chip)
FWHM:
50°
FWTM:
68°
Peak intensity:
1.360 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
62°
FWTM:
96°
Peak intensity:
0.774 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line VO 1ft MF 3R HV5
FWHM:
44°
FWTM:
67°
Peak intensity:
1.545 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft 1100lm 3R HV4
FWHM:
57°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM:
54°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft HF 3R HV5
FWHM:
46°
FWTM:
69°
Peak intensity:
1.473 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM:
53°
FWTM:
75°
Peak intensity:
1.192 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM:
46°
FWTM:
69°
Peak intensity:
1.427 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM:
65°
FWTM:
84°
Peak intensity:
0.870 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
FWHM:
54°
FWTM:
75°
Peak intensity:
1.113 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
FWHM:
53°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
50°
FWTM:
70°
Peak intensity:
1.351 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
64°
FWTM:
116°
Peak intensity:
0.730 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LM302Z
FWHM:
60°
FWTM:
78°
Peak intensity:
1.033 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM302Z plus
FWHM:
52°
FWTM:
71°
Peak intensity:
1.310 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM302Z plus
FWHM:
64°
FWTM:
114°
Peak intensity:
0.764 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LM561B Plus
FWHM:
54°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LT-R286A
FWHM:
55°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL 5630
FWHM:
57°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM:
54°
FWTM:
72°
Peak intensity:
1.237 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
52°
FWTM:
70°
Peak intensity:
1.256 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
62° + 64°
FWTM:
102° + 112°
Peak intensity:
0.761 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
52°
FWTM:
70°
Peak intensity:
1.278 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
62° + 64°
FWTM:
100° + 112°
Peak intensity:
0.778 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
52°
FWTM:
70°
Peak intensity:
1.261 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
62° + 64°
FWTM:
99° + 111°
Peak intensity:
0.758 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
52°
FWTM:
70°
Peak intensity:
1.279 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
64° + 66°
FWTM:
105° + 116°
Peak intensity:
0.710 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
52°
FWTM:
72°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE 55x566mm 4000lm ADV5
FWHM:
55°
FWTM:
76°
Peak intensity:
1.165 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
