The real spot beams with YASMEEN and AMY

Experience the power and elegance of tight spot beams, carefully designed to highlight products and architecture with impeccable style and grace



Tight spots are one of the most challenging yet desirable beams on the market. Whether you want to boost sales or make your exhibition shine, there is a clear need for tight spot beams that highlight products on display. Both technical and aesthetic aspects should be taken into consideration to achieve a perfect tight spot for retail and architectural lighting.





We’re pleased to introduce Real Spot (RS) beams in our YASMEEN and AMY families ‒ designed to strike the perfect balance between optical perfor-mance and aesthetic appeal. RS beams feature a consistent beam shape, as shown in the polar graphs below, and a tight cutoff that makes them ideal for high-contrast lighting and precise object highlighting.

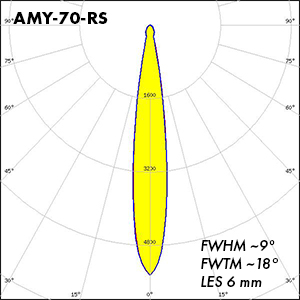

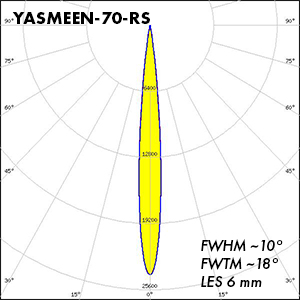

Polar_YASMEEN-70-RSPolar_AMY-70-RS

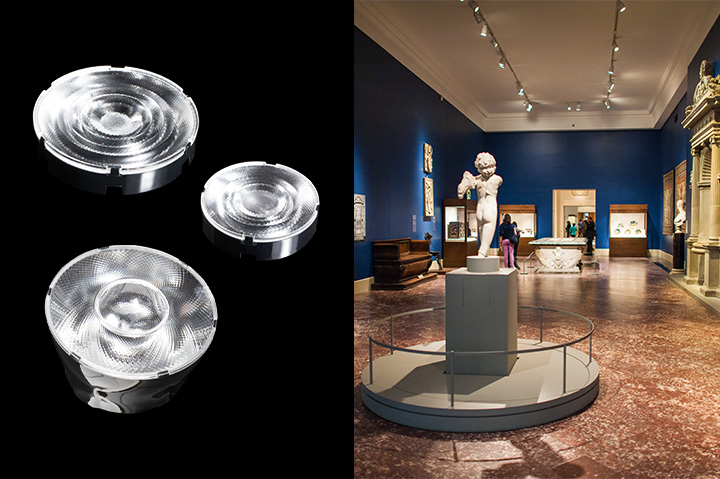

YASMEEN-RS optics are ideal for track lighting, combining exceptional light quality with a refined appearance. Thanks to patented technology, spill light is reduced to near-zero levels. RS beams are available in 35 mm, 50 mm, and 70 mm sizes within the YASMEEN family.

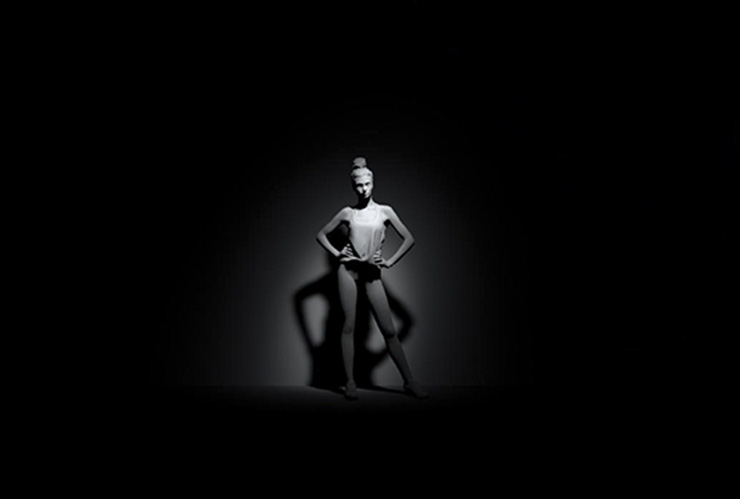

In the comparison below, the difference between the more universal YASMEEN-70-S and the tighter YASMEEN-70-RS is clearly visible. The S beam features a smooth main beam cutoff, while the RS version delivers a dramatic cutoff ‒ focusing all light precisely on the mannequin.




AMY-RS optics are ideal for slim, elegant track and downlights, thanks to AMY’s low-profile design. RS beam versions are available in 50 mm and 70 mm sizes.

The difference between AMY-50-S and AMY-50-RS is illustrated in the images below. Like YASMEEN, AMY’s S beam features a soft, pleasant cutoff ‒ ideal for general spot lighting. The RS beam, on the other hand, can achieve a beam angle as narrow as 9 degrees with a 6 mm LES, creating a more dramatic lighting effect.



YASMEEN-35 is optimised for LES sizes up to 6 mm, AMY- and YASMEEN-50 for LES sizes up to 10 mm, and AMY- and YASMEEN-70 for LES sizes up to 14.4 mm. These COB lenses can be easily attached to the luminaire using either the top flange or the two holders designed for HEKLA, B+W and BJB connectors.



Indoor/Architectural indoor lighting/Track and spot lighting

Indoor/Retail lighting/Track and spot lighting

Indoor/Special indoor applications/Ultra-narrow beams

AMY-70-RS

AMY-50-RS

YASMEEN-70-RS

YASMEEN-35-RS
