YASMEEN-35-RS
Print
~10° spot beam
This product consists of multiple buying options. See ordering information.

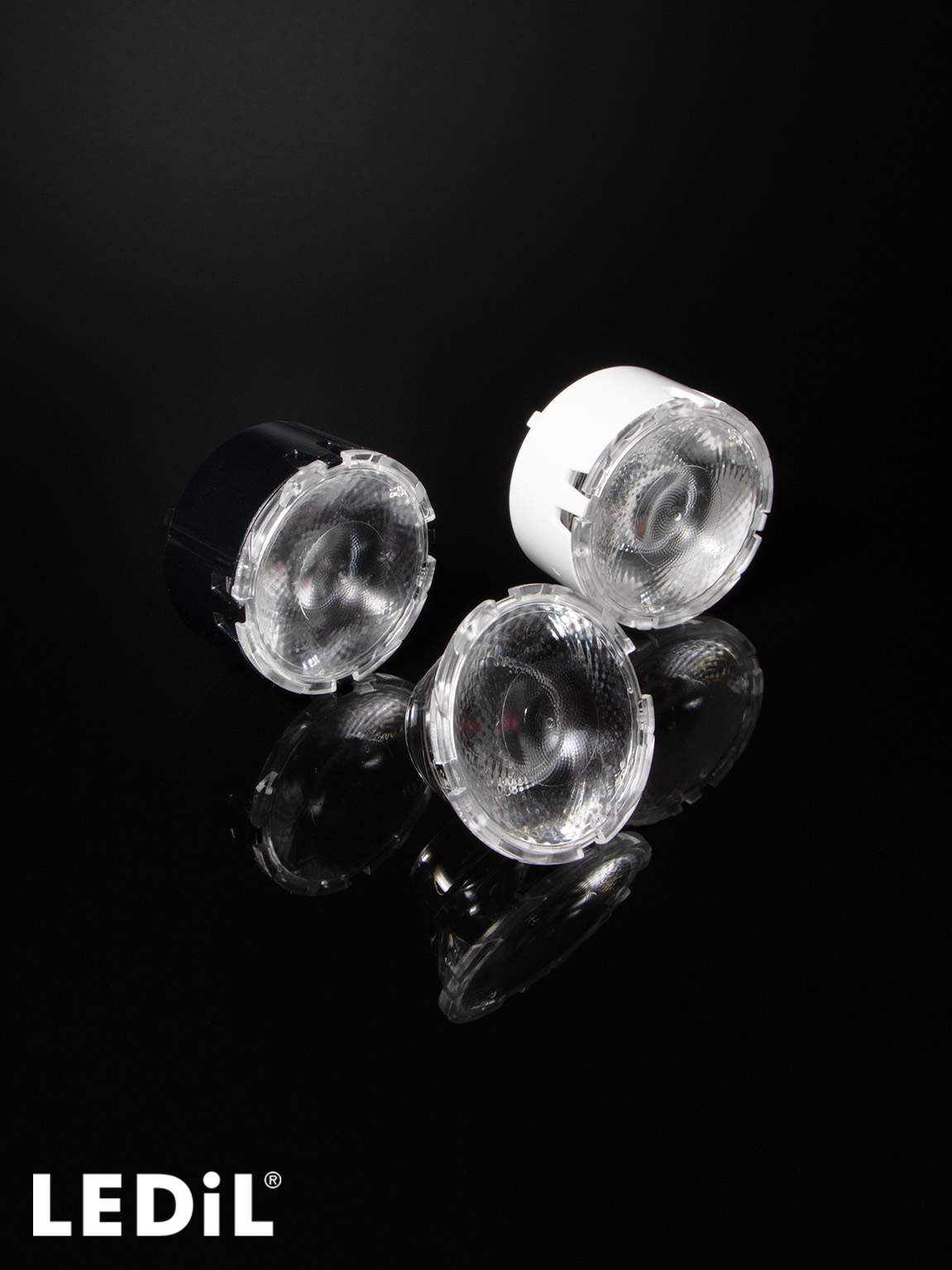

Component Materials
- YASMEEN-35-RSSingle lens
- YASMEEN-35-HLD-B-WHTHolderPC
- YASMEEN-35-HLD-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

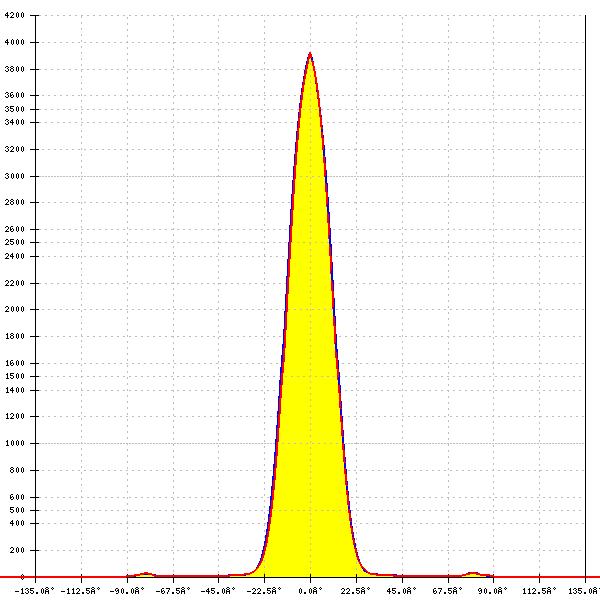

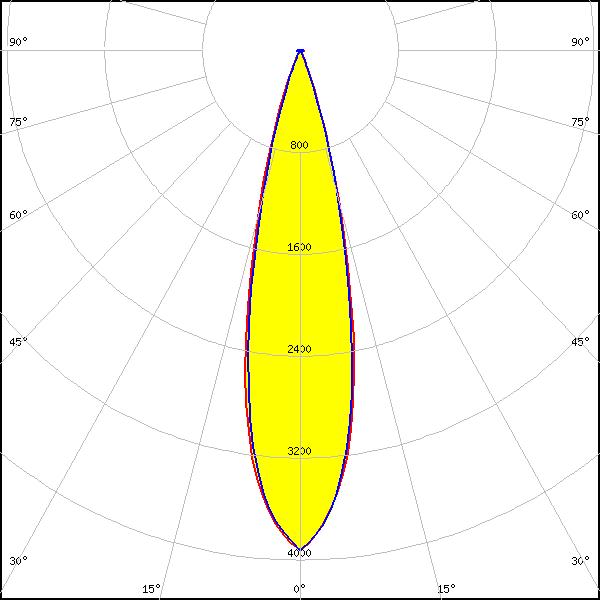

LED:
V9 HD Gen 8
Ordering code: CP19707_YASMEEN-35-RS-B
LES size: 8.8 mm
Required components:
FWHM:
24°
FWTM:
40°
Peak intensity:
3.925 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

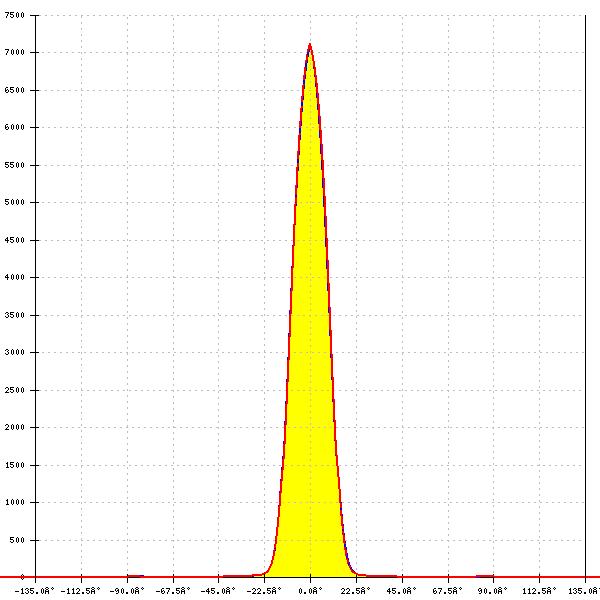

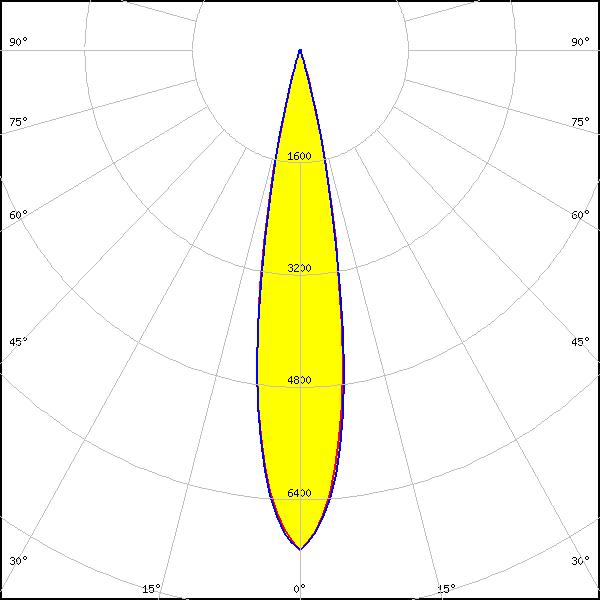

LED:
Vesta TW 6mm DP
Ordering code: CP19707_YASMEEN-35-RS-B
LES size: 6.3 mm
Required components:
FWHM:
20°
FWTM:
32°
Peak intensity:
7.123 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

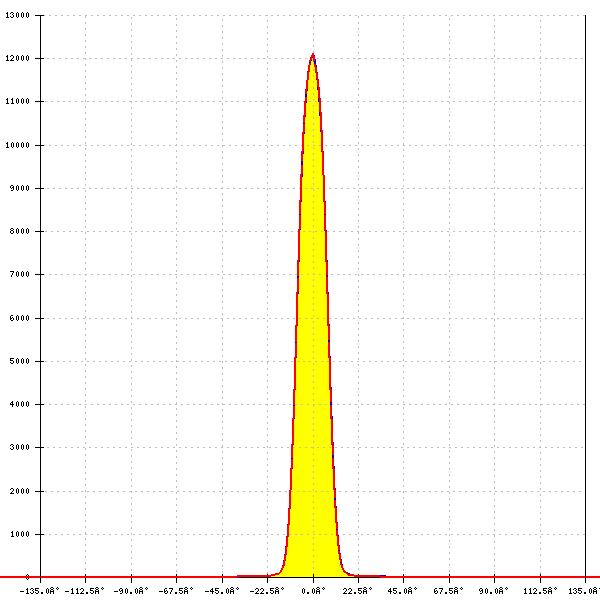

LED:

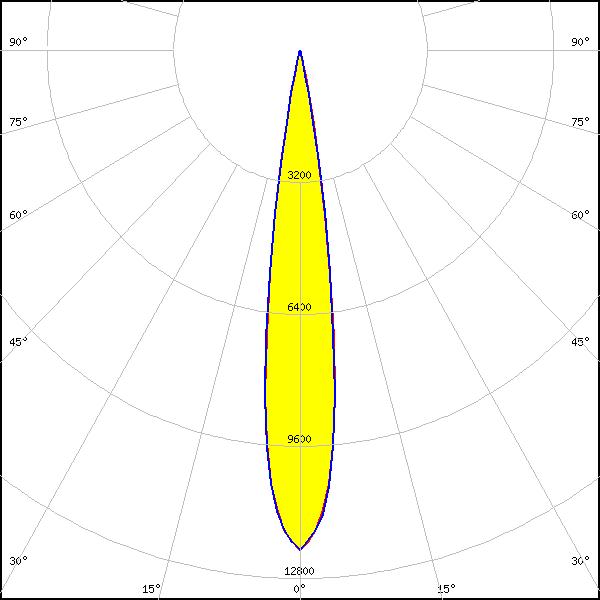

CLU7A2/7A3
Ordering code: CP19707_YASMEEN-35-RS-B
LES size: 4.2 mm
Required components:
FWHM:
16°
FWTM:
24°
Peak intensity:
12.121 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

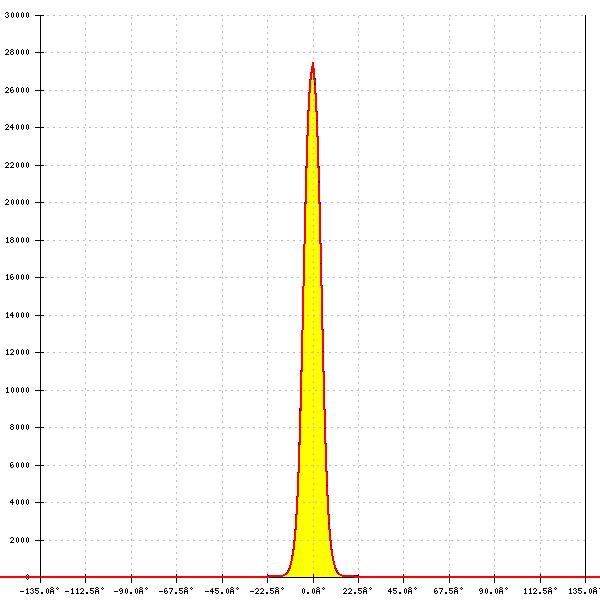

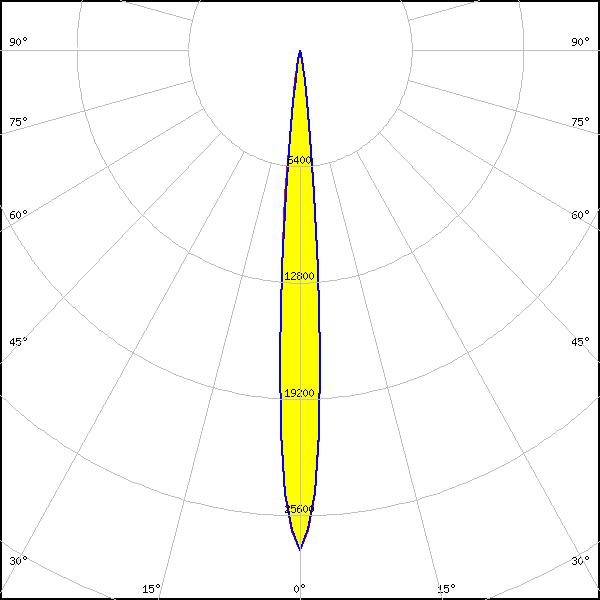

CLU7L3
Ordering code: CP19707_YASMEEN-35-RS-B
LES size: 2.4 mm
Required components:
FWHM:
10°
FWTM:
16°
Peak intensity:
27.503 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

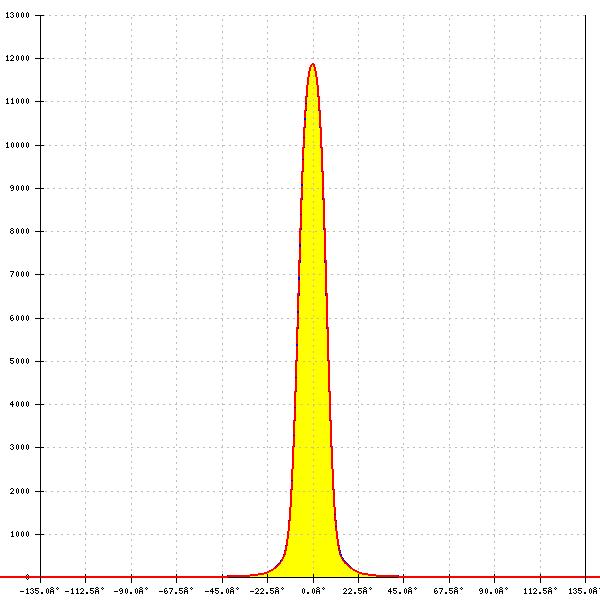

LED:

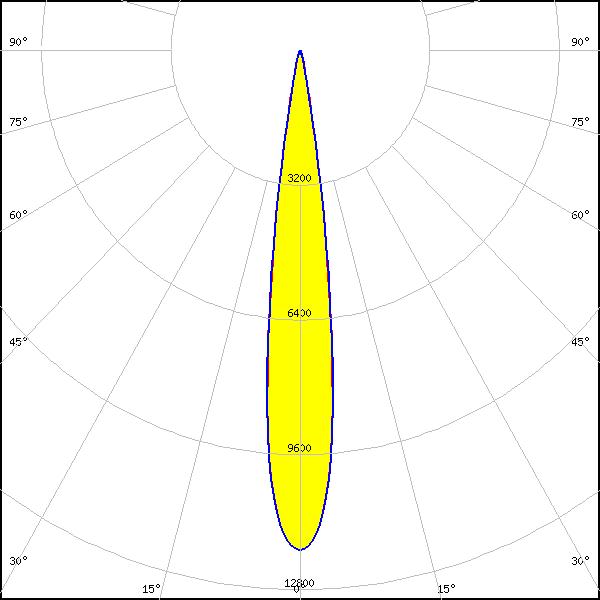

CLU7R3
Ordering code: CP19707_YASMEEN-35-RS-B
LES size: 4.2 mm
Required components:
FWHM:
15°
FWTM:
23°
Peak intensity:
11.872 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

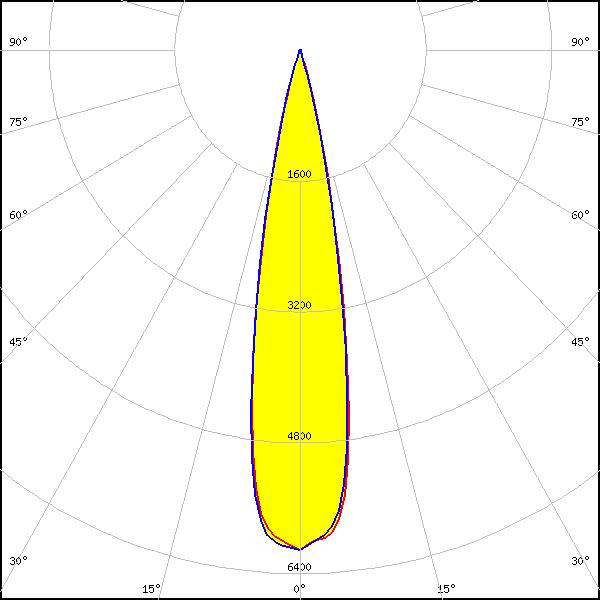

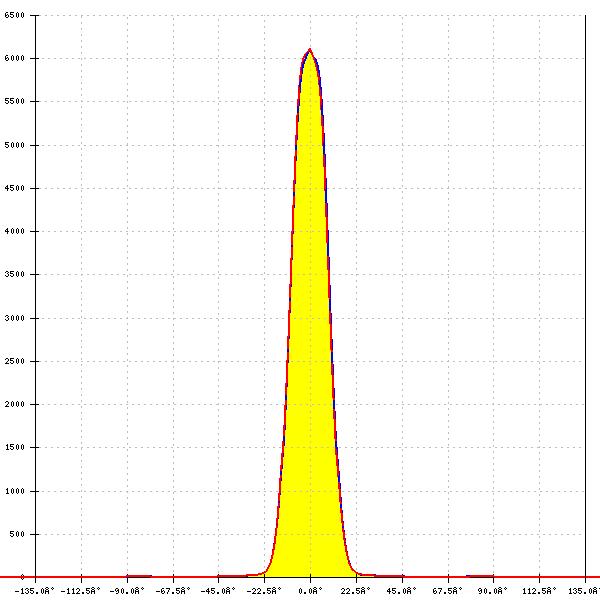

CxM-6 (13.5x13.5)
Ordering code: CP19707_YASMEEN-35-RS-B
LES size: 6.3 mm
Required components:
FWHM:
20°
FWTM:
32°
Peak intensity:
6.115 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
