ROSE keeps performing – The 3rd generation now available

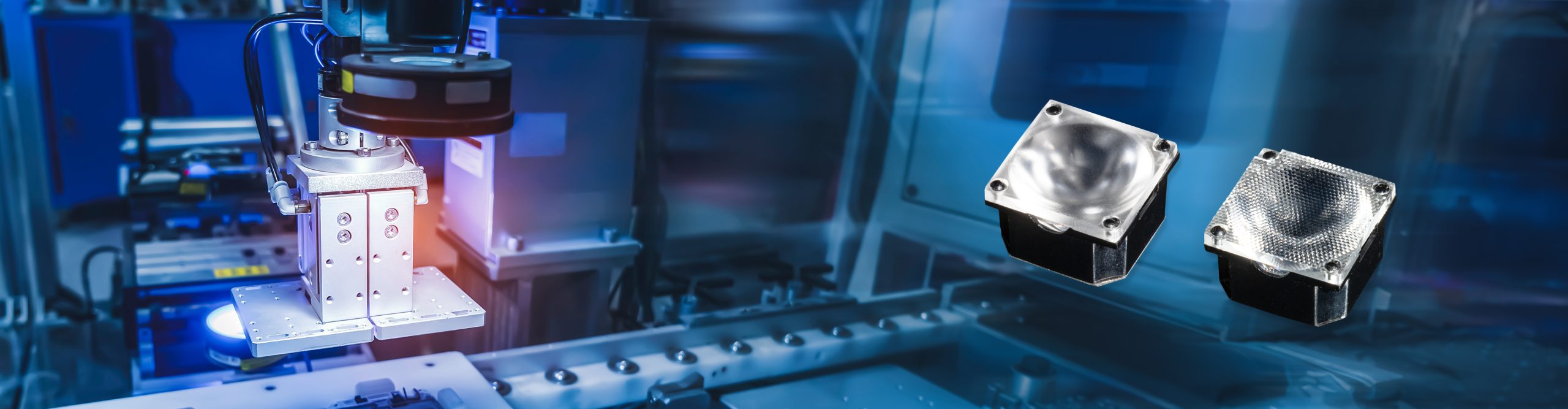

The compact silicone optic for a multitude of applications

With a focus on precision, durability, and adaptability, the LEDiL’s ROSE-UV lenses have established a trusted position in a wide variety of UV fixtures. Now with the 3rd generation the range offers a full set of beams for every type of UV-LEDs. In addition to regular symmetrical beams, we have an elliptical light distribution available for the first time.

Engineered to accommodate both flat packaged and domed LEDs the ROSE-UV-G3 is both backward compatible and more streamlined product family for modern LED packages.

ROSE-UV-G3	S	SS	M	M2	W	W2	O
Max LED package	7575	7575	7575	3535	7575	3535	5050
LED types	FLAT DOME	FLAT DOME	DOME	FLAT	DOME	FLAT	FLAT DOME
FWHM*	14˚	12˚	28˚	26˚	40˚	30˚	20+35˚
FWTM*	28˚	24˚	54˚	50˚	70˚	60˚	35+70˚
Efficiency*	92 %	92 %	88 %	91 %	93 %	93 %	84 %
Peak value (W/sr)*	1000-2000	500-2000	200-300	300-400	100-200	200-400	300-400

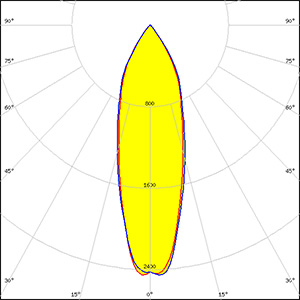

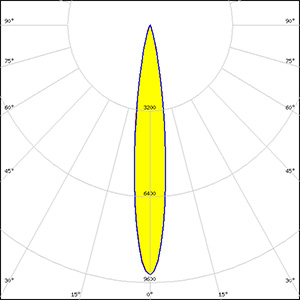

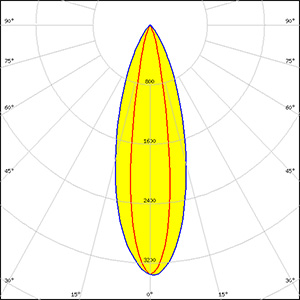

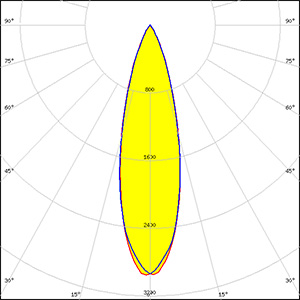

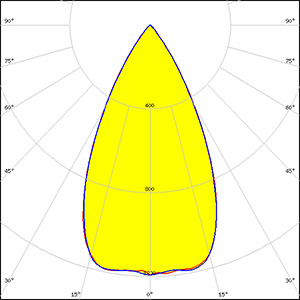

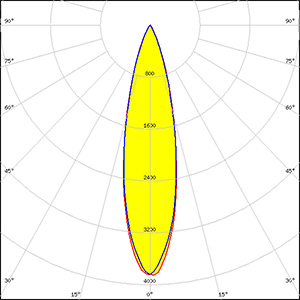

Polar curve

*typical values and actual results depend on the chosen LED

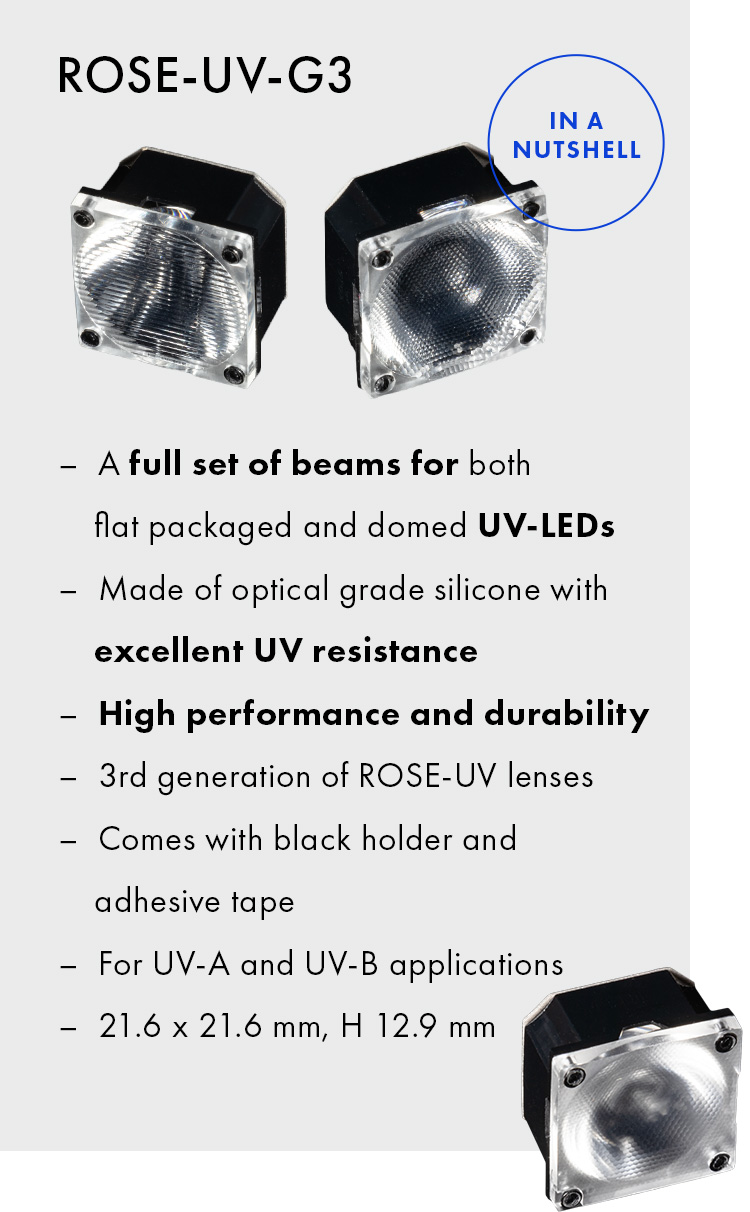

High performance and durability

Although extremely compact, ROSE-UV lenses can deliver high performance in demanding applications. The optics are made from optical grade silicone for excellent UV exposure resistance. Whether you’re engaged in non-destructive testing, curing processes, anti-bacterial lighting, or machine vision applications, ROSE-UV-G3 lenses are designed to allow consistent and reliable results over the long term.

Easy integration and scalability

Each lens comes with a black holder and an adhesive tape for convenient and secure installation. The square shaped holder design allow versatile layout designs and easy integration into your existing luminaire setups. Unlock a new level of precision, durability, and versatility in your UV-applications with ROSE-UV-G3.

If you have already been using our previous versions of ROSE-UV lenses and need to know what version suits you the best, here is an table for that.

Beam type	Old version	LED type	New version
S	didn't exist	DOME	CA19406_ROSE-UV-G3-S
	didn't exist	DOME	CA19366_ROSE-UV-G3-S-PIN
	FCA14011_G2-NIS033U-S	FLAT	CA19406_ROSE-UV-G3-S
	FCA14963_G2-NIS033U-S-PIN	FLAT	CA19366_ROSE-UV-G3-S-PIN
SS	FCA15007_G2-ROSE-UV-SS	DOME	CA19412_ROSE-UV-G3-SS
	didn't exist	DOME	CA19371_ROSE-UV-G3-SS-PIN
	FCA15048_G2-NIS033U-SS	FLAT	CA19412_ROSE-UV-G3-SS
	FCA17655_G2-NIS033U-SS-PIN	FLAT	CA19371_ROSE-UV-G3-SS-PIN
M	FCA15008_G2-ROSE-UV-M	DOME	CA19407_ROSE-UV-G3-M
	didn't exist	DOME	CA19367_ROSE-UV-G3-M-PIN
	FCA14405_G2-NIS033U-M	FLAT	CA19411_ROSE-UV-G3-M2
	FCA14962_G2-NIS033U-M-PIN	FLAT	CA19370_ROSE-UV-G3-M2-PIN
W	FCA15009_G2-ROSE-UV-W	DOME	CA19408_ROSE-UV-G3-W
	didn't exist	DOME	CA19368_ROSE-UV-G3-W-PIN
	FCA14464_G2-NIS033U-W	FLAT	CA19410_ROSE-UV-G3-W2
	FCA14961_G2-NIS033U-W-PIN	FLAT	CA19369_ROSE-UV-G3-W2-PIN
O	didn't exist	DOME	CA19501_ROSE-UV-G3-O
	didn't exist	DOME	CA18958_ROSE-UV-G3-O-PIN
	didn't exist	FLAT	CA19501_ROSE-UV-G3-O
	didn't exist	FLAT	CA18958_ROSE-UV-G3-O-PIN
