CA19408_ROSE-UV-G3-W
Print![](http://lediloptics.cn/wp-content/themes/LEDiL_Theme/img/icon-download.png)
~40° wide beam optimized for up to 3535 LED packages with dome. Assembly with black holder and installation tape.
Specification
-
Dimensions:22 x 22 mm
-
Height:12.86 mm
-
Colour:black
-
RoHS and REACH compliant:Yes
Materials
- ROSE-UV-G3-W, Single lens, Silicone
- ROSE-LT-HLD-I-BLK, Holder, PC
- ROSE-TAPE, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:1620 pcs
-
Box size:480 x 280 x 165 mm
-
Box weight:6.9 kg
-
MPQ:180 pcs
-
MOQ:360 pcs
-
MOQ size:480 x 280 x 70 mm
-
MOQ weight:1.7 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

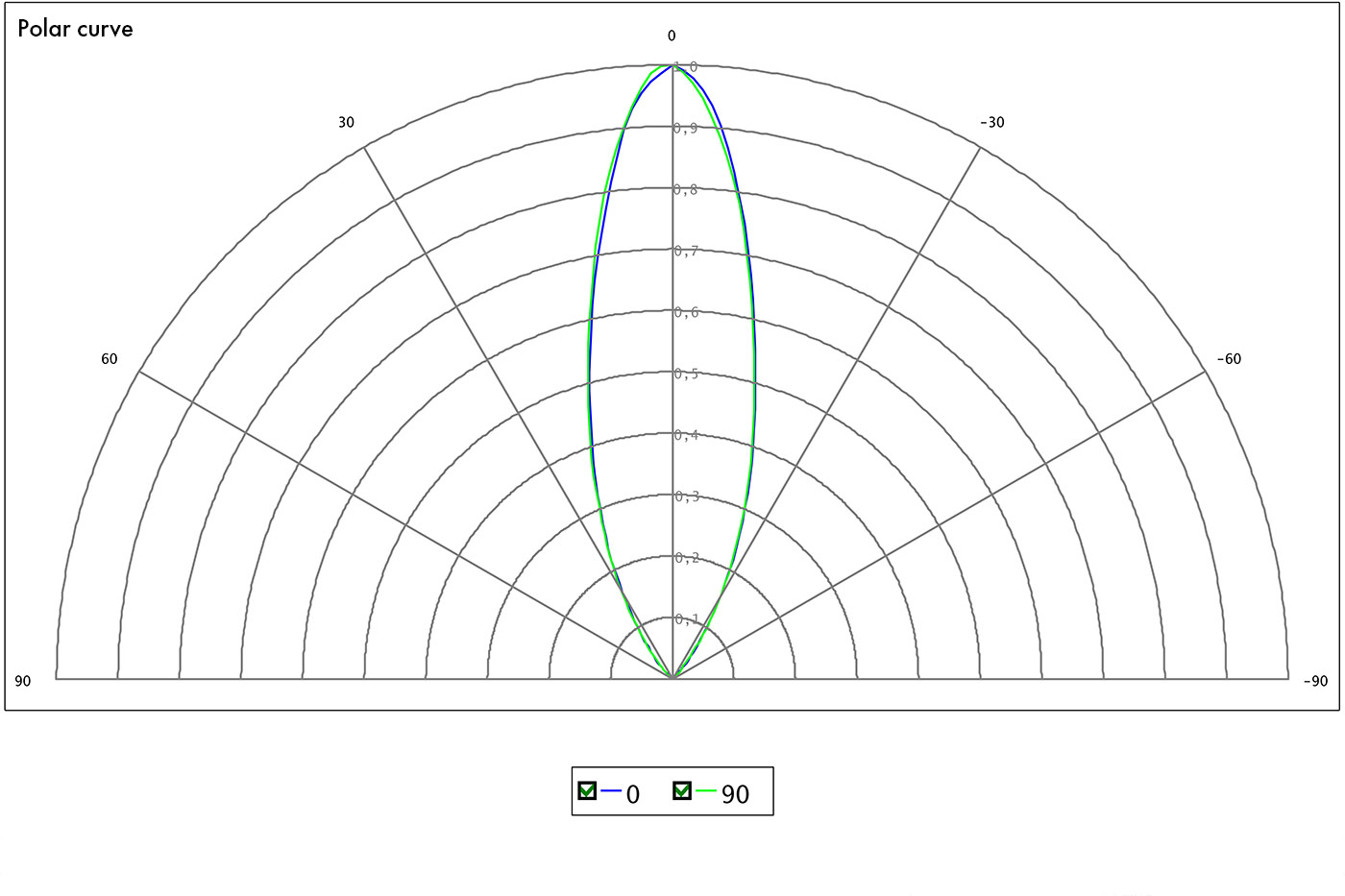

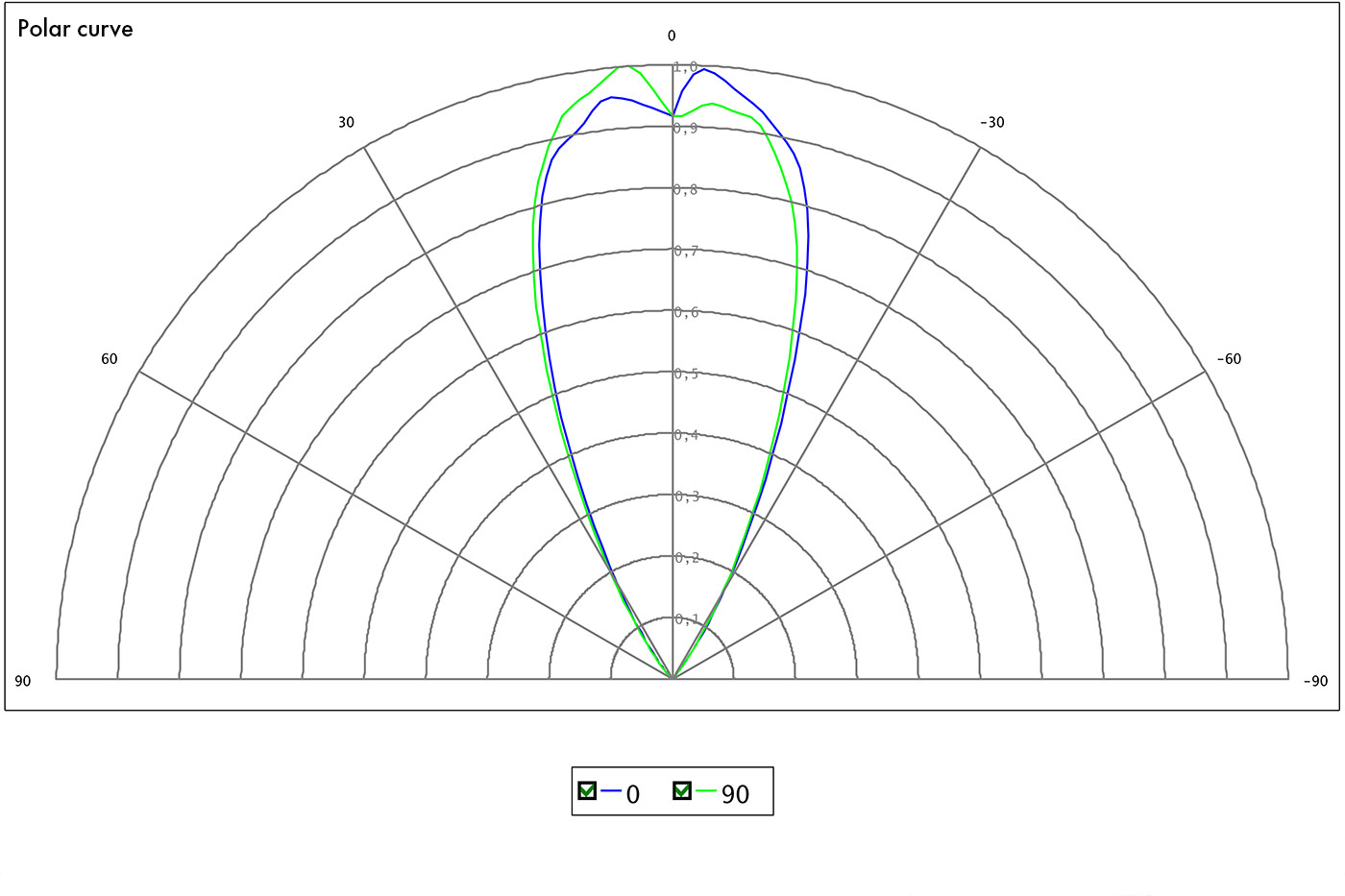

Optical results
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
