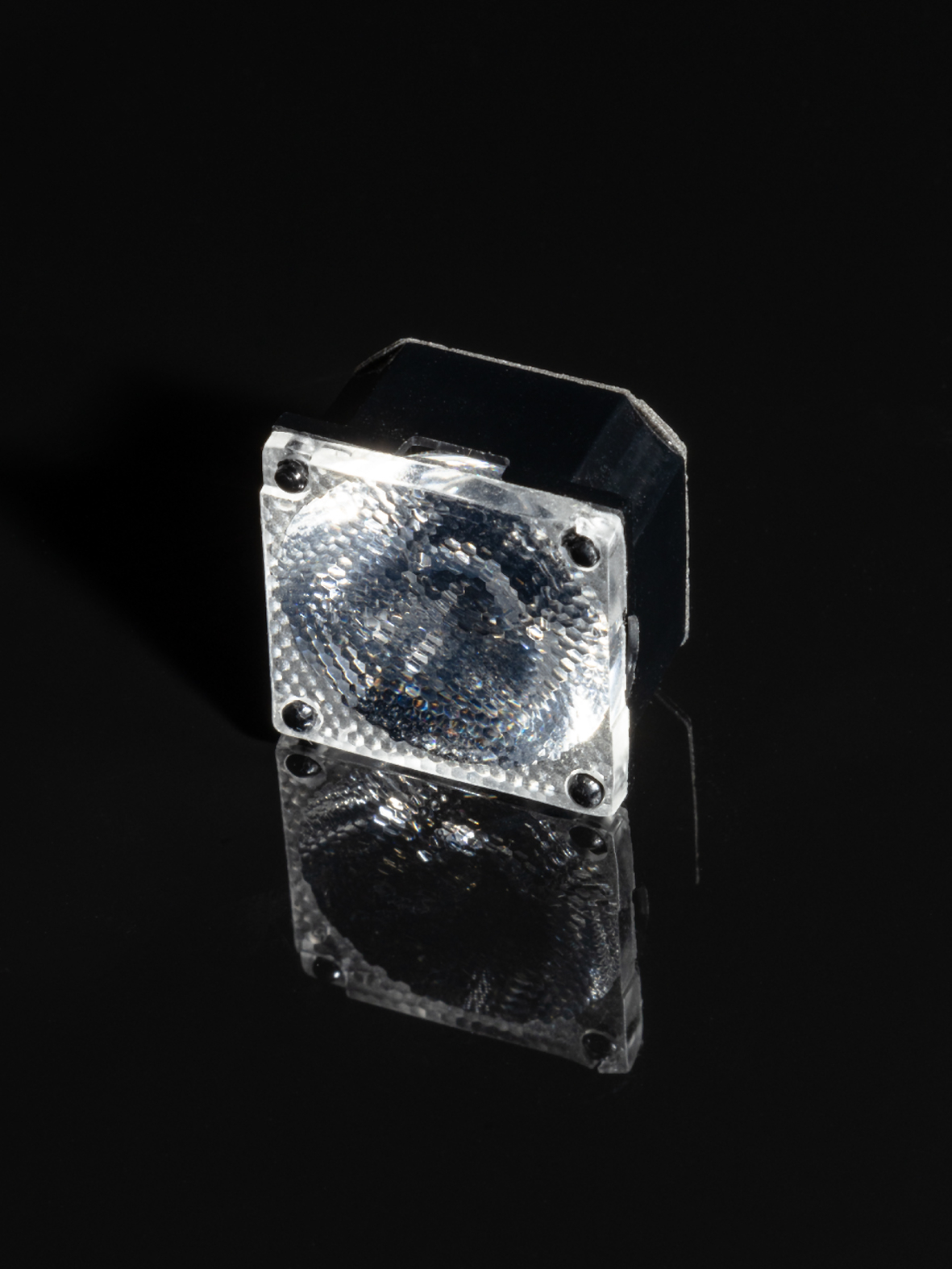

CA19371_ROSE-UV-G3-SS-PIN
Print~12° smooth spot beam optimized for up to 3535 (with dome) and 7575 (flat) LED packages. Assembly with black holder, installation tape and location pins.
												Specification


											-
														Dimensions:22 x 22 mm
 -
														Height:12.86 mm
 -
														Colour:black
 -
														RoHS and REACH compliant:Yes

												Component Materials


											- ROSE-UV-G3-SSSingle lensSilicone
 - G2-ROSE-LT-HLDHolderPC
 - ROSE-TAPETapeAcryl tape
 - Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
												Ordering information


											-
														Quantity in box:1620 pcs
 -
														Box size:480 x 280 x 165 mm
 -
														Box weight:6.9 kg
 -
														MPQ:180 pcs
 -
														MOQ:360 pcs
 -
														MOQ size:480 x 280 x 70 mm
 -
														MOQ weight:1.7 kg

												Documents


											- Family datasheet
 - Product datasheet
 - 2D mechanical drawing
 - Request a 3D mechanical model

Related Content
Optical results
																								LED:
													NVSU119C



																																																FWHM:
													13°
												FWTM:
													25°



																								Efficiency:
													88 %

																										LEDs/each optic:
													1

																								Light colour/type:
													UV-A


																								LED:

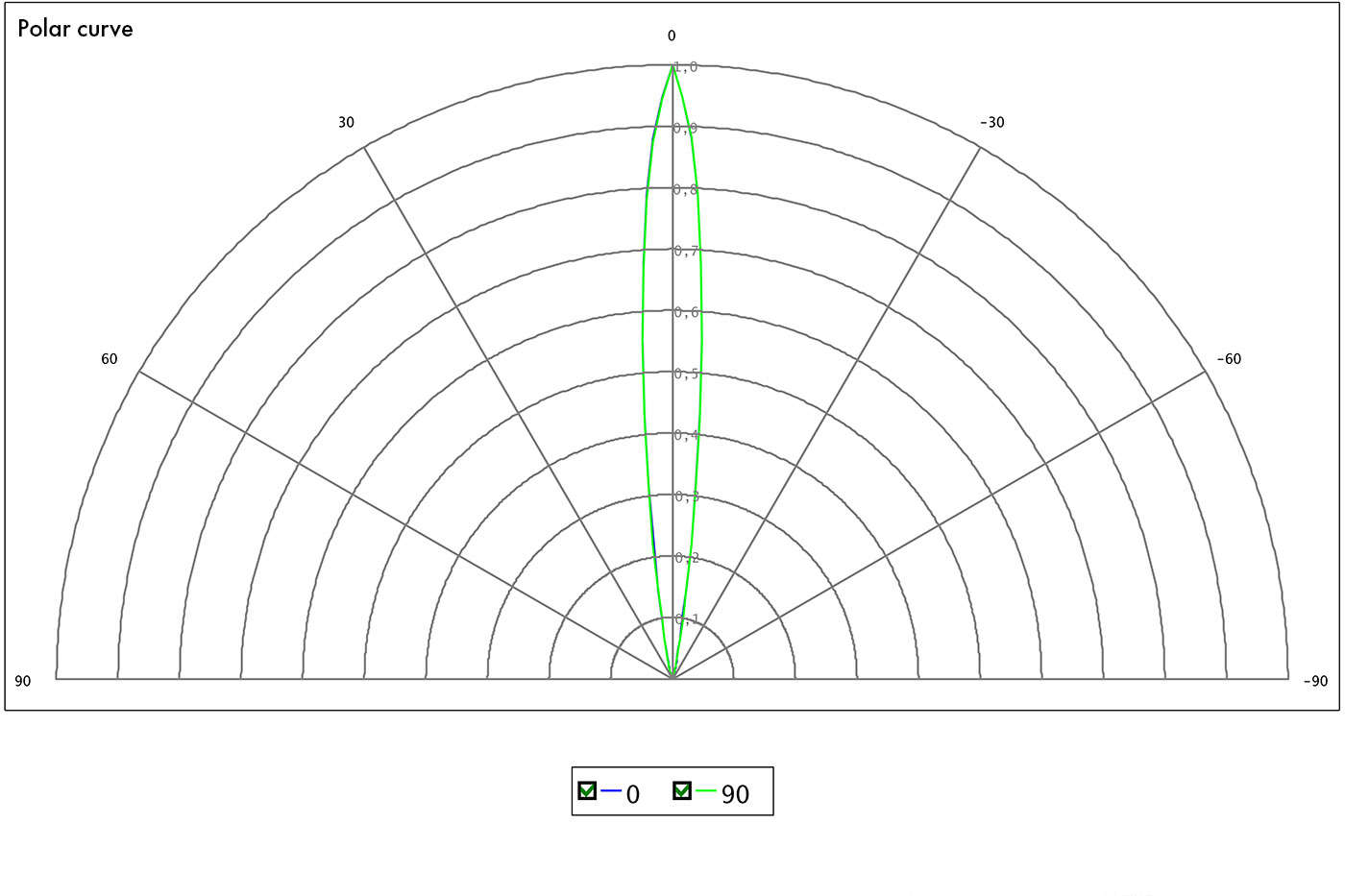

													NVSU233B



																																																FWHM:
													11°
												FWTM:
													20°



																								Efficiency:
													92 %

																										LEDs/each optic:
													1

																								Light colour/type:
													UV-A


																								LED:
													OSLON UV 3535 (SU CULFP1.VC)



																																																FWHM:
													12°
												FWTM:
													26°



																								Efficiency:
													19 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White


																								LED:

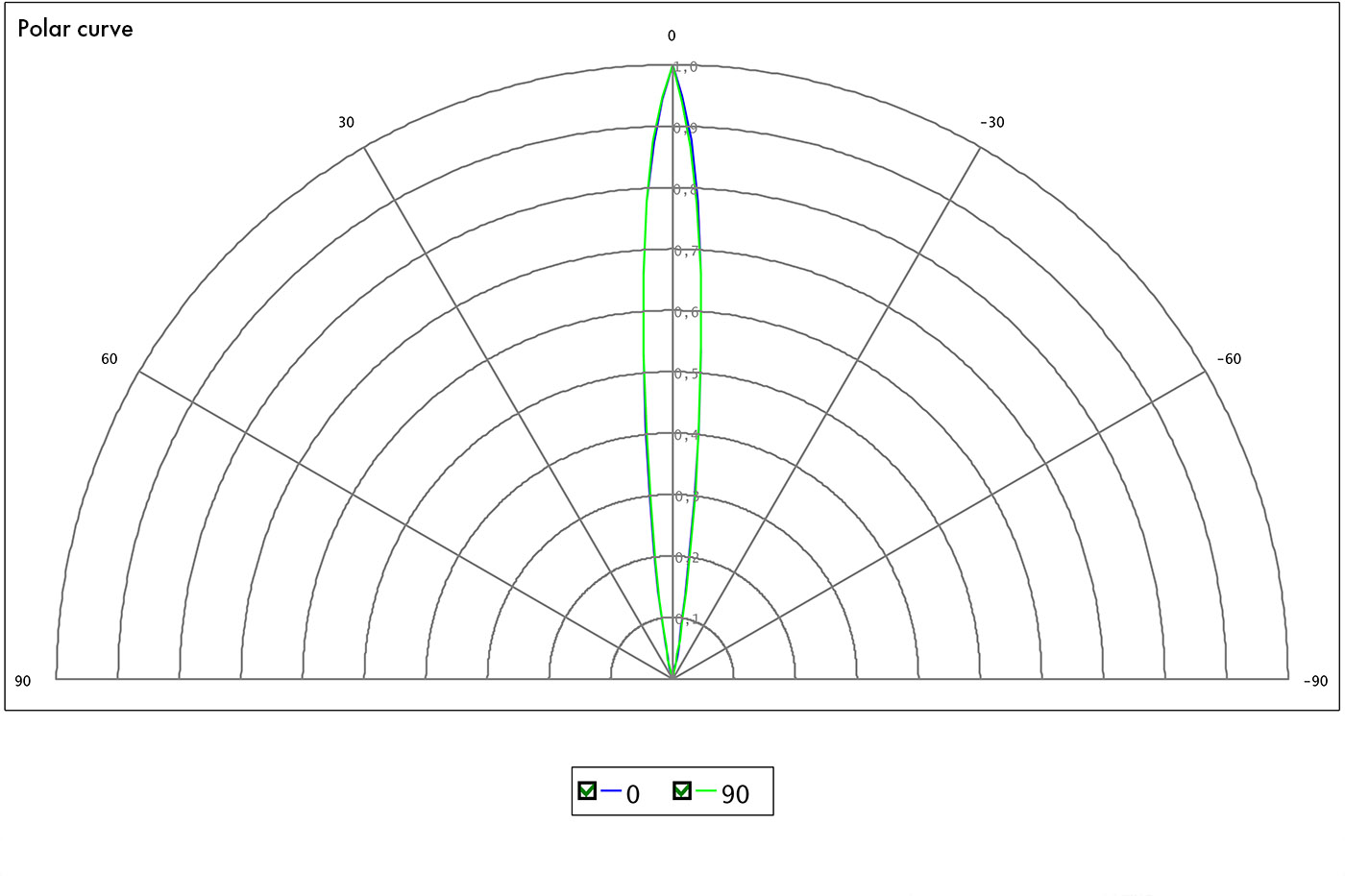

													CUN6GF1A



																																																FWHM:
													10°
												FWTM:
													20°



																								Efficiency:
													92 %

																										LEDs/each optic:
													1

																								Light colour/type:
													UV-A


																								LED:

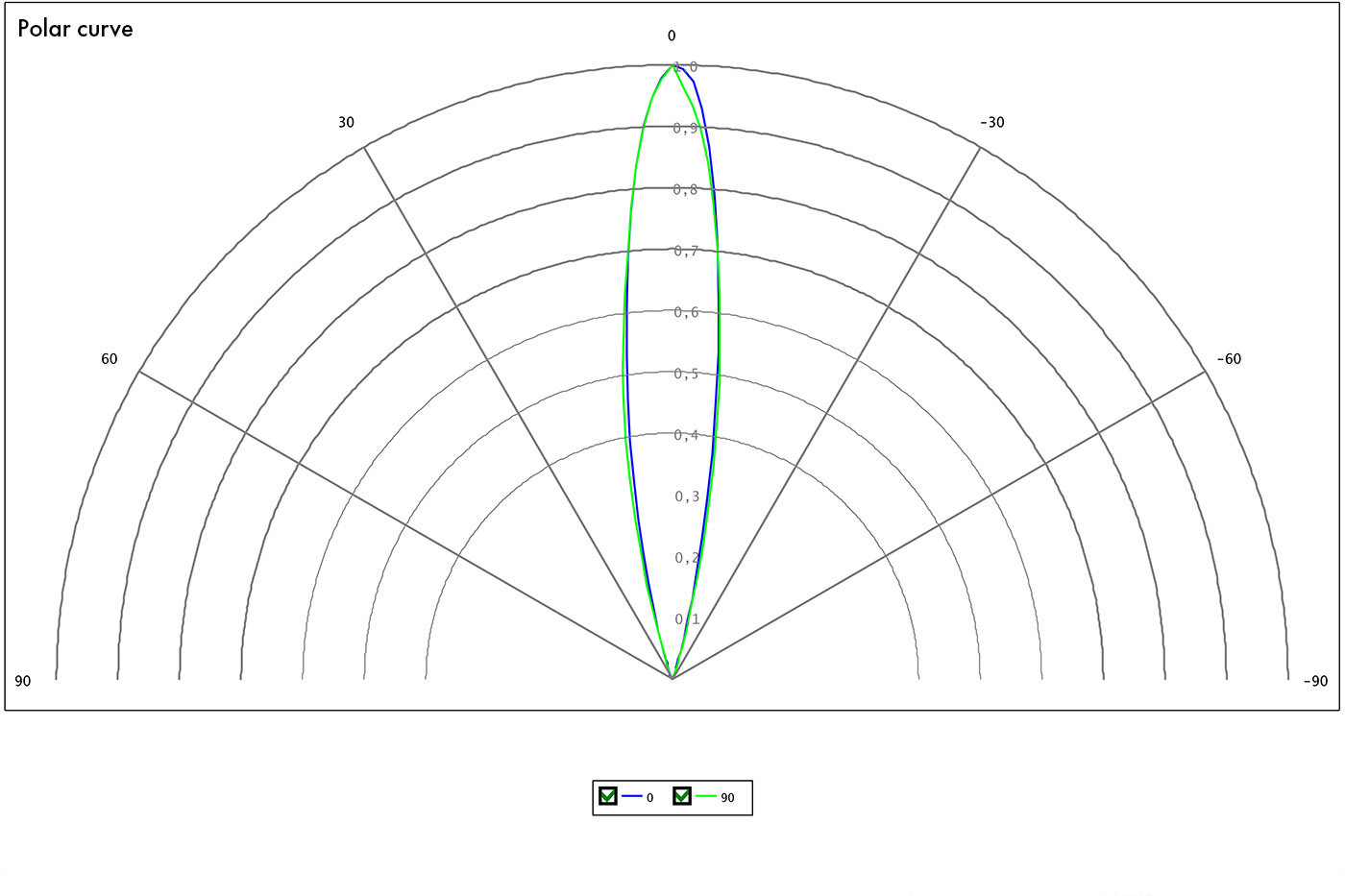

													CUN6UB1A



																																																FWHM:
													18°
												FWTM:
													31°



																								Efficiency:
													93 %

																										LEDs/each optic:
													1

																								Light colour/type:
													UV-A
