Troffer hallway lighting with LINNEA-90

For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support


Application: Hallway lighting
Luminaire type: Troffer
Optics: LINNEA-90
Luminaire pitch: 4 m

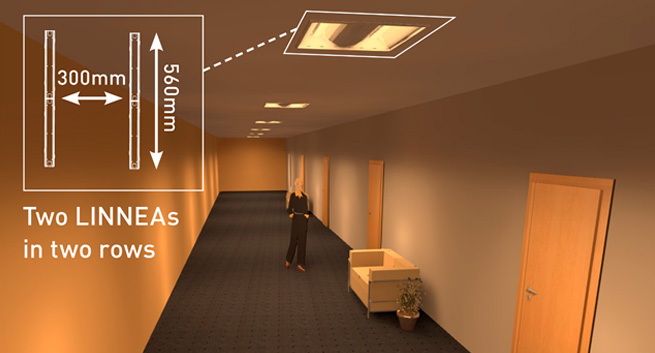

No. of optics in luminaire: 4 pcs
Room width: 3.6 m
Installation height: 2.9 m
Luminous flux (luminaire): 4400 lm
Power (LEDs/luminaire): 36 W
Maintenance factor: 0.8

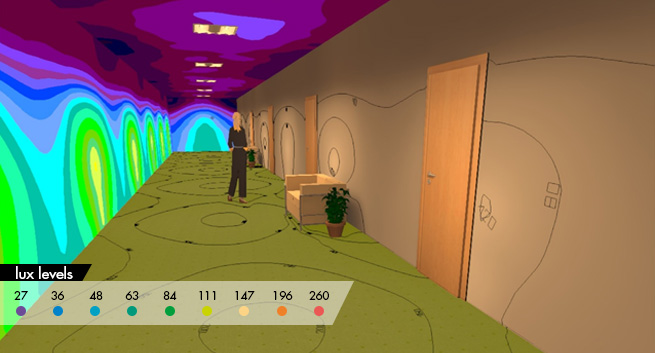

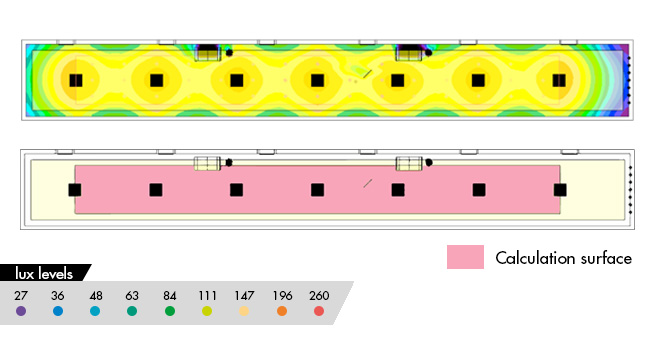

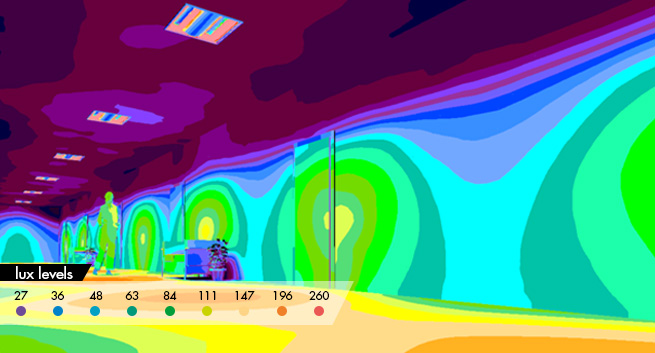

Average: 172 lx
Min: 126 lx
Max: 213 lx
Uo: 0.73
