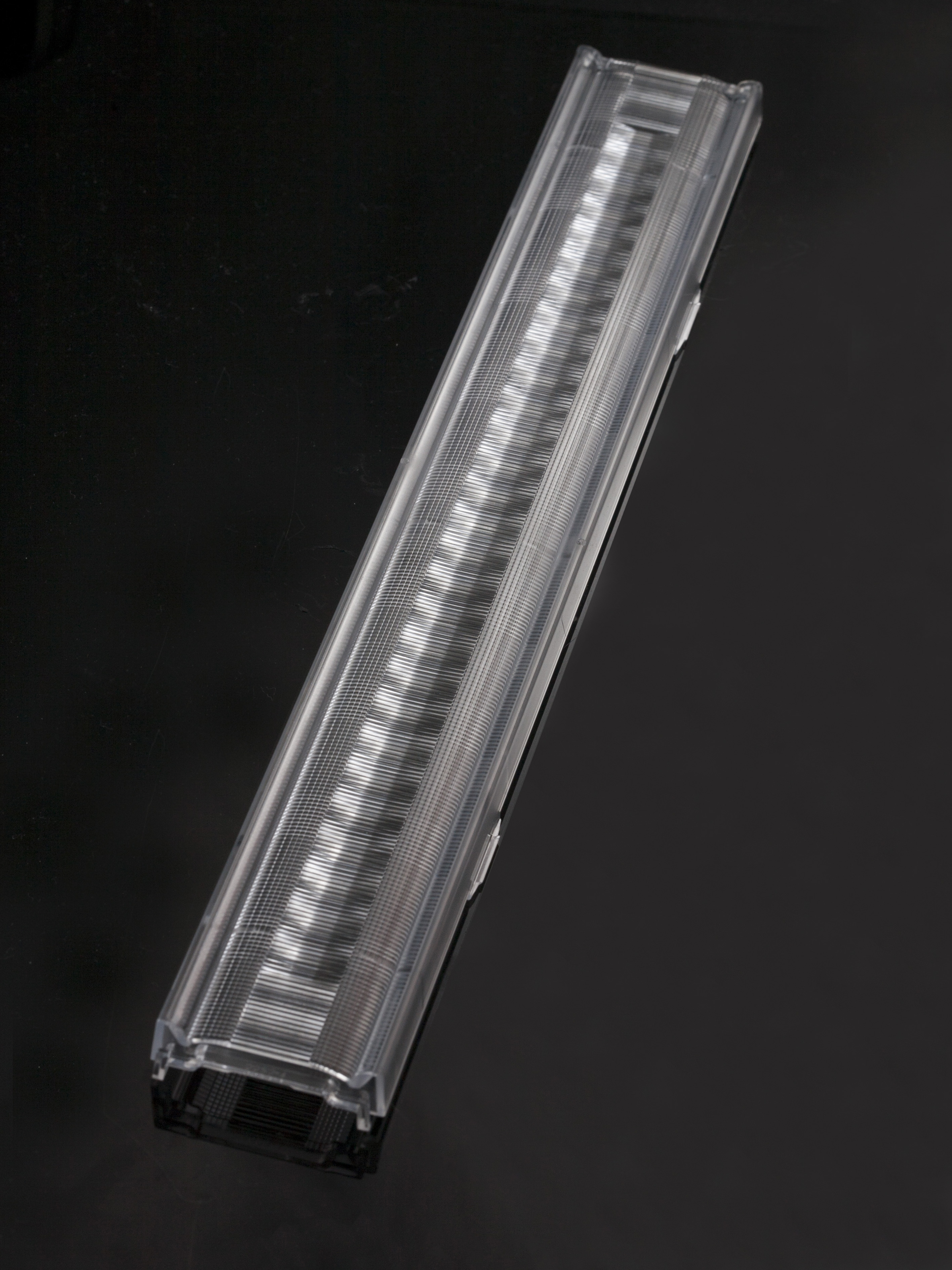

F15523_LINNEA-90
Print![](http://lediloptics.cn/wp-content/themes/LEDiL_Theme/img/icon-download.png)
~90° + 90° wide beam optimized for 1.0 mm metal sheet or profile. Variant made from PC.
Specification
-
Dimensions:285 x 40 mm
-
Height:9.50 mm
-
Fastening:clips
-
Colour:clear
-
RoHS and REACH compliant:Yes
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:162 pcs
-
Box size:398 x 298 x 265 mm
-
Box weight:7.3 kg
-
MPQ:9 pcs
-
MOQ:36 pcs
-
MOQ size:400 x 300 x 70 mm
-
MOQ weight:1.7 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
![](/data/logos/aled.jpg)
LED:
CALOSNU405-M7W1
FWHM:
104° + 87°
FWTM:
164° + 124°
Peak intensity:
0.390 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/aled.jpg)
LED:
CALOSNU410-M7W1
FWHM:
104° + 86°
FWTM:
164° + 124°
Peak intensity:
0.390 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/bridgelux.jpg)
LED:
Bridgelux SMD 2835
FWHM:
100° + 86°
FWTM:
165° + 120°
Peak intensity:
0.388 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/cree.jpg)
LED:
XP-E
FWHM:
104° + 88°
FWTM:
164° + 126°
Peak intensity:
0.390 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/cree.jpg)
LED:
XP-G3
FWHM:
105° + 89°
FWTM:
161° + 124°
Peak intensity:
0.380 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/helvar.jpg)
LED:
L-iC-282-827-865-011A
FWHM:
102° + 89°
FWTM:
164° + 124°
Peak intensity:
0.390 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/helvar.jpg)
LED:
LP-282-840-009A 60/300
FWHM:
100° + 89°
FWTM:
163° + 125°
Peak intensity:
0.390 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/helvar.jpg)
LED:
LS-282-840-011A
FWHM:
102° + 90°
FWTM:
164° + 125°
Peak intensity:
0.380 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/helvar.jpg)
LED:
LX-282-840-023A
FWHM:
102° + 89°
FWTM:
164° + 125°
Peak intensity:
0.390 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/lumileds.jpg)
LED:
LUXEON 2835 Line
FWHM:
96° + 84°
FWTM:
161° + 120°
Peak intensity:
0.431 cd/lm
Efficiency:
80 %
LEDs/each optic:
2
Light colour/type:
White
![](/data/logos/lumileds.jpg)
LED:
LUXEON 3030 2D (Round LES)
FWHM:
93° + 84°
FWTM:
162° + 124°
Peak intensity:
0.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/lumitronix.jpg)
LED:
LinearZ 280-112 Circadian TW
FWHM:
93° + 87°
FWTM:
159° + 122°
Peak intensity:
0.442 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
![](/data/logos/lumitronix.jpg)
LED:
LinearZ 280-26
FWHM:
101° + 89°
FWTM:
164° + 124°
Peak intensity:
0.398 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/lumitronix.jpg)
LED:
LinearZ 280-40 TW
FWHM:
101° + 89°
FWTM:
163° + 123°
Peak intensity:
0.402 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
Tunable White
![](/data/logos/mst.jpg)
LED:
LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
FWHM:
88° + 100°
FWTM:
125° + 164°
Peak intensity:
0.390 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NF2x757D
FWHM:
86° + 99°
FWTM:
125° + 159°
Peak intensity:
0.480 cd/lm
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NF2x757G
FWHM:
105° + 85°
FWTM:
165° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NFSW757H
FWHM:
100° + 90°
FWTM:
163° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NFSx757G
FWHM:
98° + 88°
FWTM:
162° + 125°
Peak intensity:
0.390 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osram.jpg)
LED:
PL-LIN-IND-Z1 2800 560x24
FWHM:
101° + 89°
FWTM:
163° + 125°
Peak intensity:
0.422 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osram.jpg)
LED:
PL-LIN-Z5 1100 280x20
FWHM:
101° + 89°
FWTM:
164° + 125°
Peak intensity:
0.393 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osram.jpg)
LED:
PL-LIN-Z5 2000 280x20
FWHM:
101° + 89°
FWTM:
164° + 125°
Peak intensity:
0.388 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osramopto.jpg)
LED:
Duris E 2835
FWHM:
83° + 91°
FWTM:
122° + 159°
Peak intensity:
0.430 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osramopto.jpg)
LED:
Duris S5 (2 chip)
FWHM:
99° + 89°
FWTM:
163° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osramopto.jpg)
LED:
Duris S5 (Single chip)
FWHM:
98° + 89°
FWTM:
163° + 125°
Peak intensity:
0.410 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
100° + 89°
FWTM:
163° + 124°
Peak intensity:
0.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM:
99° + 85°
FWTM:
163° + 123°
Peak intensity:
0.440 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
102° + 90°
FWTM:
164° + 124°
Peak intensity:
0.380 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/philips.jpg)
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
101° + 87°
FWTM:
163° + 123°
Peak intensity:
0.417 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LM28xB Series
FWHM:
105° + 86°
FWTM:
165° + 124°
Peak intensity:
0.290 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LM561B Plus
FWHM:
88° + 100°
FWTM:
125° + 164°
Peak intensity:
0.390 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-H282C
FWHM:
103° + 87°
FWTM:
164° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-H562C
FWHM:
103° + 87°
FWTM:
164° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-Q282B
FWHM:
101° + 87°
FWTM:
164° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-S282H
FWHM:
104° + 86°
FWTM:
165° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-S562H
FWHM:
104° + 86°
FWTM:
165° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-V282E
FWHM:
103° + 86°
FWTM:
164° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/samsung.jpg)
LED:
LT-V562E
FWHM:
103° + 86°
FWTM:
164° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL 5630D
FWHM:
93°
FWTM:
141°
Peak intensity:
0.380 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3030
FWHM:
99° + 88°
FWTM:
163° + 125°
Peak intensity:
0.410 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3030C
FWHM:
91° + 82°
FWTM:
160° + 120°
Peak intensity:
0.430 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
102° + 86°
FWTM:
169° + 118°
Peak intensity:
0.394 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
99° + 84°
FWTM:
167° + 117°
Peak intensity:
0.415 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
99° + 88°
FWTM:
166° + 118°
Peak intensity:
0.402 cd/lm
Efficiency:
77 %
LEDs/each optic:
2
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
102° + 84°
FWTM:
168° + 117°
Peak intensity:
0.403 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
100° + 80°
FWTM:
170° + 118°
Peak intensity:
0.405 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
95° + 78°
FWTM:
169° + 116°
Peak intensity:
0.433 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
104° + 86°
FWTM:
169° + 118°
Peak intensity:
0.389 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3528
FWHM:
99° + 84°
FWTM:
167° + 116°
Peak intensity:
0.408 cd/lm
Efficiency:
78 %
LEDs/each optic:
2
Light colour/type:
White
![](/data/logos/tridonic.jpg)
LED:
LLE G4 24x280mm 1250lm
FWHM:
100° + 89°
FWTM:
163° + 125°
Peak intensity:
0.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/tridonic.jpg)
LED:
LLE G4 24x280mm 2000lm ADV
FWHM:
98° + 88°
FWTM:
162° + 124°
Peak intensity:
0.410 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/tridonic.jpg)
LED:
LLE G4 24x280mm 650lm
FWHM:
99° + 89°
FWTM:
163° + 125°
Peak intensity:
0.410 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
We use cookies to offer you a better experience, analyse site traffic, and serve targeted marketing.
Do you consent to the use of cookies in accordance with our Privacy Policy.
Accept allNo, I don't acceptManage settings
Do you consent to the use of cookies in accordance with our Privacy Policy.
Accept allNo, I don't acceptManage settings
