Application example

Bicycle lighting with FILIPPA-STVZO


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

Setup:

Application:Bicycle lighting
Standard:StVZO
Optics:FILIPPA-STVZO
LED type:3535
Distance to wall:10 m
Luminaire output:200 lm
Luminaire tilt:-1°


    The requirements

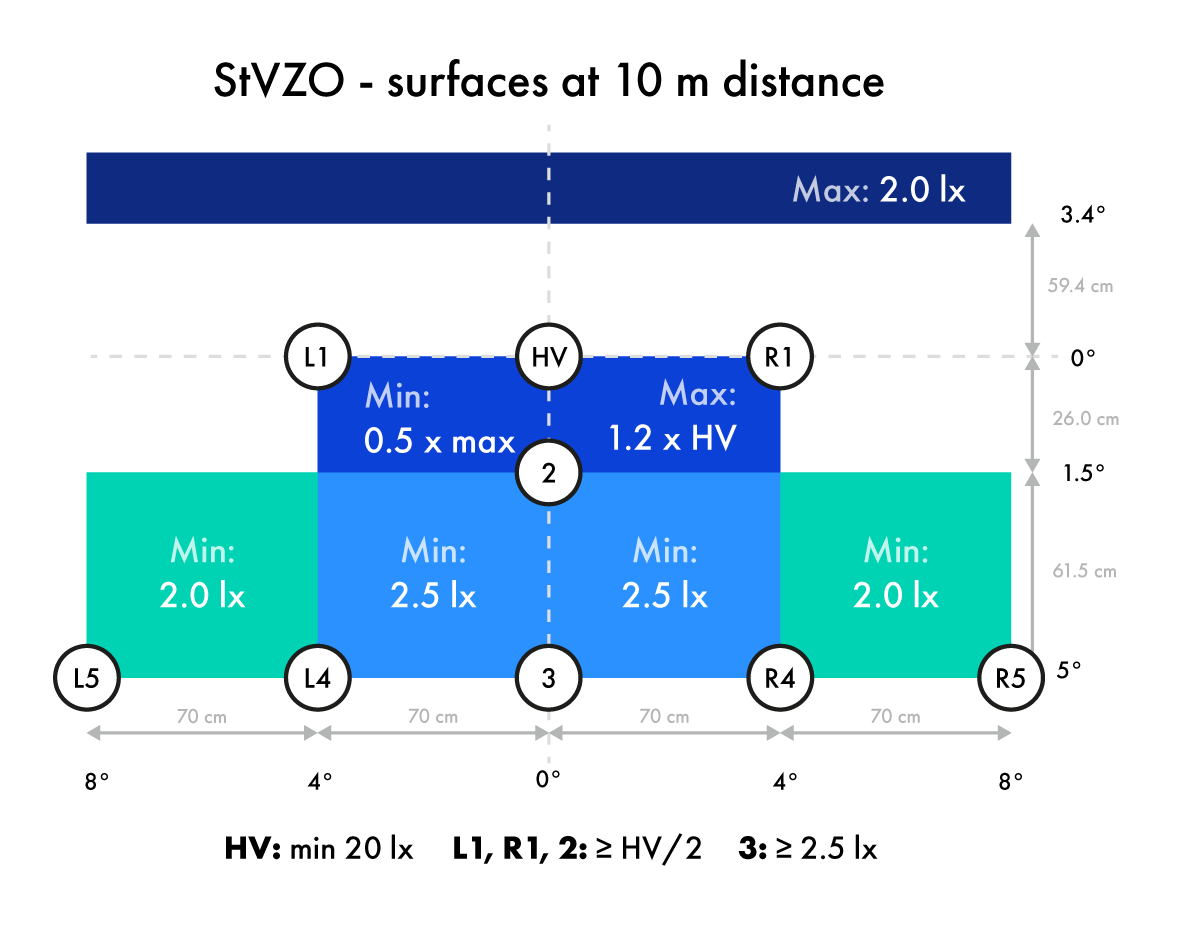

StVZO standard illustration - LEDiL

Results:

Max (59.4 cm above horizontal centre line):1.9 lx
Max (Right below horizontal centre line):34 lx
Min (Right below horizontal centre line):18 lx
Min (26.0 cm below horizontal centre line):13 lx
FIND THE PRODUCTS

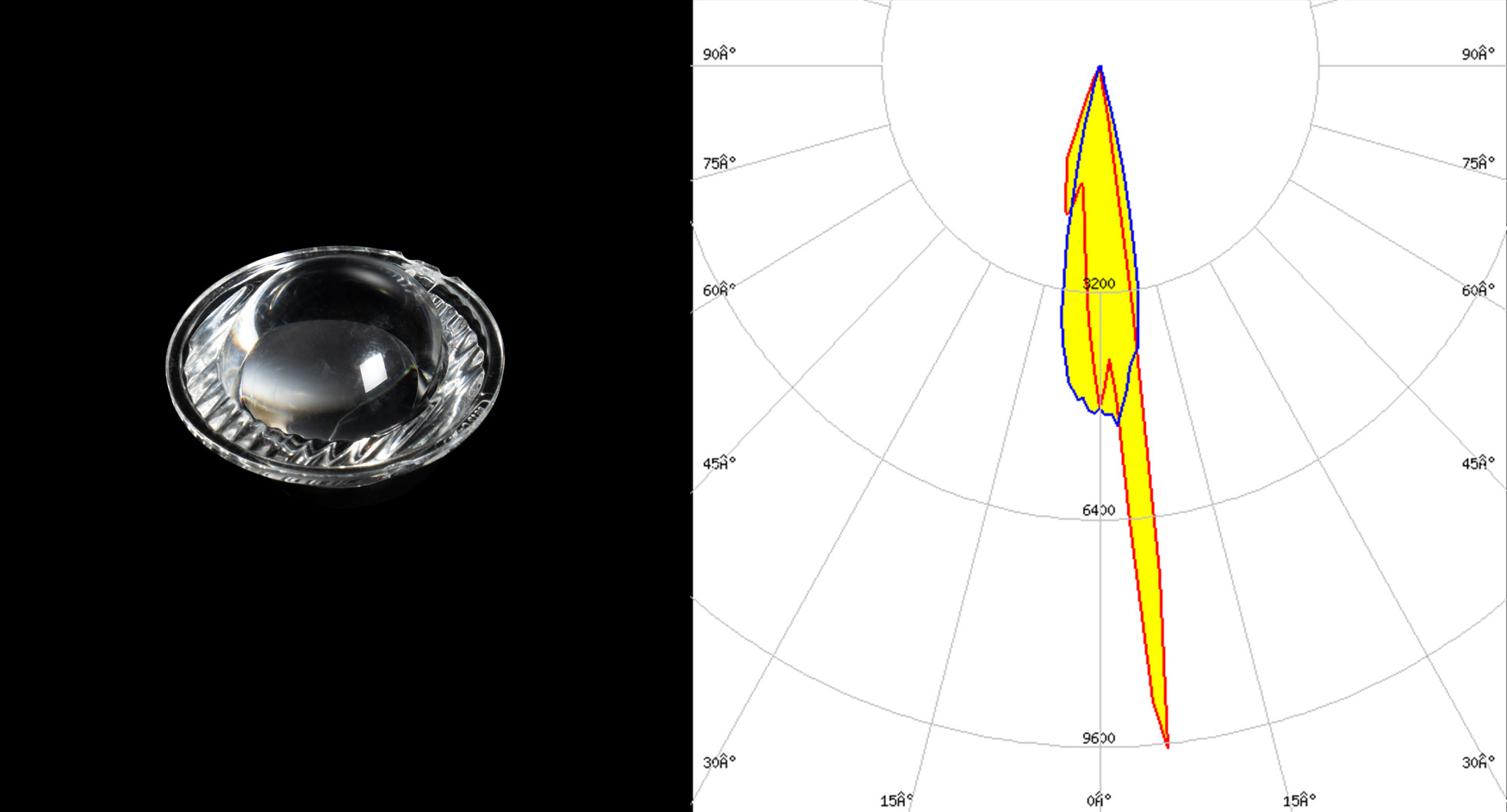

C18612_FILIPPA-STVZO
