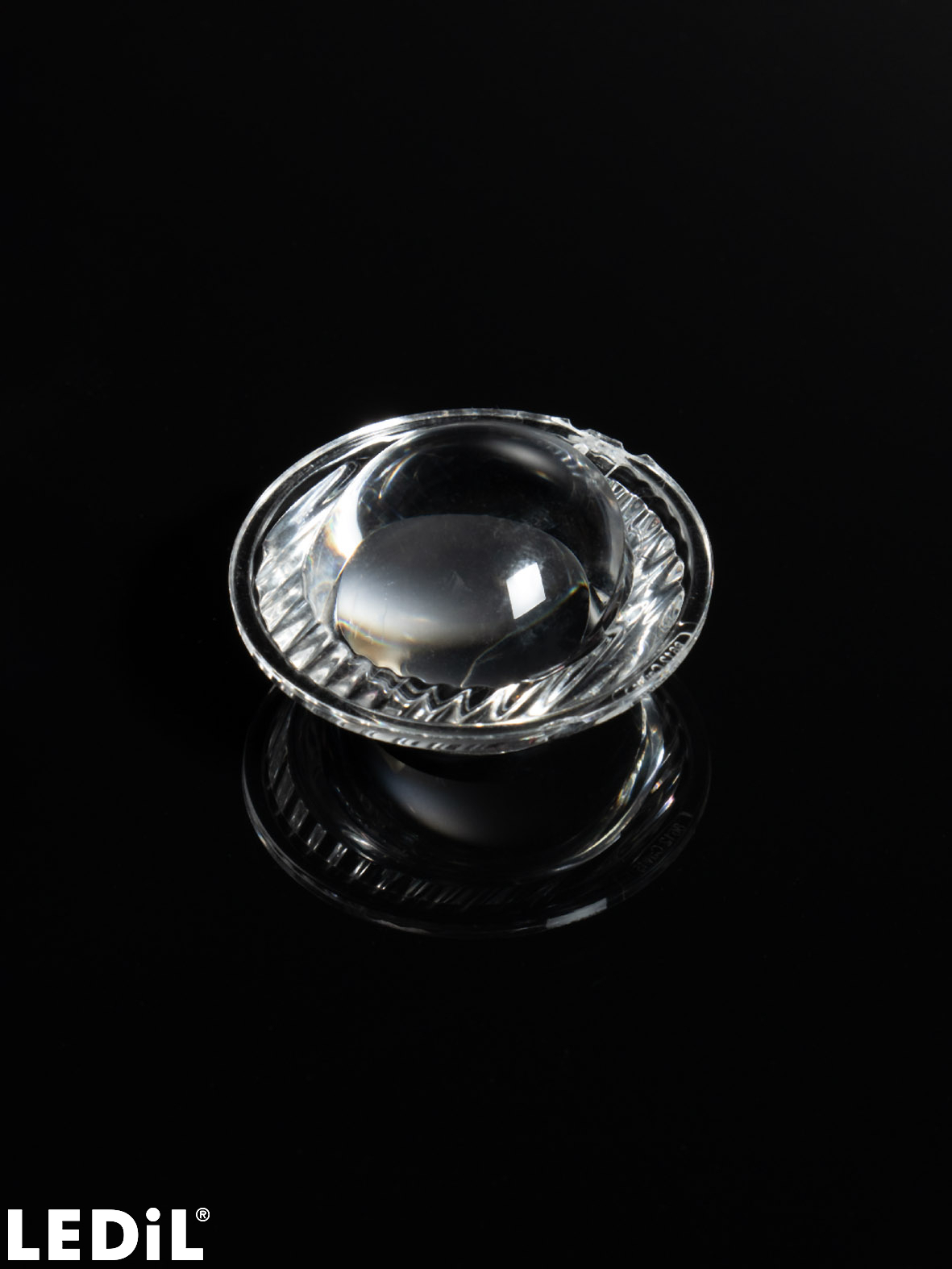

C18612_FILIPPA-STVZO
Print
10+20° asymmetric beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
STVZO compliance cannot be confirmed based on IES-file. Verification requires physical measurement with a lux meter. A list of STVZO-compliant LEDs can be found in the 2D mechanical drawing.
Related Content
Optical results

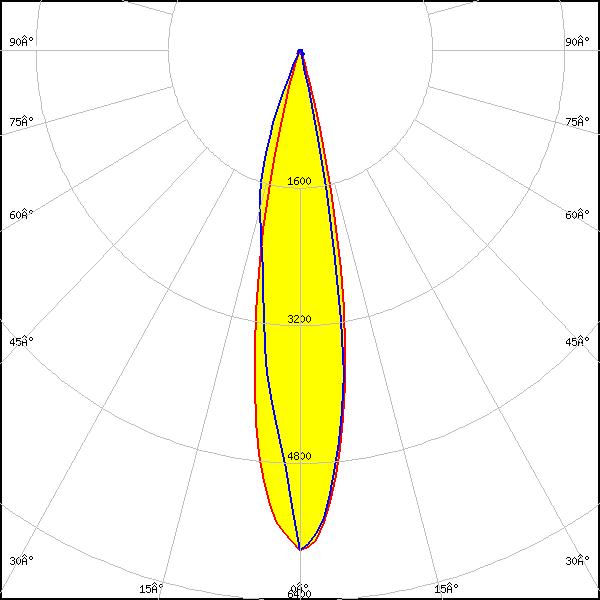

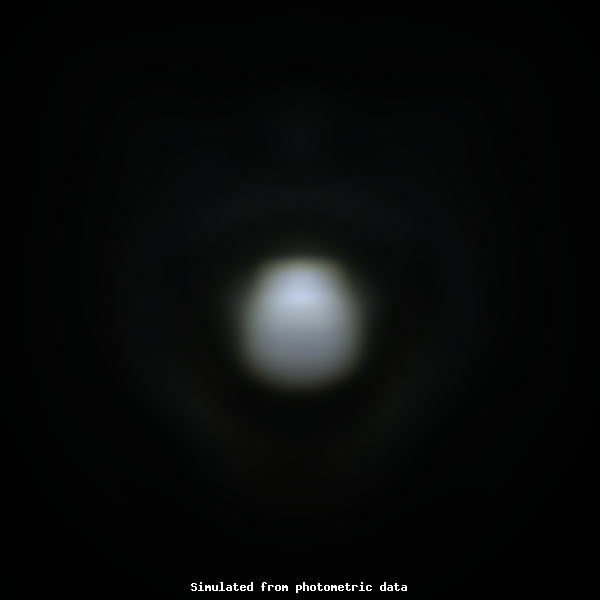

LED:

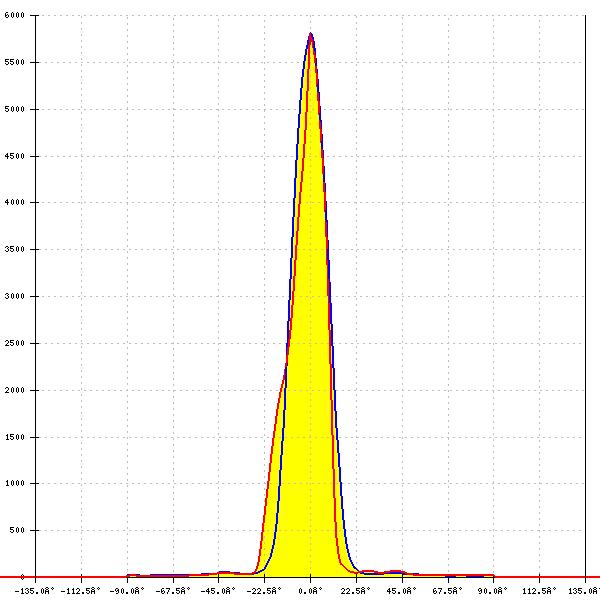

XHP35.2 HI
FWHM:
20° + 18°
FWTM:
32° + 36°
Peak intensity:
5.866 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

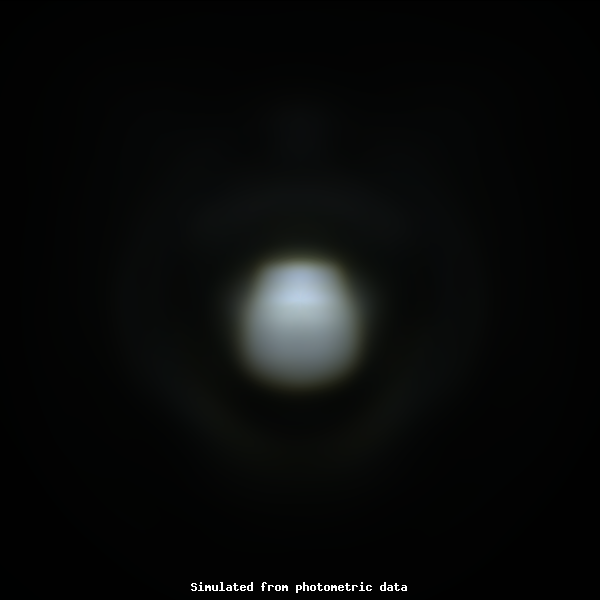

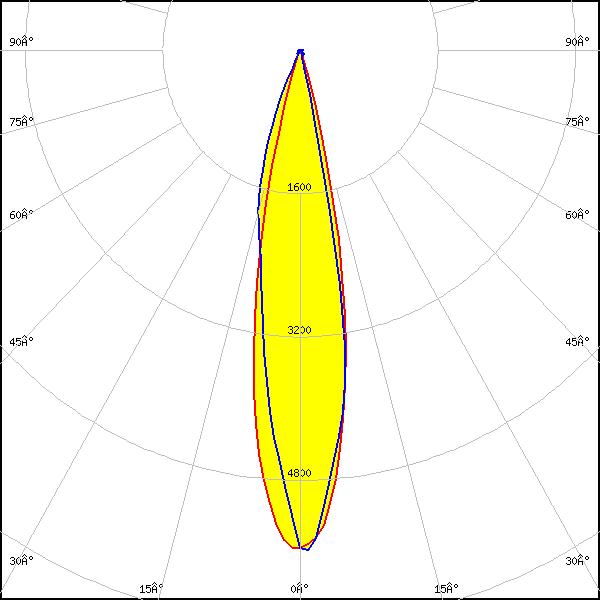

LED:

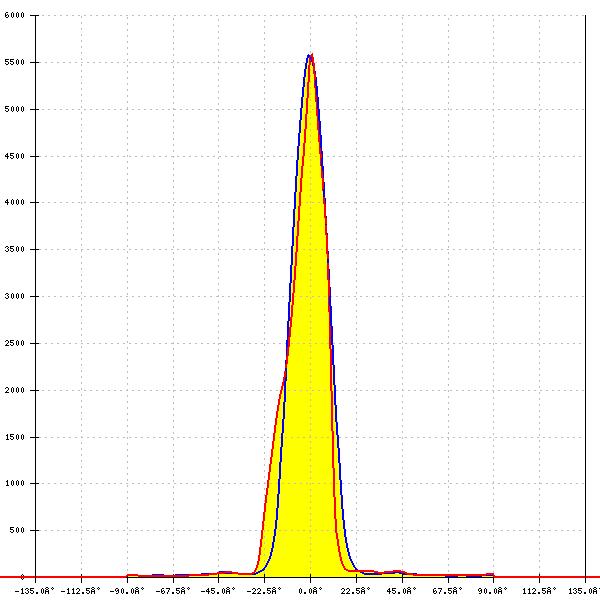

XHP50.3 HI
FWHM:
22° + 19°
FWTM:
34° + 36°
Peak intensity:
5.597 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

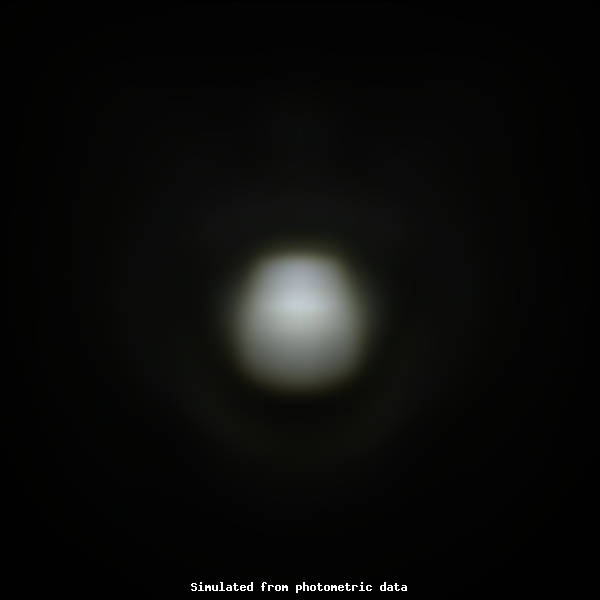

LED:

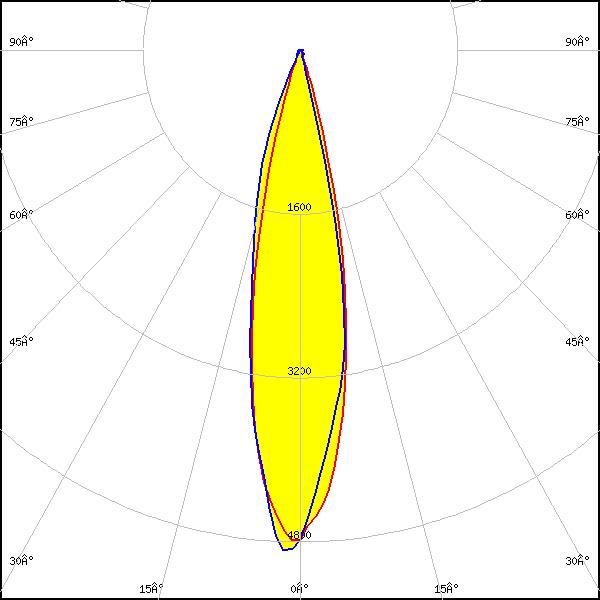

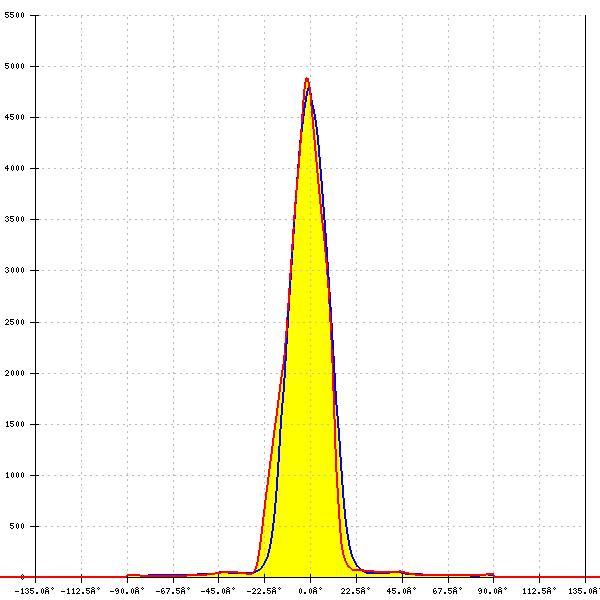

XHP70.3 HI
FWHM:
22°
FWTM:
36°
Peak intensity:
4.976 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

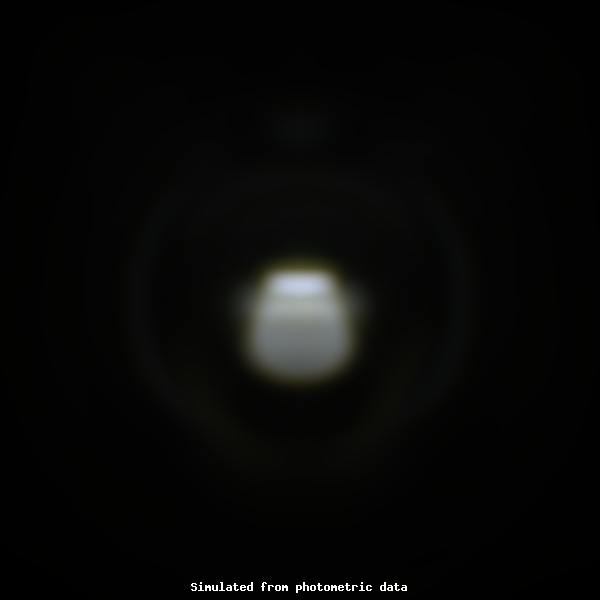

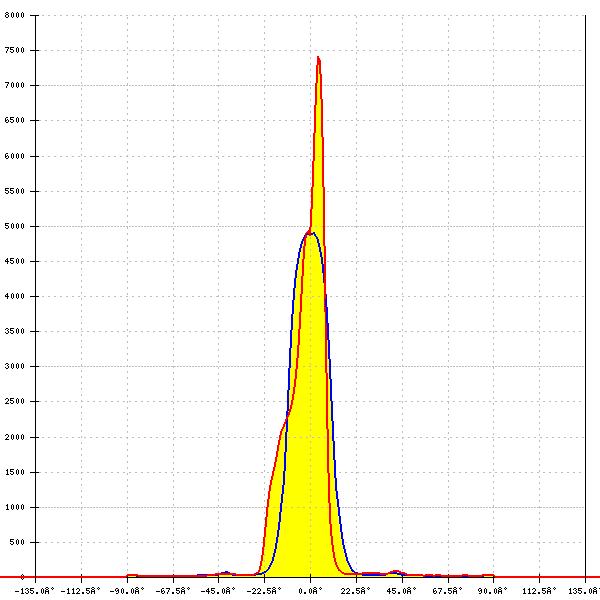

XP-G4 HI
FWHM:
22° + 13°
FWTM:
32° + 32°
Peak intensity:
7.436 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

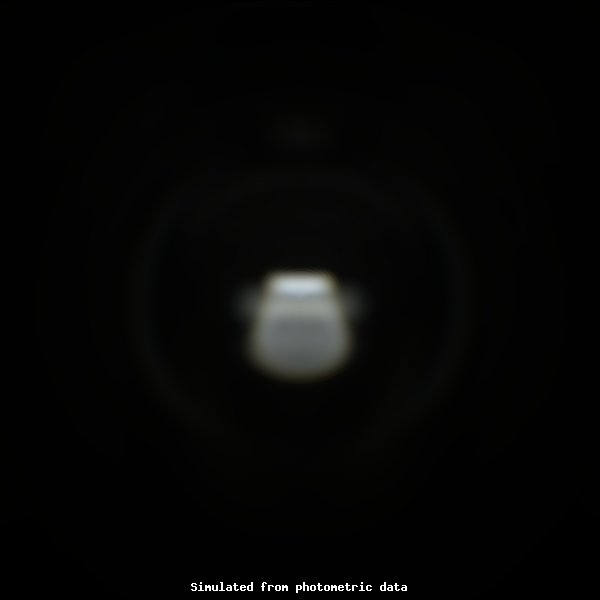

LED:
XP-GR
FWHM:
21° + 10°
FWTM:
32° + 29°
Peak intensity:
10.429 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

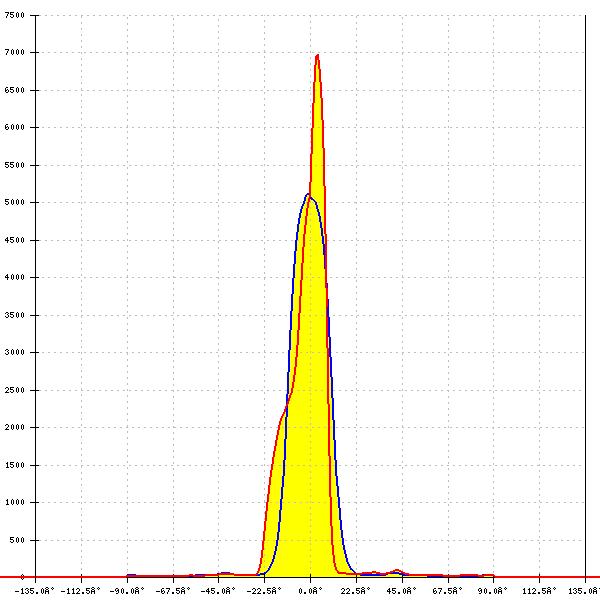

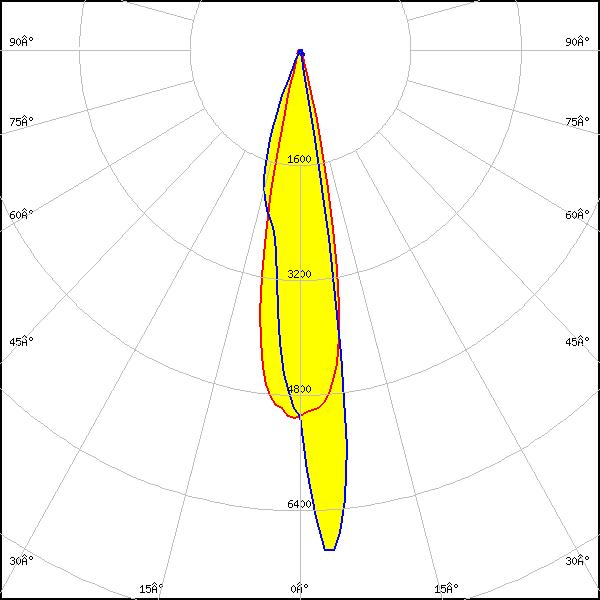

LED:

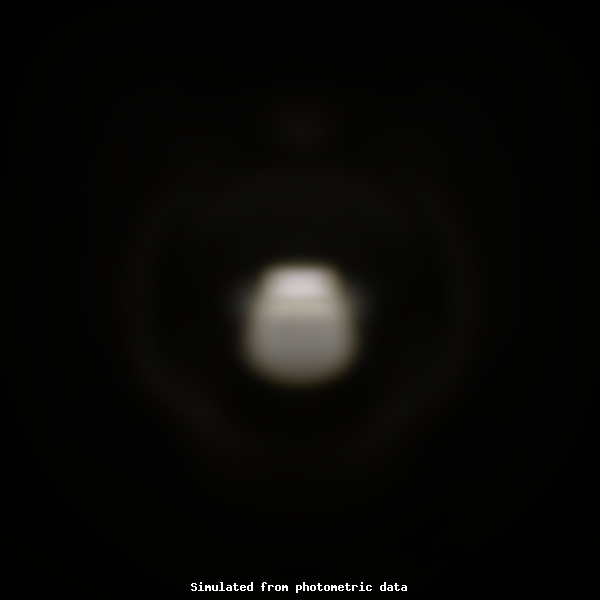

XP-L HI
FWHM:
22° + 13°
FWTM:
32° + 33°
Peak intensity:
7.008 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

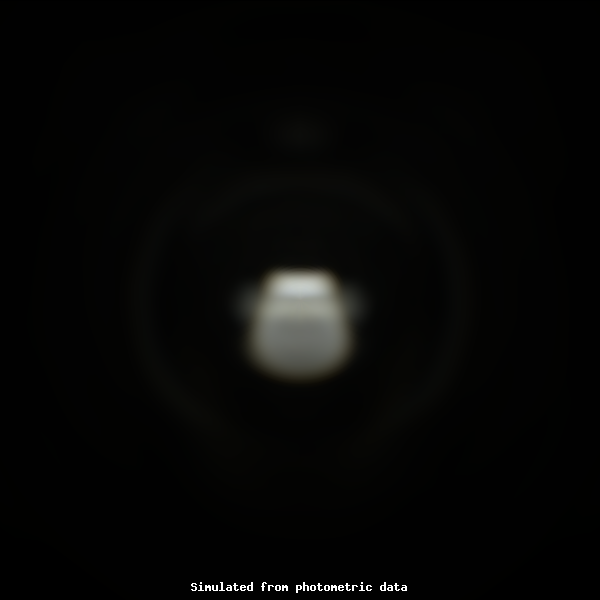

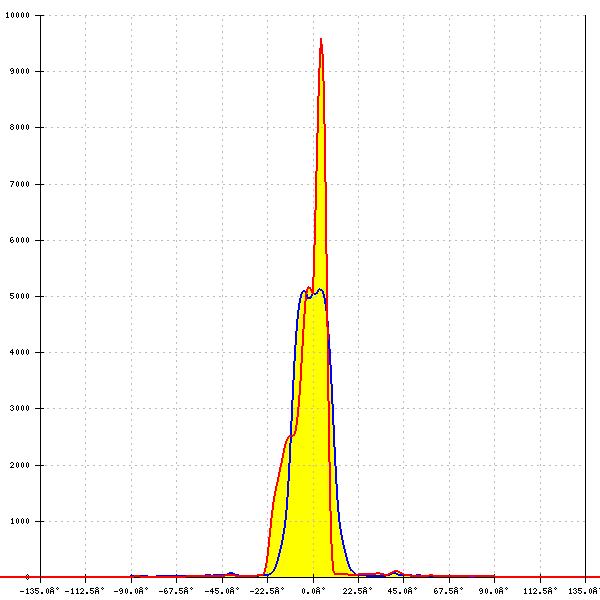

LED:

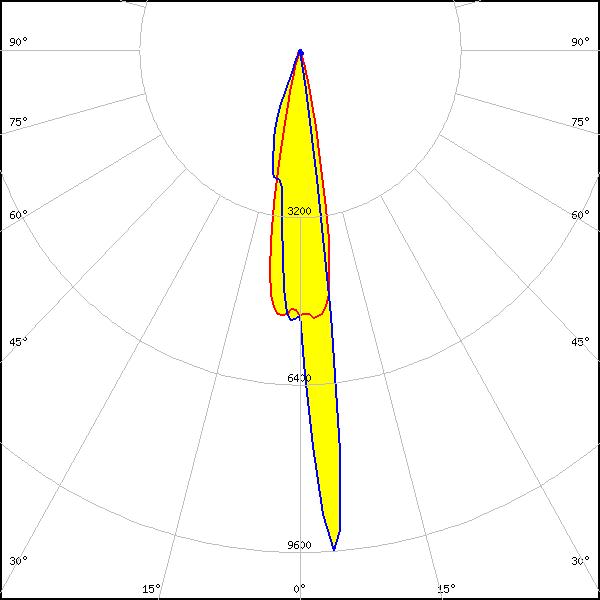

XP-LR
FWHM:
21° + 11°
FWTM:
32° + 30°
Peak intensity:
9.588 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

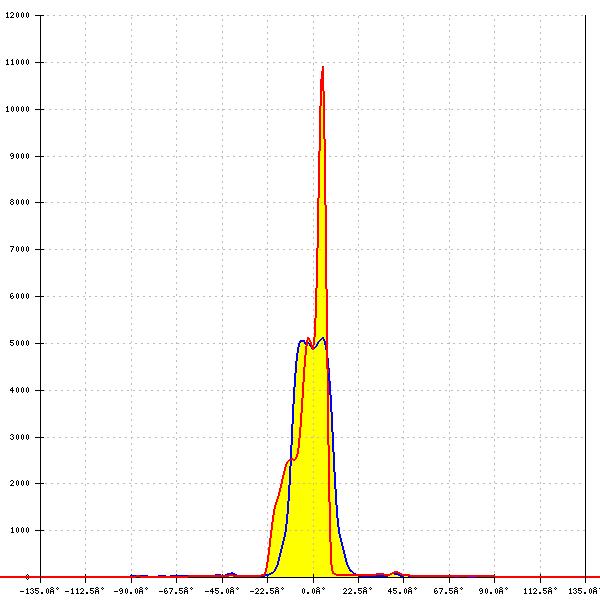

LED:

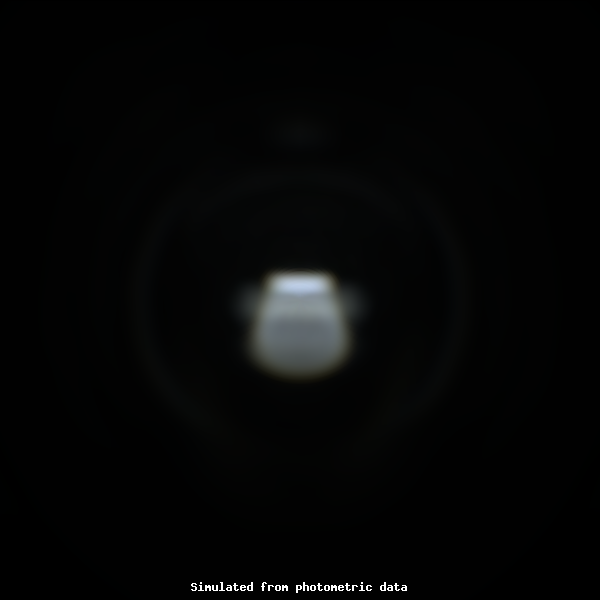

XP-P
FWHM:
21° + 6°
FWTM:
32° + 29°
Peak intensity:
10.978 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

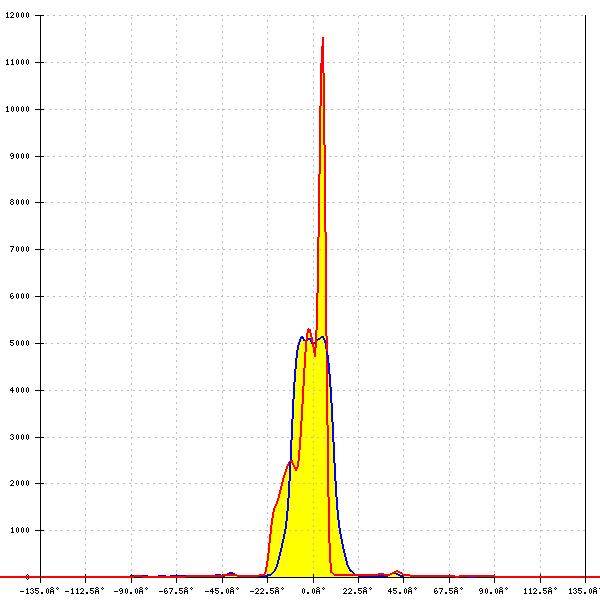

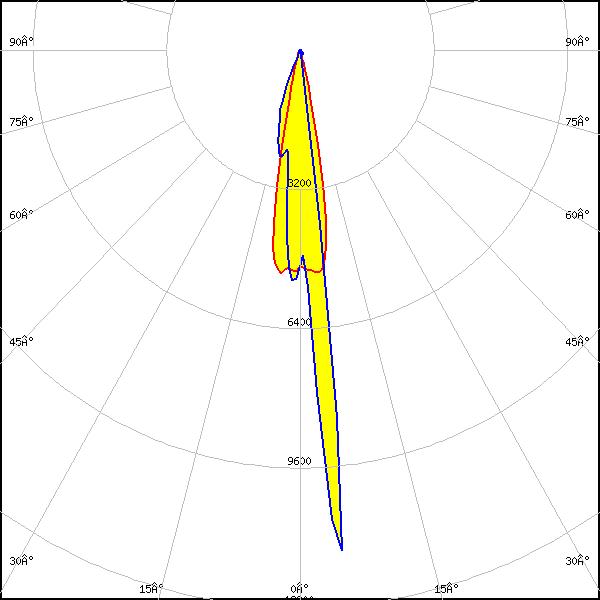

LED:
LUXEON Altilon intense 1x1
FWHM:
22° + 5°
FWTM:
32° + 28°
Peak intensity:
11.857 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

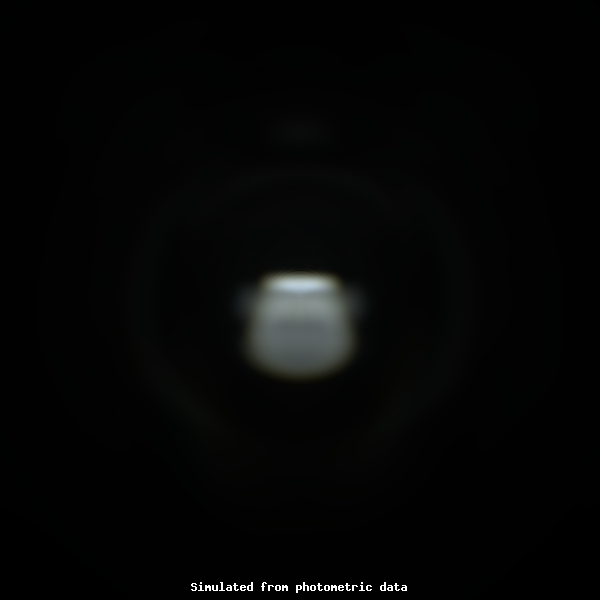

LUXEON Altilon Intense 1x2
FWHM:
22° + 5°
FWTM:
32° + 28°
Peak intensity:
11.717 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

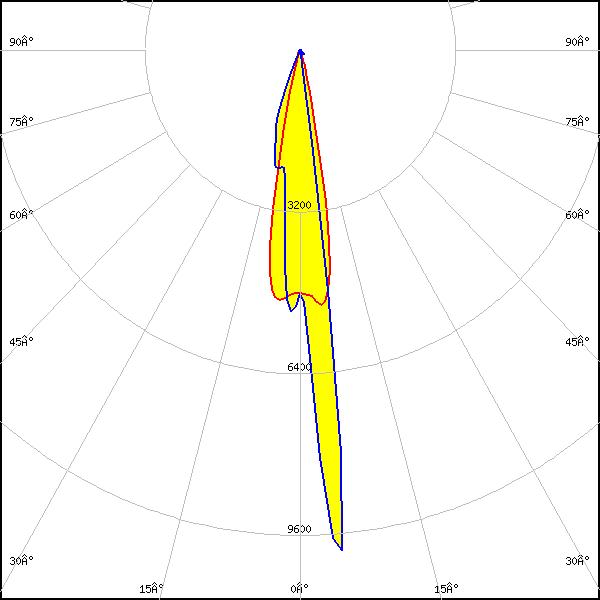

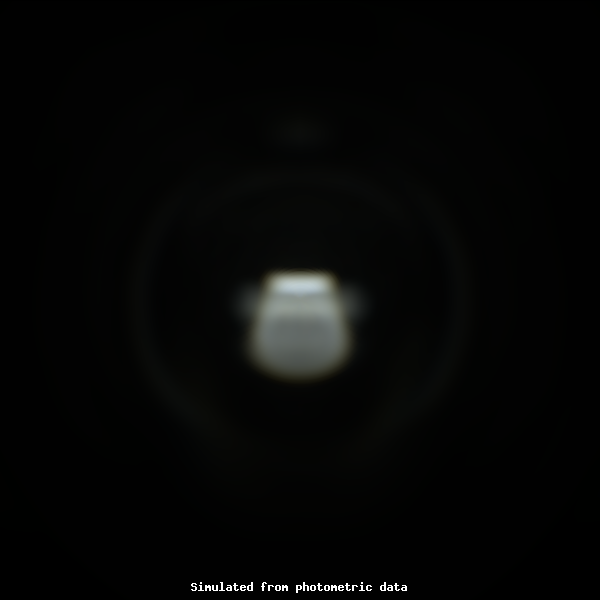

LUXEON Rubix
FWHM:
22° + 10°
FWTM:
32° + 30°
Peak intensity:
10.084 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

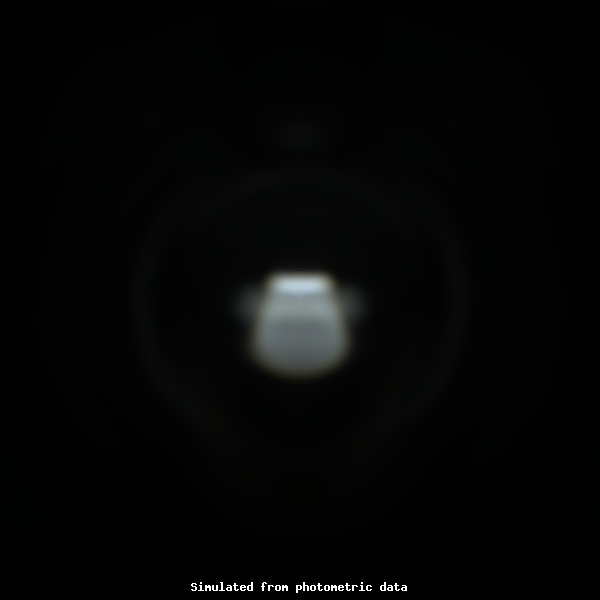

SFT-12R-W-A
FWHM:
20° + 6°
FWTM:
32° + 28°
Peak intensity:
11.090 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

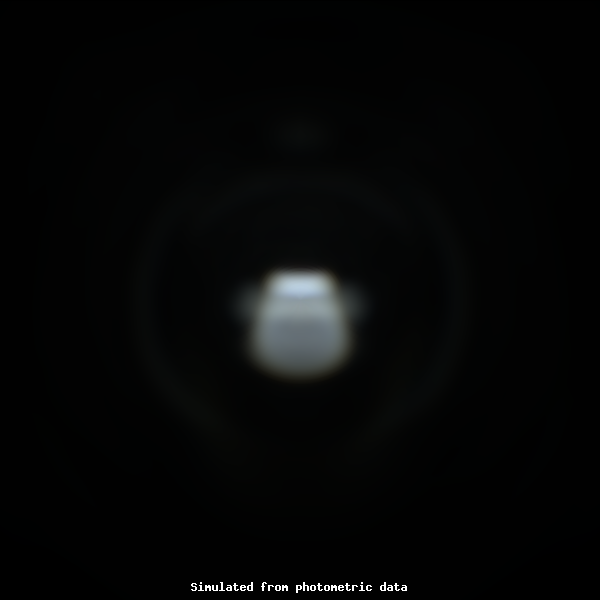

SFT-25R-W-A
FWHM:
20° + 11°
FWTM:
32° + 29°
Peak intensity:
9.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

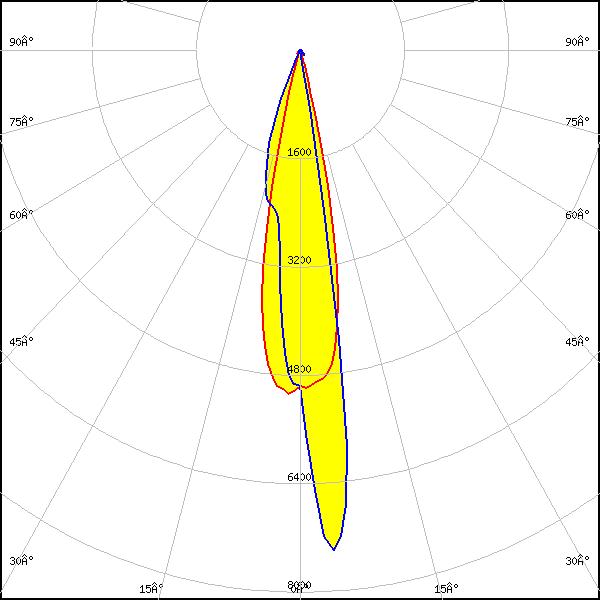

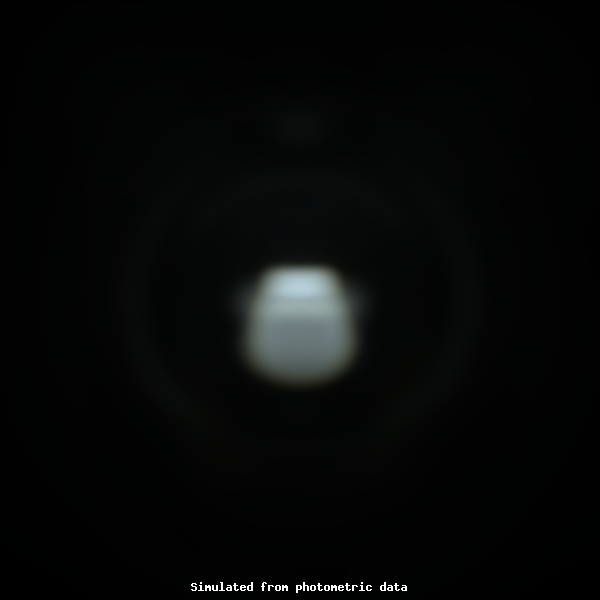

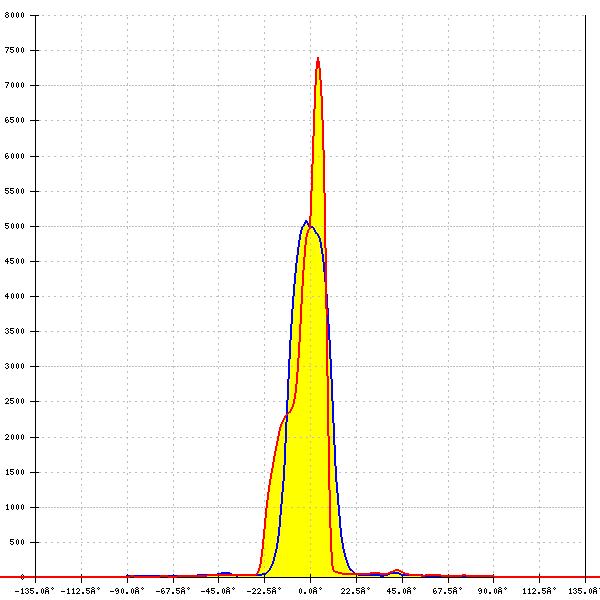

SFT-40 Gen2
FWHM: asymmetric
Peak intensity:
7.434 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

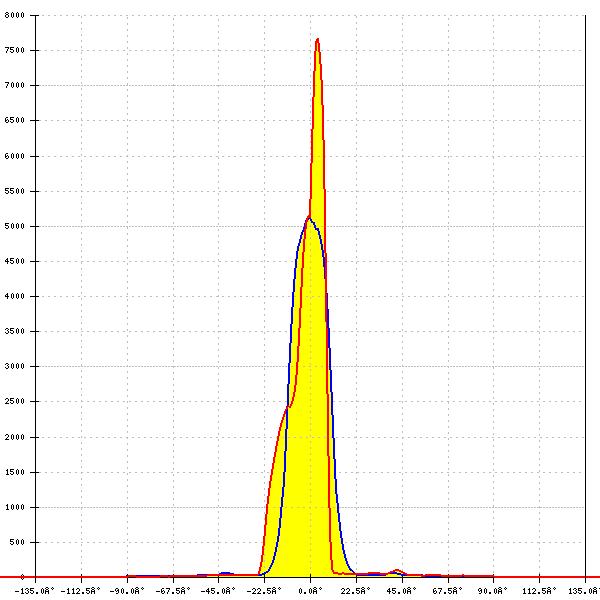

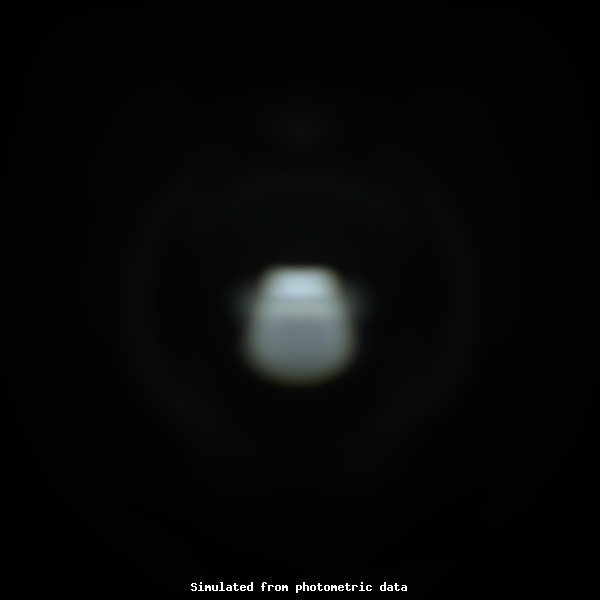

LED:

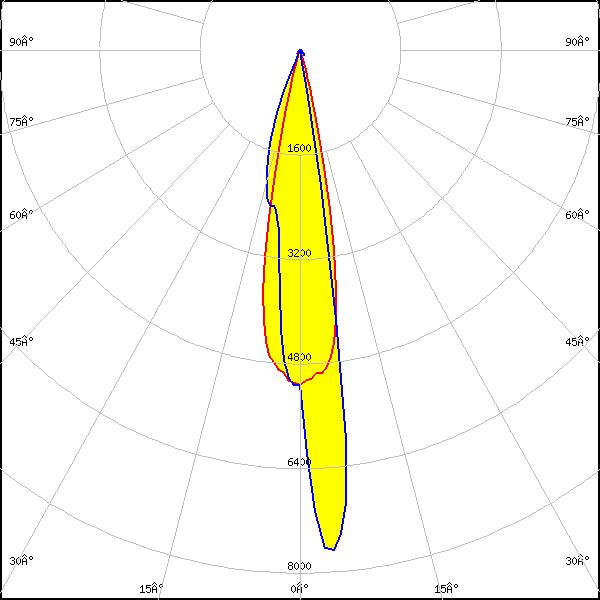

SFT-40-WCS
FWHM:
22° + 13°
FWTM:
31° + 32°
Peak intensity:
7.736 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

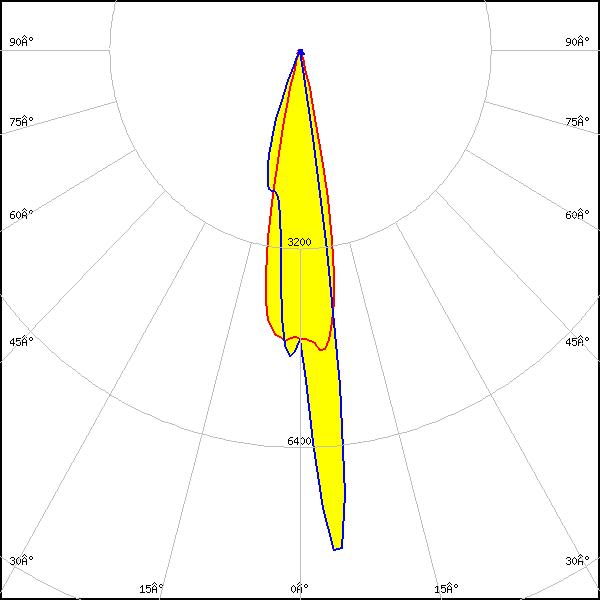

LED:

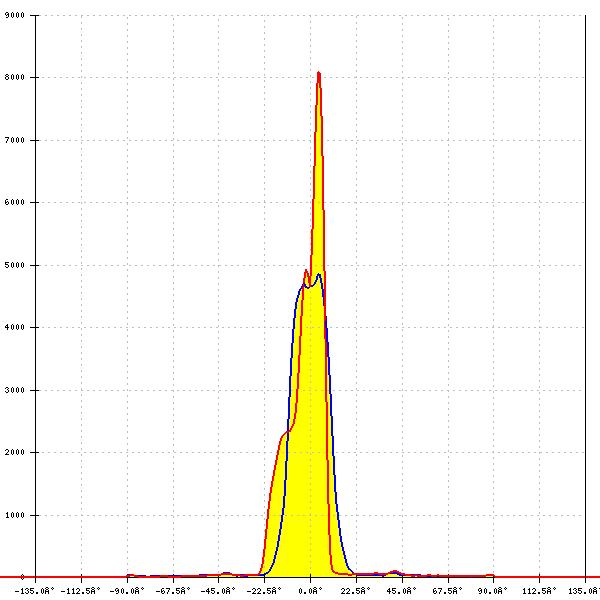

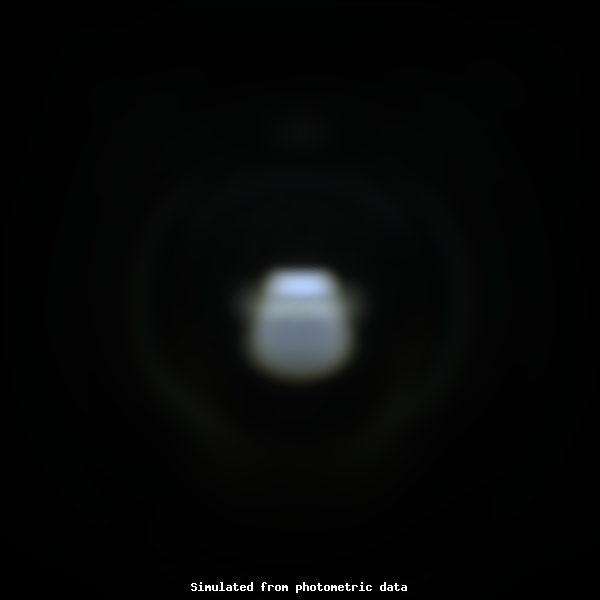

SST-12 Gen2
FWHM:
22° + 12°
FWTM:
32° + 31°
Peak intensity:
8.101 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

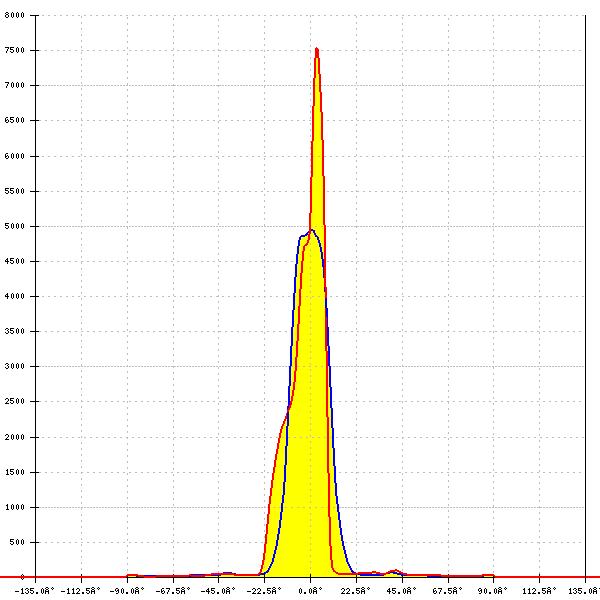

LED:

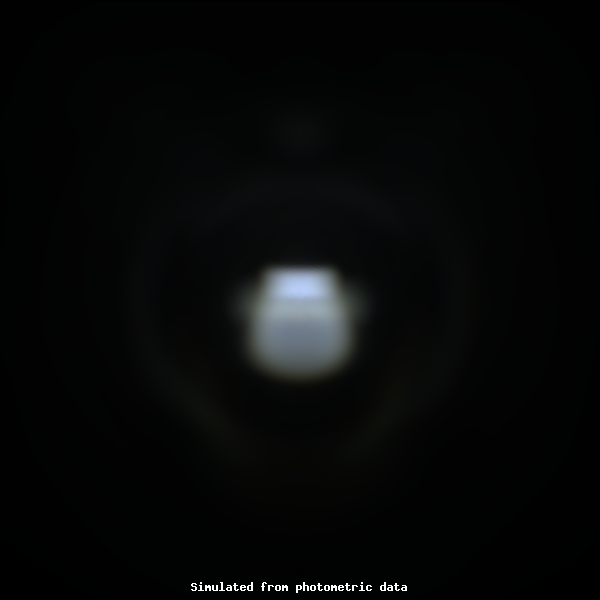

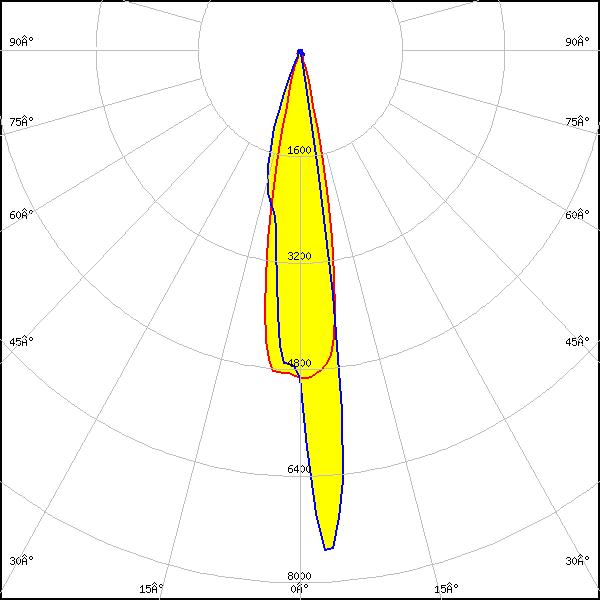

SST-20 Gen2
FWHM:
22° + 13°
FWTM:
32° + 31°
Peak intensity:
7.605 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

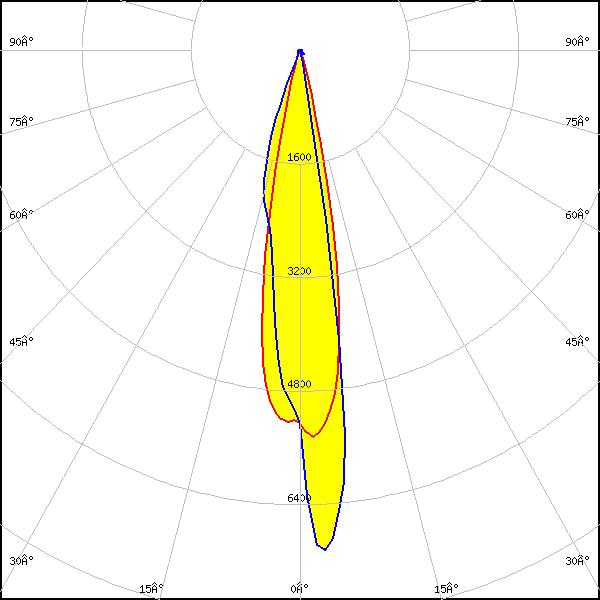

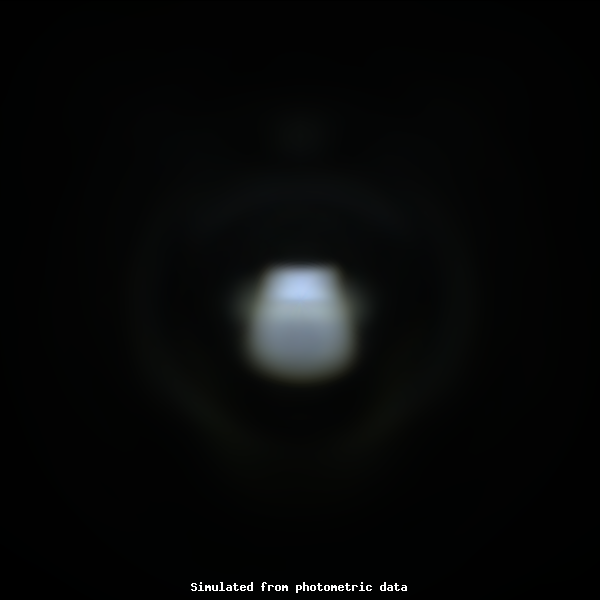

SST-25-W
FWHM: asymmetric
Peak intensity:
7.072 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

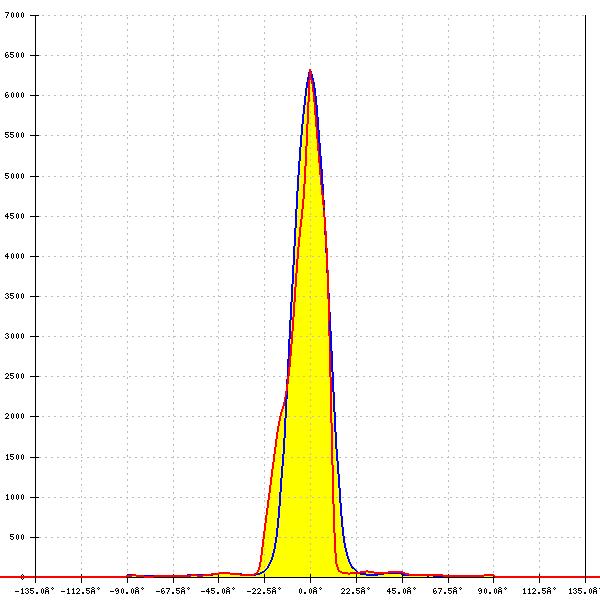

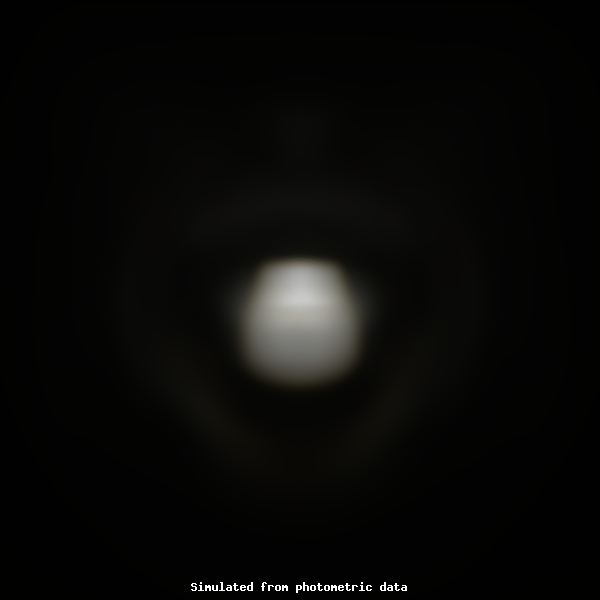

LED:

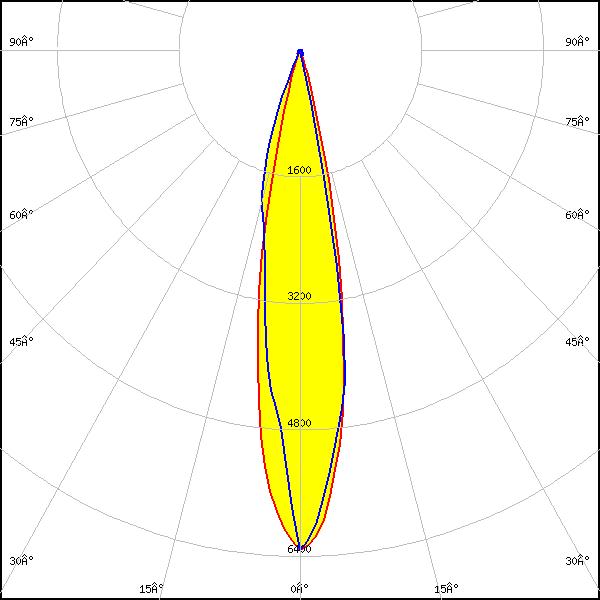

NV4WB35AM
FWHM:
20° + 18°
FWTM:
32° + 34°
Peak intensity:
6.324 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

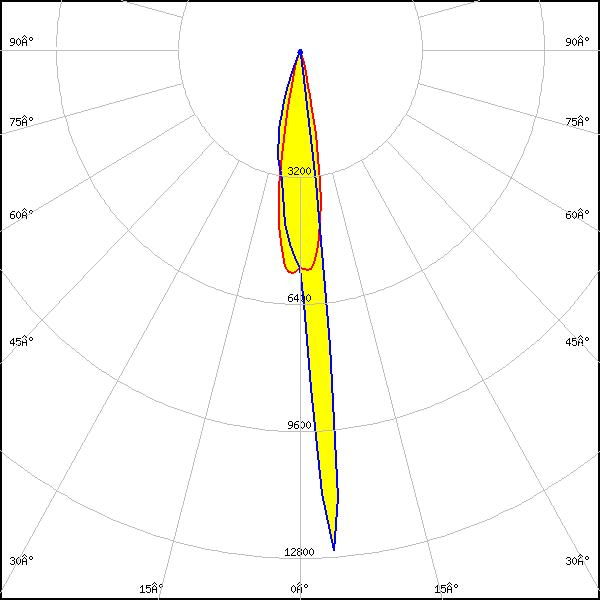

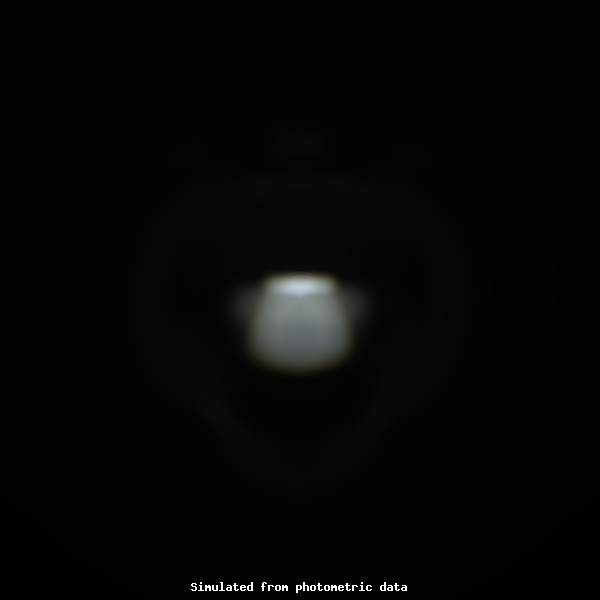

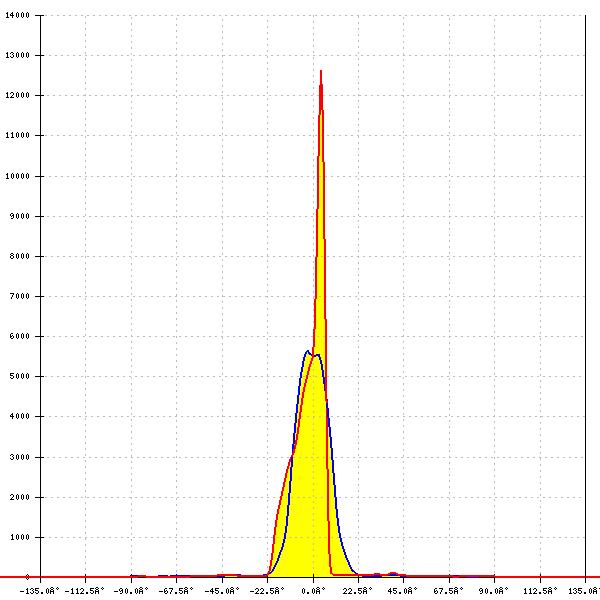

OSLON Black Flat (KW H2L531.TE)
FWHM:
20° + 5°
FWTM:
32° + 26°
Peak intensity:
12.638 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

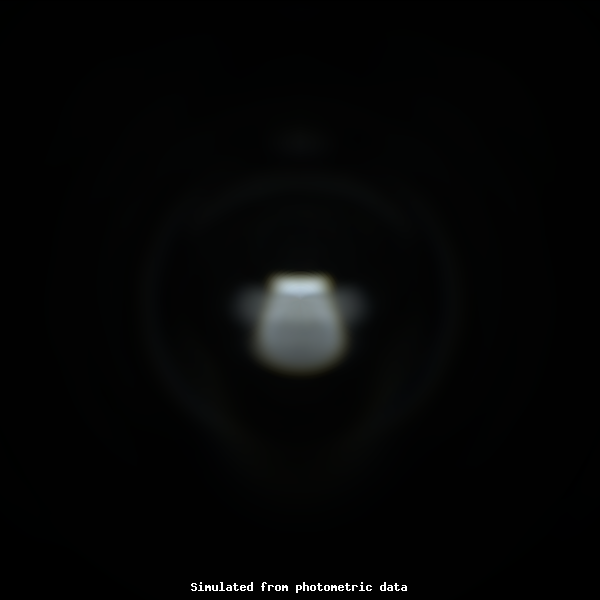

OSLON Black Flat S (KW HHL532.TK)
FWHM:
19° + 5°
FWTM:
32° + 27°
Peak intensity:
11.906 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

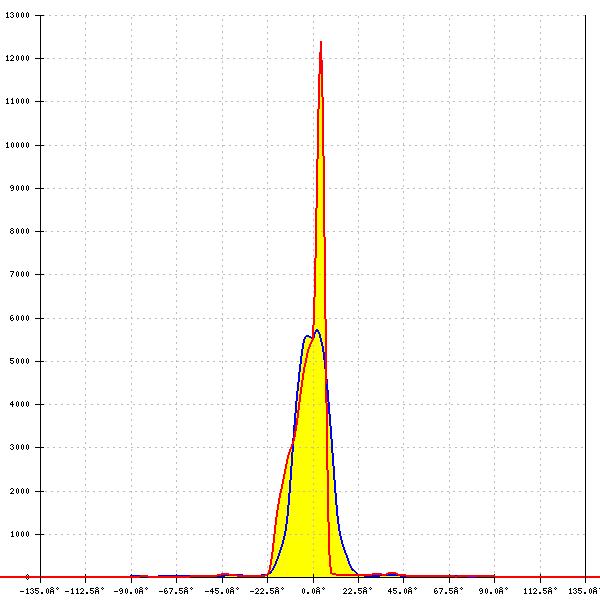

LED:

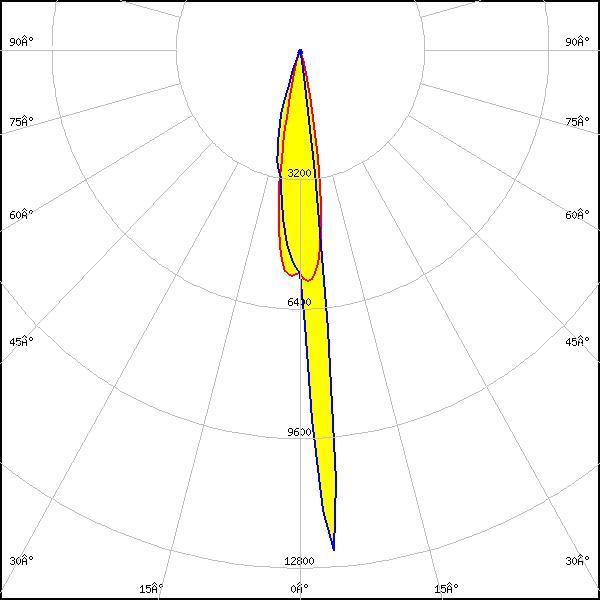

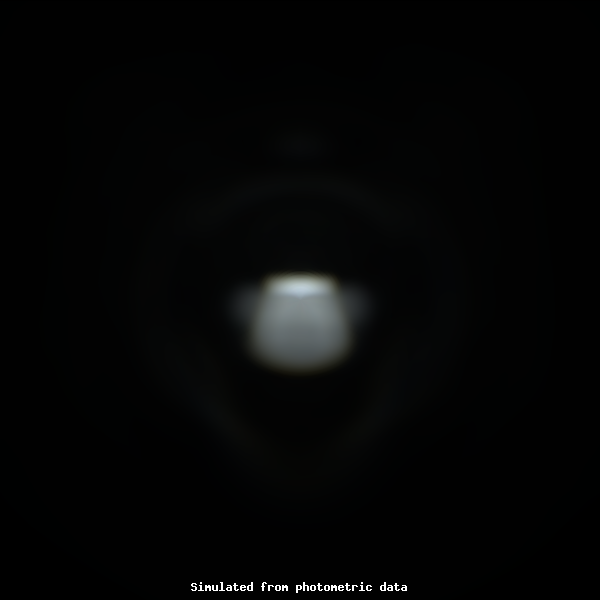

OSLON Black Flat S (KW2 HIL532.TK)
FWHM:
20° + 5°
FWTM:
32° + 26°
Peak intensity:
12.413 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

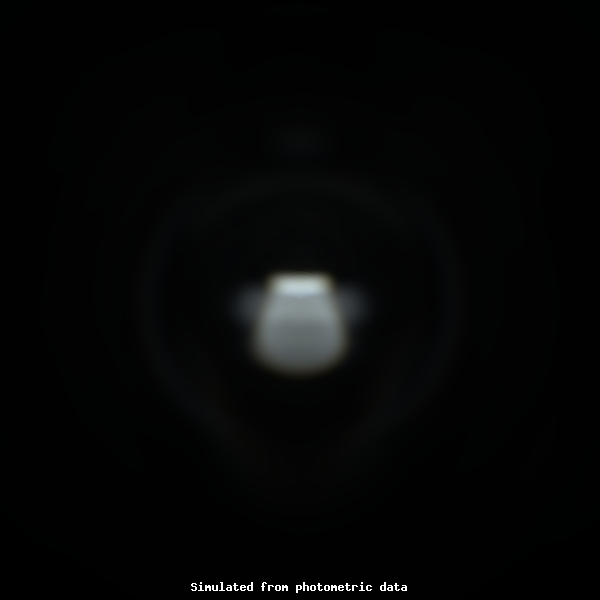

OSLON Black Flat X (KW HHL631.TK)
FWHM:
20° + 6°
FWTM:
32° + 27°
Peak intensity:
11.297 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

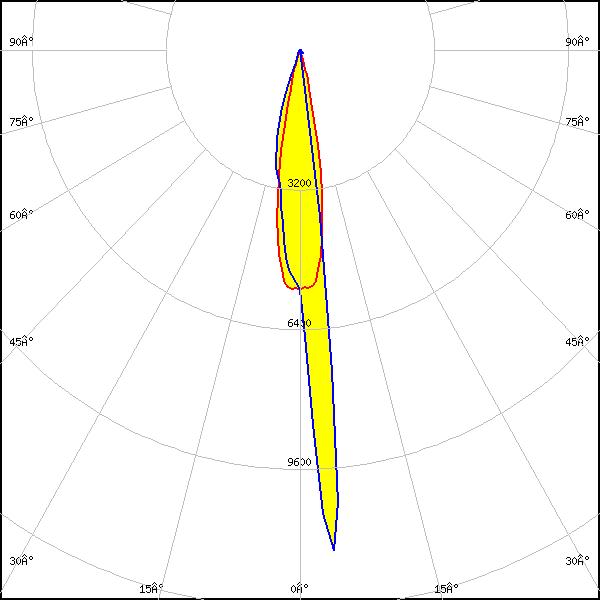

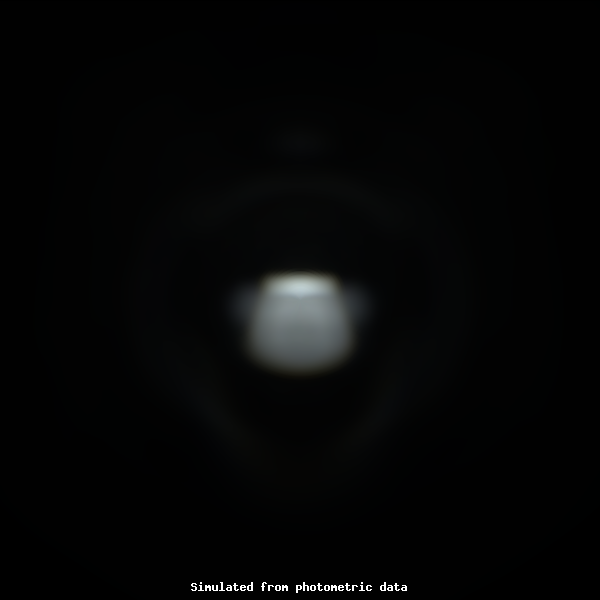

OSLON Black Flat X (KW2 HML631.TK)
FWHM:
20° + 6°
FWTM:
32° + 27°
Peak intensity:
11.493 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

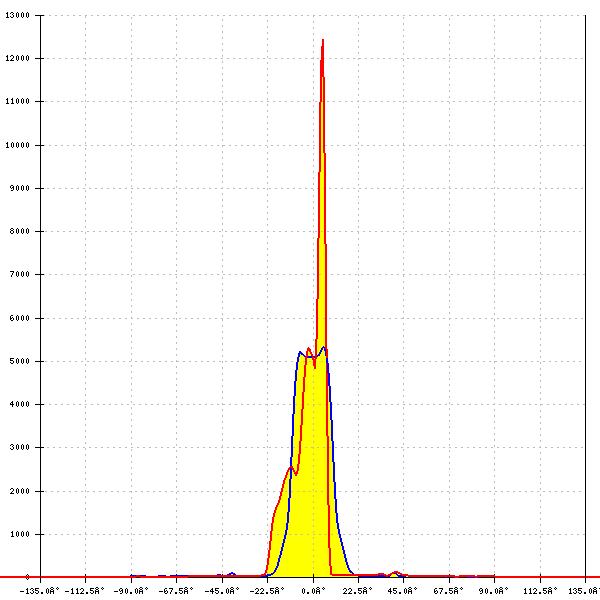

LED:

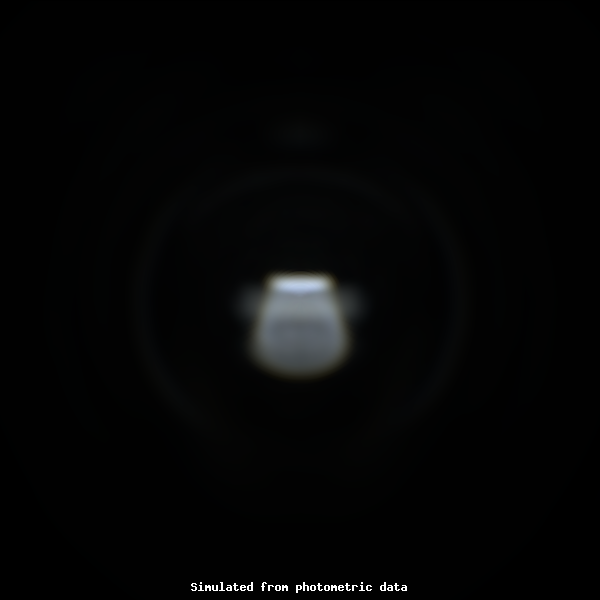

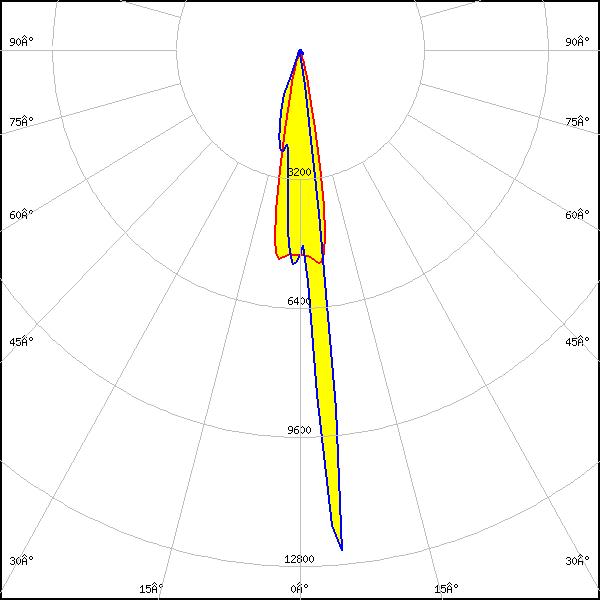

OSLON Boost HM (KW CELMM1.TG)
FWHM:
20° + 5°
FWTM:
32° + 28°
Peak intensity:
12.797 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

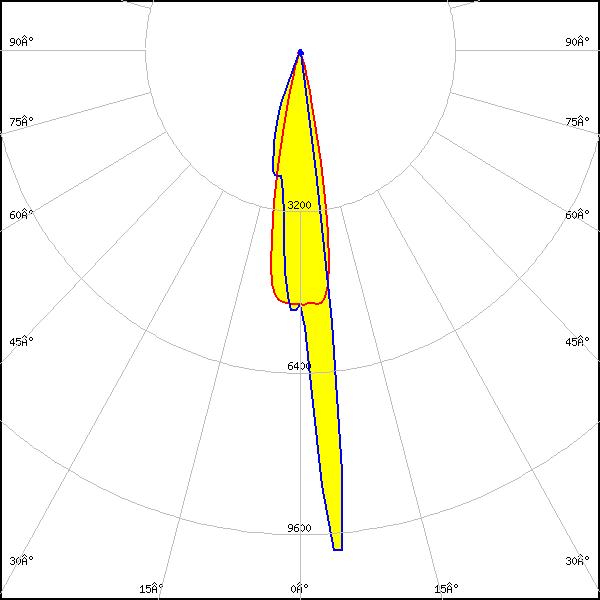

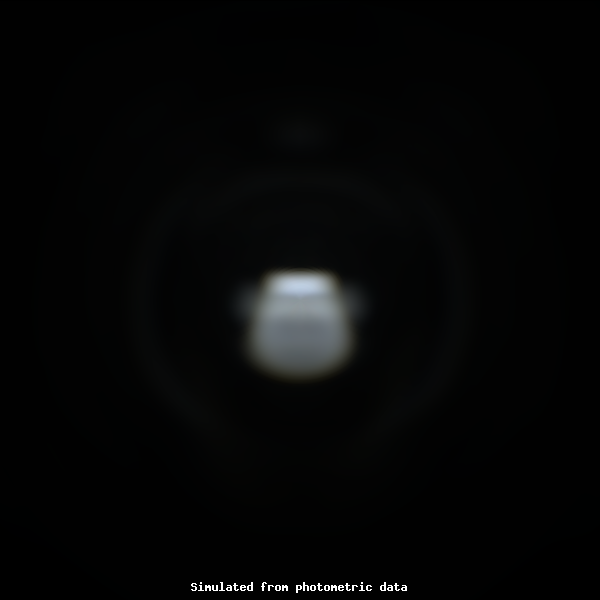

LED:
OSLON Boost HX (KW CULPM1.TG)
FWHM:
22° + 10°
FWTM:
32° + 29°
Peak intensity:
10.022 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSRAM OSLON Compact PM (KW CDLMM2.TK)
FWHM: asymmetric
Peak intensity:
12.447 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
