APPLICATION EXAMPLE
Bicycle lanes with STELLA-A (VERO18)
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Bicycle lane |
| Lighting class: | S4 |
| Optics: | STELLA-A |
| LED: | VERO18 |
| Arrangement: | Single row, bottom |
| Luminous flux (Luminaire): | 1012 lm |
| Power (LEDs/Luminaire): | 9.3 W |
| Pole distance: | 18 m |
| Mounting height: | 4 m |
| Overhang: | 0.5 m |
| Boom angle: | 0° |
| Boom length: | 1.0 m |

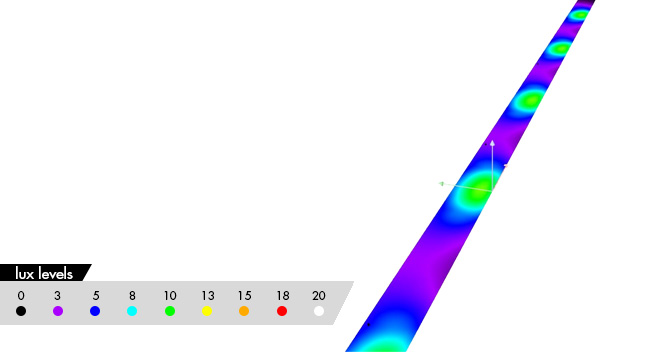

RESULTS:
| Average: | 5.36 lx |
| Min: | 2.17 lx |
| Fulfills the S4 lighting class requirements |
| FN13323_STELLA-A | ||
| FN14253_STELLA-A |
