FN13323_STELLA-A
Print

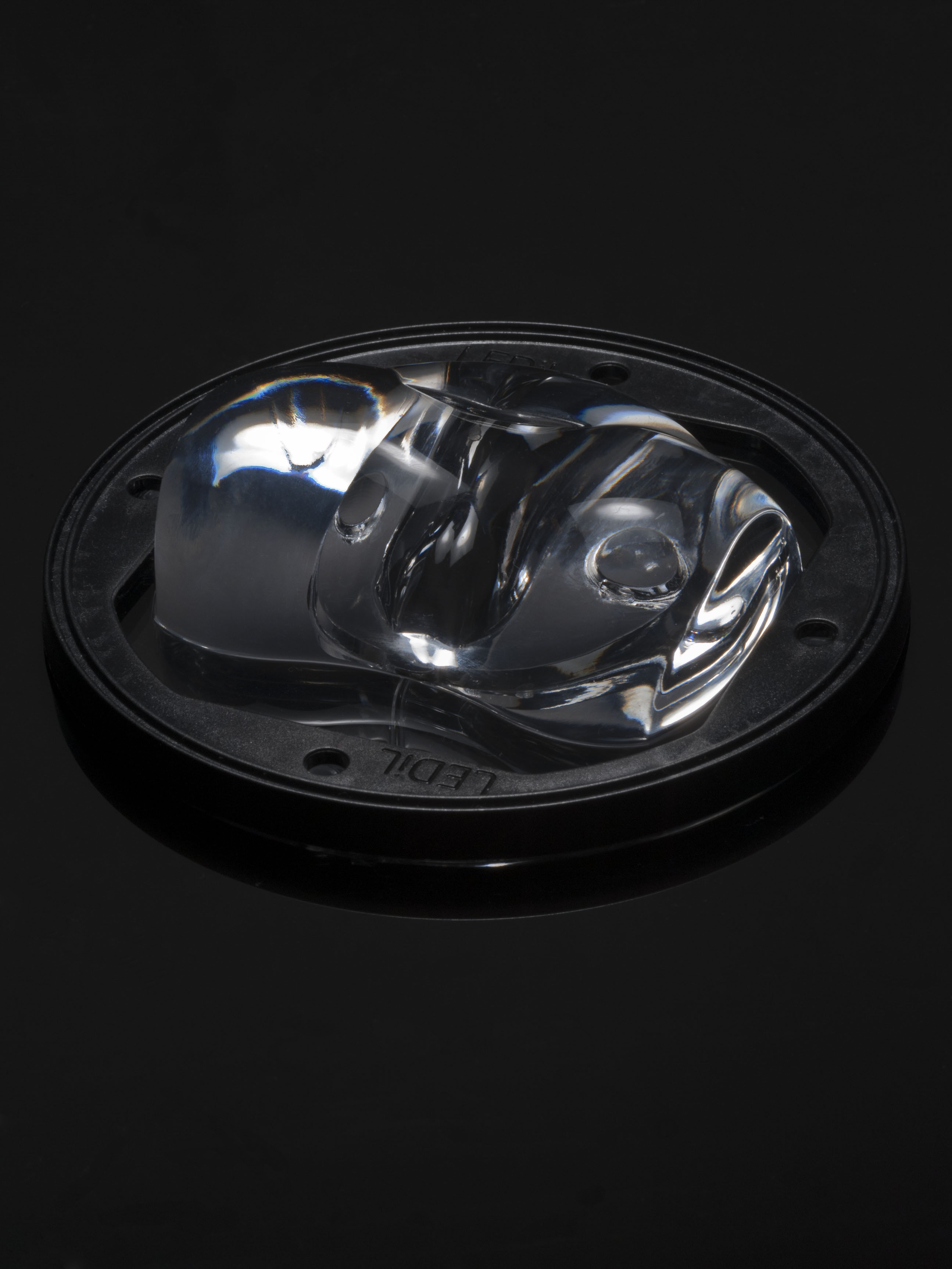

Type ll and lll beam for street lighting. Compatible with up to 23 mm LES size COBs. Variant with black frame.
Materials
- STELLA-A, Single lens, Silicone
- STELLA-FRAME, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity:
0.560 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ L1
FWHM: asymmetric
Peak intensity:
0.550 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V15 Gen6
LES size: 15.2 mm
FWHM: asymmetric
Peak intensity:
0.550 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen7
LES size: 19.2 mm
FWHM: asymmetric
Peak intensity:
0.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 13mm (18W) DP
LES size: 14.0 mm
FWHM: asymmetric
Peak intensity:
0.435 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM: asymmetric
Peak intensity:
0.639 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity:
0.616 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.345 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
FWHM: asymmetric
Peak intensity:
0.960 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
FWHM: asymmetric
Peak intensity:
0.730 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
Bender Wirth: 441 Typ L1
FWHM: asymmetric
Peak intensity:
0.850 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM: asymmetric
Peak intensity:
0.620 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.740 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
FWHM: asymmetric
Peak intensity:
0.490 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity:
0.910 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
FWHM: asymmetric
Peak intensity:
0.300 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-18 (21.5x21.5)
LES size: 17.5 mm
FWHM: asymmetric
Peak intensity:
0.460 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity:
0.720 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
FWHM: asymmetric
Peak intensity:
0.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity:
0.690 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
FWHM: asymmetric
Peak intensity:
0.457 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
