FN14253_STELLA-A
Print

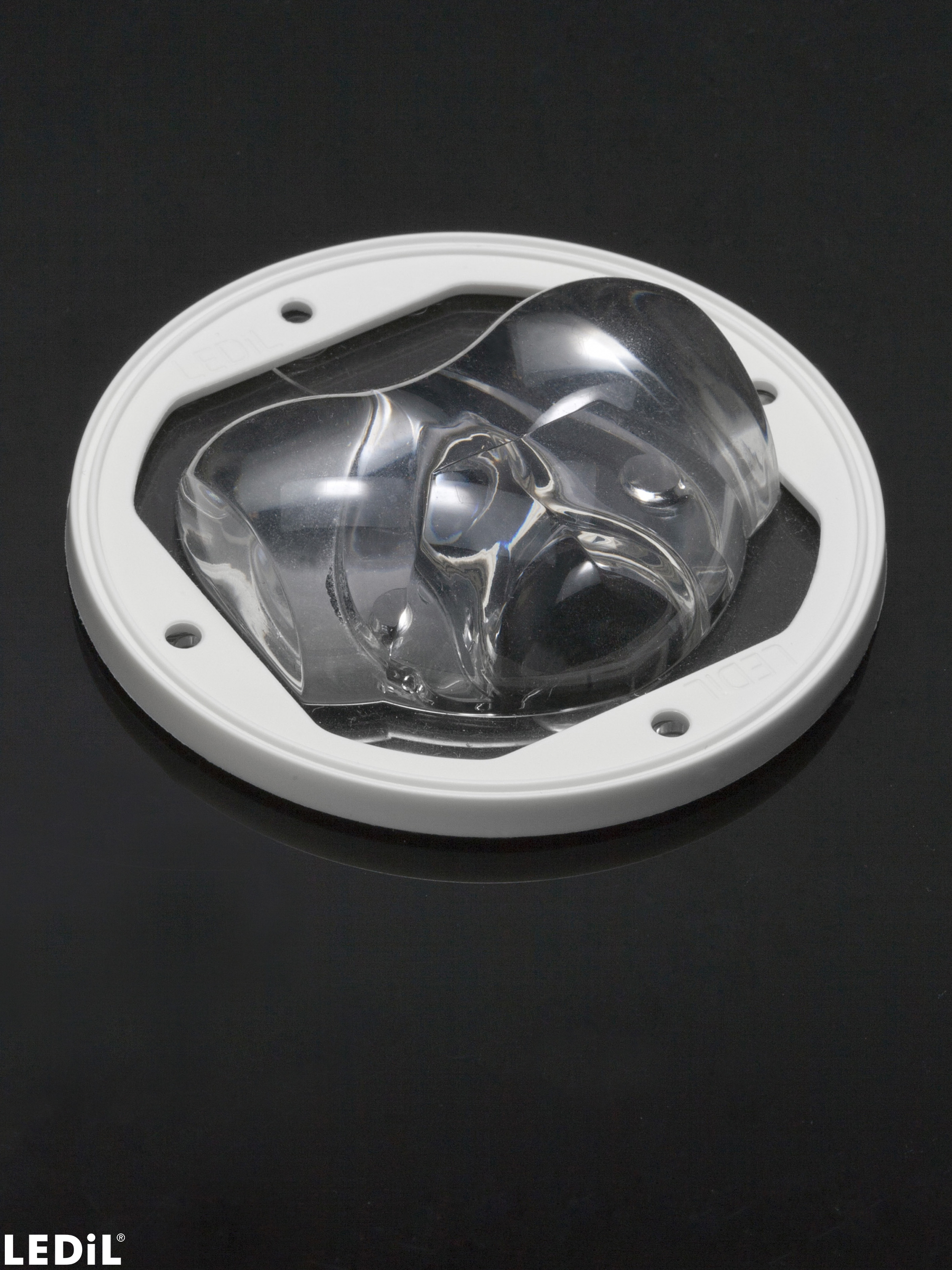

Type ll and lll beam for street lighting. Compatible with up to 23 mm LES size COBs. Variant with white frame.
Materials
- STELLA-A, Single lens, Silicone
- STELLA-FRAME-WHT, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity:
0.560 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ L1
FWHM: asymmetric
Peak intensity:
0.555 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

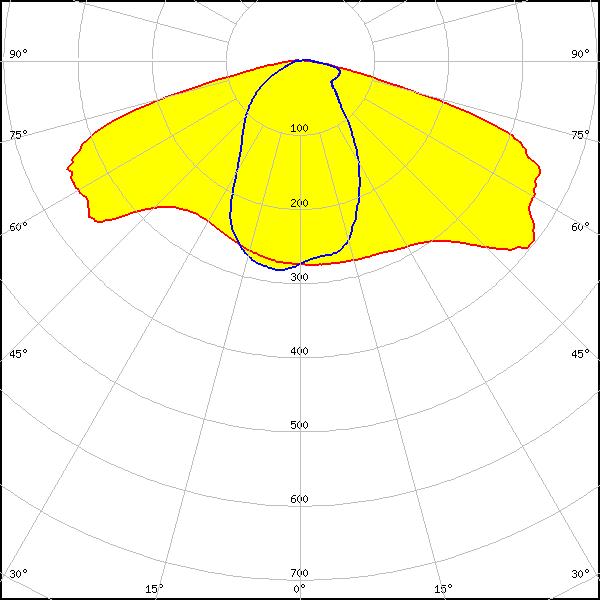

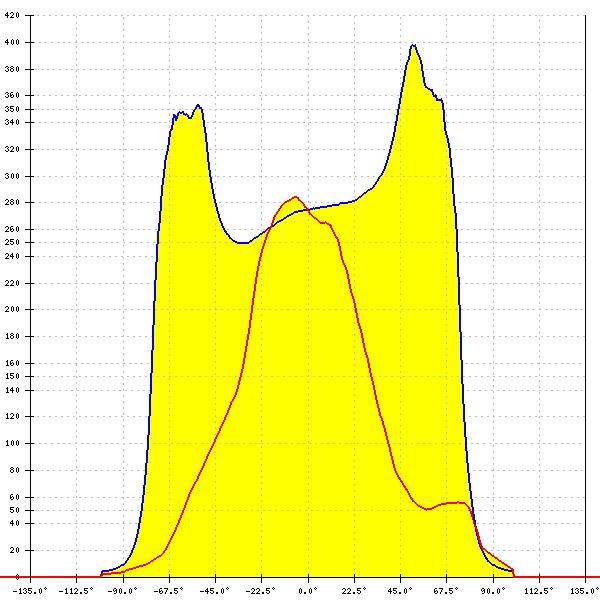

LED:
V18 Gen7
LES size: 19.2 mm
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

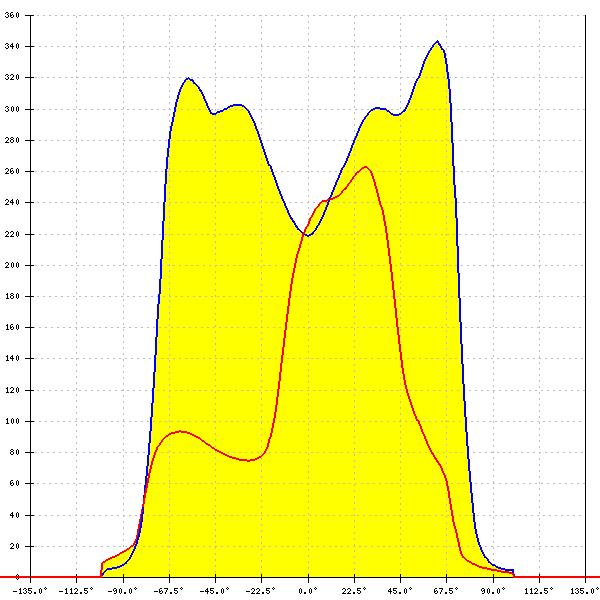

LED:

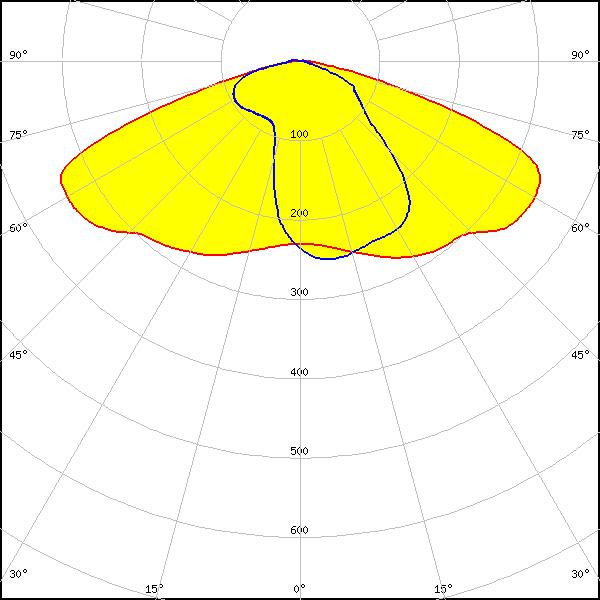

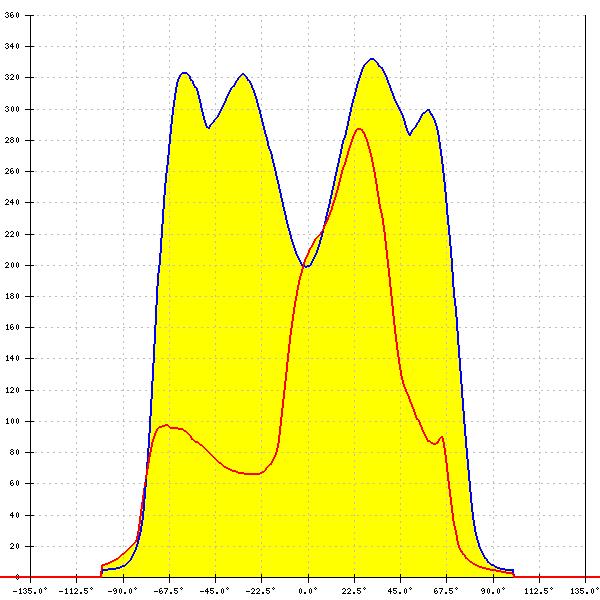

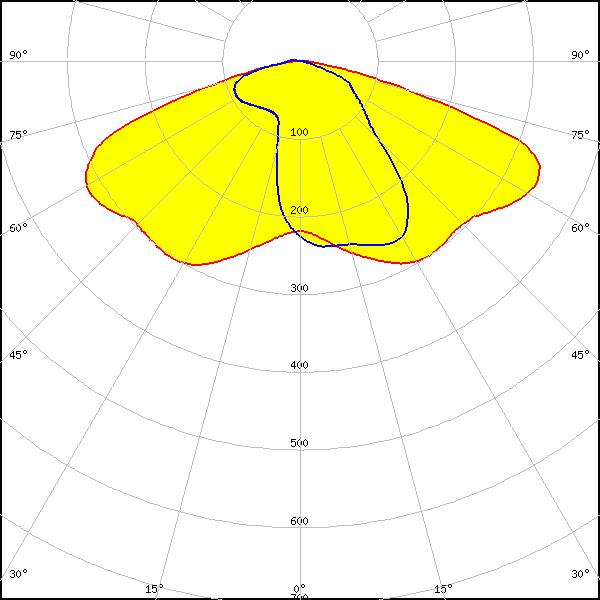

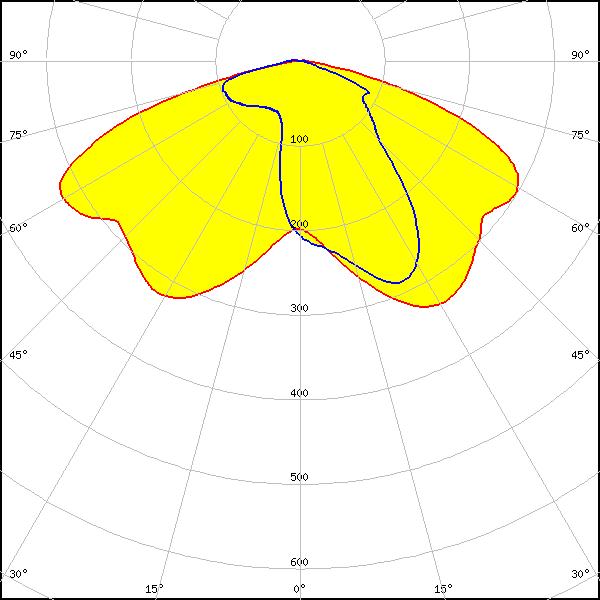

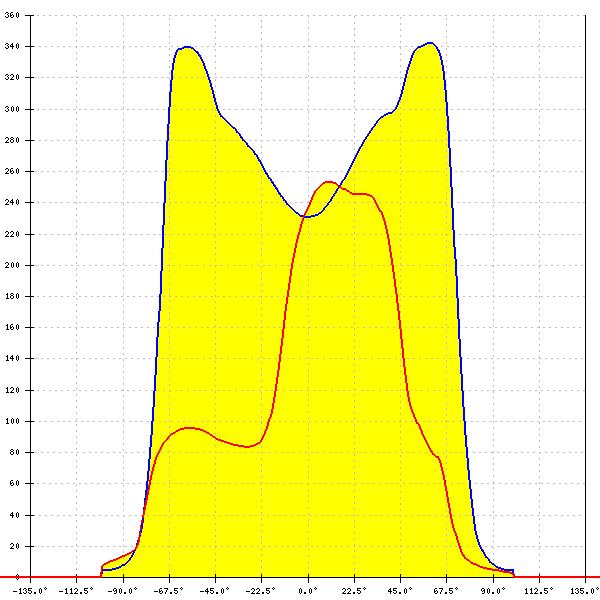

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

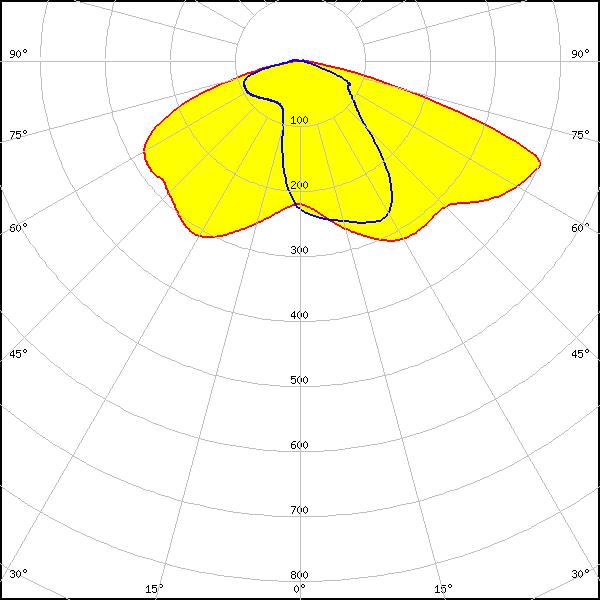

LED:

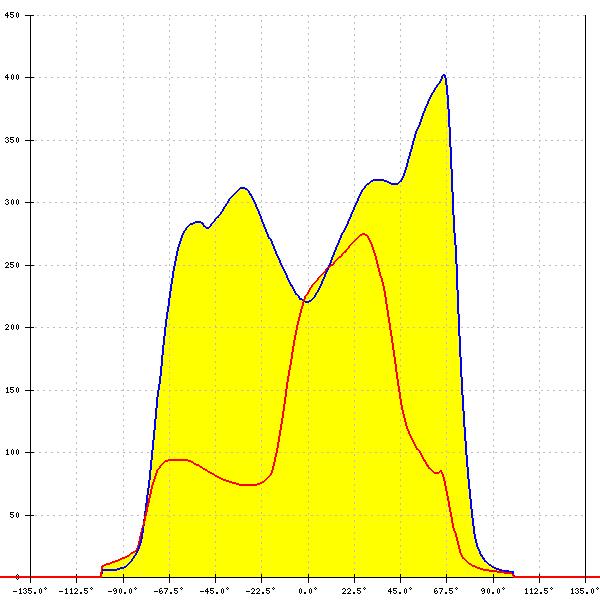

CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity:
0.770 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

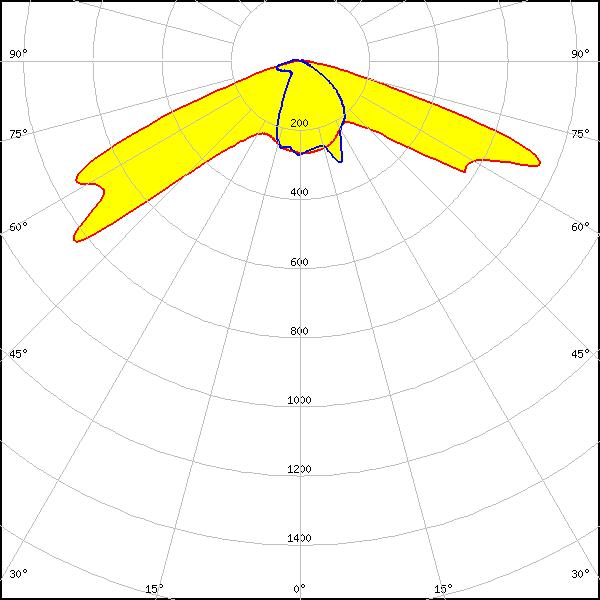

LED:

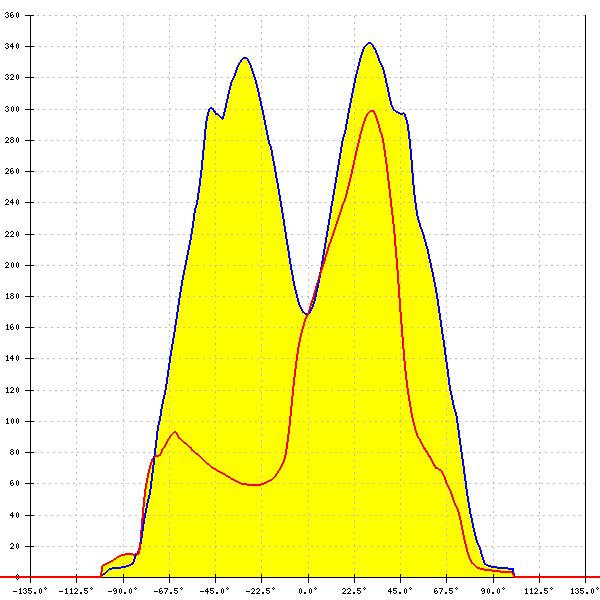

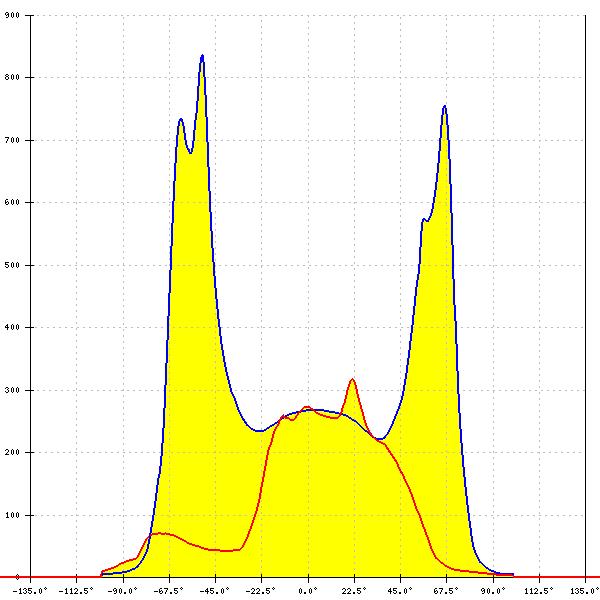

CXA/B 15xx
LES size: 8.9 mm
Required components:
Bender Wirth: 441 Typ L1
FWHM: asymmetric
Peak intensity:
0.850 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

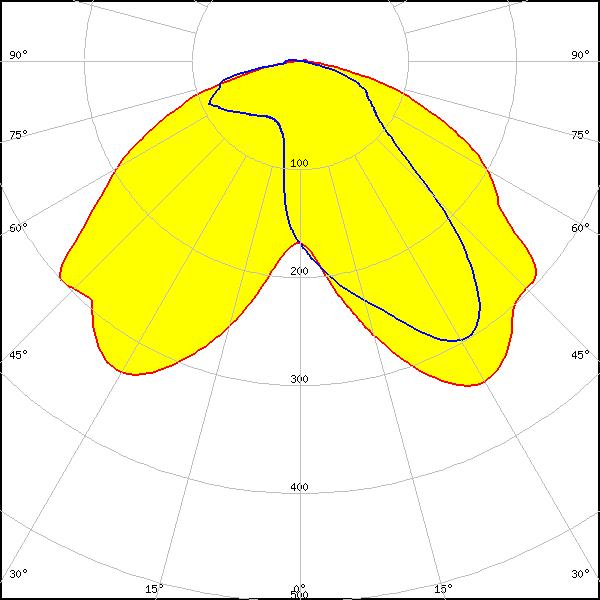

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

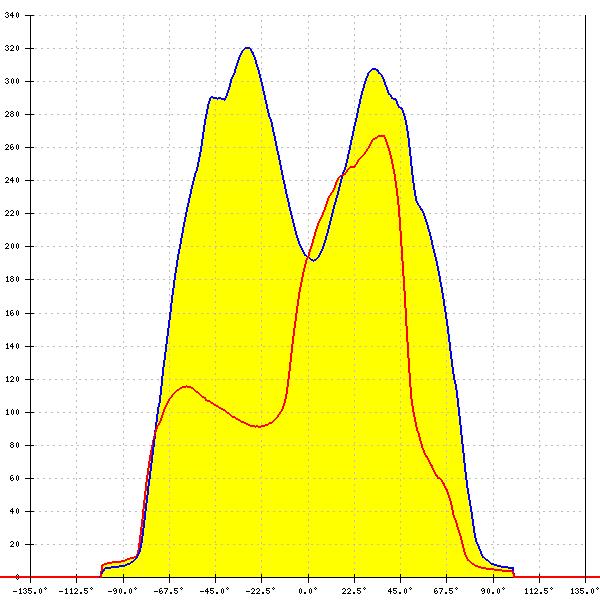

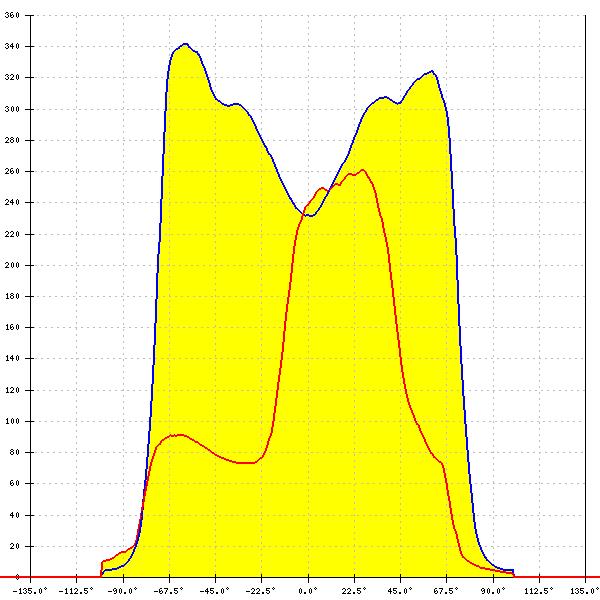

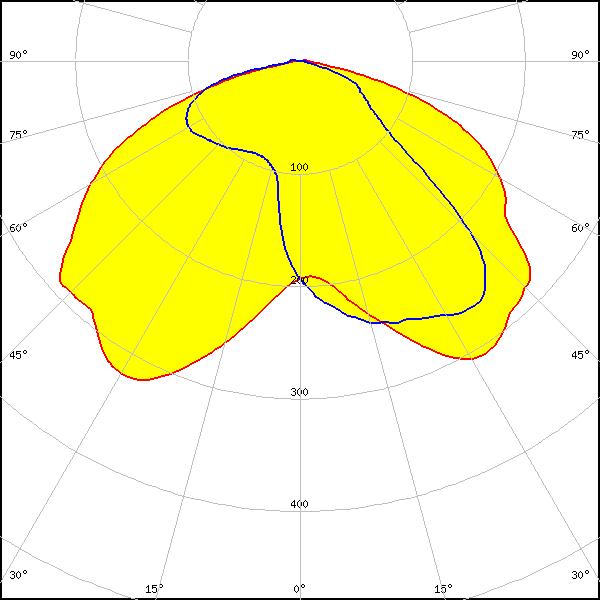

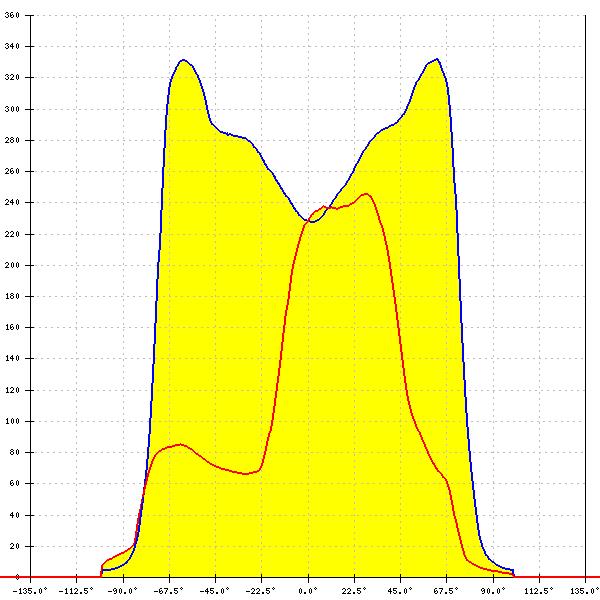

LED:

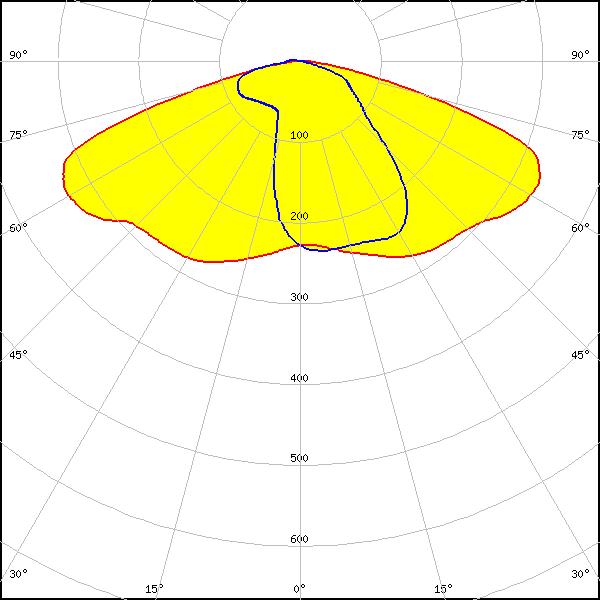

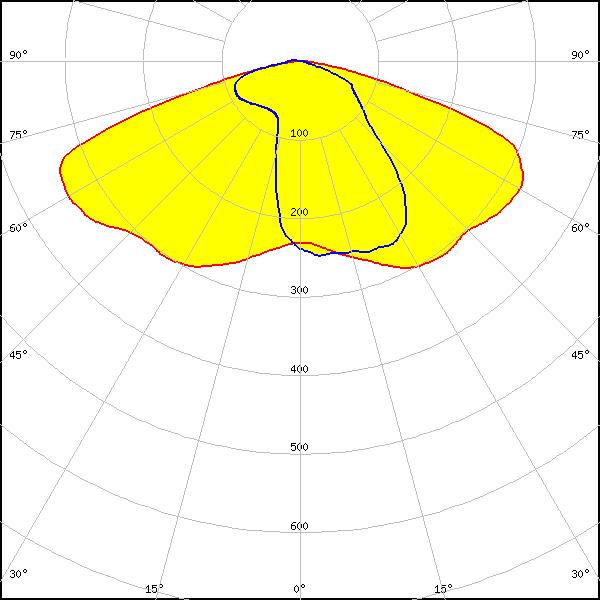

CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM: asymmetric
Peak intensity:
0.620 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity:
0.740 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity:
0.680 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

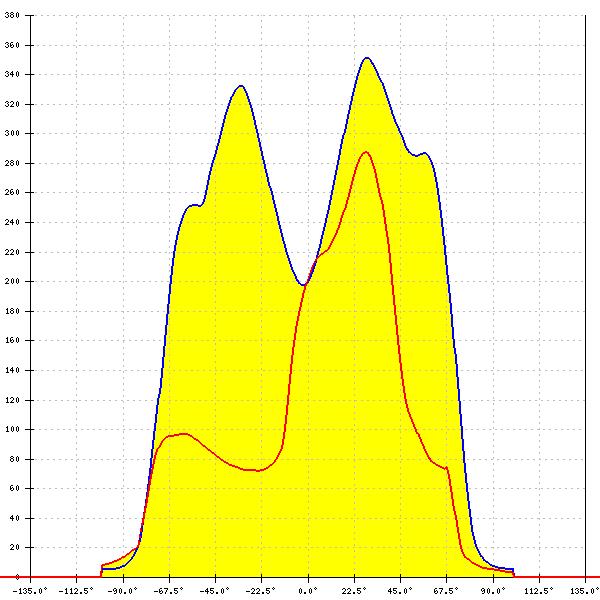

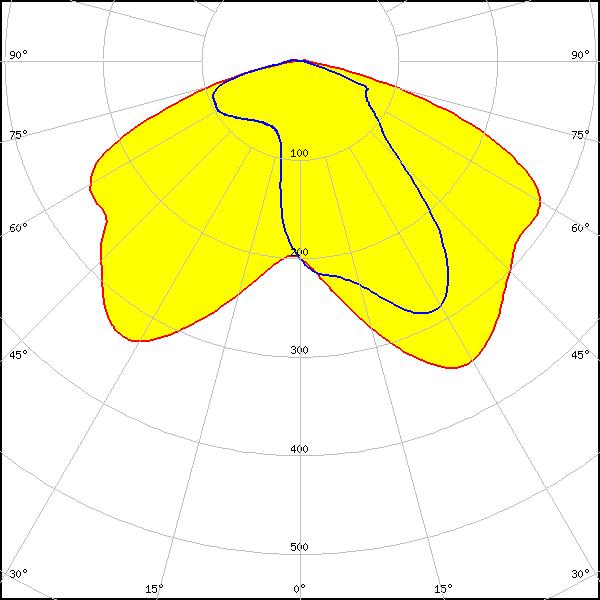

LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity:
0.920 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
FWHM: asymmetric
Peak intensity:
0.300 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:

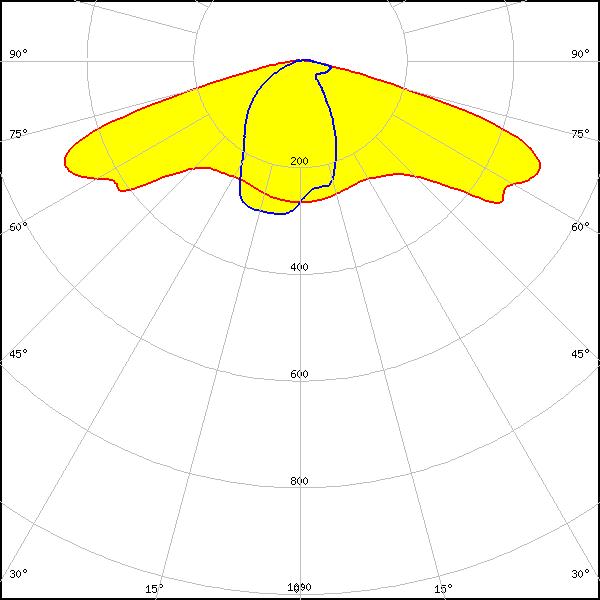

COB J-Type
LES size: 14.6 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity:
0.710 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity:
0.960 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

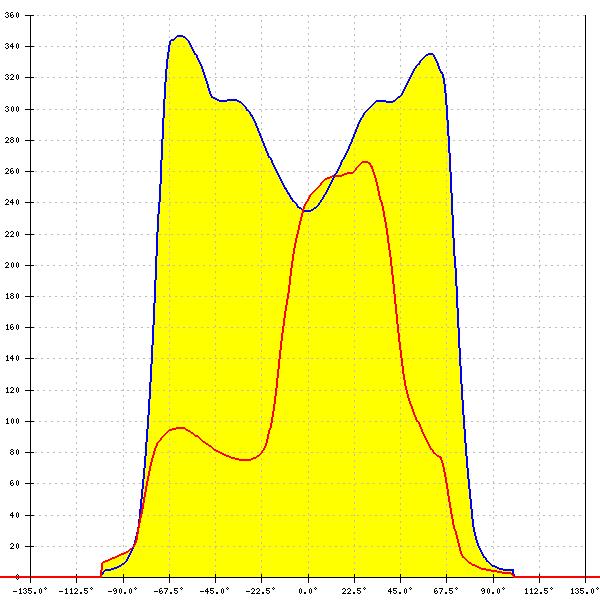

LED:

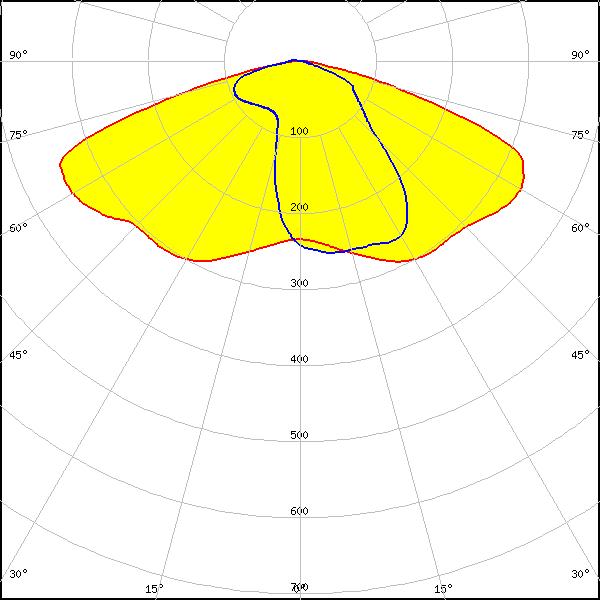

Soleriq S13
LES size: 13.2 mm
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity:
0.690 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
FWHM: asymmetric
Peak intensity:
0.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White
LED:

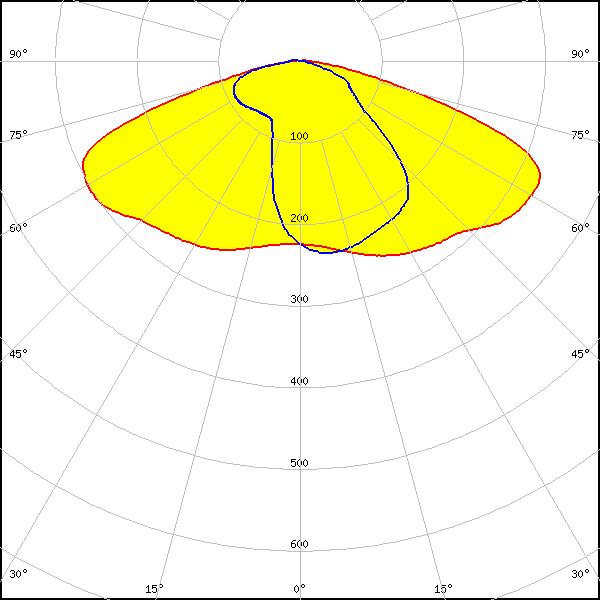

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
