Application example
Warehouse lighting with HB-2X3-5050.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Example with HB-2X3-5050-WW light distribution
SETUP:
| Application: | Industrial lighting |
| Optics: | HB-2X3-5050 |
| LED: | Flat 5050 |
| Room size: | 1764 m2 |
| HB-2X3-5050-WW | HB-2X3-5050-UW | LED + protective plate | |
| Mounting height: | 7 m | 5 m | 5 m |
| Spacing: | 7 x 7 m | 10 x 10 m | 10 x 10 m |
| Luminaire power: | 65 W | 121 W | 158 W |
| Number of luminaires: | 36 pcs | 16 pcs | 16 pcs |
| Luminous flux (Luminaire): | 10 100 lm | 18 500 lm | 24 300 lm |
RESULTS:

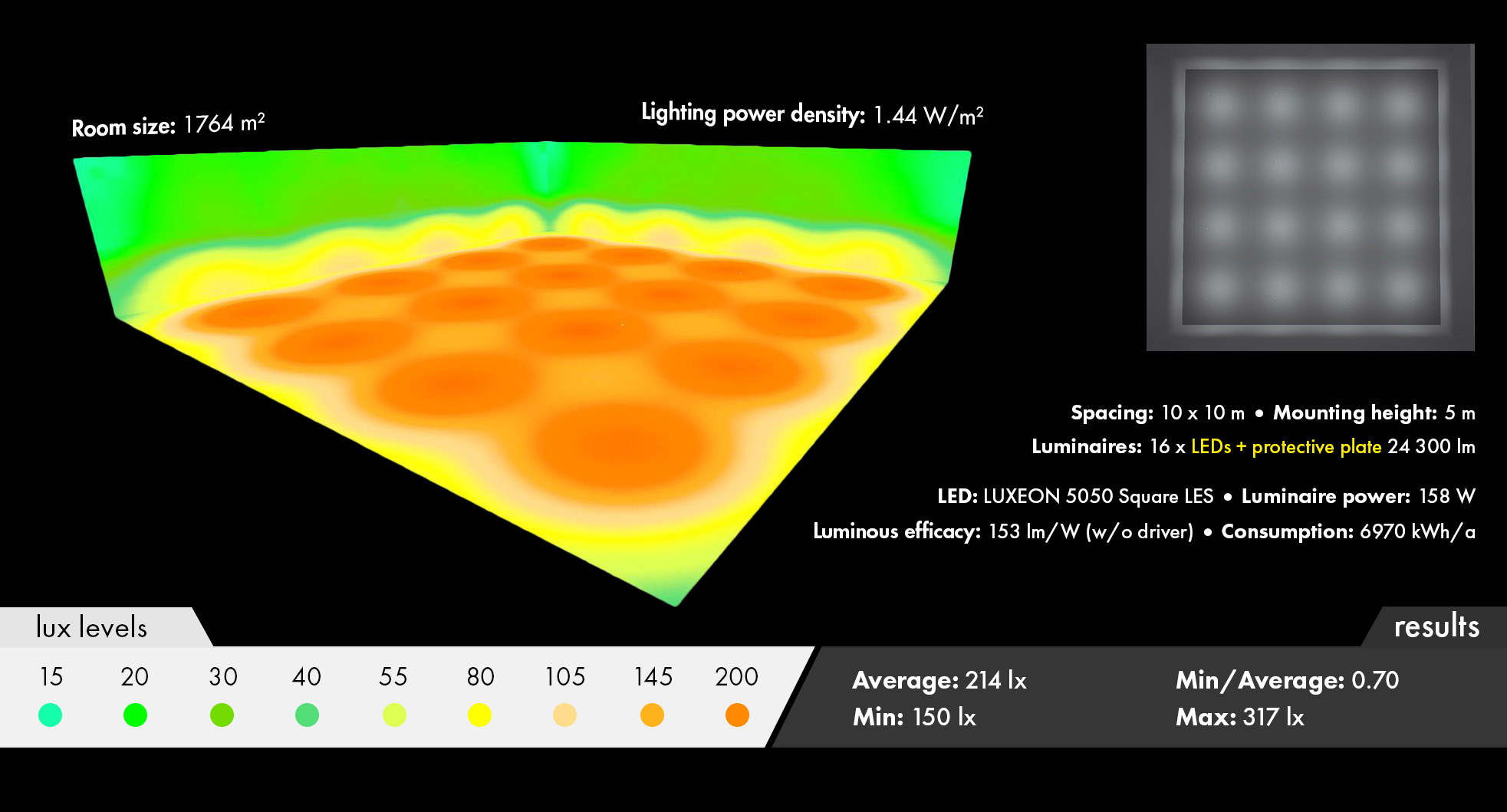

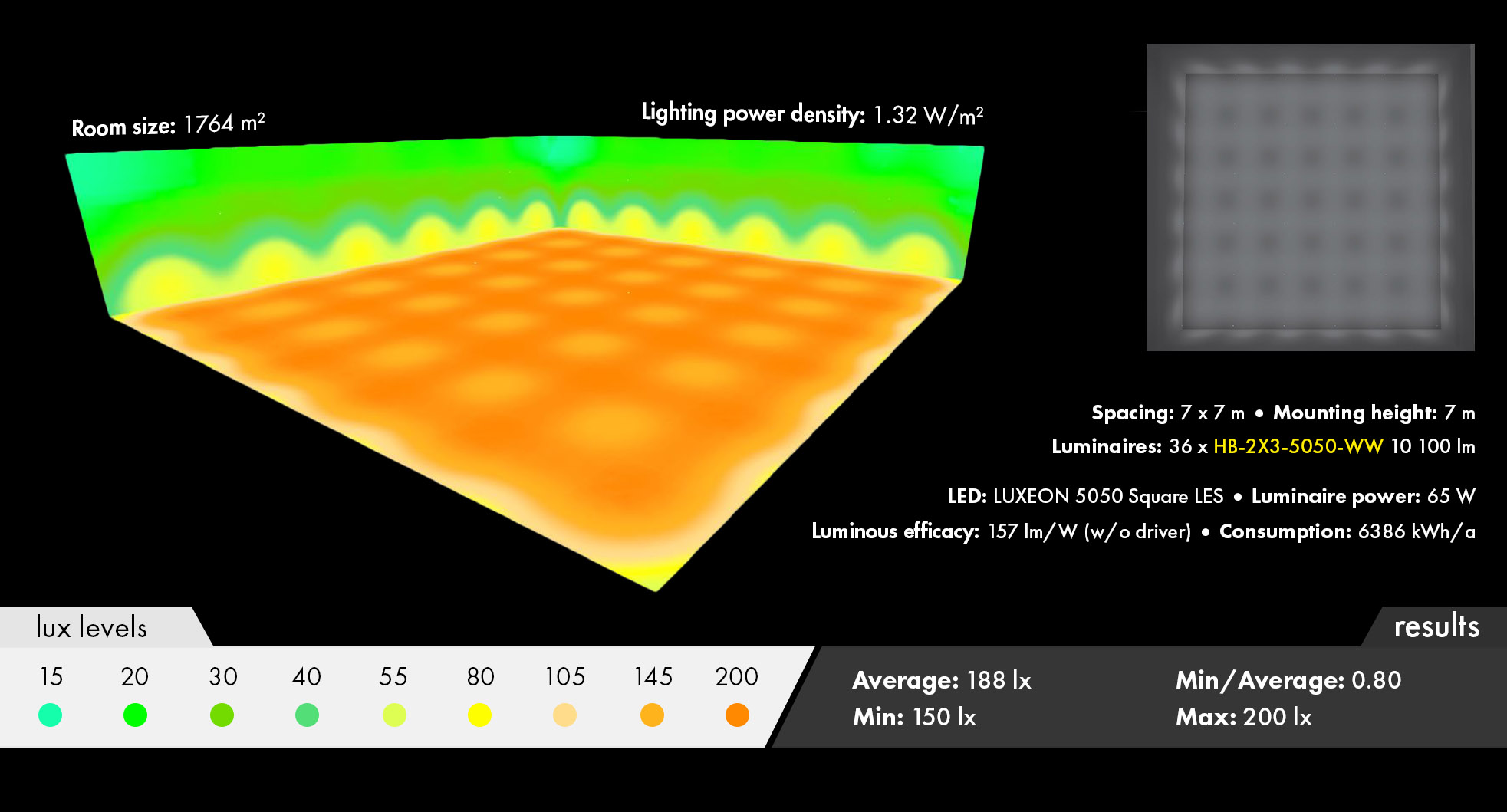

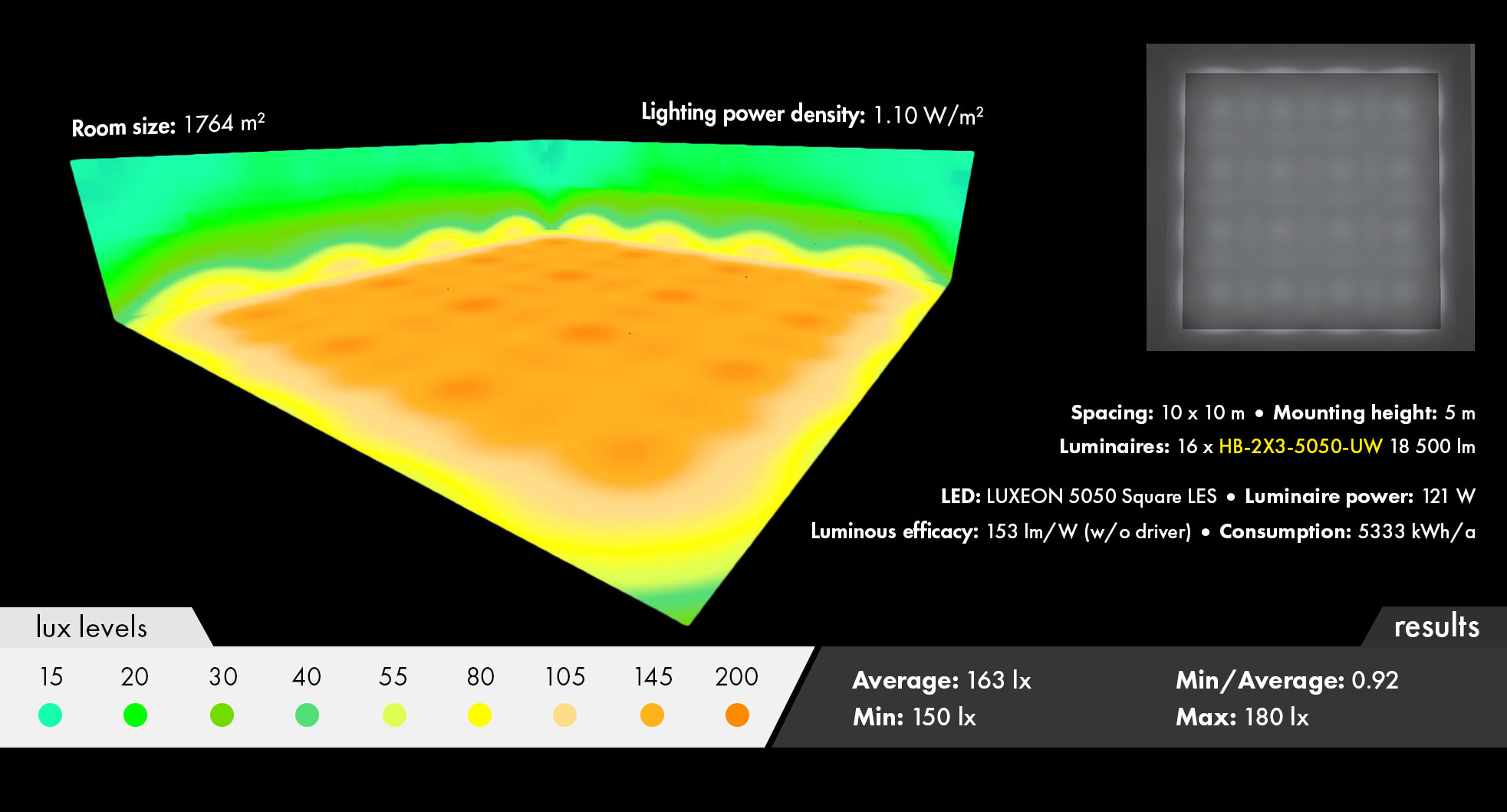

| HB-2X3-5050-WW | HB-2X3-5050-UW | LED + protective plate | |
| Min (Target): | 150 lx | 150 lx | 150 lx |
| Average: | 188 lx | 163 lx | 214 lx |
| Uniformity (Min/Average): | 0.80 | 0.92 | 0.70 |
| Max: | 200 lx | 180 lx | 317 lx |
| Efficacy (w/o driver): | 157 lm/W | 153 lm/W | 153 lm/W |
| Power consumption: | 6386 kWh/a | 5333 kWh/a | 6970 kWh/a |
| Lighting power density: | 1.32 W/m2 | 1.10 W/m2 | 1.44 W/m2 |
When comparing HB-2X3-UW (~120-degree light distribution) to just LEDs with protective plate, they do have “same efficacy” (lm/W), but with lenses you achieve the same target with -30 % less LED lumens, wattages and power consumption.
