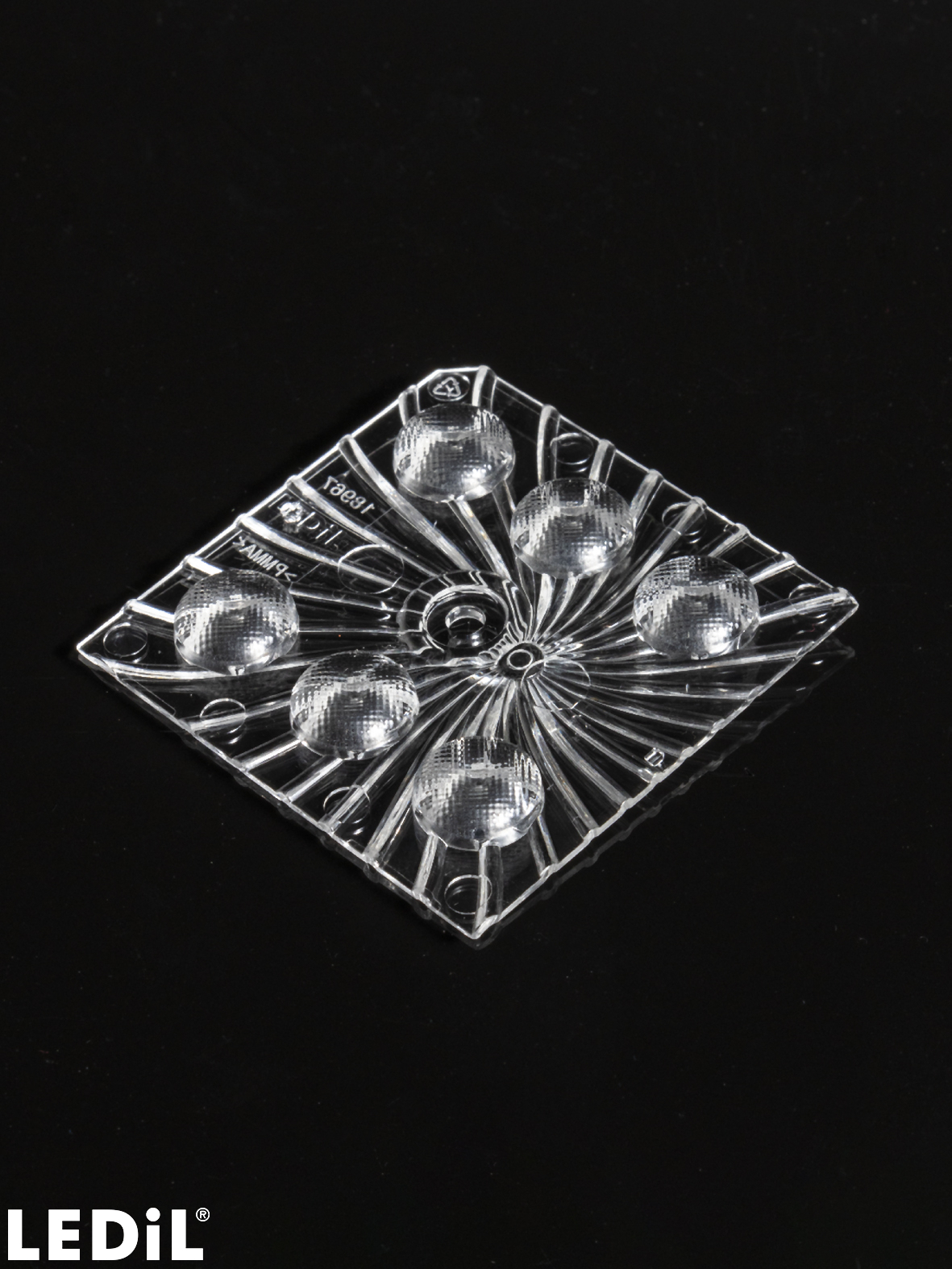

C18967_HB-2X3-5050-UW
Print~120° wide beam
Specification
-
Dimensions:50 x 50 mm
-
Height:5.60 mm
-
Fastening:glue, screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Materials
Ordering information
-
Quantity in box:1200 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:6.8 kg
-
MPQ:240 pcs
-
MOQ:1200 pcs
-
MOQ size:480 x 280 x 300 mm
-
MOQ weight:6.8 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

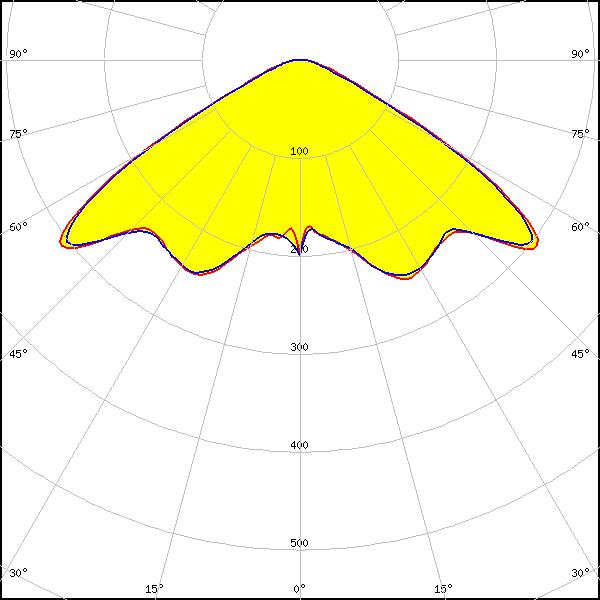

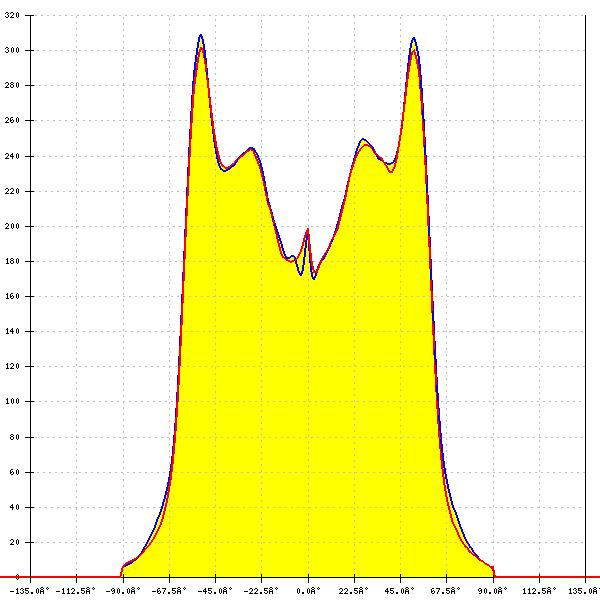

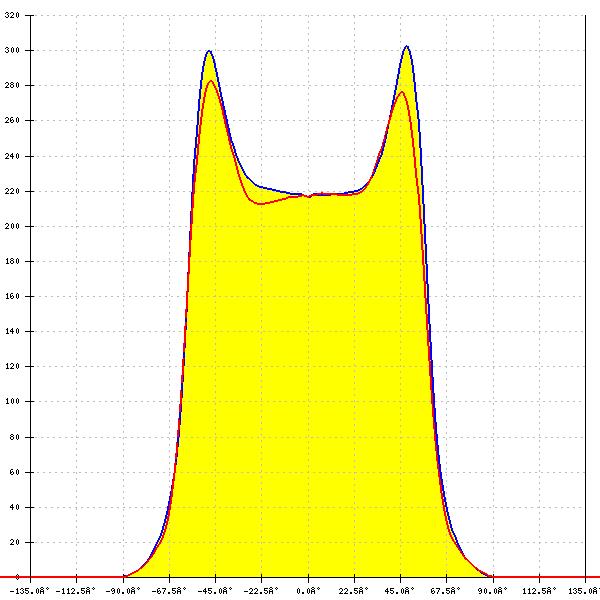

Optical results

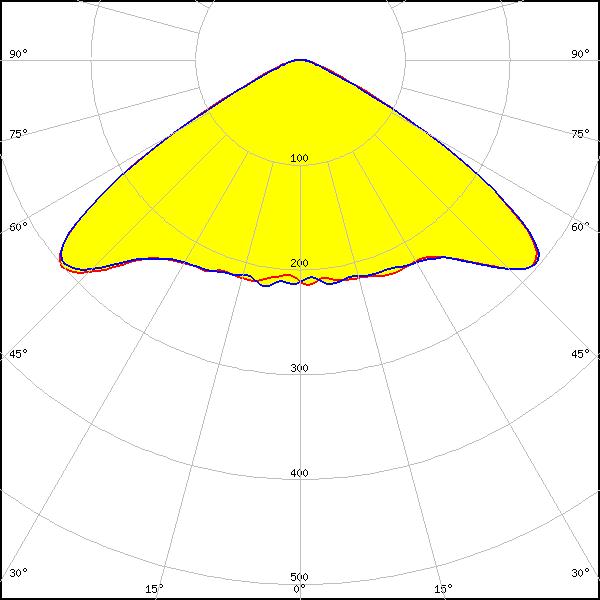

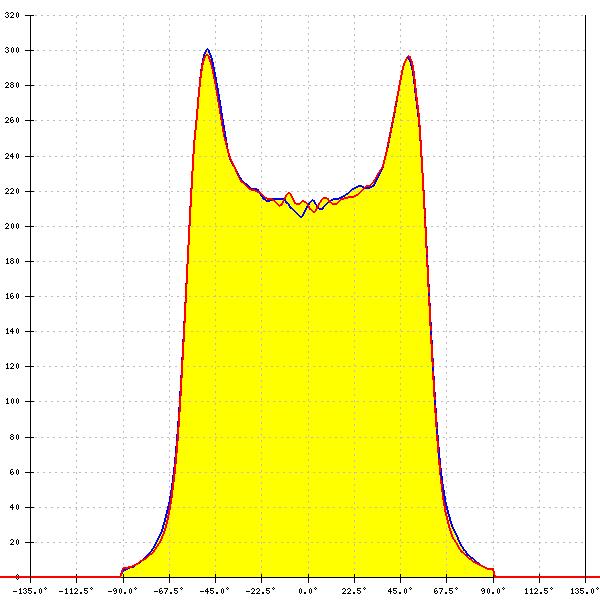

LED:
J Series 5050 Round LES
FWHM:
120°
FWTM:
139°
Peak intensity:
0.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050 Round LES
FWHM:
118°
FWTM:
137°
Peak intensity:
0.270 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

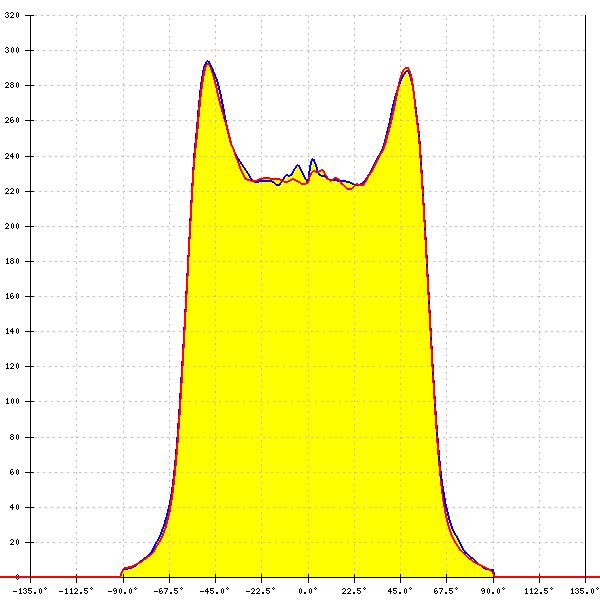

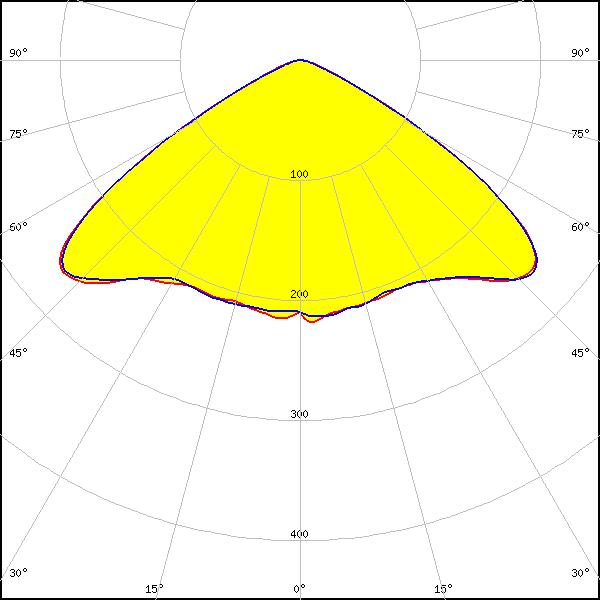

LED:
J Series 5050B 6V K Class
FWHM:
119°
FWTM:
139°
Peak intensity:
0.294 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

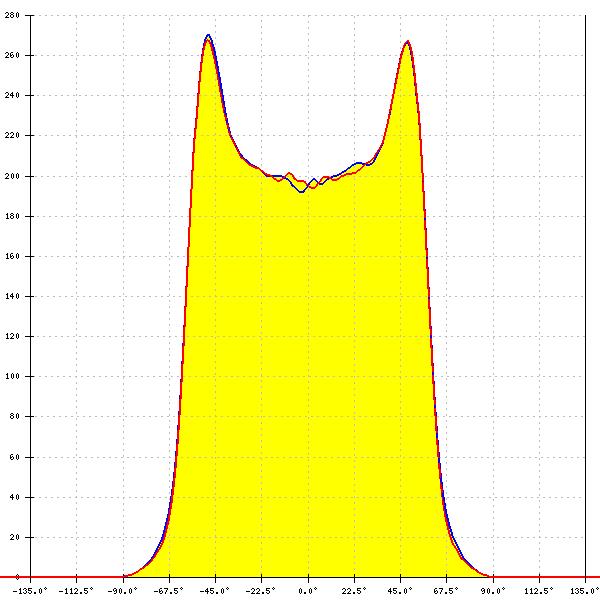

LED:
J Series 5050B 6V K Class
FWHM:
118°
FWTM:
137°
Peak intensity:
0.265 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

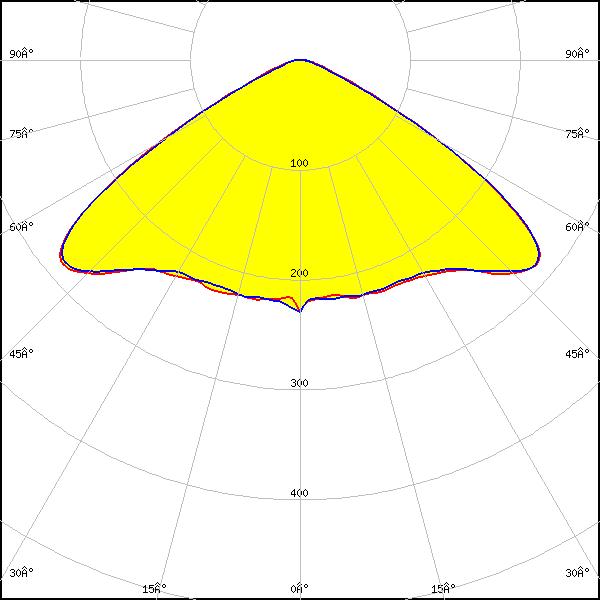

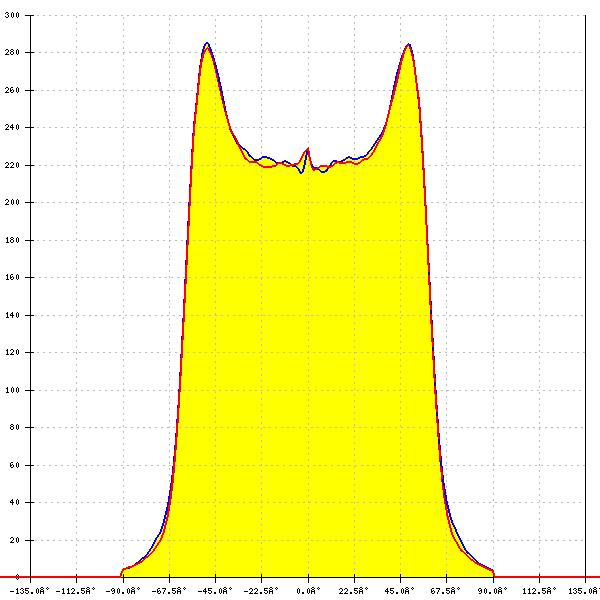

LED:
LUXEON 5050 Square LES
FWHM:
120°
FWTM:
140°
Peak intensity:
0.285 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

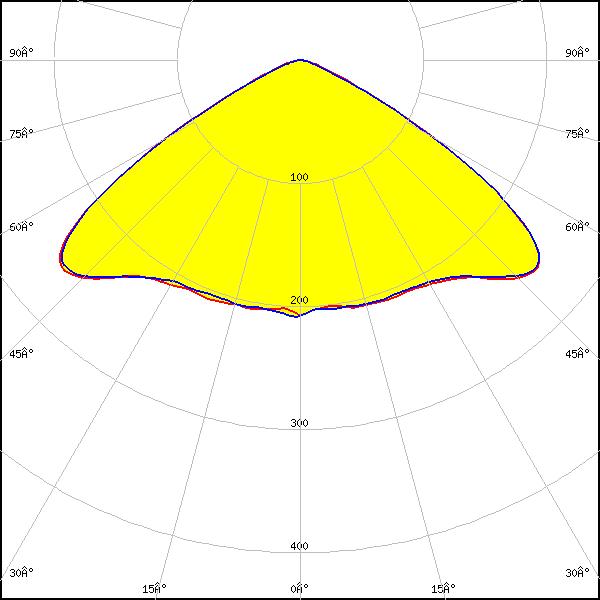

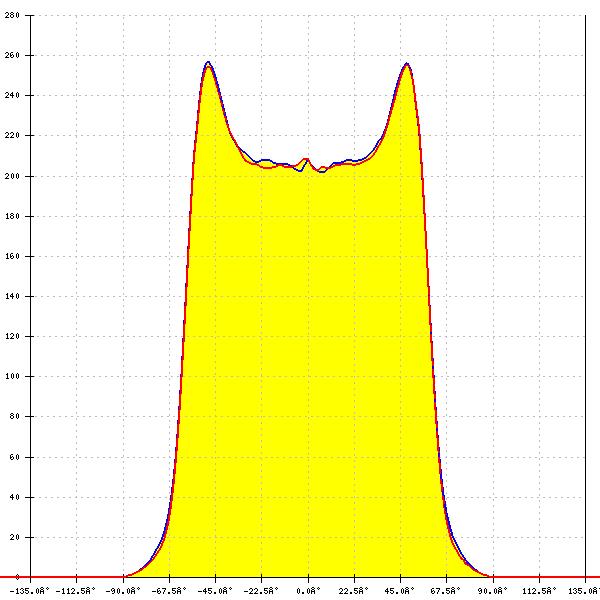

LED:
LUXEON 5050 Square LES
FWHM:
120°
FWTM:
137°
Peak intensity:
0.257 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

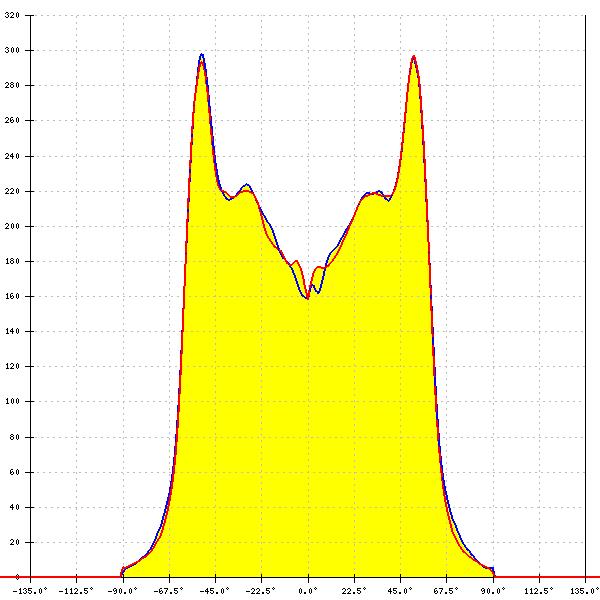

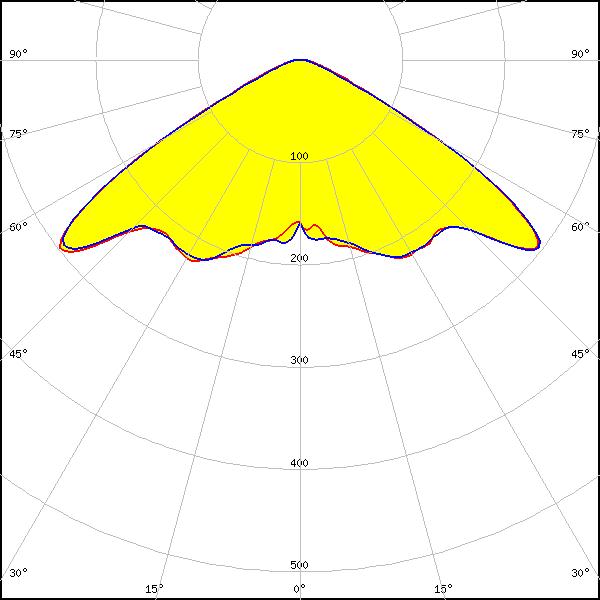

LED:
Duris S5 (2 chip)
FWHM:
120°
FWTM:
142°
Peak intensity:
0.299 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
122°
FWTM:
145°
Peak intensity:
0.274 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
