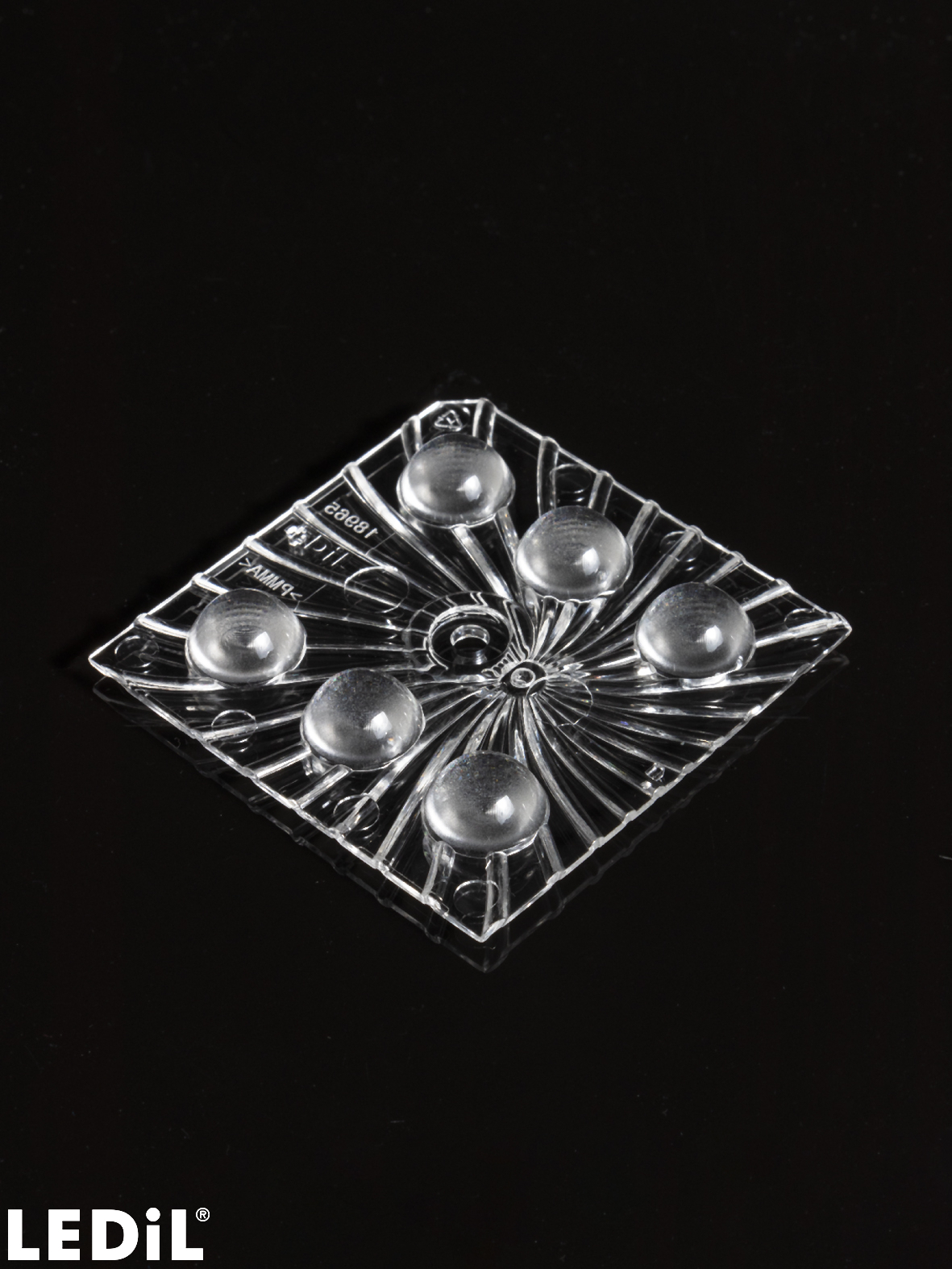

    C18965_HB-2X3-5050-WW

    Print

    ~60° wide beam

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.84 mm
    • Fastening:
      glue, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      1200 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.8 kg
    • MPQ:
      240 pcs
    • MOQ:
      1200 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      6.8 kg
    Documents
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C18965_HB-2X3-5050-WW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Warehouse lighting with HB-2X3-5050

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

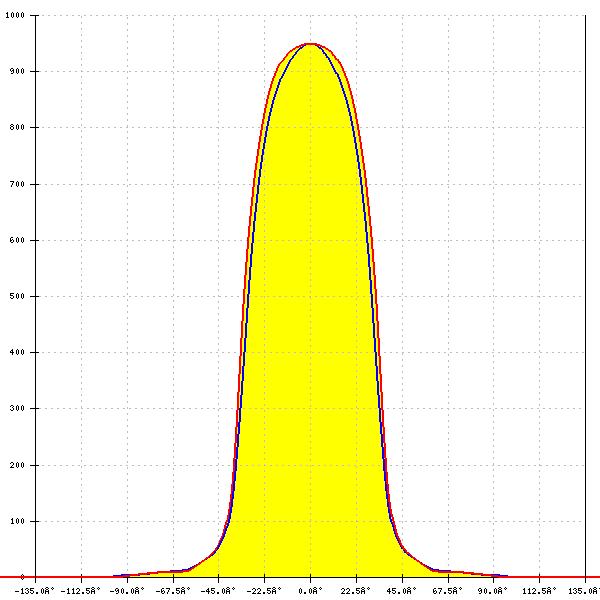

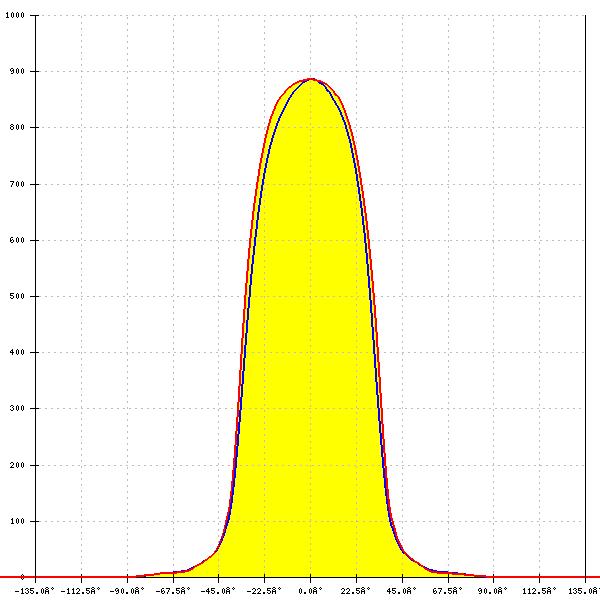

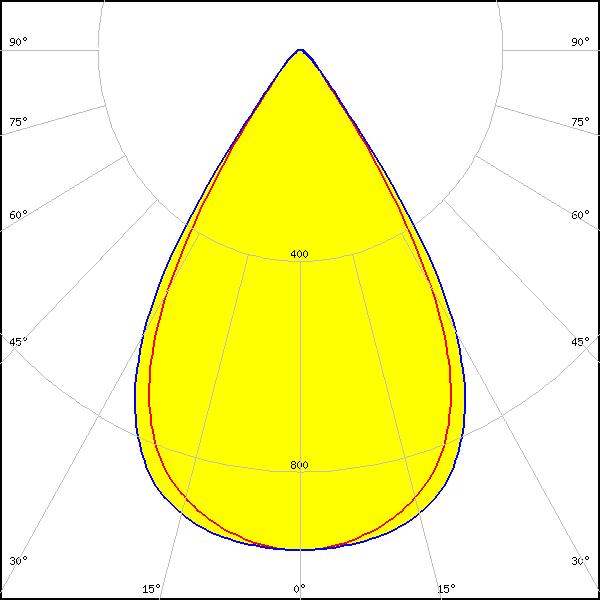

    Optical results

    LED: J Series 5050 Round LES
    FWHM: 60°
    FWTM: 84°
    Peak intensity: 1.013 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: 60°
    FWTM: 86°
    Peak intensity: 0.927 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

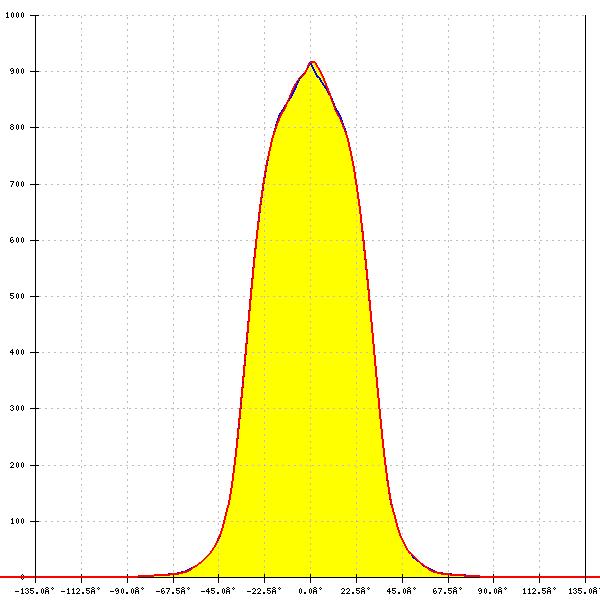

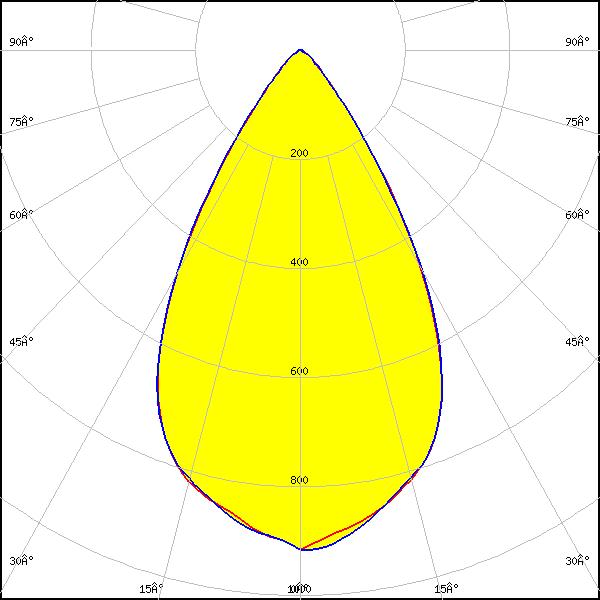

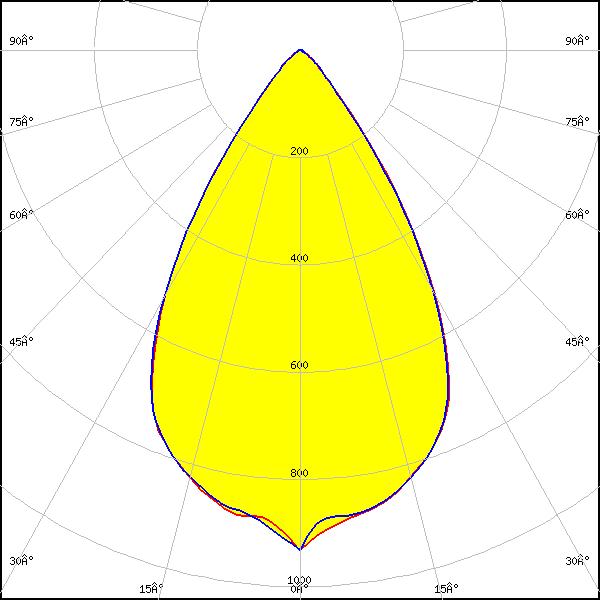

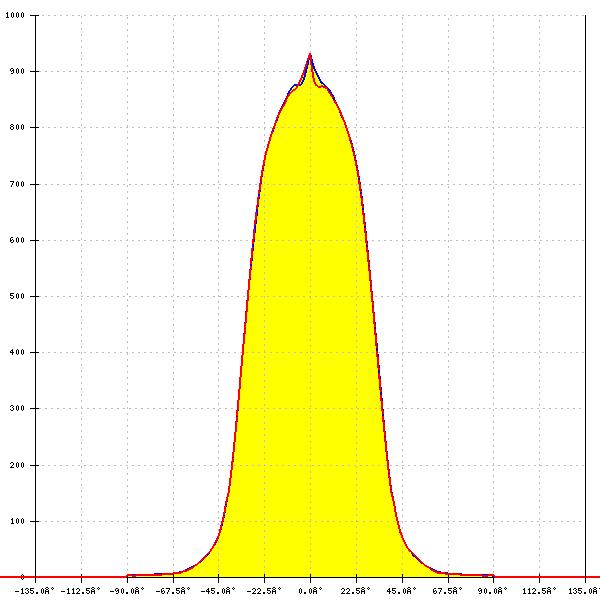

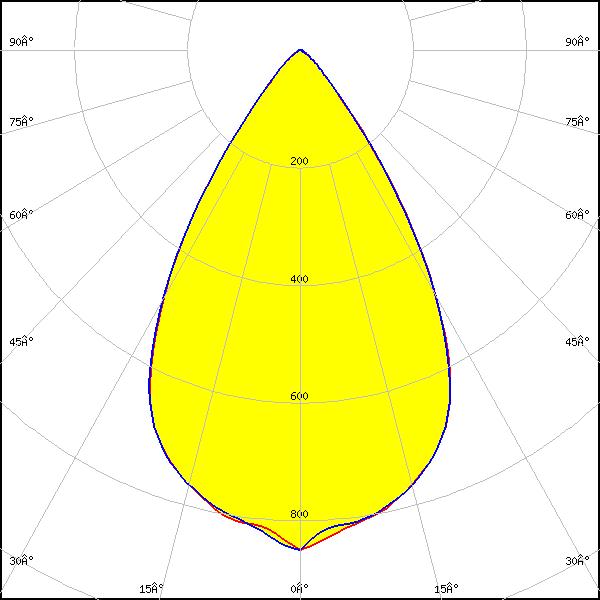

    LED: J Series 5050B 6V K Class
    FWHM: 62°
    FWTM: 86°
    Peak intensity: 0.932 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

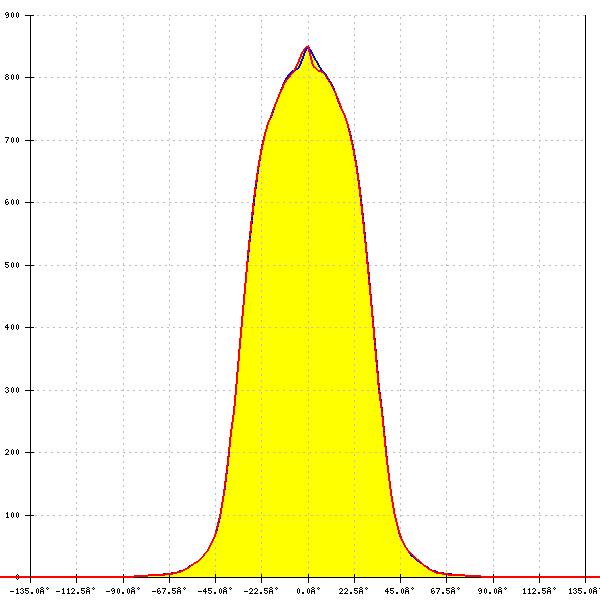

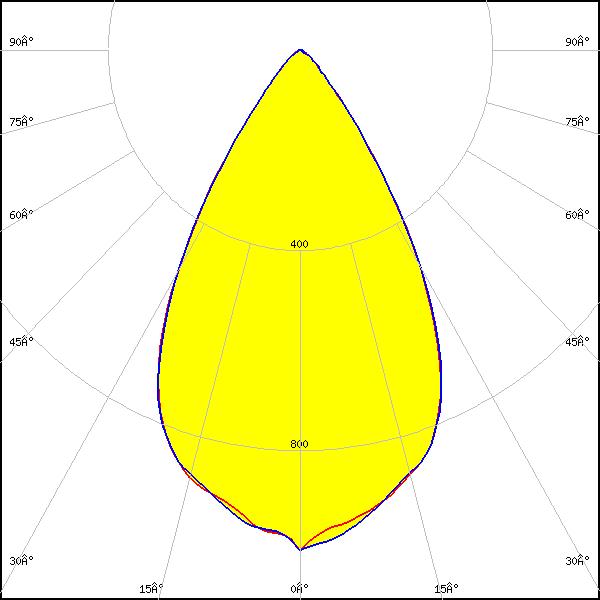

    LED: J Series 5050B 6V K Class
    FWHM: 64°
    FWTM: 86°
    Peak intensity: 0.852 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

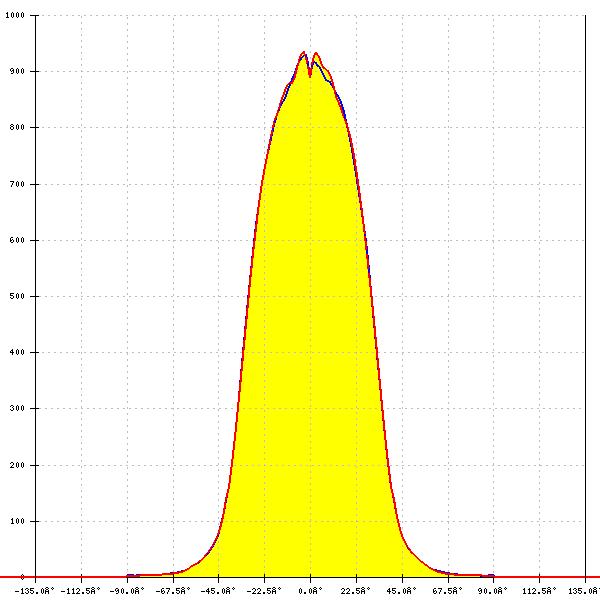

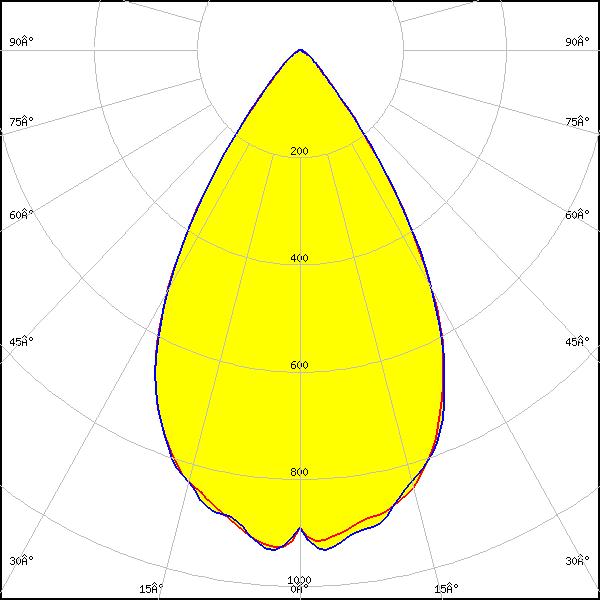

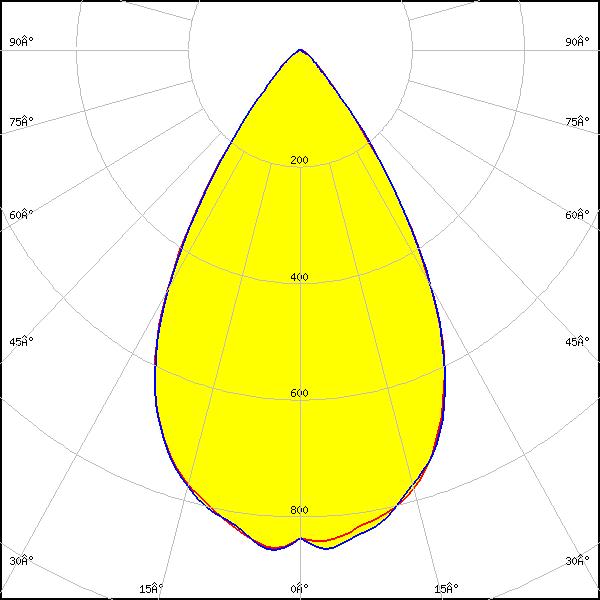

    LED: LUXEON 5050 Square LES
    FWHM: 62°
    FWTM: 88°
    Peak intensity: 0.863 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 62°
    FWTM: 87°
    Peak intensity: 0.938 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

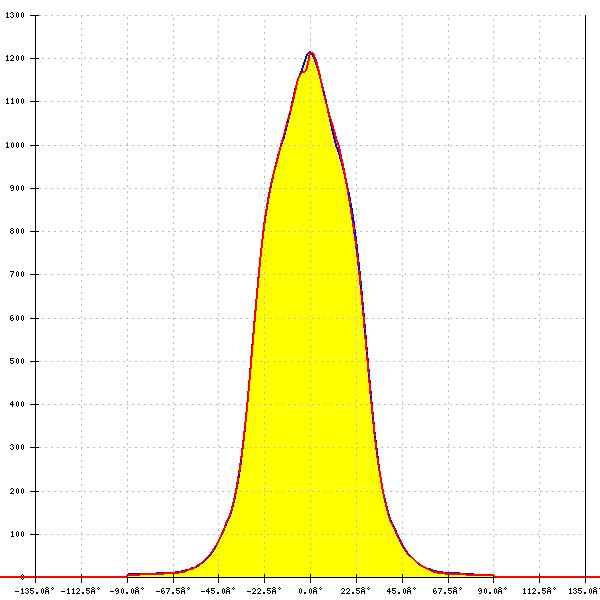

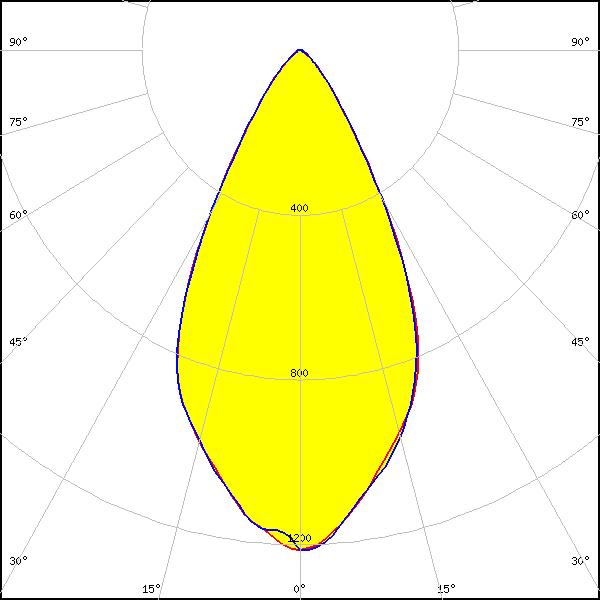

    LED: NF2x757G
    FWHM: 53°
    FWTM: 82°
    Peak intensity: 1.219 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

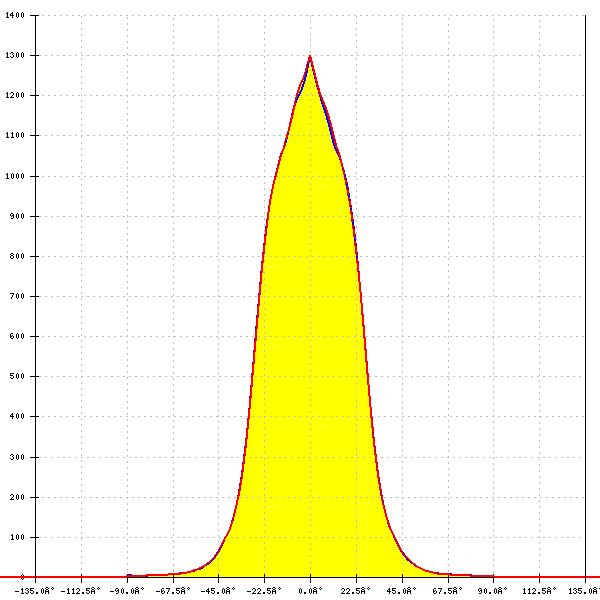

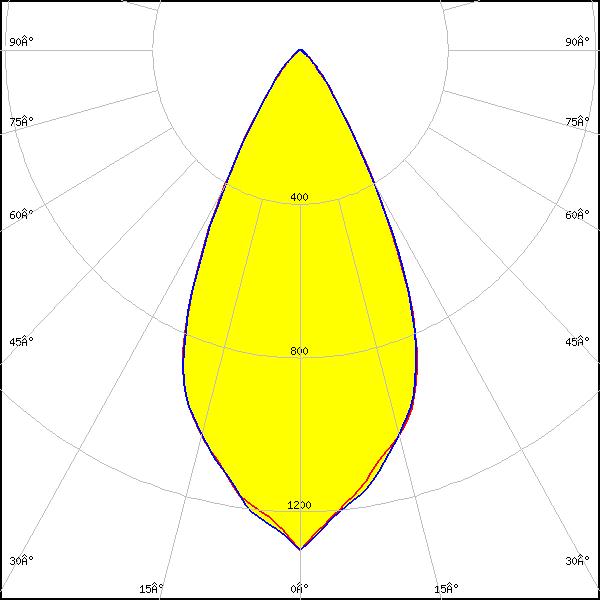

    LED: DURIS S5 (2 chip)
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.301 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
