Application example

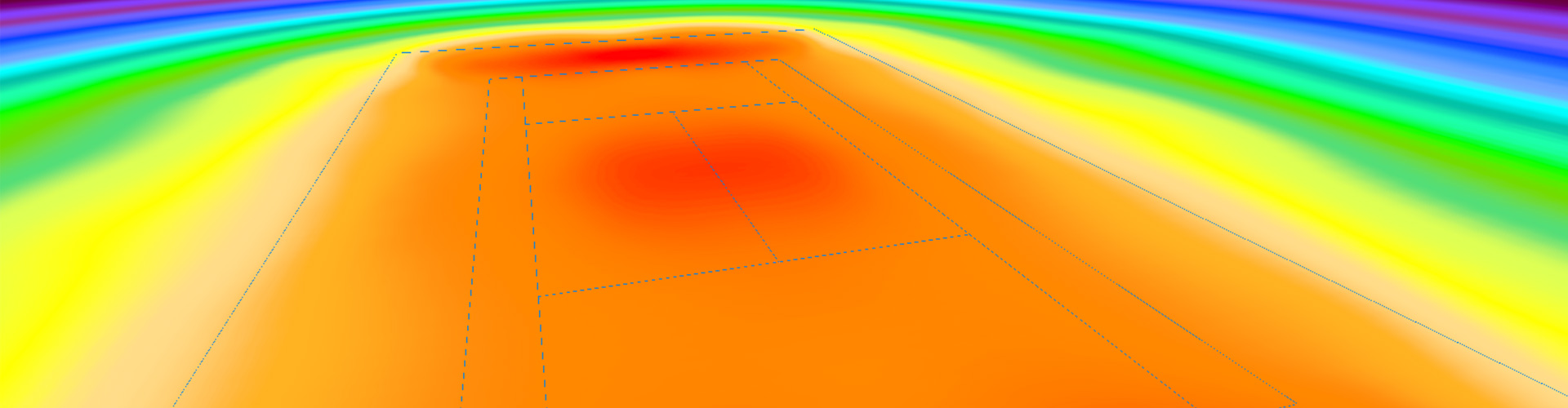

Tennis court lighting with SPORT-2X2-FT4 and -FT6


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

According to outdoor tennis court requirements in EN 12193 “Light and lighting – Sports lighting”

Setup:

Application:Tennis court lighting
Requirements:EN 12193 “Light and lighting – Sports lighting”
Area for calculations:36 m x 18 m

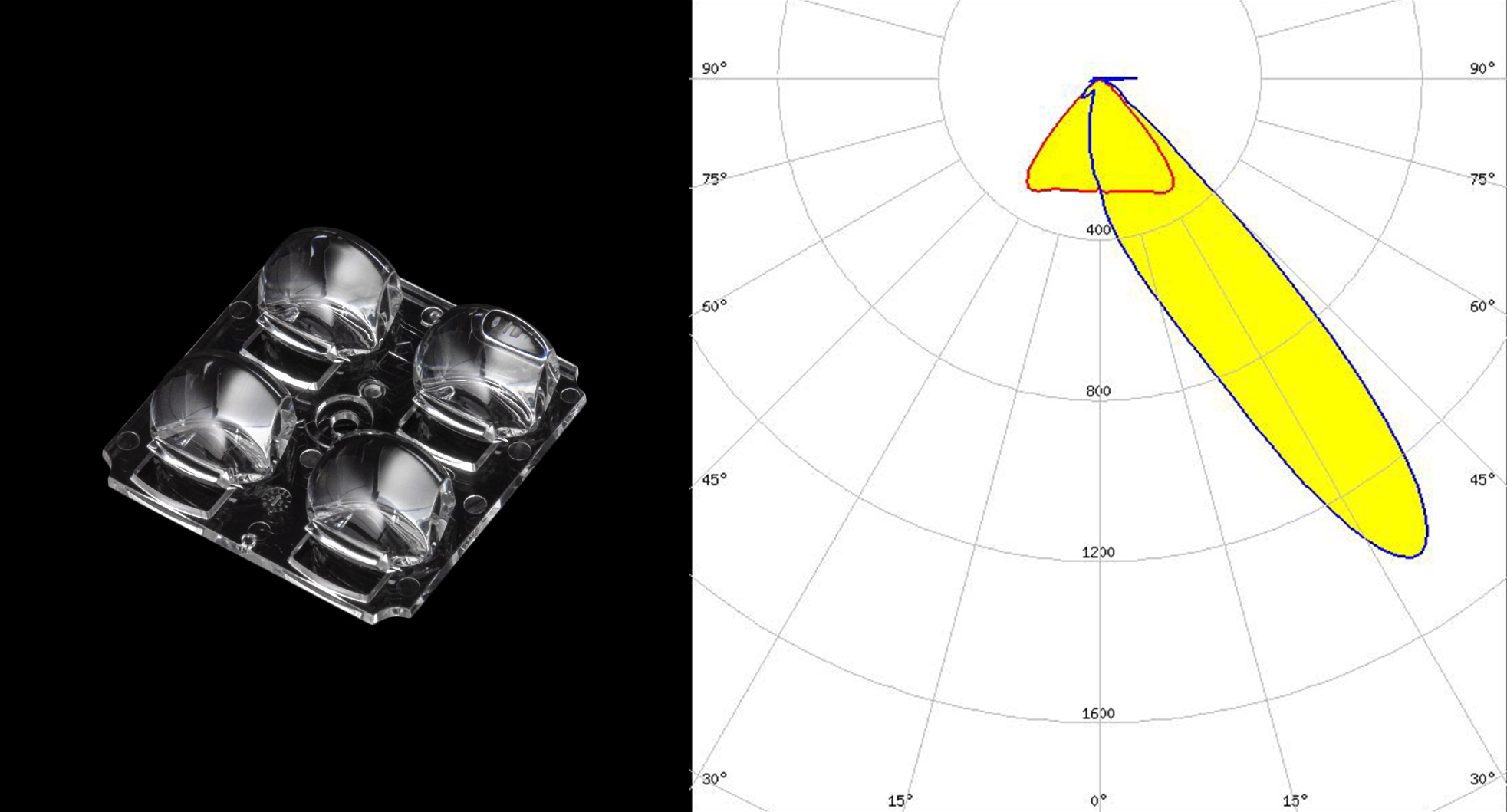

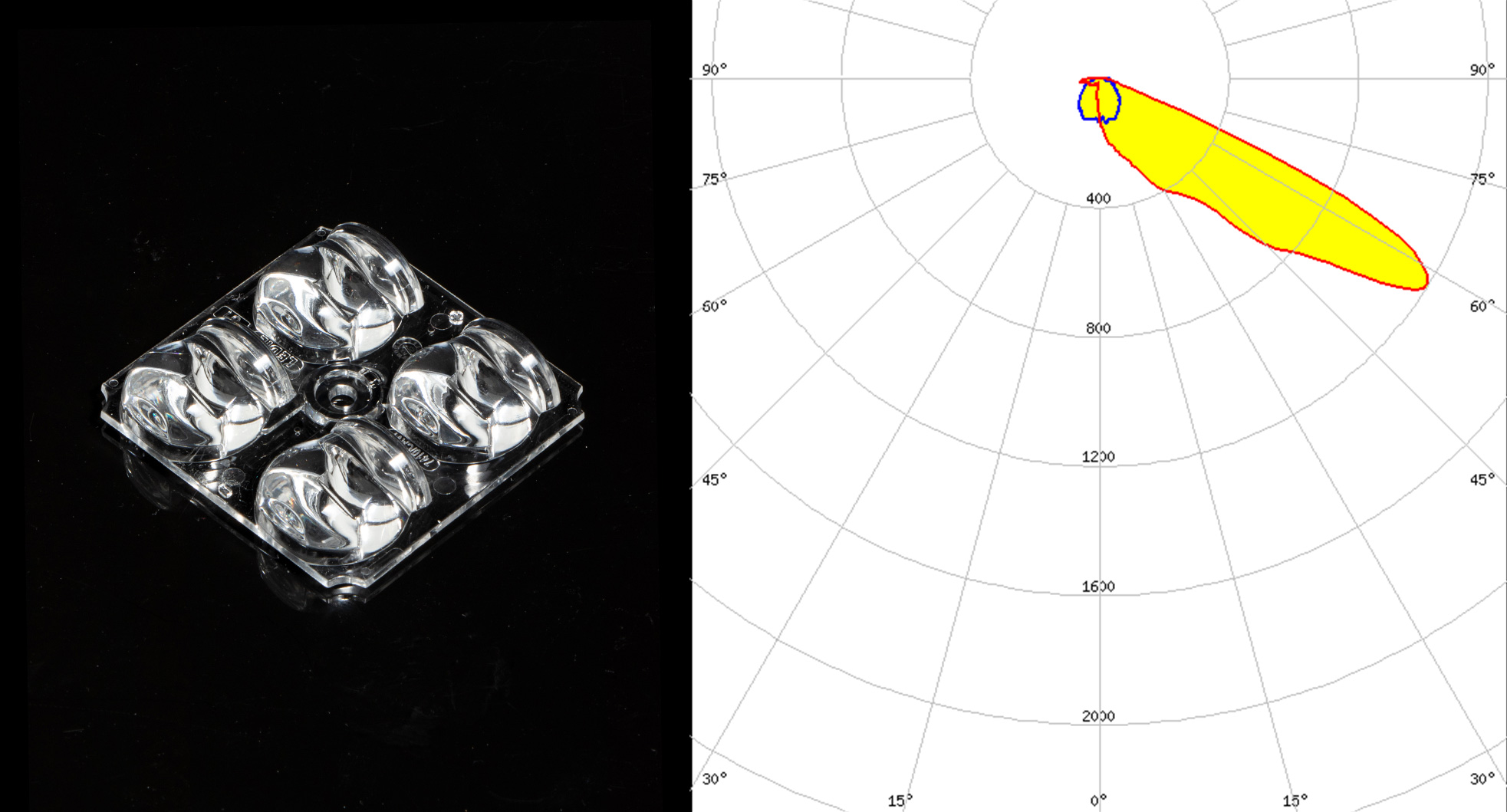

Optics:SPORT-2X2-FT4 and -FT6
Number of poles:6 pcs
Installation heigth:9 m
Total output:520 klm

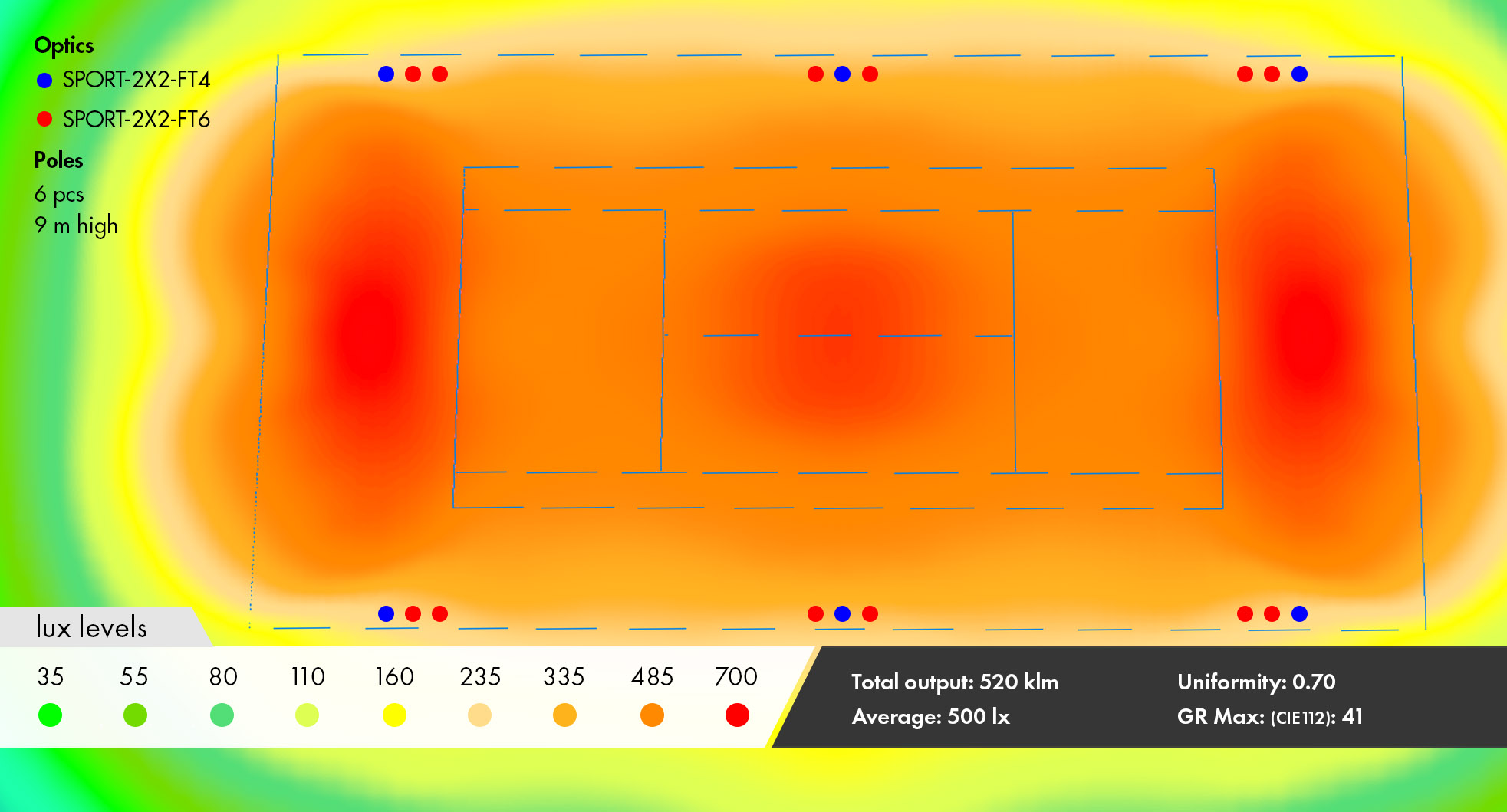

Results:

Average:500 lx
Uniformity:0.70
GR max (CIE112):41

Tennis court lighting with SPORT-2X2-FT4 and -FT6
