    C18451_SPORT-2X2-FT4-HT

    Print

    Narrow forward throw beam with balanced spill light control and backlight. Variant from High Temperature PMMA.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      13.00 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      640 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.8 kg
    • MPQ:
      128 pcs
    • MOQ:
      128 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18451_SPORT-2X2-FT4-HT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    The teaser for the SPORT-2X2 optics

    News

    New beams and products – October 2023

    Application example

    Tennis court lighting with SPORT-2X2-FT4 & -FT6

    News

    SPORT-2X2 – All you need to know

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    SPORT-2X2 - the right light for any sports activity

    Application area

    SPORTS INDOOR LIGHTING

    Application area

    Area and Car Park Lighting

    Application guide

    Guide for Street lighting optics

    Application guide

    LEDiL Guide for Sports lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

    Optical results

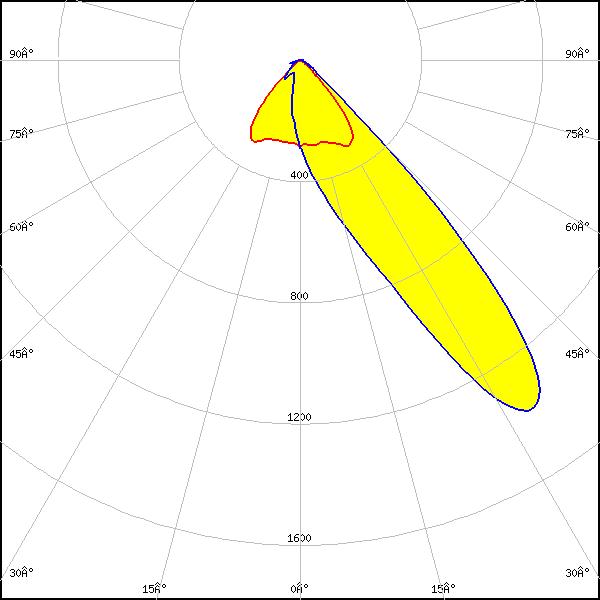

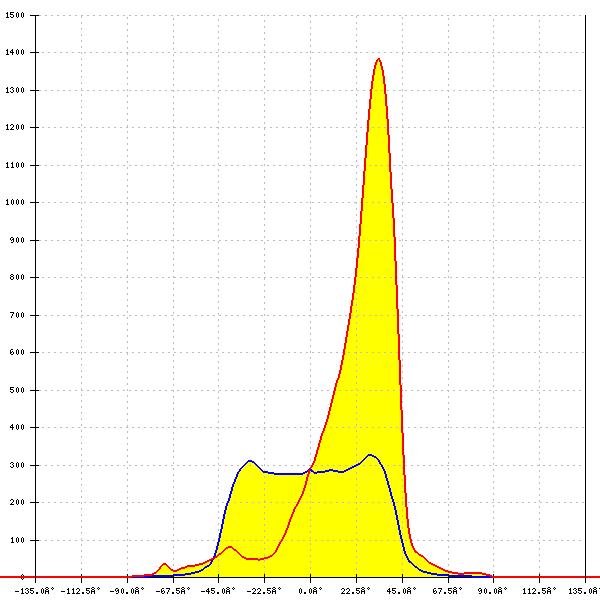

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.382 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

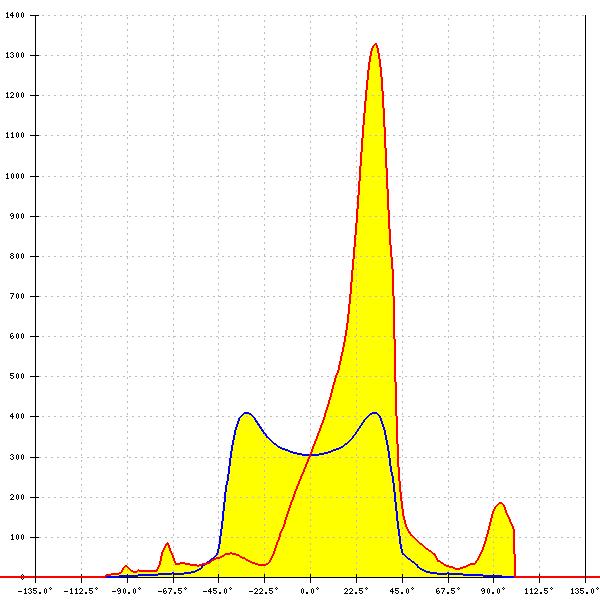

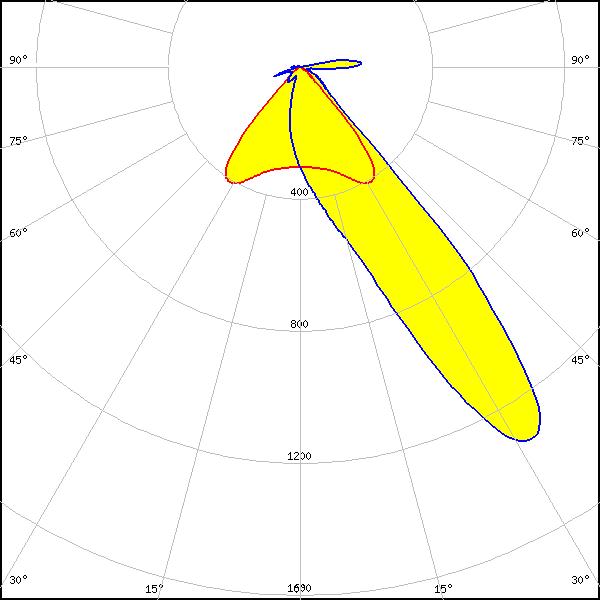

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.334 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

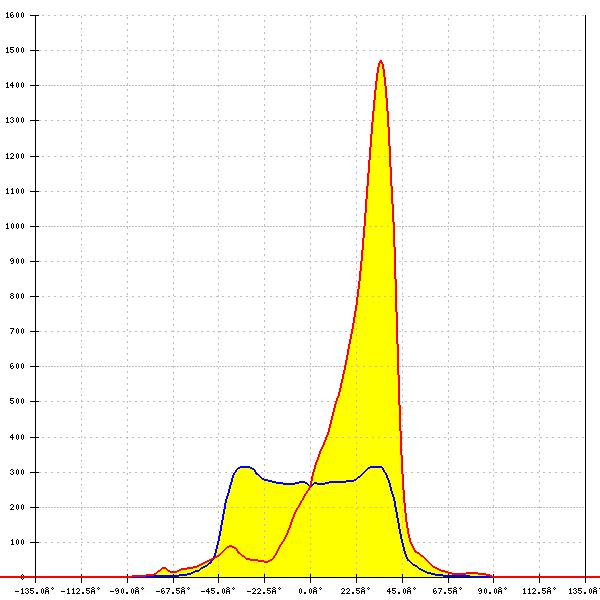

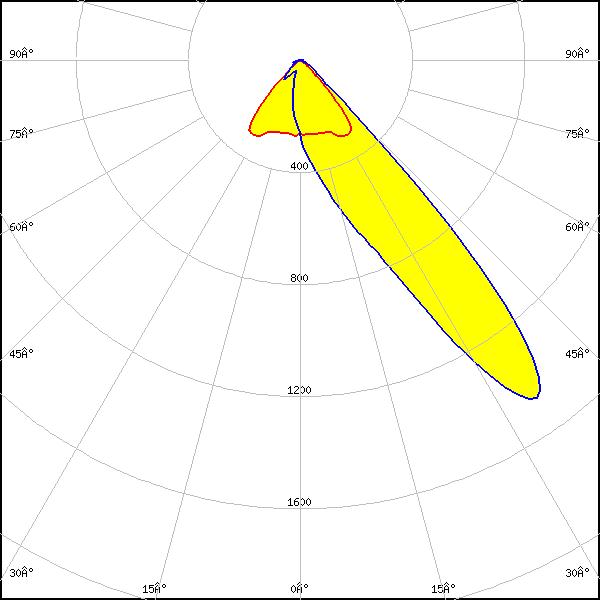

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.472 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

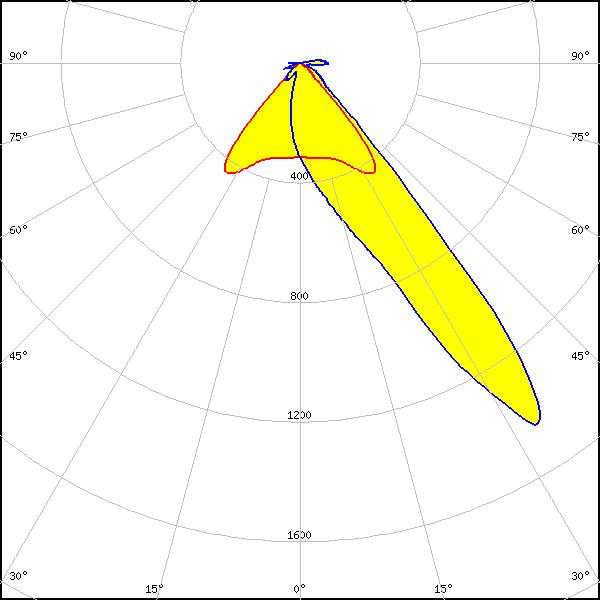

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.457 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
