Application example

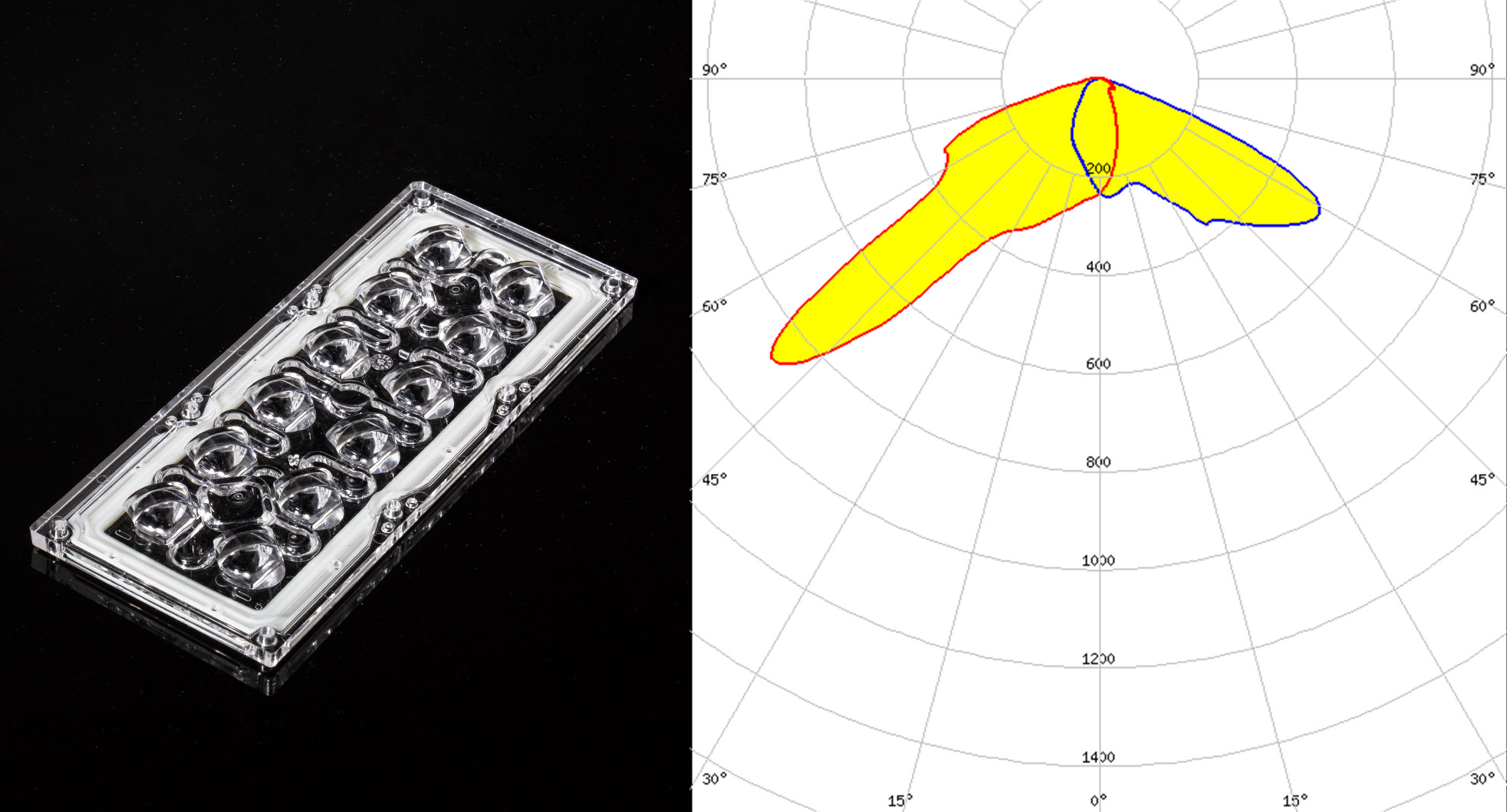

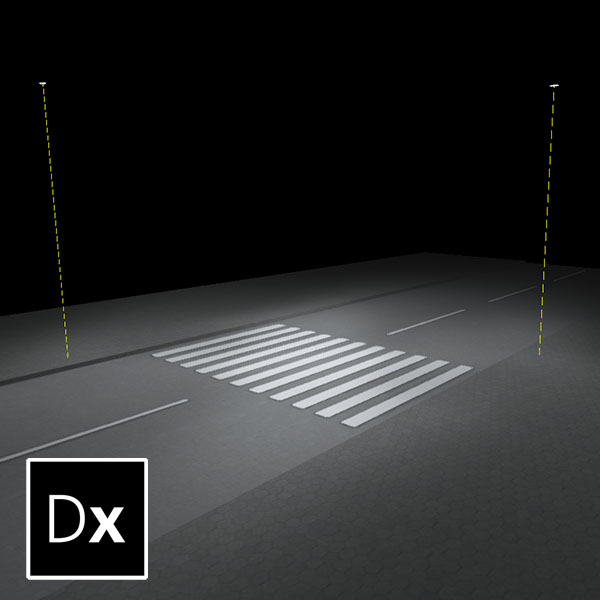

Pedestrian crossing lighting with STRADA-IP-2X6-PXL
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

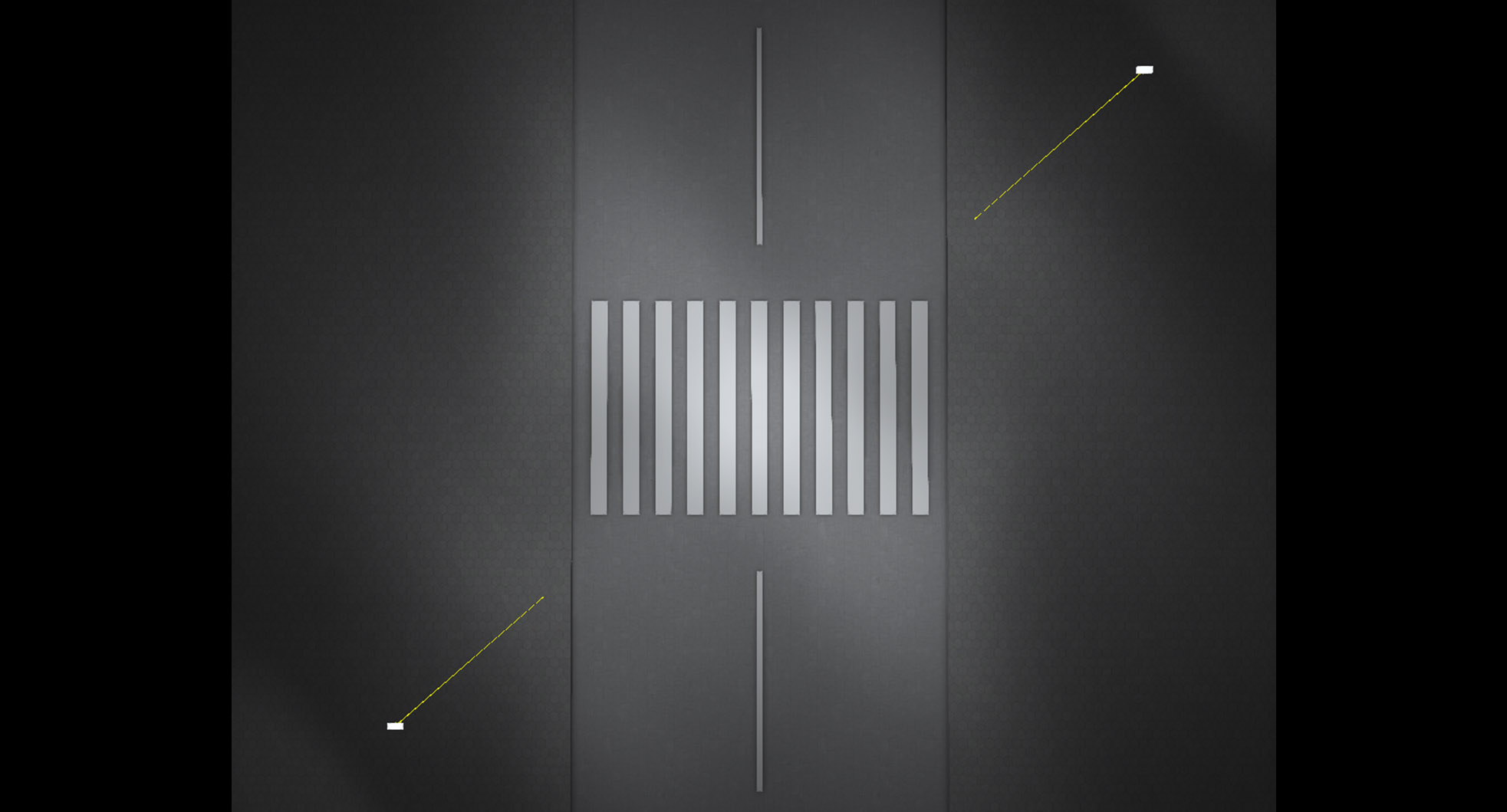

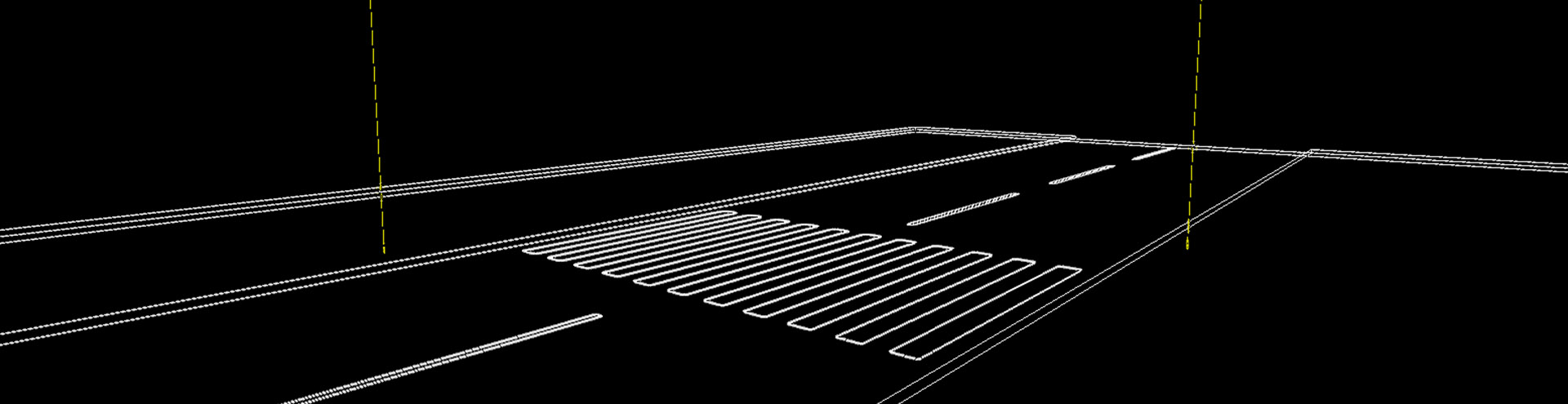

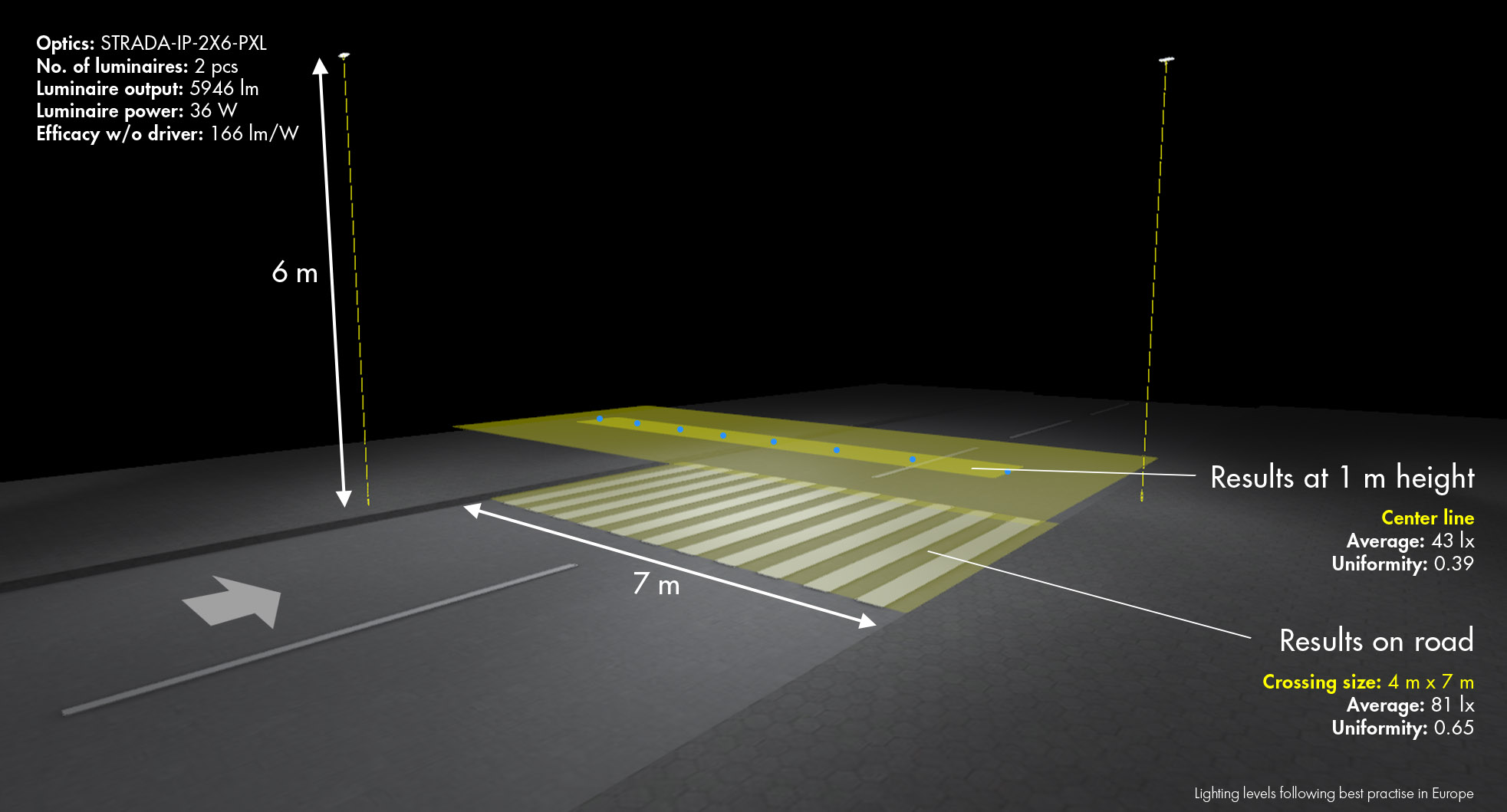

Setup:
| Application: | Pedestrian crossing |
| Pole height: | 6 m |
| Road width: | 7 m |
| Crossing size: | 4 x 7 m |
| Optics: | STRADA-IP-2X6-PXL |
| Number of luminaires: | 2 pcs |
| Luminaire output: | 5946 lm |
| Luminaire power: | 36 W |
| Efficacy w/o driver: | 166 lm/W |

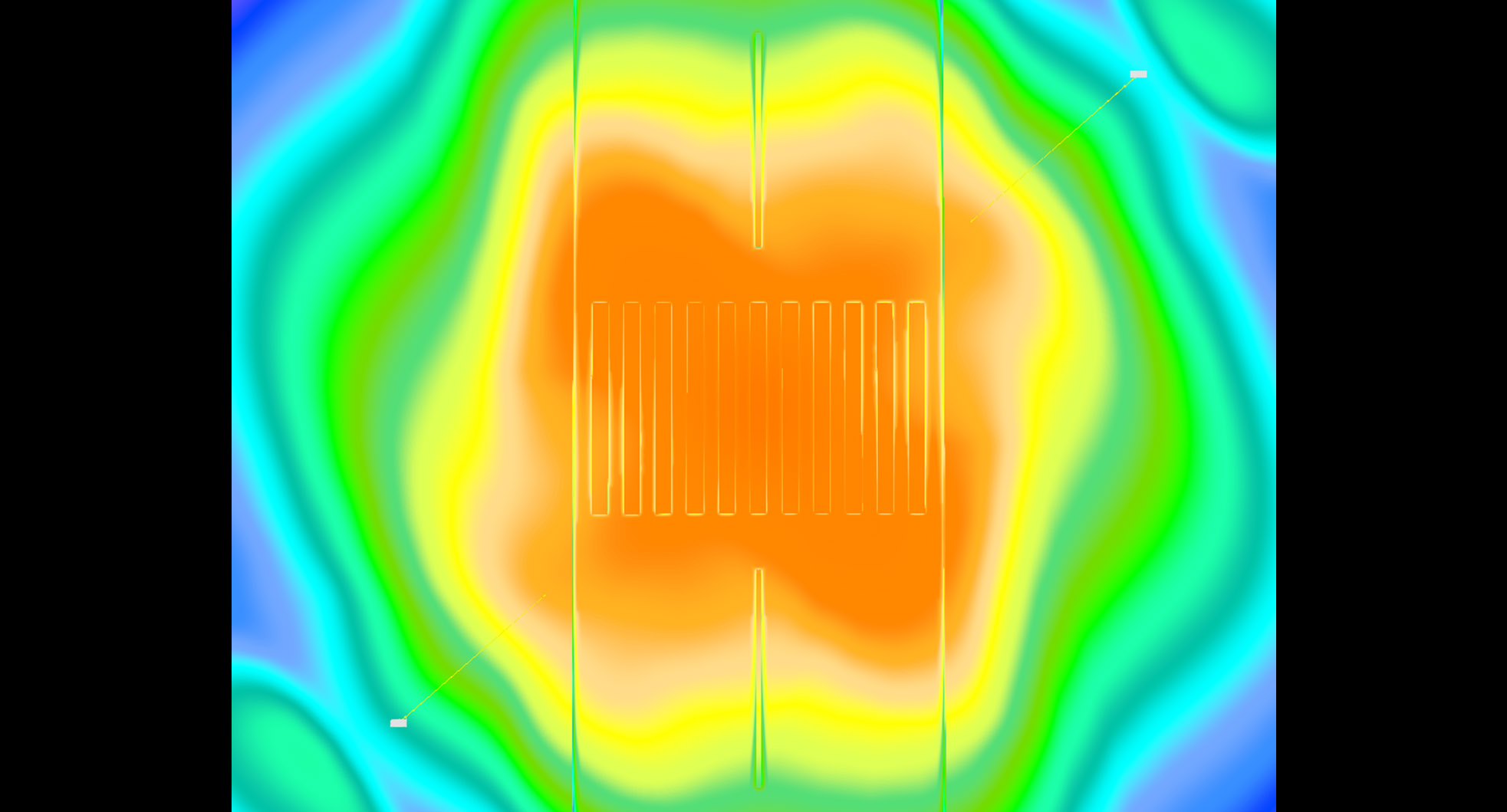

Results:
| Lighting levels following best practise in Europe | |
| Center line at 1 m height | |
| Average: | 43 lx |
| Uniformity: | 0.39 |
| On crossing | |
| Average: | 81 lx |
| Uniformity: | 0.65 |
