CS18529_STRADA-IP-2X6-PXL
Print

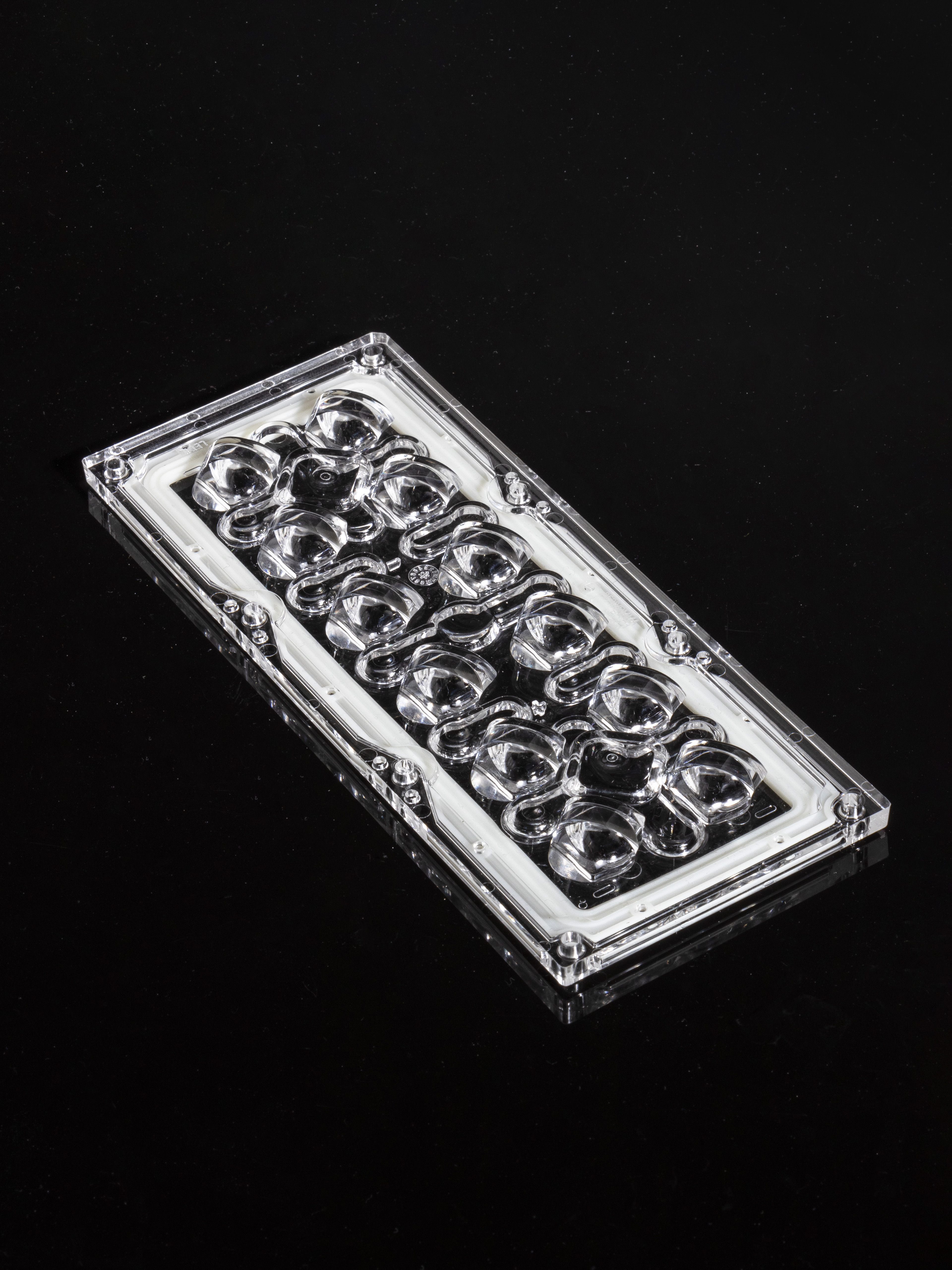

Fully asymmetric beam designed to highlight pedestrian crossings for left side traffic
Specification
-
Dimensions:173 x 71 mm
-
Height:10.30 mm
-
Fastening:pin, screw
-
Colour:clear
-
Ingress protection classes:IP67
-
RoHS and REACH compliant:Yes
Component Materials
- STRADA-IP-2X6-PXLMulti-lensPMMA
- 2X6-SEAL25SealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:120 pcs
-
Box size:476 x 273 x 247 mm
-
Box weight:7.6 kg
-
MPQ:40 pcs
-
MOQ:40 pcs
-
MOQ size:480 x 280 x 100 mm
-
MOQ weight:2.9 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content
Optical results

LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.992 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

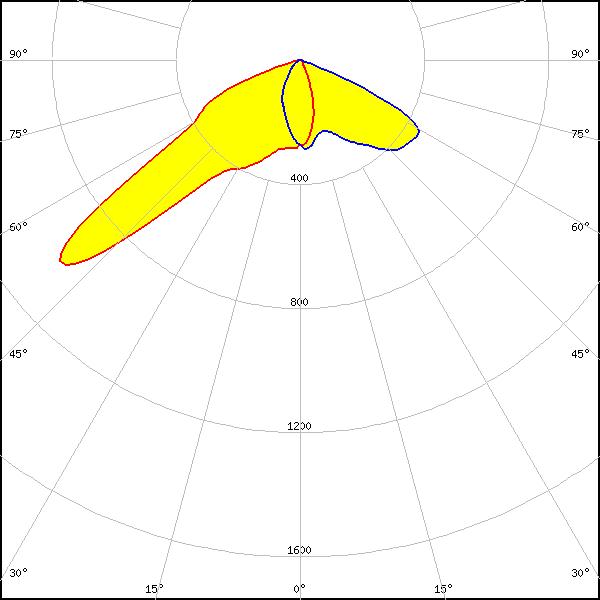

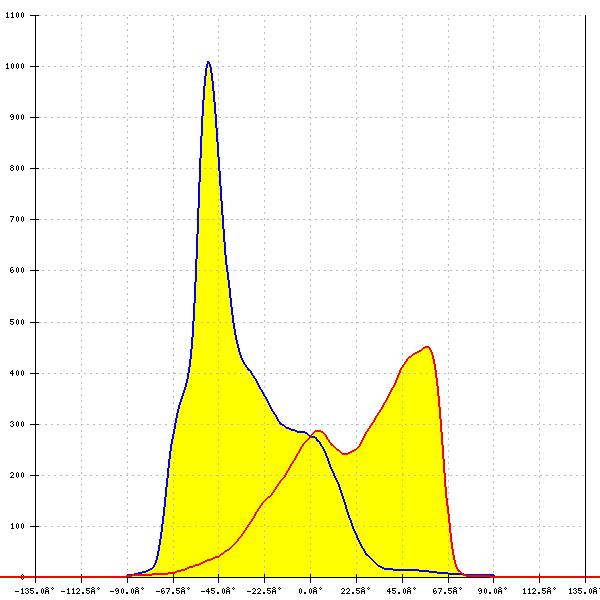

LED:
XP-G4
FWHM: asymmetric
Peak intensity:
1.152 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
