APPLICATION EXAMPLE
Horticultural lighting with DAHLIA-TL110
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Horticultural lighting example
Designed to achieve over 90 % PPFD uniformity across the 6 meter growing tray while reducing power consumption.
SETUP:
| Application: | Horticultural lighting |

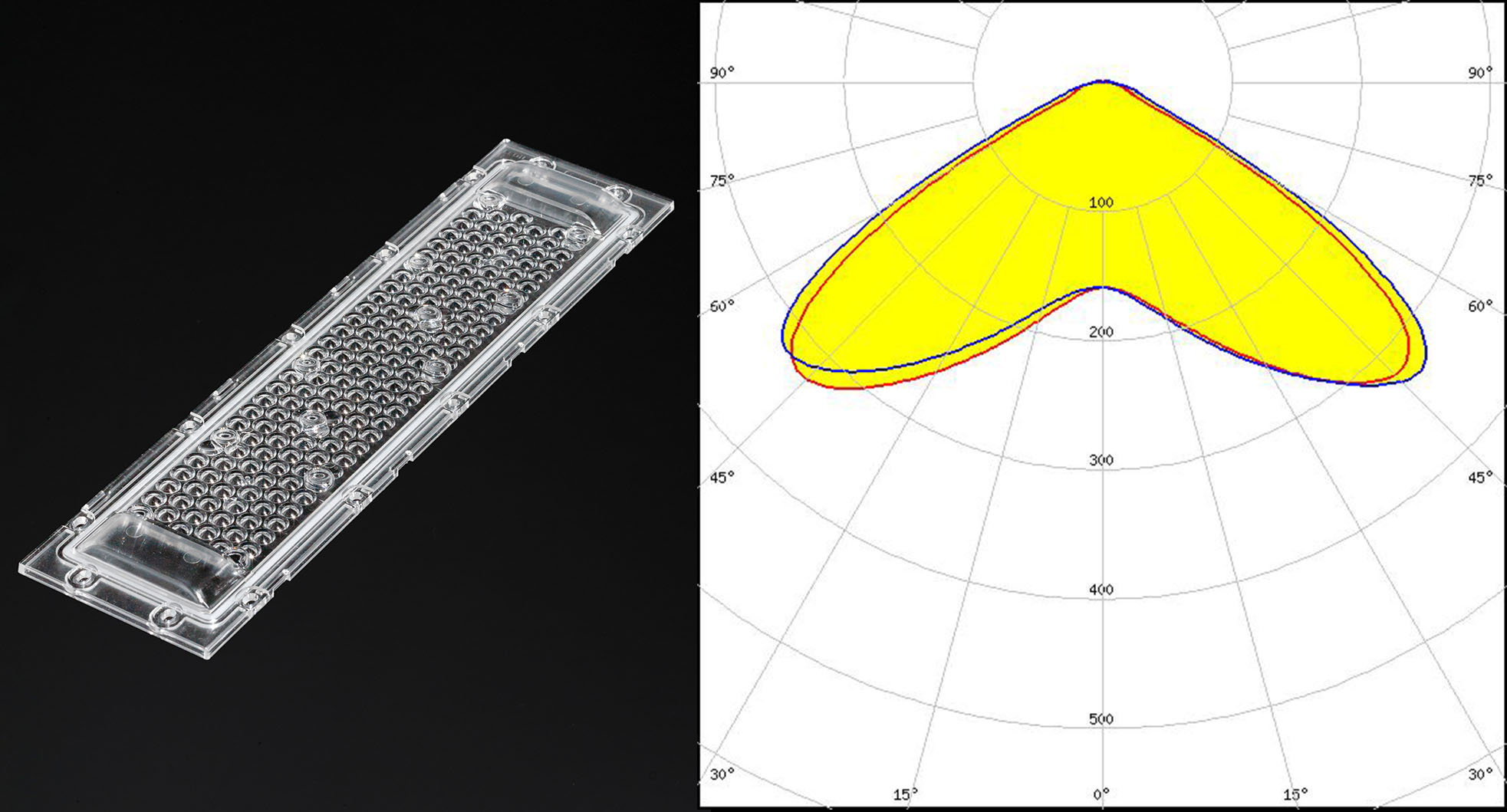

| Optics: | DAHLIA-TL110 |
| Distance to tray: | 3.2 m |
| Spacing: | 3.1 x 6.8 m |
| Power: | 260 W / module |
| PPF: | 700 μmol/s / module (with red/white LED ration being 3:1) |
| Efficacy: | 2.69 μmol/J |
RESULTS:

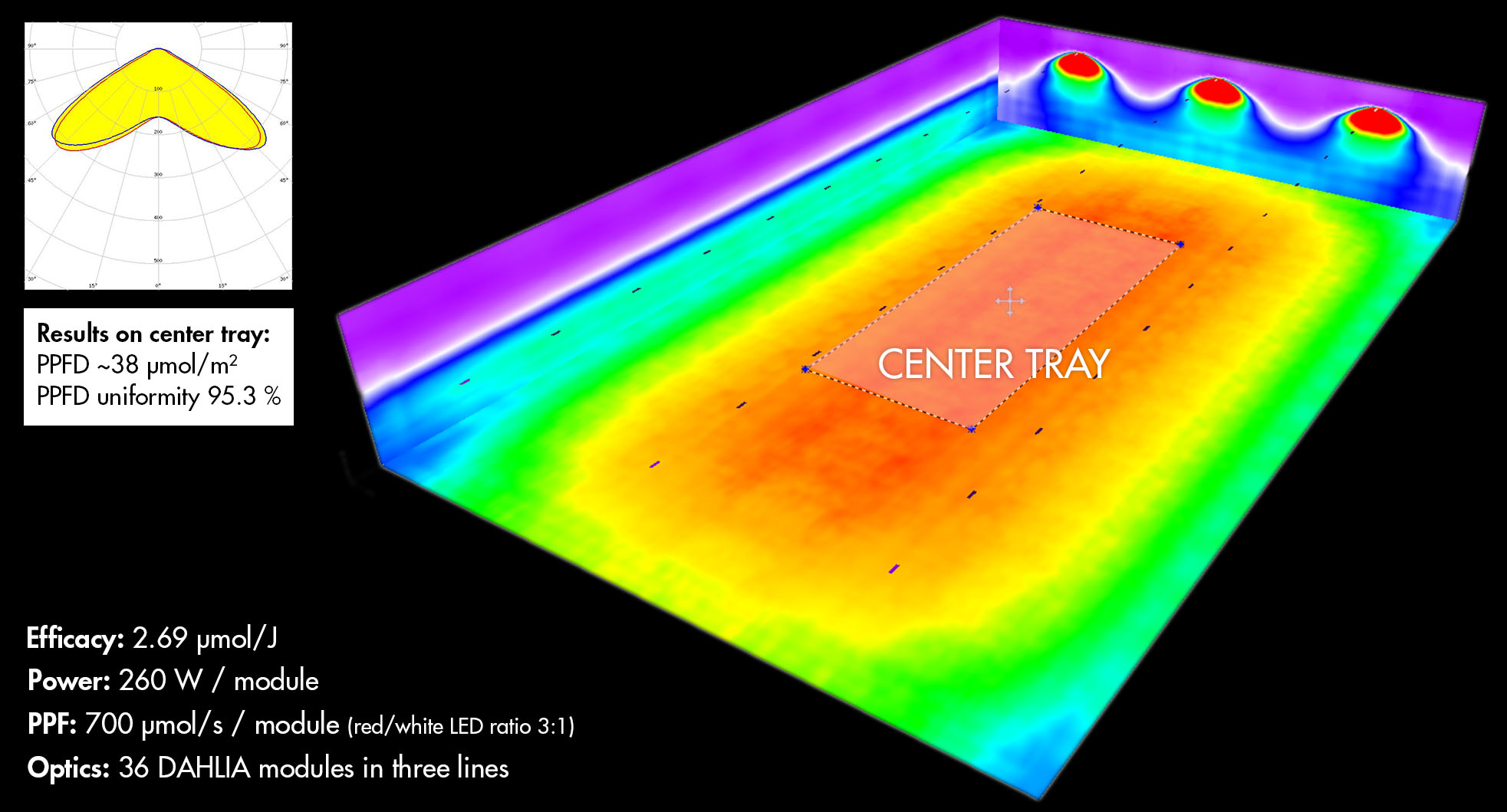

| PPFD at center tray | |
| Min: | 36 μmol/m² |
| Max: | 39 μmol/m² |
| Average: | 38 μmol/m² |
| PPFD uniformity: | 95.3 % |
| PPFD at first and last tray: | |
| Min: | 22 μmol/m² |
| Max: | 38 μmol/m² |
| Average: | 32 μmol/m² |
| PPFD uniformity: | 67.2 % |
Horticultural lighting with DAHLIA-TL110
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
