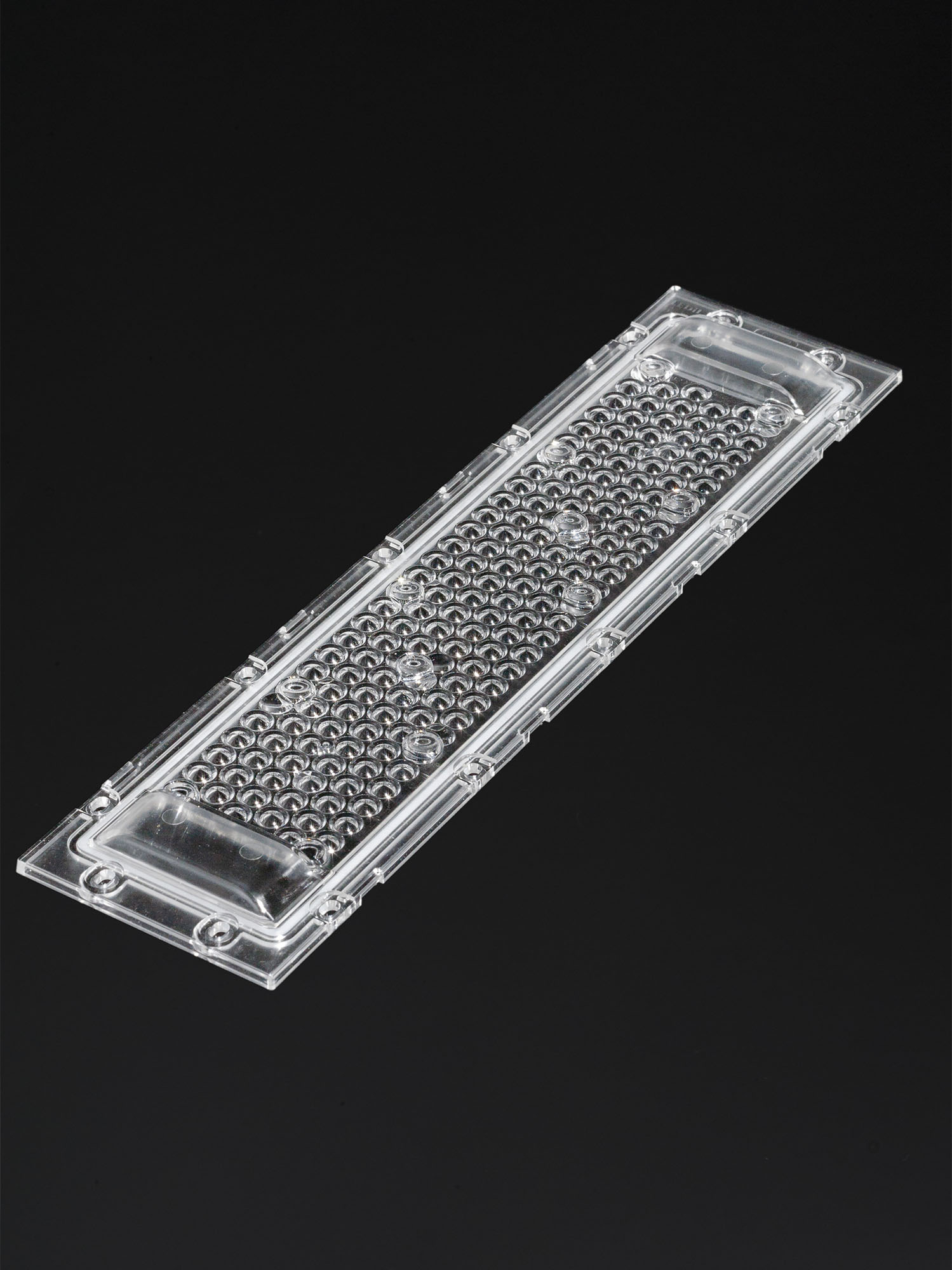

CS16619_DAHLIA-TL110
Print![](http://lediloptics.cn/wp-content/themes/LEDiL_Theme/img/icon-download.png)
~120° wide beam
Specification
-
Dimensions:321 x 81 mm
-
Height:11.00 mm
-
Fastening:screw
-
Colour:clear
-
Ingress protection classes:IP67
-
RoHS and REACH compliant:Yes
Materials
- DAHLIA-TL110, Multi-lens, PMMA
- DAHLIA-TL-SEAL, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:80 pcs
-
Box size:343 x 343 x 298 mm
-
Box weight:8.9 kg
-
MPQ:4 pcs
-
MOQ:80 pcs
-
MOQ size:343 x 343 x 298 mm
-
MOQ weight:8.9 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content

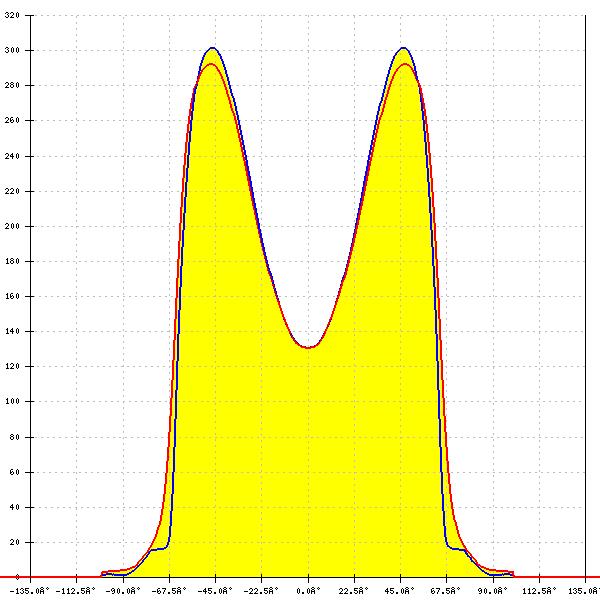

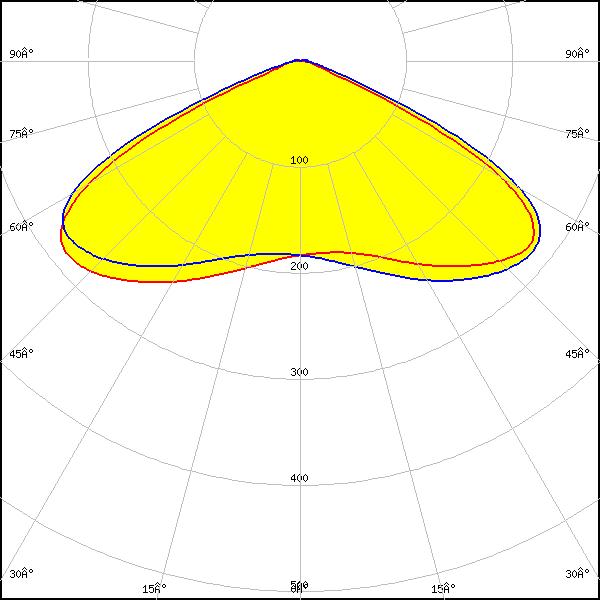

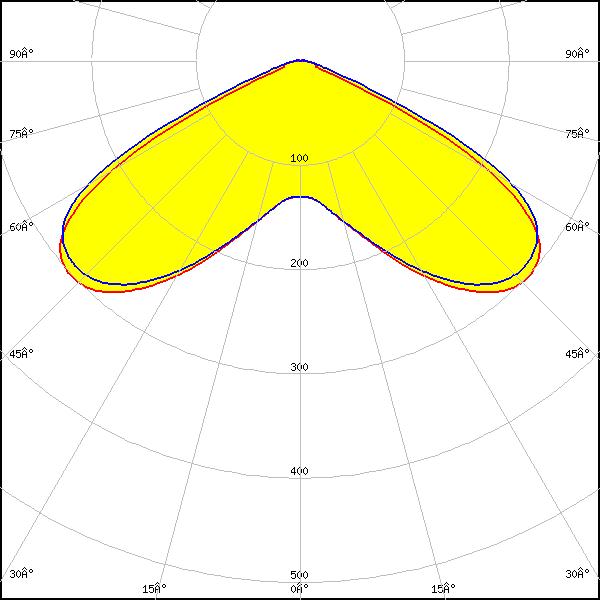

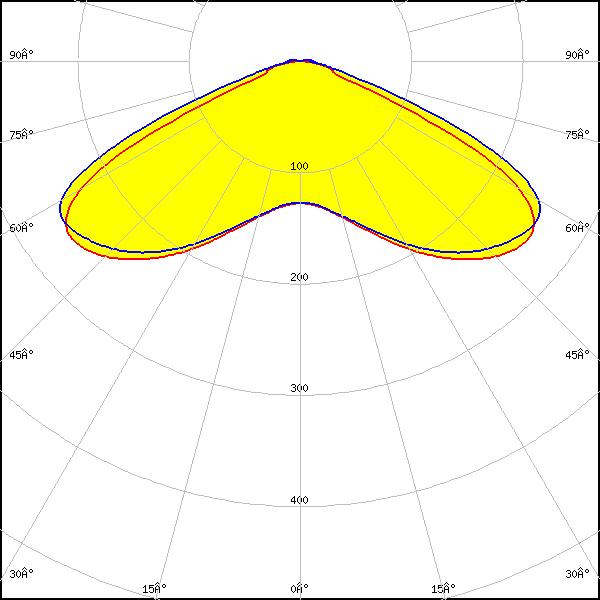

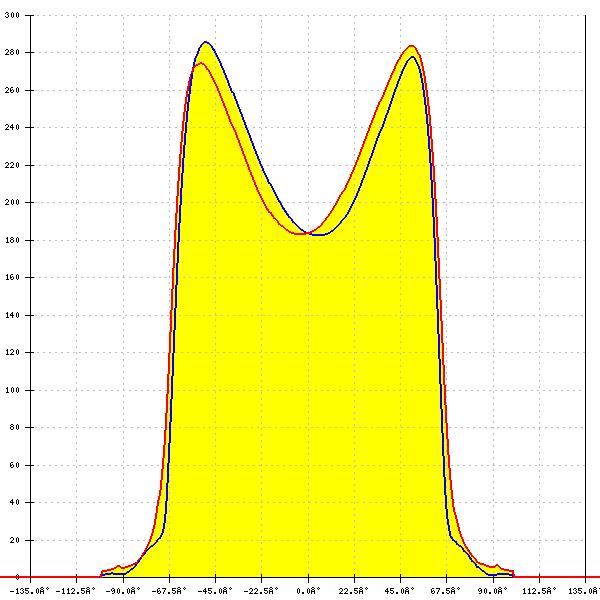

Optical results
![](/data/logos/cezos.jpg)
LED:
L0-278053-RRRR-C1000-K237
FWHM:
122°
FWTM:
142°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Red
![](/data/logos/cree.jpg)
LED:
J Series 2835
FWHM:
129°
FWTM:
140°
Peak intensity:
0.278 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/cree.jpg)
LED:
J Series 3030
FWHM:
126°
FWTM:
138°
Peak intensity:
0.291 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/lumileds.jpg)
LED:
LUXEON 2835 Line
FWHM:
118°
FWTM:
133°
Peak intensity:
0.290 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/luminus.jpg)
LED:
SST-10-B130
FWHM:
123°
FWTM:
140°
Peak intensity:
0.323 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Deep Red

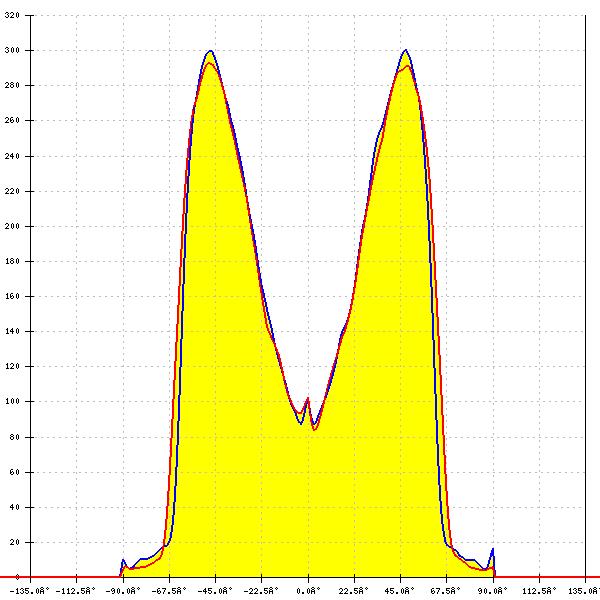

![](/data/logos/nichia.jpg)
LED:
NCSxE17A
FWHM:
124°
FWTM:
135°
Peak intensity:
0.301 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Green
![](/data/logos/nichia.jpg)
LED:
NF2x757G
FWHM:
127°
FWTM:
140°
Peak intensity:
0.290 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NFSx757G
FWHM:
127°
FWTM:
140°
Peak intensity:
0.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/nichia.jpg)
LED:
NVSxx19B/NVSxx19C
FWHM:
132°
FWTM:
144°
Peak intensity:
0.280 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

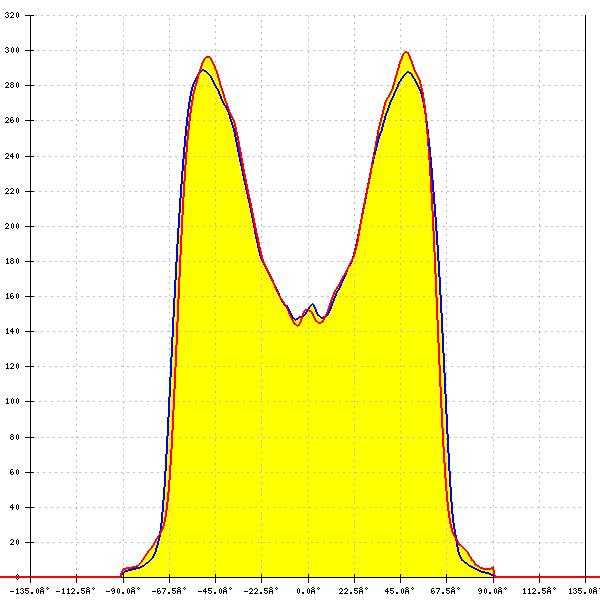

![](/data/logos/osramopto.jpg)
LED:
Duris S5 (Single chip)
FWHM:
128°
FWTM:
141°
Peak intensity:
0.299 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/osramopto.jpg)
LED:
OSCONIQ P 3030
FWHM:
128°
FWTM:
142°
Peak intensity:
0.324 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Hyper Red
![](/data/logos/osramopto.jpg)
LED:
OSCONIQ P 3030
FWHM:
129°
FWTM:
142°
Peak intensity:
0.319 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

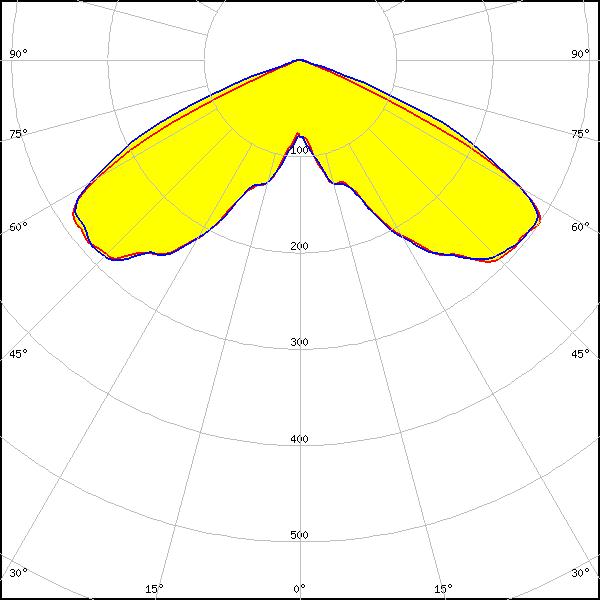

![](/data/logos/osramopto.jpg)
LED:
OSLON Pure 1414
FWHM:
128° + 133°
FWTM:
136° + 144°
Peak intensity:
0.301 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

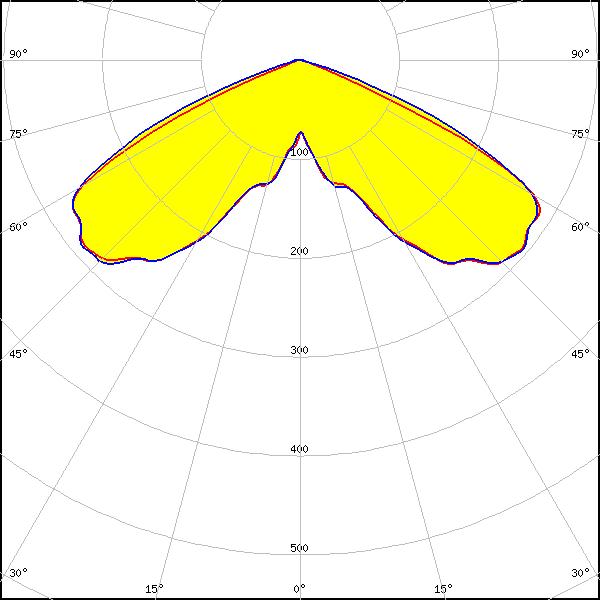

![](/data/logos/osramopto.jpg)
LED:
OSLON Pure 1414
FWHM:
130° + 134°
FWTM:
138° + 146°
Peak intensity:
0.299 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Deep Blue
![](/data/logos/osramopto.jpg)
LED:
OSLON Pure 1414
FWHM:
128° + 134°
FWTM:
138° + 146°
Peak intensity:
0.290 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Red

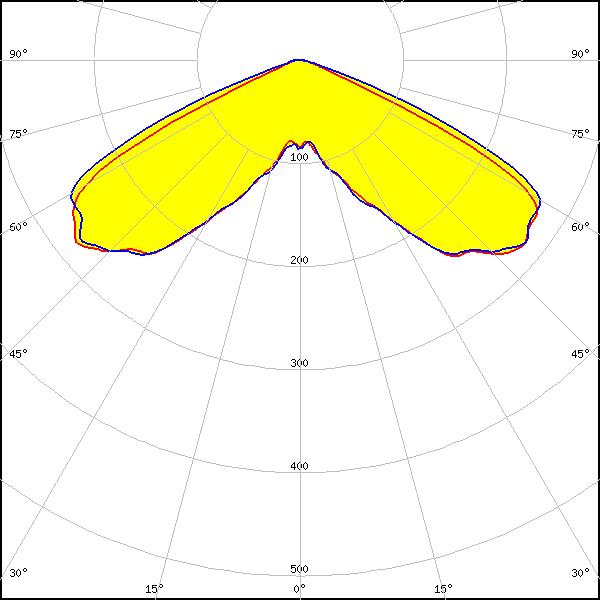

![](/data/logos/osramopto.jpg)
LED:
OSLON Pure 1414
FWHM:
130° + 134°
FWTM:
138° + 146°
Peak intensity:
0.296 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Green

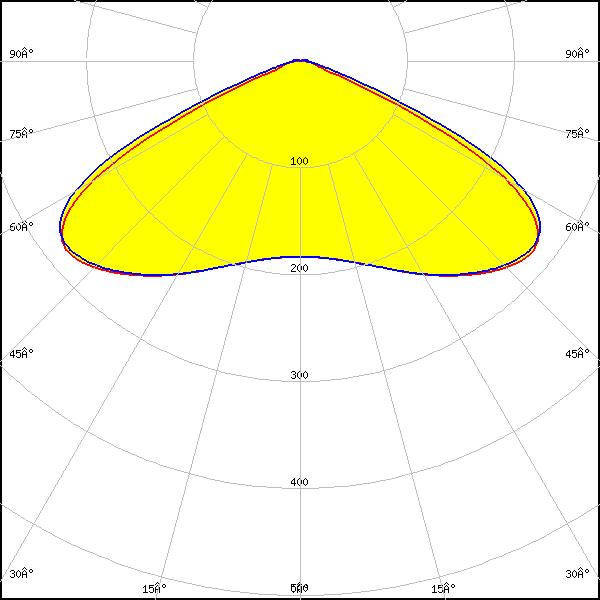

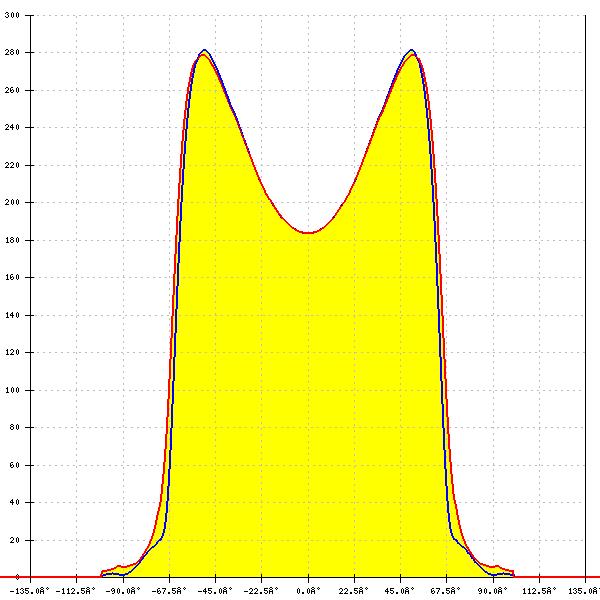

![](/data/logos/osramopto.jpg)
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
122°
FWTM:
142°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Hyper Red

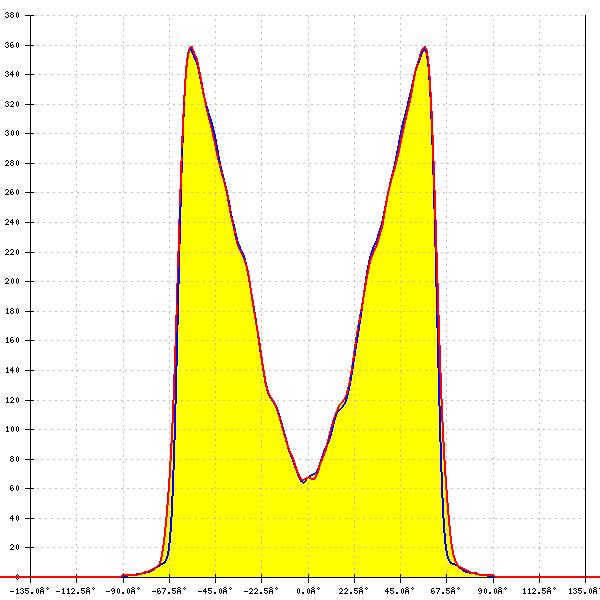

![](/data/logos/osramopto.jpg)
LED:
OSLON SSL 120
FWHM:
127°
FWTM:
135°
Peak intensity:
0.359 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Hyper Red

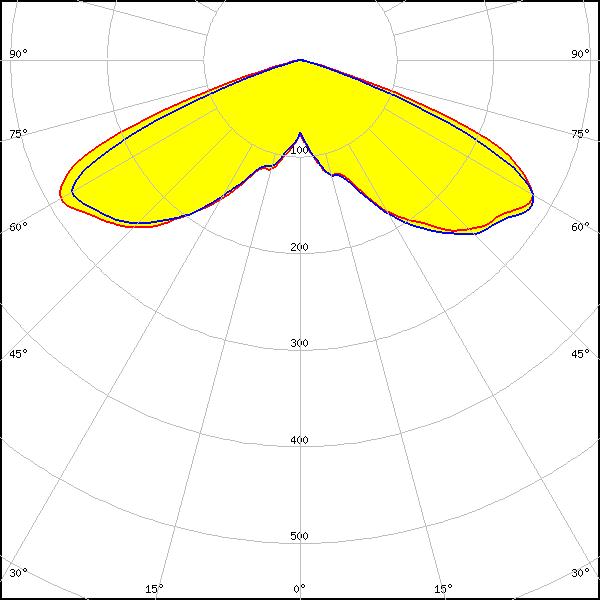

![](/data/logos/osramopto.jpg)
LED:
OSLON SSL 150
FWHM:
137°
FWTM:
146°
Peak intensity:
0.288 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
SEOUL DC 3030
FWHM:
129°
FWTM:
140°
Peak intensity:
0.286 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
![](/data/logos/seoulsemiconductor.jpg)
LED:
Z5M
FWHM:
134°
FWTM:
146°
Peak intensity:
0.270 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
