APPLICATION EXAMPLE

Football field lighting with JENNY-20


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application: Sports field lighting
Optics: JENNY-20
Luminous flux (Luminaire): 68 klm
Number of luminaires in a pole: 20 pcs
Number of optics in a luminaire: 60 pcs
Optic grid in luminaire: 6 x 10 pcs
Number of poles: 4 pcs
Pole spacing: ~35 m
Mounting height: 12 m
Maintenance factor: 0.8

RESULTS:

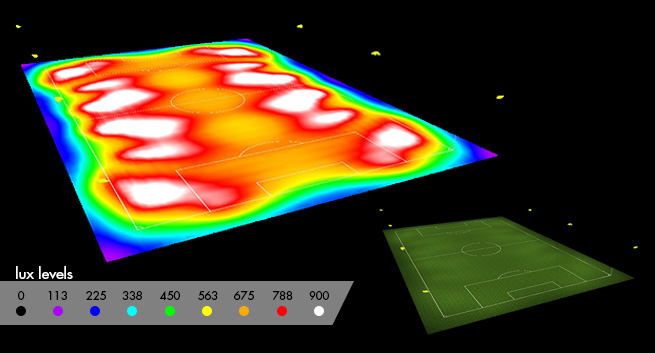

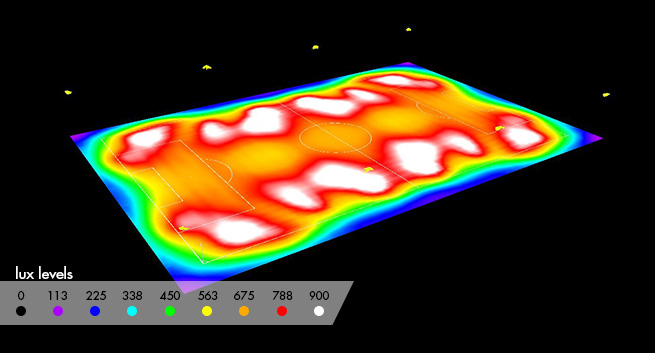

Football field - horizontal. Meets the FIFA Class III (Non-televised) National game requirements.
Average: 753 lx
Average requirement (Class III): ≥750 lx
Uo: 0.70
Uo requirement (Class III): ≥0.70
GO TO PRODUCT CARDS
F15538_JENNY-20
F15553_JENNY-8X1-20
