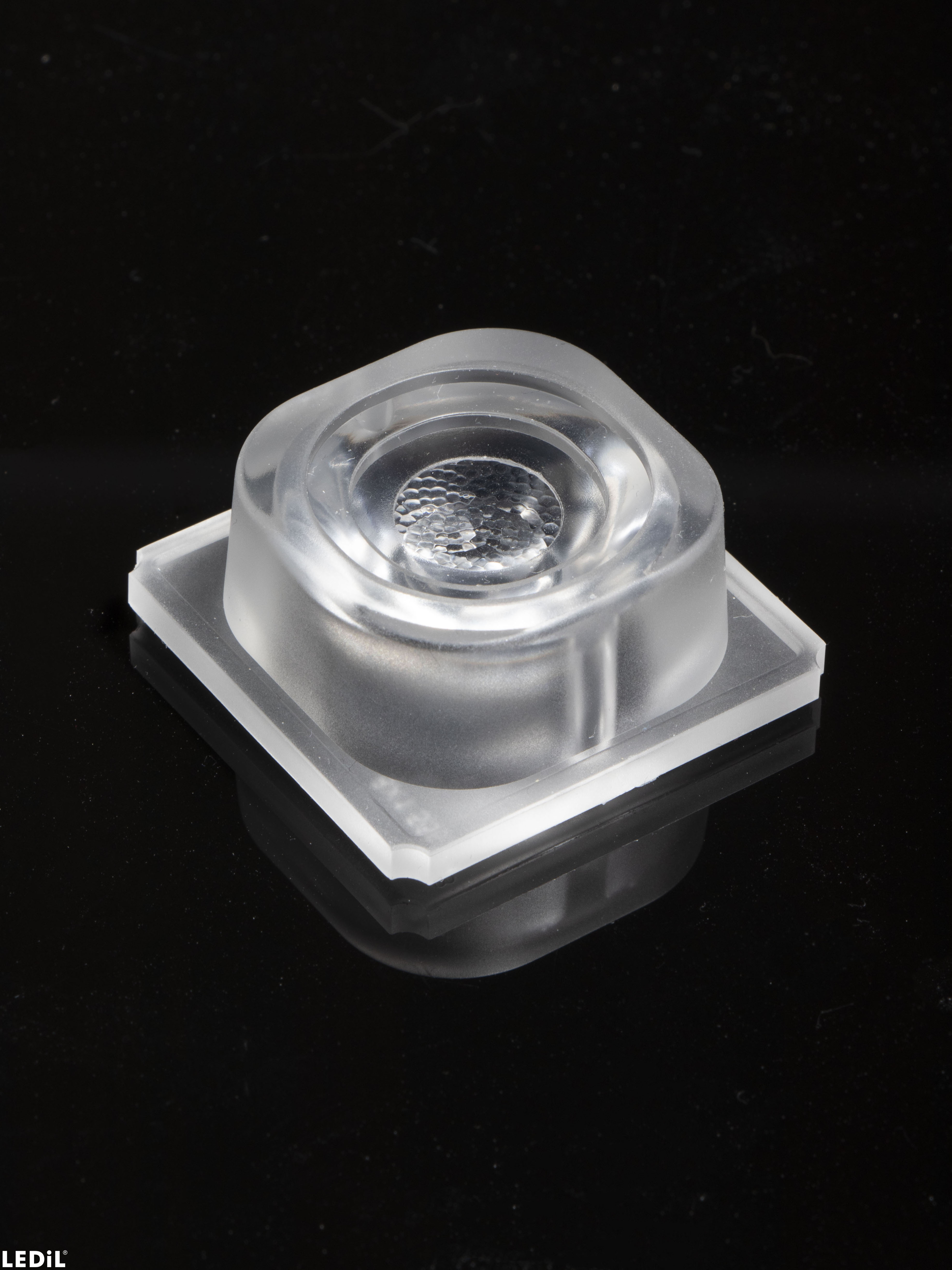

F15538_JENNY-20
Print
~20° beam
Component Materials
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Use C14436_JENNY-HLD-A-BLK for fastening.
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

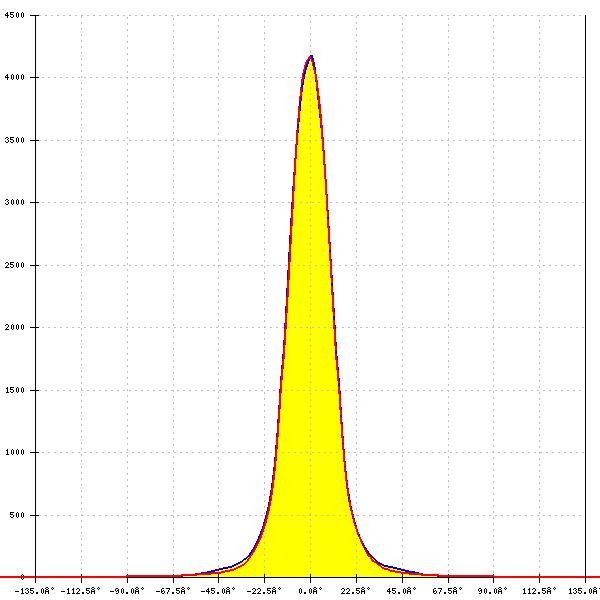

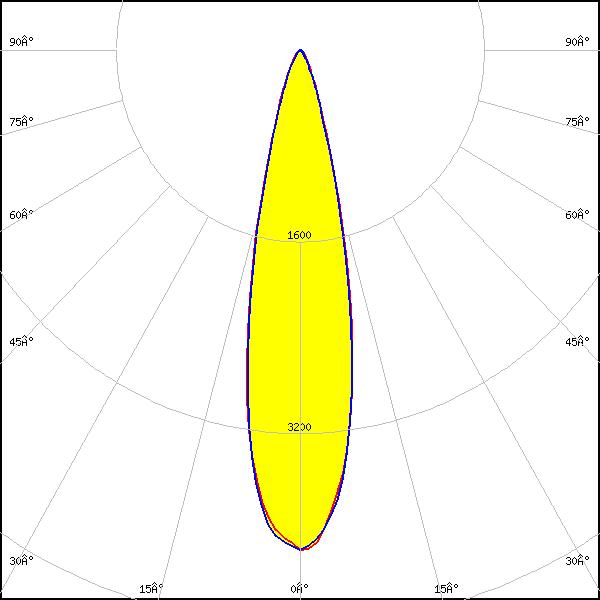

LED:
J Series 7070B K Class
FWHM:
24°
FWTM:
45°
Peak intensity:
4.219 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

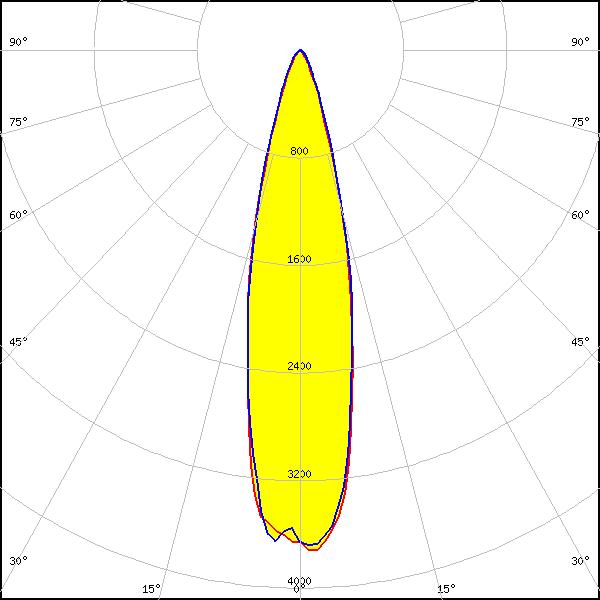

LED:

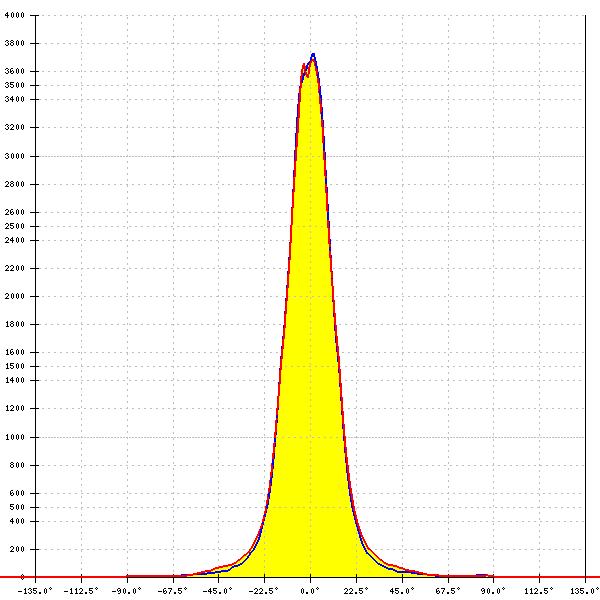

MHD-E/G
FWHM:
24°
FWTM:
47°
Peak intensity:
3.720 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

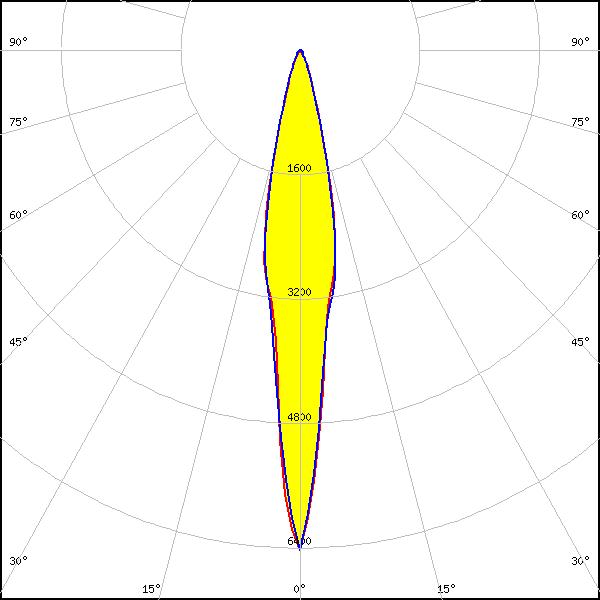

MK-R
FWHM:
14°
FWTM:
36°
Peak intensity:
6.430 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

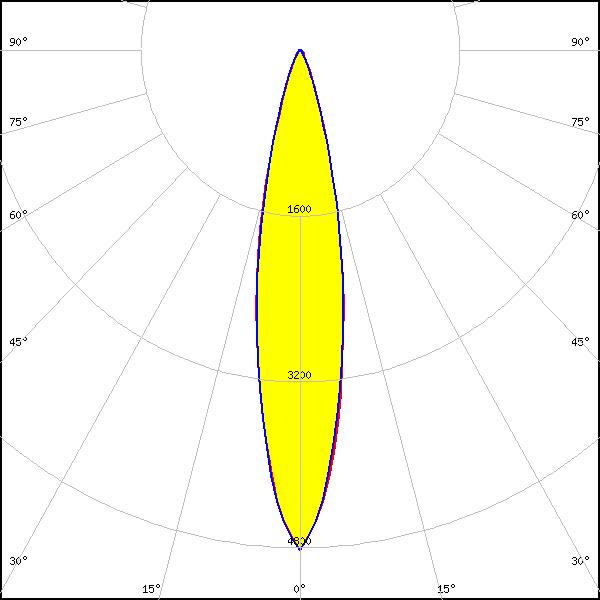

LED:

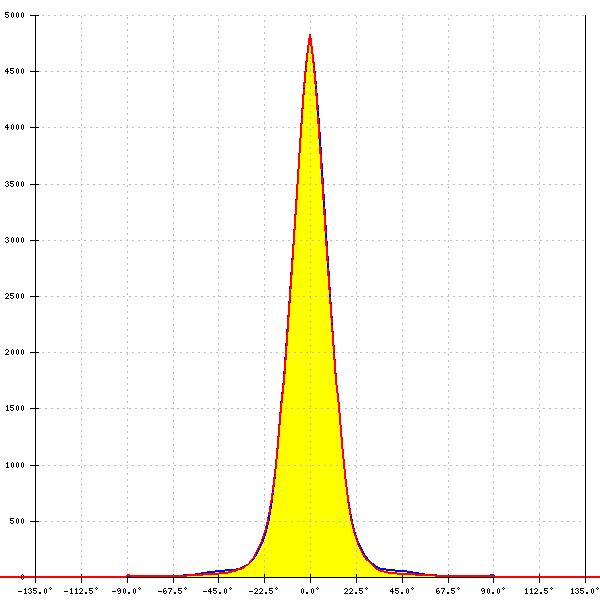

XHP50.2
FWHM:
20°
FWTM:
42°
Peak intensity:
4.827 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

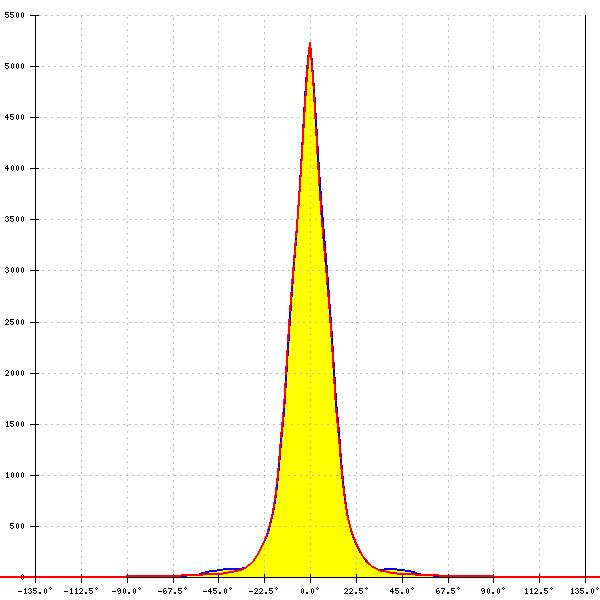

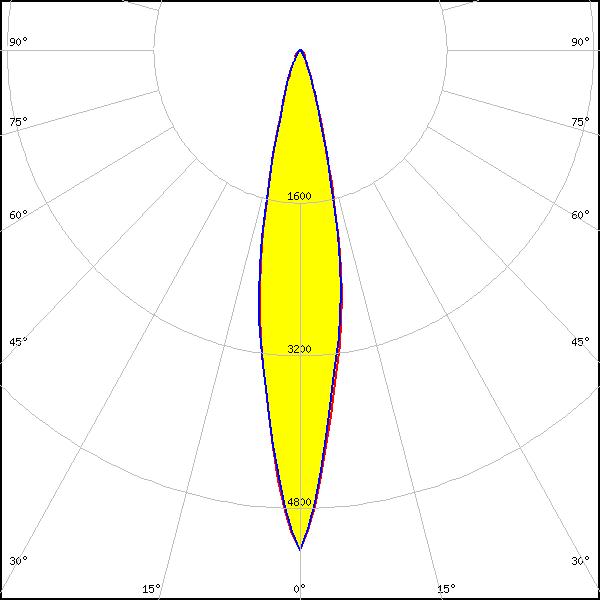

LED:
XHP50.3 HD
FWHM:
20°
FWTM:
38°
Peak intensity:
5.239 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

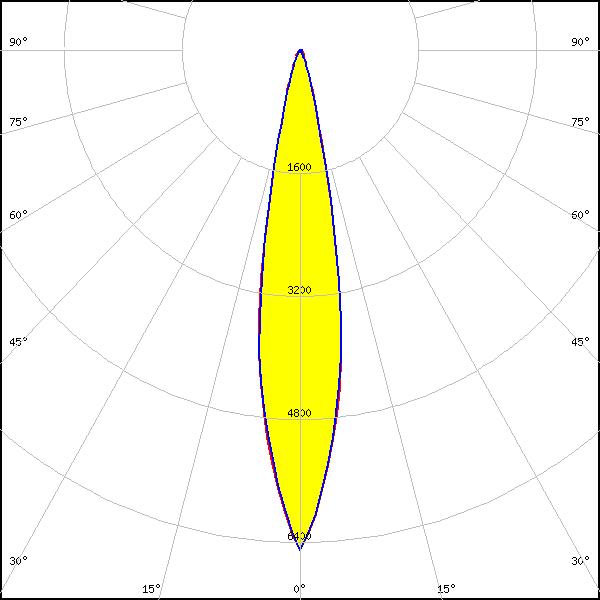

XHP50.3 HI
FWHM:
20° + 19°
FWTM:
34° + 34°
Peak intensity:
6.503 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
FWHM:
20°
FWTM:
43°
Peak intensity:
4.660 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

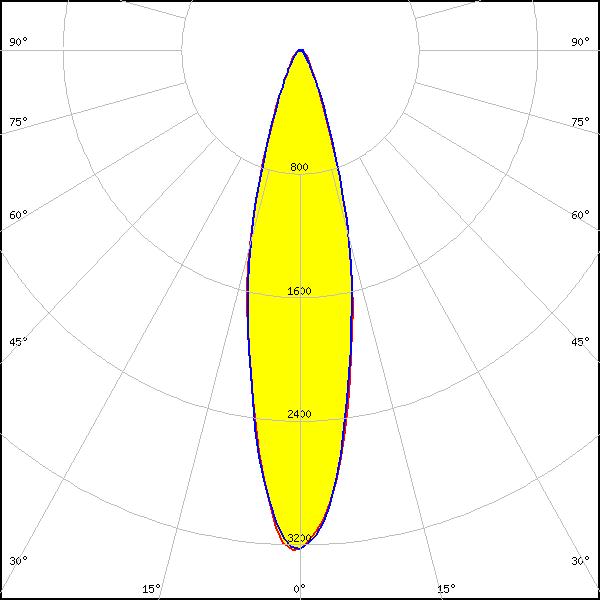

LED:
XHP70.2
FWHM:
25°
FWTM:
50°
Peak intensity:
3.250 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

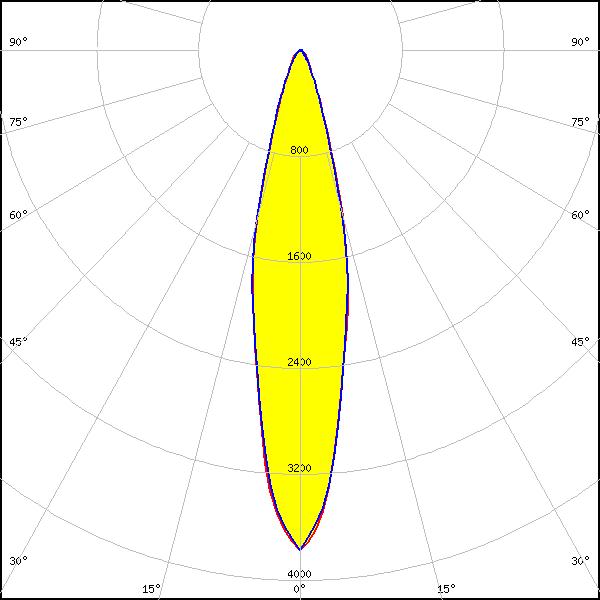

XHP70.3 HD
FWHM:
23°
FWTM:
46°
Peak intensity:
3.773 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

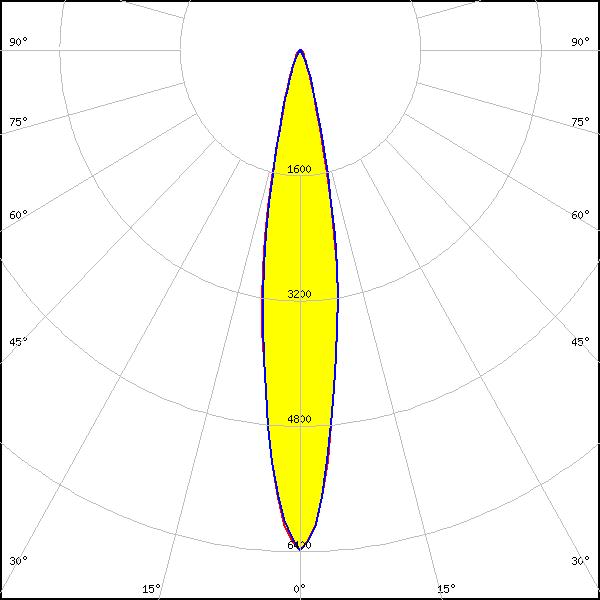

LED:
XHP70.3 HI
FWHM:
18°
FWTM:
36°
Peak intensity:
6.384 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

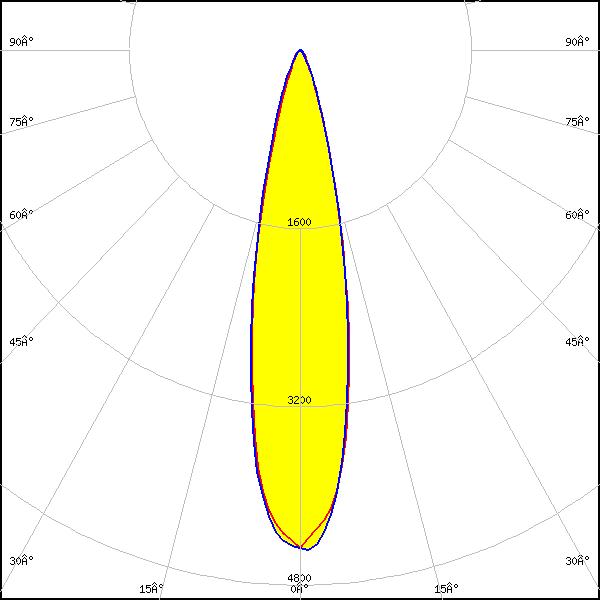

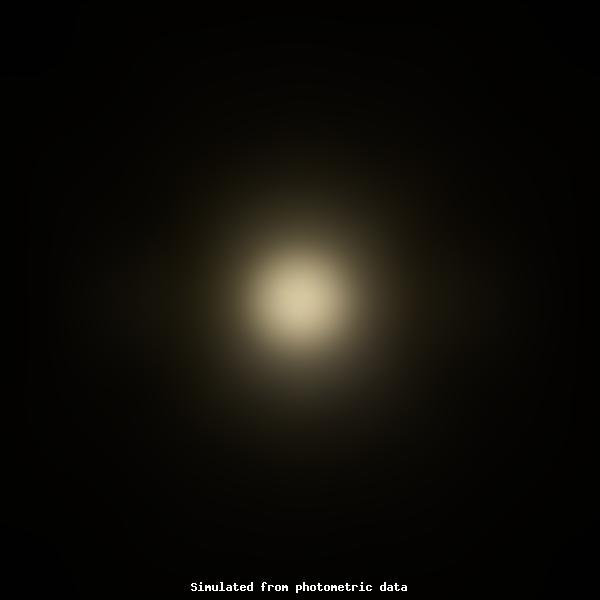

LED:
LUXEON 7070
FWHM:
22°
FWTM:
42°
Peak intensity:
4.579 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

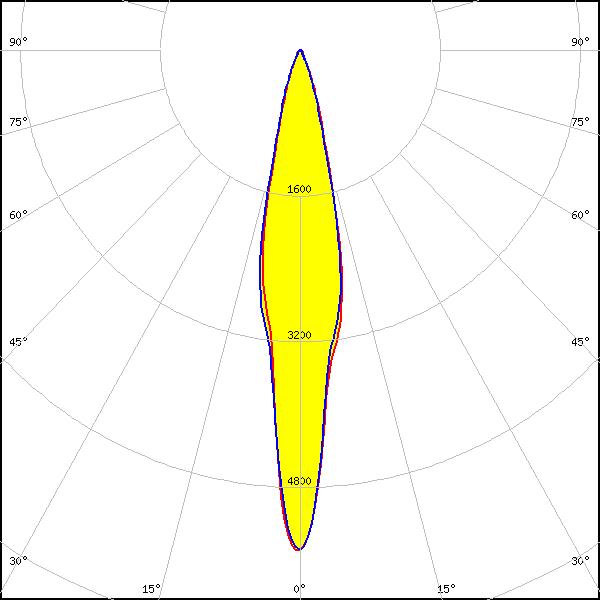

LUXEON M/MX
Required components:
FWHM:
19°
FWTM:
39°
Peak intensity:
5.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

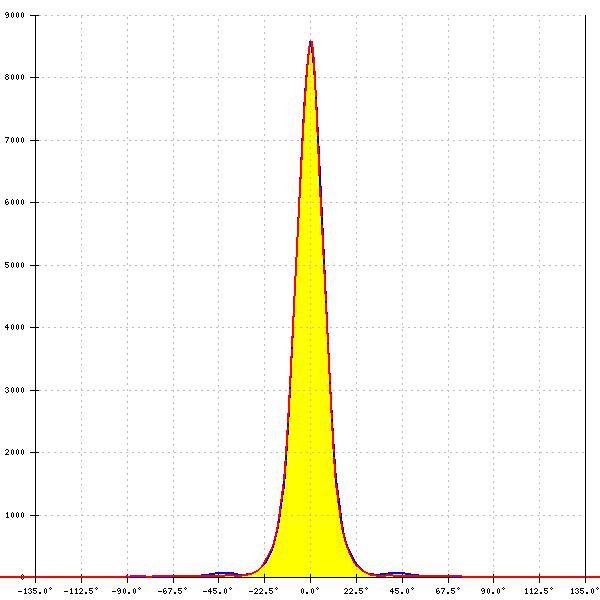

LED:

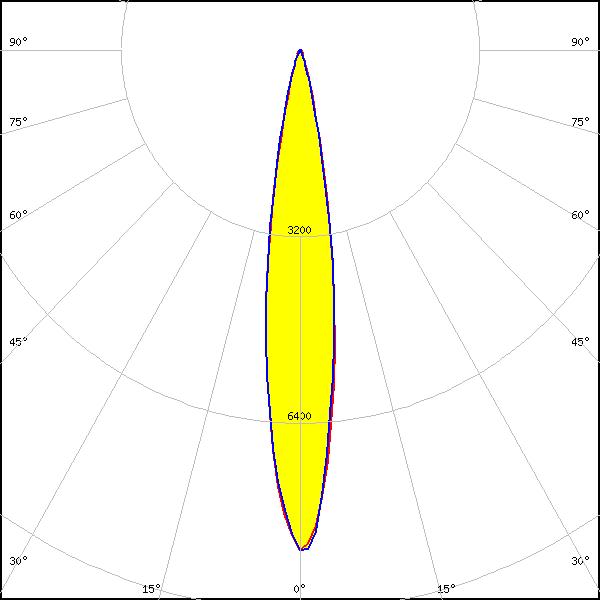

LUXEON MZ
FWHM:
17°
FWTM:
31°
Peak intensity:
8.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

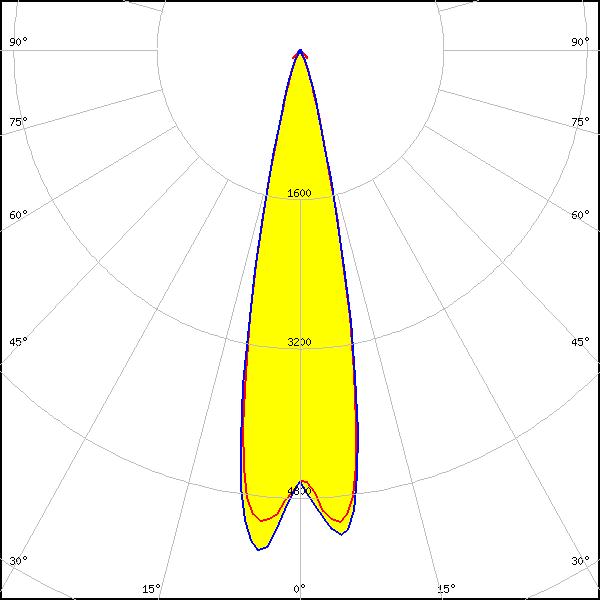

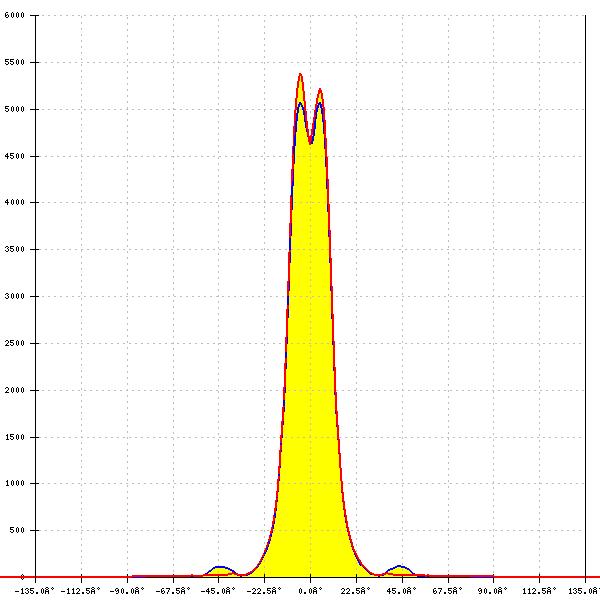

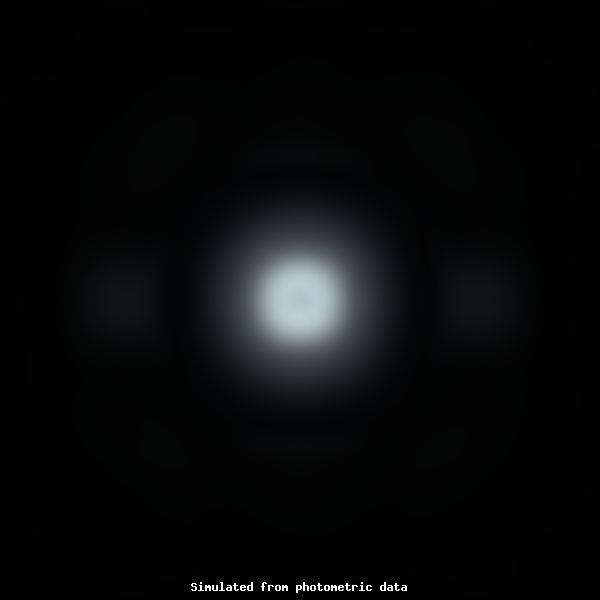

LED:
SFT-70X-WES-Gen2
FWHM:
24° + 23°
FWTM:
36° + 36°
Peak intensity:
5.380 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

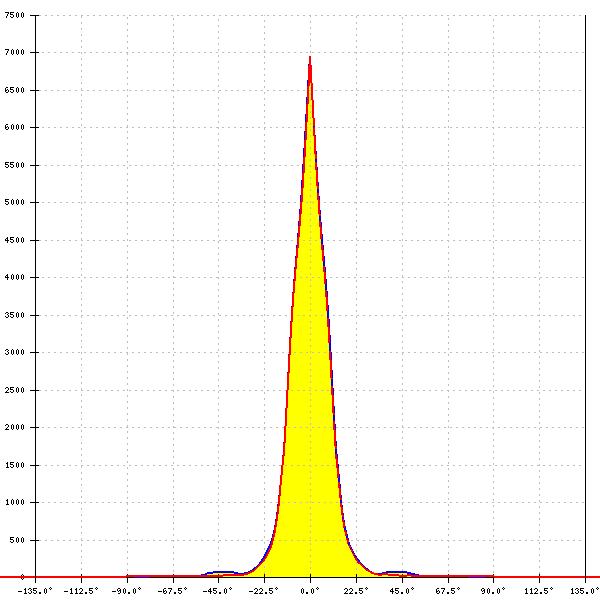

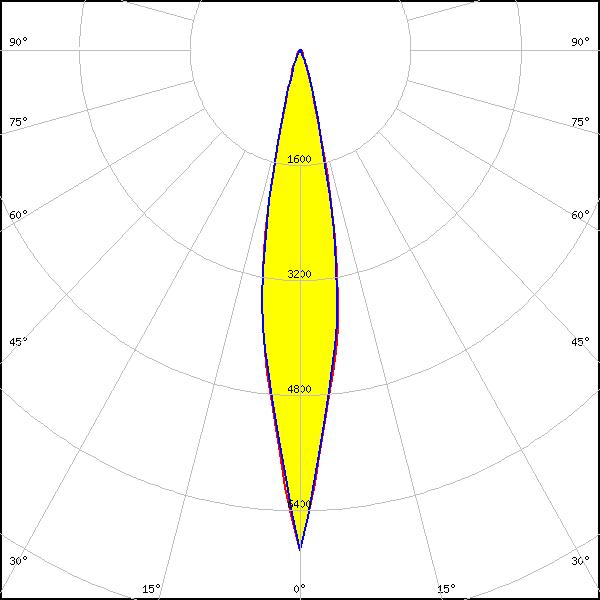

SST-70X-WCS
FWHM:
18°
FWTM:
34°
Peak intensity:
6.951 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

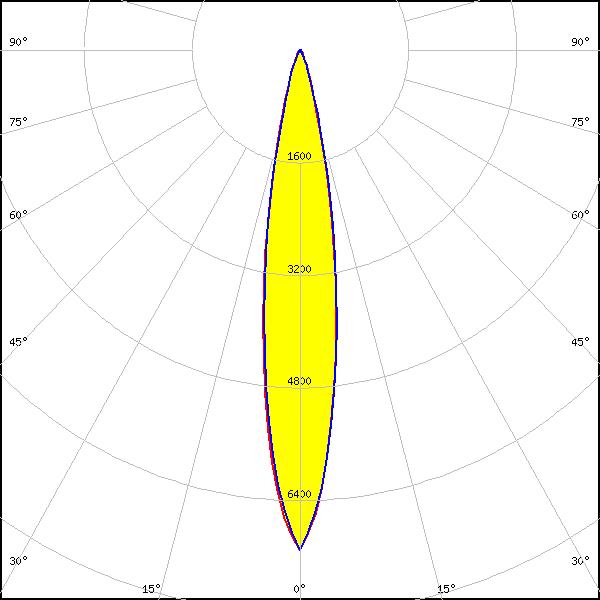

LED:
NFMW48xA
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
7.109 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

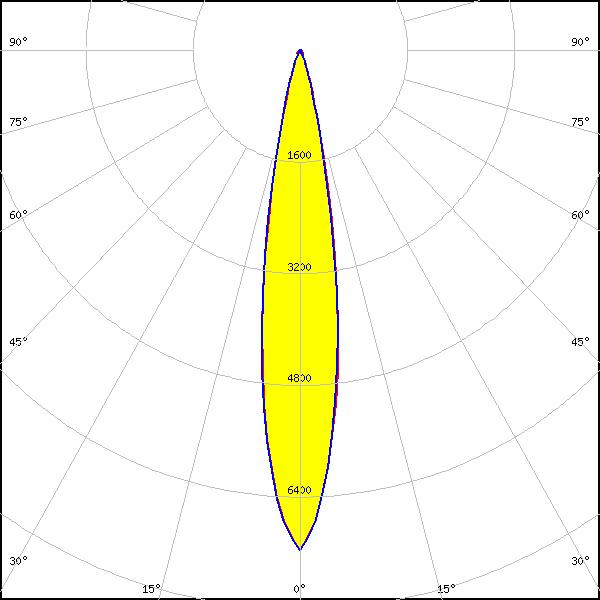

NV4WB35AM
FWHM:
18°
FWTM:
32°
Peak intensity:
7.165 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

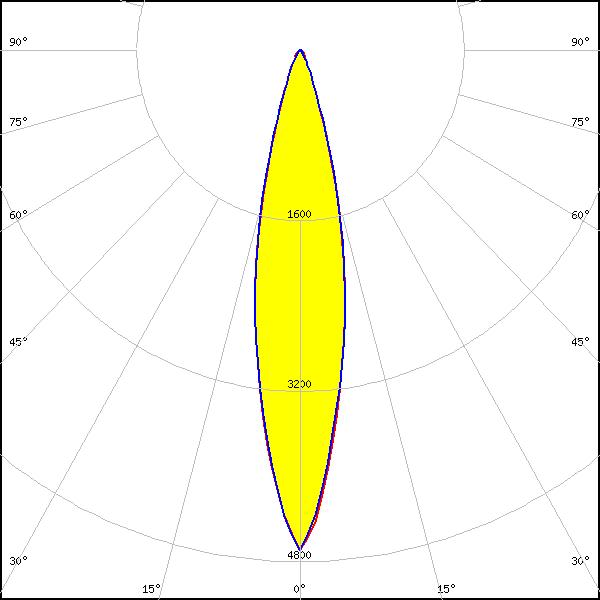

NV4x144A
FWHM:
22°
FWTM:
42°
Peak intensity:
4.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

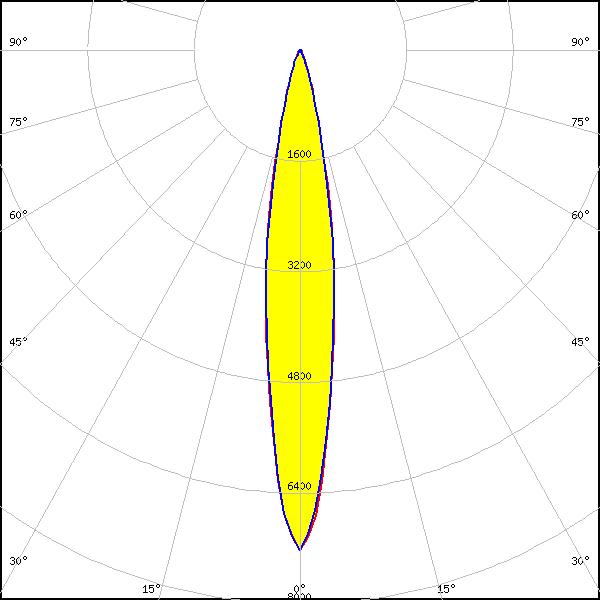

NVSxE21A
FWHM:
16°
FWTM:
34°
Peak intensity:
7.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:

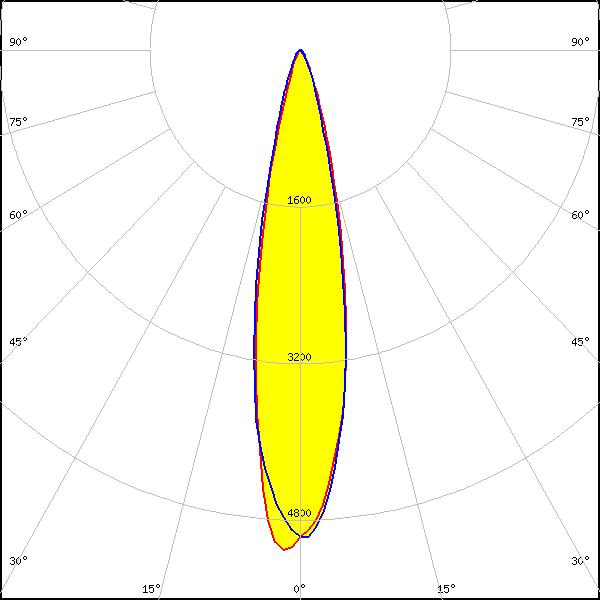

Duris S10
FWHM:
21°
FWTM:
41°
Peak intensity:
5.080 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

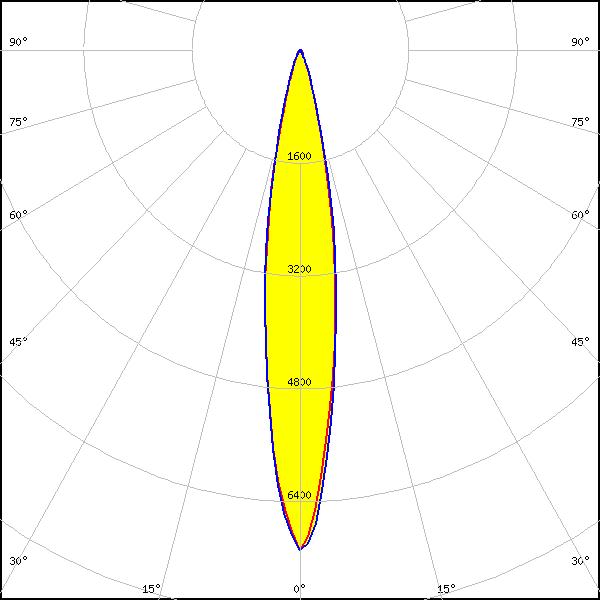

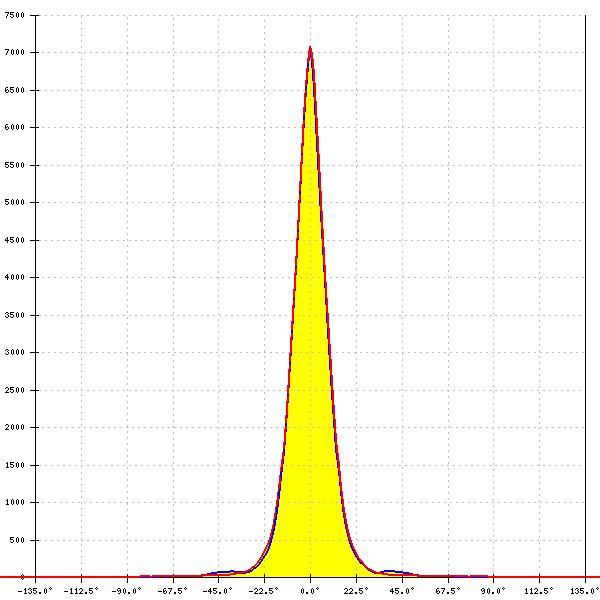

LED:
Duris S8
FWHM:
17°
FWTM:
35°
Peak intensity:
7.090 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

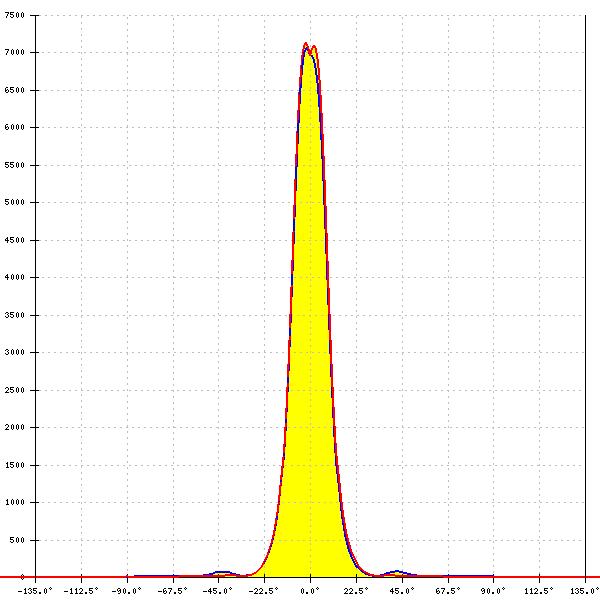

LED:

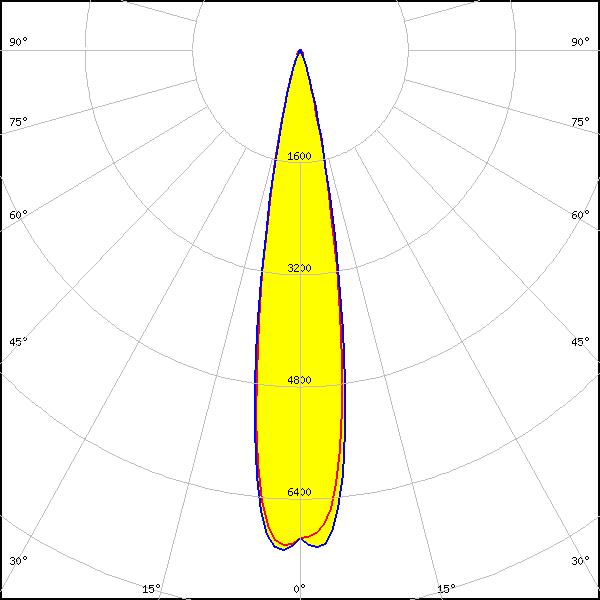

OSCONIQ P 3737 (2W version)
FWHM:
20°
FWTM:
34°
Peak intensity:
7.160 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
13°
FWTM:
34°
Peak intensity:
7.880 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

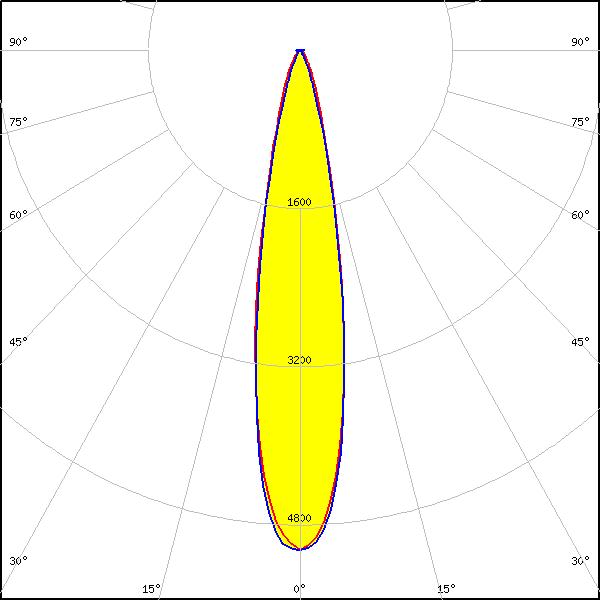

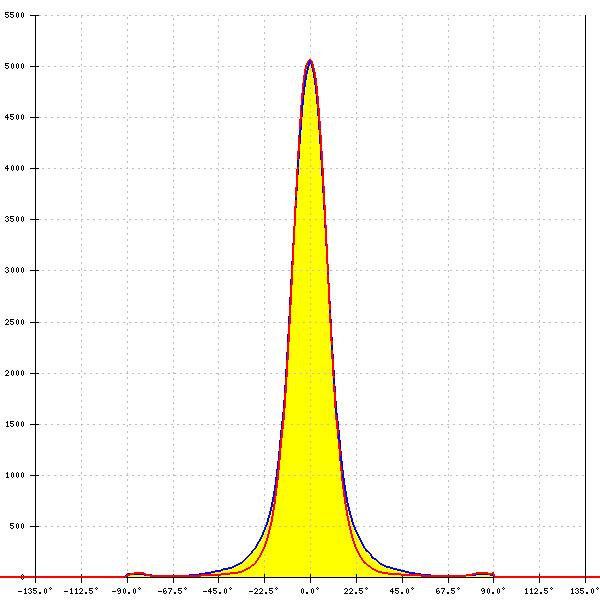

LED:
Z8Y22
FWHM:
20°
FWTM:
40°
Peak intensity:
5.061 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
