APPLICATION EXAMPLE
Aisle lighting with DAISY-7X1-ZT25
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
DAISY-7X1-ZT25 with clear lenses is an ideal choice for highly efficient, high contrast aisle lighting.
This setup shows the difference when an aisle is illuminated with DAISY-7X1-ZT25 using clear or diffused lenses, and a traditional linear solutions.
When compared to a traditional linear solution, the track modules are up to 10 times smaller, have perfect beam control with minimal glare and are more energy efficient with most of the light directed to the shelves not the floor.
SETUP:
| Application: | Aisle lighting |
| Installation height: | 3 m |
| Aisle width: | 2 m |
| Aisle length: | 4 m |
| Shelf height: | 2.2 m |
| Luminaire spacing: | 2 m |
| Number of luminaires: | 2 pcs |
RESULTS:
| DAISY-7X1-ZT25 / DAISY-7X1-ZT25 / Traditional linear solution | |

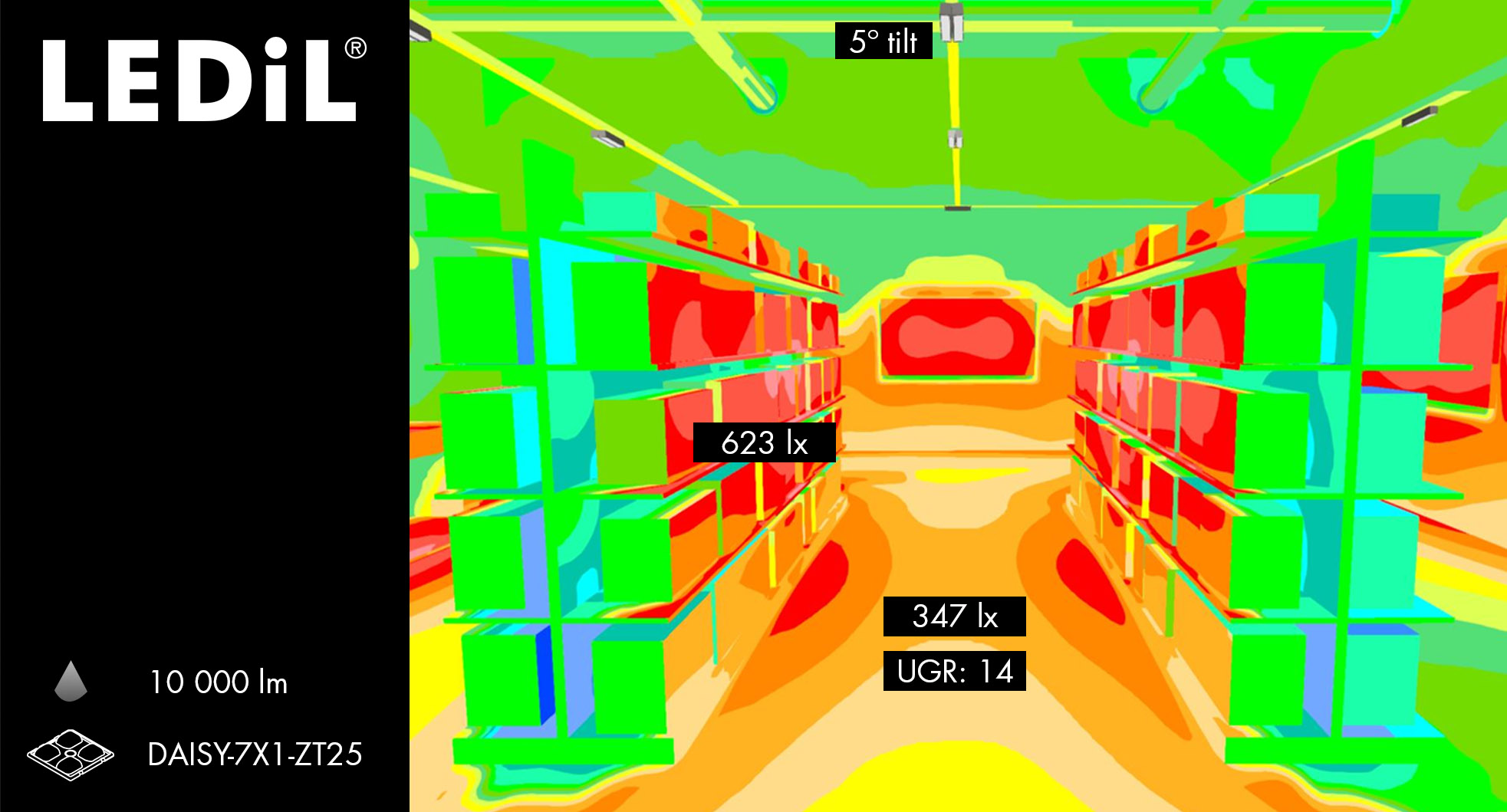

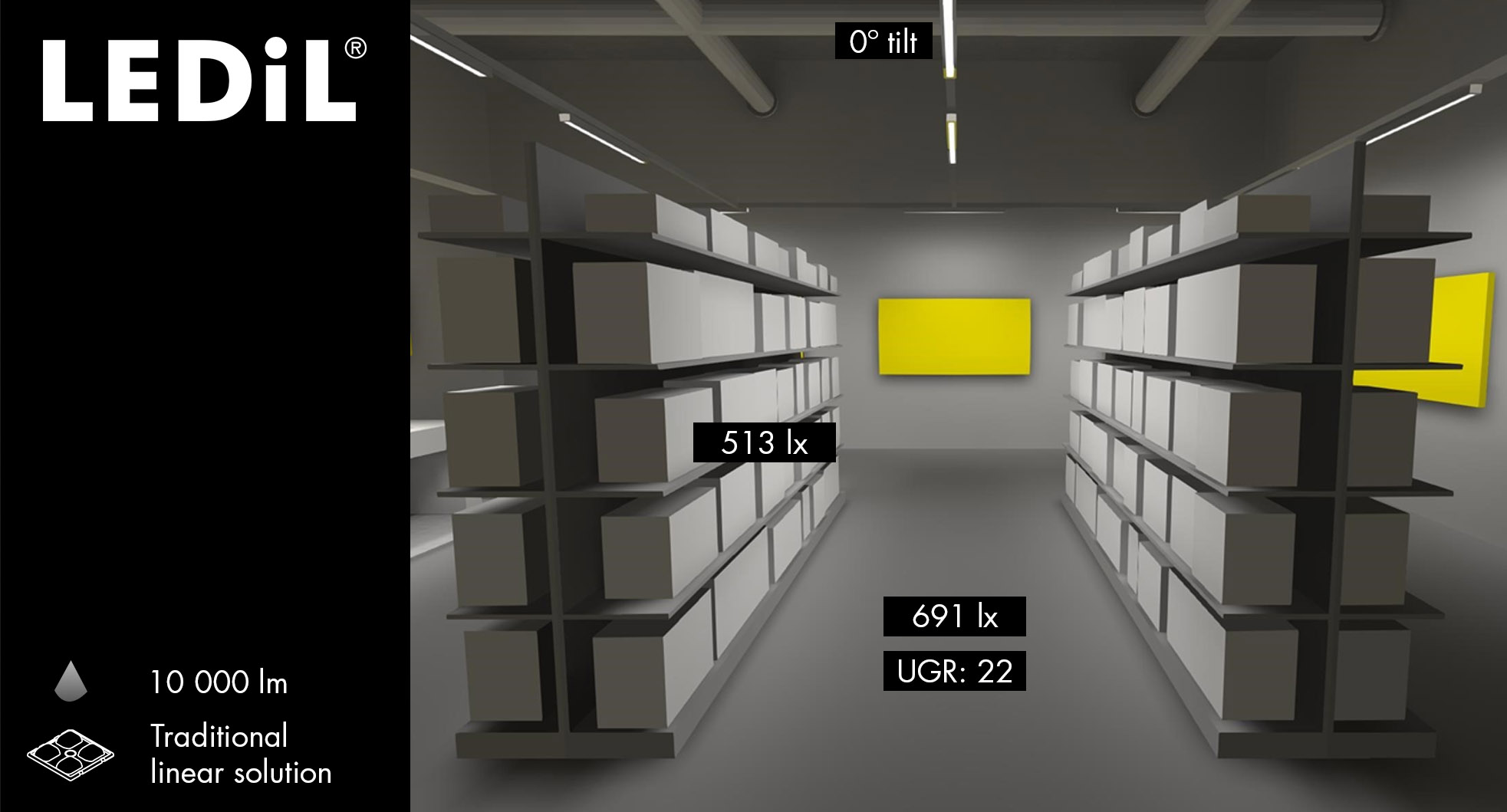

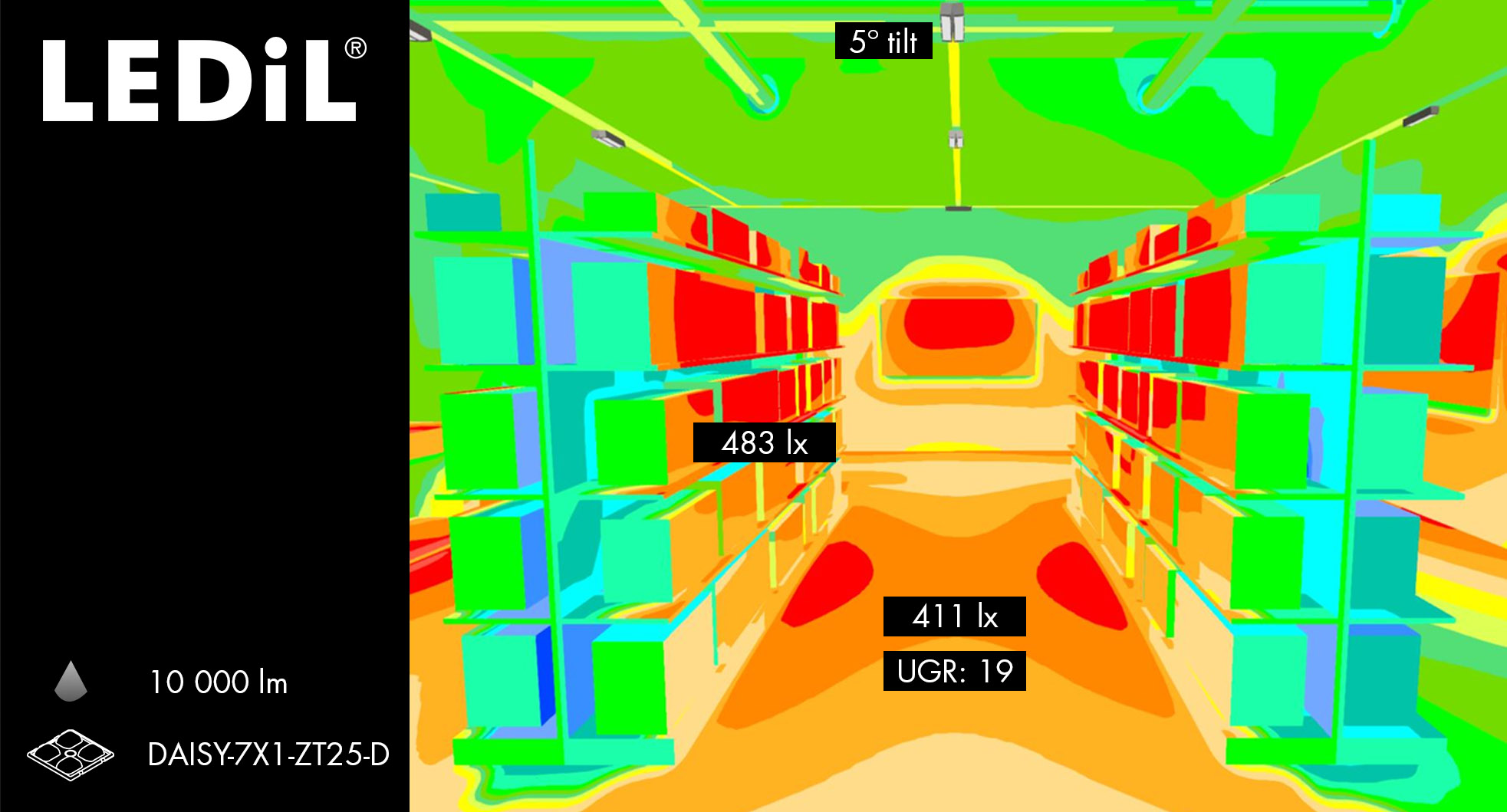

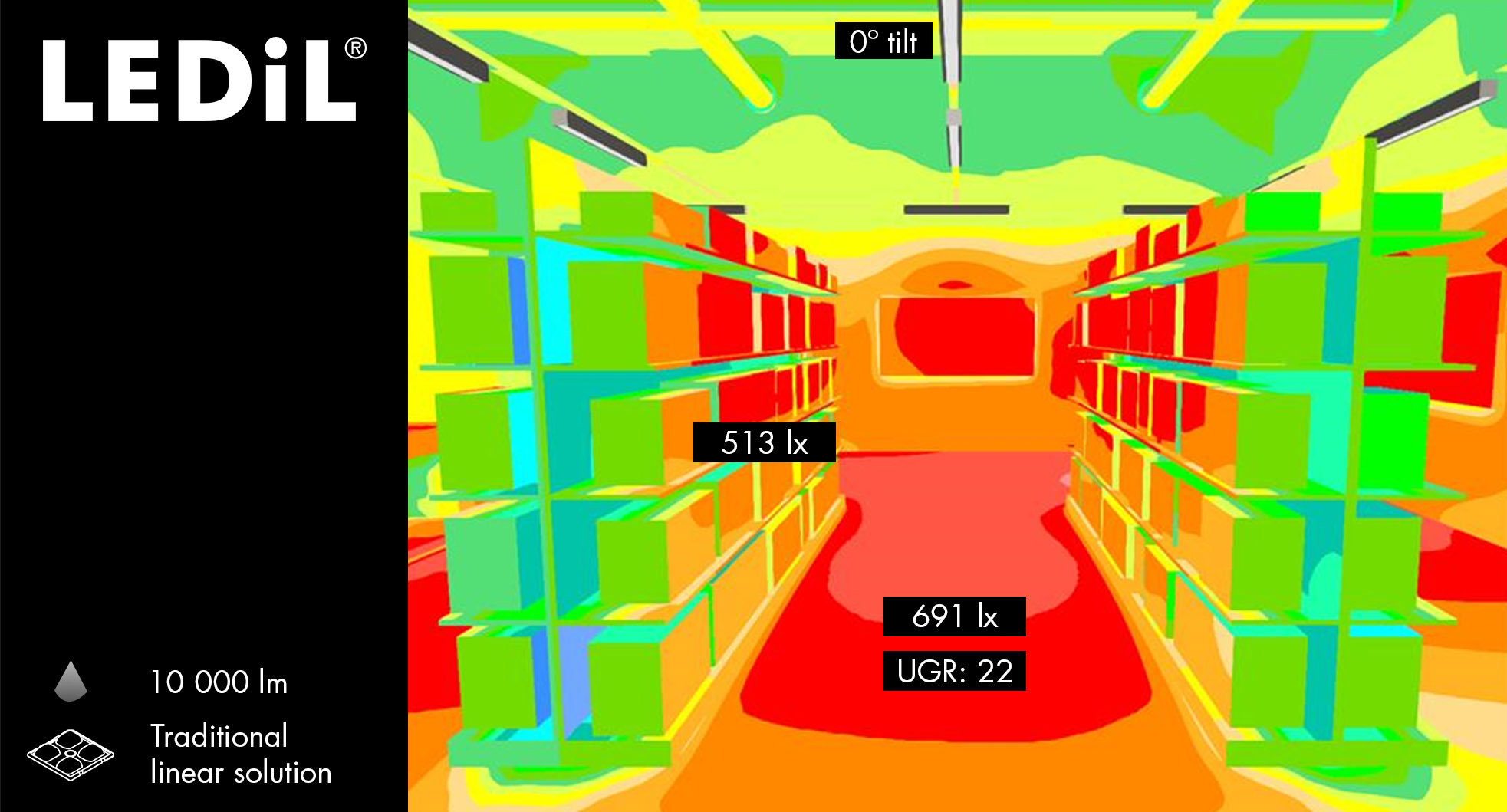

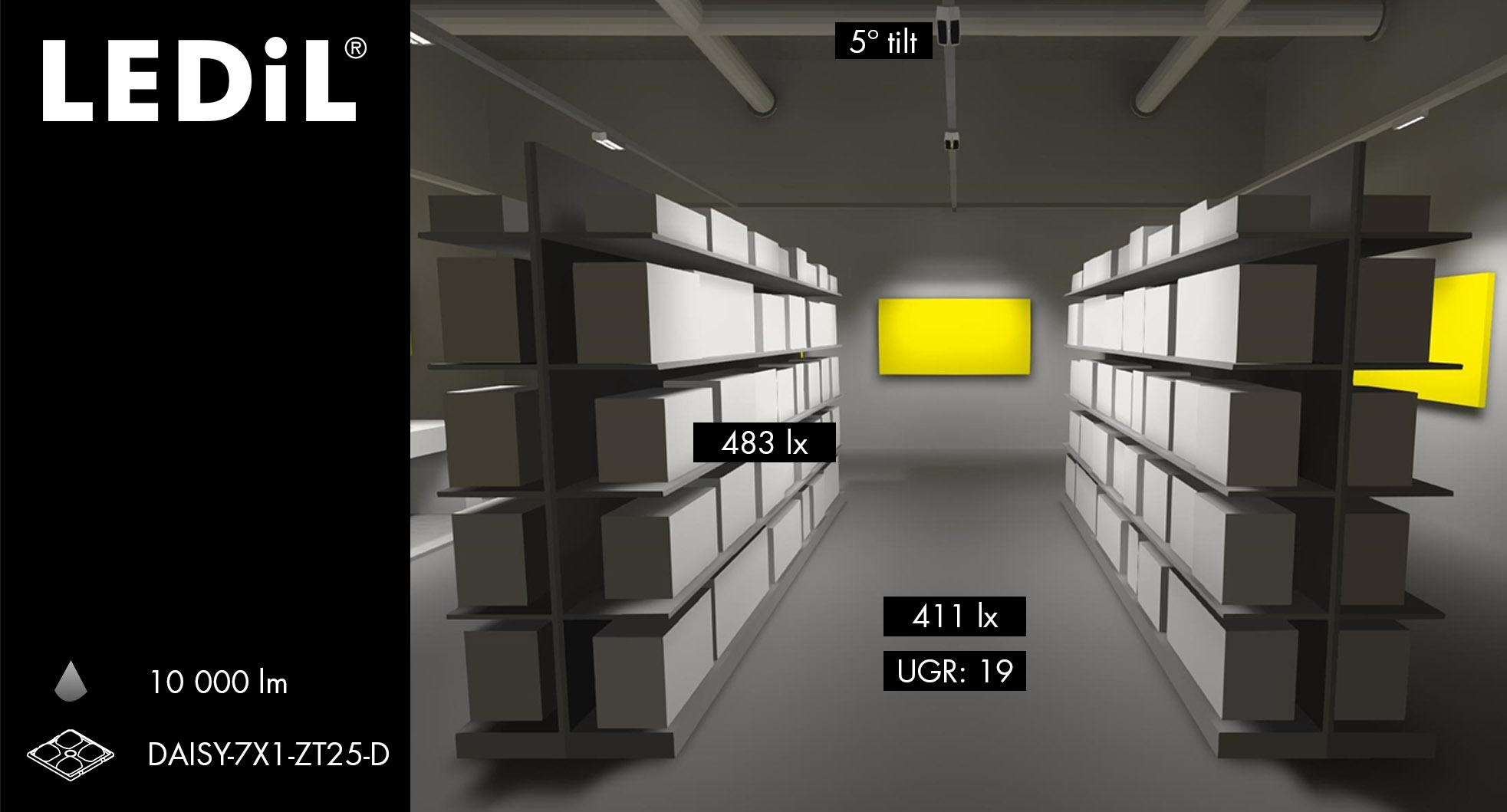

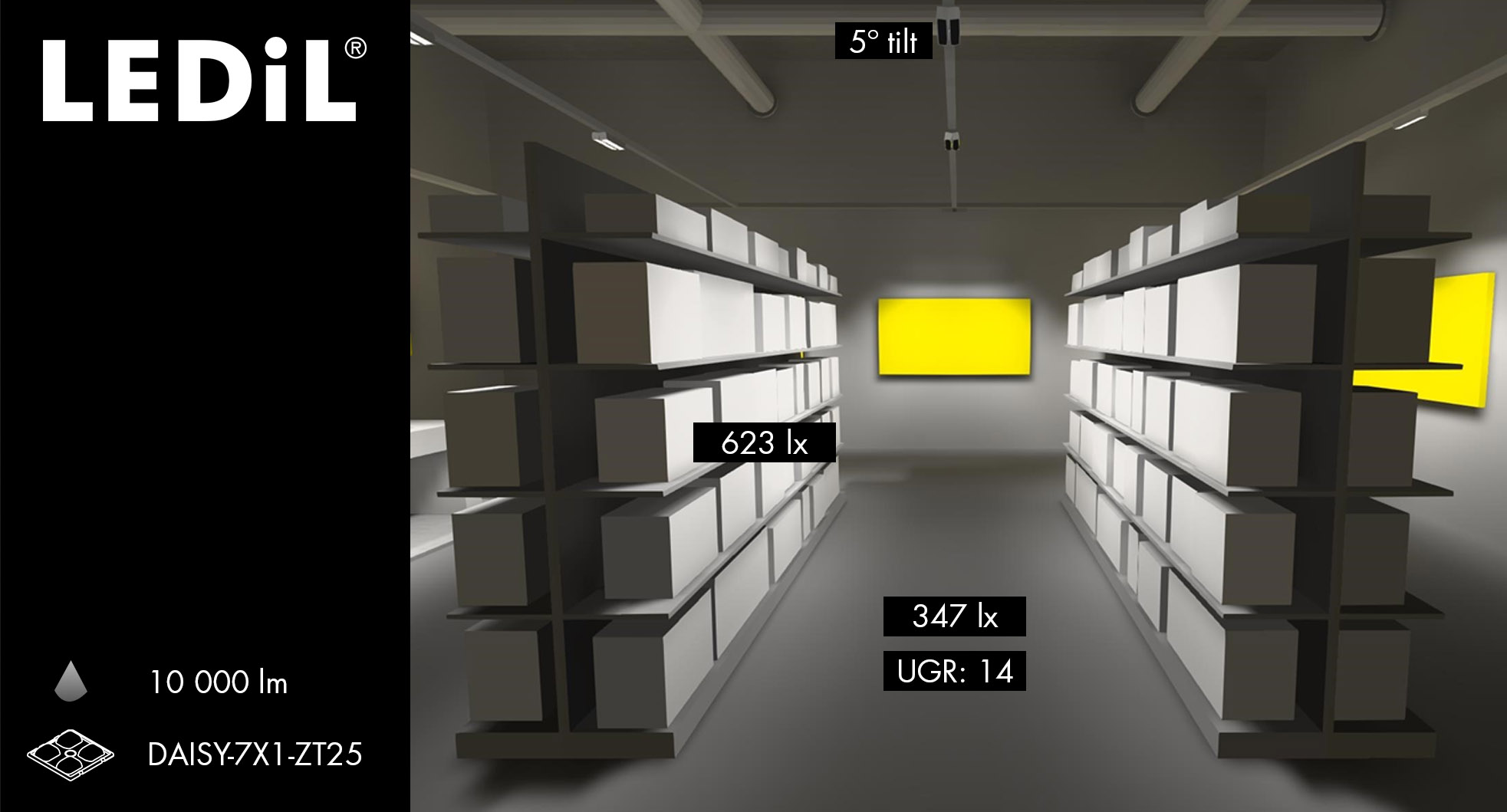

| Average on floor: | 347 lx / 411 lx / 691 lx |
| Average on shelf: | 623 lx / 483 lx / 513 lx |
| UGR: | 14 / 19 / 22 |
