Application example

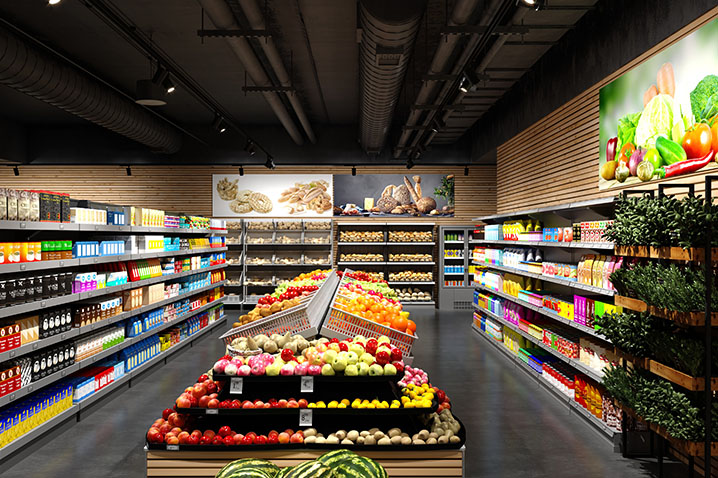

Aisle lighting example with AMY-50-O compared to AMY-50-S


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

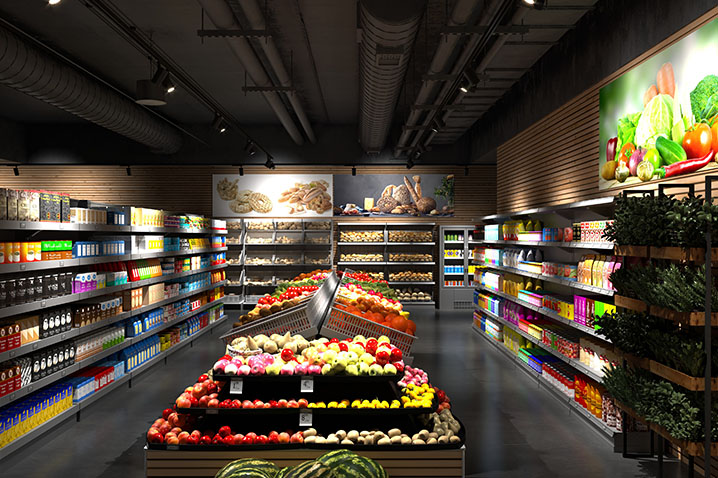

Aisle lighting with AMY-50-S

Application:Aisle lighting
LED:COB LES 8.5 mm
Optics:AMY-50-O
Connector:HEKLA-G2-I
Efficiency (optics):90 %
Installation height:3.5 m
Number of luminaires:3
Luminaire spacing:2 m
Luminaire output:2500 lm
Luminaire power:20 W
FIND THE PRODUCTS
AMY-50-O
AMY-70_O

Aisle lighting example with AMY-50-O compared to AMY-50-S


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
