AMY-70-O
Print
~25 + 60° oval beam
B2 variants fit ∅35 mm B+W and BJB connectors as well as SOCKET-B-35. B50 variants fit ∅50 mm B+W and BJB connectors.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Component Materials
- AMY-70-OSingle lensPMMA
- AMY-70-HLD2-C-WHT-ASYMHolderPC
- AMY-70-HLD2-C-ASYMHolderPC
- AMY-70-HLD2-B50-WHT-ASYMHolderPC
- AMY-70-HLD2-B50-ASYMHolderPC
- AMY-70-HLD2-B-WHT-ASYMHolderPC
- AMY-70-HLD2-B-ASYMHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen 8-9
Ordering code: CP19044_AMY-70-O-C2
LES size: 10.0 mm
Required components:
FWHM:
62° + 16°
FWTM:
94° + 37°
Peak intensity:
2.207 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen 8-9
Ordering code: CP19104_AMY-70-O-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM:
62° + 16°
FWTM:
91° + 37°
Peak intensity:
2.259 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen 8-9
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.8 mm
Required components:
FWHM:
60° + 23°
FWTM:
96° + 53°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 8
Ordering code: CP19044_AMY-70-O-C2
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
13° + 23°
FWTM:
31° + 57°
Peak intensity:
3.019 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen7
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.2 mm
Required components:
FWHM:
15° + 62°
FWTM:
38° + 93°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

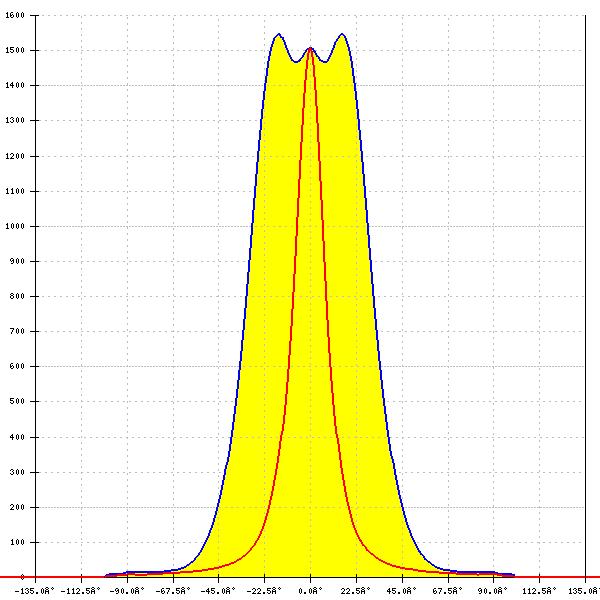

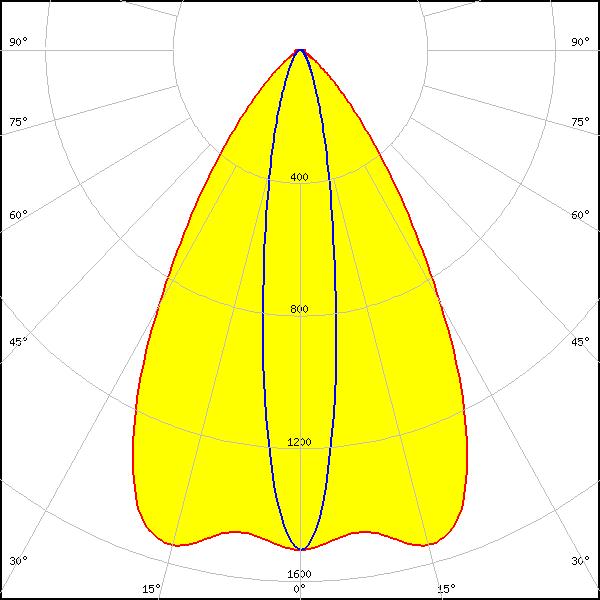

LED:
Vesta RGBW 10mm CSP
Ordering code: CP19044_AMY-70-O-C2
LES size: 10.0 mm
Required components:
FWHM:
62° + 118°
FWTM:
94° + 44°
Peak intensity:
1.607 cd/lm
Efficiency:
75 %
LEDs/each optic:
28
Light colour/type:
RGBW
LED:
Vesta SE 13mm TW
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.3 mm
Required components:
FWHM:
62° + 20°
FWTM:
92° + 42°
Peak intensity:
1.733 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CLU02x (LES10)
Ordering code: C18466_AMY-70-O
LES size: 9.8 mm
FWHM:
62° + 14°
FWTM:
90° + 35°
Peak intensity:
2.388 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.8 mm
Required components:
FWHM:
62° + 16°
FWTM:
92° + 36°
Peak intensity:
2.305 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP19104_AMY-70-O-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
62° + 16°
FWTM:
92° + 36°
Peak intensity:
2.301 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
Ordering code: CP19104_AMY-70-O-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
62° + 22°
FWTM:
94° + 48°
Peak intensity:
1.657 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.5 mm
Required components:
FWHM:
23° + 63°
FWTM:
52° + 97°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713
Ordering code: CP19044_AMY-70-O-C2
LES size: 8.5 mm
Required components:
FWHM:
64° + 15°
FWTM:
94° + 38°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
Ordering code: CP19044_AMY-70-O-C2
LES size: 11.0 mm
Required components:
FWHM:
63° + 18°
FWTM:
94° + 43°
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1825
Ordering code: CP19044_AMY-70-O-C2
LES size: 12.0 mm
Required components:
FWHM:
65° + 20°
FWTM:
97° + 47°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.5 mm
Required components:
FWHM:
63° + 23°
FWTM:
97° + 52°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU10xx
Ordering code: CP19104_AMY-70-O-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
62° + 16°
FWTM:
91° + 36°
Peak intensity:
2.270 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU15xx
LES size: 14.5 mm
Required components:
FWHM:
62° + 22°
FWTM:
95° + 48°
Peak intensity:
1.701 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
62° + 22°
FWTM:
94° + 47°
Peak intensity:
1.705 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.0 mm
Required components:
FWHM:
63° + 15°
FWTM:
93° + 39°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Ordering code: CP19044_AMY-70-O-C2
LES size: 11.0 mm
Required components:
FWHM:
62° + 18°
FWTM:
94° + 44°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19104_AMY-70-O-B2
LES size: 6.0 mm
FWHM:
62° + 13°
FWTM:
93° + 30°
Peak intensity:
2.817 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19104_AMY-70-O-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
64° + 16°
FWTM:
94° + 36°
Peak intensity:
2.219 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP19129_AMY-50-O-C2
LES size: 12.0 mm
Required components:
FWHM:
52° + 23°
FWTM:
86° + 50°
Peak intensity:
1.818 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.0 mm
Required components:
FWHM:
62° + 16°
FWTM:
93° + 35°
Peak intensity:
2.314 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19044_AMY-70-O-C2
LES size: 6.0 mm
Required components:
FWHM:
61° + 12°
FWTM:
92° + 29°
Peak intensity:
2.982 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHM-11 XH (19x19)
Ordering code: CP19044_AMY-70-O-C2
LES size: 11.0 mm
Required components:
FWHM:
62° + 14°
FWTM:
92° + 34°
Peak intensity:
2.561 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP19044_AMY-70-O-C2
LES size: 13.9 mm
Required components:
FWHM:
64° + 22°
FWTM:
94° + 46°
Peak intensity:
1.757 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-14 (Tunable White) Gen2
Ordering code: CP19044_AMY-70-O-C2
LES size: 13.9 mm
Required components:
FWHM:
22° + 61°
FWTM:
51° + 95°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-6 (Tunable White) Gen2
Ordering code: CP19044_AMY-70-O-C2
LES size: 6.8 mm
Required components:
FWHM:
60° + 12°
FWTM:
90° + 30°
Peak intensity:
3.035 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.5 mm
Required components:
FWHM:
62° + 15°
FWTM:
90° + 34°
Peak intensity:
2.519 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CXM-3
Ordering code: CP19104_AMY-70-O-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
59° + 10°
FWTM:
92° + 24°
Peak intensity:
3.804 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
Ordering code: CP19104_AMY-70-O-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
60° + 11°
FWTM:
92° + 26°
Peak intensity:
3.508 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP19104_AMY-70-O-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
60° + 12°
FWTM:
90° + 26°
Peak intensity:
3.282 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM:
62° + 24°
FWTM:
96° + 48°
Peak intensity:
1.657 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP19044_AMY-70-O-C2
LES size: 11.5 mm
Required components:
FWHM:
64° + 18°
FWTM:
94° + 40°
Peak intensity:
2.005 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP19104_AMY-70-O-B2
LES size: 5.9 mm
FWHM:
62° + 12°
FWTM:
94° + 28°
Peak intensity:
2.995 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP19104_AMY-70-O-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
62° + 13°
FWTM:
94° + 30°
Peak intensity:
2.766 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP19104_AMY-70-O-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
62° + 13°
FWTM:
94° + 30°
Peak intensity:
2.904 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP19044_AMY-70-O-C2
LES size: 7.0 mm
Required components:
FWHM:
60° + 12°
FWTM:
88° + 30°
Peak intensity:
3.058 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP19044_AMY-70-O-C2
LES size: 5.9 mm
Required components:
FWHM:
58° + 10°
FWTM:
88° + 26°
Peak intensity:
3.699 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP19044_AMY-70-O-C2
LES size: 10.6 mm
Required components:
FWHM:
63° + 16°
FWTM:
92° + 38°
Peak intensity:
2.143 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM C TW L06A 1313 G7N
Ordering code: CP19044_AMY-70-O-C2
LES size: 6.5 mm
Required components:
FWHM:
61° + 12°
FWTM:
92° + 32°
Peak intensity:
2.921 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM C TW L09A 1919 G7N
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.3 mm
Required components:
FWHM:
62° + 16°
FWTM:
93° + 40°
Peak intensity:
2.150 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM L15 CoB
Ordering code: CP19044_AMY-70-O-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
63° + 23°
FWTM:
95° + 48°
Peak intensity:
1.568 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.8 mm
Required components:
FWHM:
63° + 16°
FWTM:
93° + 40°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
Ordering code: CP19104_AMY-70-O-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
60° + 12°
FWTM:
90° + 26°
Peak intensity:
3.316 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
Ordering code: CP19044_AMY-70-O-C2
LES size: 9.8 mm
Required components:
FWHM:
62° + 14°
FWTM:
90° + 32°
Peak intensity:
2.756 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP19104_AMY-70-O-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
62° + 24°
FWTM:
94° + 50°
Peak intensity:
1.573 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.5 mm
Required components:
FWHM:
62° + 24°
FWTM:
98° + 54°
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP19104_AMY-70-O-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
62° + 14°
FWTM:
91° + 34°
Peak intensity:
2.545 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020T (Tunable white)
Ordering code: CP19044_AMY-70-O-C2
LES size: 13.0 mm
Required components:
FWHM:
62° + 18°
FWTM:
92° + 40°
Peak intensity:
2.080 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC030C/040C G2
Ordering code: CP19104_AMY-70-O-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
63° + 19°
FWTM:
94° + 40°
Peak intensity:
1.980 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.5 mm
Required components:
FWHM:
60° + 22°
FWTM:
93° + 48°
Peak intensity:
1.759 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
Ordering code: CP19044_AMY-70-O-C2
LES size: 6.0 mm
Required components:
FWHM:
60° + 12°
FWTM:
91° + 28°
Peak intensity:
3.274 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
Ordering code: CP19044_AMY-70-O-C2
LES size: 6.0 mm
Required components:
FWHM:
62° + 16°
FWTM:
93° + 36°
Peak intensity:
2.239 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
Ordering code: CP19044_AMY-70-O-C2
LES size: 14.5 mm
Required components:
FWHM:
61° + 21°
FWTM:
92° + 42°
Peak intensity:
1.656 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
