    AMY-110-W

    Print

    ~36° wide beam

    This product consists of multiple buying options. See ordering information

    Specification
    • Dimensions:
      110 mm
    • Height:
      17.25 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-110-W
      PMMA
    • AMY-110-HLD-C-WHT
      PC
    • AMY-110-HLD-C
      PC
    • AMY-110-HLD-B-WHT
      PC
    • AMY-110-HLD-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18569_AMY-110-W
      clear
    • Quantity in box:
      128 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      11.30 kg
    • MPQ:
      8 pcs
    • MOQ:
      128 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      11.30 kg
    • Assembly
    • CP18573_AMY-110-W-C
      black,Holder C
    • CP18577_AMY-110-W-B
      black,Holder B
    • CP19030_AMY-110-W-C-WHT
      white,Holder C
    • CP19034_AMY-110-W-B-WHT
      white,Holder B
    • Quantity in box:
      77 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.60 kg
    • MPQ:
      7 pcs
    • MOQ:
      77 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      8.60 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18569_AMY-110-W
      CP18573_AMY-110-W-C
      CP18577_AMY-110-W-B

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – December 13, 2022

    News

    AMY-110 – for slim and elegant wide diameter downlights

    Application guide

    LEDiL guide for retail lighting optics

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    VERO29SE-ADAPTER

    Adapter for ADELIA-110 and AMY-110. Compatible with Bridgelux VERO 29 SE interface.

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

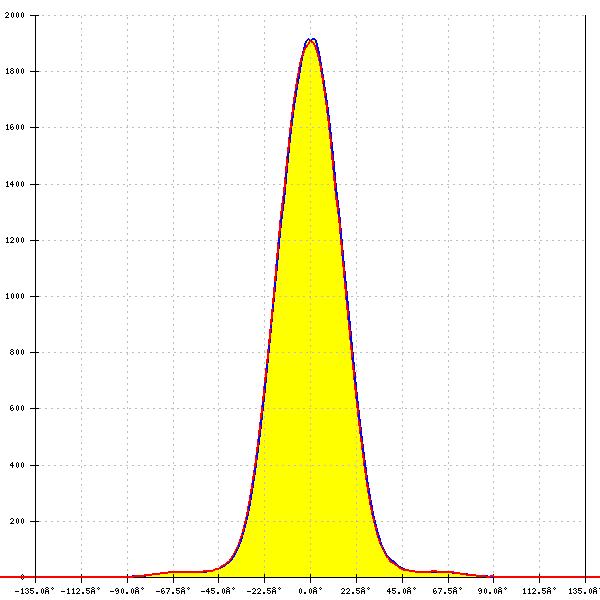

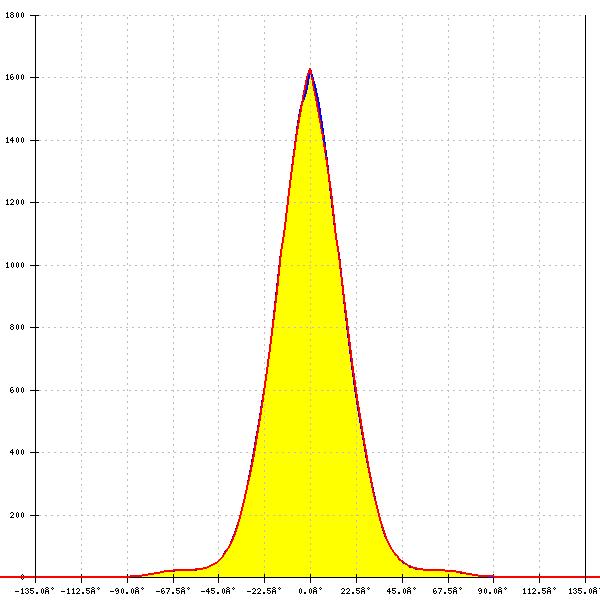

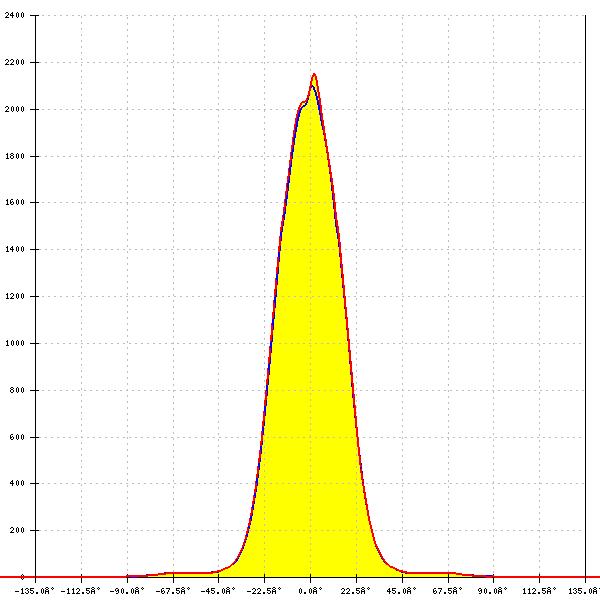

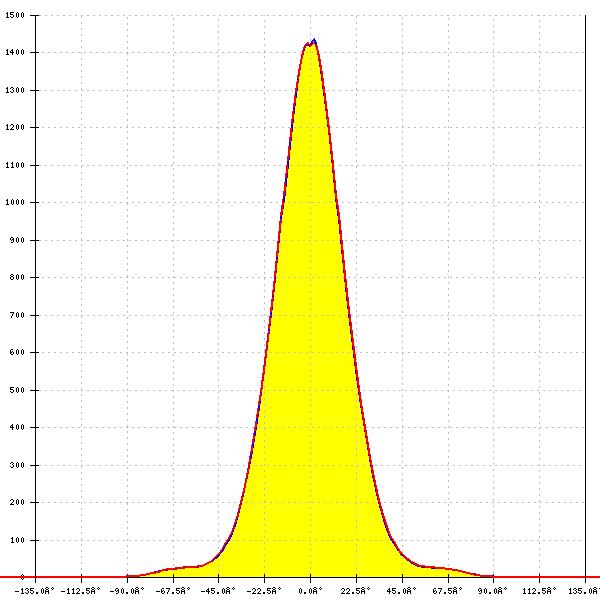

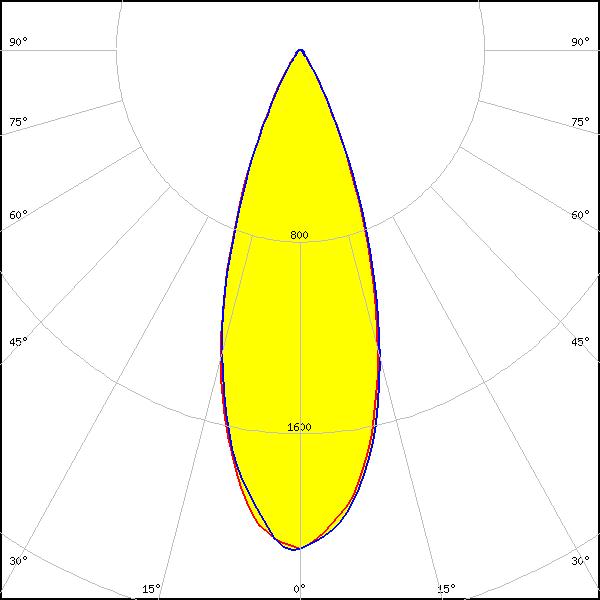

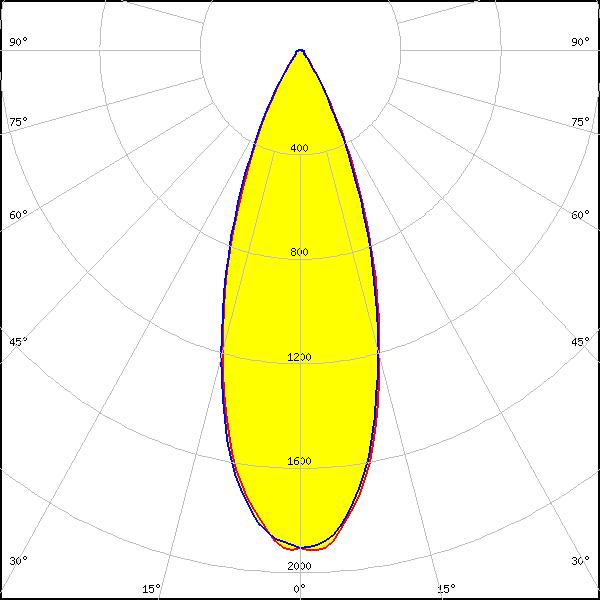

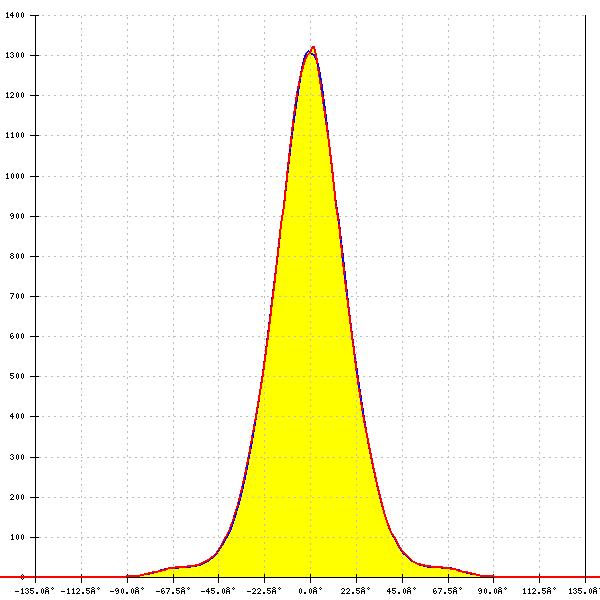

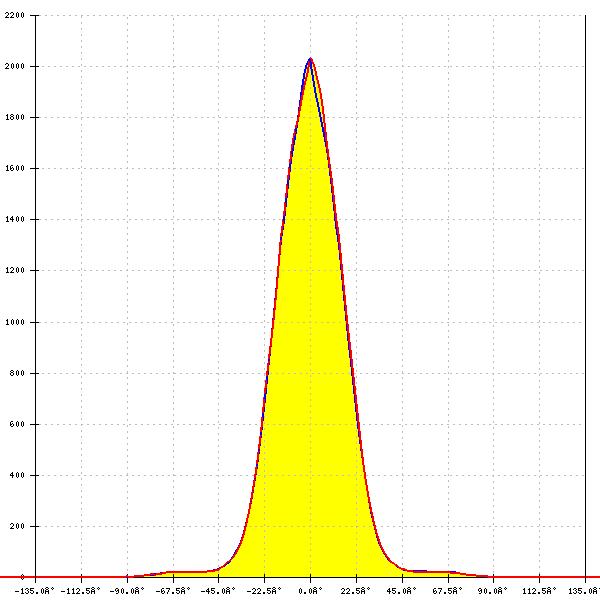

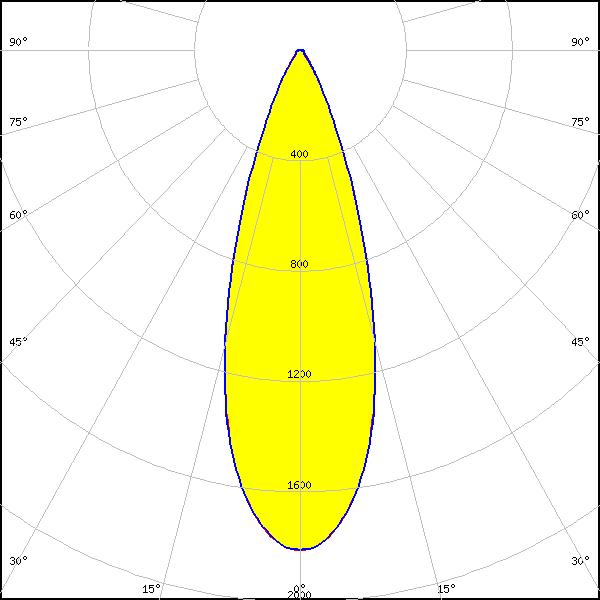

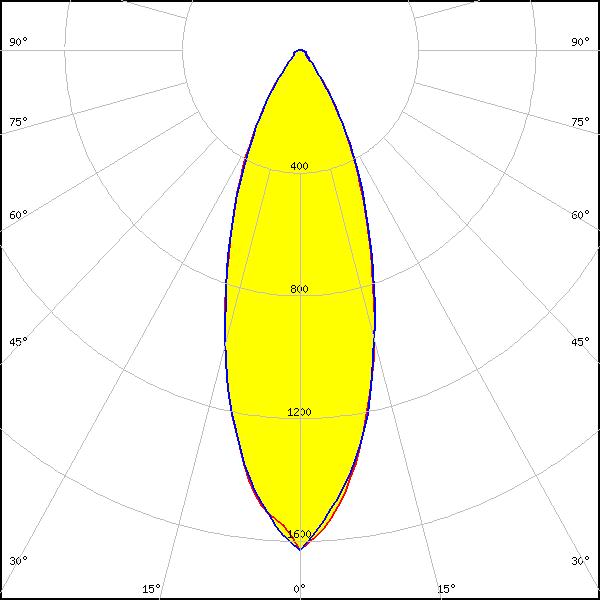

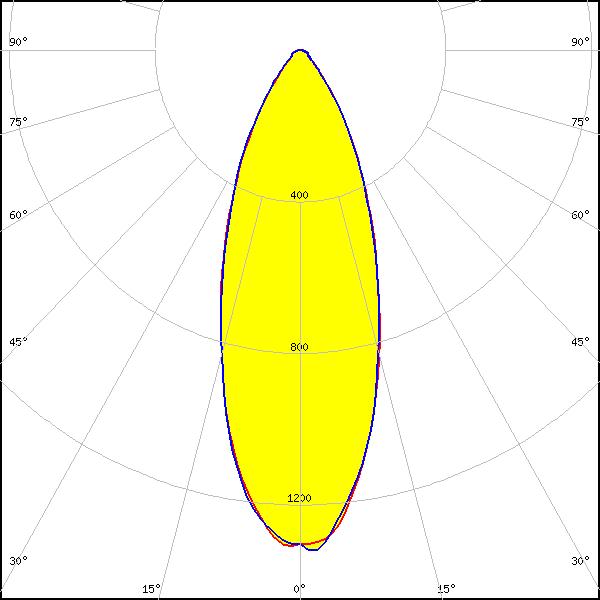

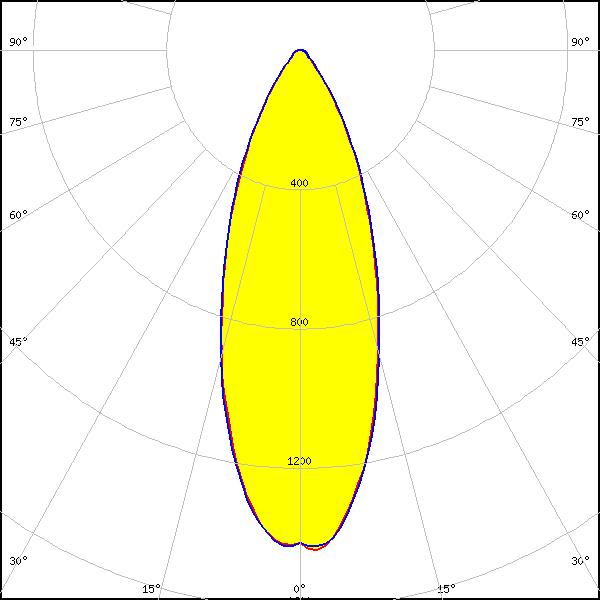

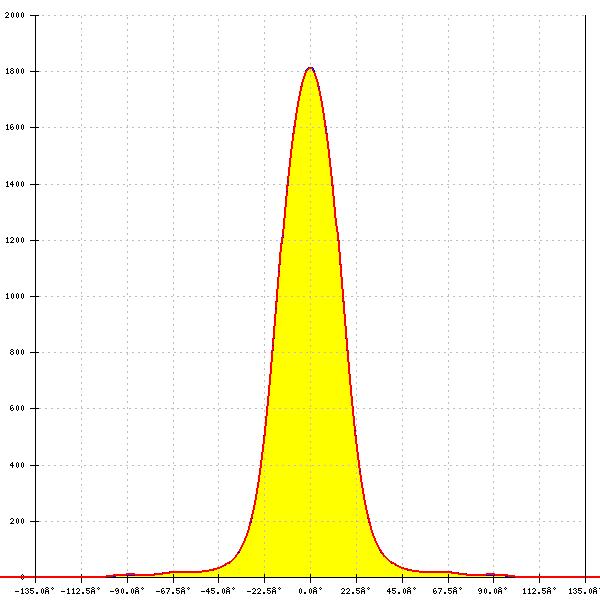

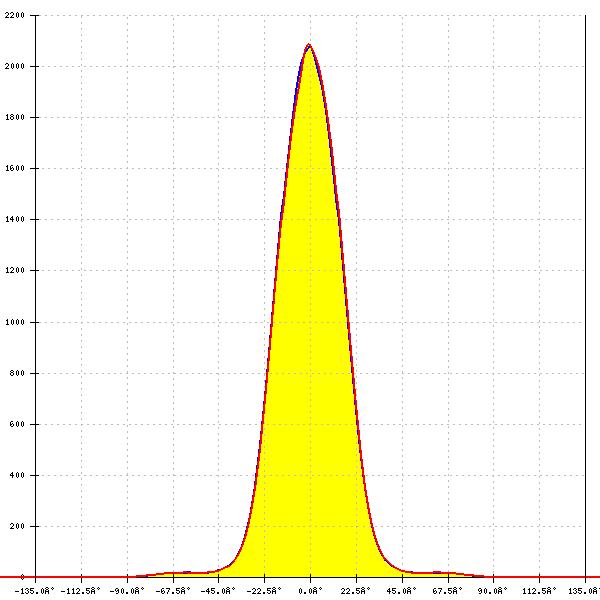

    Optical results

    LED: V10 Gen 8-9
    Ordering code: CP18573_AMY-110-W-C
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 36°
    FWTM: 58°
    Peak intensity: 2.302 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    Ordering code: CP18573_AMY-110-W-C
    LES size: 11.3 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 36°
    FWTM: 59°
    Peak intensity: 2.256 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen 8-9
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 36°
    FWTM: 63°
    Peak intensity: 2.015 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen 8-9
    Ordering code: CP18573_AMY-110-W-C
    LES size: 19.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 462 Typ L8
    FWHM: 36°
    FWTM: 71°
    Peak intensity: 1.635 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP18573_AMY-110-W-C
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 36°
    FWTM: 55°
    Peak intensity: 2.473 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen 8
    Ordering code: CP18573_AMY-110-W-C
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 36°
    FWTM: 55°
    Peak intensity: 2.538 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 10
    Ordering code: CP18573_AMY-110-W-C
    LES size: 9.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 38°
    FWTM: 62°
    Peak intensity: 2.035 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 29
    Ordering code: CP18573_AMY-110-W-C
    LES size: 29.2 mm
    FWHM: 40°
    FWTM: 83°
    Peak intensity: 1.100 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 29
    Ordering code: CP19030_AMY-110-W-C-WHT
    LES size: 29.2 mm
    FWHM: 40°
    FWTM: 86°
    Peak intensity: 1.200 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO18
    Ordering code: CP18573_AMY-110-W-C
    LES size: 18.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 37°
    FWTM: 73°
    Peak intensity: 1.672 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 36°
    FWTM: 54°
    Peak intensity: 2.486 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18573_AMY-110-W-C
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 36°
    FWTM: 55°
    Peak intensity: 2.434 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta SE 13mm TW
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 34°
    FWTM: 60°
    Peak intensity: 2.101 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    Ordering code: CP18573_AMY-110-W-C
    LES size: 19.7 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 483 Typ L8
    FWHM: 36°
    FWTM: 71°
    Peak intensity: 1.625 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP18573_AMY-110-W-C
    LES size: 10.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 39°
    FWTM: 60°
    Peak intensity: 2.107 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 35°
    FWTM: 62°
    Peak intensity: 2.141 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP18577_AMY-110-W-B
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 35°
    FWTM: 62°
    Peak intensity: 2.266 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP19030_AMY-110-W-C-WHT
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 37°
    FWTM: 64°
    Peak intensity: 2.138 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP19034_AMY-110-W-B-WHT
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 35°
    FWTM: 62°
    Peak intensity: 2.206 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: C18569_AMY-110-W
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 35°
    FWTM: 62°
    Peak intensity: 2.141 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    Ordering code: CP18577_AMY-110-W-B
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 34°
    FWTM: 71°
    Peak intensity: 1.807 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    Ordering code: CP19034_AMY-110-W-B-WHT
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 34°
    FWTM: 72°
    Peak intensity: 1.834 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    Ordering code: C18569_AMY-110-W
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 34°
    FWTM: 71°
    Peak intensity: 1.807 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LCN-C07A
    Ordering code: C18569_AMY-110-W
    LES size: 24.0 mm
    FWHM: 37°
    FWTM: 76°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LCN-C08A
    Ordering code: C18569_AMY-110-W
    LES size: 31.0 mm
    FWHM: 38°
    FWTM: 84°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LCN-C09A
    Ordering code: C18569_AMY-110-W
    LES size: 32.0 mm
    FWHM: 38°
    FWTM: 86°
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 36°
    FWTM: 62°
    Peak intensity: 2.130 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    Ordering code: CP18573_AMY-110-W-C
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 36°
    FWTM: 62°
    Peak intensity: 2.079 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1211
    Ordering code: CP18573_AMY-110-W-C
    LES size: 18.5 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 37°
    FWTM: 71°
    Peak intensity: 1.727 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1213/1216/1812
    Ordering code: CP18573_AMY-110-W-C
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 39°
    FWTM: 81°
    Peak intensity: 1.305 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18573_AMY-110-W-C
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 36°
    FWTM: 60°
    Peak intensity: 2.181 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP18573_AMY-110-W-C
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 35°
    FWTM: 64°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 38°
    FWTM: 64°
    Peak intensity: 1.993 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 35°
    FWTM: 65°
    Peak intensity: 2.076 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18577_AMY-110-W-B
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 34°
    FWTM: 64°
    Peak intensity: 2.121 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19030_AMY-110-W-C-WHT
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 34°
    FWTM: 65°
    Peak intensity: 2.151 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19034_AMY-110-W-B-WHT
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 36°
    FWTM: 66°
    Peak intensity: 2.112 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: C18569_AMY-110-W
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 35°
    FWTM: 65°
    Peak intensity: 2.076 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP18573_AMY-110-W-C
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 37°
    FWTM: 58°
    Peak intensity: 2.210 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC040D / LC060D / LC080D
    Ordering code: CP18573_AMY-110-W-C
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    FWHM: 38°
    FWTM: 79°
    Peak intensity: 1.365 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP18573_AMY-110-W-C
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 2.032 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 22
    Ordering code: CP18577_AMY-110-W-B
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    FWHM: 35°
    FWTM: 73°
    Peak intensity: 1.680 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    Ordering code: CP18573_AMY-110-W-C
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 36°
    FWTM: 62°
    Peak intensity: 2.045 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13 H
    Ordering code: CP18577_AMY-110-W-B
    FWHM: 34°
    FWTM: 60°
    Peak intensity: 2.176 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
