FN16481_STELLA-G2-VSM
Print

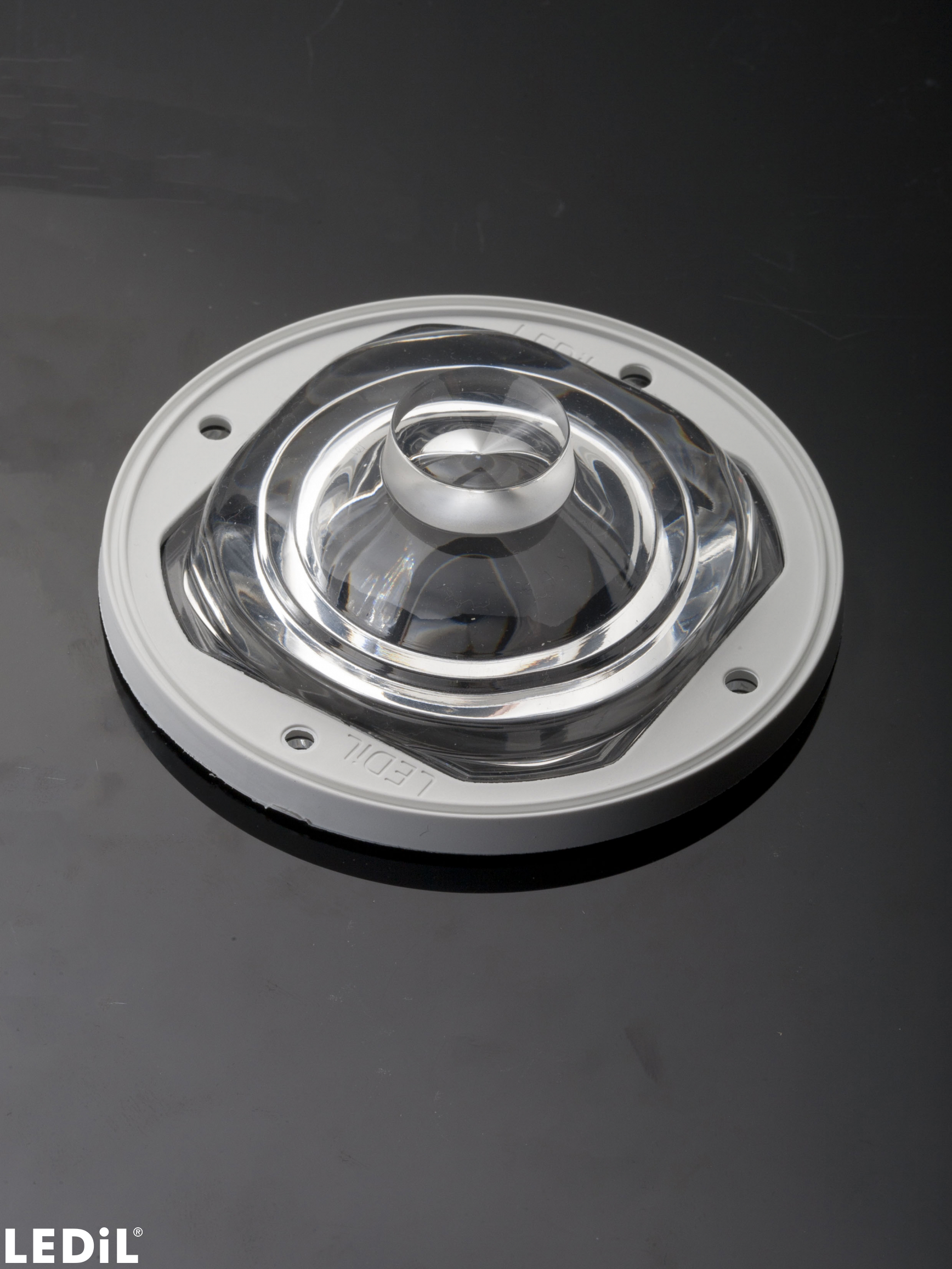

IESNA Type V (square) beam for wide areas such as car parks. Compatible with up to 30 mm LES size COBs. Variant with white frame.
Materials
- STELLA-G2-VSM, Single lens, Silicone
- STELLA-FRAME-WHT, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V22 Gen7
LES size: 22.6 mm
LEDs/each optic:
1
Light colour/type:
White

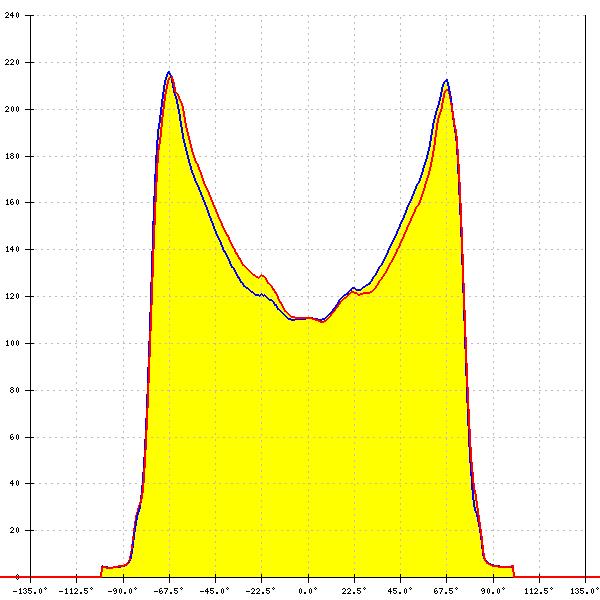

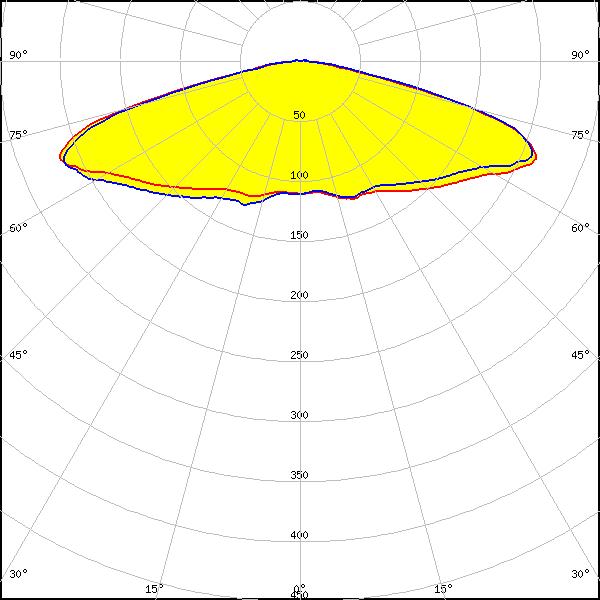

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity:
0.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

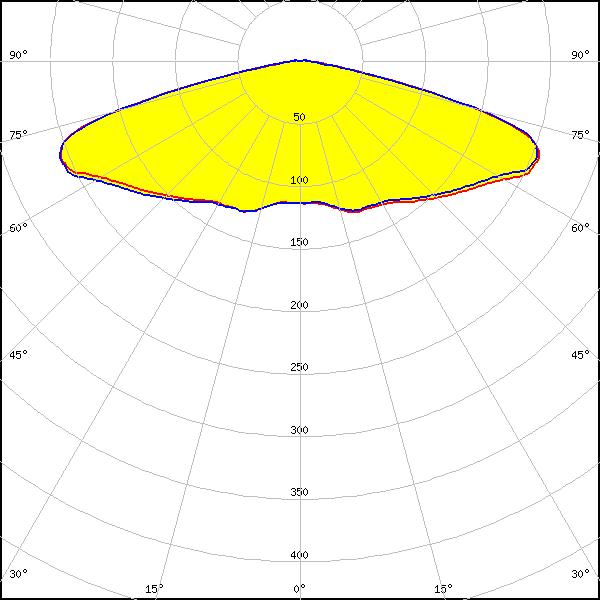

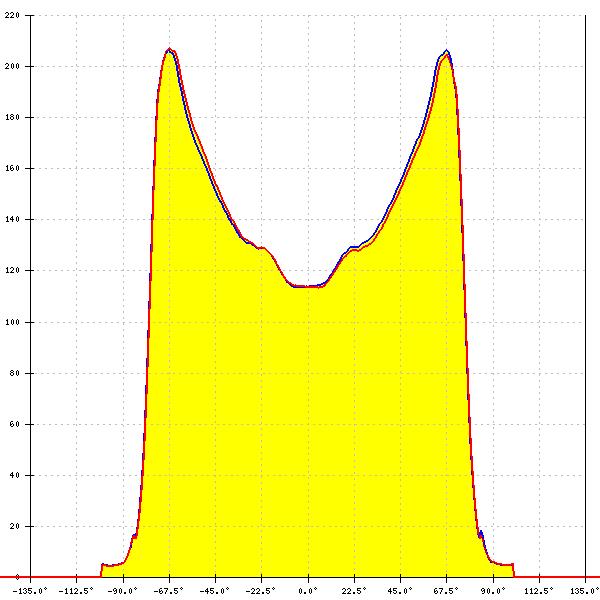

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
TE Connectivity: 2213480-1
FWHM: asymmetric
Peak intensity:
0.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

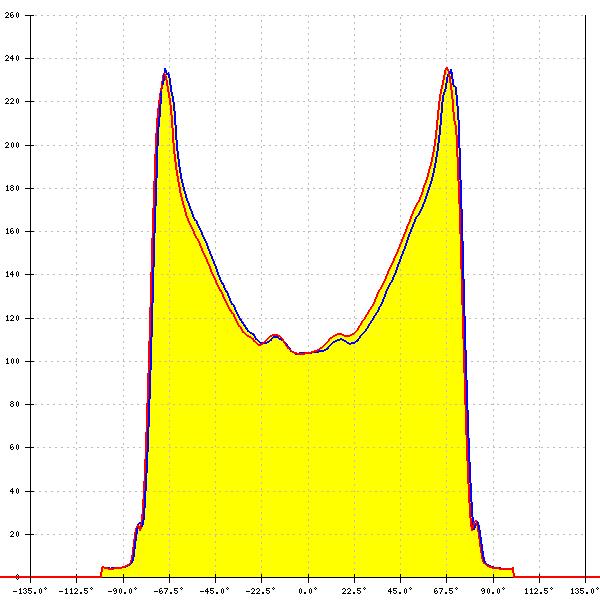

LED:
VERO18
LES size: 18.6 mm
FWHM: asymmetric
Peak intensity:
0.330 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

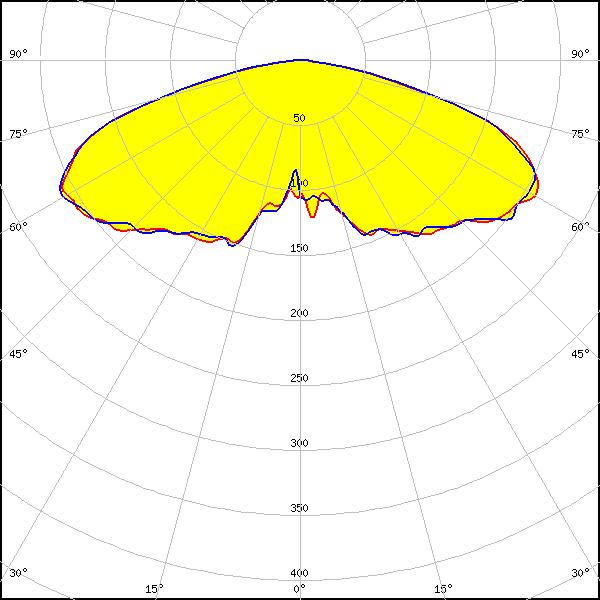

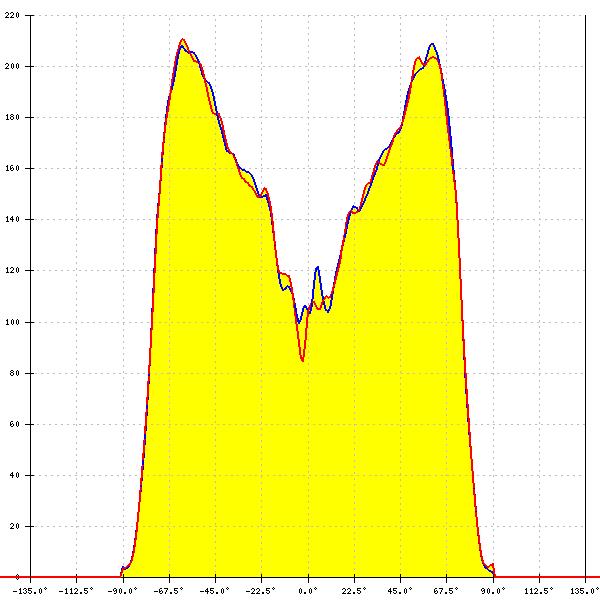

LED:
VERO29
LES size: 29.2 mm
FWHM: asymmetric
Peak intensity:
0.238 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

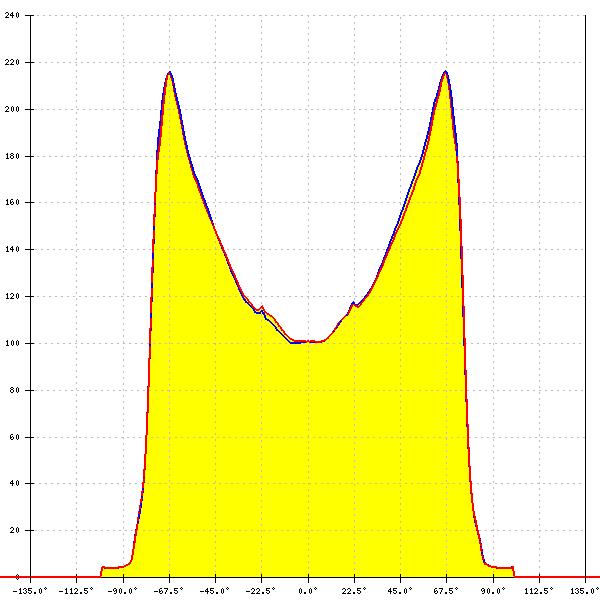

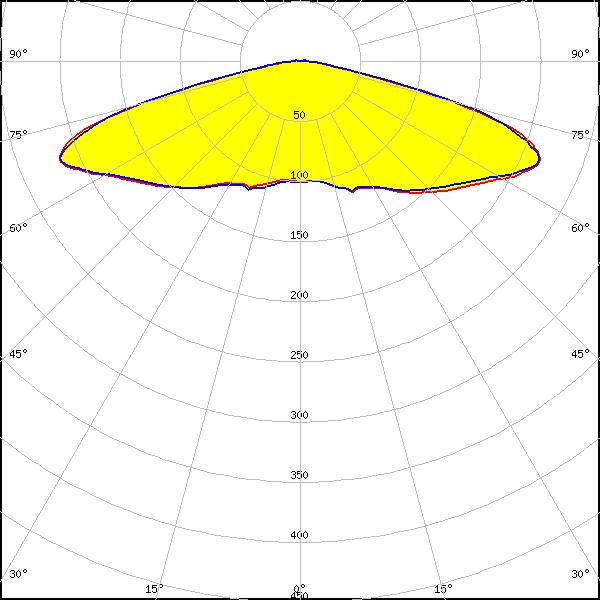

LED:
CLL04x/CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.280 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

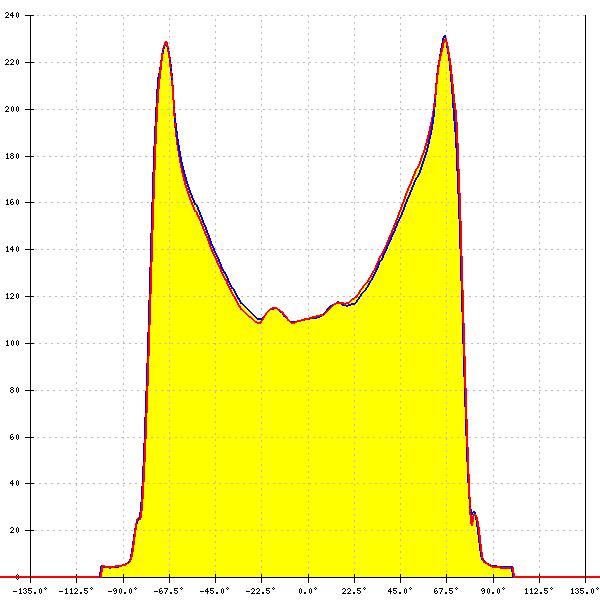

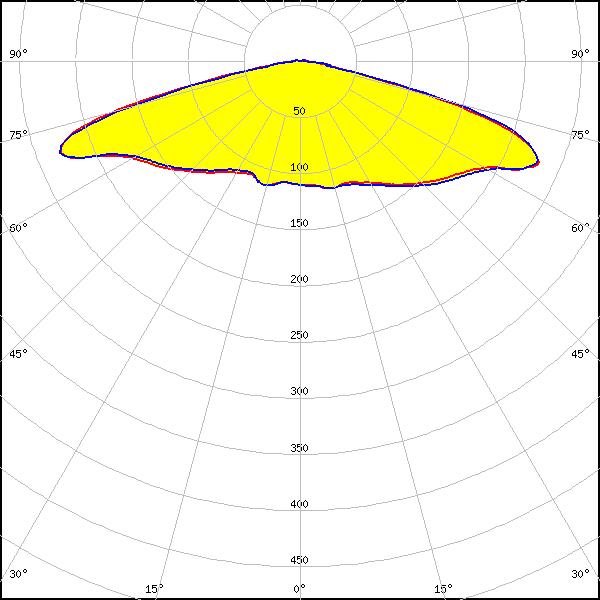

LED:
LUXEON CoB 1211
LES size: 18.5 mm
FWHM: asymmetric
Peak intensity:
0.320 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
