FN16479_STELLA-G2-T3

Print

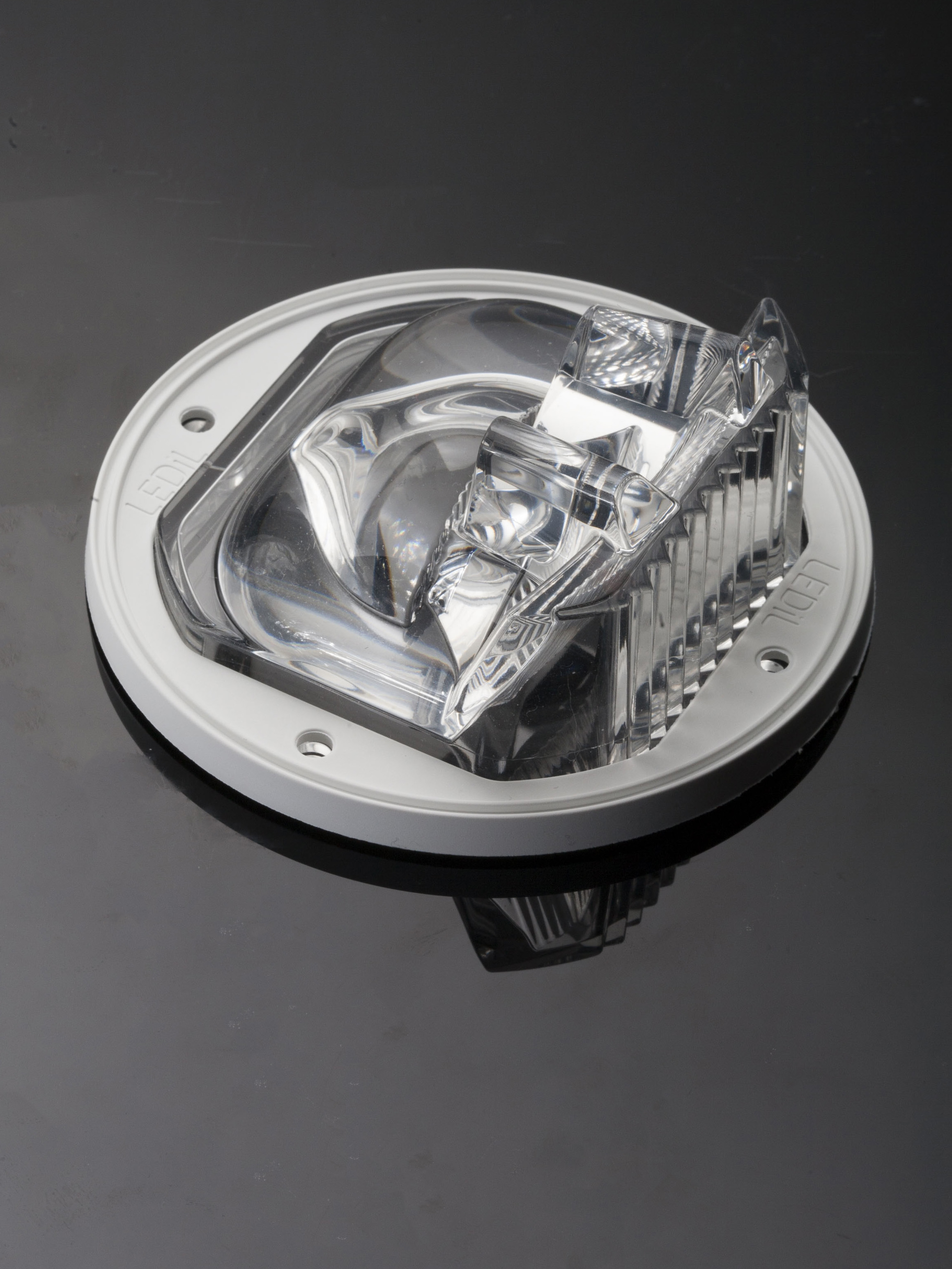

IESNA Type III (medium) beam for roads that are equal to or wider than mounting height. Compatible with up to 30 mm LES size COBs. Variant with white frame.

Specification
  • Dimensions:
    90 mm
  • Height:
    40.20 mm
  • Fastening:
    socket
  • Colour:
    white
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    90 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.6 kg
  • MPQ:
    15 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    5.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FN16479_STELLA-G2-T3

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

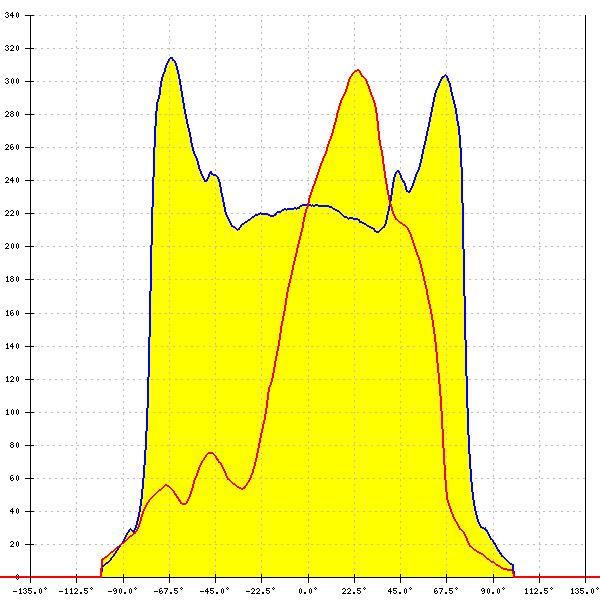

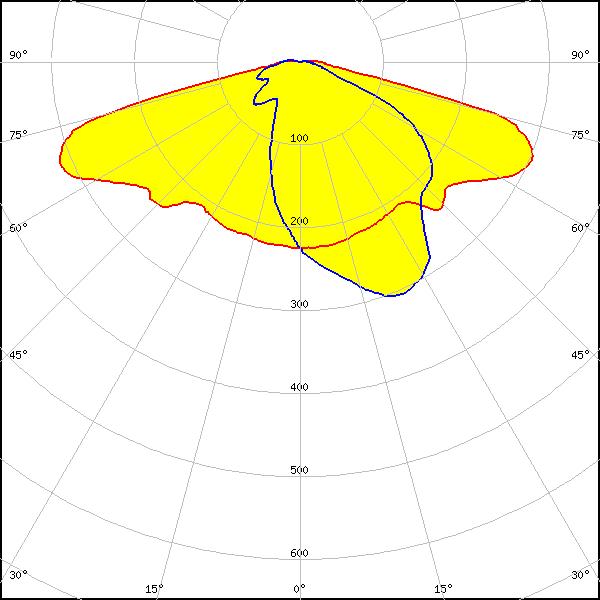

LED: V22 Gen7
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

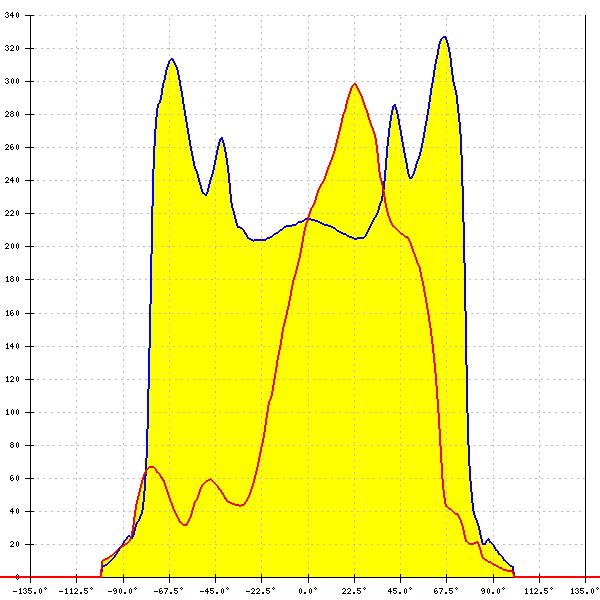

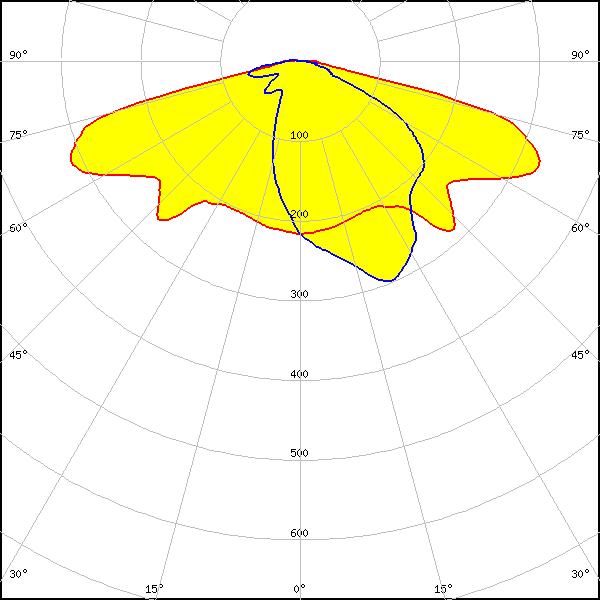

LED: CLL04x/CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
LEDs/each optic: 1
Light colour/type: White

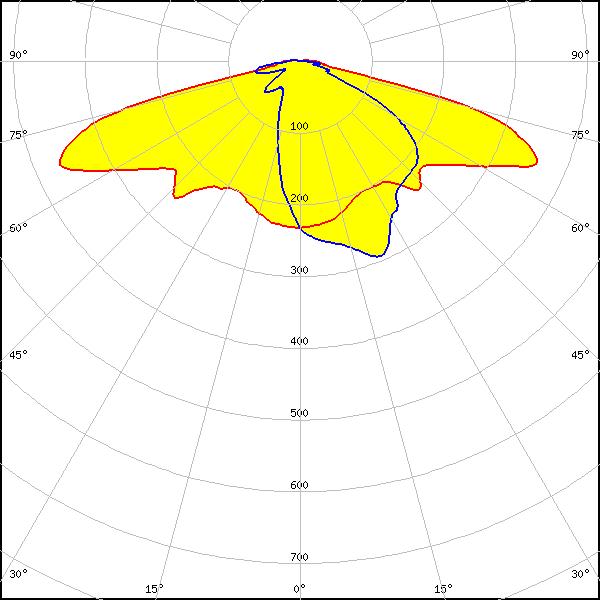

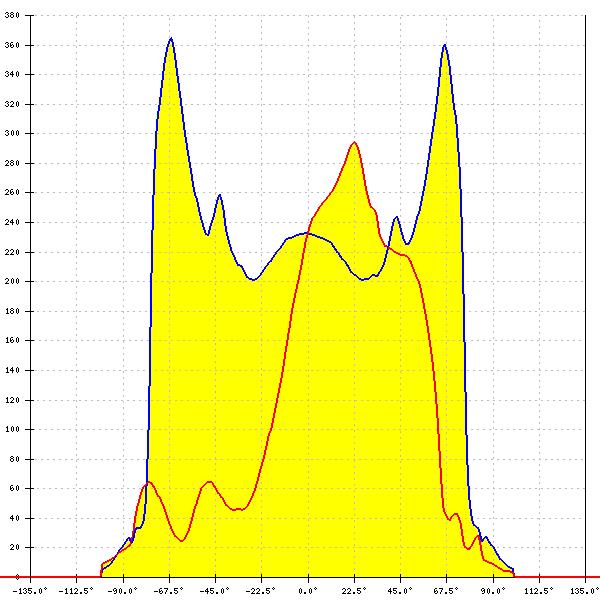

LED: CMA2550
LES size: 19.0 mm
FWHM: asymmetric
Peak intensity: 0.310 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

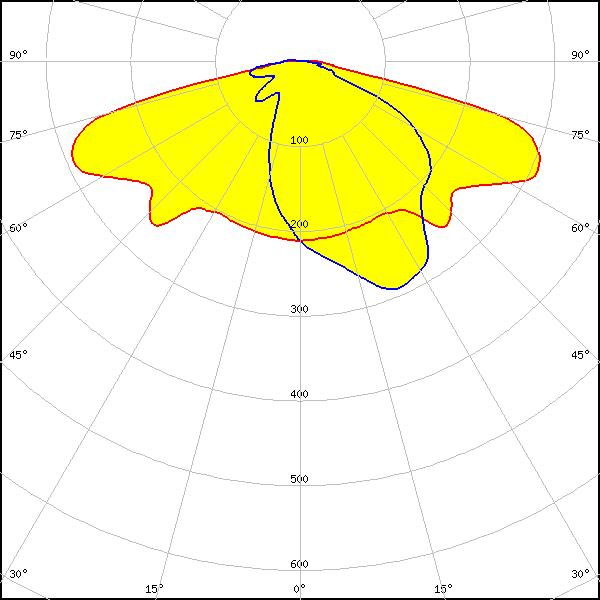

LED: CMA3090
LES size: 23.0 mm
FWHM: asymmetric
Peak intensity: 0.350 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

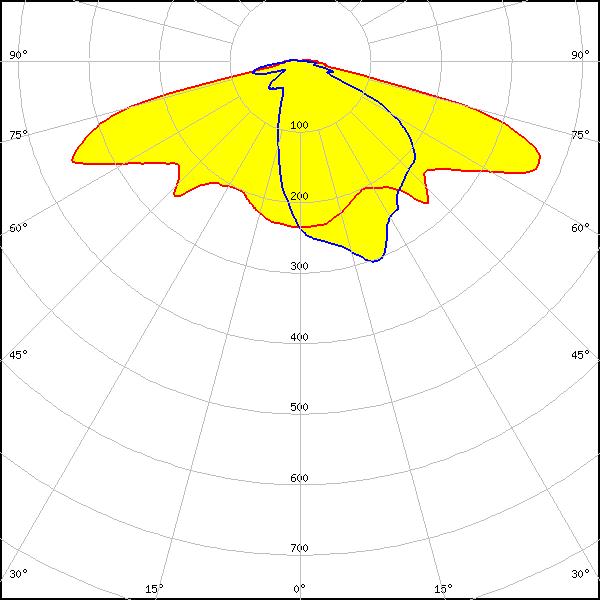

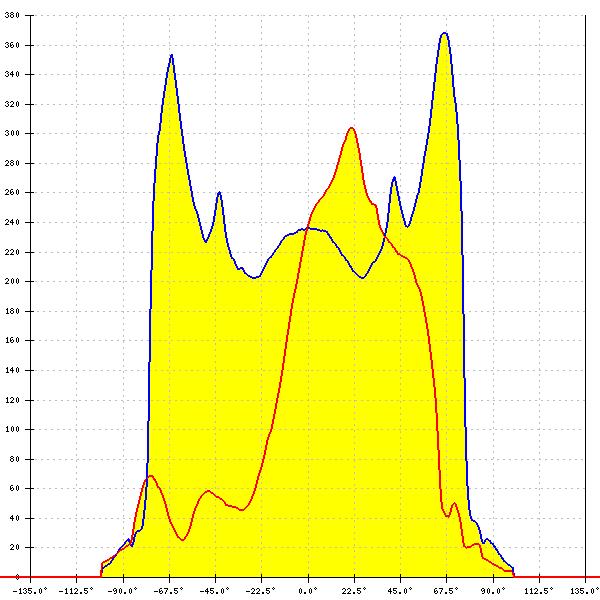

LED: LUXEON CoB 1211
LES size: 18.5 mm
Required components:
Bender Wirth: 431 Typ L3
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
