FN16441_STELLA-G2-T3
Print

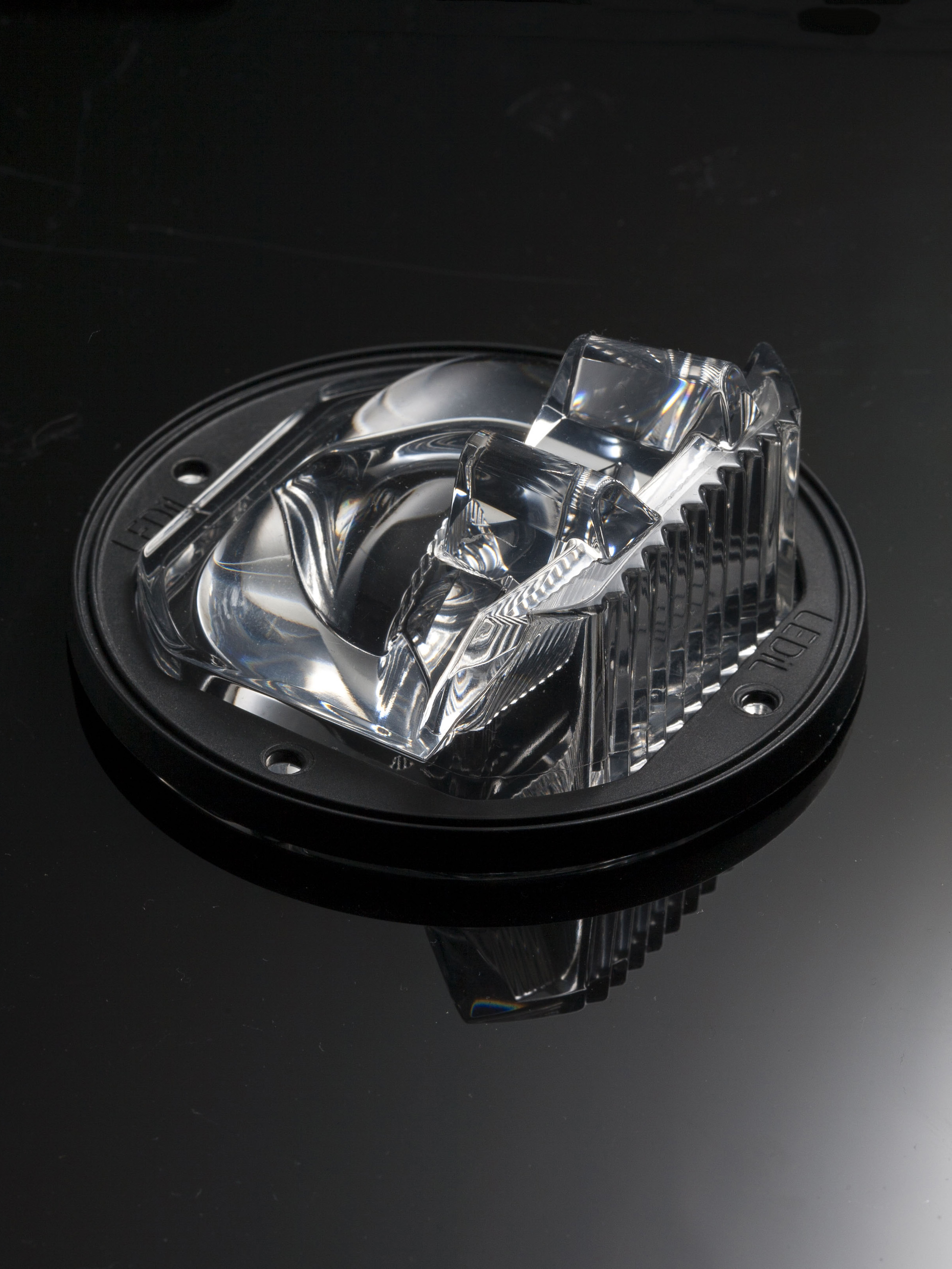

IESNA Type III (medium) beam for roads that are equal to or wider than mounting height. Compatible with up to 30 mm LES size COBs. Variant with black frame.
Materials
- STELLA-G2-T3, Single lens, Silicone
- STELLA-FRAME, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

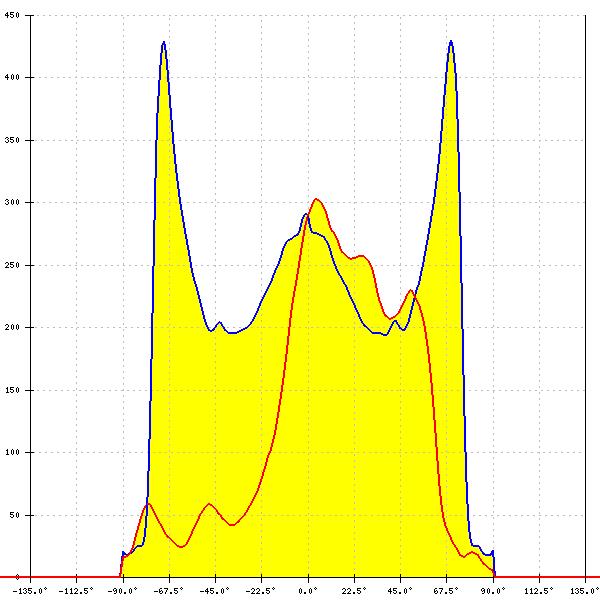

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ Z1
FWHM: asymmetric
Peak intensity:
0.455 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

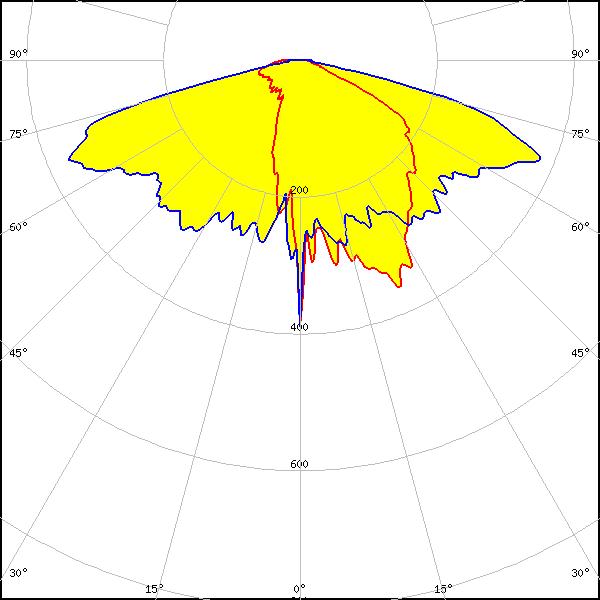

LED:

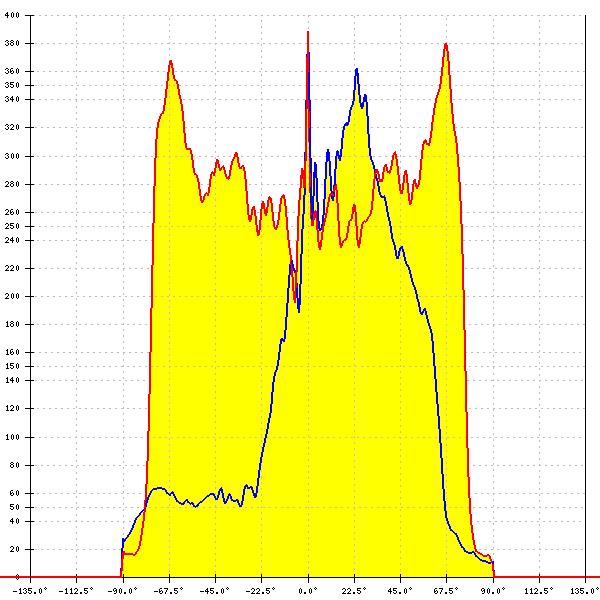

V22 Gen7
LES size: 22.6 mm
LEDs/each optic:
1
Light colour/type:
White

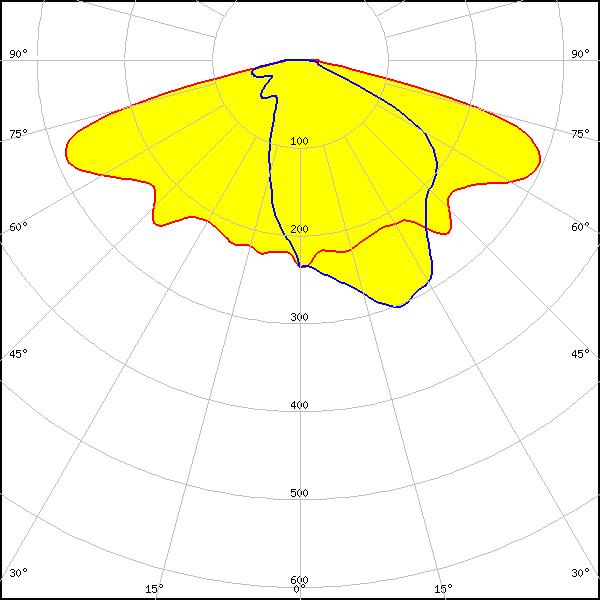

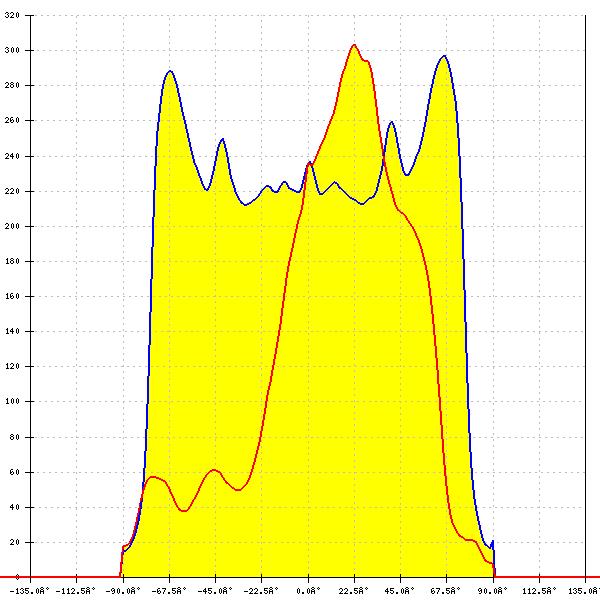

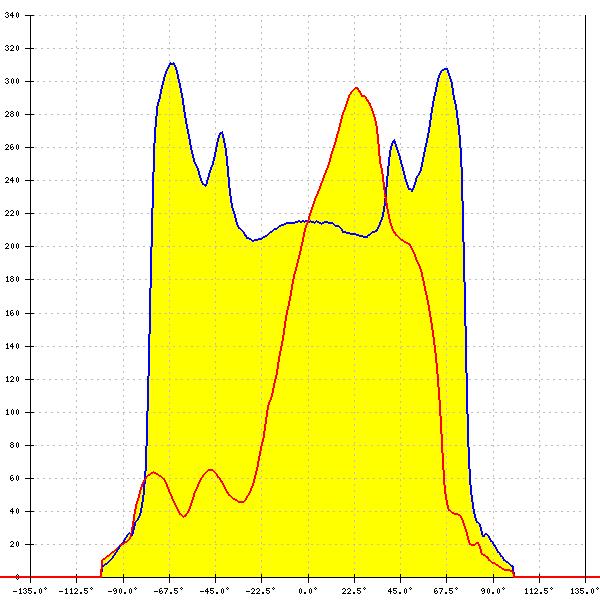

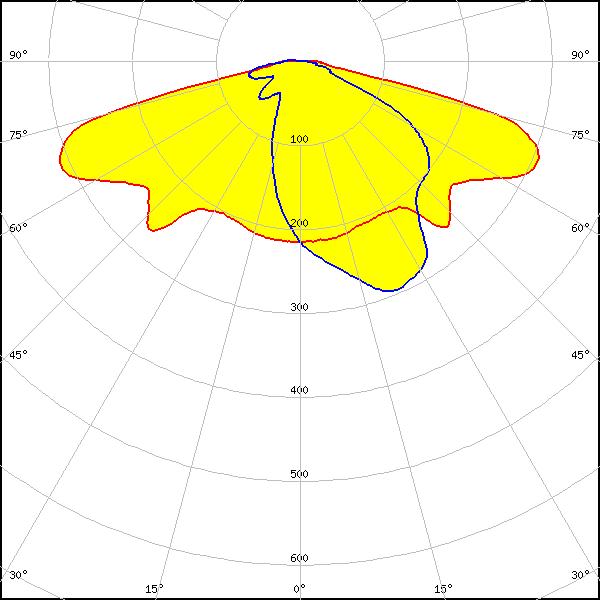

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity:
0.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

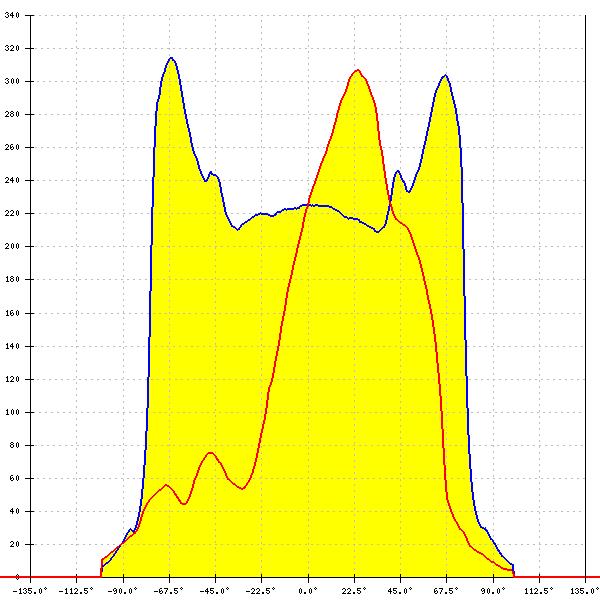

V22 Gen7
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM: asymmetric
Peak intensity:
0.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

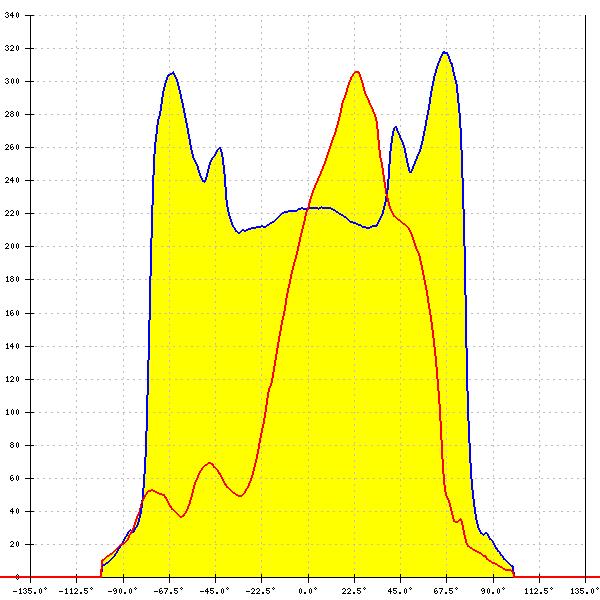

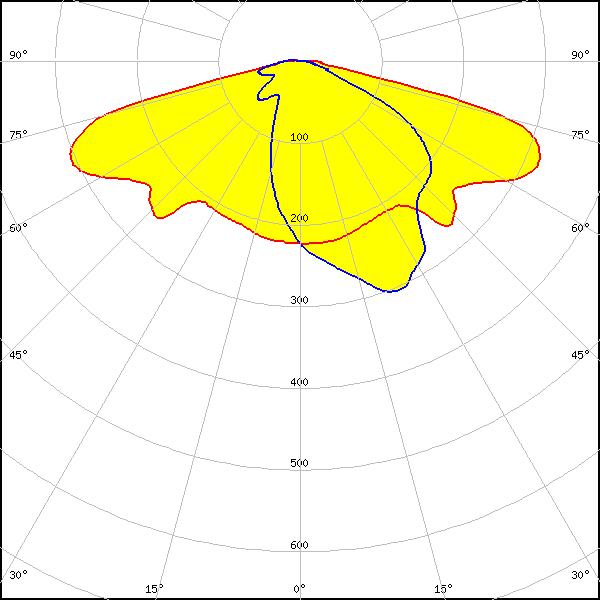

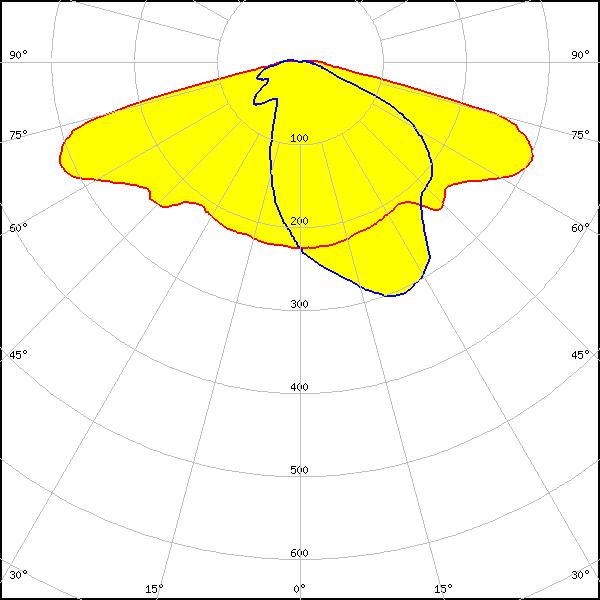

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
TE Connectivity: 2213480-1
FWHM: asymmetric
Peak intensity:
0.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

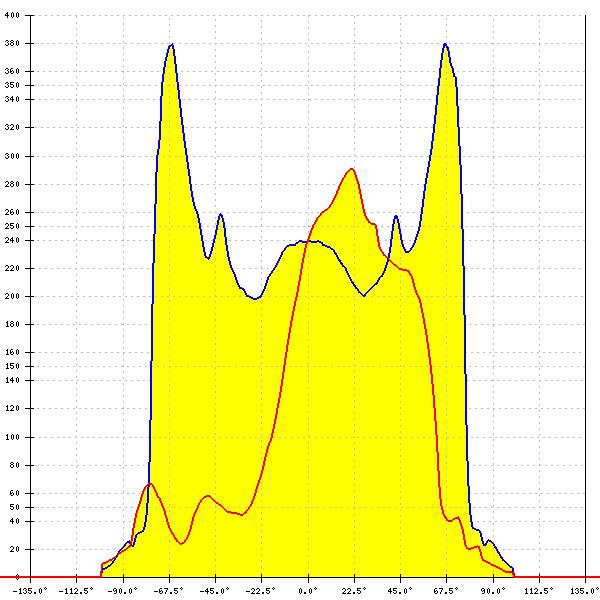

LED:

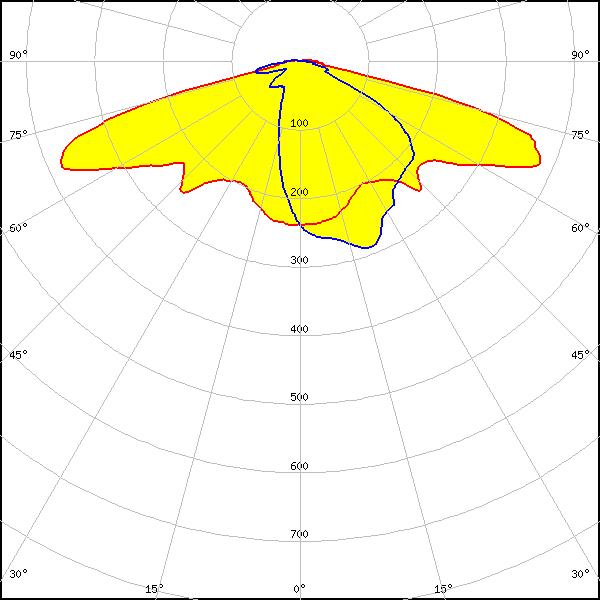

VERO18
LES size: 18.6 mm
FWHM: asymmetric
Peak intensity:
0.430 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

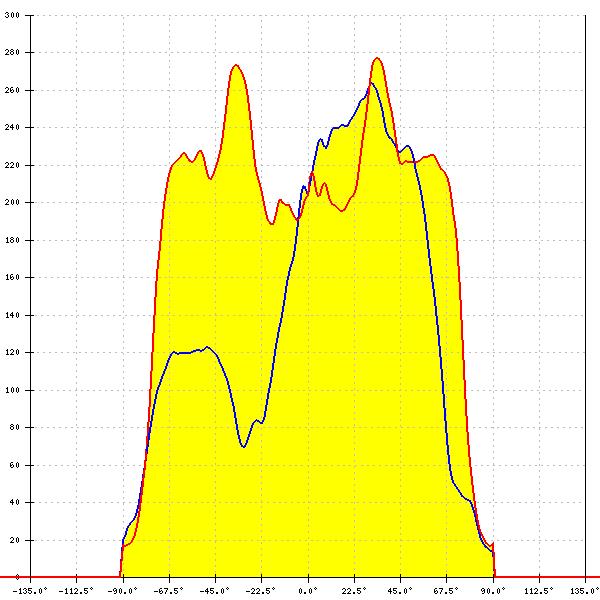

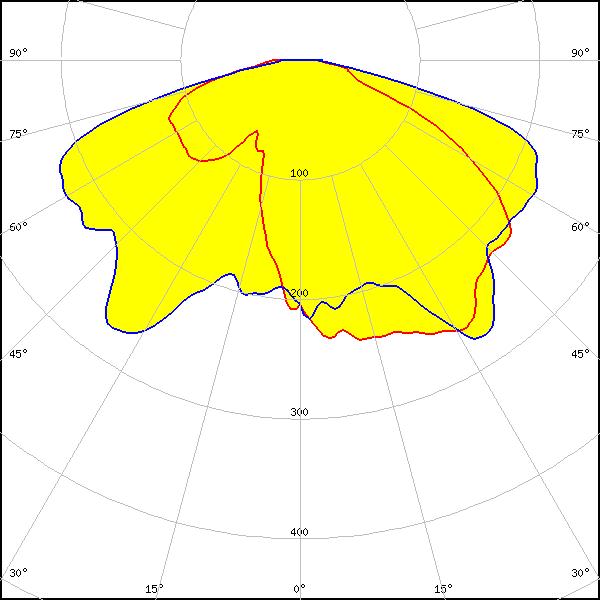

LED:
VERO29
LES size: 29.2 mm
FWHM: asymmetric
Peak intensity:
0.354 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

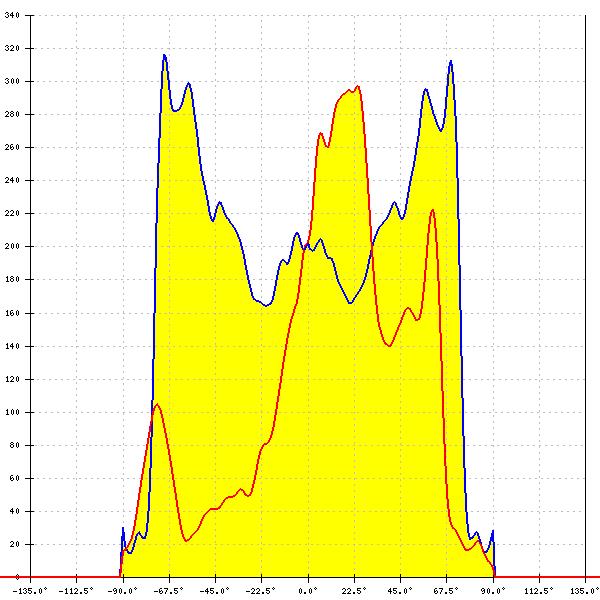

LED:

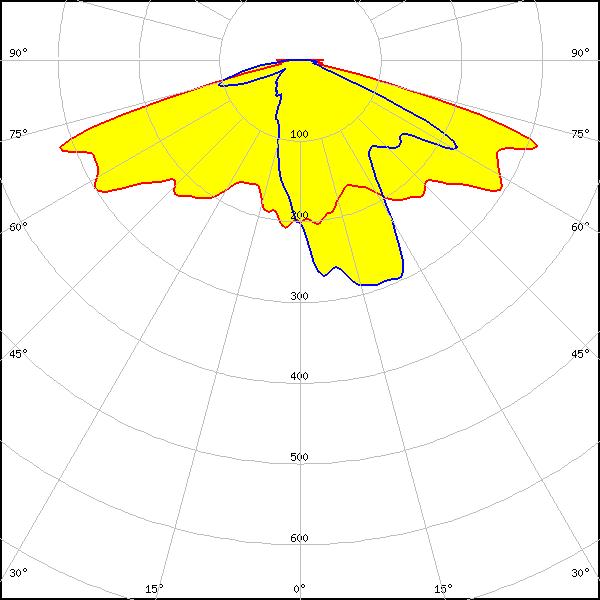

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM: asymmetric
Peak intensity:
0.638 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

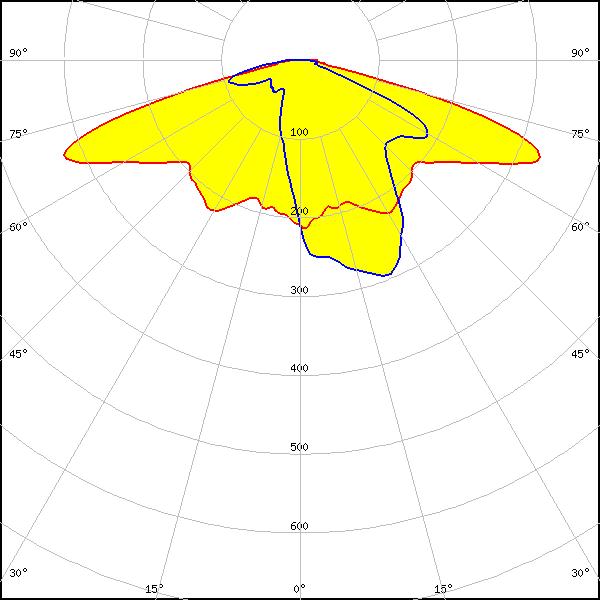

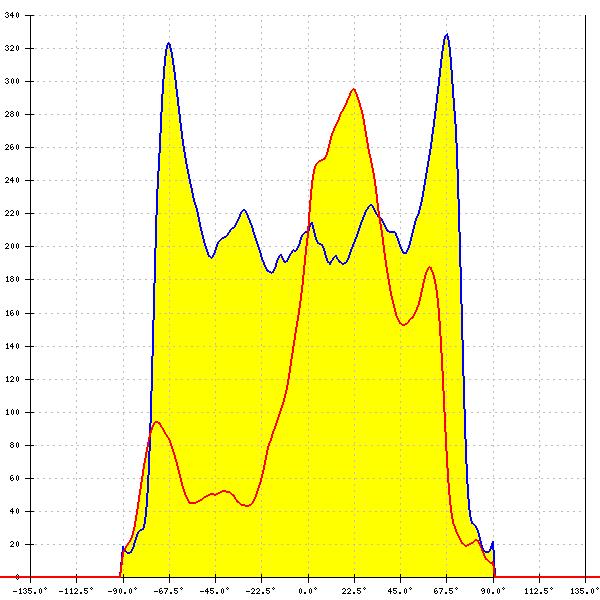

LED:
CLL03x/CLU03x
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.483 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

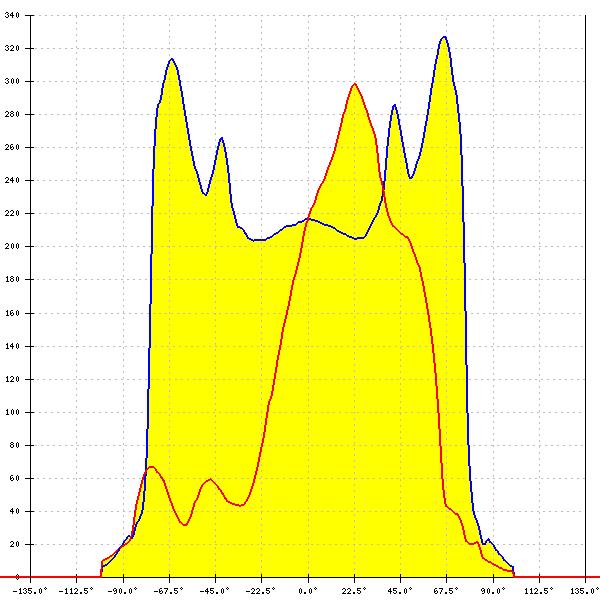

LED:

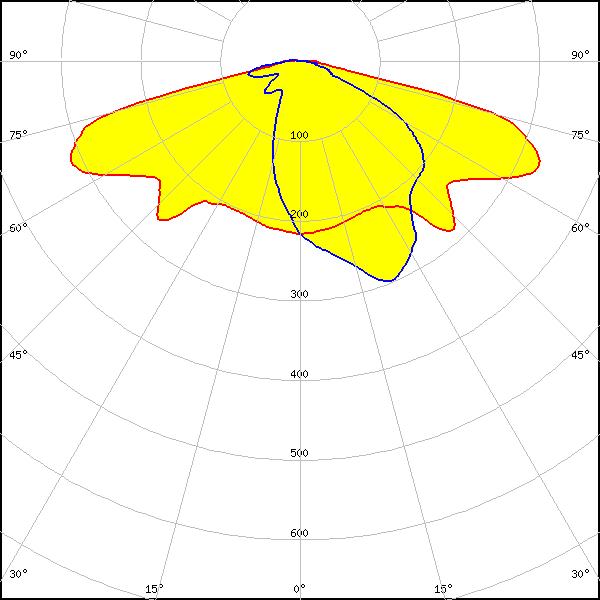

CLL04x/CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.360 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

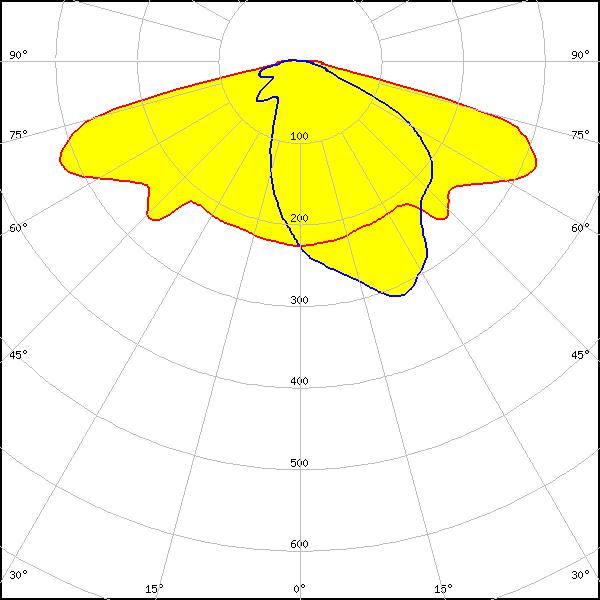

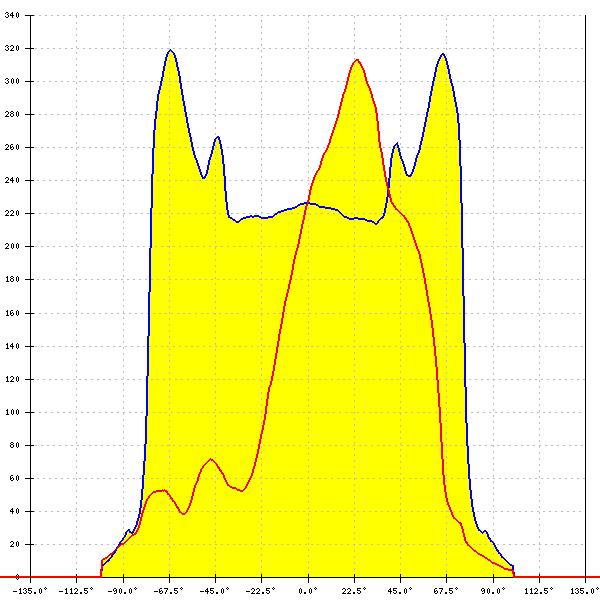

LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM: asymmetric
Peak intensity:
0.370 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

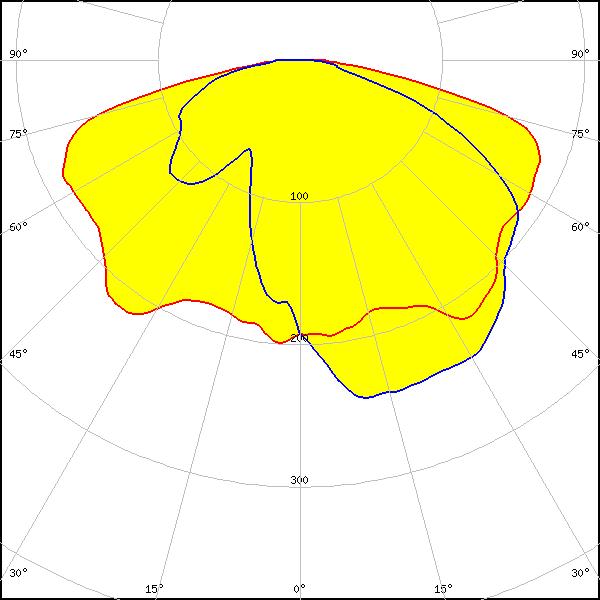

LED:

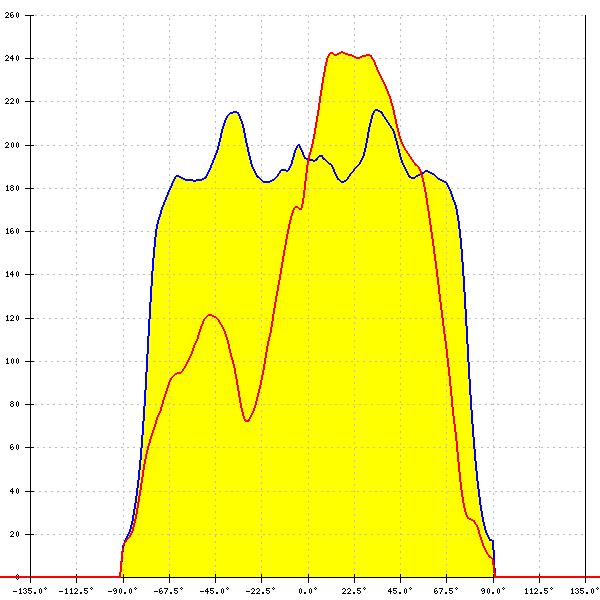

CLL05x/CLU05x
LES size: 32.8 mm
Required components:
Bender Wirth: 458 Typ L4
FWHM: asymmetric
Peak intensity:
0.276 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

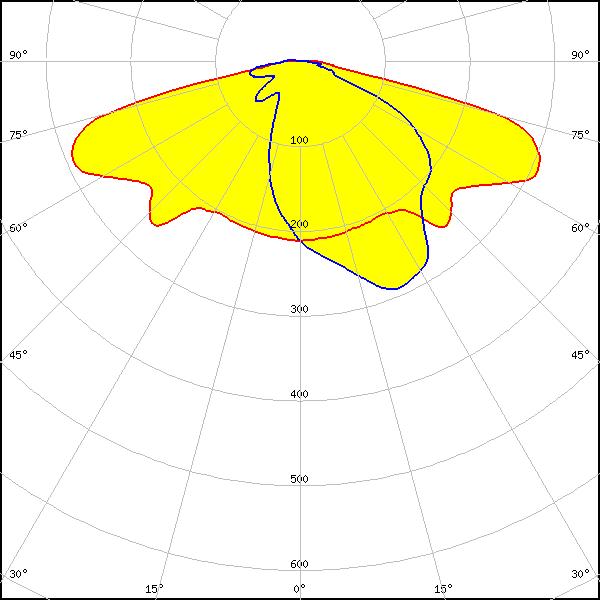

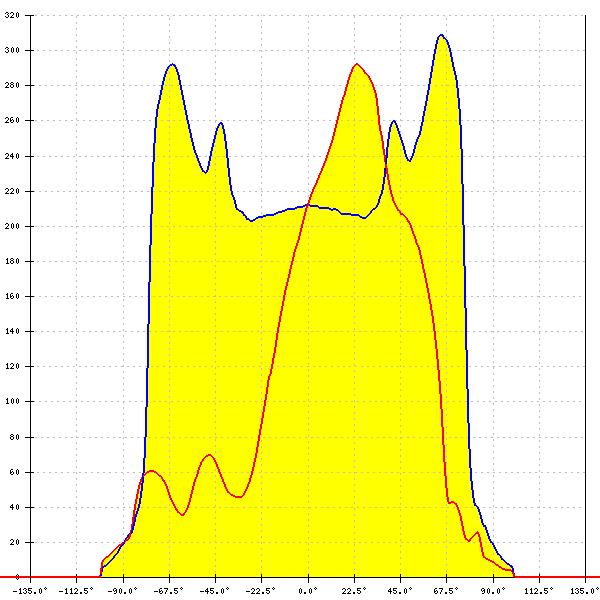

LED:
CMA3090
LES size: 23.0 mm
FWHM: asymmetric
Peak intensity:
0.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

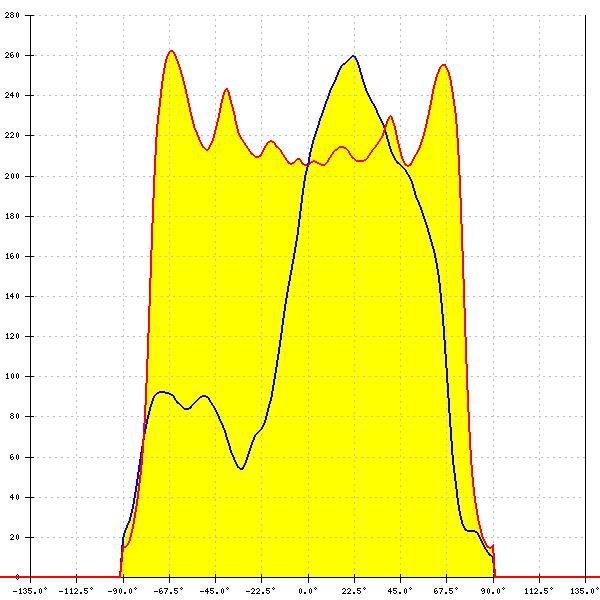

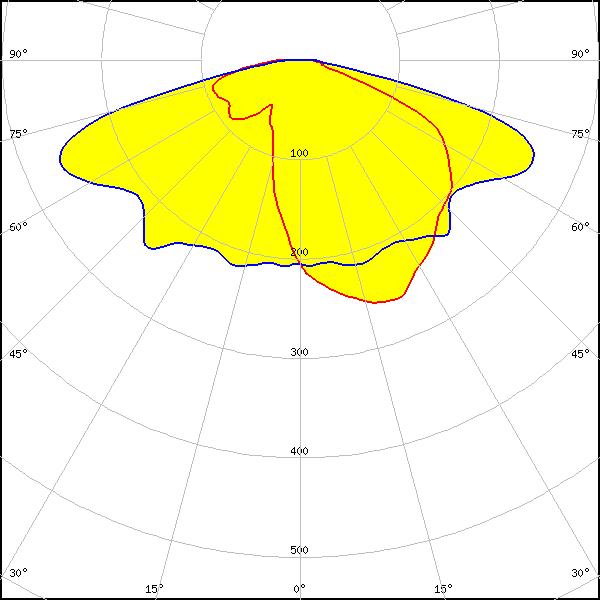

LED:

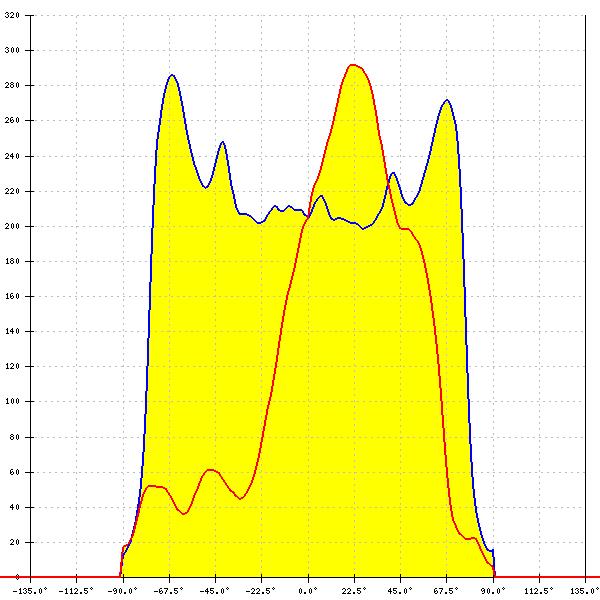

CMT28xx
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.352 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT28xx
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.332 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

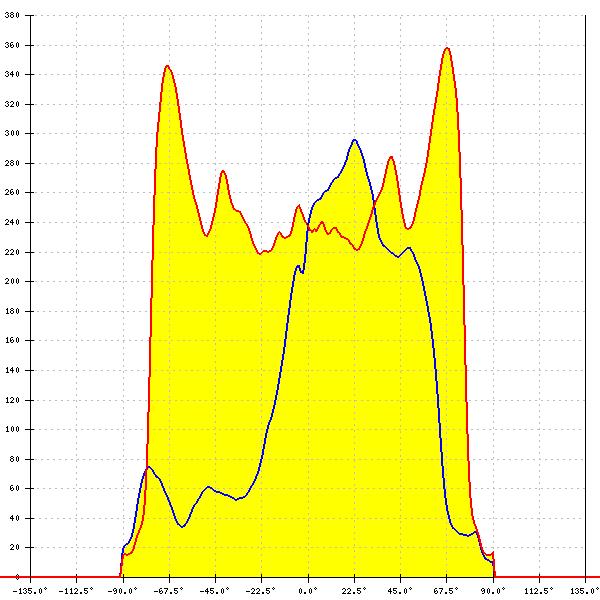

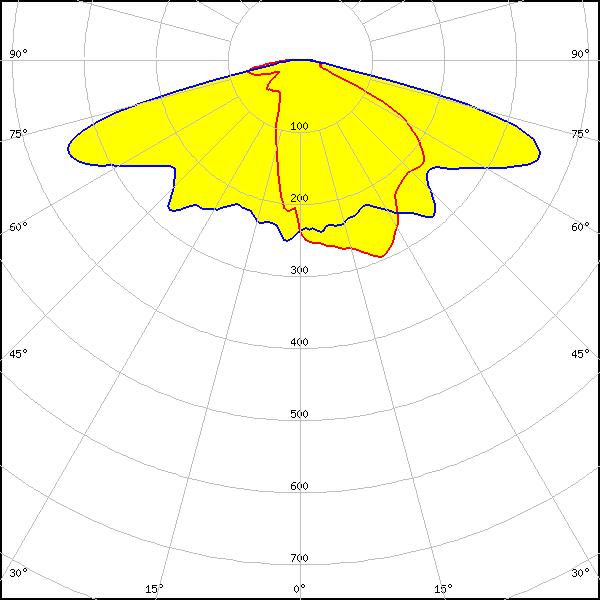

LUXEON CoB 1211
LES size: 18.5 mm
FWHM: asymmetric
Peak intensity:
0.410 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

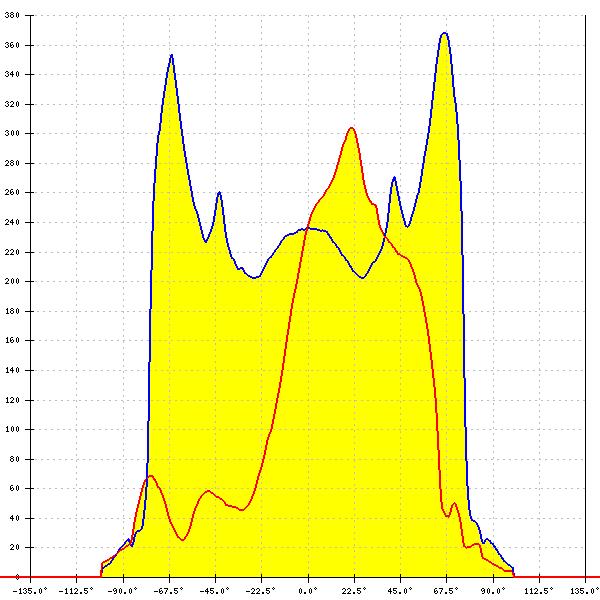

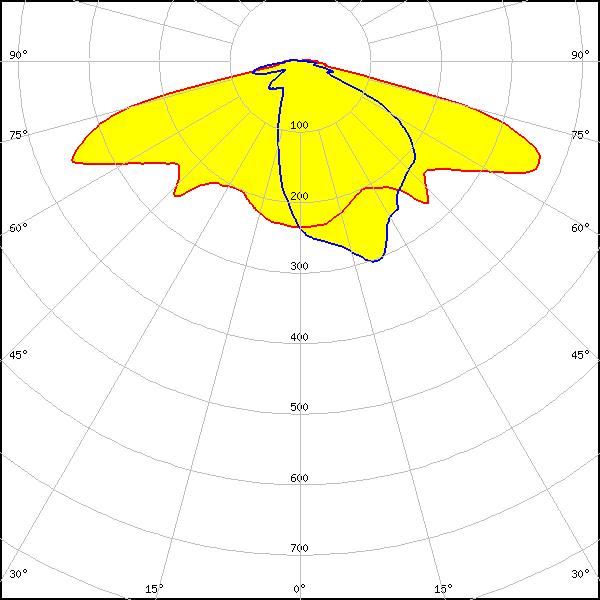

LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
Bender Wirth: 431 Typ L3
FWHM: asymmetric
Peak intensity:
0.410 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

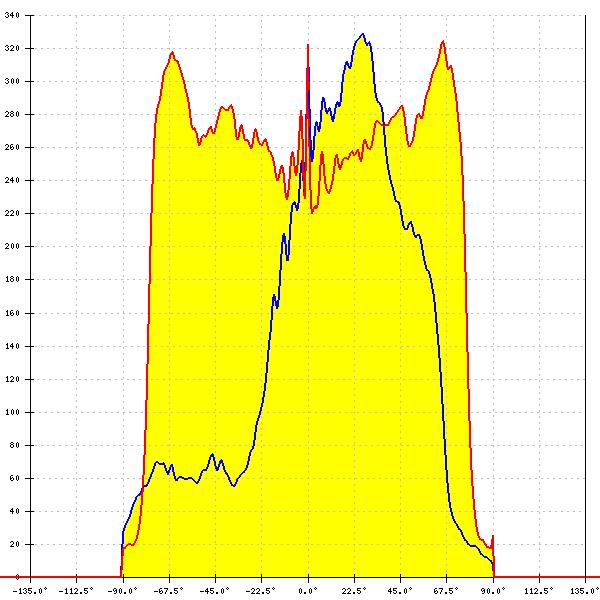

LED:

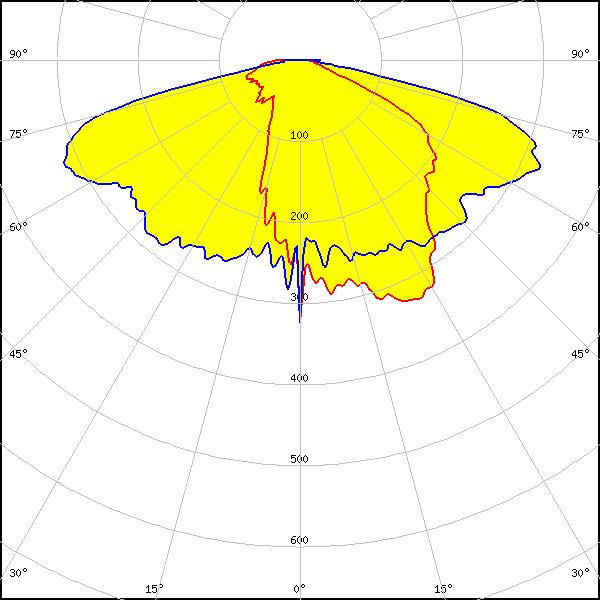

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
LEDs/each optic:
1
Light colour/type:
White
LED:

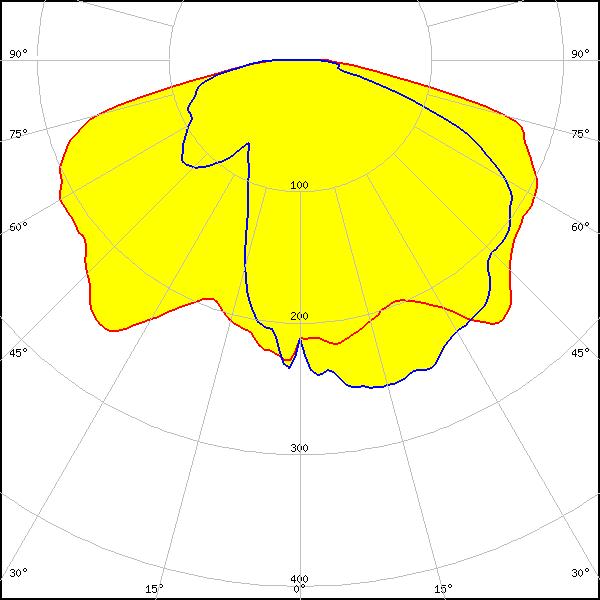

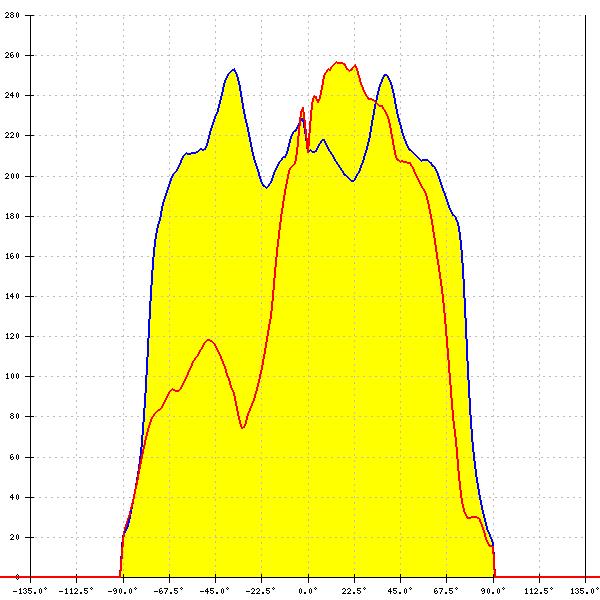

LUXEON CoB 1321
LES size: 29.2 mm
FWHM: asymmetric
Peak intensity:
0.307 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

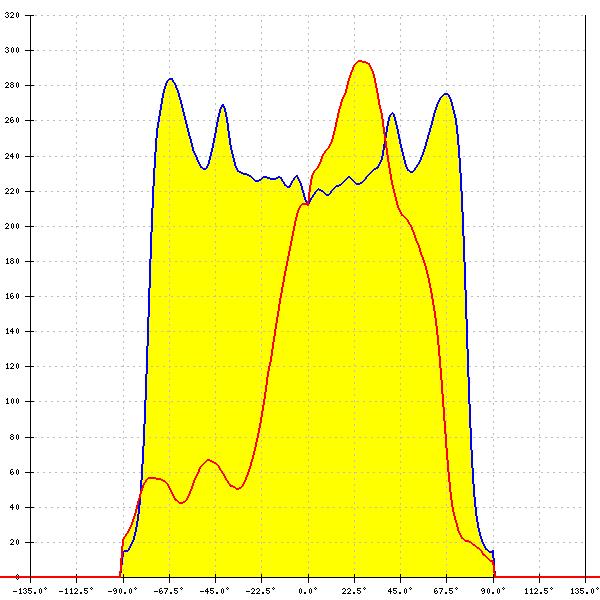

LED:

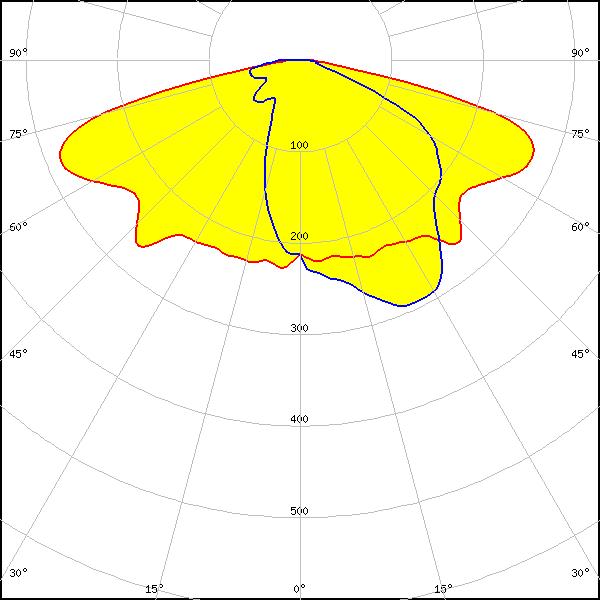

Fortimo SLM L23 + SLM holder (PI)
LES size: 23.0 mm
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

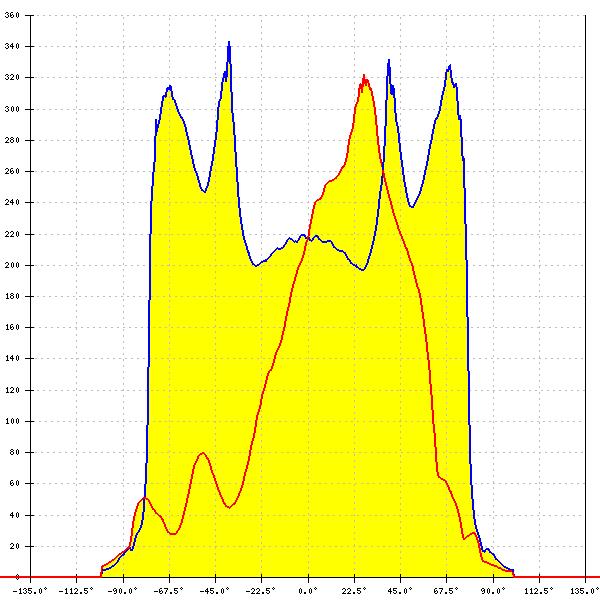

LED:

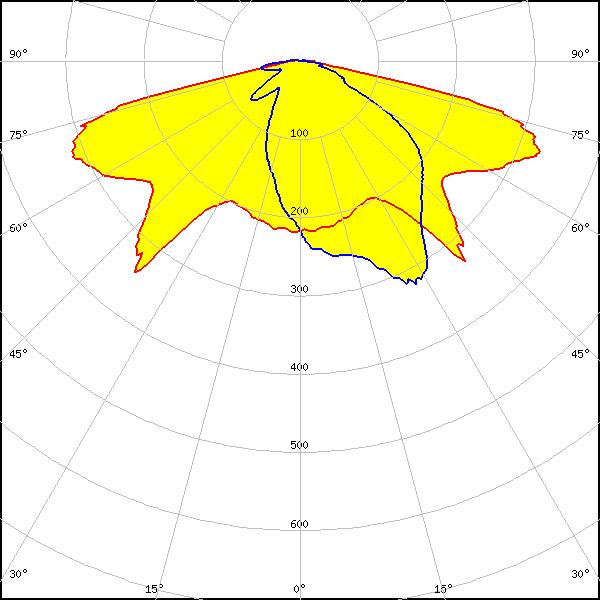

LC040D / LC060D / LC080D
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.370 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

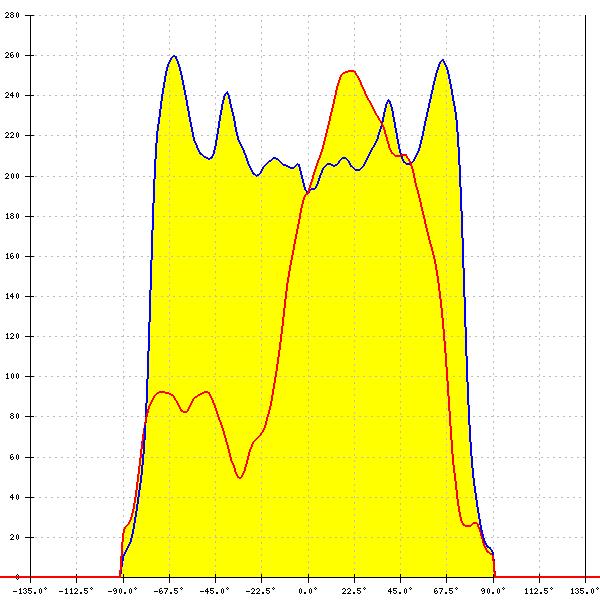

LED:

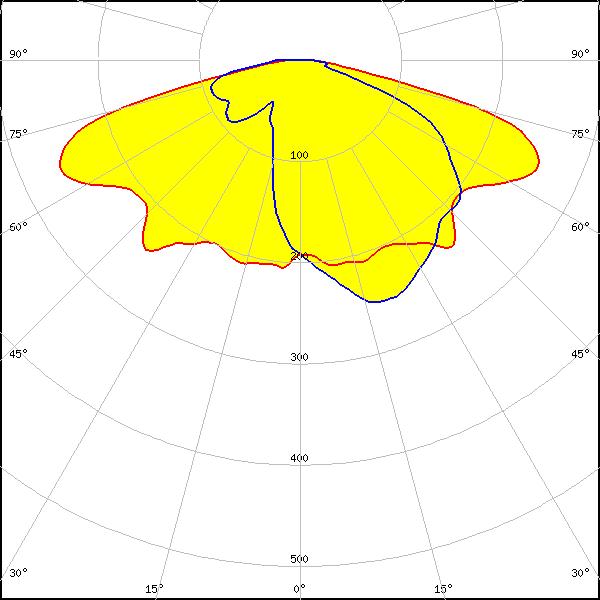

MJT COB LES 22
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.347 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

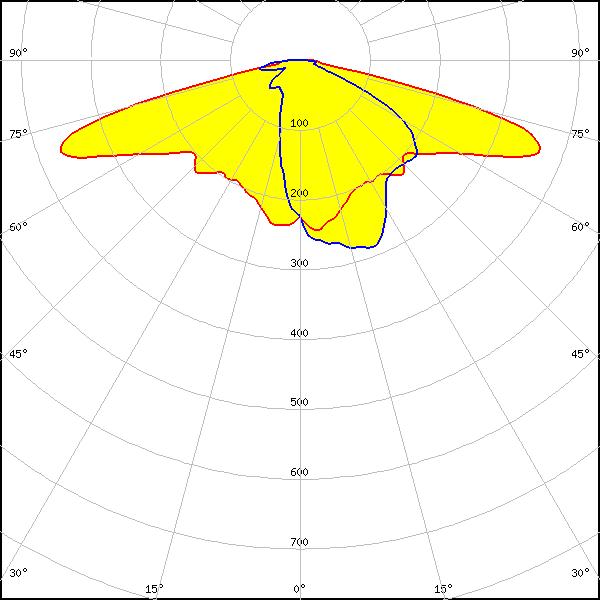

LED:
SLE G7 LES17
LES size: 16.5 mm
Required components:
Bender Wirth: 466 Typ Z1
FWHM: asymmetric
Peak intensity:
0.408 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
