    FN16356_STELLA-G2-T2

    Print

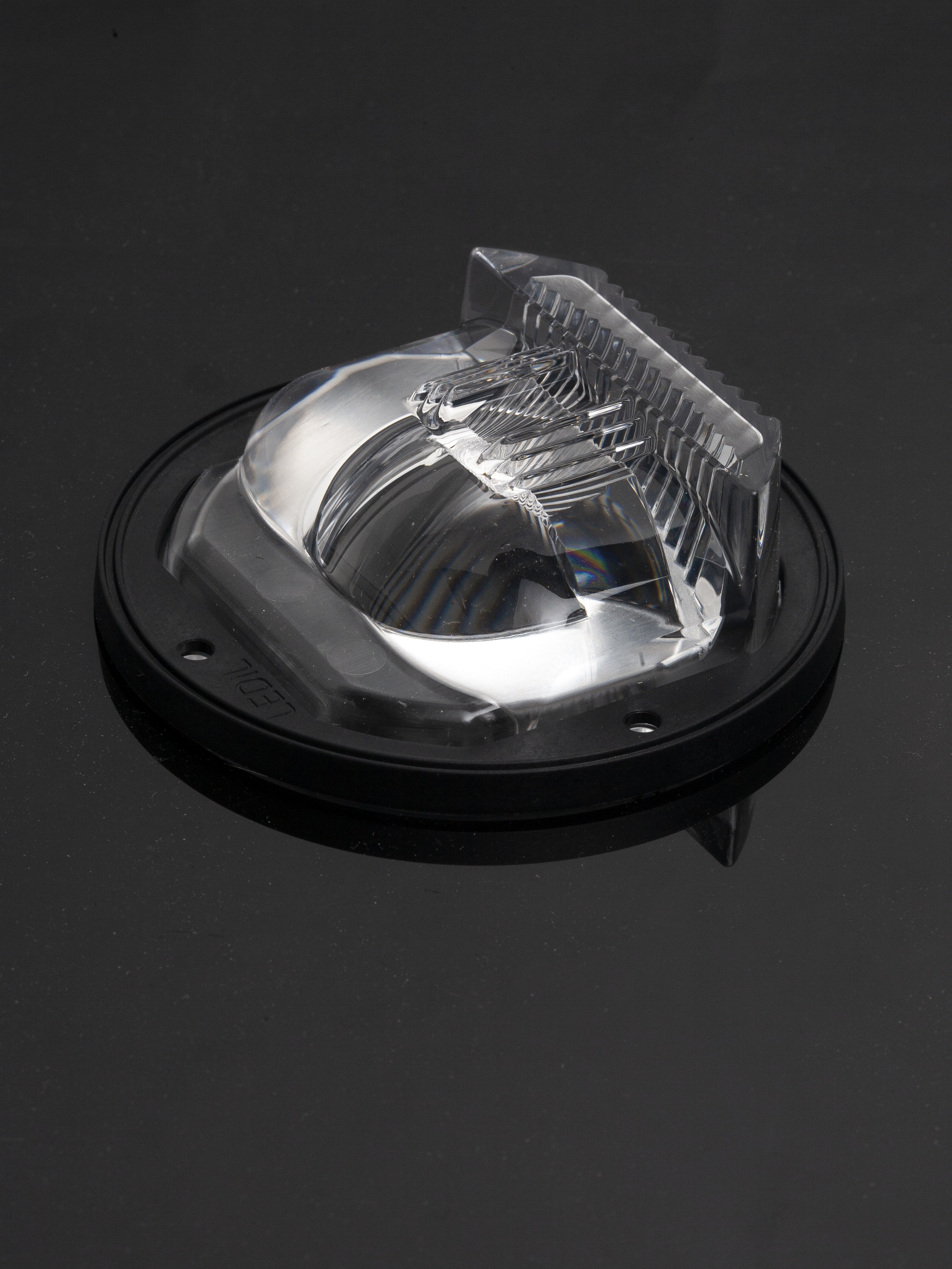

    IESNA Type II (medium) beam, applicable for European P-class standard pedestrian lighting and M-class roads. Compatible with up to 30 mm LES size COBs. Variant with black frame.

    Specification
    • Dimensions:
      90 mm
    • Height:
      27.00 mm
    • Fastening:
      socket
    • Colour:
      black
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      135 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      15 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FN16356_STELLA-G2-T2

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL guide for street lighting optics

    News

    New Products 2018-07-06

    News

    PRODUCT NEWS - STELLA-G2

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-CLAMP-CXA15-18

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

    Optical results

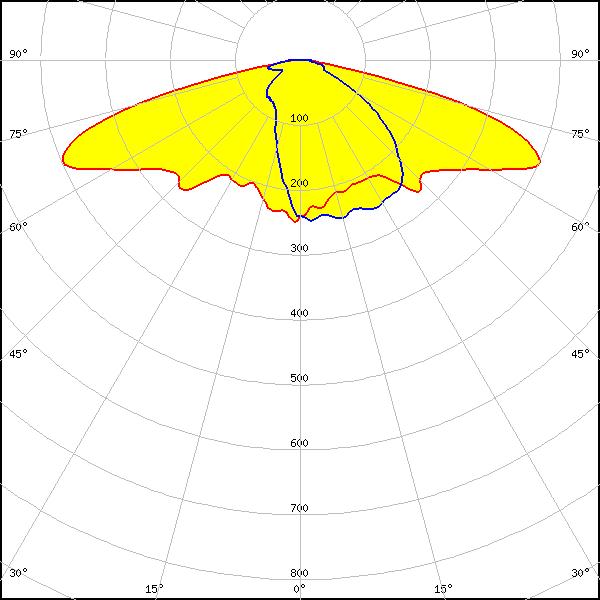

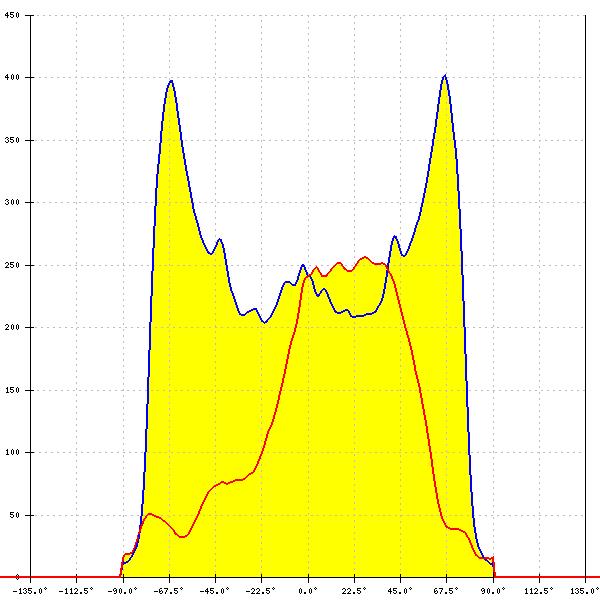

    LED: V18 Gen 8-9
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 462 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.455 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

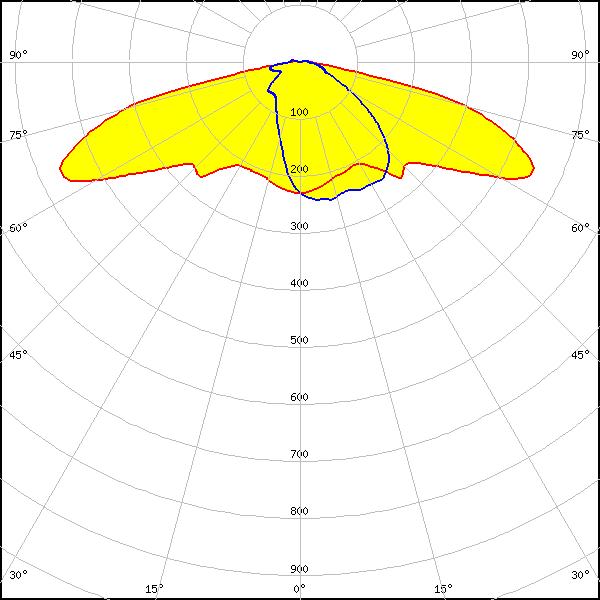

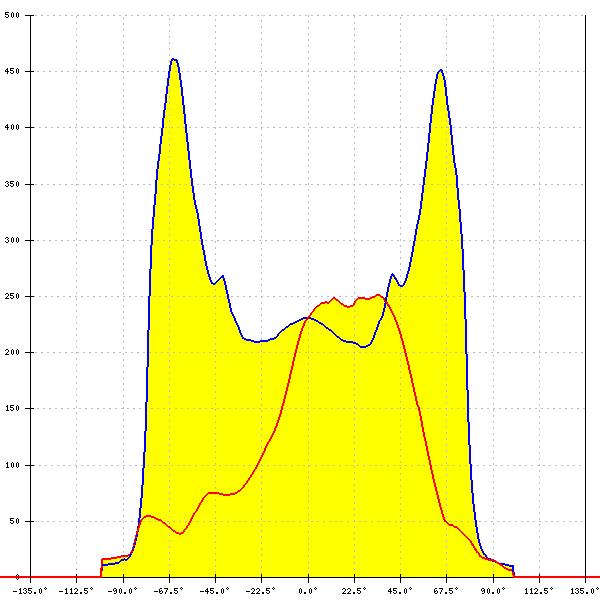

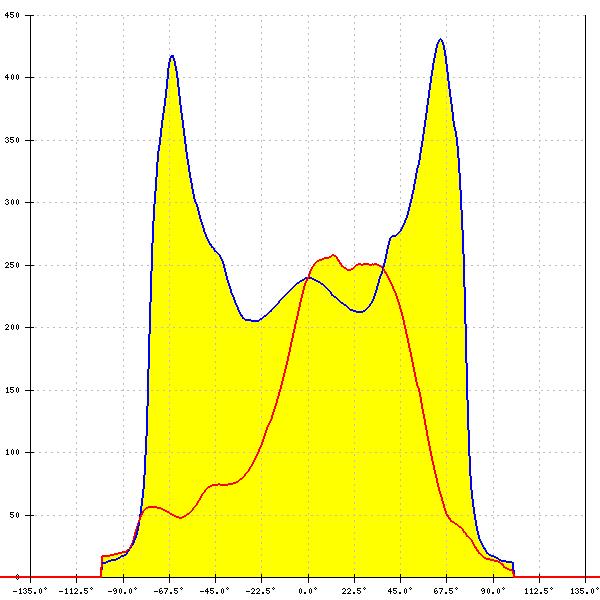

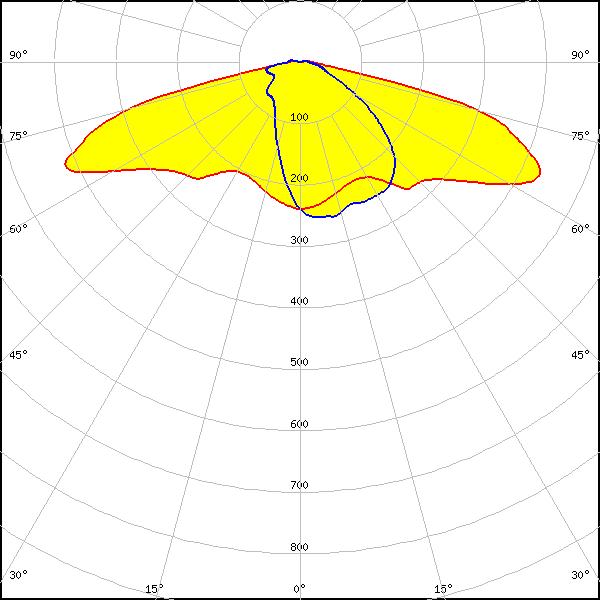

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen7
    LES size: 22.6 mm
    FWHM: asymmetric
    Peak intensity: 0.490 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

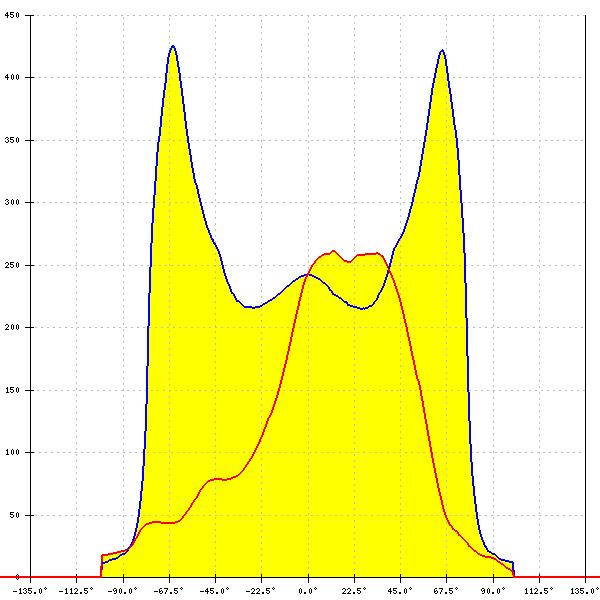

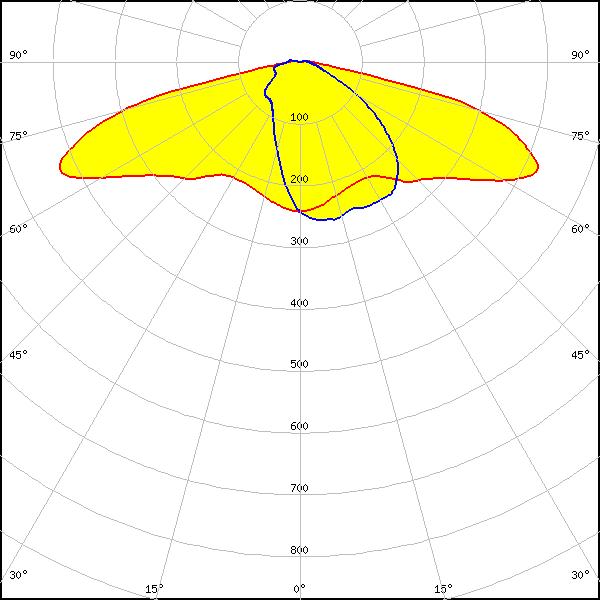

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    TE Connectivity: 2213480-1
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

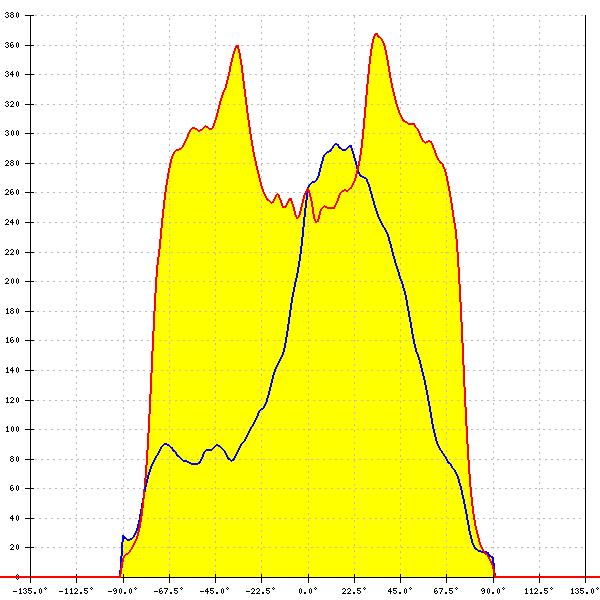

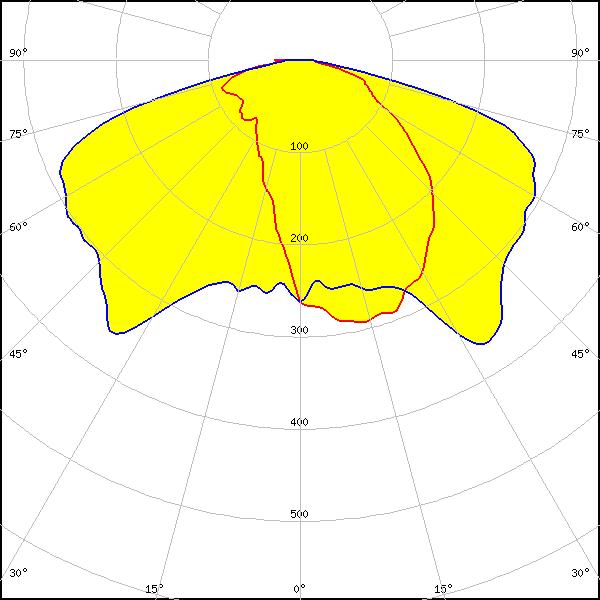

    LED: VERO29
    LES size: 29.2 mm
    FWHM: asymmetric
    Peak intensity: 0.399 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

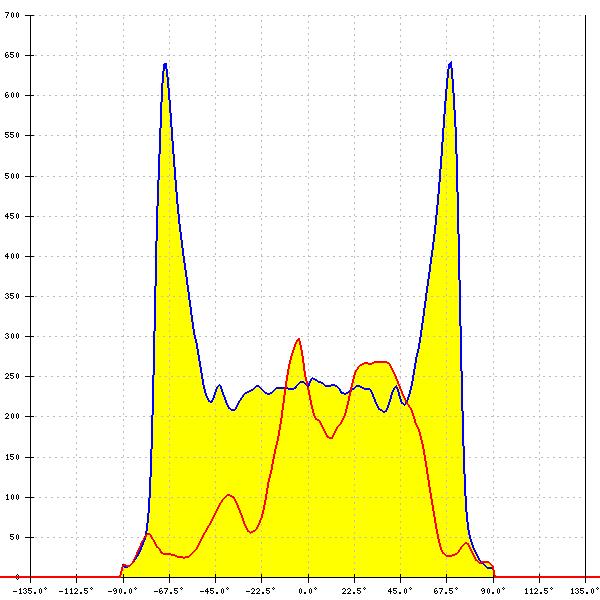

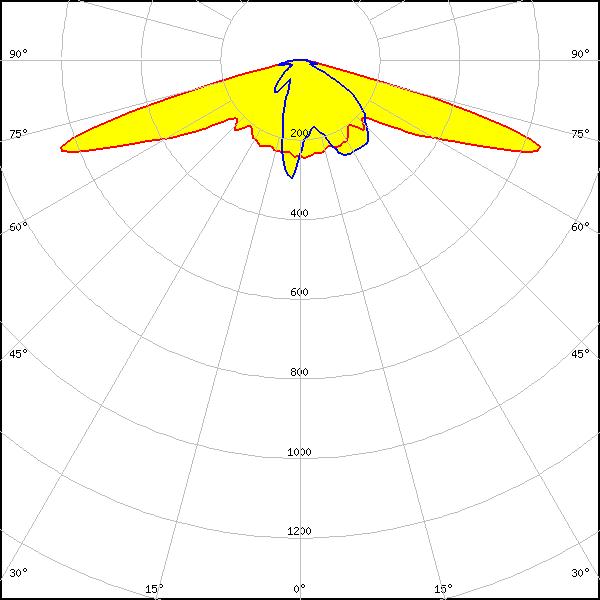

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: asymmetric
    Peak intensity: 0.763 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

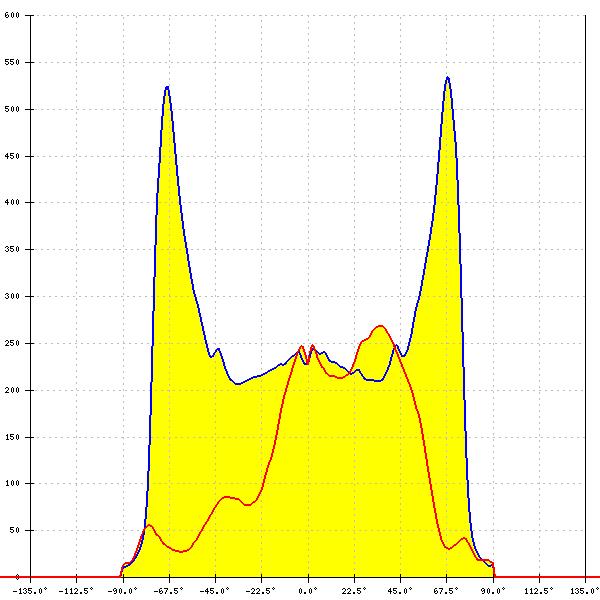

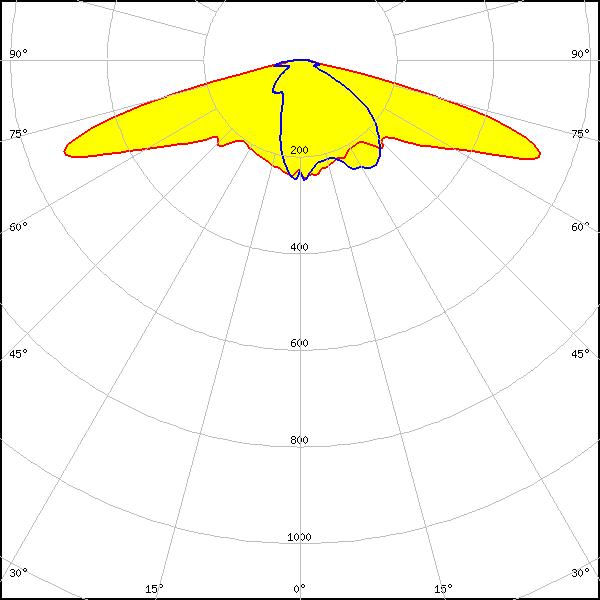

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.643 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

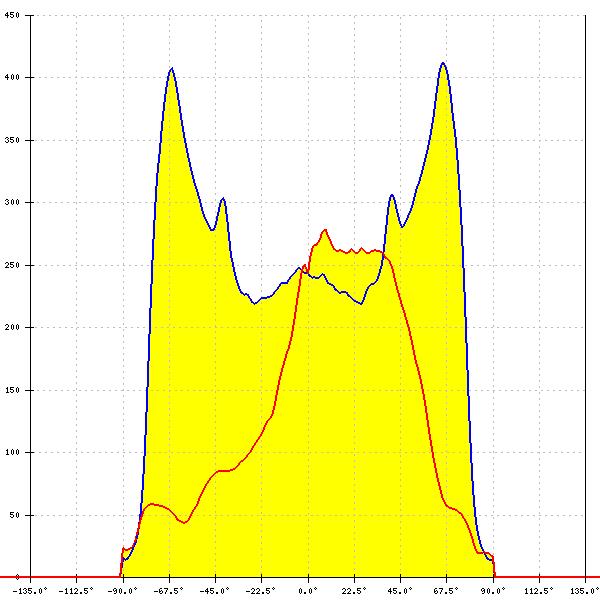

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

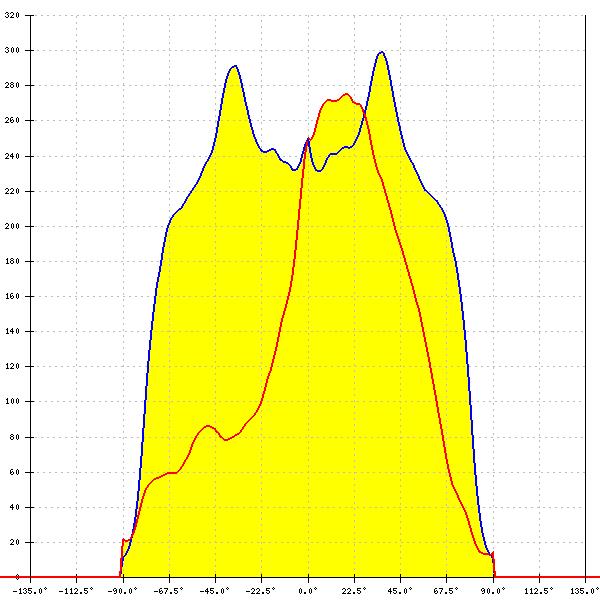

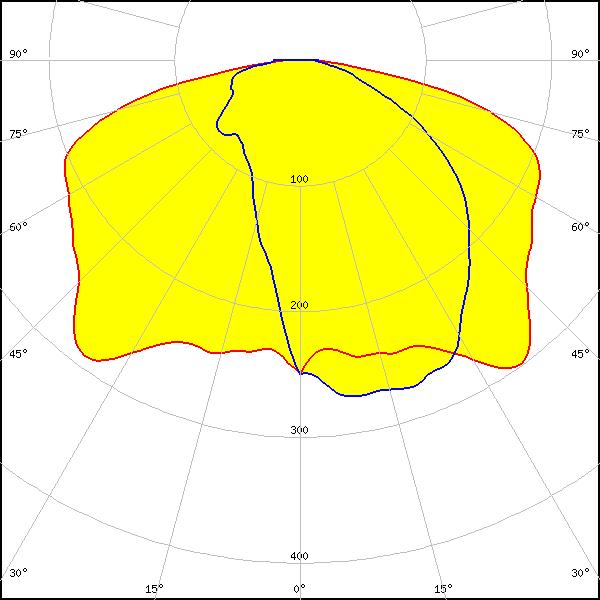

    LED: CLL05x/CLU05x
    LES size: 32.8 mm
    Required components:
    Bender Wirth: 458 Typ L4
    FWHM: asymmetric
    Peak intensity: 0.324 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

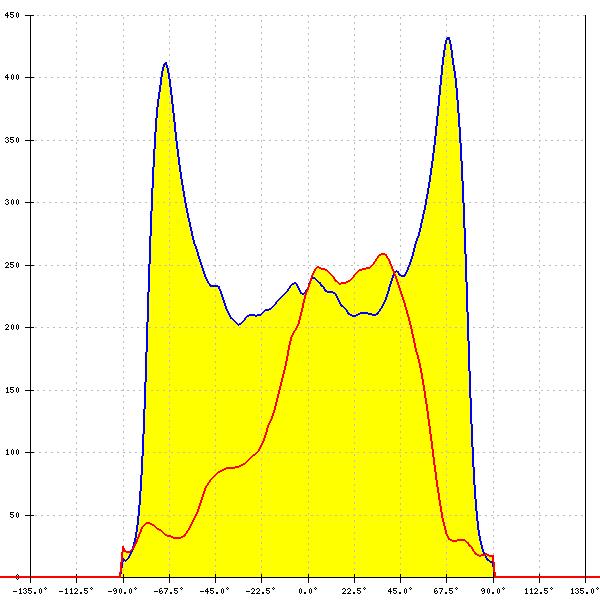

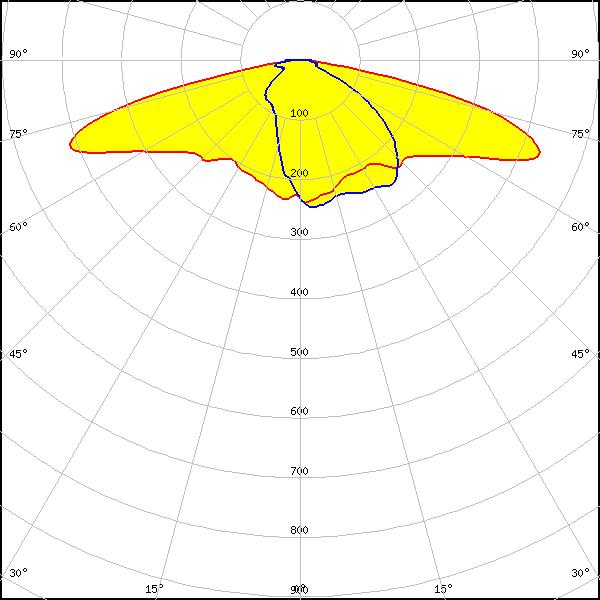

    LED: CMA2550
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.501 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

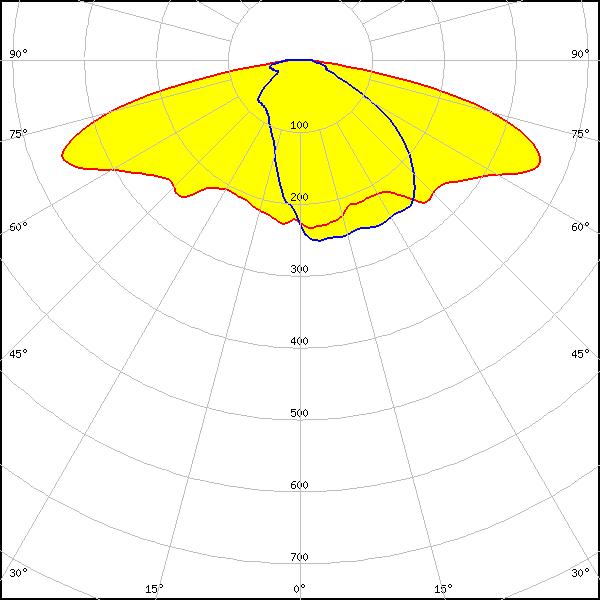

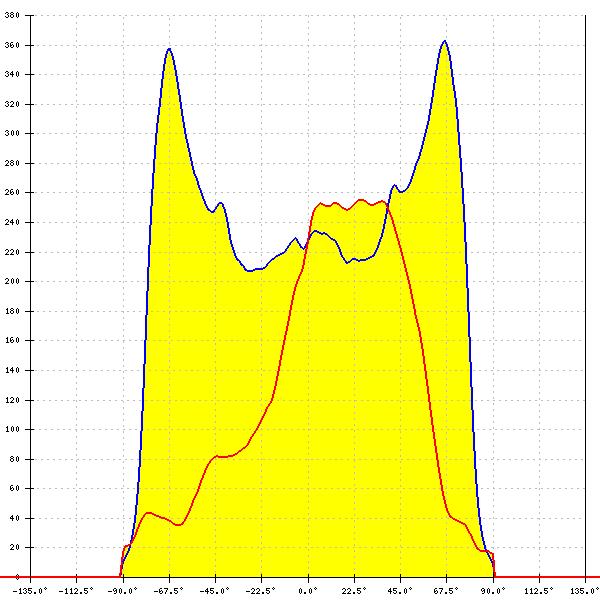

    LED: CMA3090
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 447 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.406 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT19xx
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.637 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

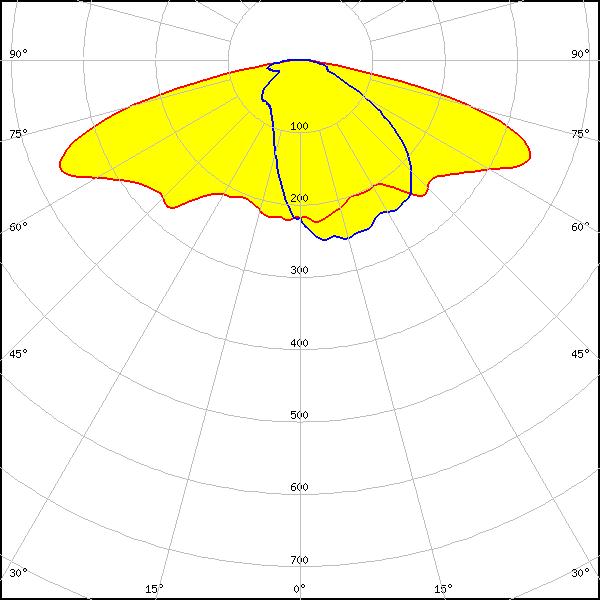

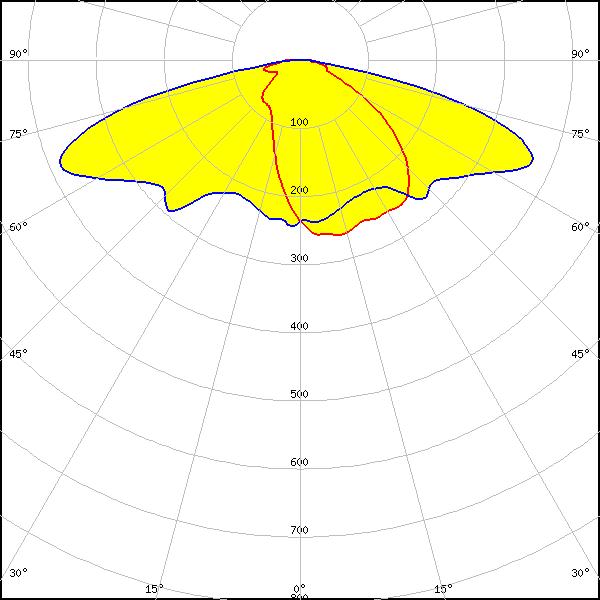

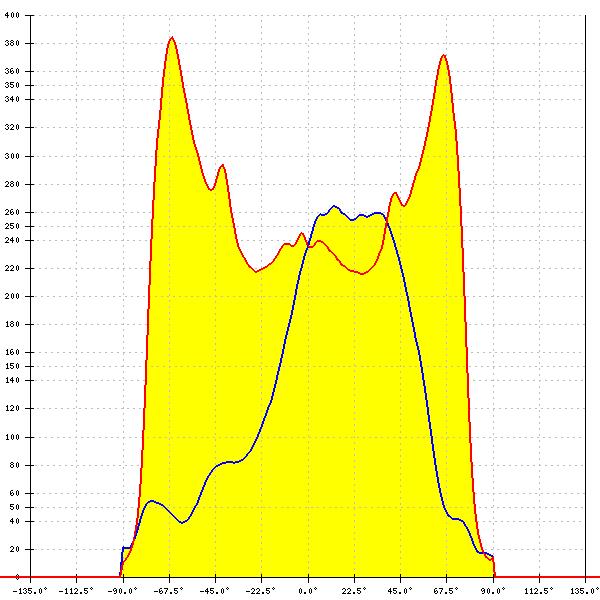

    LED: CMT28xx
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.439 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT28xx
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.405 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

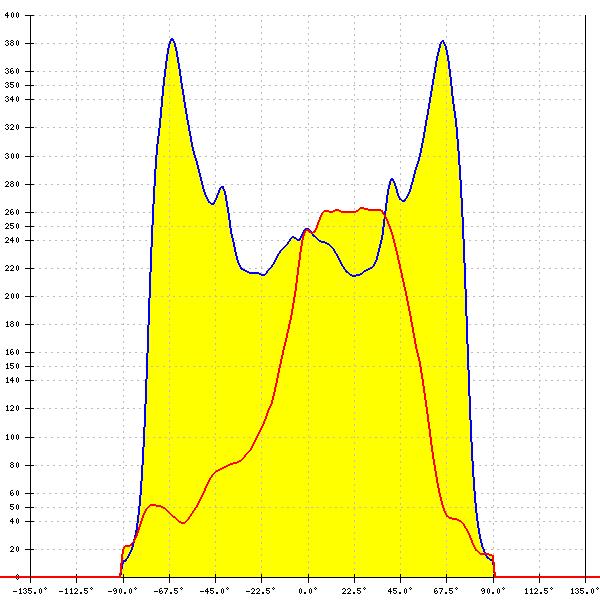

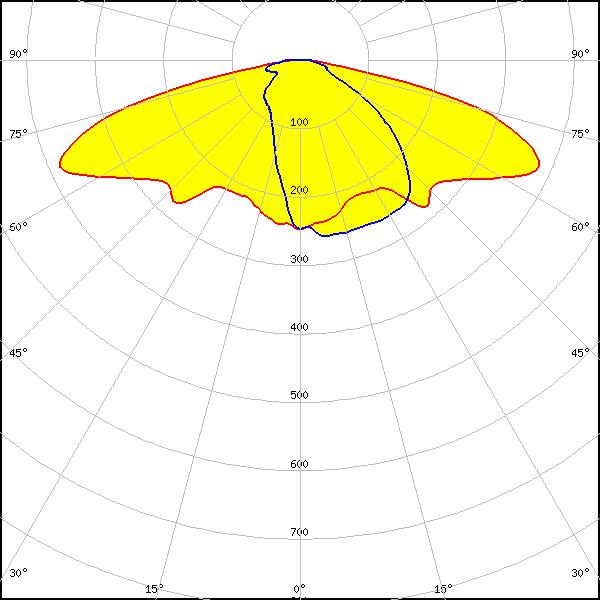

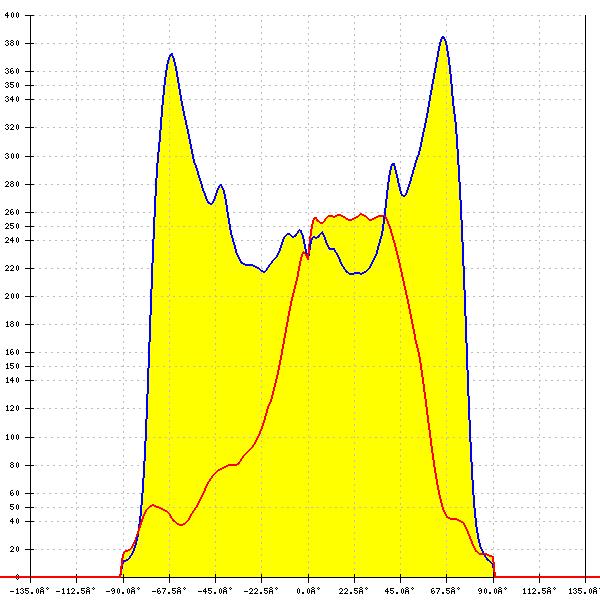

    LED: CMU22xx
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.434 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

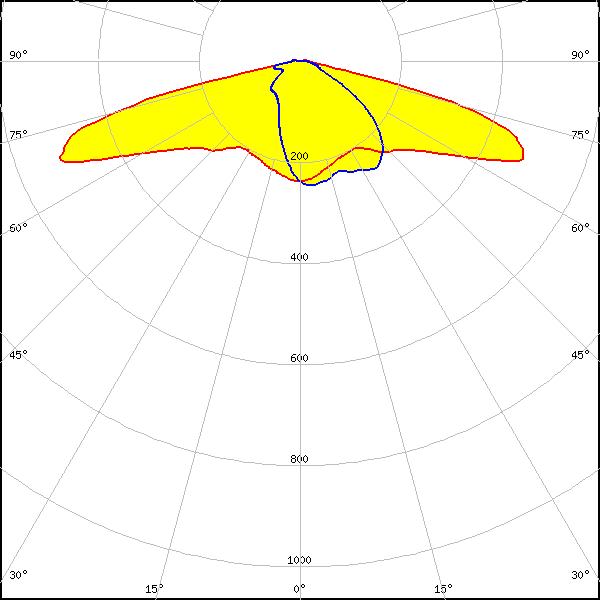

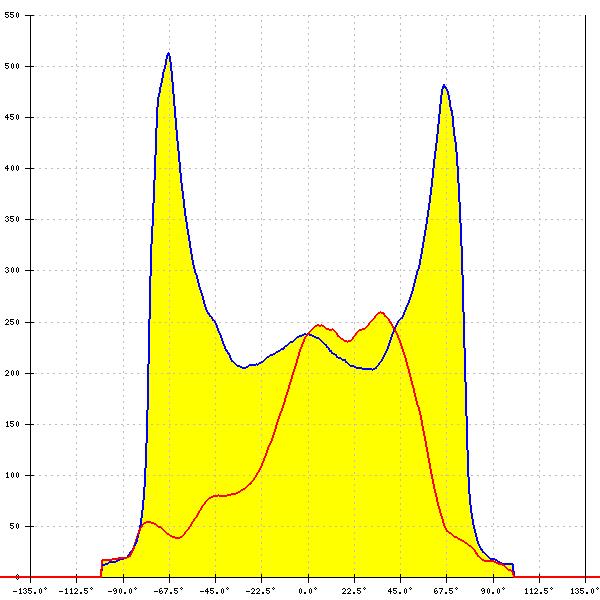

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

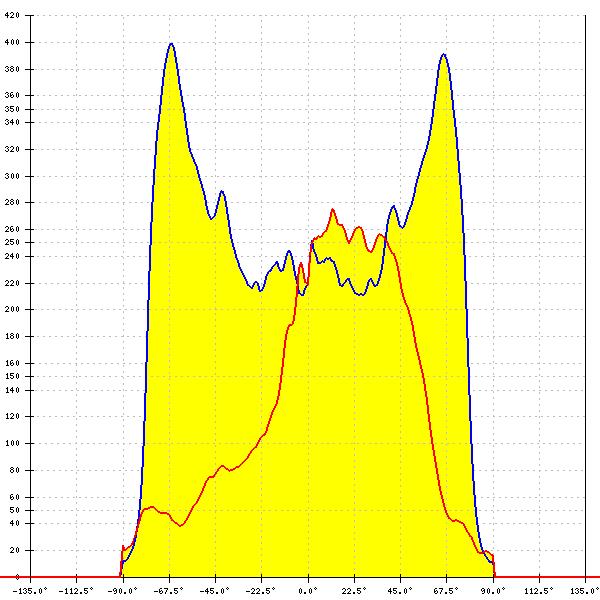

    LED: CXA/B 30xx
    LES size: 23.0 mm
    FWHM: asymmetric
    Peak intensity: 0.446 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

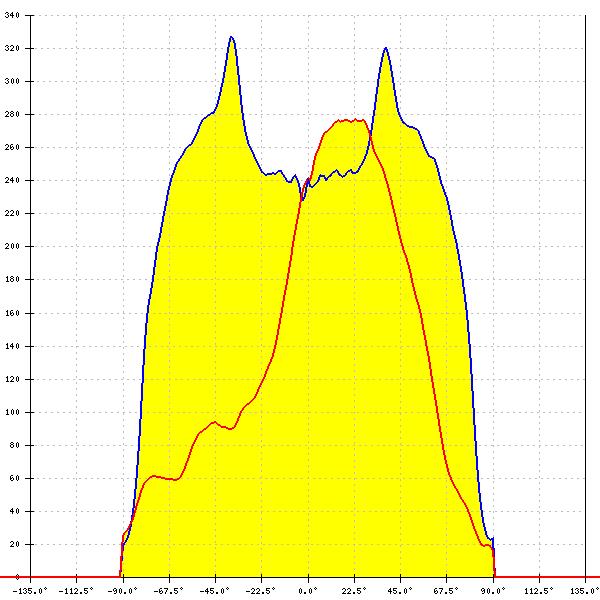

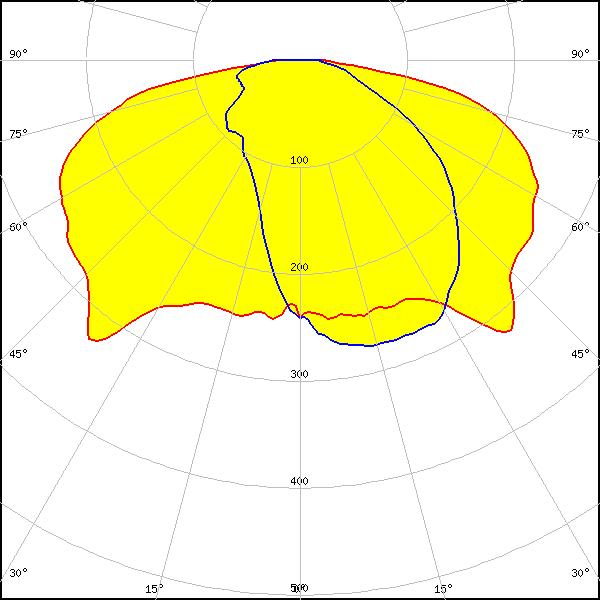

    LED: LUXEON CoB 1321
    LES size: 29.2 mm
    FWHM: asymmetric
    Peak intensity: 0.351 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

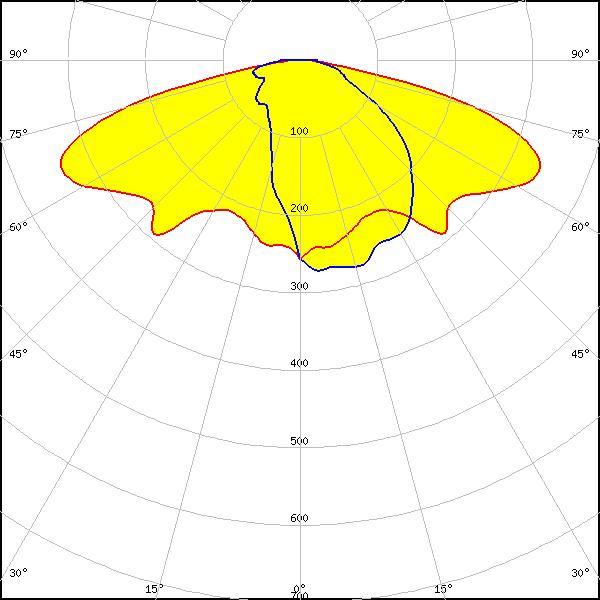

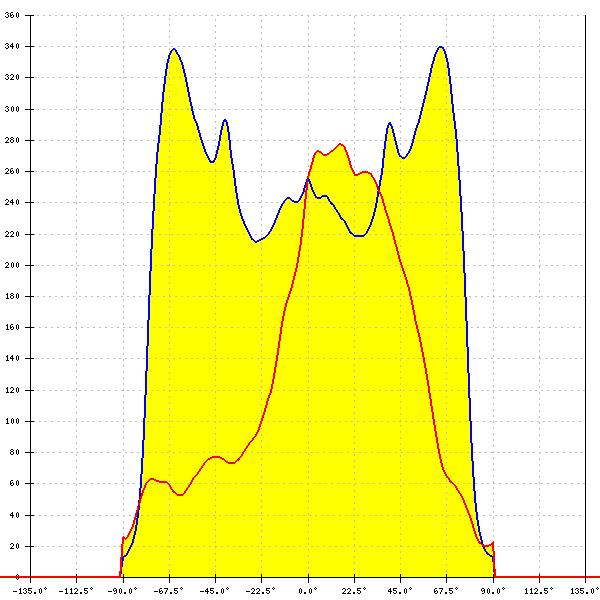

    LED: Duris S8
    LES size: 0.0 mm
    FWHM: asymmetric
    Peak intensity: 0.376 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 16
    Light colour/type: White

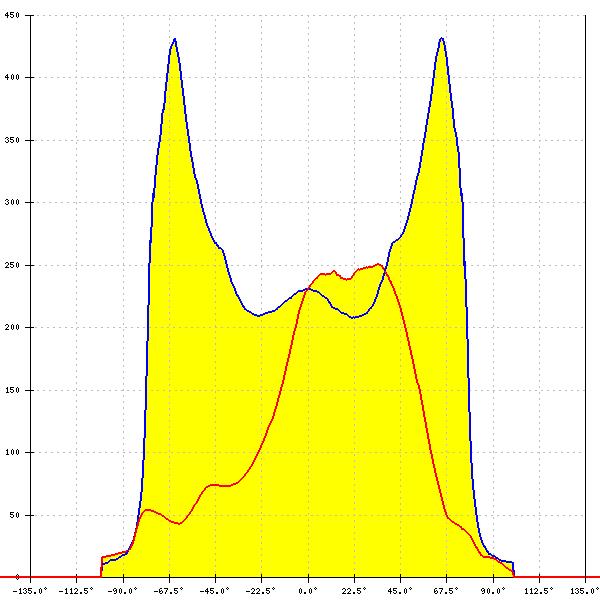

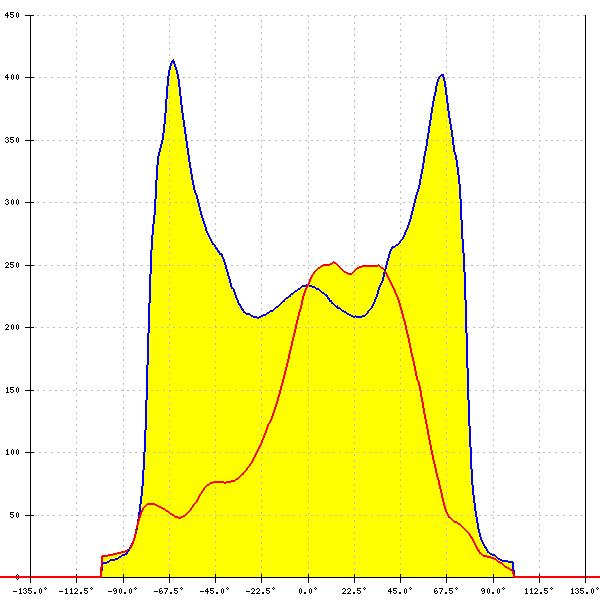

    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.439 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

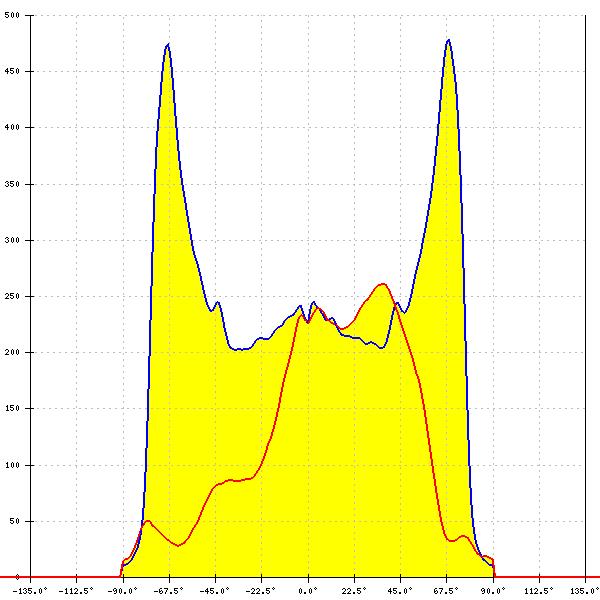

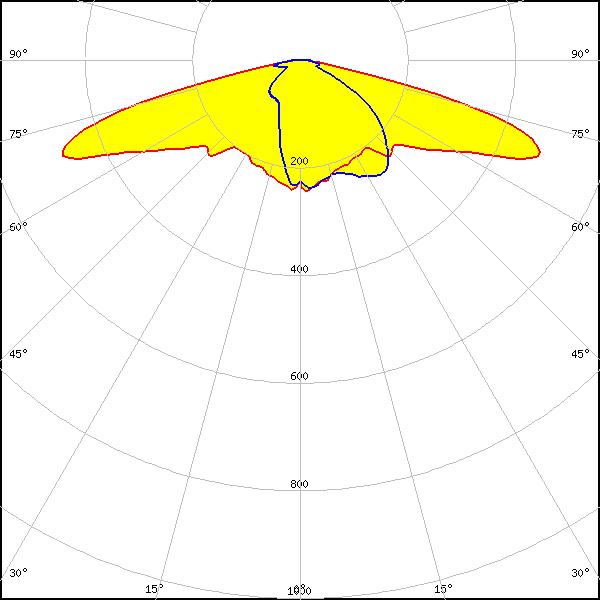

    LED: SLE G7 LES17
    LES size: 16.5 mm
    Required components:
    Bender Wirth: 466 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.569 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
