FN16258_STELLA-RS
Print

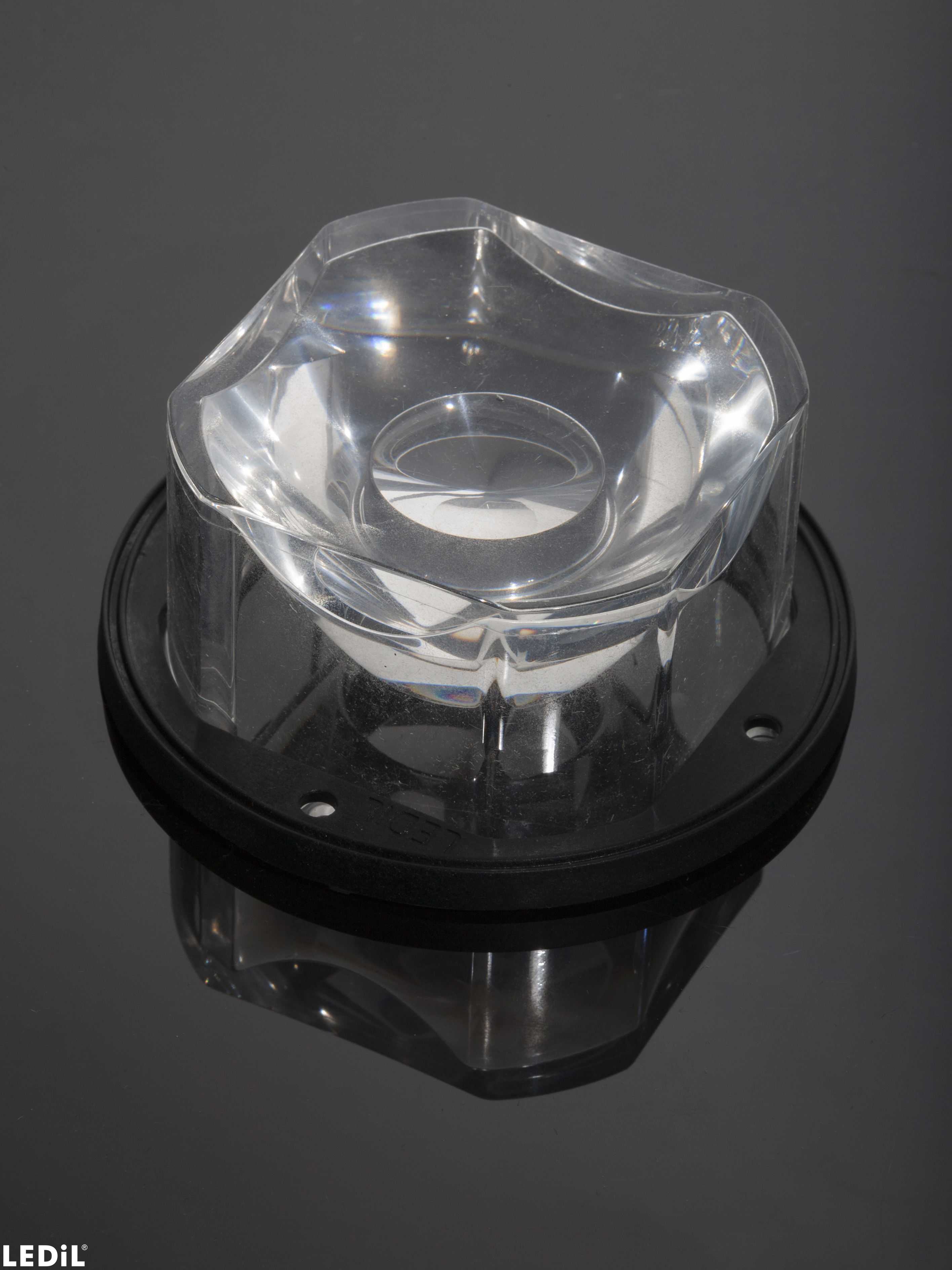

~25° spot beam. Compatible with up to 30 mm LES size COBs. Variant with black frame.
Materials
- STELLA-RS, Single lens, Silicone
- STELLA-FRAME, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

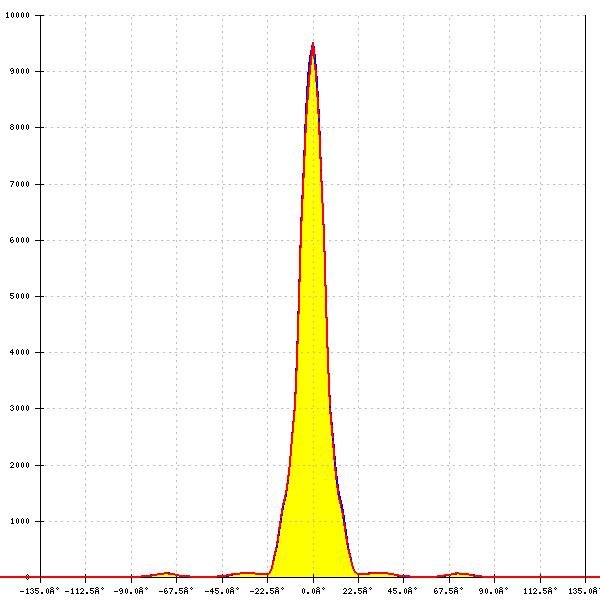

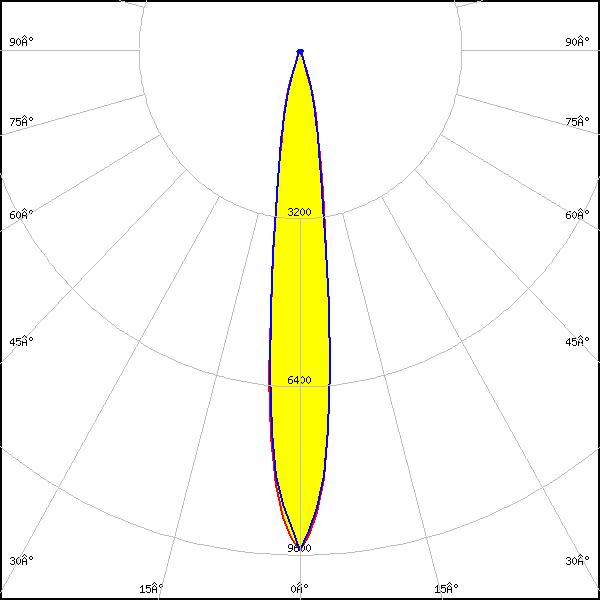

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
Bender Wirth: 486 Typ L1
FWHM:
14°
FWTM:
32°
Peak intensity:
9.918 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

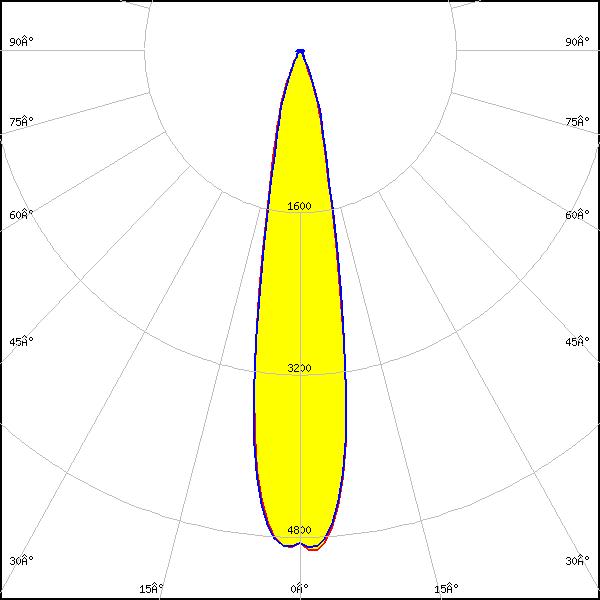

LED:

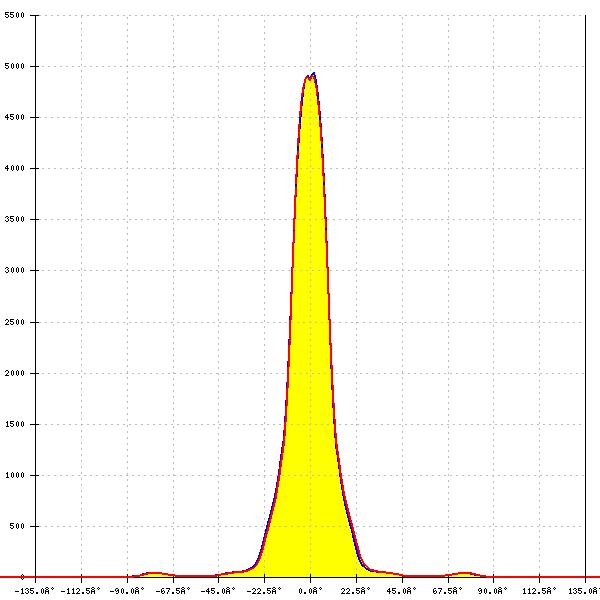

V13 Gen 8-9
LES size: 14.8 mm
FWHM:
20°
FWTM:
41°
Peak intensity:
4.931 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

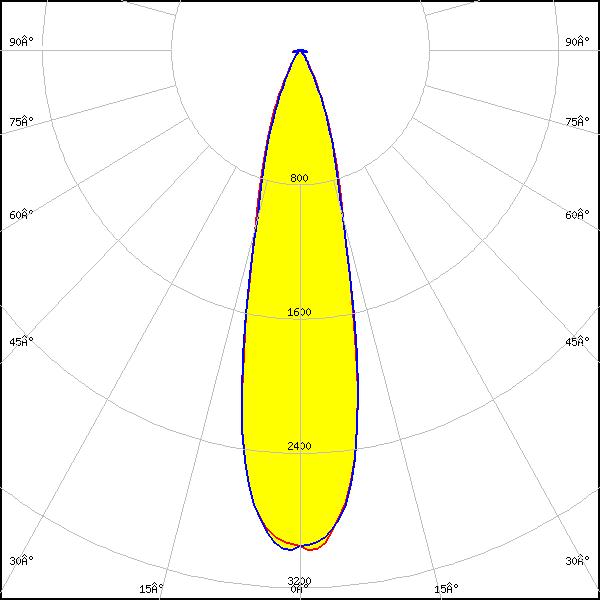

LED:
V18 Gen 8-9
LES size: 19.6 mm
Required components:
Bender Wirth: 462 Typ L4
FWHM:
25°
FWTM:
51°
Peak intensity:
2.979 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

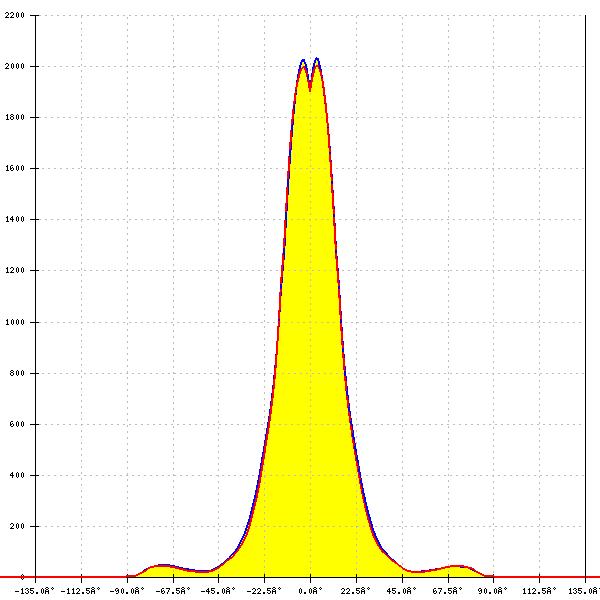

LED:

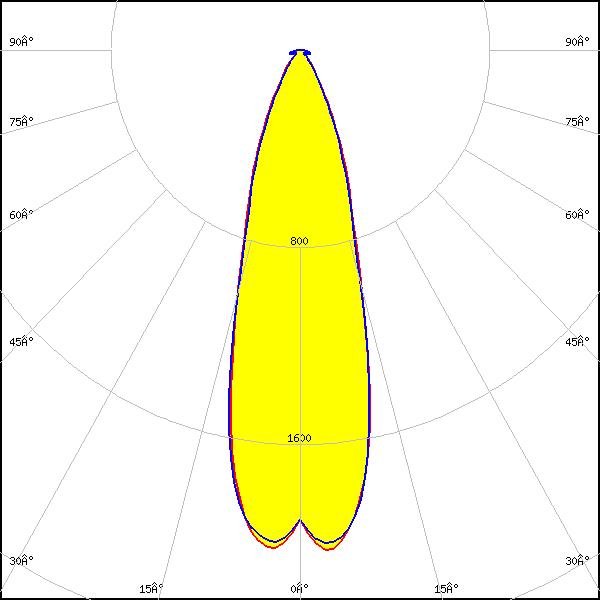

V22 Gen 8-9
LES size: 23.3 mm
Required components:
Bender Wirth: 431 Typ L4
FWHM:
30°
FWTM:
61°
Peak intensity:
2.046 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

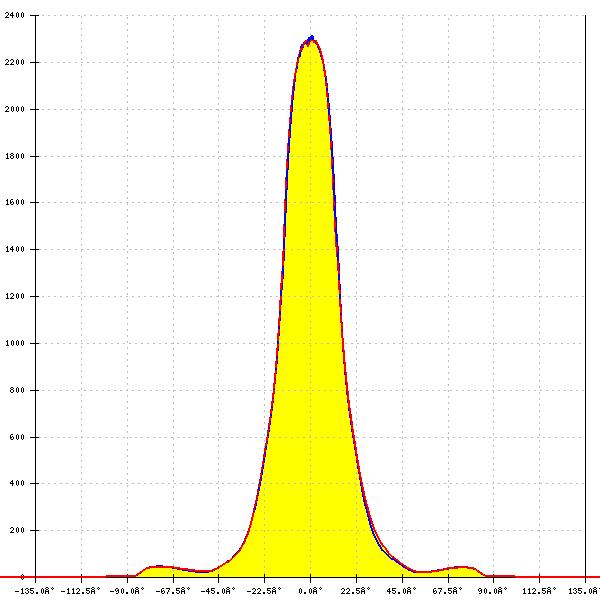

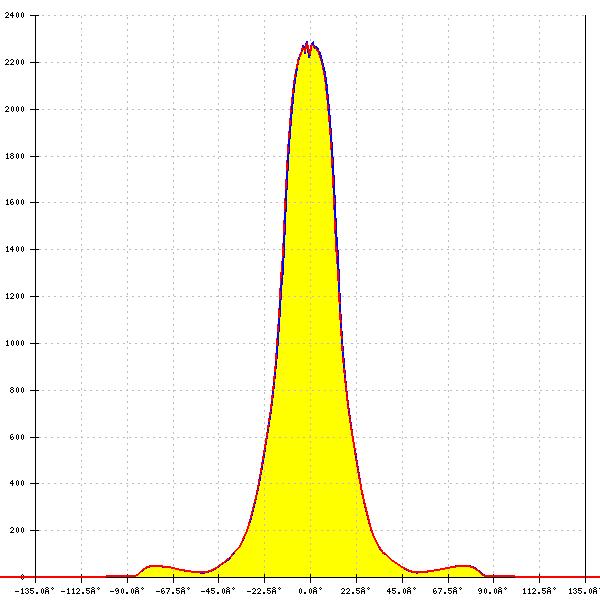

LED:

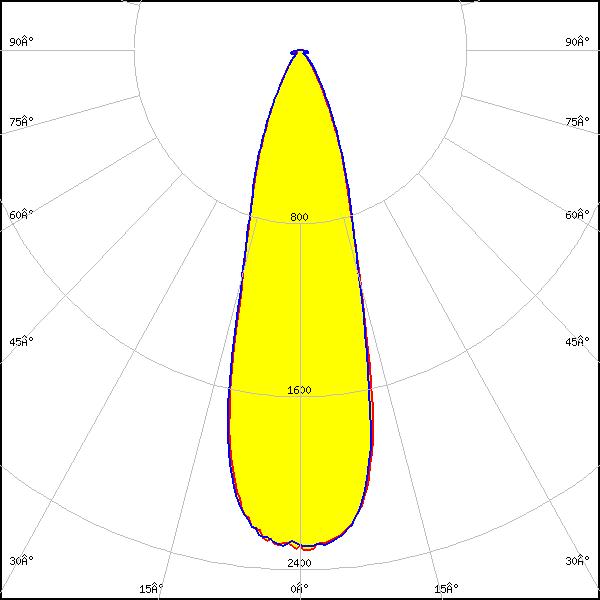

V22 Gen7
LES size: 22.6 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM:
29°
FWTM:
59°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

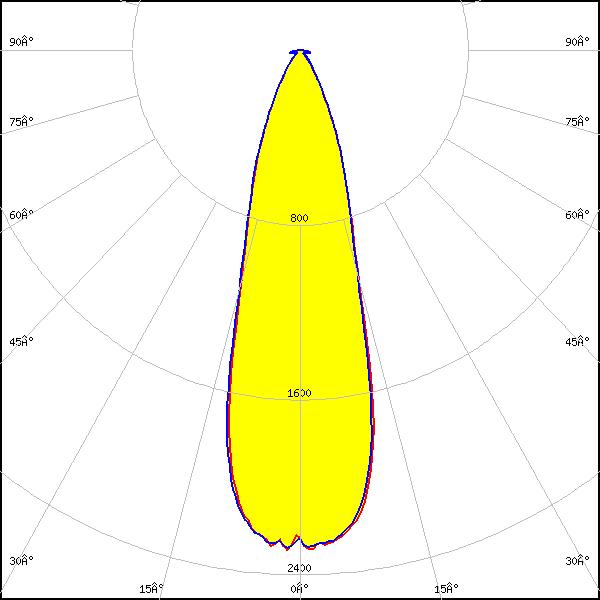

LED:
V22 Gen7
LES size: 22.6 mm
FWHM:
29°
FWTM:
59°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

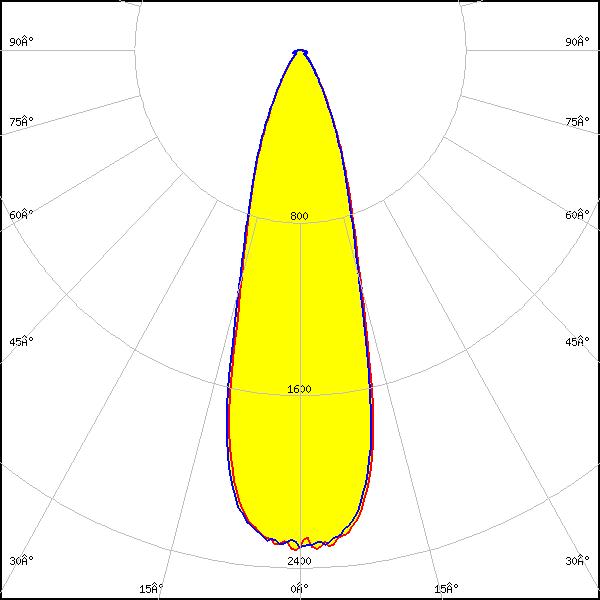

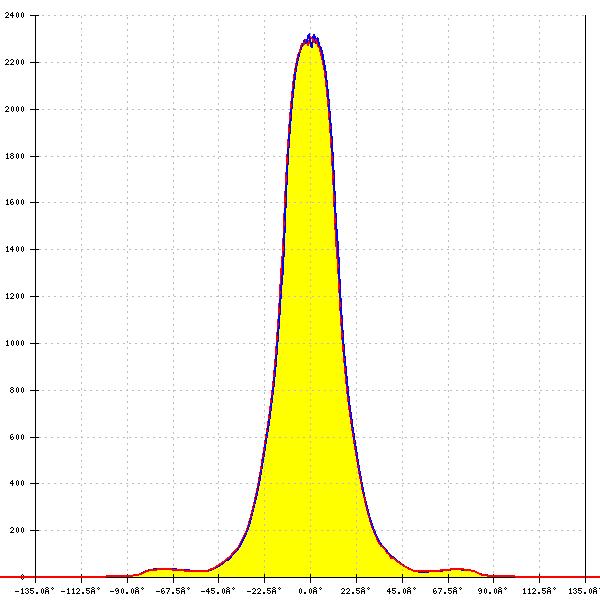

V22 Gen7
LES size: 22.6 mm
Required components:
TE Connectivity: 2213480-1
FWHM:
29°
FWTM:
60°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

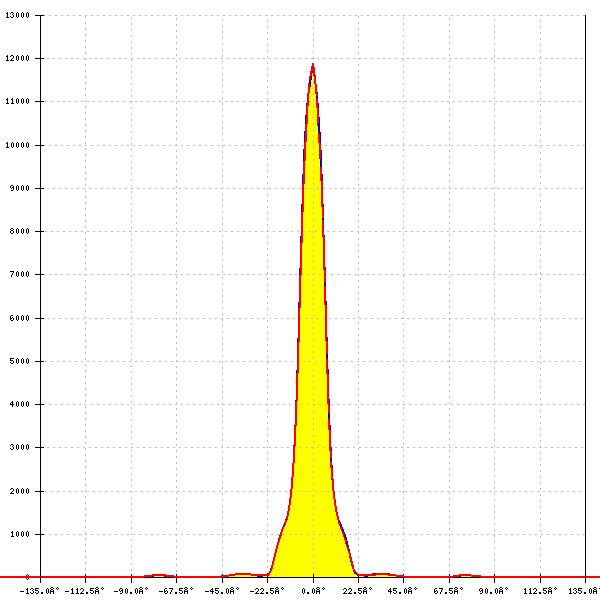

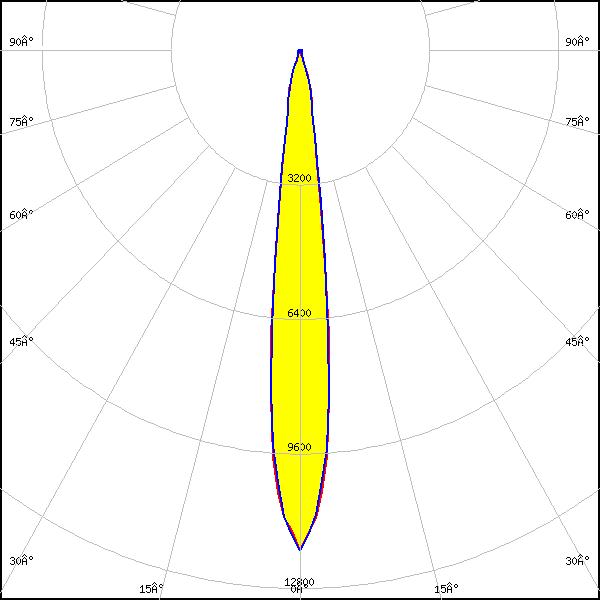

LED:
VERO10
LES size: 9.9 mm
FWHM:
13°
FWTM:
28°
Peak intensity:
11.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

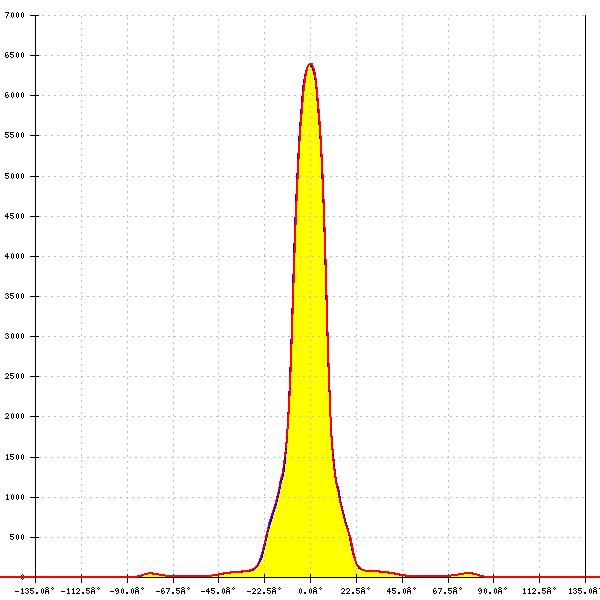

LED:

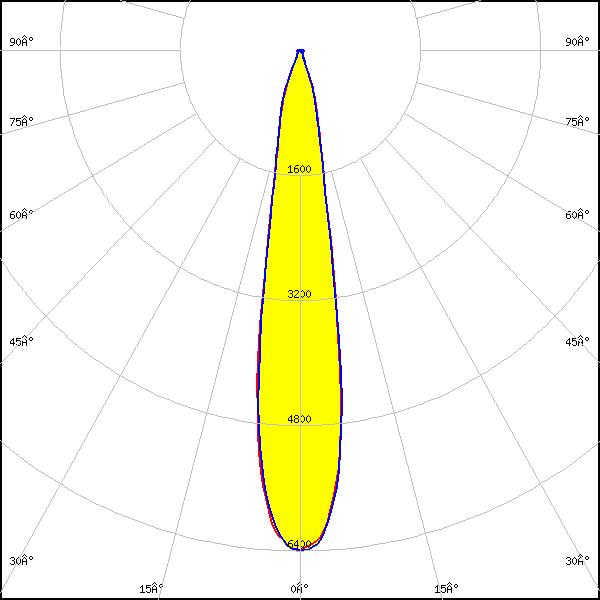

VERO13
LES size: 13.4 mm
FWHM:
18°
FWTM:
38°
Peak intensity:
6.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

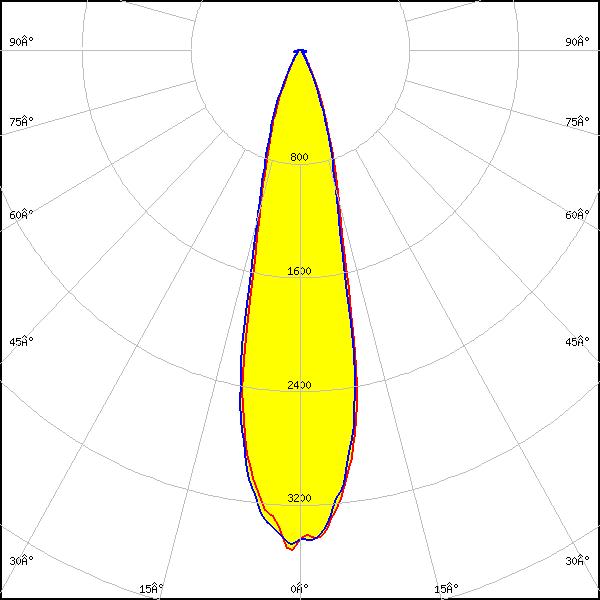

LED:
VERO18
LES size: 18.6 mm
FWHM:
24°
FWTM:
49°
Peak intensity:
3.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

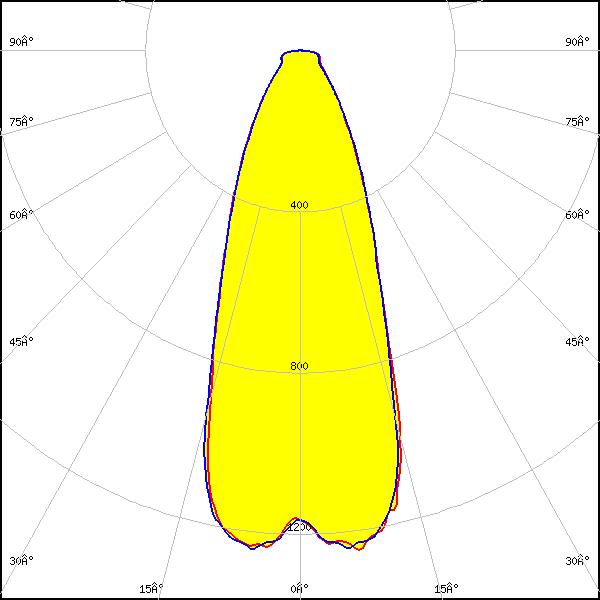

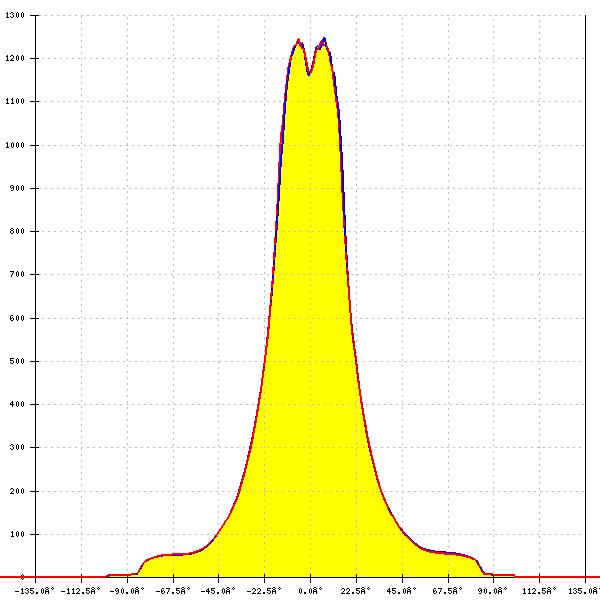

LED:
VERO29
LES size: 29.2 mm
FWHM:
39°
FWTM:
84°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

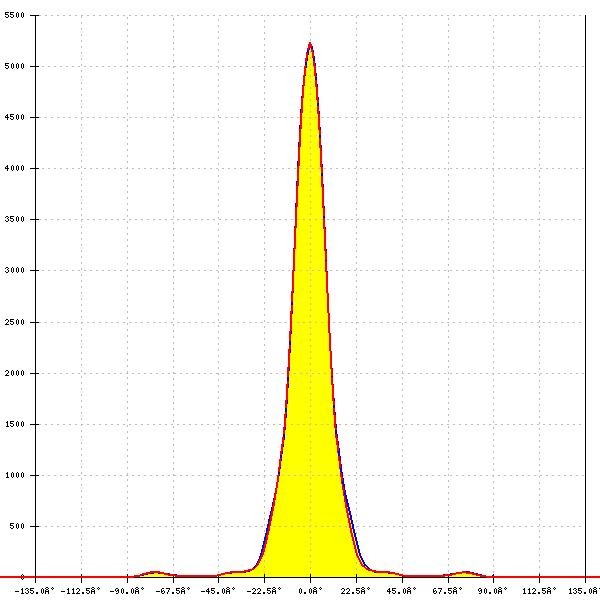

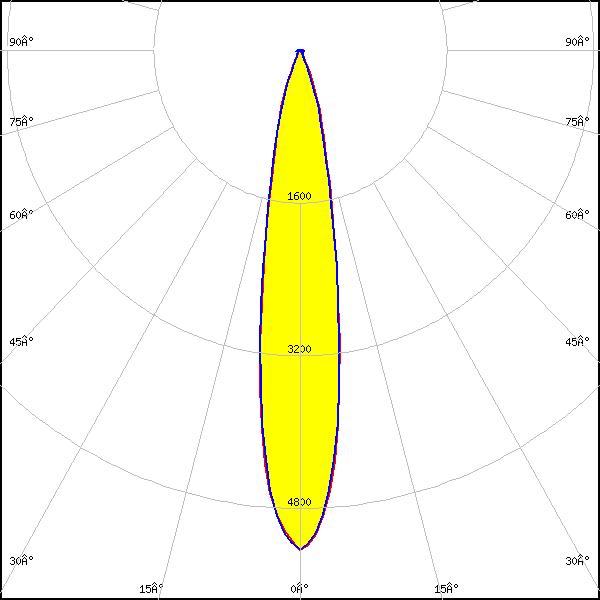

Vesta TW 13mm (18W) DP
LES size: 14.0 mm
FWHM:
18°
FWTM:
40°
Peak intensity:
5.240 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

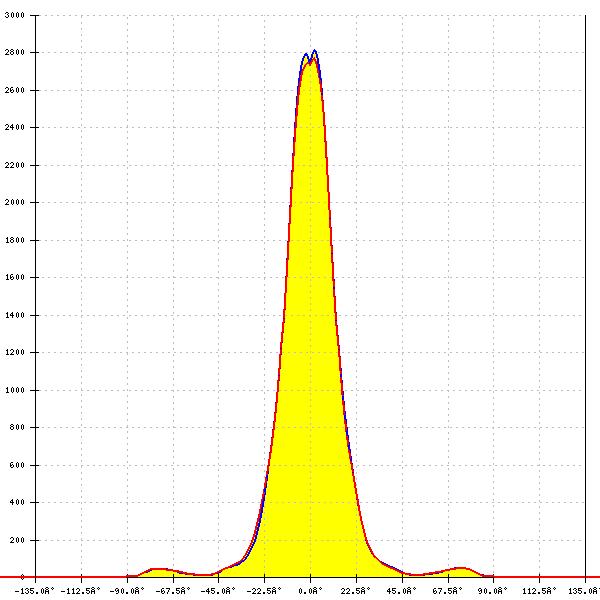

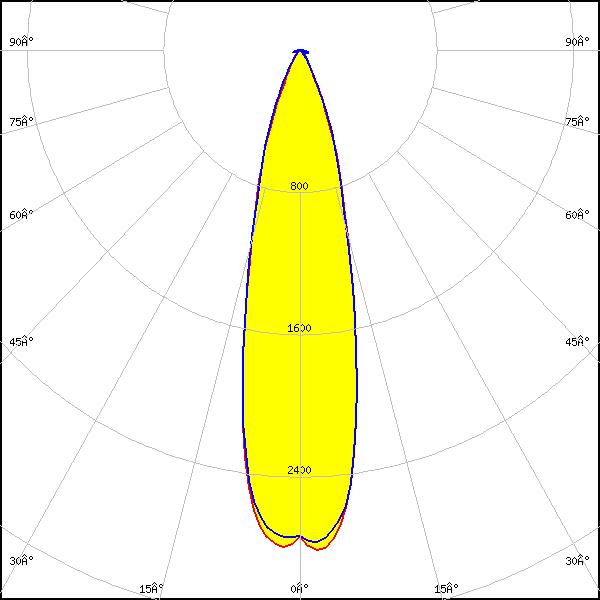

Vesta TW 18mm (31W) DP
LES size: 19.7 mm
FWHM:
26°
FWTM:
52°
Peak intensity:
2.836 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

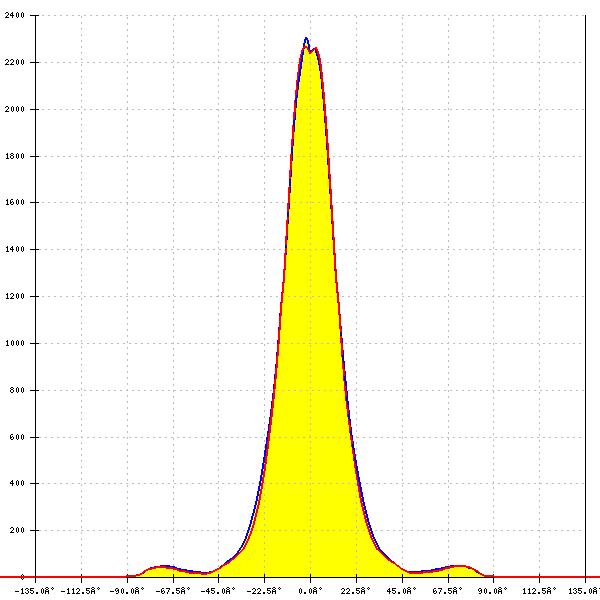

LED:

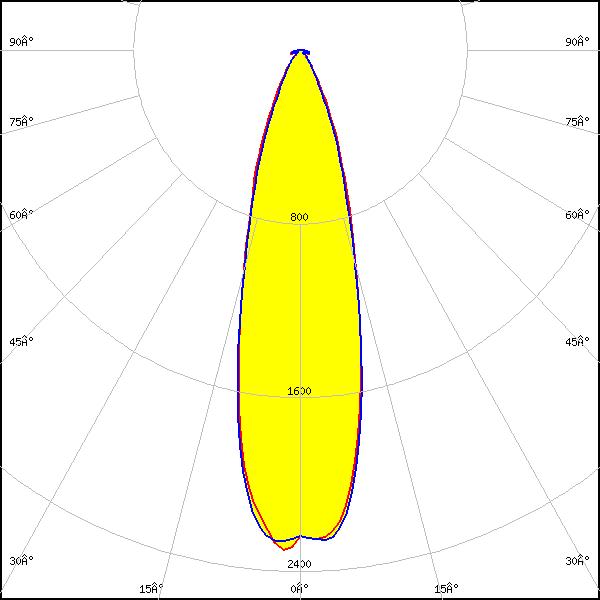

Vesta TW 22mm DP
LES size: 23.1 mm
FWHM:
28°
FWTM:
57°
Peak intensity:
2.314 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

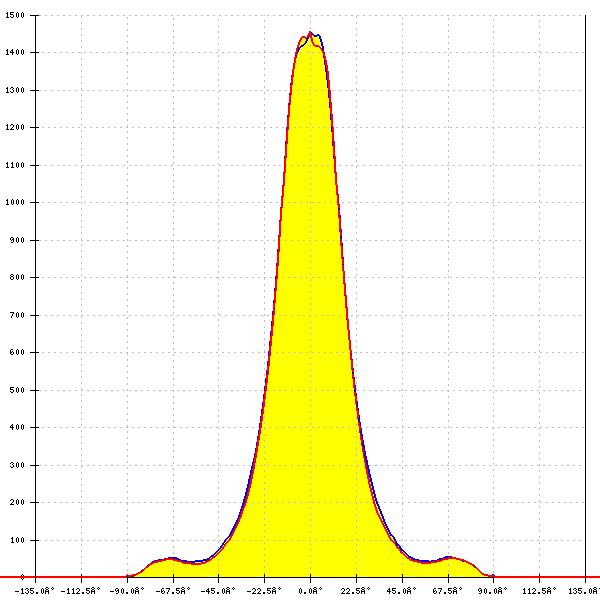

LED:

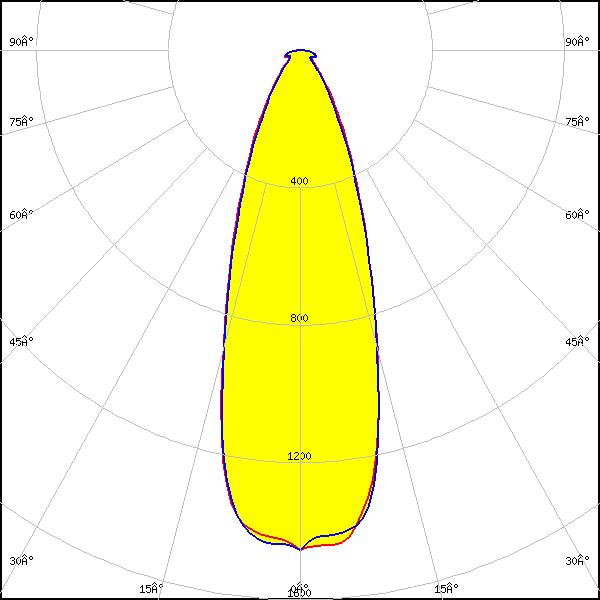

Vesta TW 29mm DP
LES size: 29.6 mm
FWHM:
35°
FWTM:
72°
Peak intensity:
1.485 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

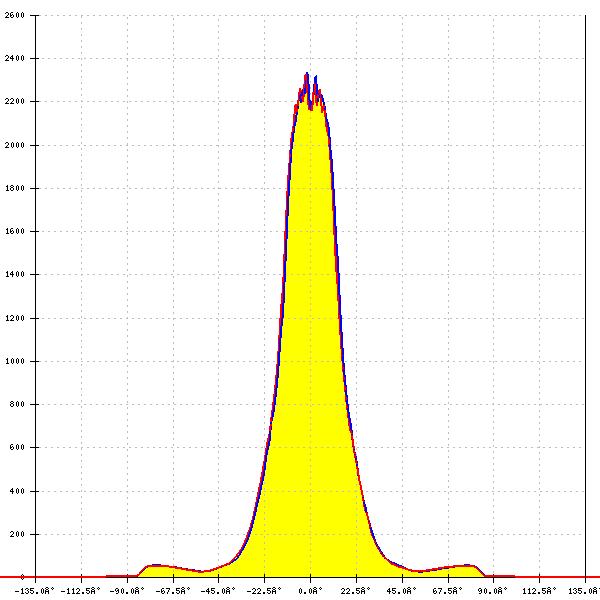

LED:

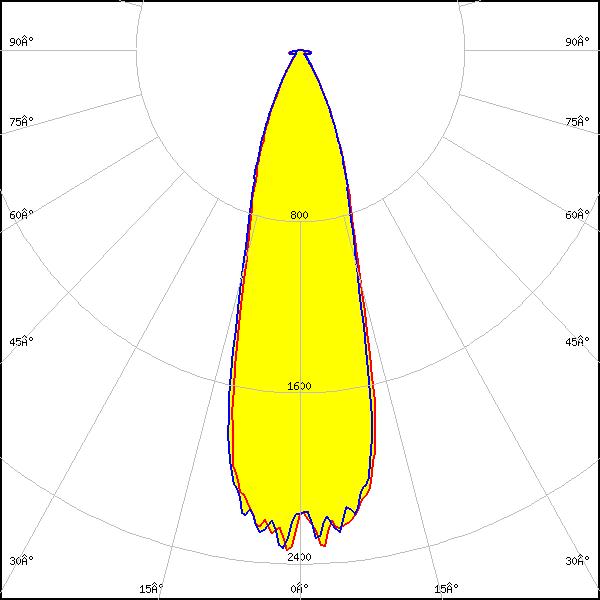

CLL04x/CLU04x
LES size: 22.0 mm
FWHM:
29°
FWTM:
58°
Peak intensity:
2.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL05x/CLU05x
LES size: 32.8 mm
FWHM:
43°
FWTM:
98°
Peak intensity:
1.020 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA2550
LES size: 19.0 mm
FWHM:
27°
FWTM:
52°
Peak intensity:
3.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

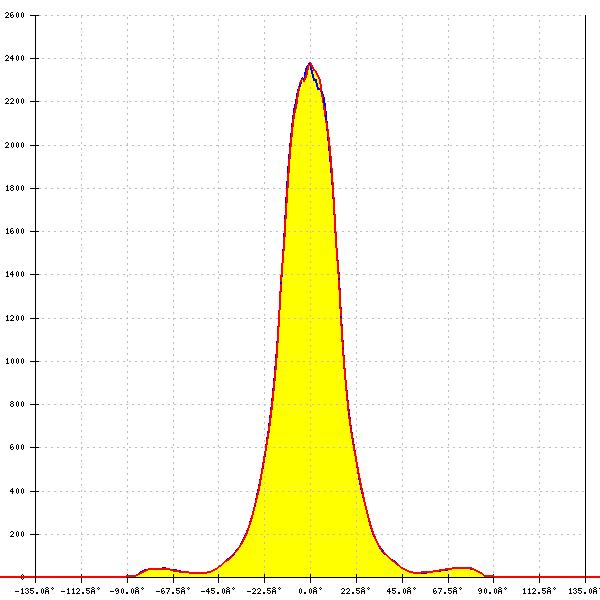

LED:

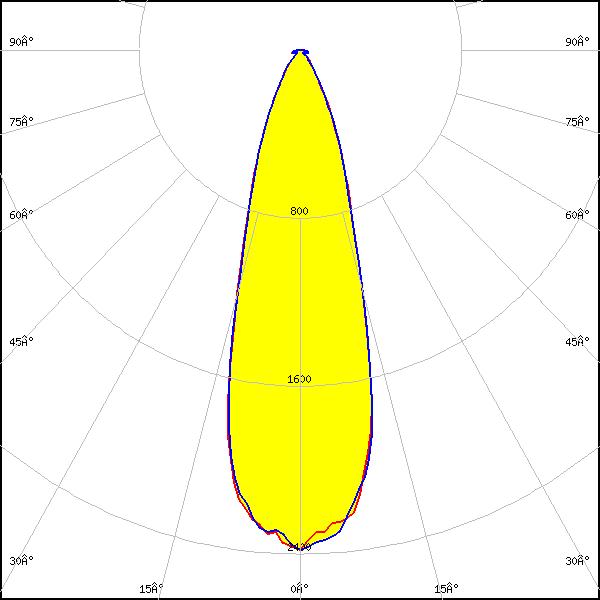

CMA3090
LES size: 23.0 mm
FWHM:
30°
FWTM:
60°
Peak intensity:
2.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

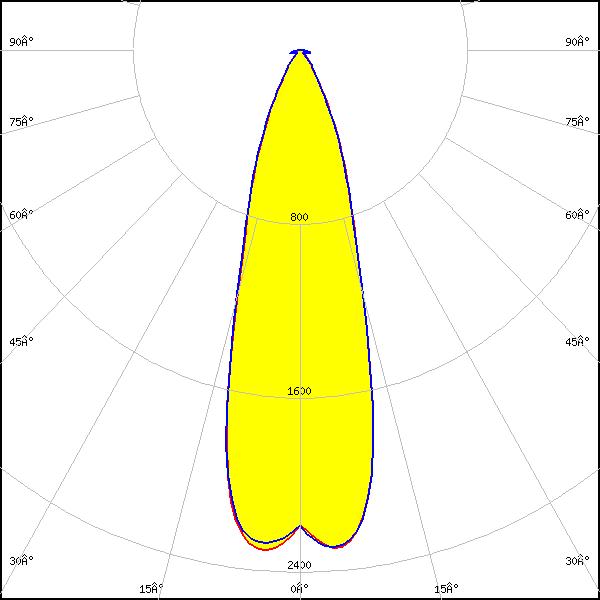

LED:

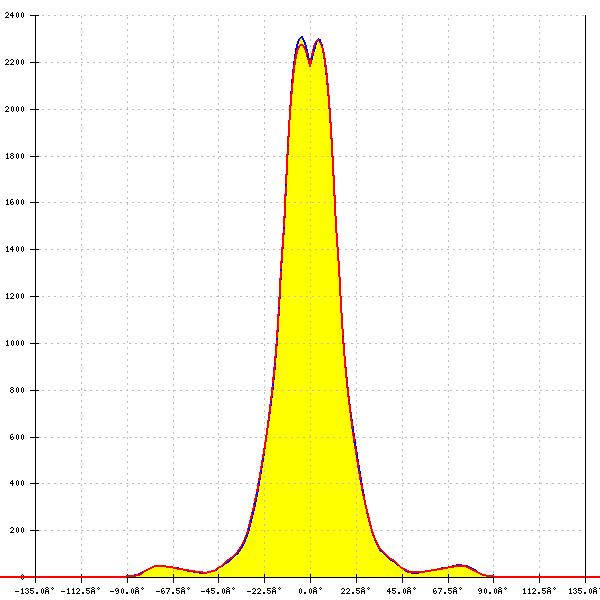

CMU22xx
LES size: 22.0 mm
Required components:
Bender Wirth: 431 Typ L4
FWHM:
30°
FWTM:
59°
Peak intensity:
2.367 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

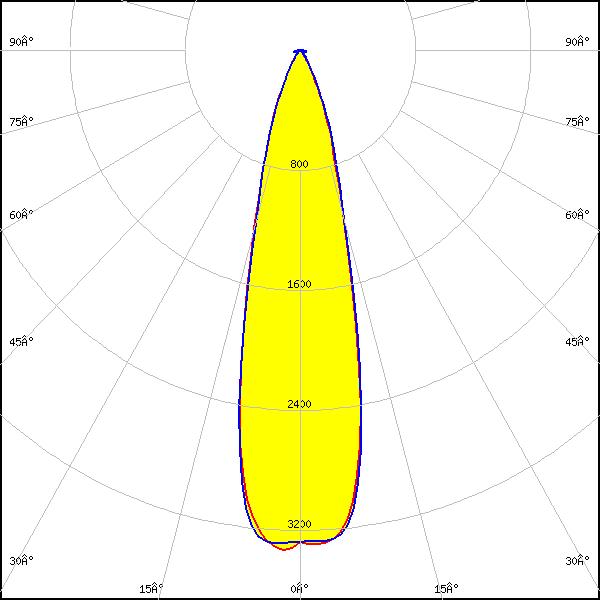

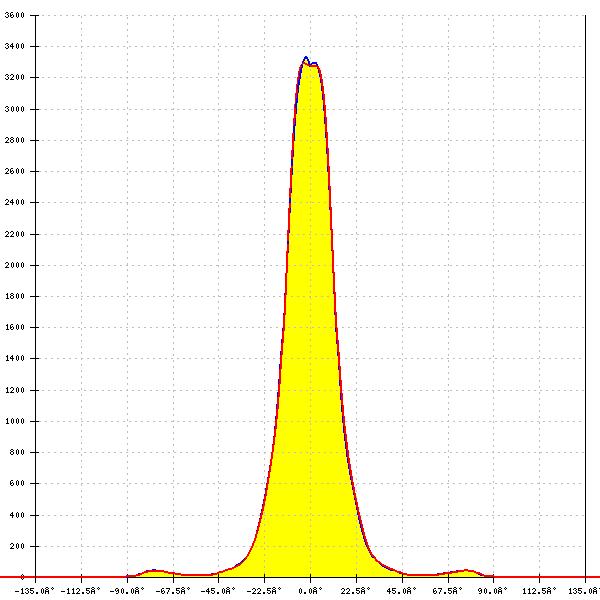

LED:
CXA/B 25xx
LES size: 19.0 mm
FWHM:
25°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

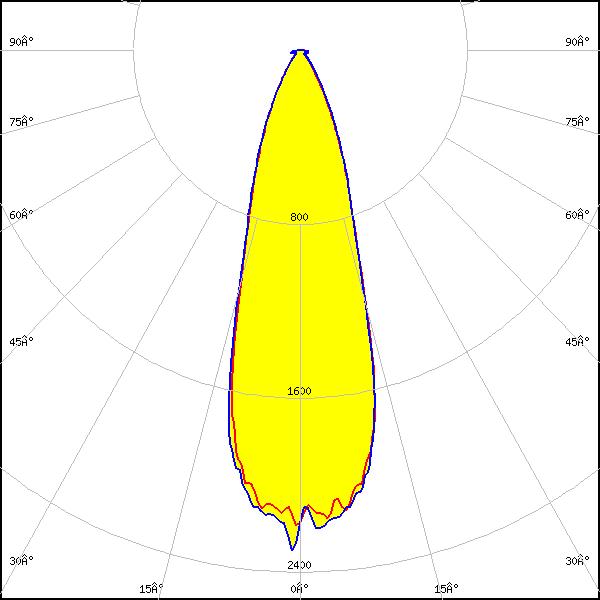

LED:
CXA/B 30xx
LES size: 23.0 mm
FWHM:
31°
FWTM:
61°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

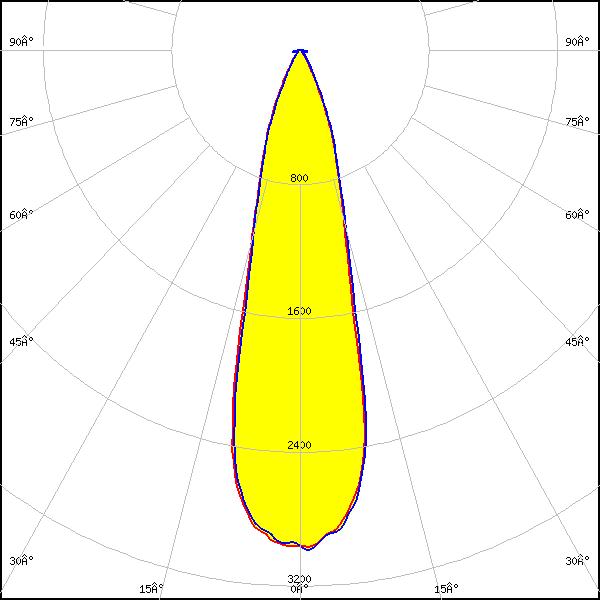

LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
Bender Wirth: 431 Typ L3
FWHM:
26°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

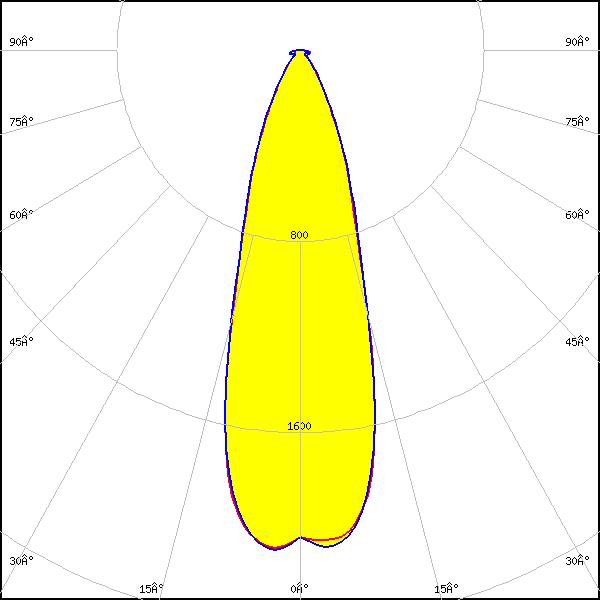

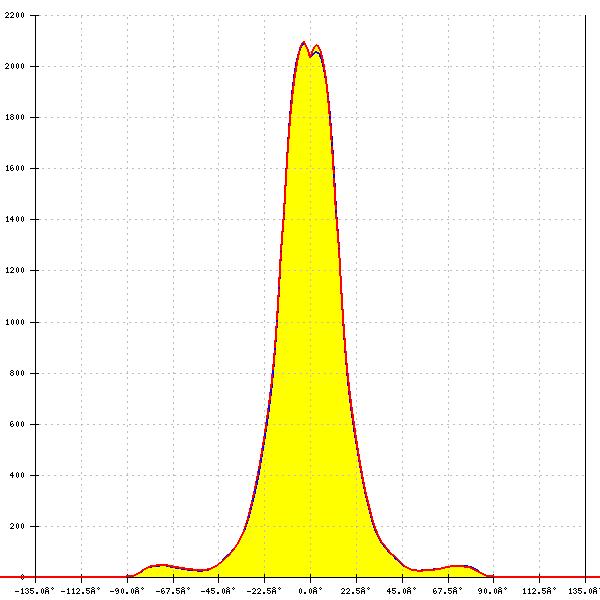

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
FWHM:
31°
FWTM:
63°
Peak intensity:
2.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

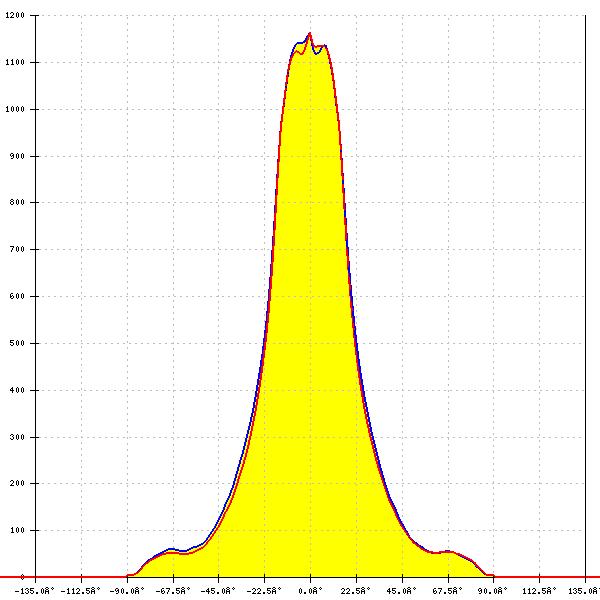

LED:

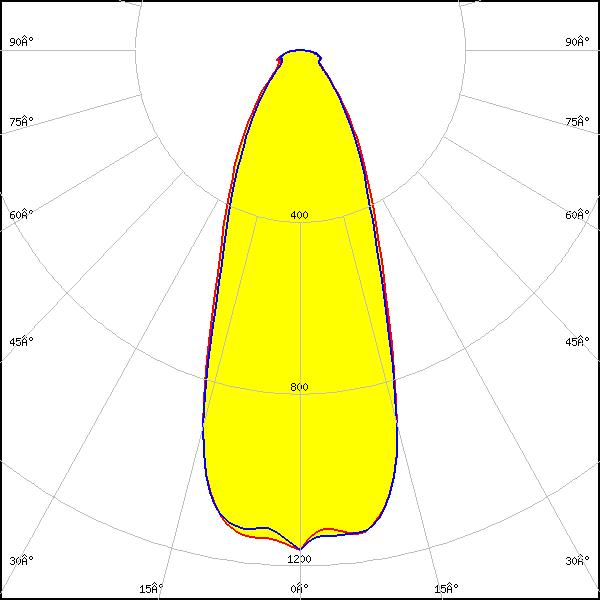

LUXEON CoB 1321
LES size: 29.2 mm
FWHM:
41°
FWTM:
89°
Peak intensity:
1.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

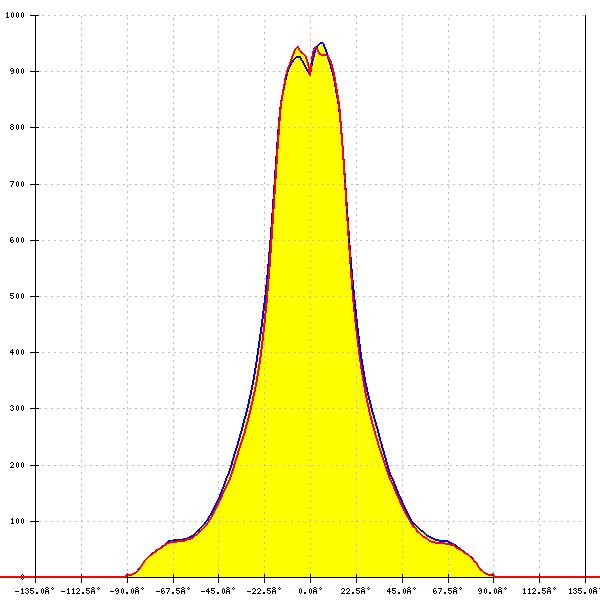

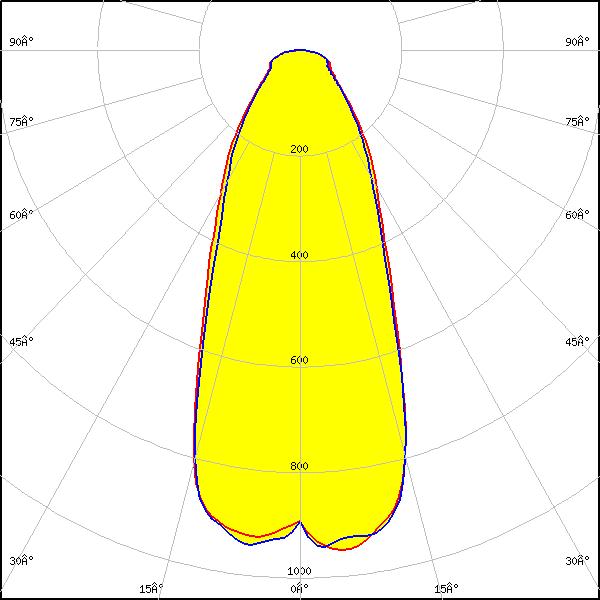

LED:

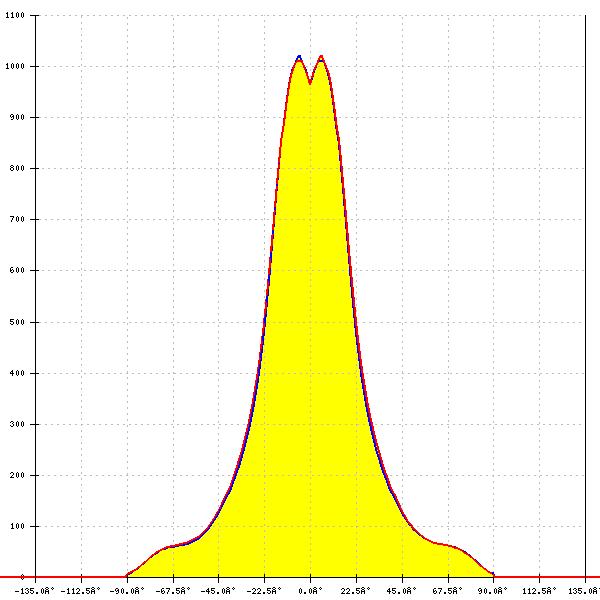

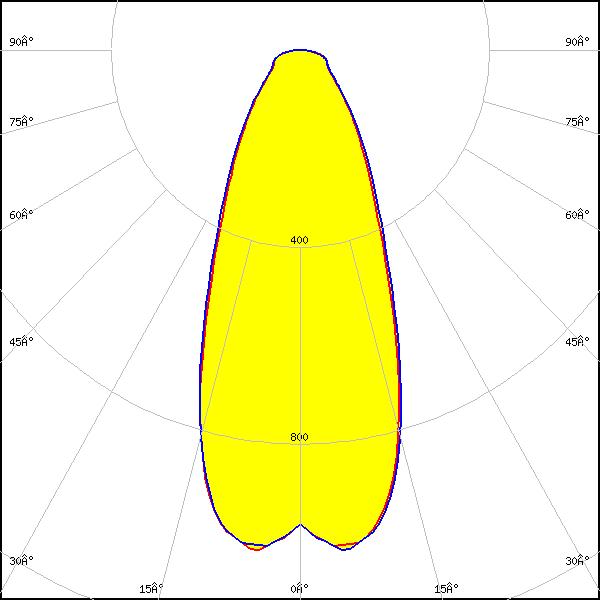

LUXEON CoB 1825
LES size: 32.8 mm
FWHM:
44°
FWTM:
102°
Peak intensity:
0.940 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

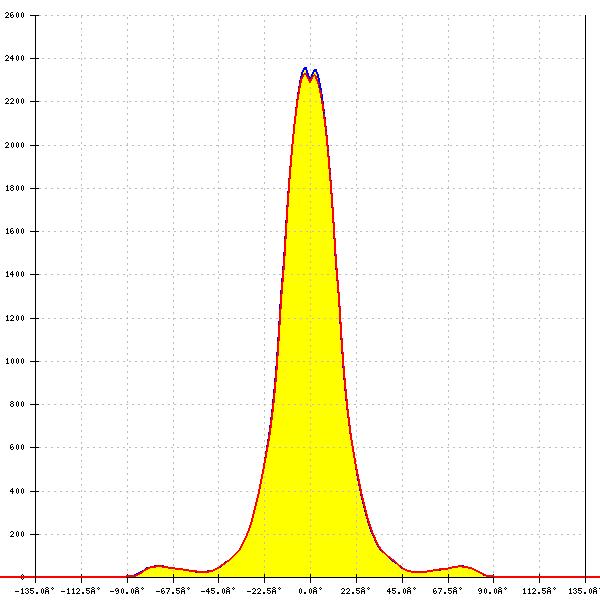

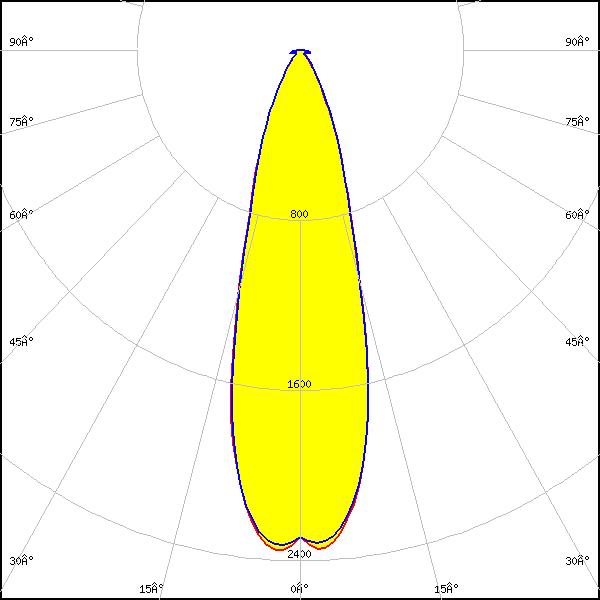

CxM-22 (28x28)
LES size: 22.0 mm
Required components:
Bender Wirth: 431 Typ L4
FWHM:
30°
FWTM:
60°
Peak intensity:
2.370 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XFM-5050 3 Die
LES size: 0.0 mm
FWHM:
40°
FWTM:
164°
Efficiency:
42 %
LEDs/each optic:
21
Light colour/type:
UV-C
LED:

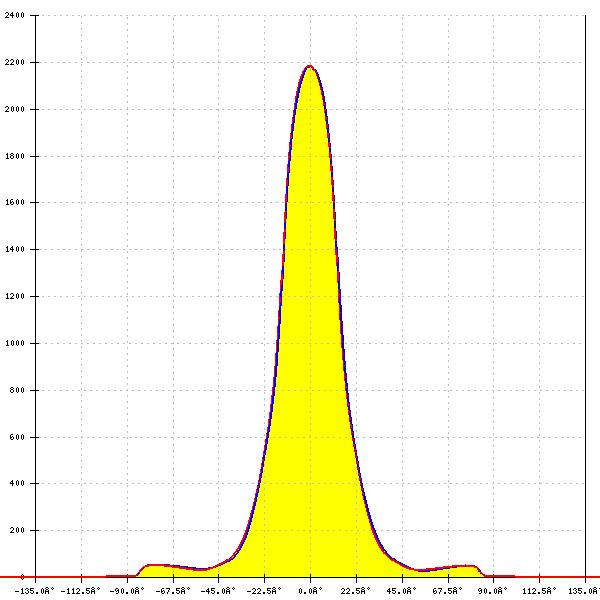

COB H-Type
LES size: 23.0 mm
FWHM:
30°
FWTM:
61°
Peak intensity:
2.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

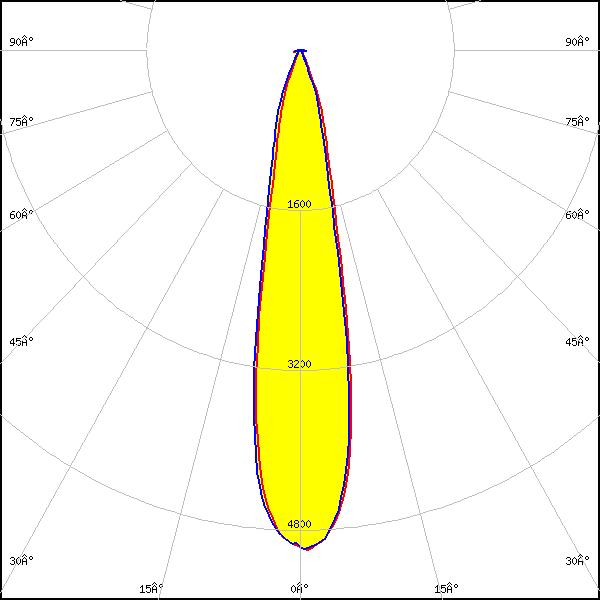

COB J-Type
LES size: 14.6 mm
FWHM:
20°
FWTM:
42°
Peak intensity:
5.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

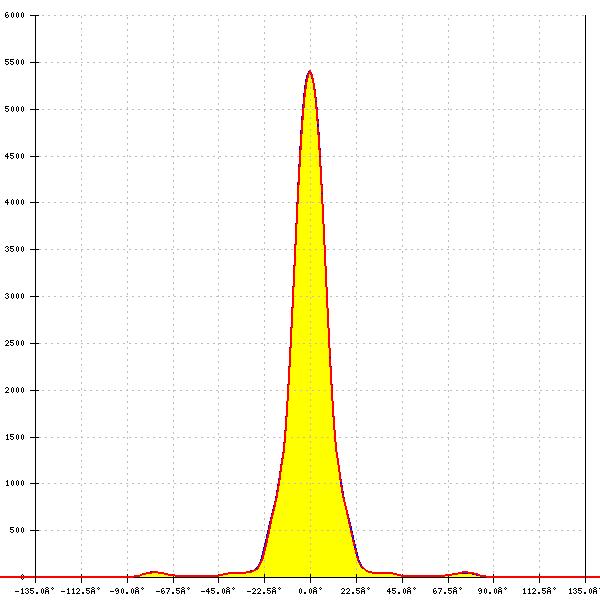

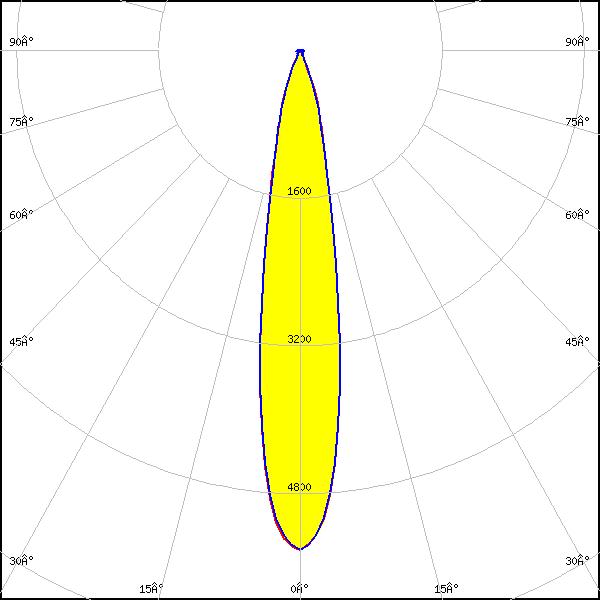

Fortimo SLM L13 CoB
LES size: 13.0 mm
FWHM:
18°
FWTM:
40°
Peak intensity:
5.415 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

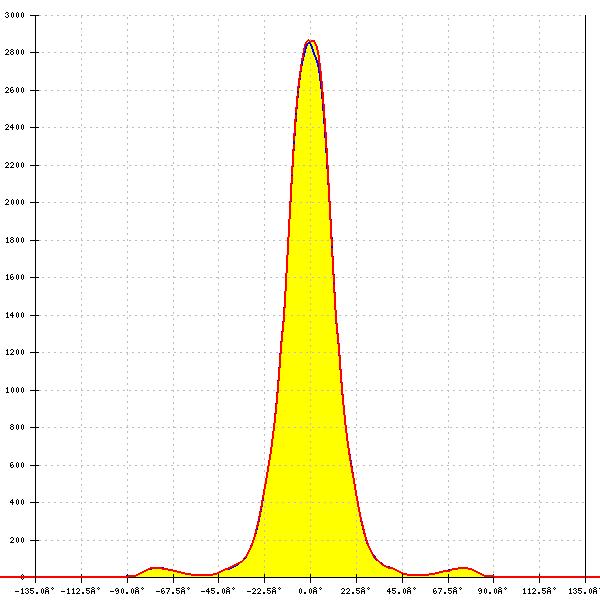

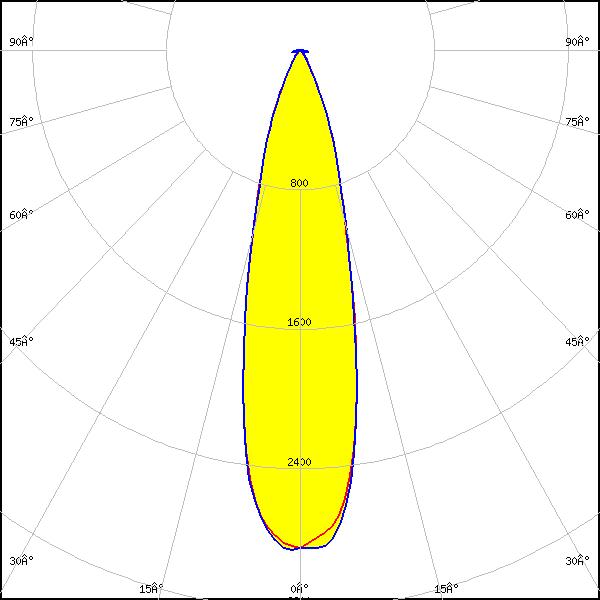

LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
FWHM:
26°
FWTM:
52°
Peak intensity:
2.881 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

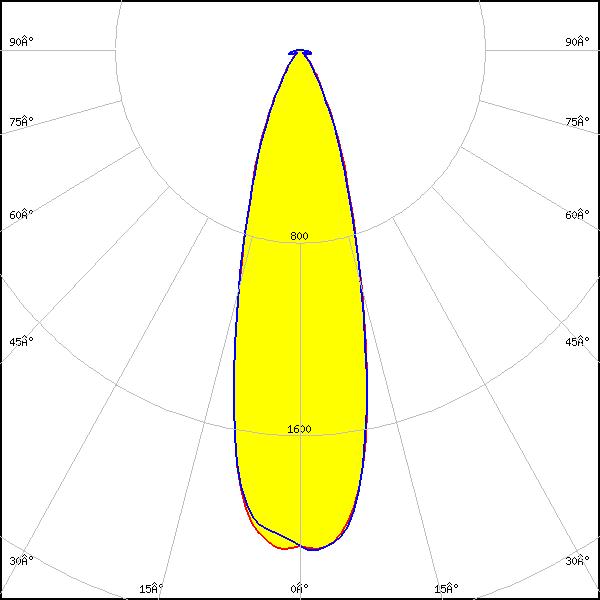

LED:

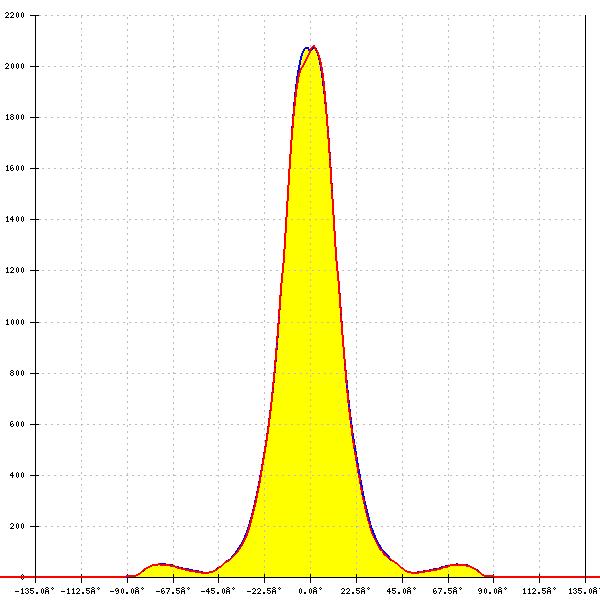

Fortimo SLM L23 CoB
LES size: 23.0 mm
FWHM:
30°
FWTM:
59°
Peak intensity:
2.096 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

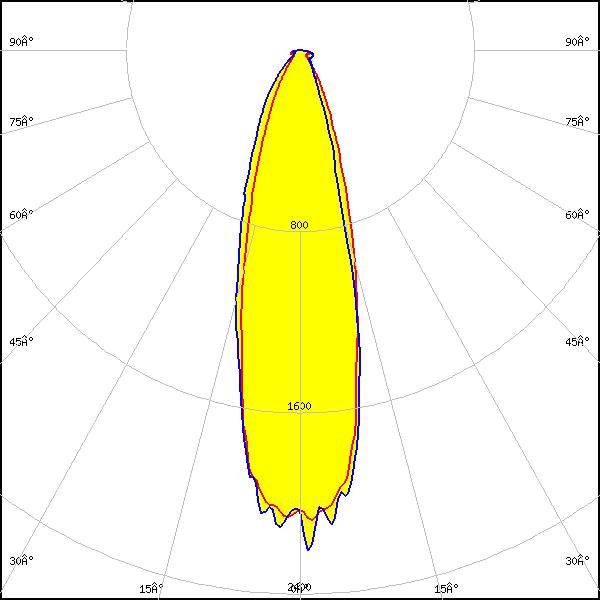

LC040D / LC060D / LC080D
LES size: 22.0 mm
FWHM:
29°
FWTM:
62°
Peak intensity:
2.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

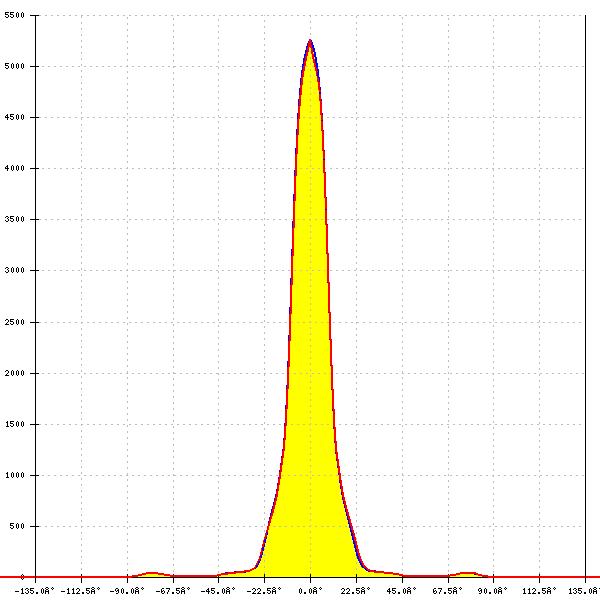

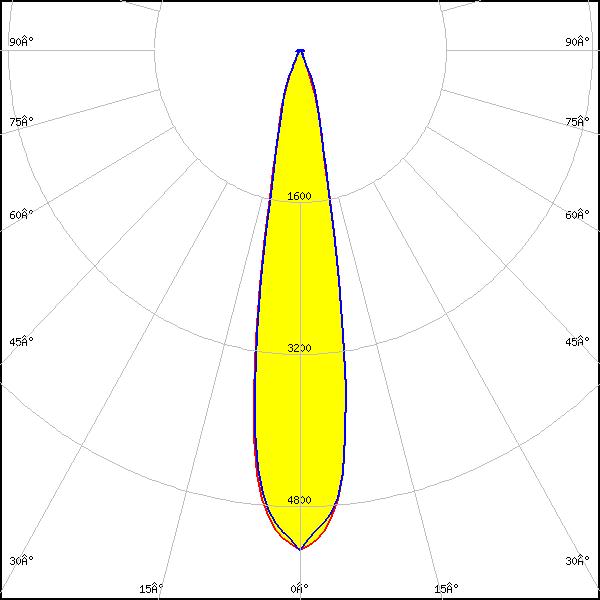

LED:
SLE 13mm 3000lm xxx R ADV8
LES size: 13.0 mm
FWHM:
20°
FWTM:
40°
Peak intensity:
5.261 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

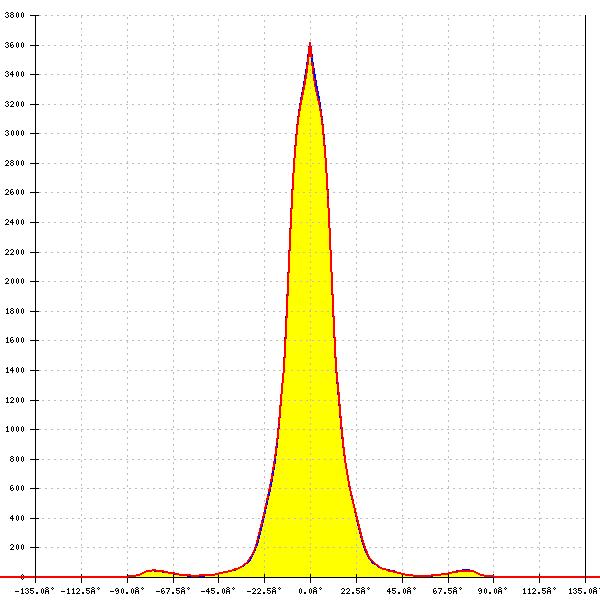

LED:
SLE 17mm 5000lm xxx R ADV8
LES size: 16.5 mm
Required components:
Bender Wirth: 466 Typ L4
FWHM:
24°
FWTM:
48°
Peak intensity:
3.617 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

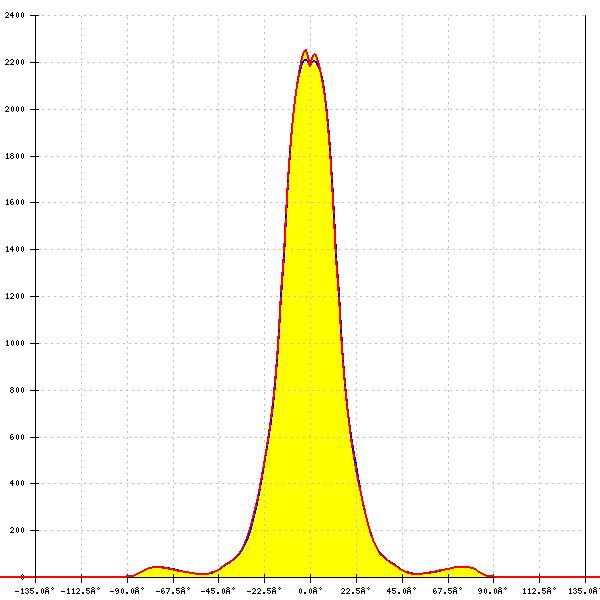

LED:

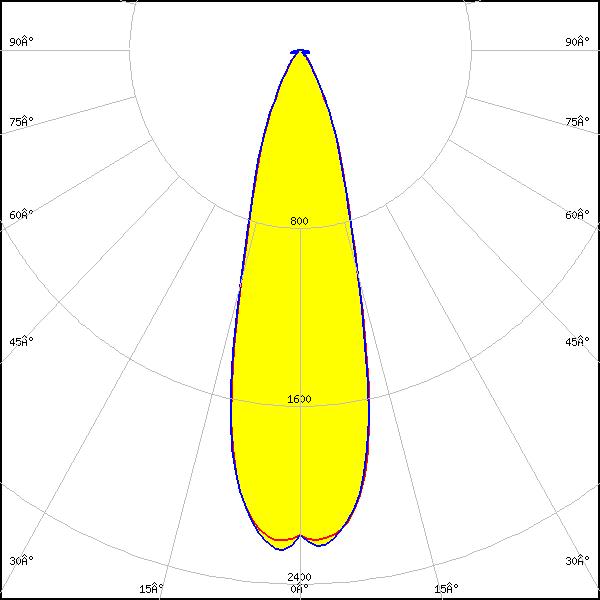

SLE 21mm 6000lm xxx R ADV8
LES size: 20.5 mm
Required components:
Bender Wirth: 466 Typ L4
FWHM:
30°
FWTM:
58°
Peak intensity:
2.250 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
