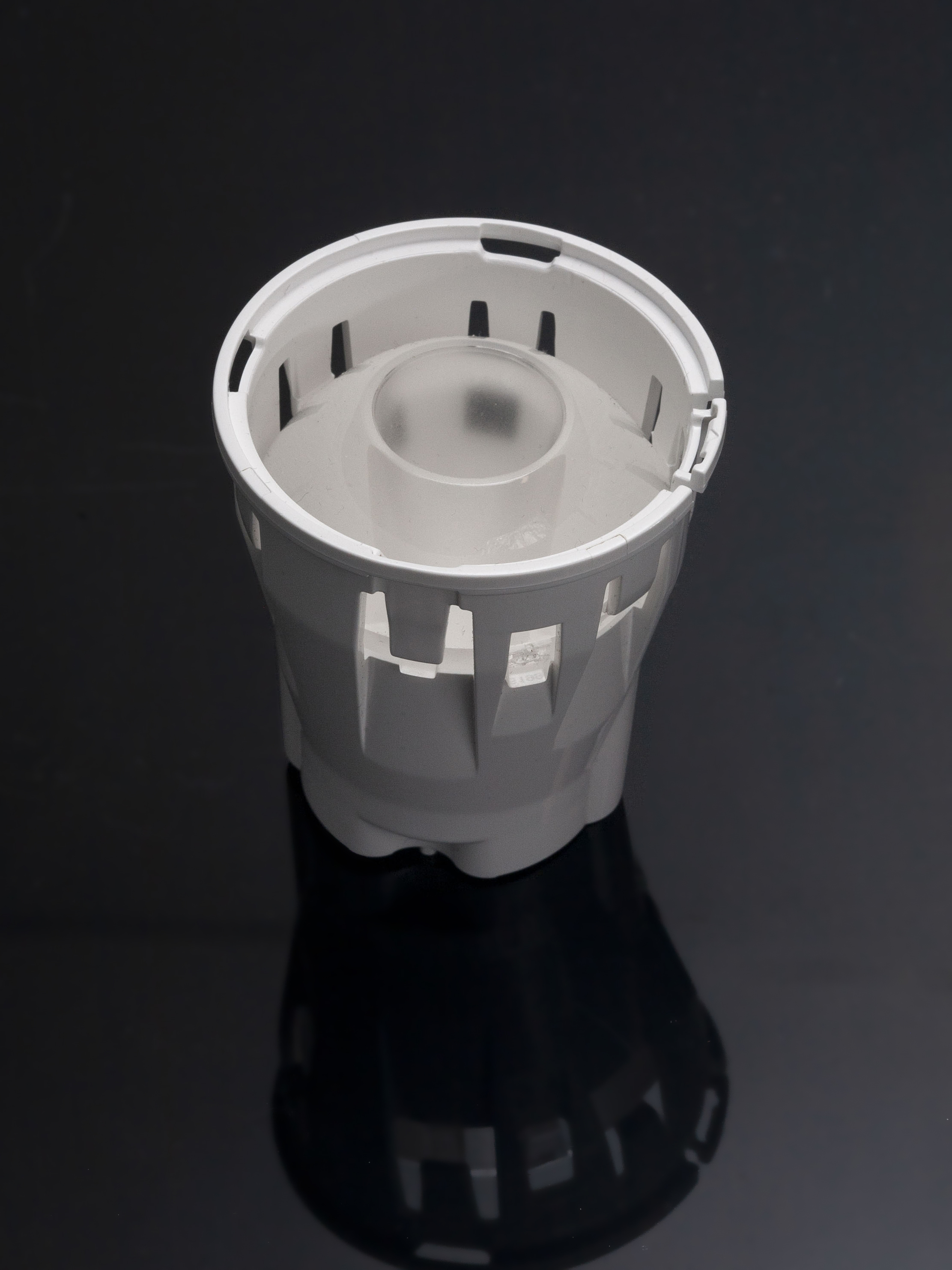

LEIA-S
Print
~3° spot beam
This product consists of multiple parts that need to be ordered separately. See ordering information.
Component Materials
- LEIA-SSingle lensPMMA
- LEIA-HLDHolderHRPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

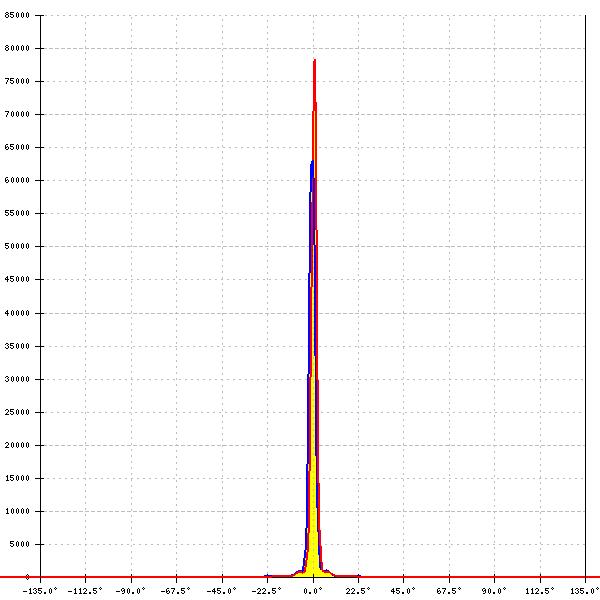

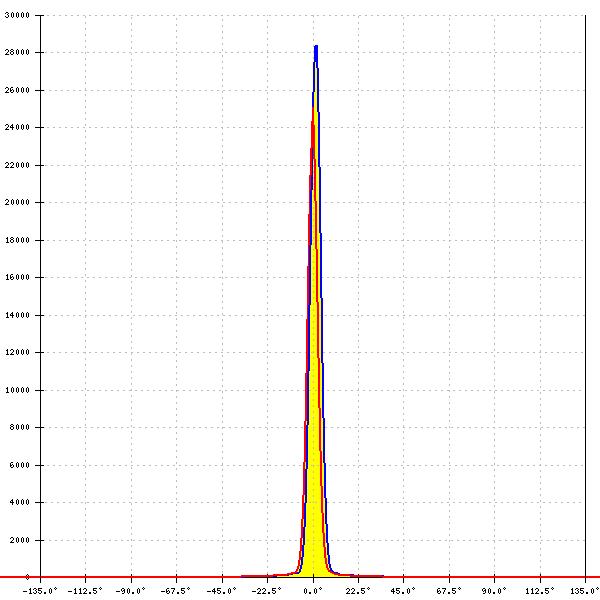

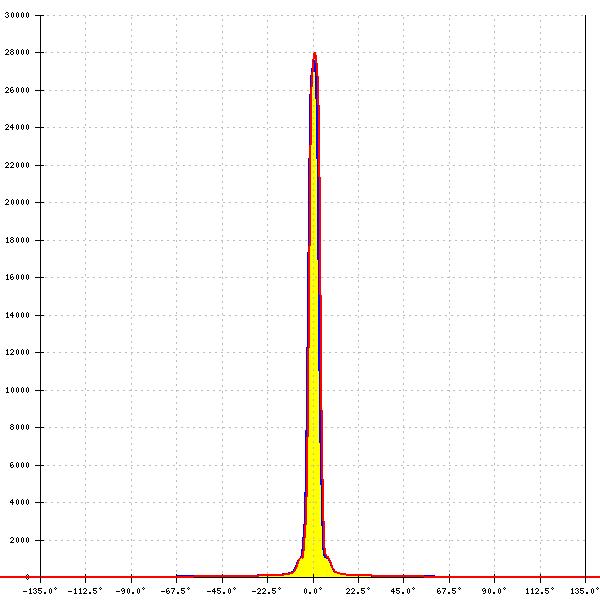

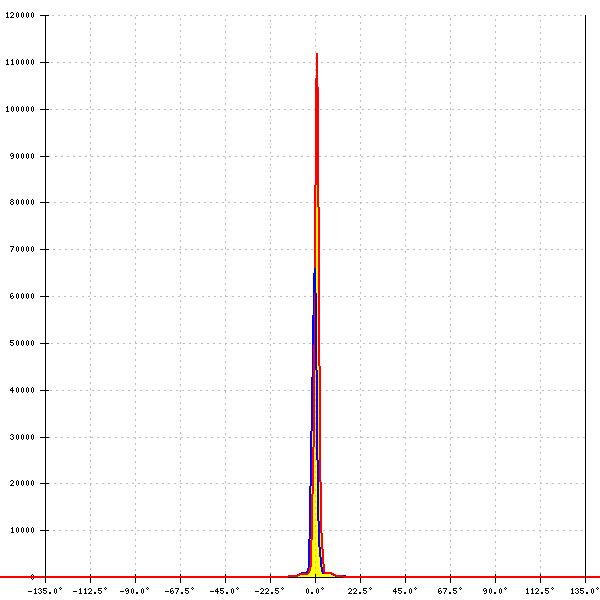

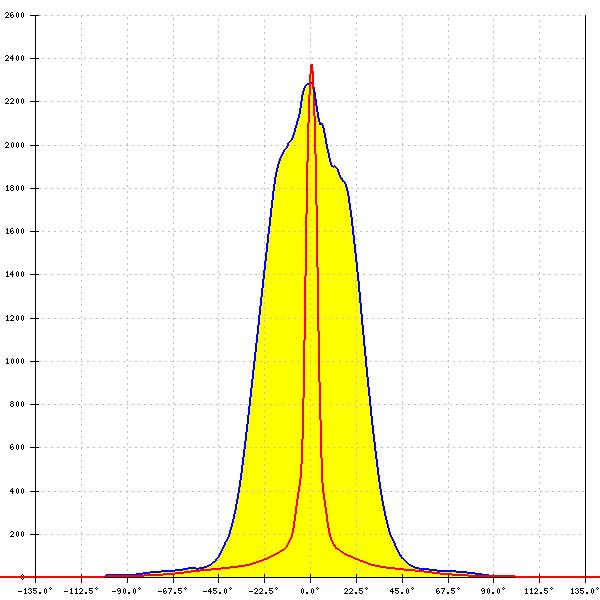

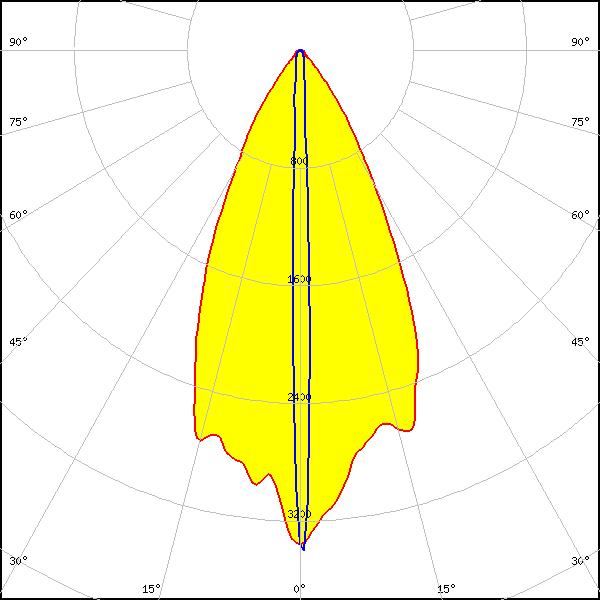

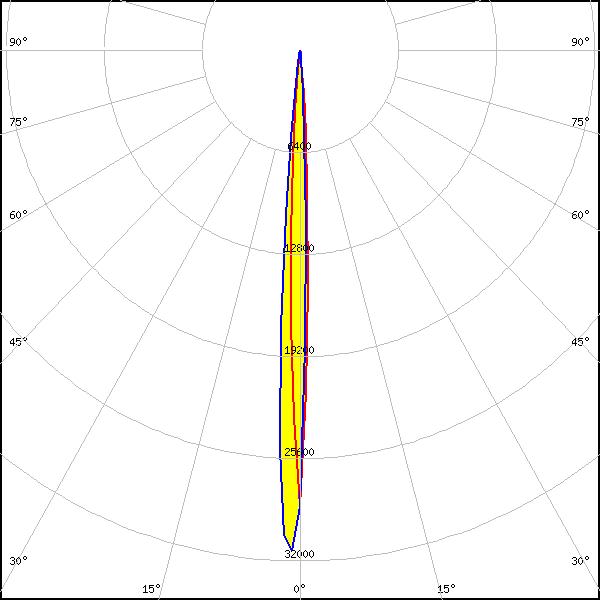

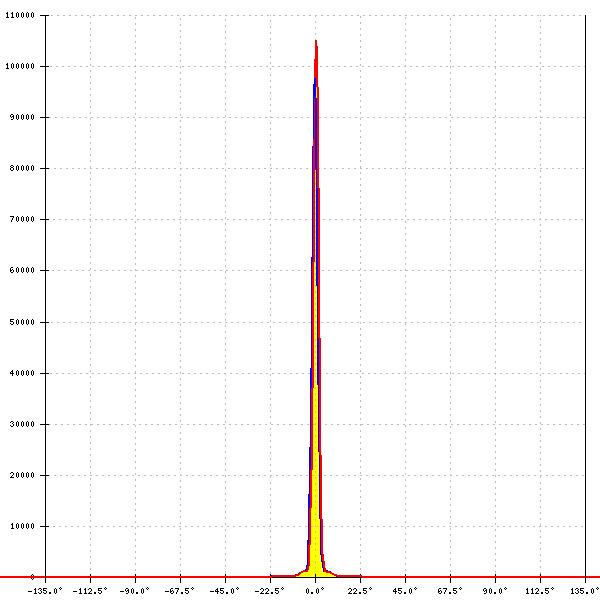

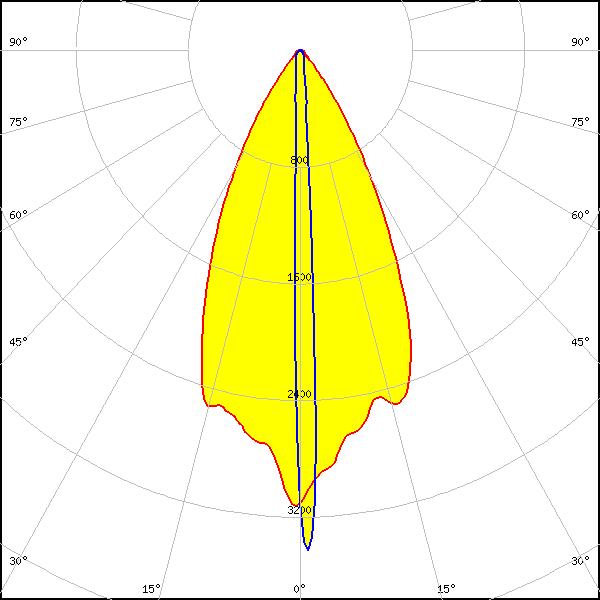

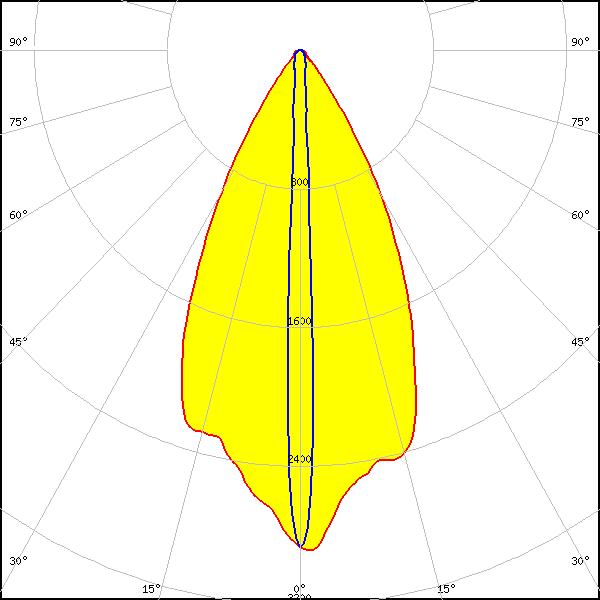

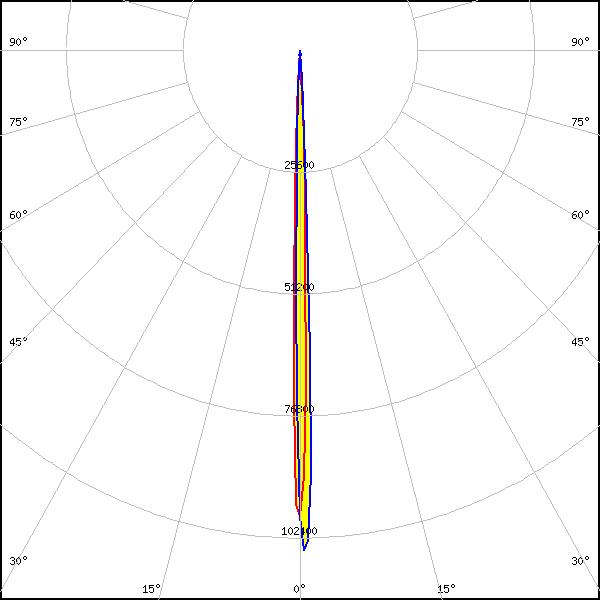

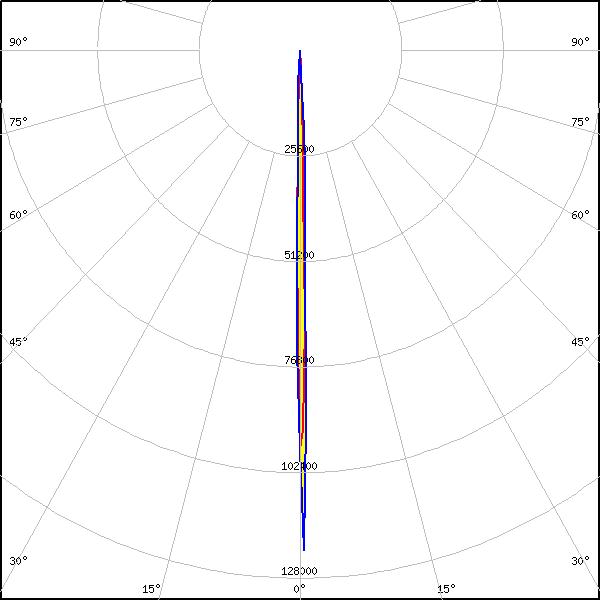

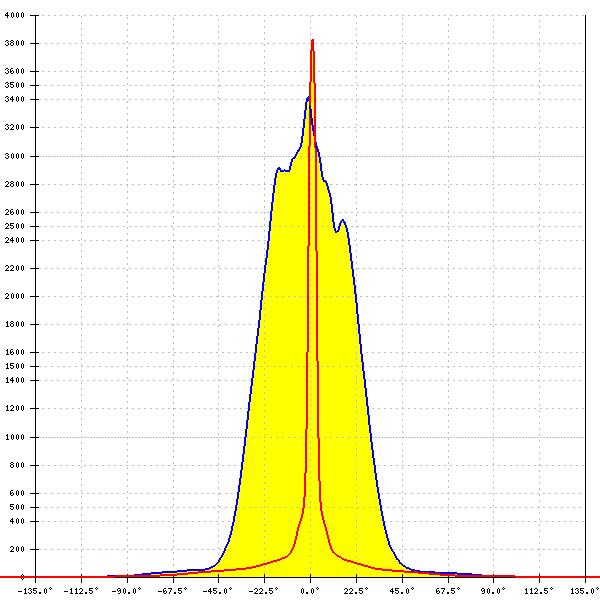

Optical results

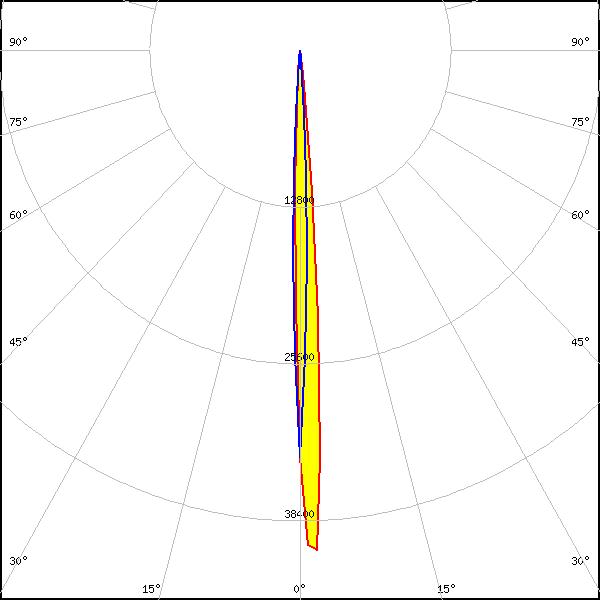

LED:
XE-G
FWHM:
5°
FWTM:
10°
Peak intensity:
40.834 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White

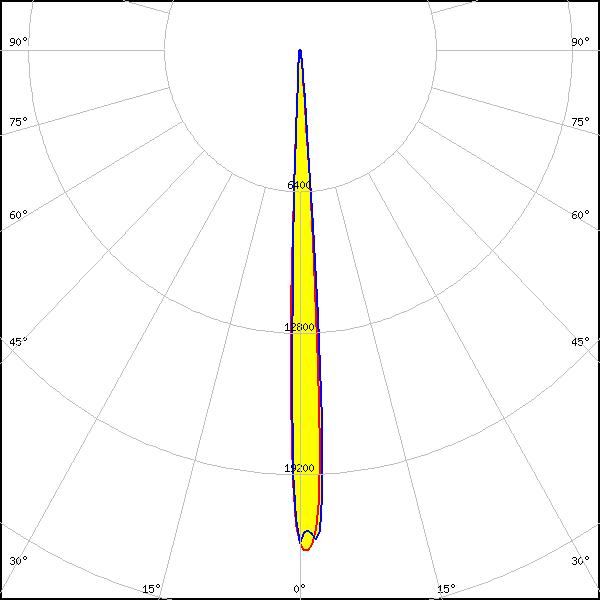

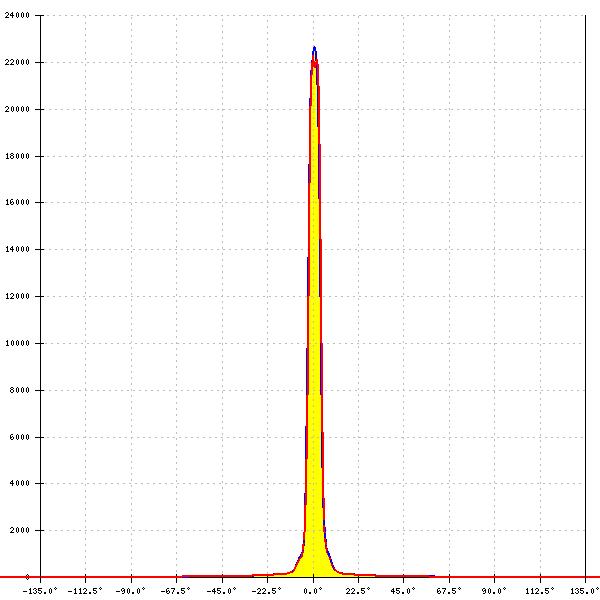

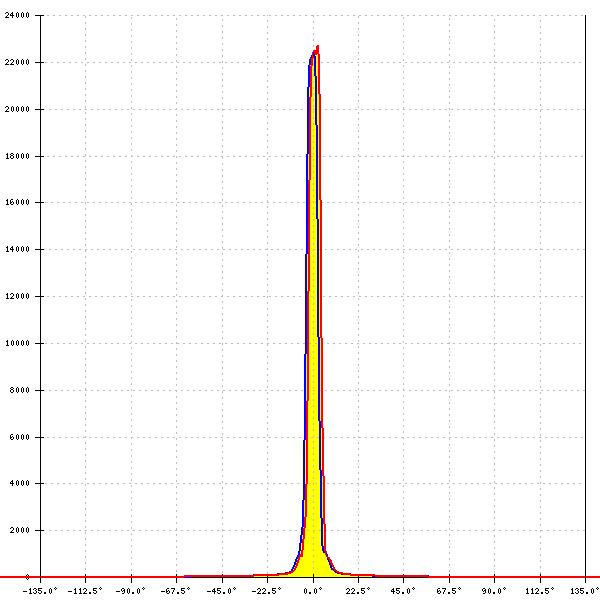

LED:
XHP35 HD
FWHM:
6°
FWTM:
9°
Peak intensity:
22.600 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
FWHM:
6°
FWTM:
9°
Peak intensity:
22.800 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White

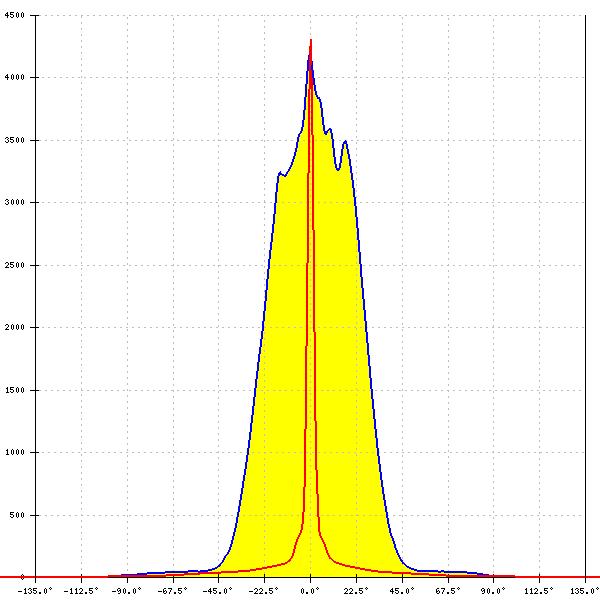

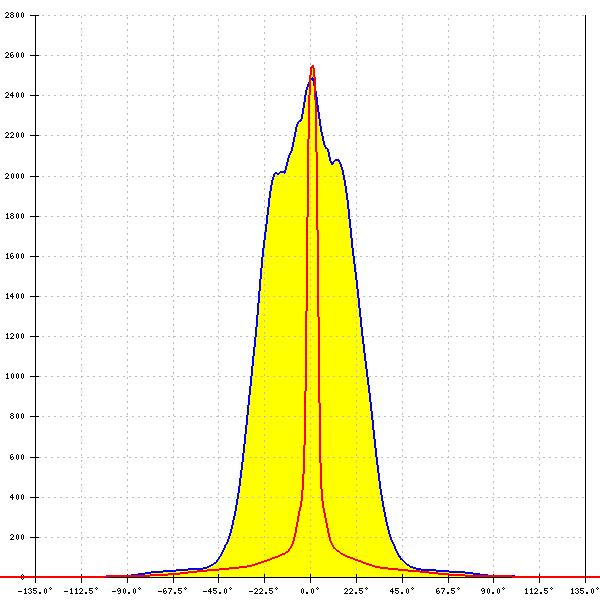

LED:
XHP35 HD
Required components:
F16629_LEIA-SUB-O
FWHM:
52° + 6°
FWTM:
77° + 15°
Peak intensity:
2.600 cd/lm
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
White

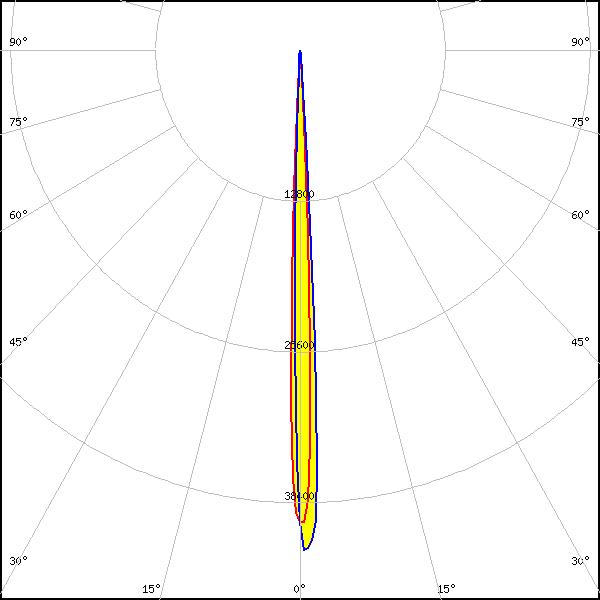

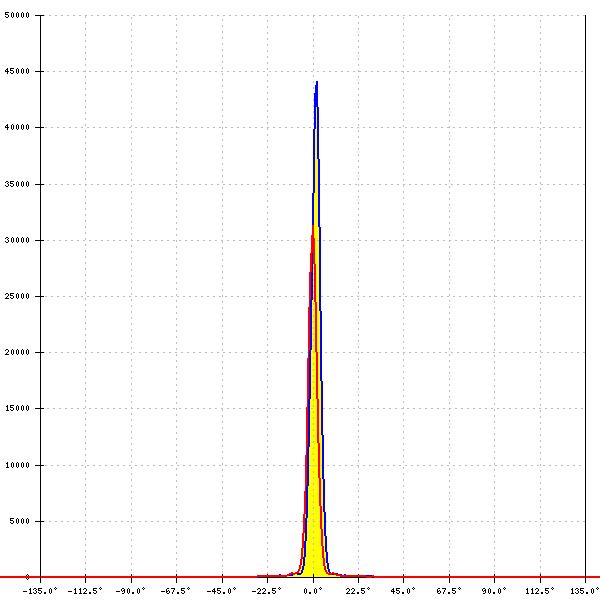

LED:
XHP35 HI
FWHM:
4°
FWTM:
9°
Peak intensity:
44.800 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
4°
FWTM:
7°
Peak intensity:
43.200 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White

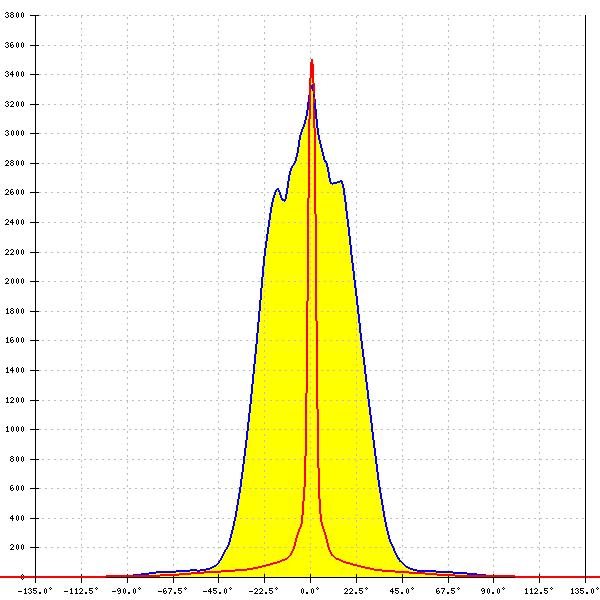

LED:
XHP35 HI
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 5°
FWTM:
76° + 11°
Peak intensity:
3.600 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.2
Required components:
F16629_LEIA-SUB-O
FWHM:
52° + 8°
FWTM:
78° + 20°
Peak intensity:
1.800 cd/lm
Efficiency:
42 %
LEDs/each optic:
1
Light colour/type:
White

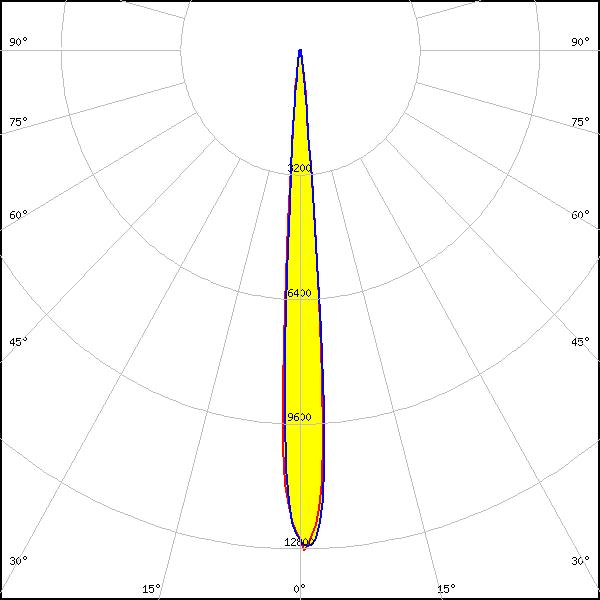

LED:
XHP50.2
FWHM:
8°
FWTM:
14°
Peak intensity:
12.980 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70.2
FWHM:
12°
FWTM:
18°
Peak intensity:
7.409 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White

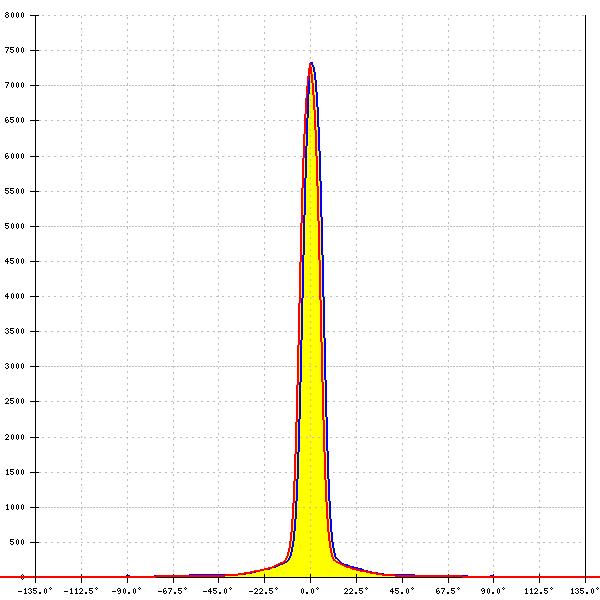

LED:
XHP70.3 HD
FWHM:
11°
FWTM:
19°
Peak intensity:
7.325 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White

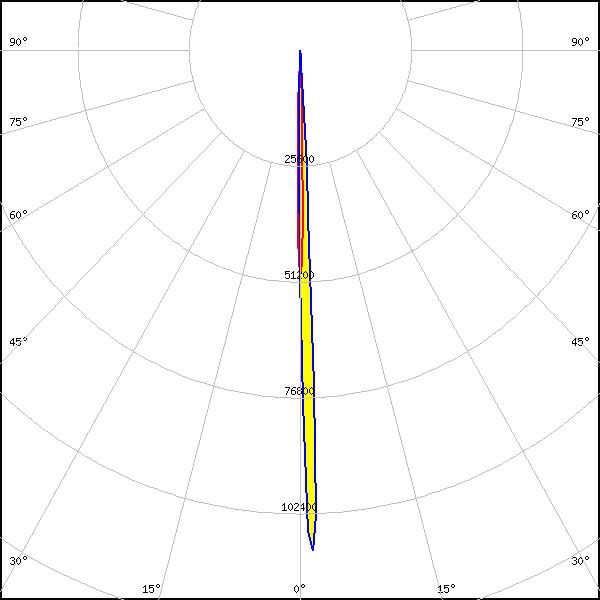

LED:
XP-E2
FWHM:
3°
FWTM:
6°
Peak intensity:
128.300 cd/lm
Efficiency:
59 %
LEDs/each optic:
1
Light colour/type:
White

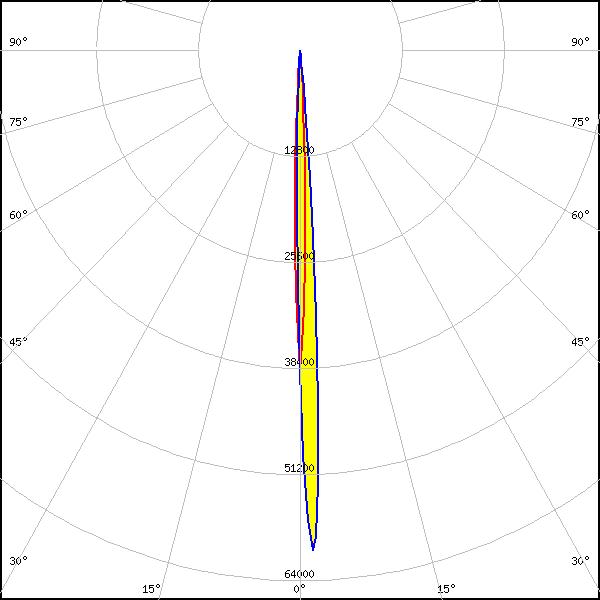

LED:
XP-G2
FWHM:
4°
FWTM:
9°
Peak intensity:
57.000 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White

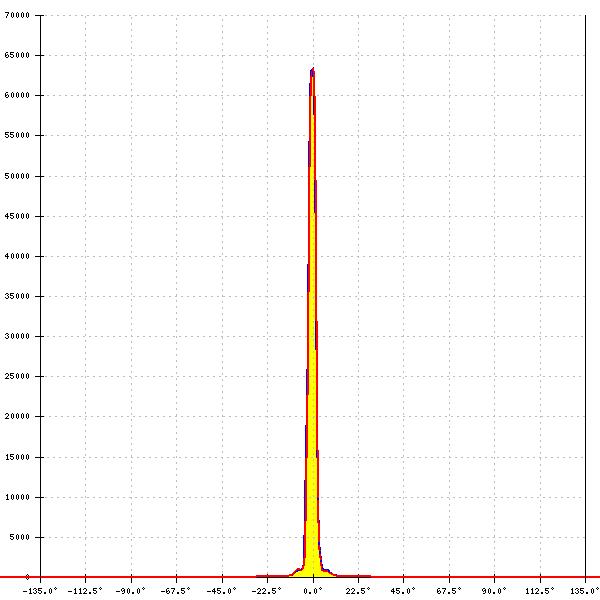

LED:
XP-G2
FWHM:
4°
FWTM:
6°
Peak intensity:
63.400 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White

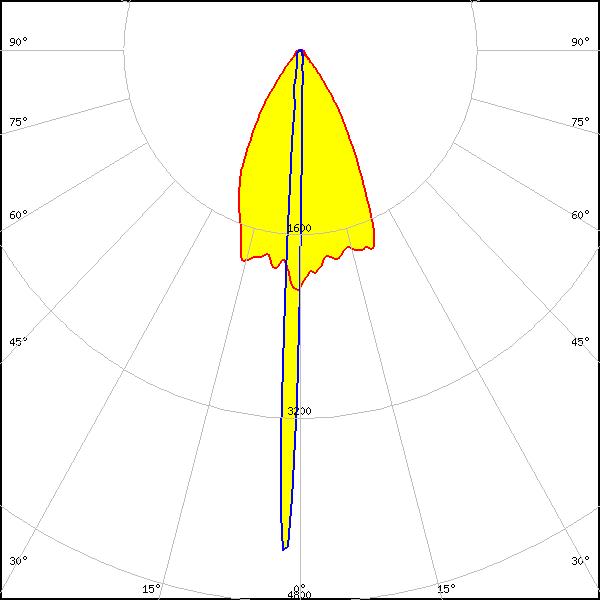

LED:
XP-G2
FWHM:
57° + 4°
FWTM:
82° + 9°
Peak intensity:
4.600 cd/lm
Efficiency:
40 %
LEDs/each optic:
1
Light colour/type:
White

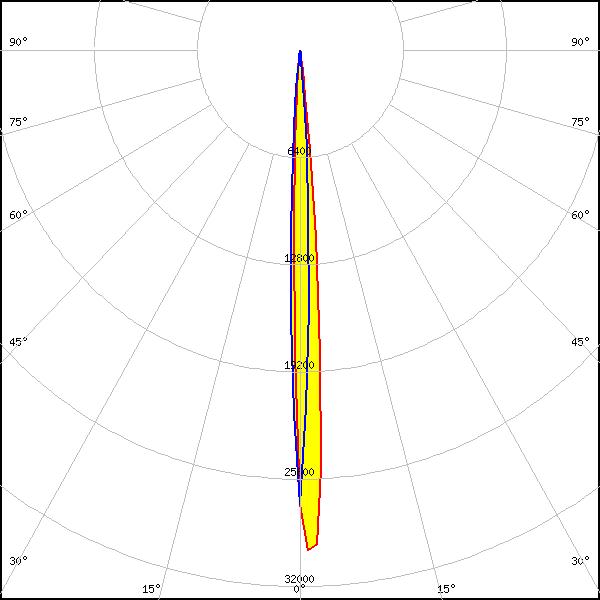

LED:
XP-G2 HE
FWHM:
5°
FWTM:
11°
Peak intensity:
29.870 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White

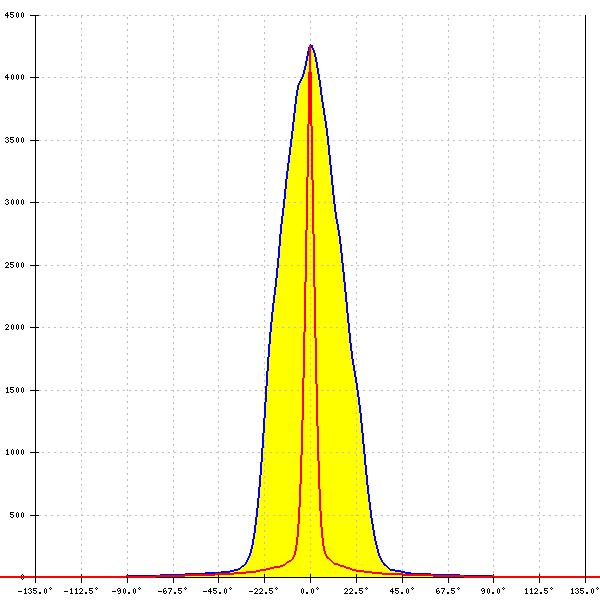

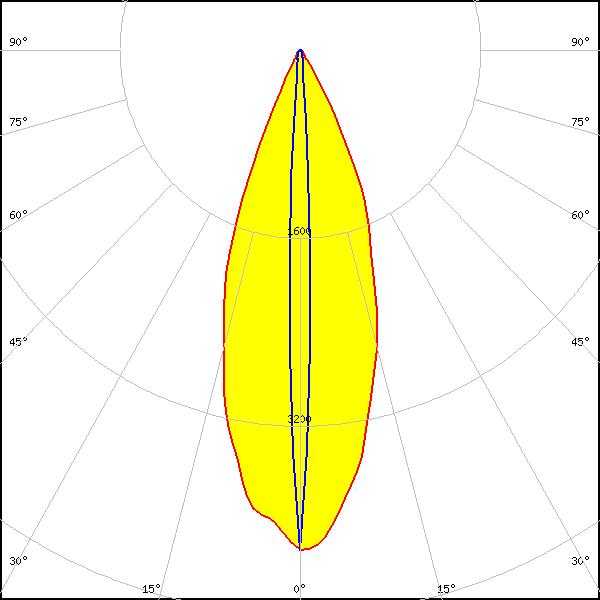

LED:
XP-G2 HE
Required components:
F16629_LEIA-SUB-O
FWHM:
36° + 5°
FWTM:
58° + 12°
Peak intensity:
4.258 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White

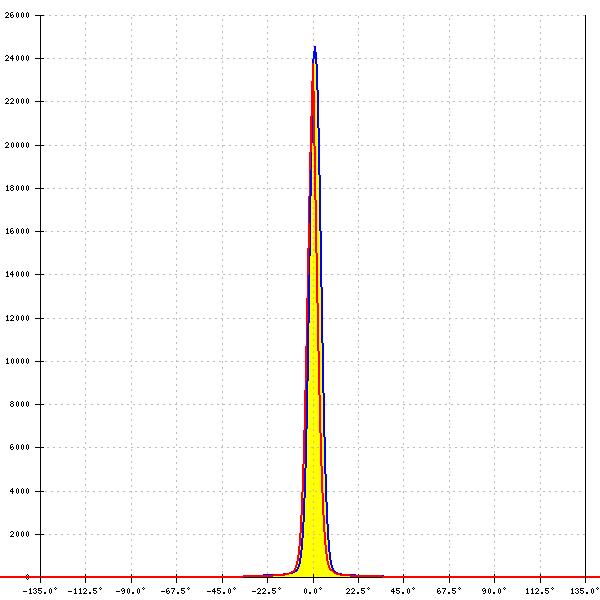

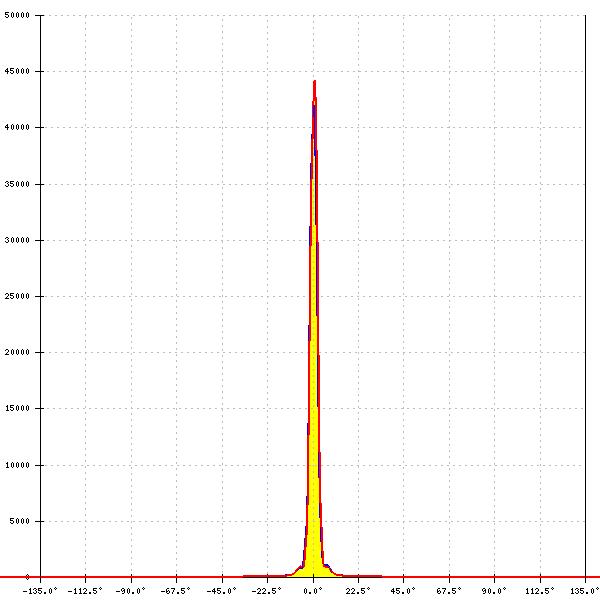

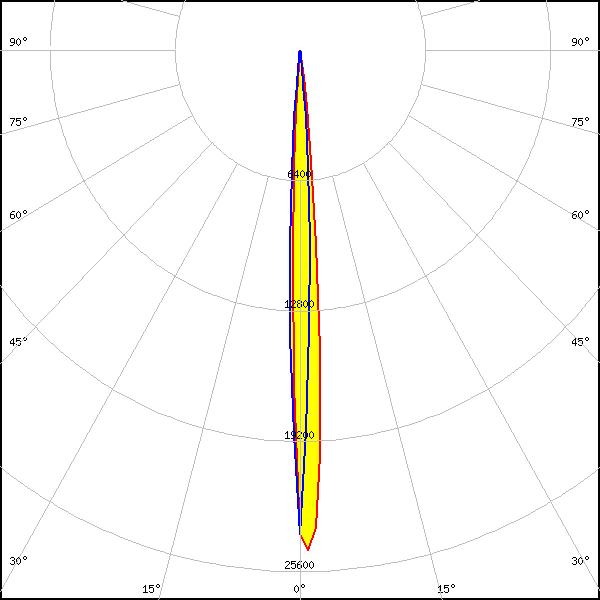

LED:
XP-G3
FWHM:
6°
FWTM:
12°
Peak intensity:
24.600 cd/lm
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
4°
FWTM:
7°
Peak intensity:
48.500 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White

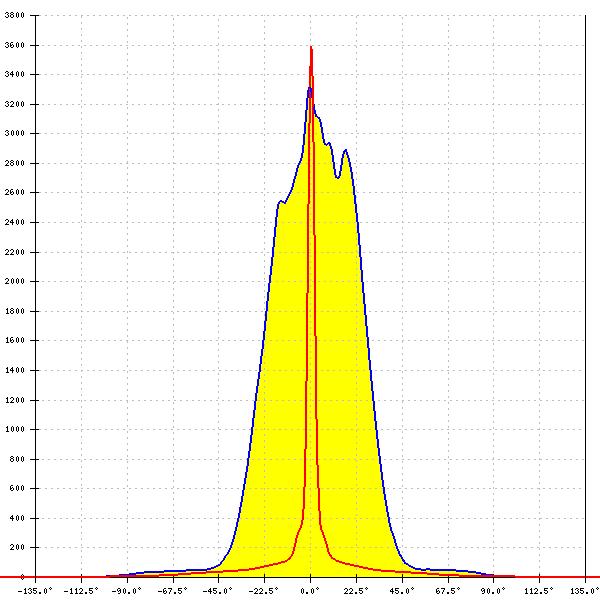

LED:
XP-G3
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 4°
FWTM:
76° + 9°
Peak intensity:
3.700 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White

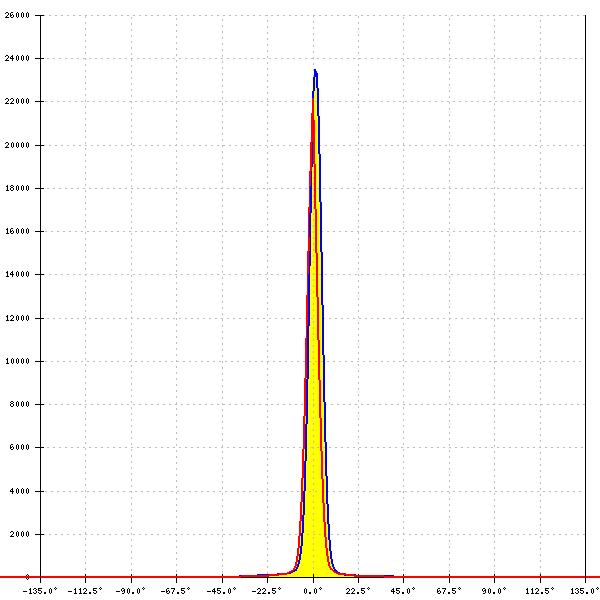

LED:
XP-L HD
FWHM:
6°
FWTM:
13°
Peak intensity:
23.510 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HI
FWHM:
5°
FWTM:
10°
Peak intensity:
42.600 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White

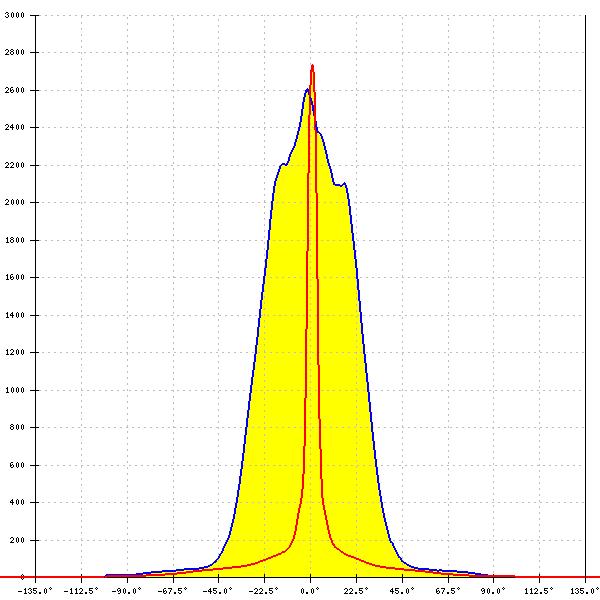

LED:
XP-L2
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 6°
FWTM:
77° + 16°
Peak intensity:
2.800 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White

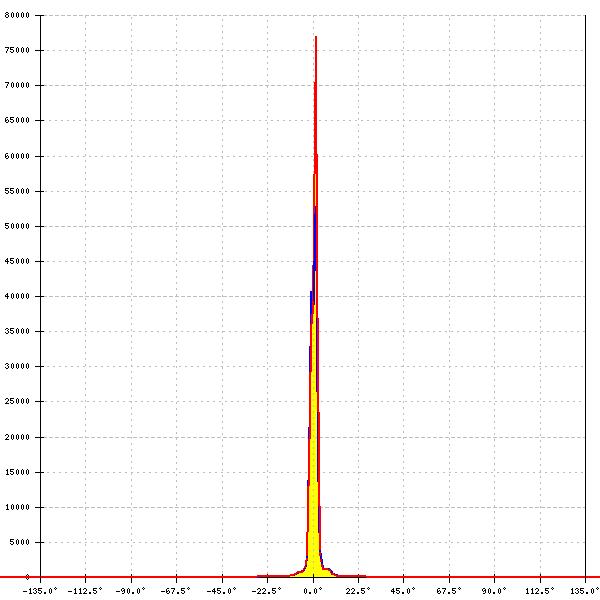

LED:
XQ-E HD
FWHM:
3°
FWTM:
6°
Peak intensity:
91.000 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White

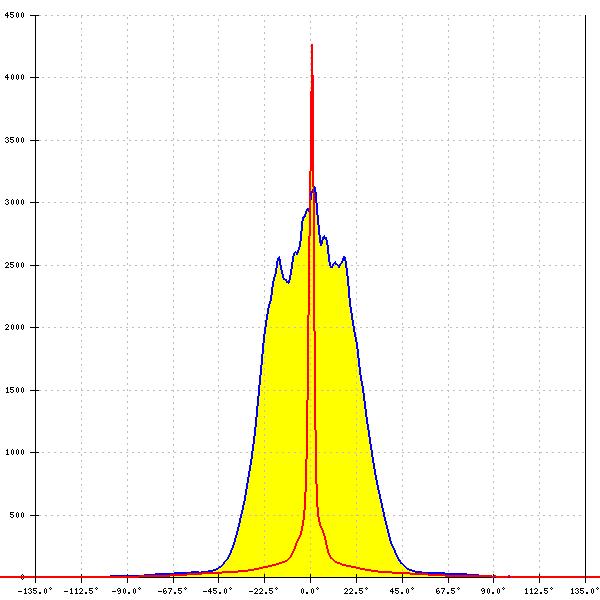

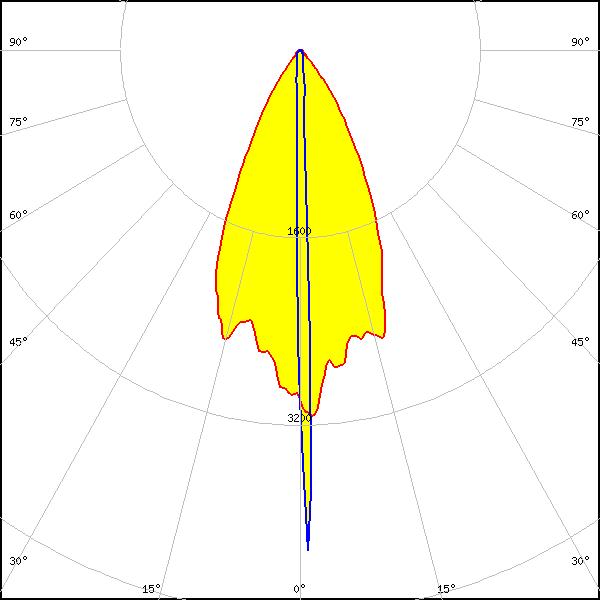

LED:
XQ-E HD
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 3°
FWTM:
76° + 9°
Peak intensity:
4.600 cd/lm
Efficiency:
42 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HI
Required components:
F16629_LEIA-SUB-O
FWHM:
52° + 3°
FWTM:
79° + 9°
Peak intensity:
6.000 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White

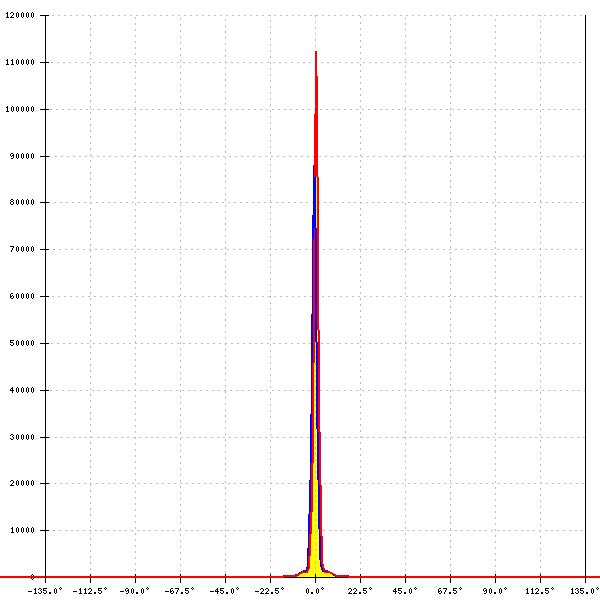

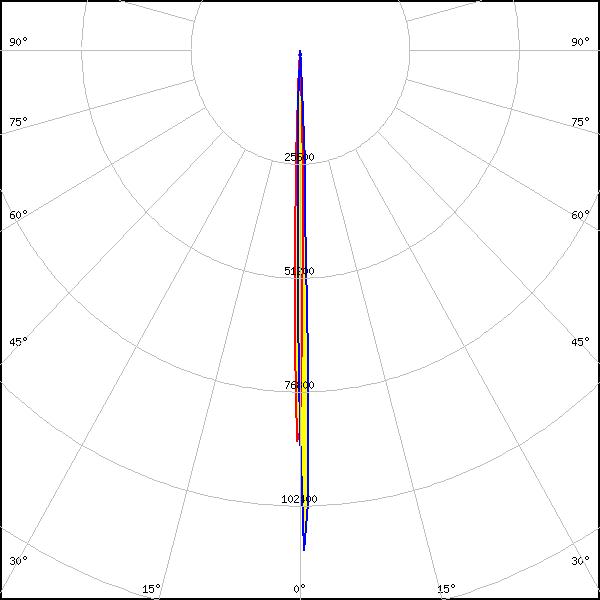

LED:
XQ-E HI
FWHM:
2°
FWTM:
4°
Peak intensity:
112.600 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White

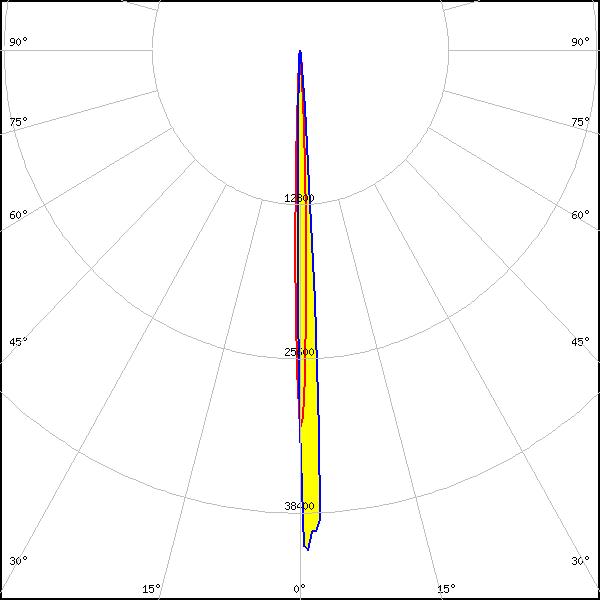

LED:
XT-E
FWHM:
4°
FWTM:
7°
Peak intensity:
42.900 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White

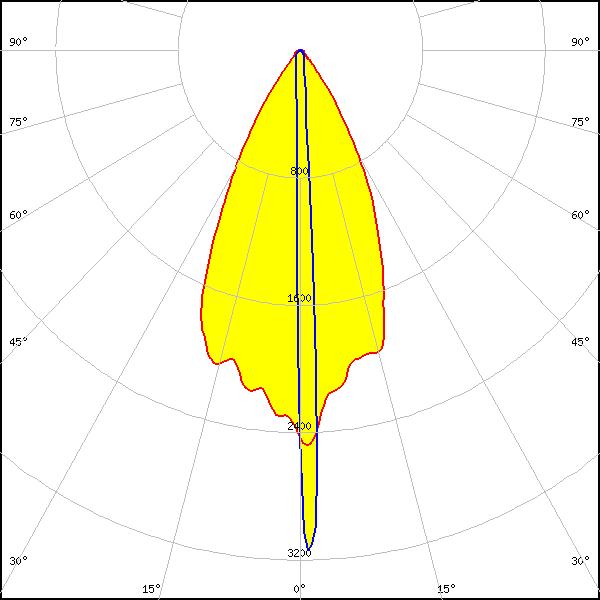

LED:
XT-E
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 4°
FWTM:
76° + 11°
Peak intensity:
6.200 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White

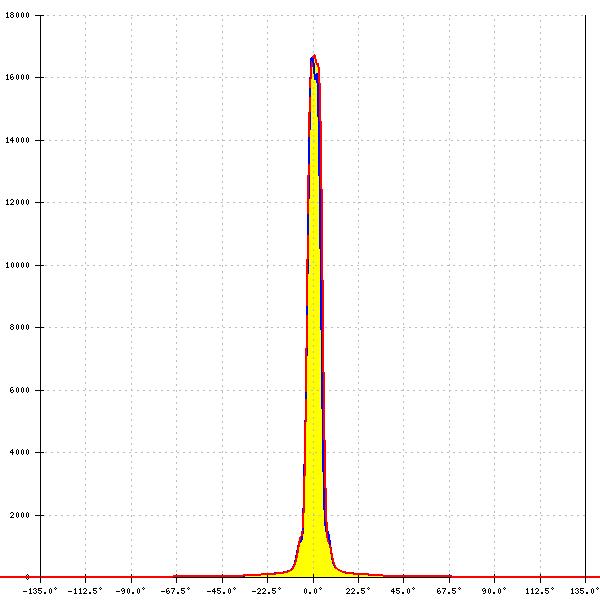

LED:
LUXEON 5050 Round LES
FWHM:
7°
FWTM:
11°
Peak intensity:
16.700 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White

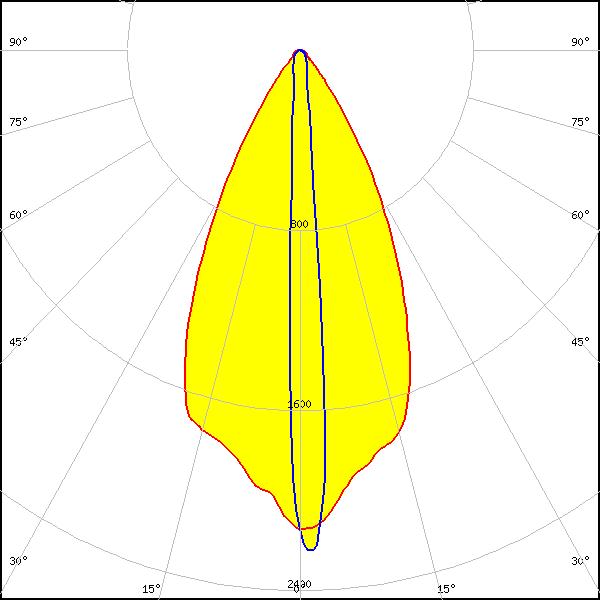

LED:
LUXEON 5050 Round LES
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 7°
FWTM:
78° + 18°
Peak intensity:
2.200 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White

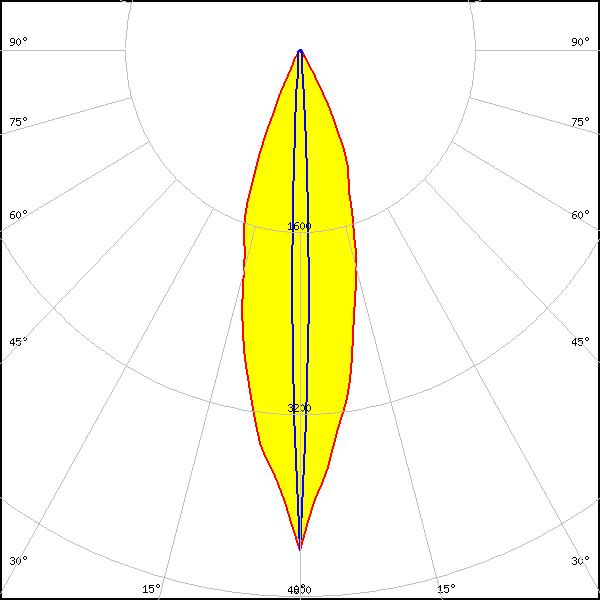

LED:
LUXEON C
Required components:
F16629_LEIA-SUB-O
FWHM:
27° + 4°
FWTM:
54° + 10°
Peak intensity:
4.395 cd/lm
Efficiency:
35 %
LEDs/each optic:
1
Light colour/type:
Red

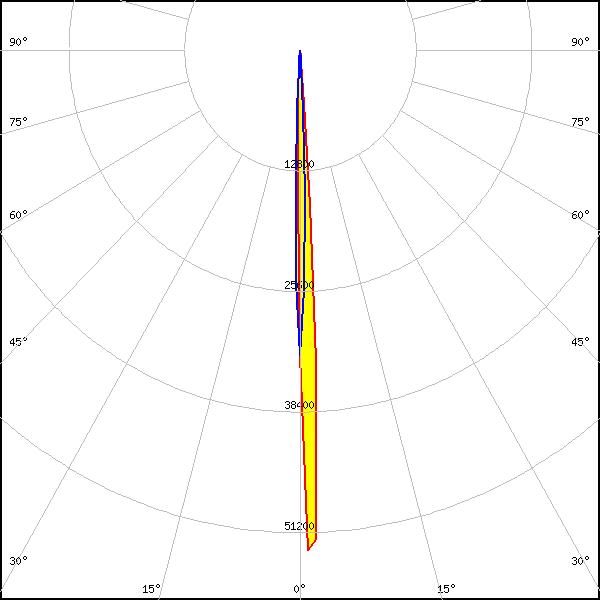

LED:
LUXEON C
FWHM:
4°
FWTM:
7°
Peak intensity:
53.700 cd/lm
Efficiency:
36 %
LEDs/each optic:
1
Light colour/type:
White

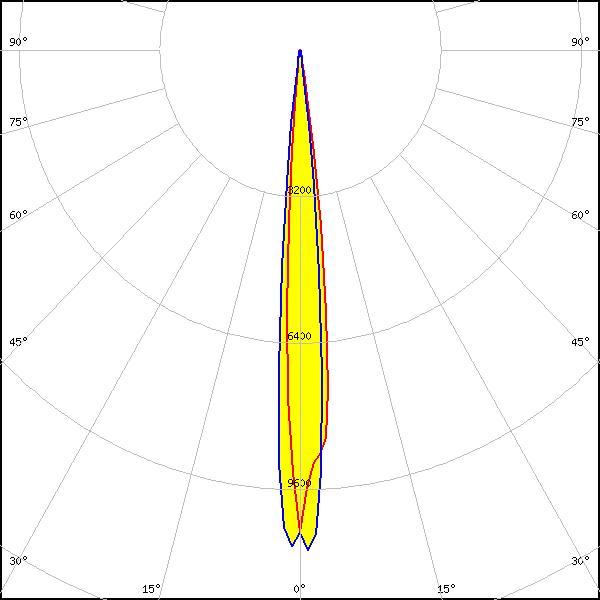

LED:
LUXEON CZ
FWHM:
10°
FWTM:
16°
Peak intensity:
11.007 cd/lm
Efficiency:
42 %
LEDs/each optic:
4
Light colour/type:
White

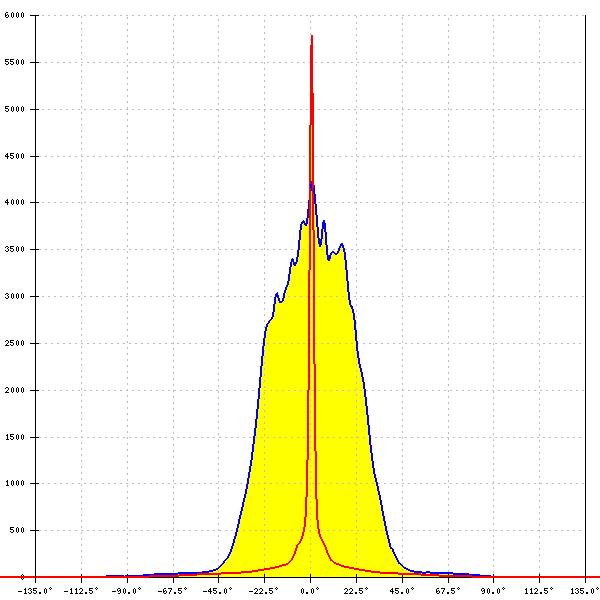

LED:
LUXEON CZ
Required components:
F16629_LEIA-SUB-O
FWHM:
28° + 4°
FWTM:
54° + 10°
Peak intensity:
6.287 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
Red

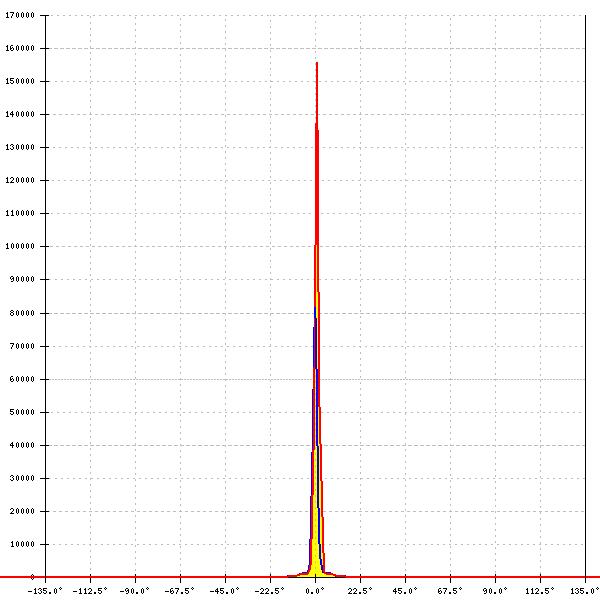

LED:
LUXEON CZ
FWHM:
2°
FWTM:
5°
Peak intensity:
157.027 cd/lm
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
White
LED:

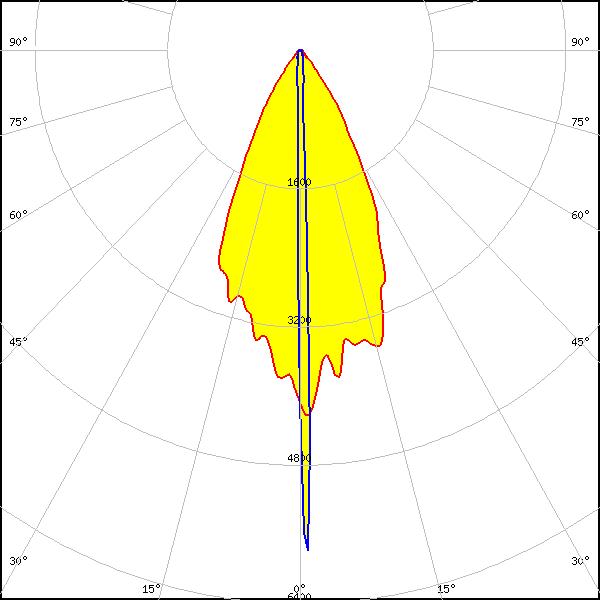

LUXEON CZ
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 3°
FWTM:
76° + 7°
Peak intensity:
6.917 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
FWHM:
6°
FWTM:
9°
Peak intensity:
27.500 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White

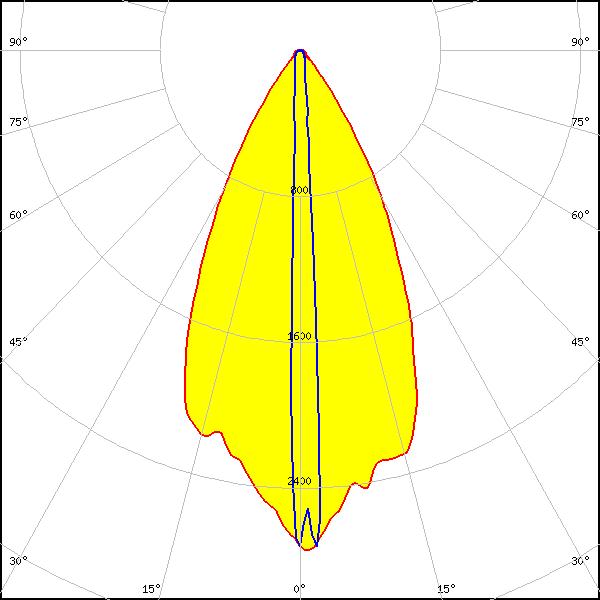

LED:
LUXEON MZ
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 6°
FWTM:
77° + 15°
Peak intensity:
2.800 cd/lm
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
White

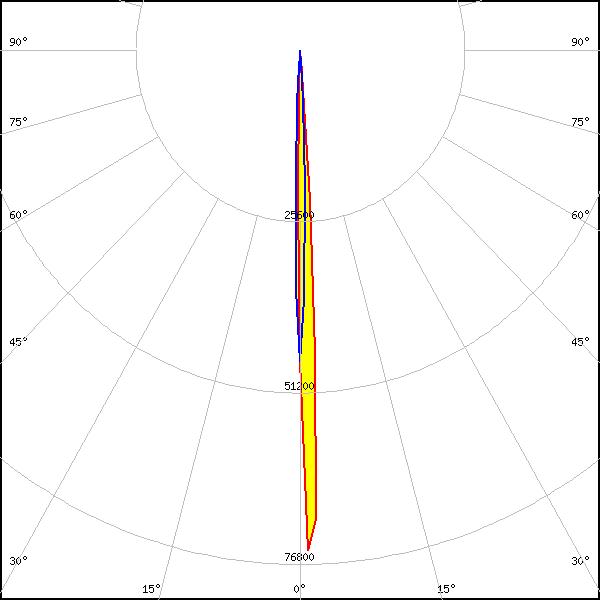

LED:
LUXEON Rubix
FWHM:
4°
FWTM:
7°
Peak intensity:
74.742 cd/lm
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
White

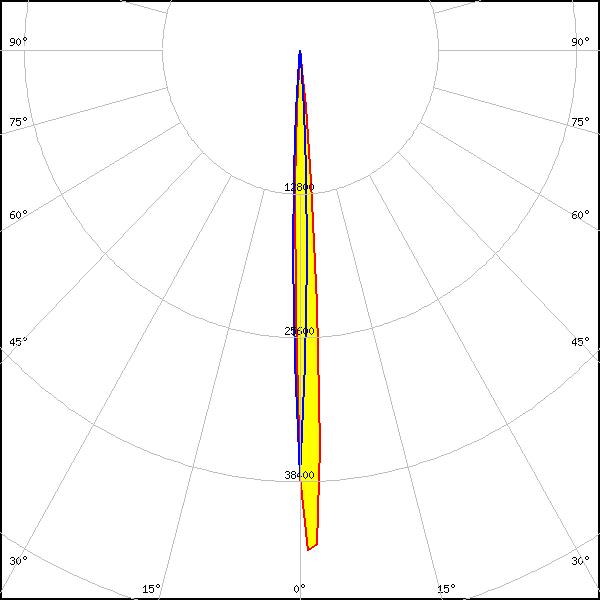

LED:
LUXEON Rubix
FWHM:
5°
FWTM:
9°
Peak intensity:
44.525 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
Blue

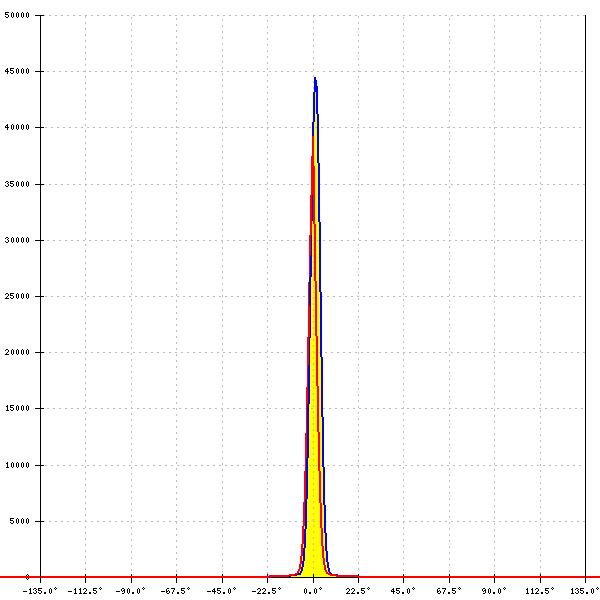

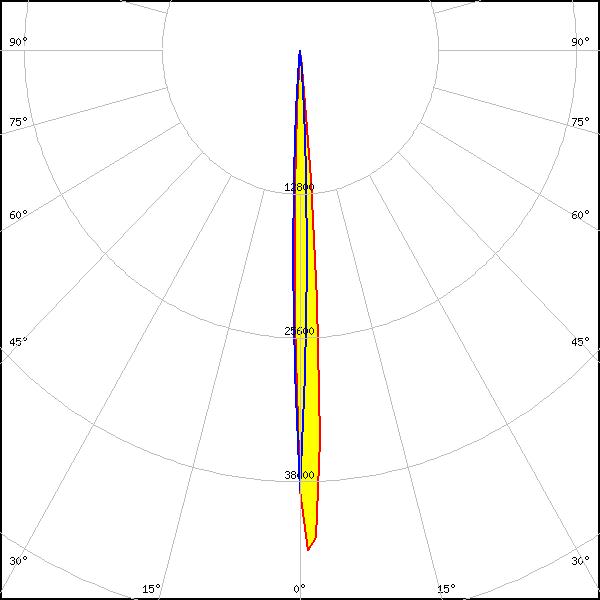

LED:
LUXEON Rubix
FWHM:
5°
FWTM:
9°
Peak intensity:
44.508 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
Green
LED:
LUXEON Rubix
FWHM:
5°
FWTM:
9°
Peak intensity:
47.384 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
Red

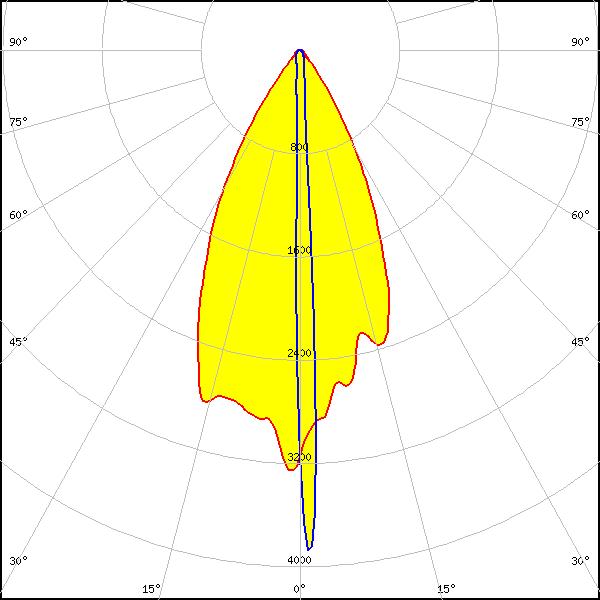

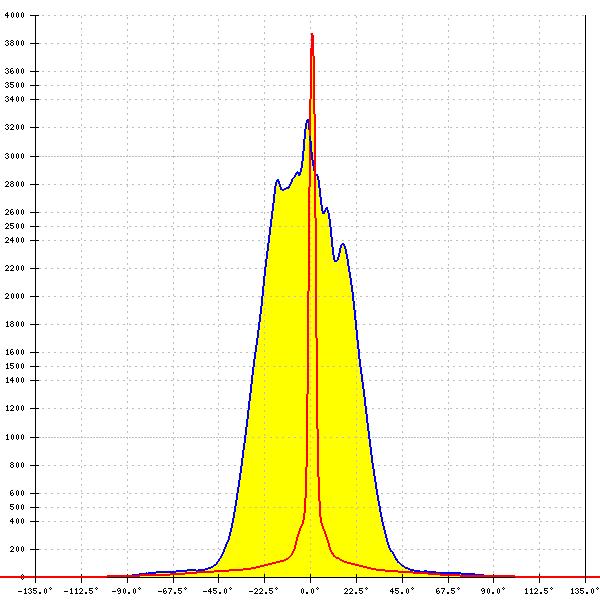

LED:
LUXEON TX
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 4°
FWTM:
76° + 9°
Peak intensity:
4.000 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
4°
FWTM:
7°
Peak intensity:
58.400 cd/lm
Efficiency:
51 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V
FWHM:
6°
FWTM:
9°
Peak intensity:
27.700 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 6°
FWTM:
77° + 15°
Peak intensity:
2.900 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
LED:

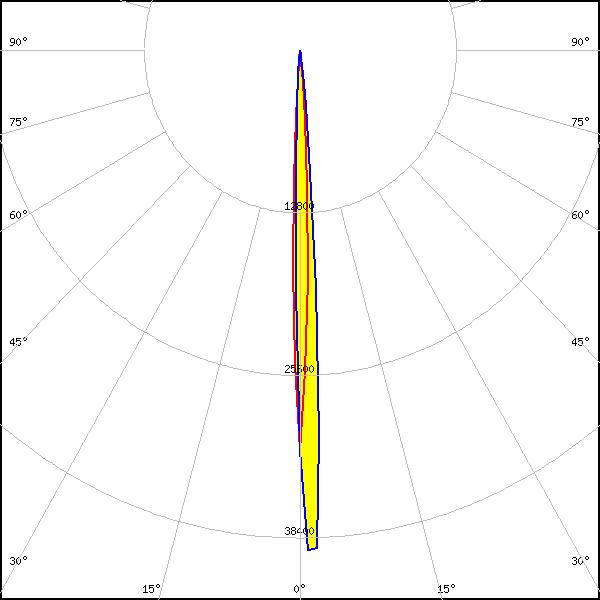

LUXEON V2
FWHM:
5°
FWTM:
10°
Peak intensity:
39.500 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White

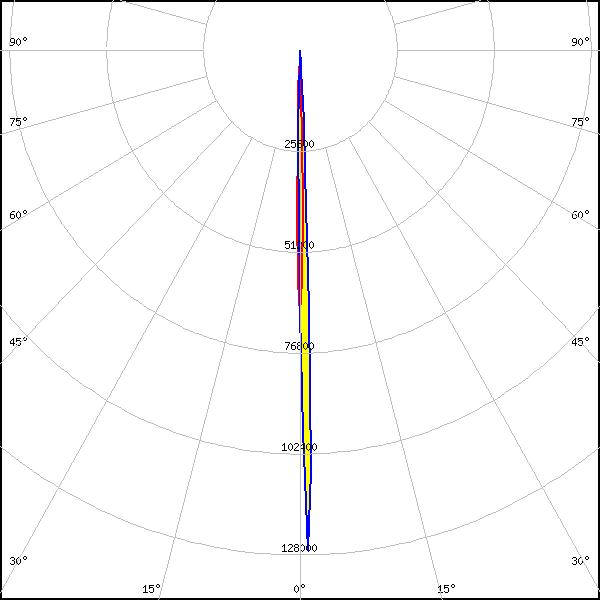

LED:
LUXEON Z
FWHM:
2°
FWTM:
5°
Peak intensity:
131.000 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White

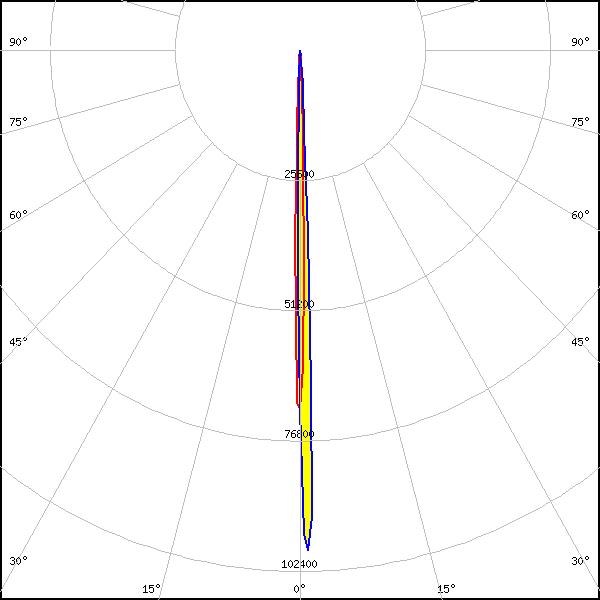

LED:
LUXEON Z ES
FWHM:
3°
FWTM:
6°
Peak intensity:
98.200 cd/lm
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
White

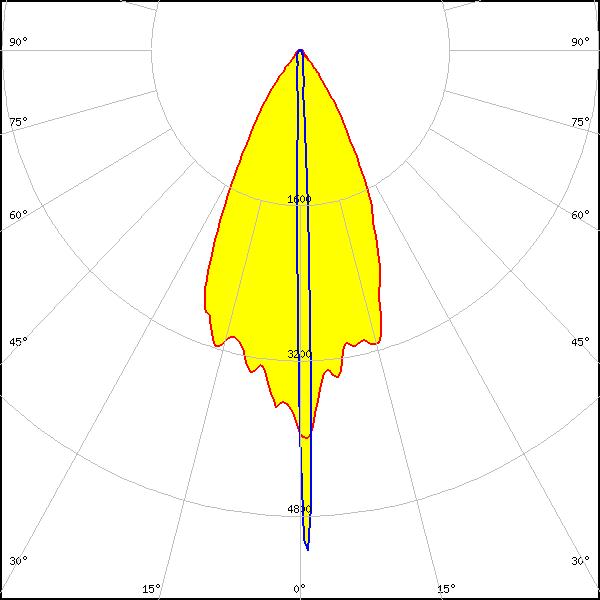

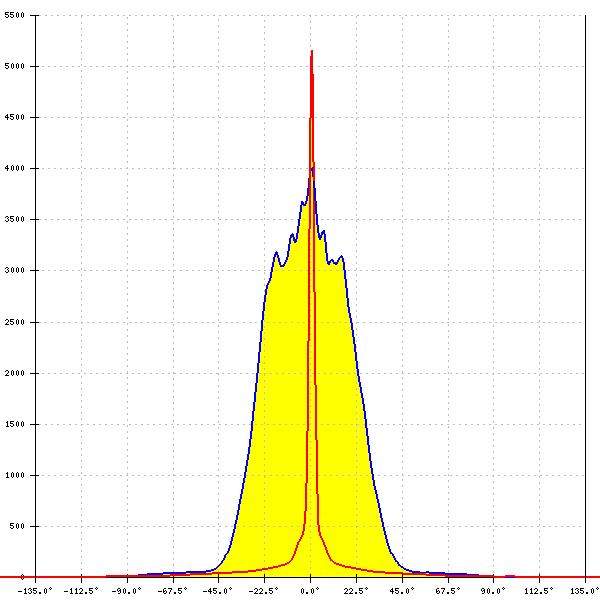

LED:
LUXEON Z ES
Required components:
F16629_LEIA-SUB-O
FWHM:
49° + 3°
FWTM:
76° + 7°
Peak intensity:
5.700 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White

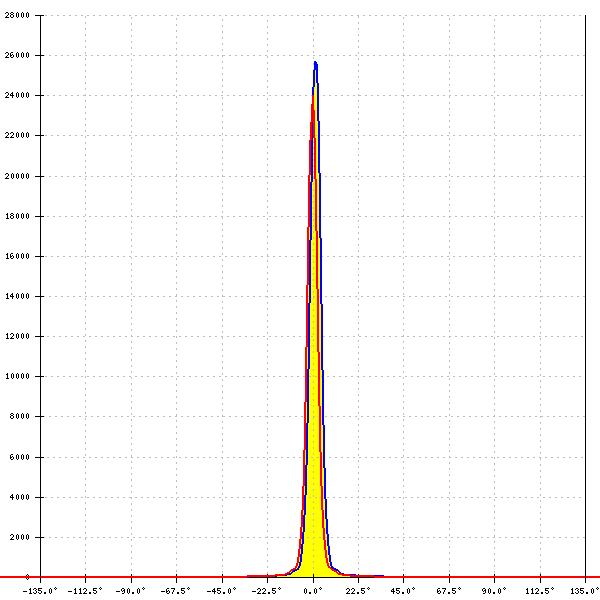

LED:
SBT-90
FWHM:
6°
FWTM:
11°
Peak intensity:
26.042 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White

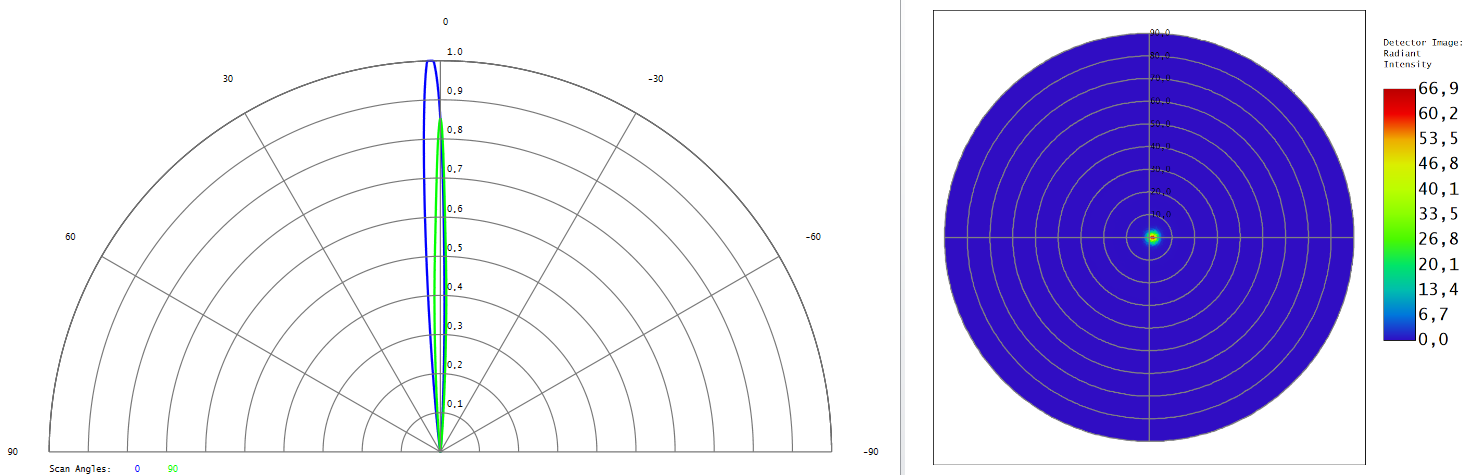

LED:
SST-10-B130
FWHM:
4°
FWTM:
9°
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
NCSxE17A
FWHM:
4°
FWTM:
8°
Peak intensity:
49.200 cd/lm
Efficiency:
42 %
LEDs/each optic:
1
Light colour/type:
White

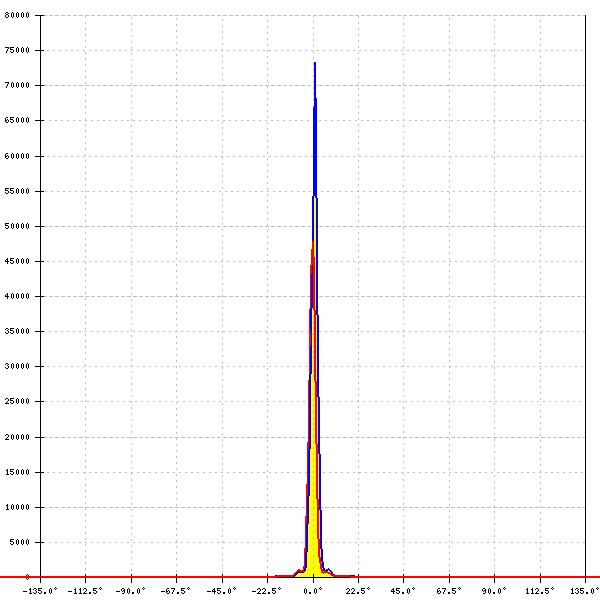

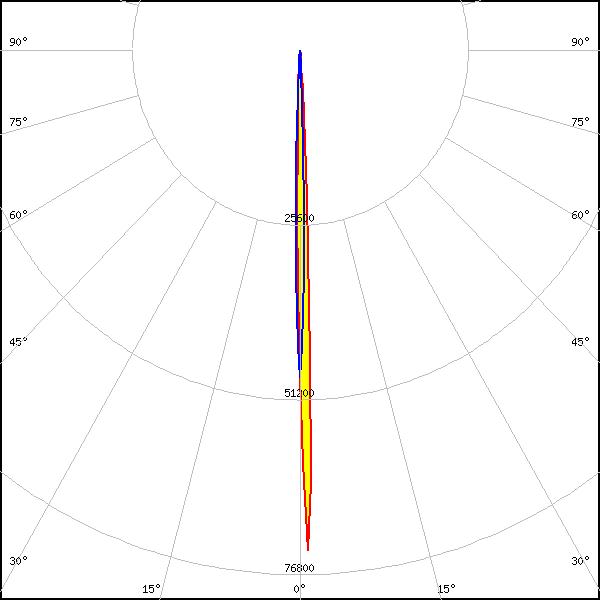

LED:
NCSxE17A
FWHM:
3°
FWTM:
6°
Peak intensity:
73.700 cd/lm
Efficiency:
40 %
LEDs/each optic:
1
Light colour/type:
White

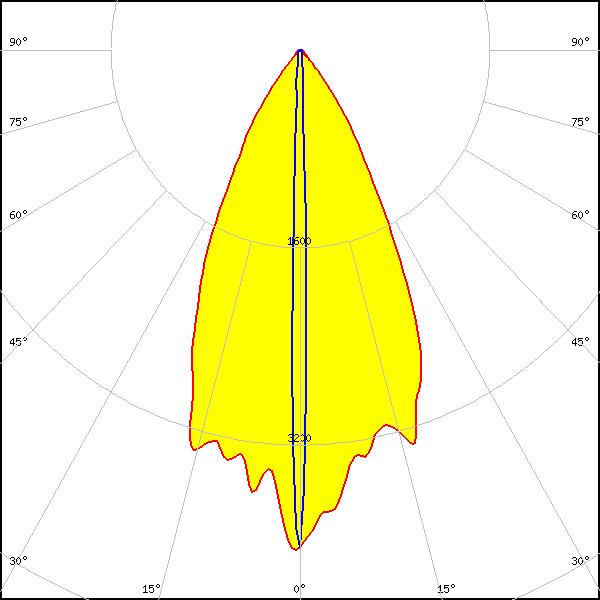

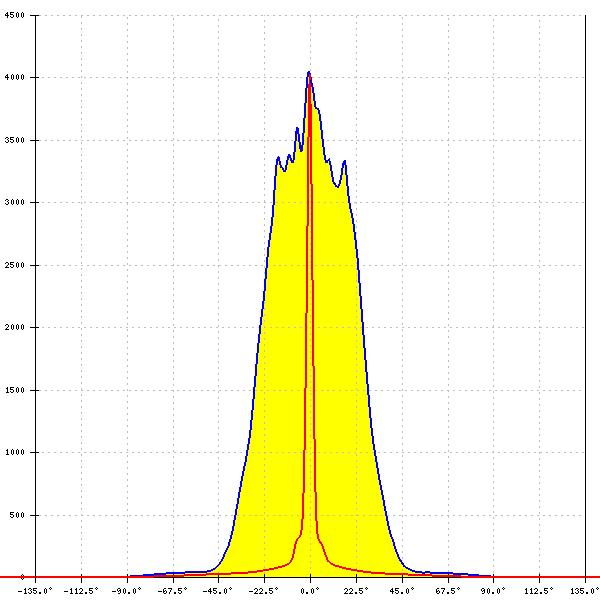

LED:
NCSxE17A
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 3°
FWTM:
77° + 7°
Peak intensity:
4.100 cd/lm
Efficiency:
36 %
LEDs/each optic:
1
Light colour/type:
White

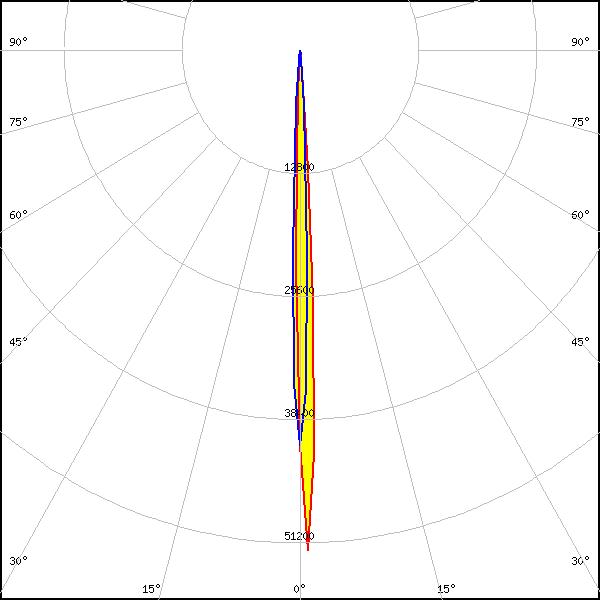

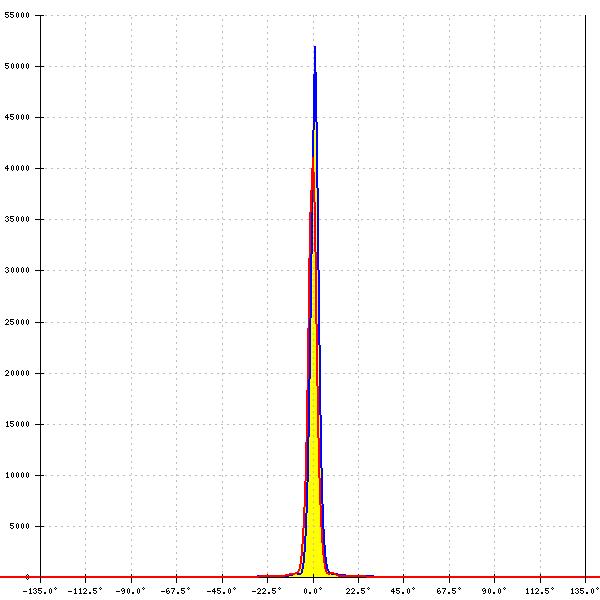

LED:
NF2x757G
FWHM:
5°
FWTM:
9°
Peak intensity:
52.240 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:

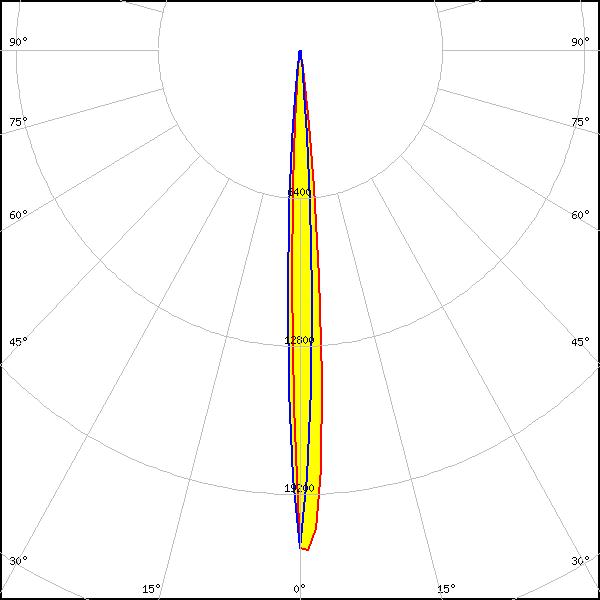

NV4WB35AM
FWHM:
7°
FWTM:
13°
Peak intensity:
21.913 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White

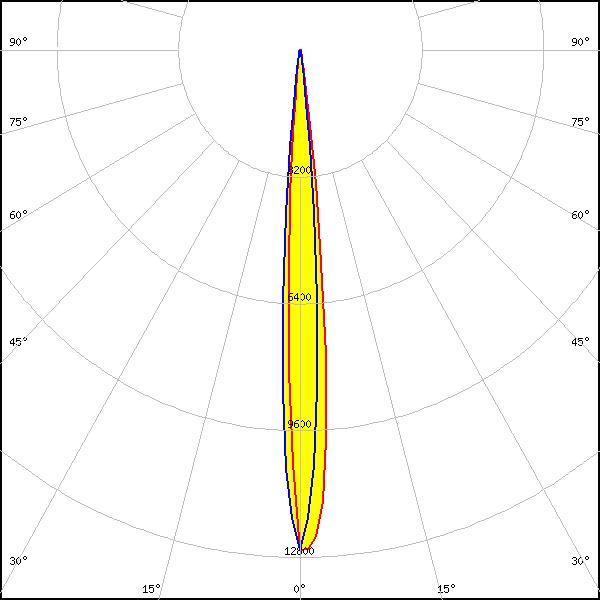

LED:
NV4x144A
FWHM:
9°
FWTM:
15°
Peak intensity:
12.621 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White

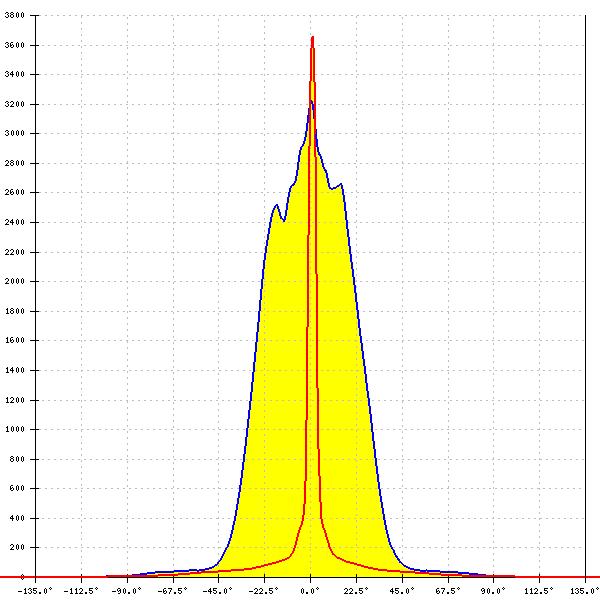

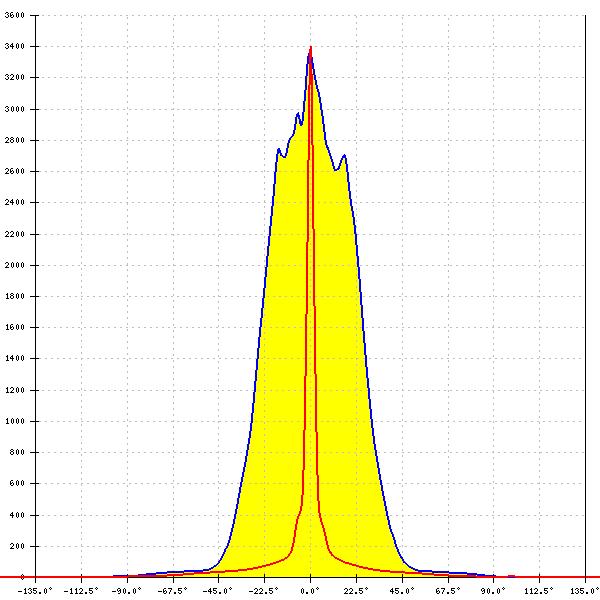

LED:
NVSW219F
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 5°
FWTM:
76° + 10°
Peak intensity:
3.800 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219F
FWHM:
4°
FWTM:
7°
Peak intensity:
47.500 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White

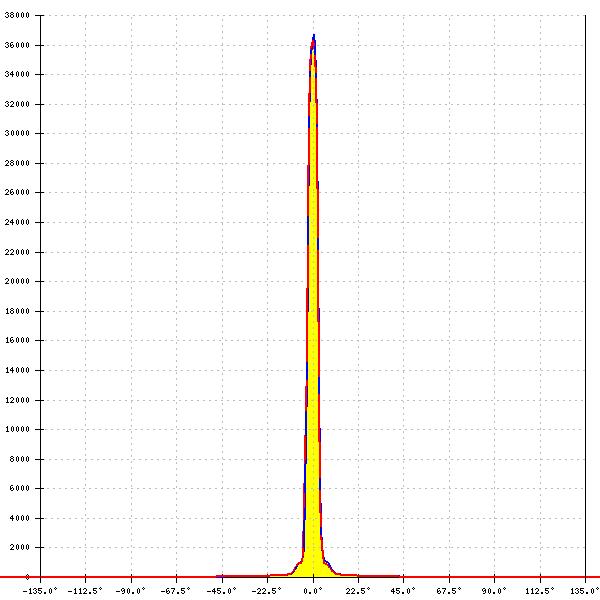

LED:

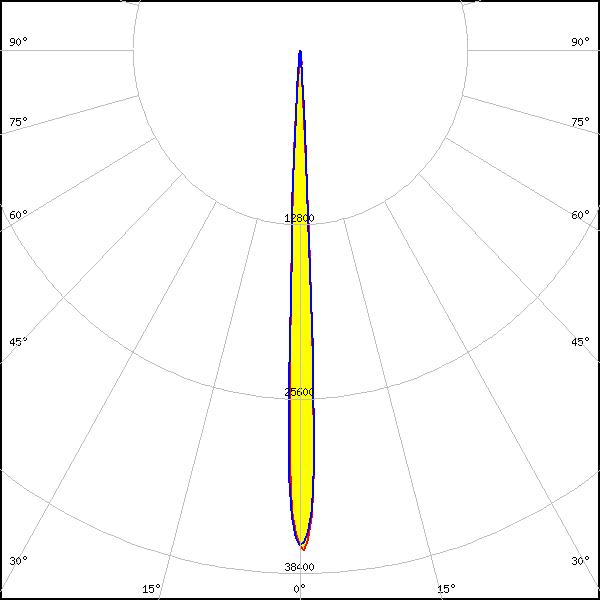

NVSW319B
FWHM:
5°
FWTM:
8°
Peak intensity:
36.800 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White
LED:

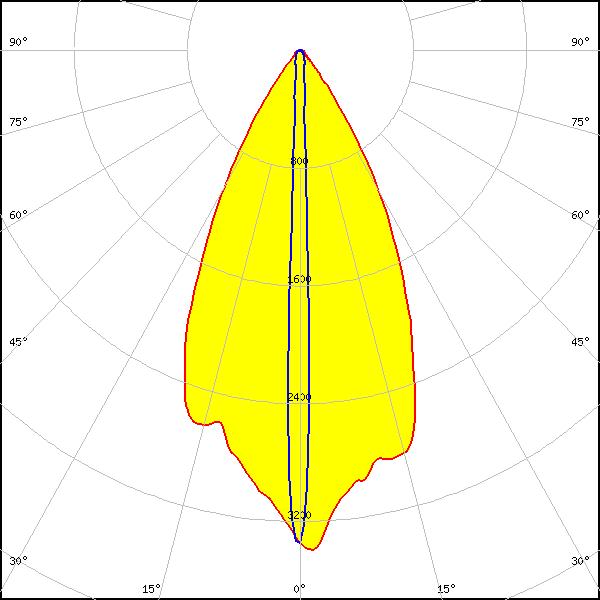

NVSW319B
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 5°
FWTM:
76° + 13°
Peak intensity:
3.400 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
2°
FWTM:
5°
Peak intensity:
34.500 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White

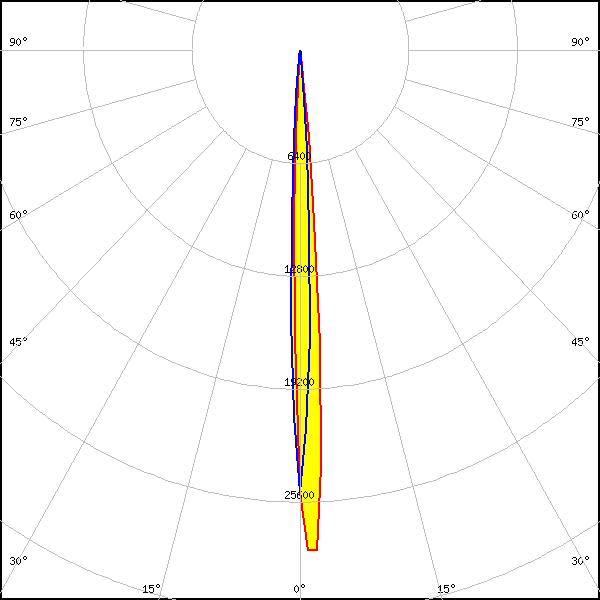

LED:
NVSW519A
FWHM:
5°
FWTM:
10°
Peak intensity:
28.355 cd/lm
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
White

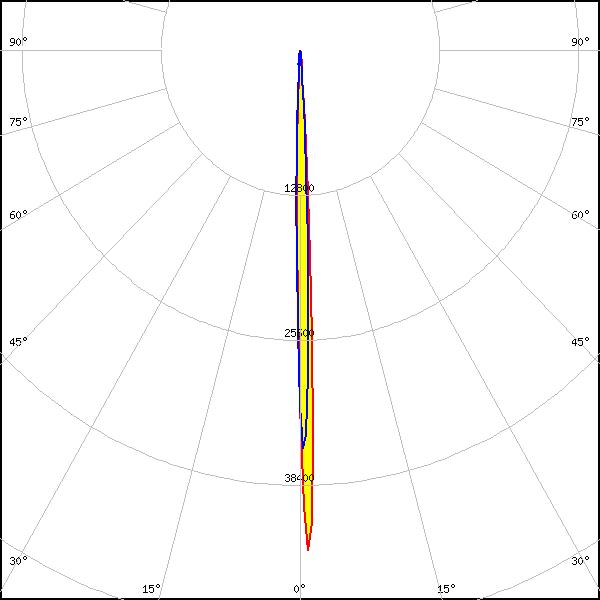

LED:

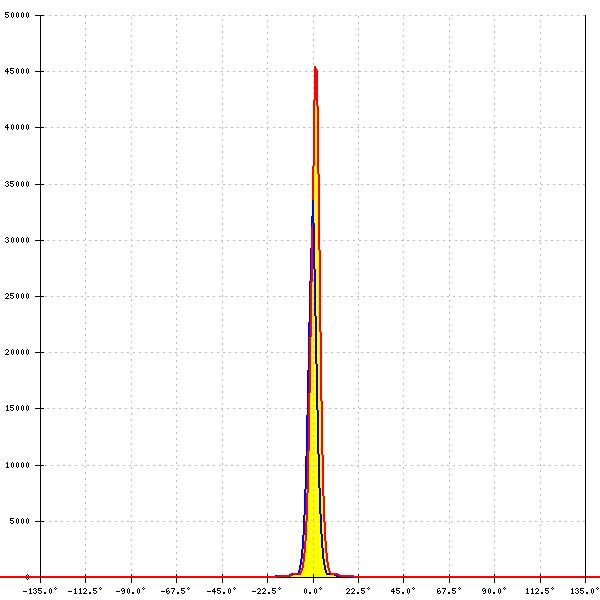

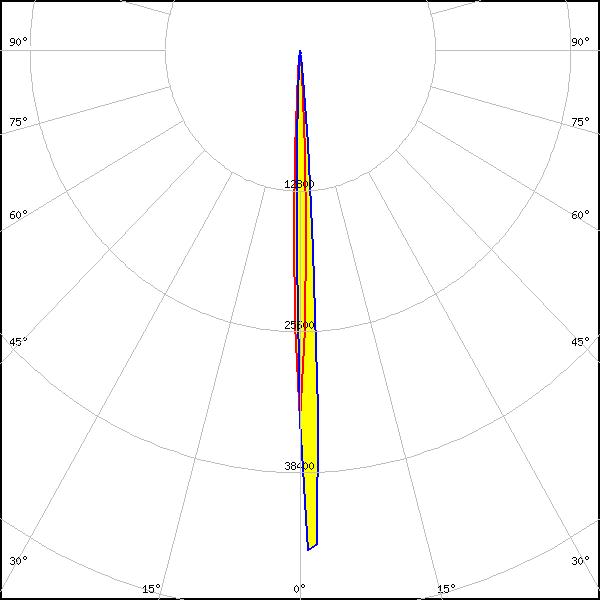

NVSxE21A
FWHM:
2°
FWTM:
4°
Peak intensity:
34.500 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
3°
FWTM:
7°
Peak intensity:
51.000 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
Required components:
F16629_LEIA-SUB-O
FWHM:
49° + 4°
FWTM:
77° + 13°
Peak intensity:
3.500 cd/lm
Efficiency:
41 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
4°
FWTM:
7°
Peak intensity:
48.700 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 4°
FWTM:
76° + 9°
Peak intensity:
3.900 cd/lm
Efficiency:
44 %
LEDs/each optic:
1
Light colour/type:
White
LED:

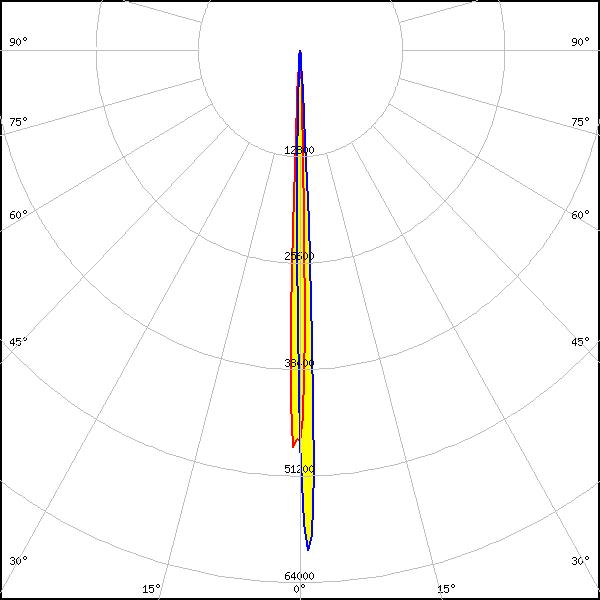

OSCONIQ P 3737 (2W version)
FWHM:
3°
FWTM:
7°
Peak intensity:
62.400 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
White
LED:

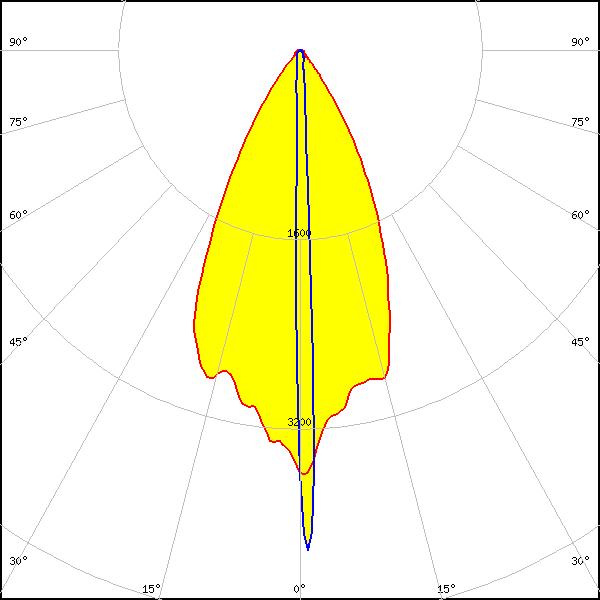

OSCONIQ P 3737 (2W version)
FWHM:
50° + 4°
FWTM:
76° + 9°
Peak intensity:
4.500 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
LED:

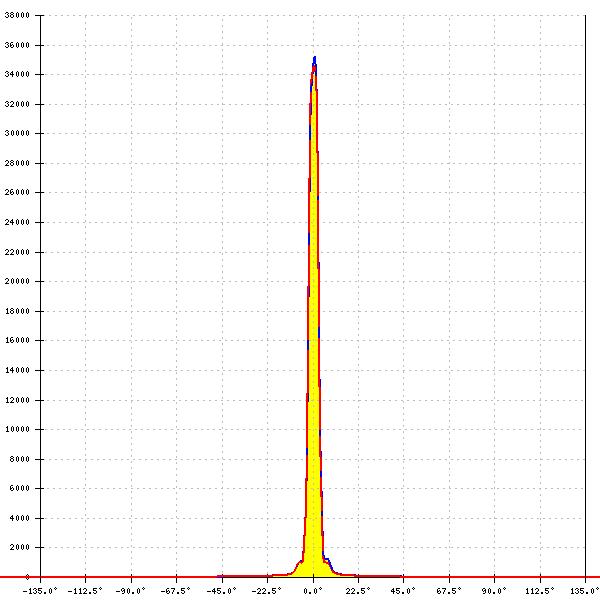

OSCONIQ P 3737 (3W version)
FWHM:
5°
FWTM:
11°
Peak intensity:
31.779 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White

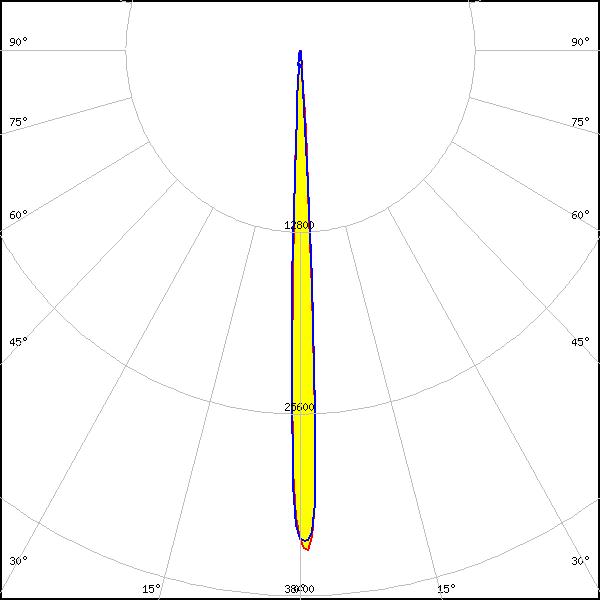

LED:
OSCONIQ P 3737 (3W version)
FWHM:
5°
FWTM:
8°
Peak intensity:
36.000 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White
LED:

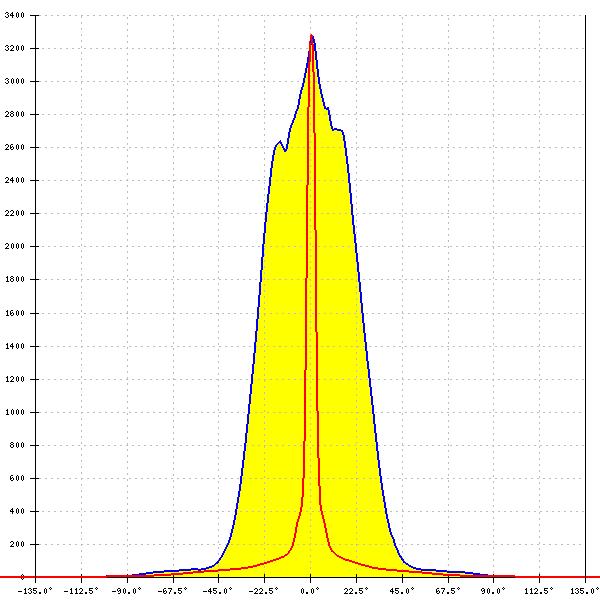

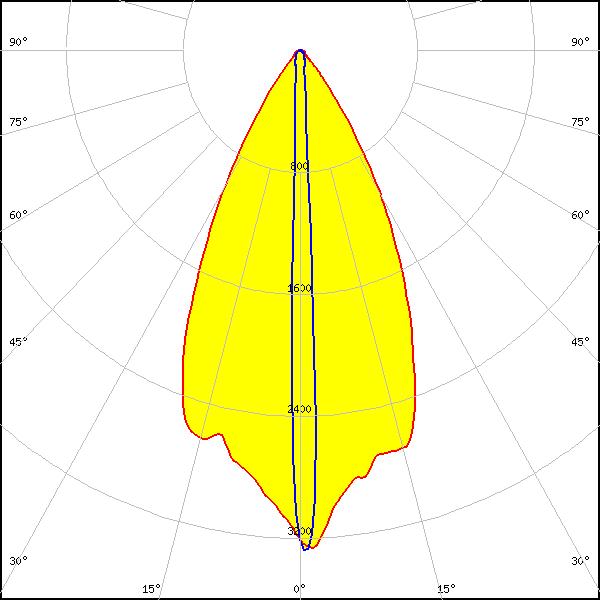

OSCONIQ P 3737 (3W version)
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 5°
FWTM:
76° + 14°
Peak intensity:
3.400 cd/lm
Efficiency:
48 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Black Flat (LUW HWQP)
FWHM:
5°
FWTM:
11°
Peak intensity:
40.350 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:

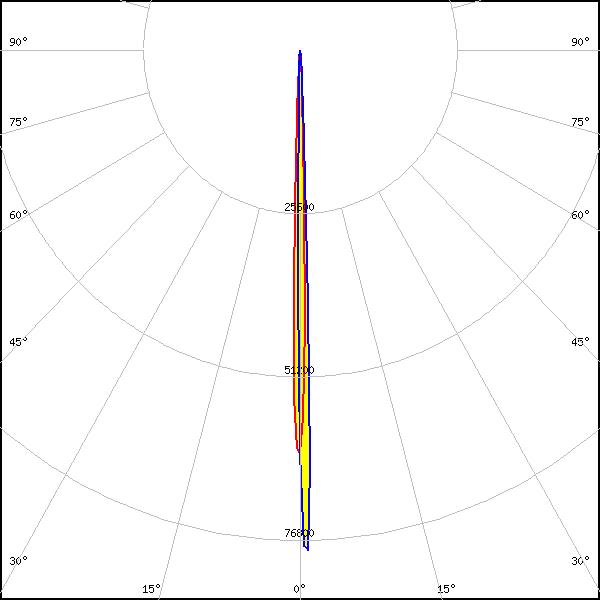

OSLON Boost HX (KW CULPM1.TG)
FWHM:
3°
FWTM:
5°
Peak intensity:
96.583 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
White

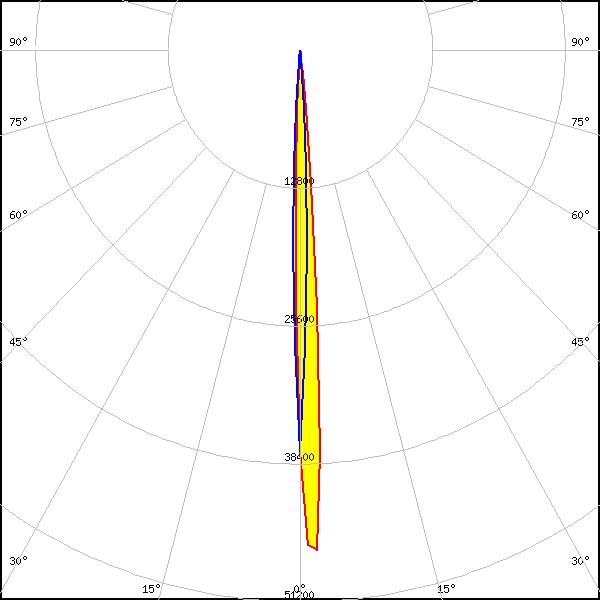

LED:
OSLON Pure 1414
FWHM:
5° + 4°
FWTM:
9° + 10°
Peak intensity:
46.445 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White

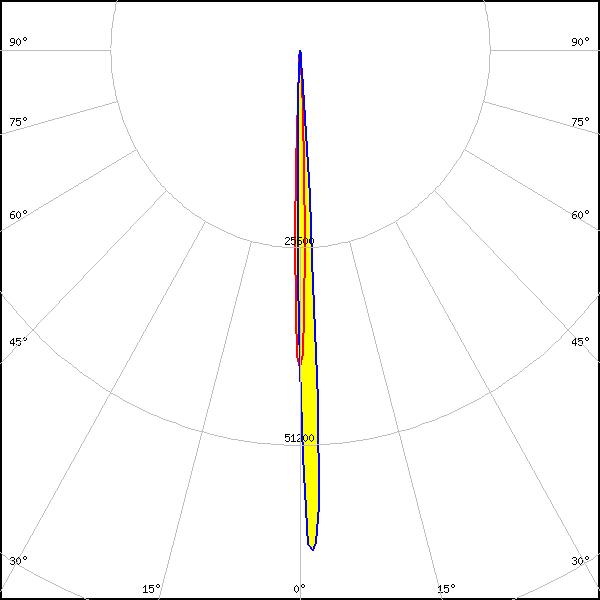

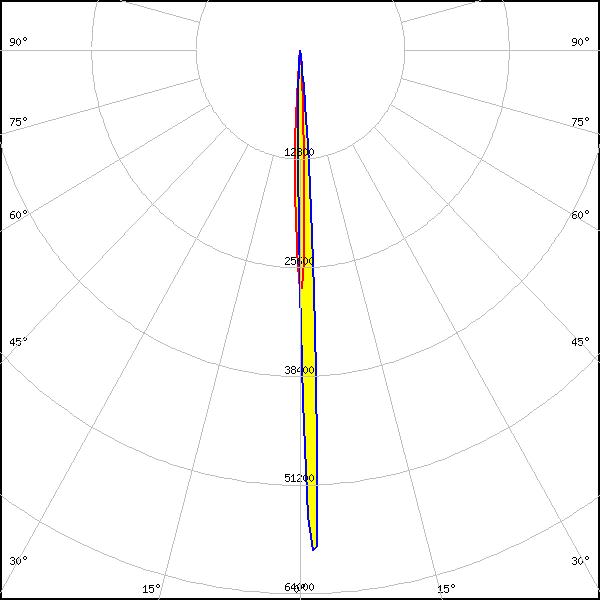

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
4°
FWTM:
9°
Peak intensity:
55.000 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White
LED:

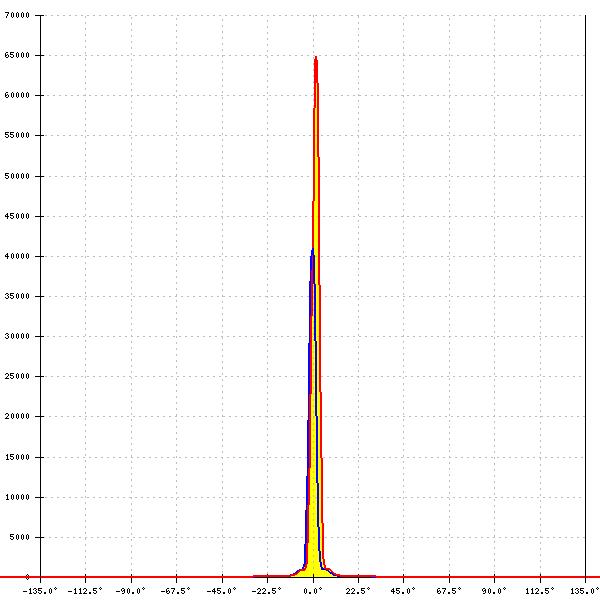

OSLON Square CSSRM2/CSSRM3
FWHM:
4°
FWTM:
7°
Peak intensity:
64.800 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
LED:

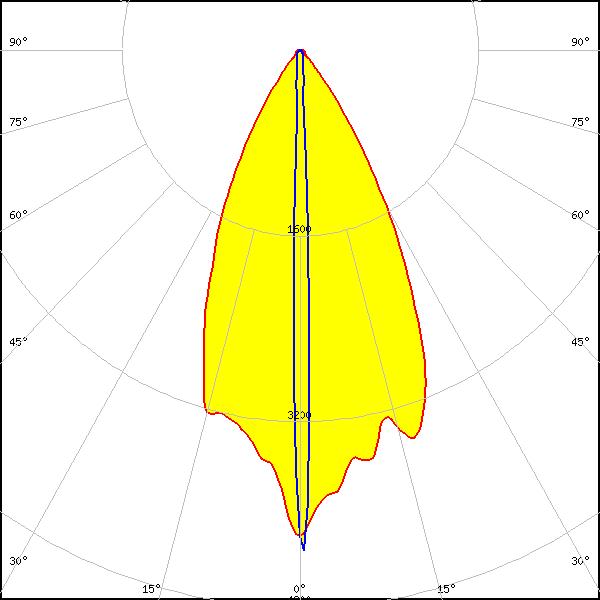

OSLON Square CSSRM2/CSSRM3
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 4°
FWTM:
75° + 8°
Peak intensity:
4.400 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
4°
FWTM:
8°
Peak intensity:
68.000 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
Required components:
F16629_LEIA-SUB-O
FWHM:
52° + 4°
FWTM:
77° + 9°
Peak intensity:
3.900 cd/lm
Efficiency:
42 %
LEDs/each optic:
1
Light colour/type:
White
LED:

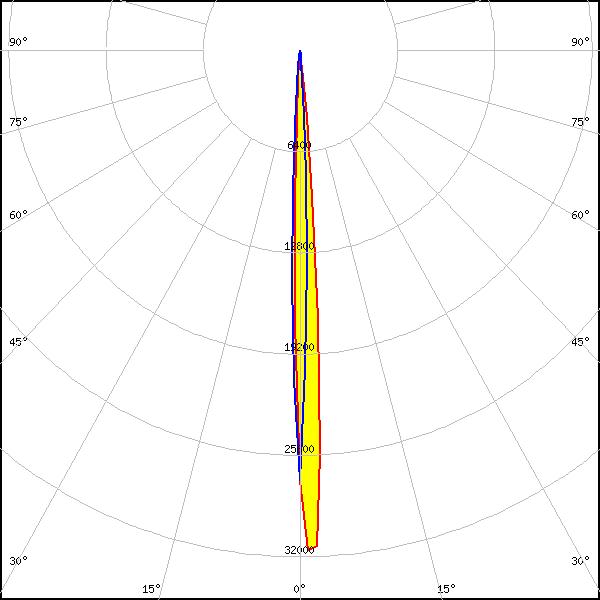

OSLON SSL 150
FWHM:
5°
FWTM:
10°
Peak intensity:
31.610 cd/lm
Efficiency:
41 %
LEDs/each optic:
1
Light colour/type:
Red
LED:

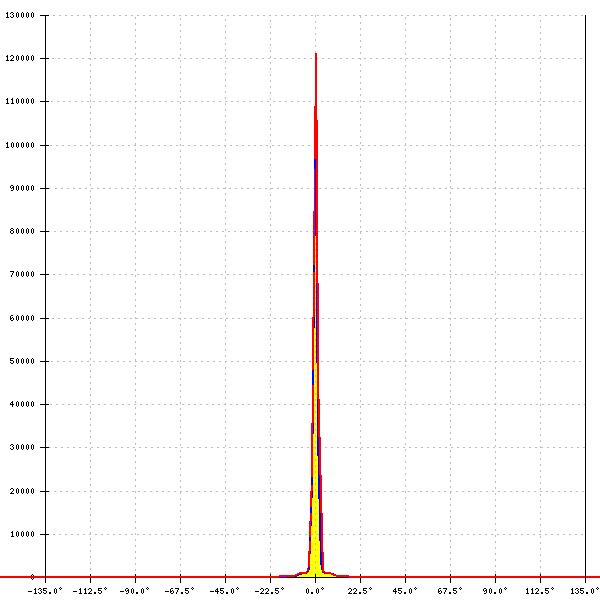

OSLON SSL 150
FWHM:
2°
FWTM:
5°
Peak intensity:
122.000 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White

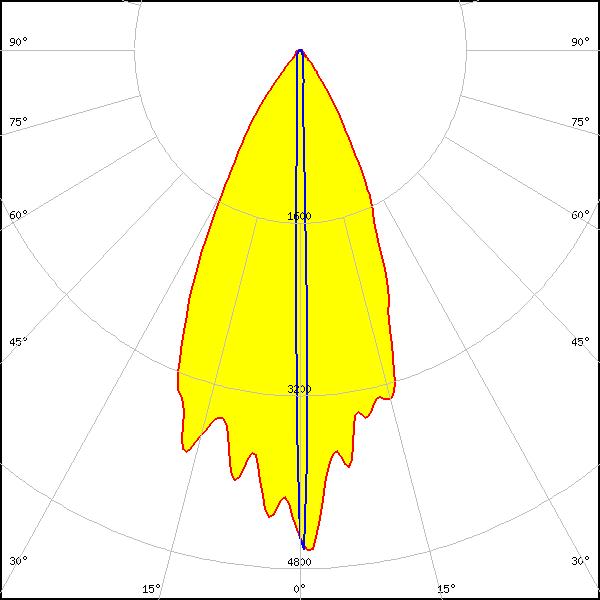

LED:

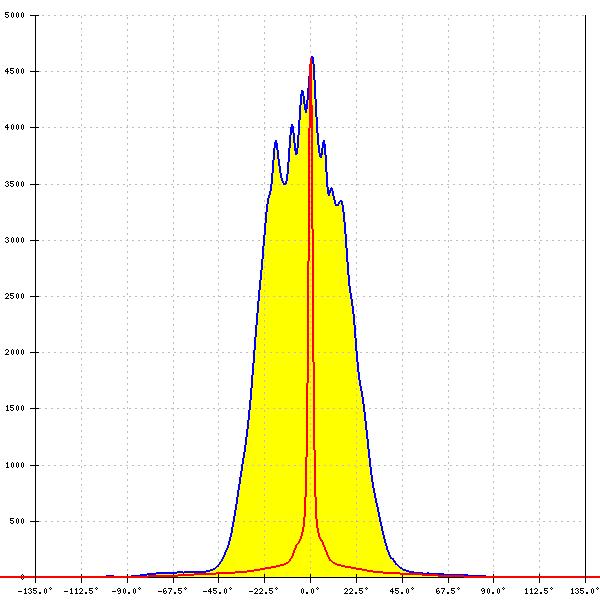

OSLON SSL 150
Required components:
F16629_LEIA-SUB-O
FWHM:
47° + 3°
FWTM:
73° + 7°
Peak intensity:
4.900 cd/lm
Efficiency:
40 %
LEDs/each optic:
1
Light colour/type:
White

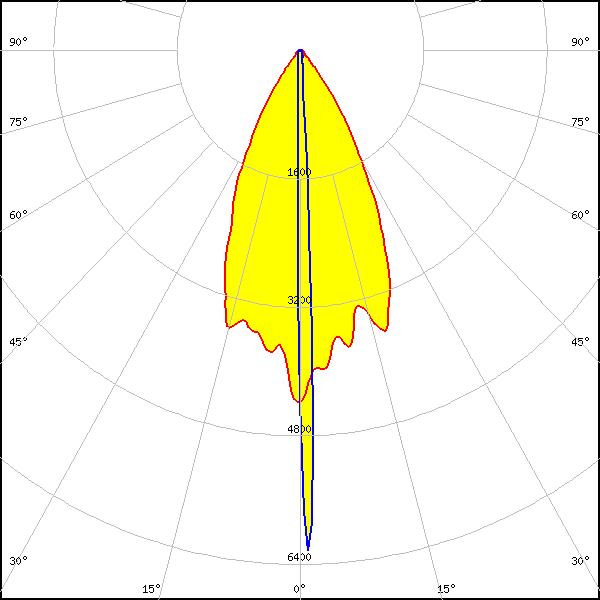

LED:
OSLON SSL 80
Required components:
F16629_LEIA-SUB-O
FWHM:
51° + 3°
FWTM:
77° + 7°
Peak intensity:
6.500 cd/lm
Efficiency:
56 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
3°
FWTM:
6°
Peak intensity:
106.700 cd/lm
Efficiency:
62 %
LEDs/each optic:
1
Light colour/type:
White
LED:

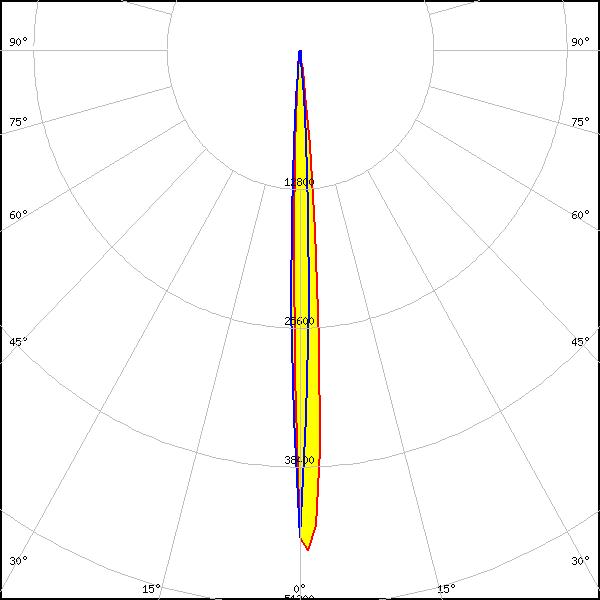

OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
5°
FWTM:
11°
Peak intensity:
46.091 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
3°
FWTM:
5°
Peak intensity:
120.842 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WM)
Required components:
F16629_LEIA-SUB-O
FWHM:
32° + 4°
FWTM:
56° + 12°
Peak intensity:
4.851 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WM)
FWHM:
6°
FWTM:
11°
Peak intensity:
35.219 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WN)
FWHM:
5°
FWTM:
9°
Peak intensity:
47.301 cd/lm
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
RGBW

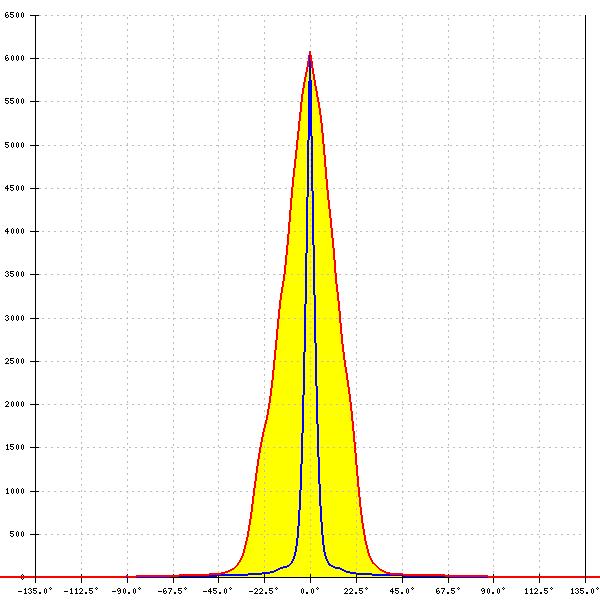

LED:
SFH 4715AS
Required components:
F16629_LEIA-SUB-O
FWHM:
29° + 4°
FWTM:
56° + 12°
Peak intensity:
6.079 cd/lm
Efficiency:
53 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4715AS
FWHM:
4°
FWTM:
9°
Efficiency:
47 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4716AS
FWHM:
5°
FWTM:
9°
Efficiency:
36 %
LEDs/each optic:
1
Light colour/type:
IR

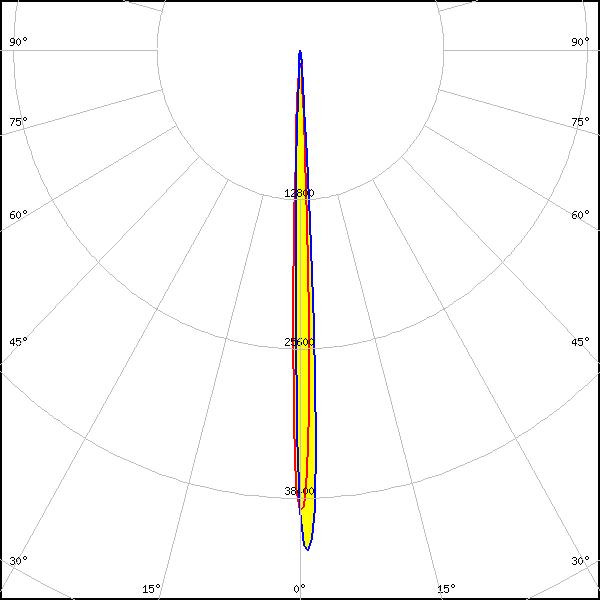

LED:

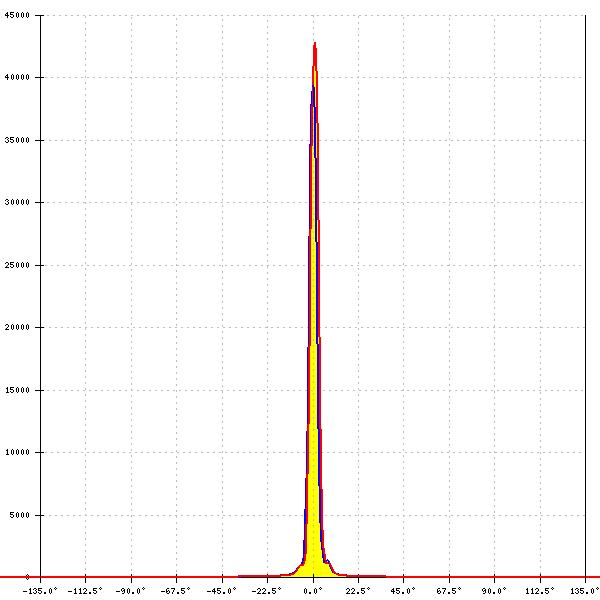

LH231B
FWHM:
4°
FWTM:
7°
Peak intensity:
43.600 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
Required components:
F16629_LEIA-SUB-O
FWHM:
50° + 4°
FWTM:
76° + 13°
Peak intensity:
3.500 cd/lm
Efficiency:
46 %
LEDs/each optic:
1
Light colour/type:
White
LED:

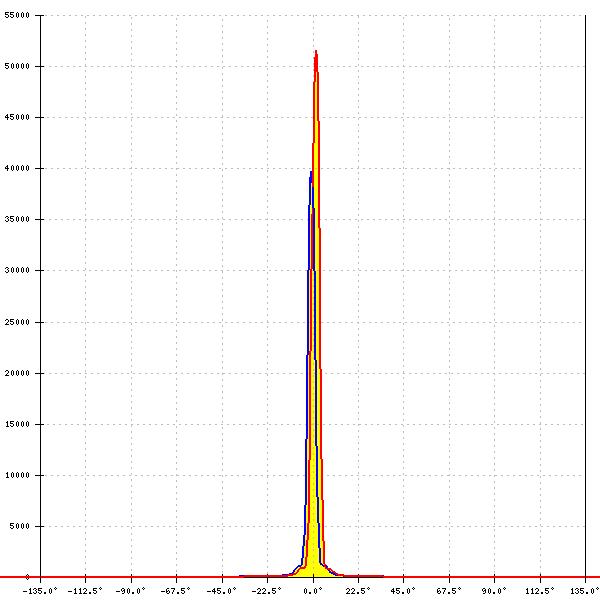

LH351B
FWHM:
4°
FWTM:
7°
Peak intensity:
54.400 cd/lm
Efficiency:
55 %
LEDs/each optic:
1
Light colour/type:
White
LED:

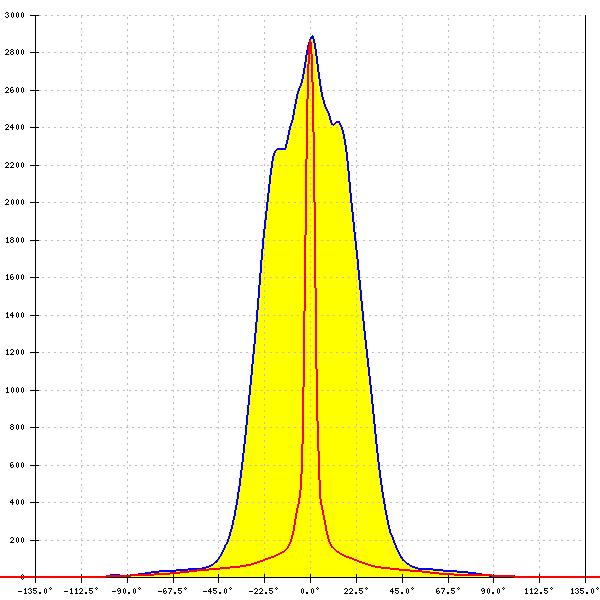

LH351B
Required components:
F16629_LEIA-SUB-O
FWHM:
52° + 4°
FWTM:
77° + 10°
Peak intensity:
4.300 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
50° + 5°
FWTM:
76° + 12°
Peak intensity:
3.900 cd/lm
Efficiency:
52 %
LEDs/each optic:
1
Light colour/type:
White
LED:

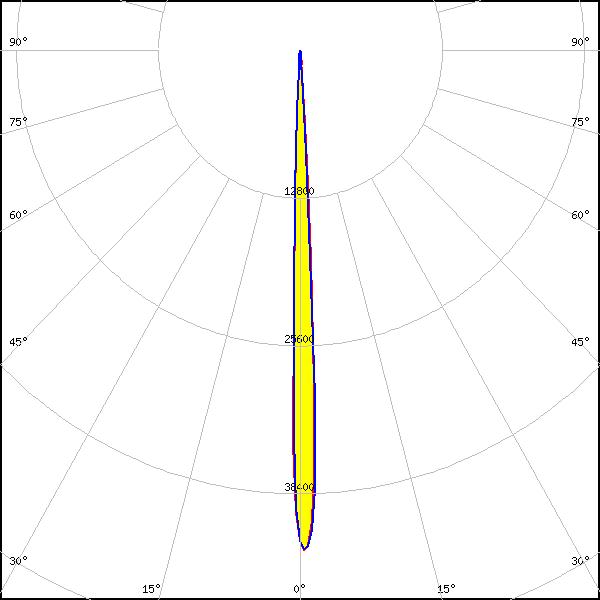

LH351C
FWHM:
4°
FWTM:
7°
Peak intensity:
46.100 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM:
5°
FWTM:
9°
Peak intensity:
29.000 cd/lm
Efficiency:
54 %
LEDs/each optic:
1
Light colour/type:
White
LED:

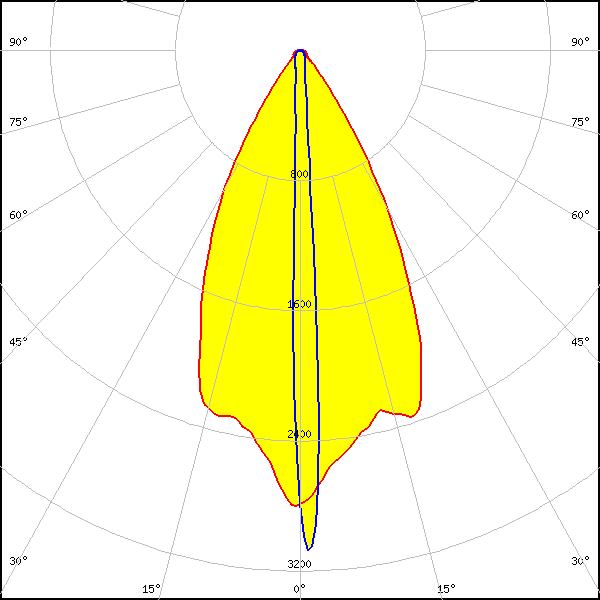

LH351D
Required components:
F16629_LEIA-SUB-O
FWHM:
53° + 5°
FWTM:
77° + 14°
Peak intensity:
3.100 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:

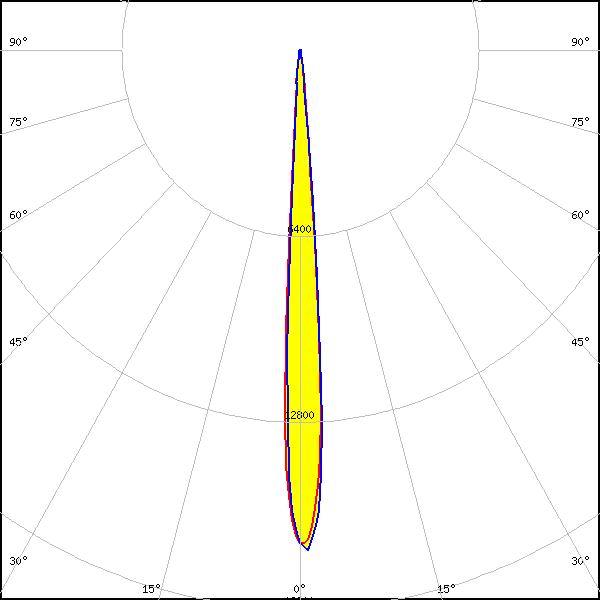

LH508A
FWHM:
7°
FWTM:
11°
Peak intensity:
17.300 cd/lm
Efficiency:
50 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH508A
Required components:
F16629_LEIA-SUB-O
FWHM:
52° + 7°
FWTM:
78° + 17°
Peak intensity:
2.400 cd/lm
Efficiency:
45 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
