FN15188_STELLA-FRESNEL
Print
~25° street beam for warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs. Variant with white frame.
Materials
- STELLA-FRESNEL, Single lens, Silicone
- STELLA-FRAME-WHT, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
Bender Wirth: 486 Typ L1
FWHM:
17°
FWTM:
31°
Peak intensity:
4.780 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
26°
FWTM:
57°
Peak intensity:
1.970 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

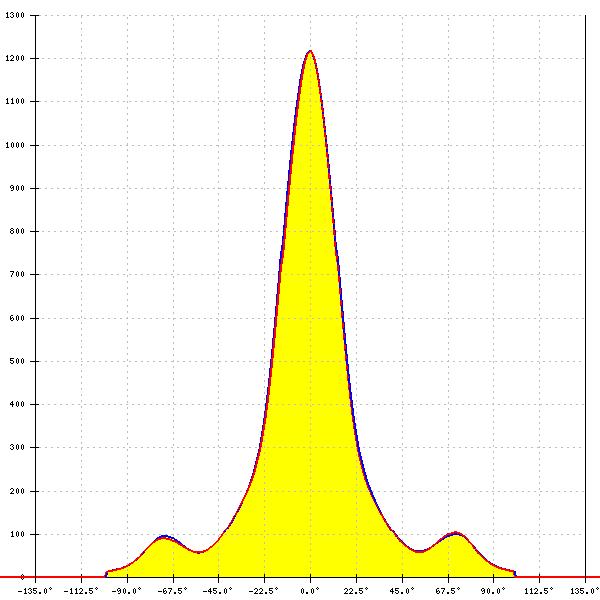

LED:

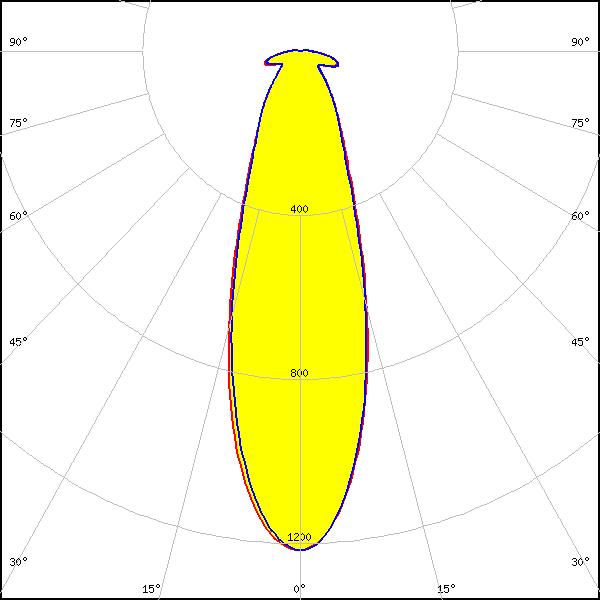

V18 Gen7
LES size: 19.2 mm
Required components:
Bender Wirth: 439 Typ L3
FWHM:
32°
FWTM:
78°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

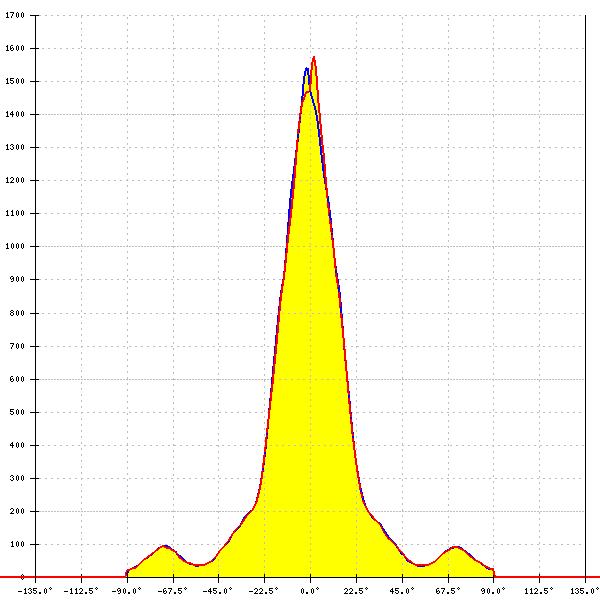

LED:

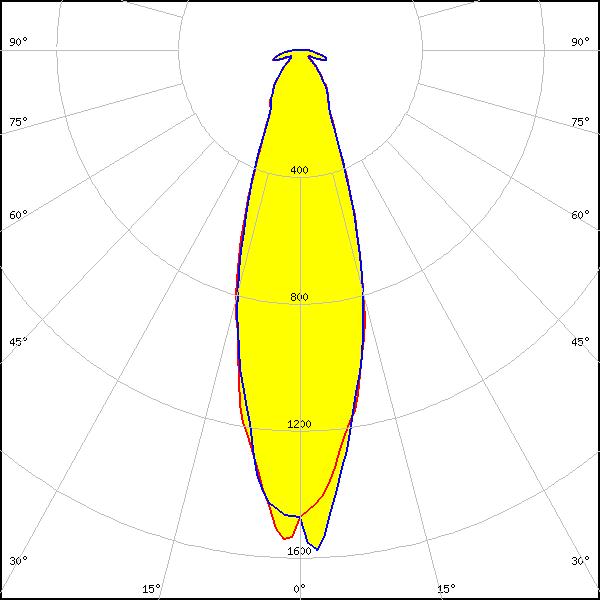

V22 Gen7
LES size: 22.6 mm
Required components:
IDEAL: 50-2204CT
FWHM:
30°
FWTM:
70°
Peak intensity:
1.583 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

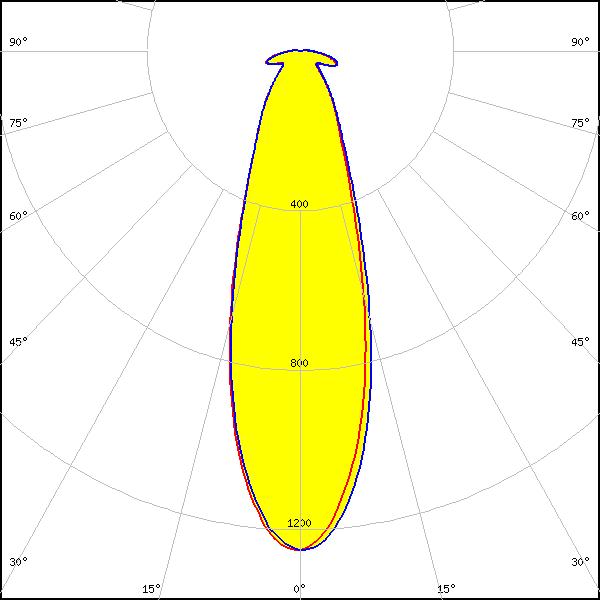

LED:

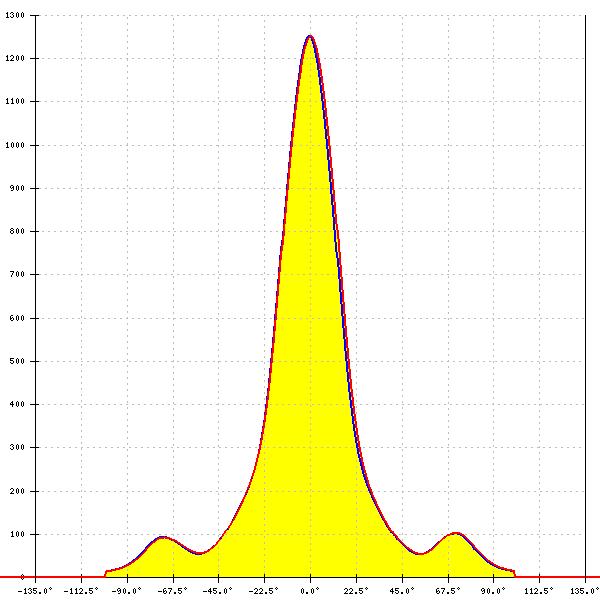

Vero SE 18
LES size: 18.6 mm
FWHM:
32°
FWTM:
76°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

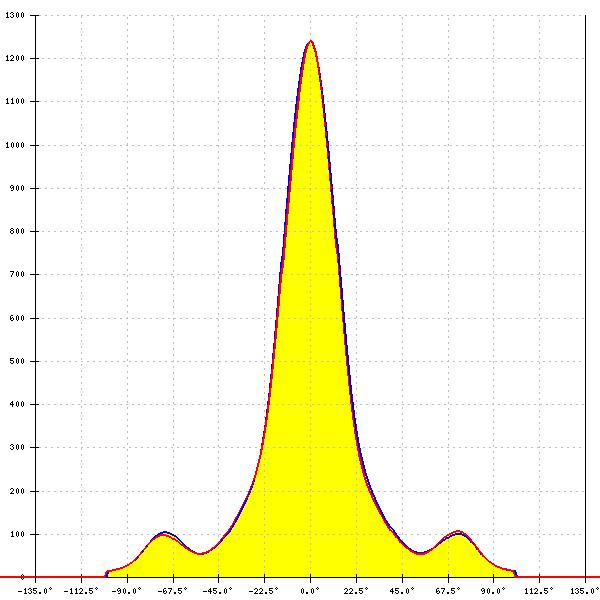

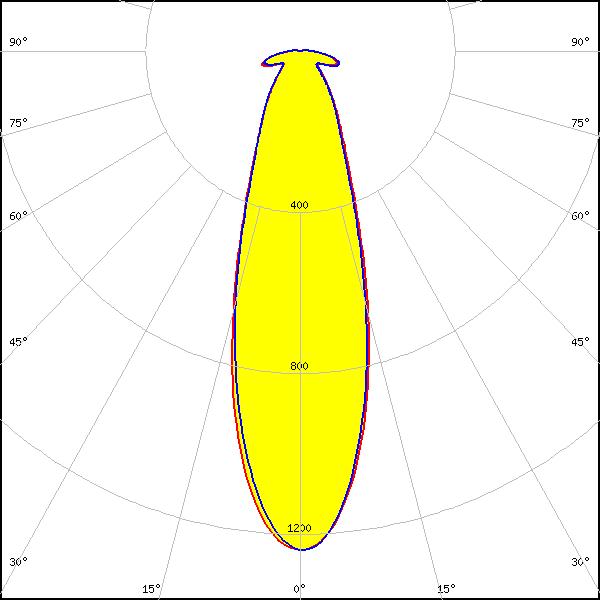

LED:
VERO18
LES size: 18.6 mm
FWHM:
32°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

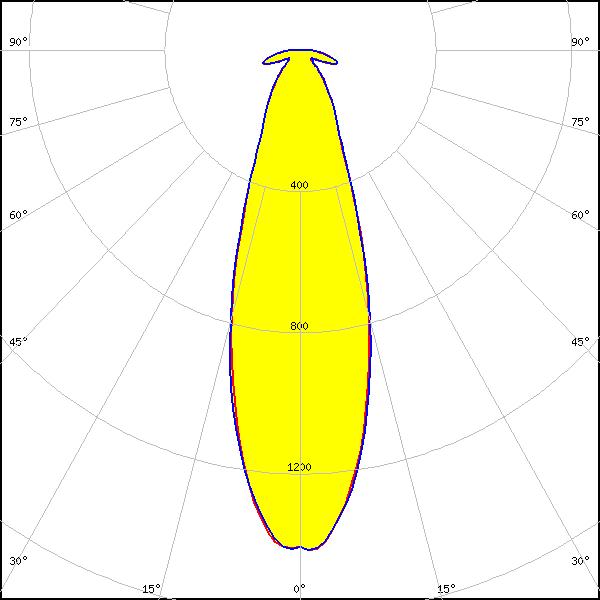

LED:

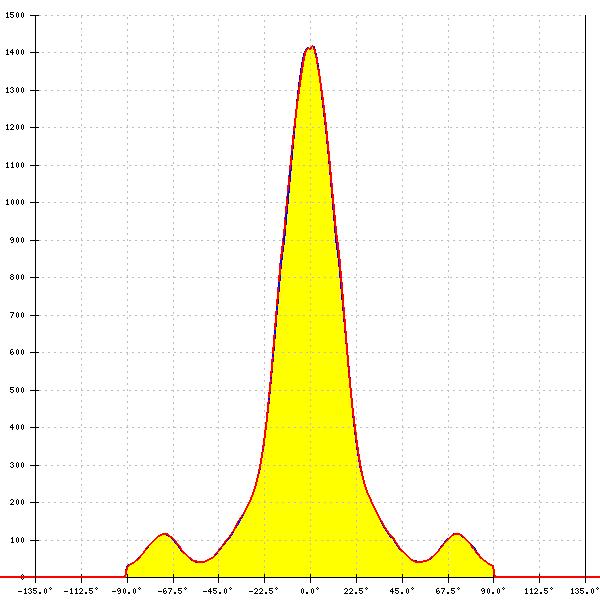

CLL04x/CLU04x
LES size: 22.0 mm
FWHM:
36°
FWTM:
99°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

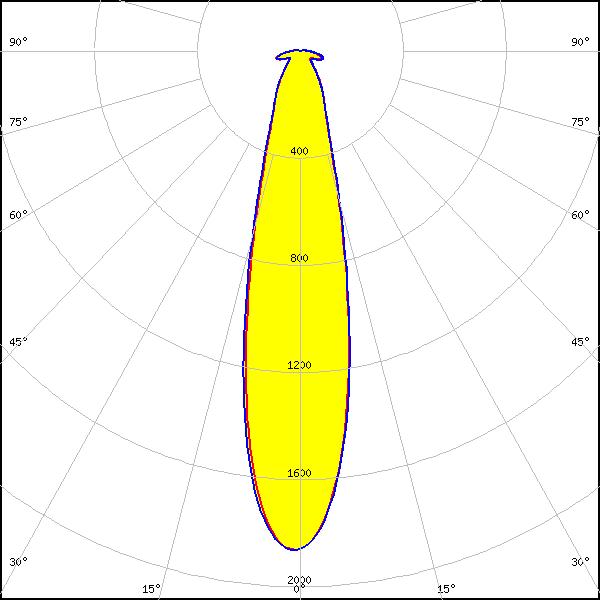

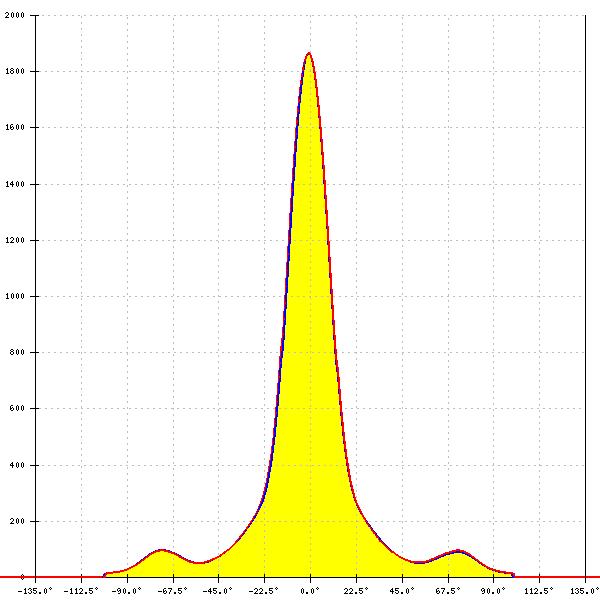

CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM:
24°
FWTM:
59°
Peak intensity:
1.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

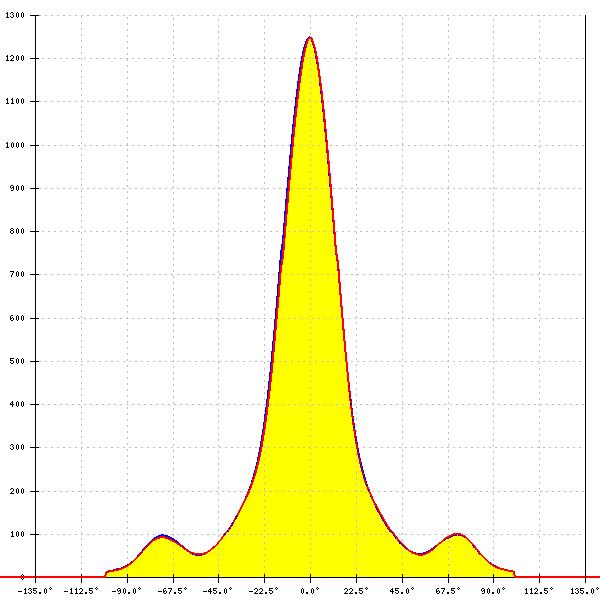

CXA/B 25xx
LES size: 19.0 mm
FWHM:
31°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

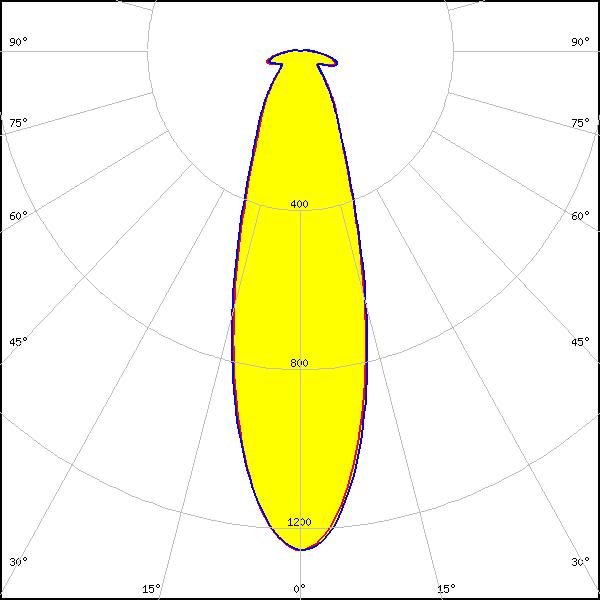

LED:

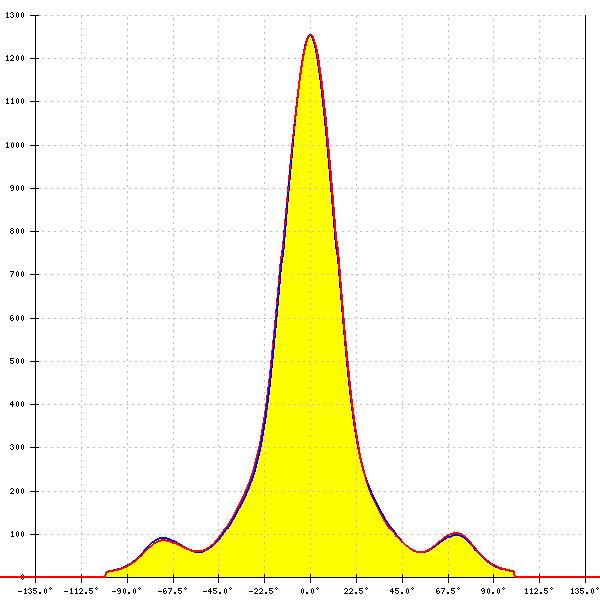

CXA/B 25xx
LES size: 19.0 mm
Required components:
Bender Wirth: 439 Typ L3
FWHM:
32°
FWTM:
77°
Peak intensity:
1.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

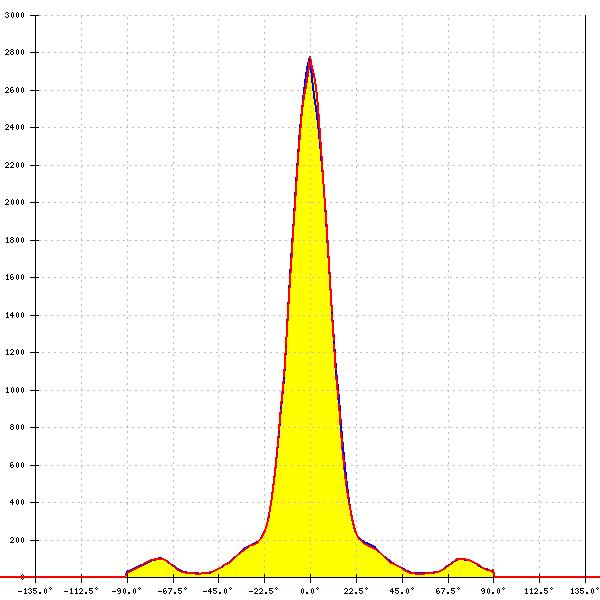

LED:

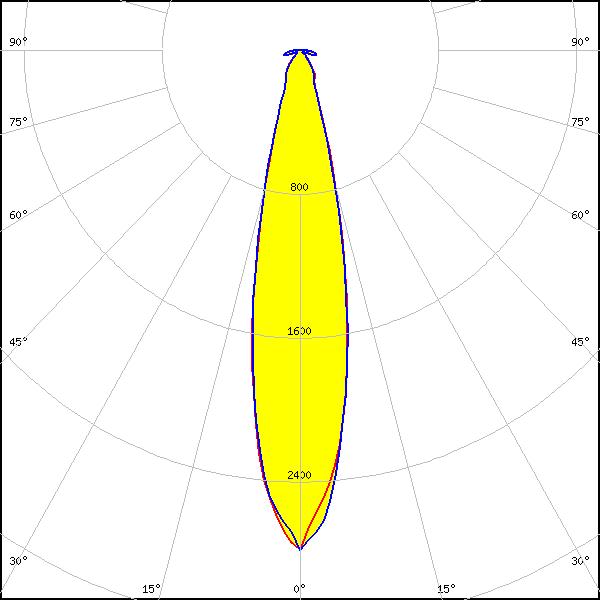

LUXEON CoB 1208
LES size: 15.0 mm
FWHM:
22°
FWTM:
43°
Peak intensity:
2.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

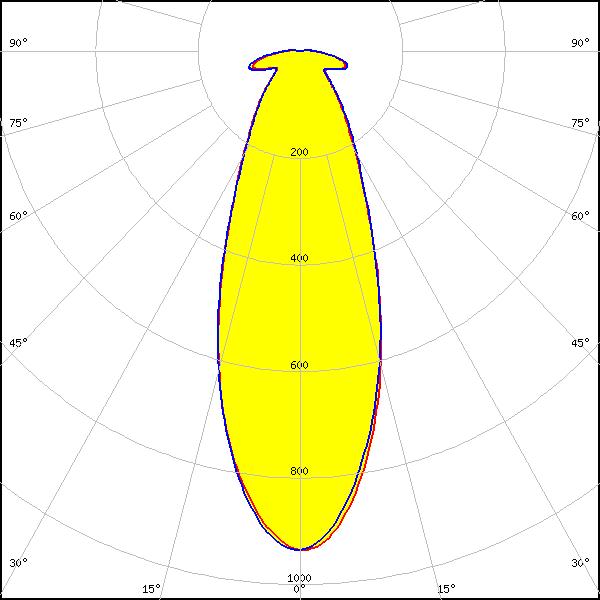

LED:

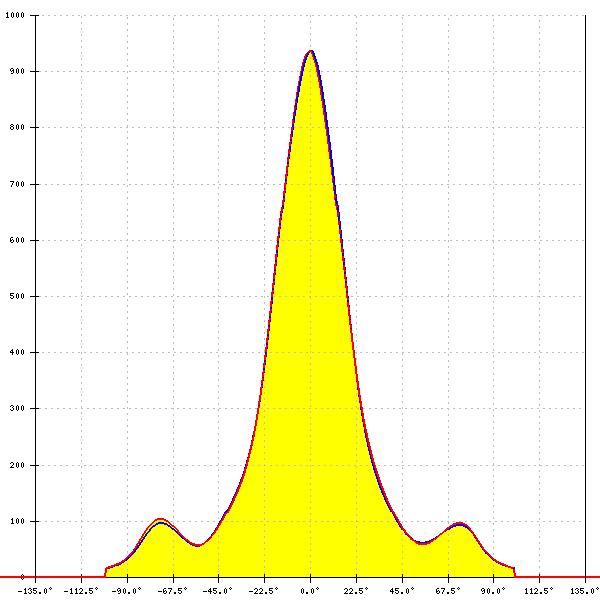

CxM-22 (28x28)
LES size: 22.0 mm
Required components:
Bender Wirth: 431 Typ L3
FWHM:
39°
FWTM:
137°
Peak intensity:
0.940 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

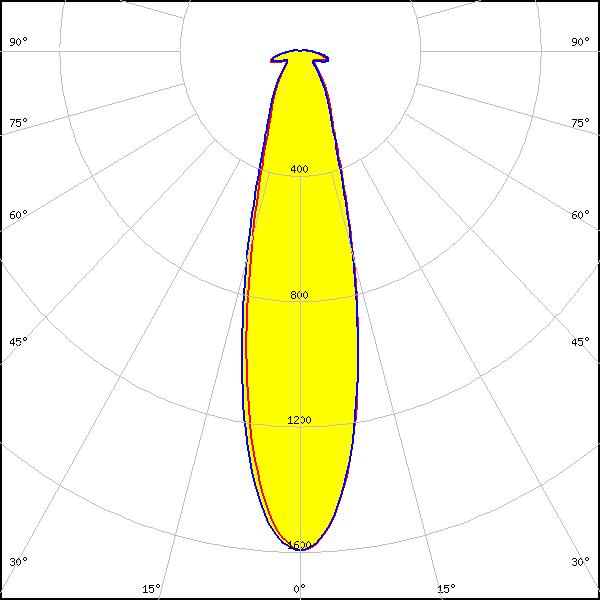

LED:

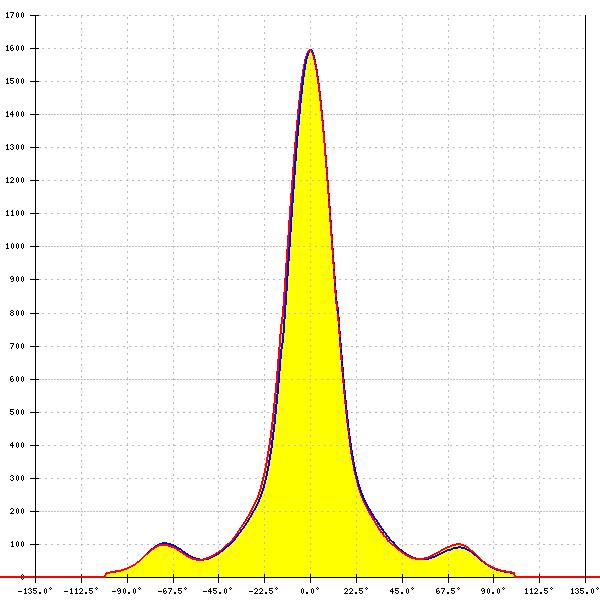

COB J-Type
LES size: 14.6 mm
FWHM:
26°
FWTM:
66°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

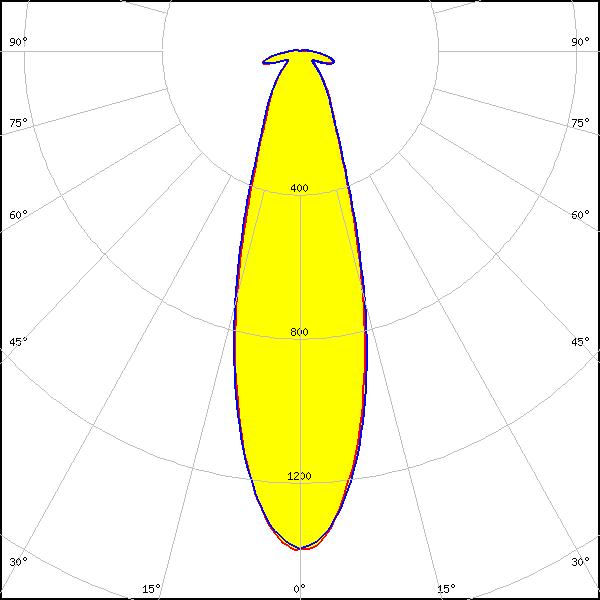

LED:

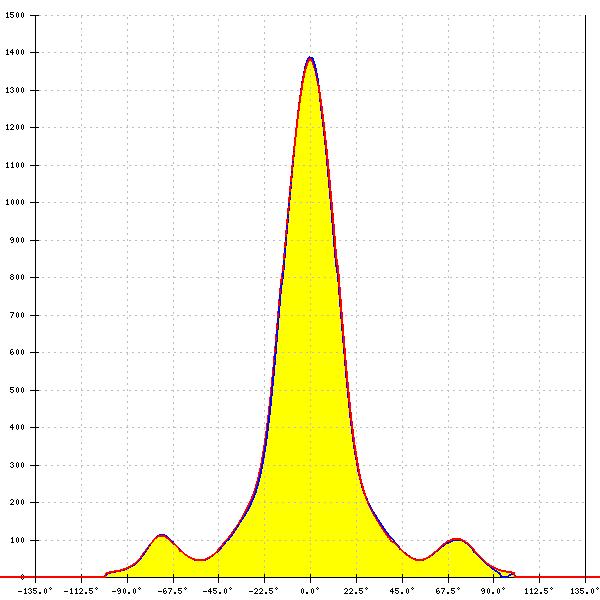

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM:
31°
FWTM:
71°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

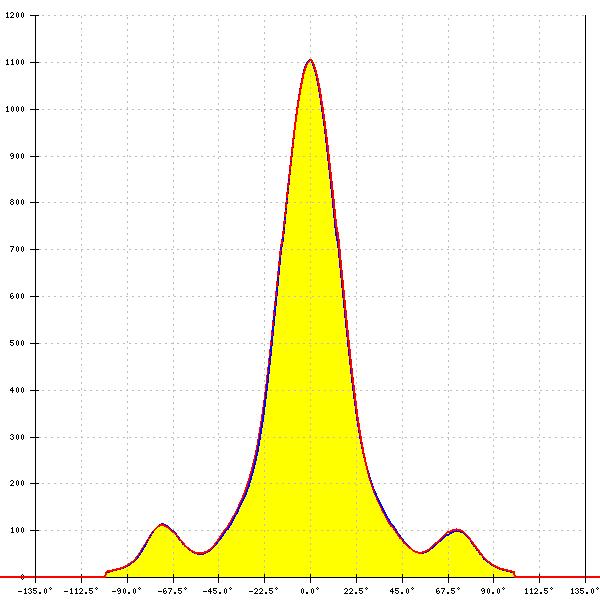

LED:

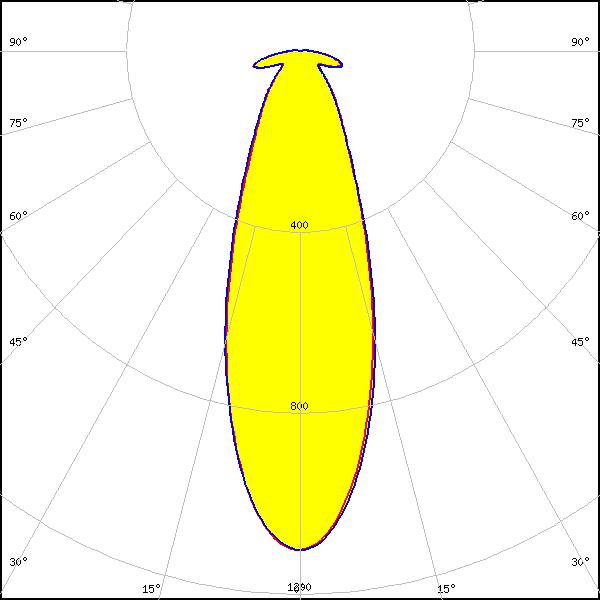

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM:
35°
FWTM:
114°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

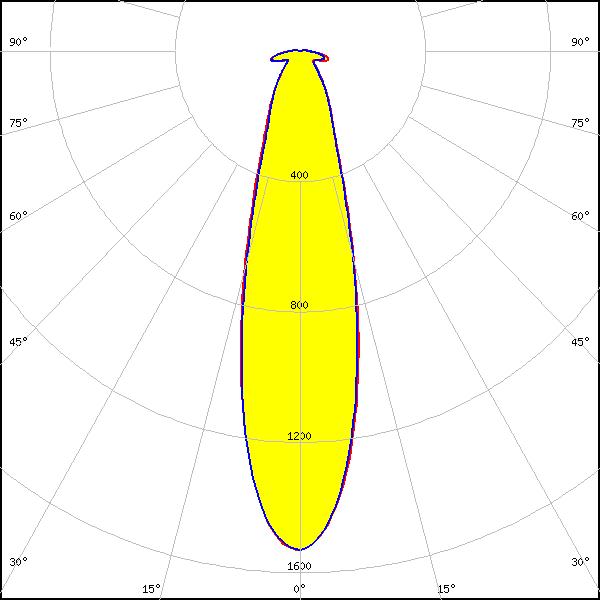

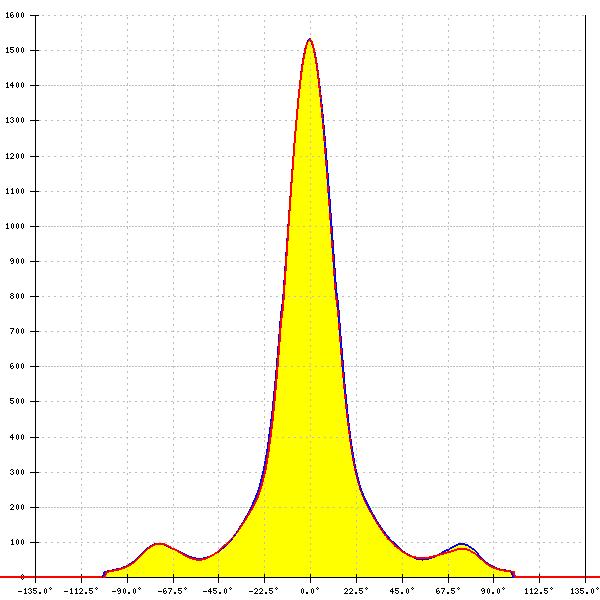

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM:
28°
FWTM:
67°
Peak intensity:
1.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

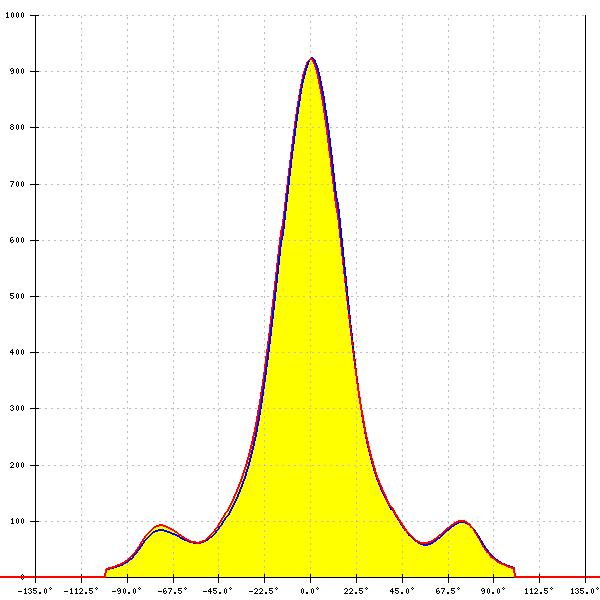

LED:

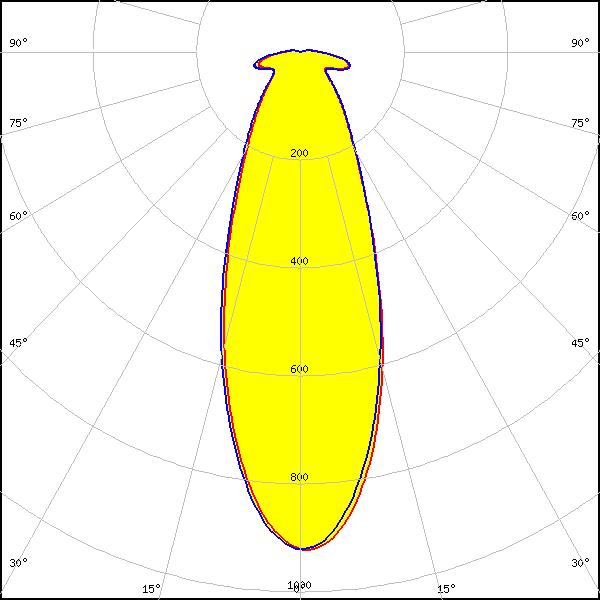

LC040D / LC060D / LC080D
LES size: 22.0 mm
FWHM:
38°
FWTM:
122°
Peak intensity:
0.920 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

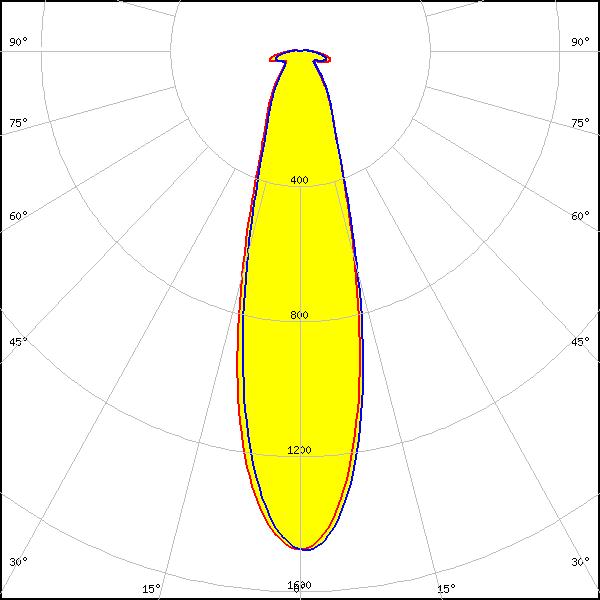

LED:

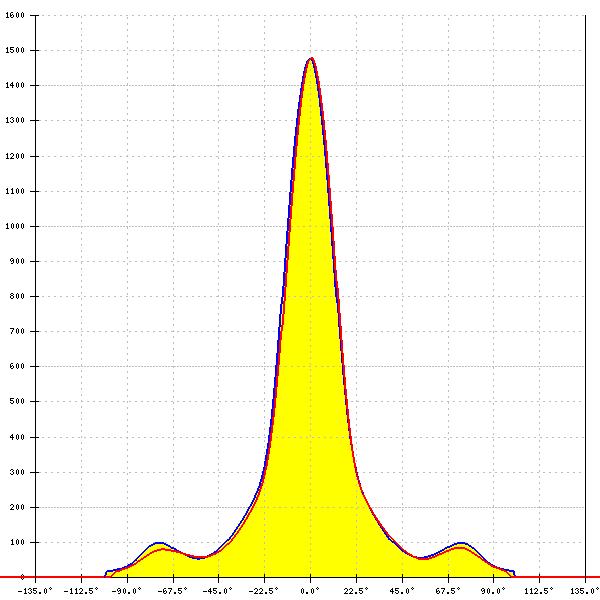

MJT COB LES 14.5
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
FWHM:
28°
FWTM:
68°
Peak intensity:
1.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

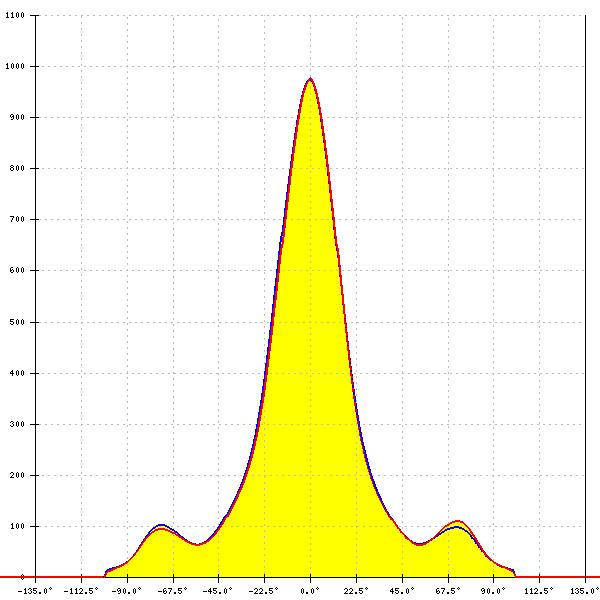

MJT COB LES 22
LES size: 22.0 mm
Required components:
IDEAL: 50-2204CT
FWHM:
36°
FWTM:
120°
Peak intensity:
0.980 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
