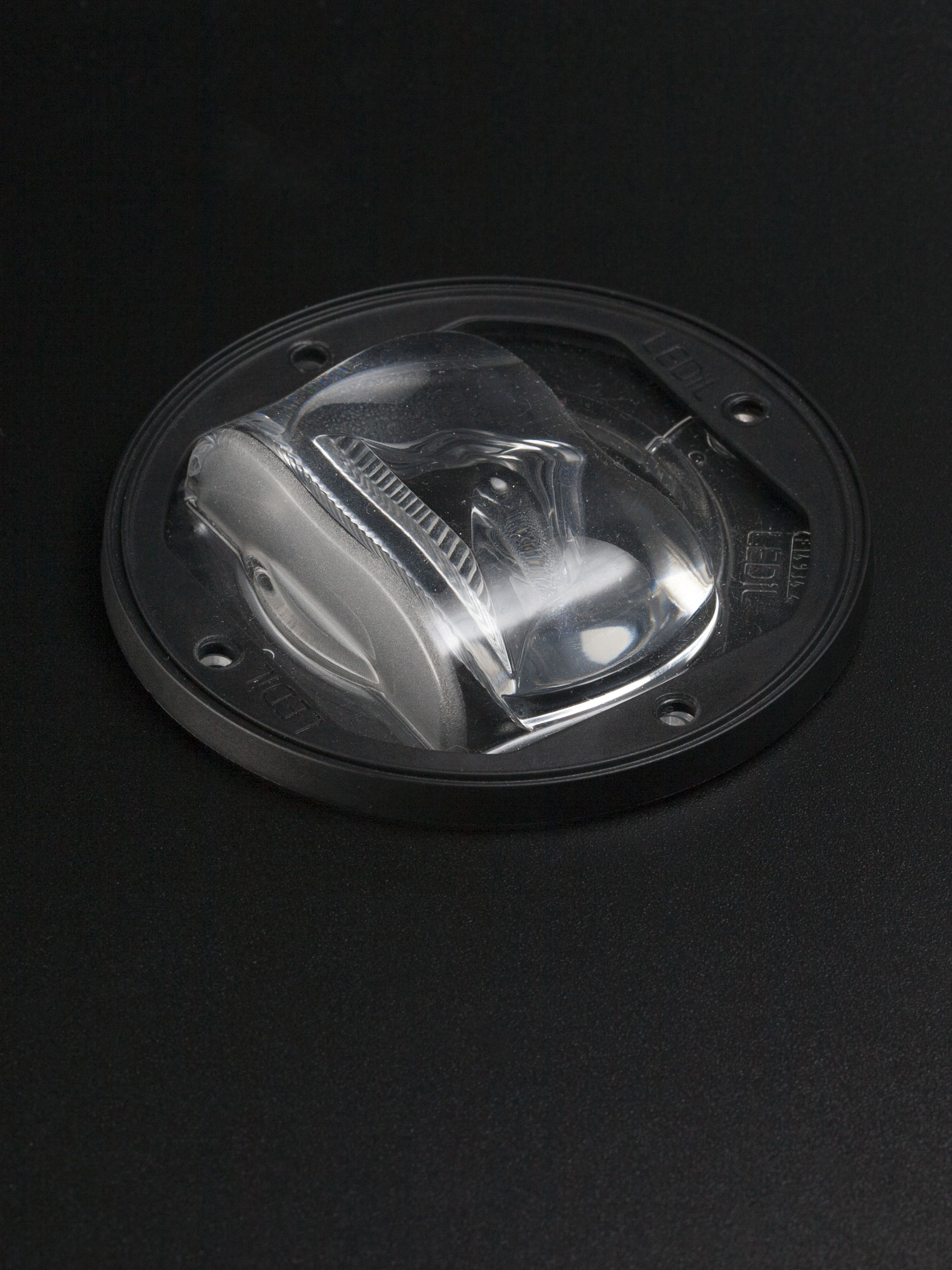

    FN14976_STELLA-DWC2

    Print

    Universal road lighting (IESNA Type II Medium) beam with excellent mixed illuminance and luminance uniformity. Compatible with up to 23 mm LES size COBs. Variant with black frame..

    Specification
    • Dimensions:
      90 mm
    • Height:
      19.25 mm
    • Fastening:
      screw
    • Colour:
      black
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      135 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.1 kg
    • MPQ:
      15 pcs
    • MOQ:
      135 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      7.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FN14976_STELLA-DWC2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Street lighting optics

    News

    PRODUCT NEWS - STELLA-DWC2

    PCN

    Product change notification NR139 -Change of packaging quantities and carton sizes 271017

    PCN

    Product change notification NR125.a - Change of packaging quantities 050916

    PCN

    Product change notification NR115.a - Change of packaging quantities 280116

    Case story

    Municipal street lighting Greece

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-CLAMP-CXA15-18

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

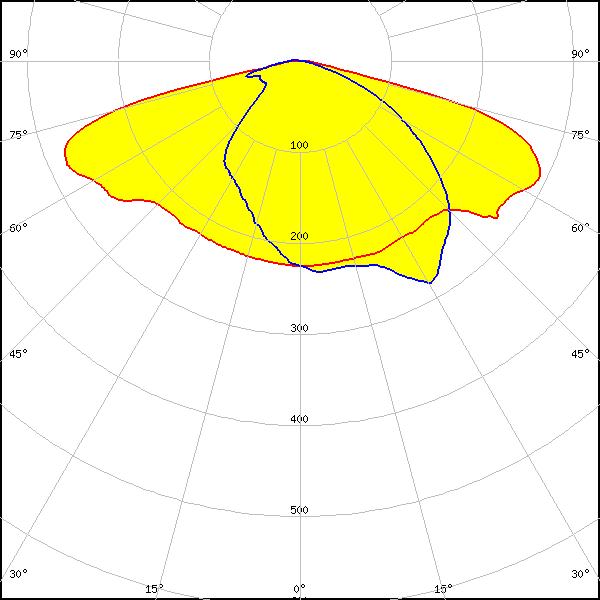

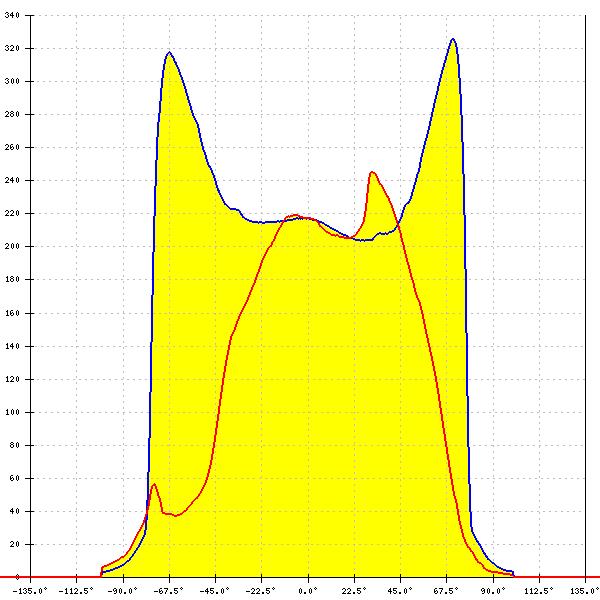

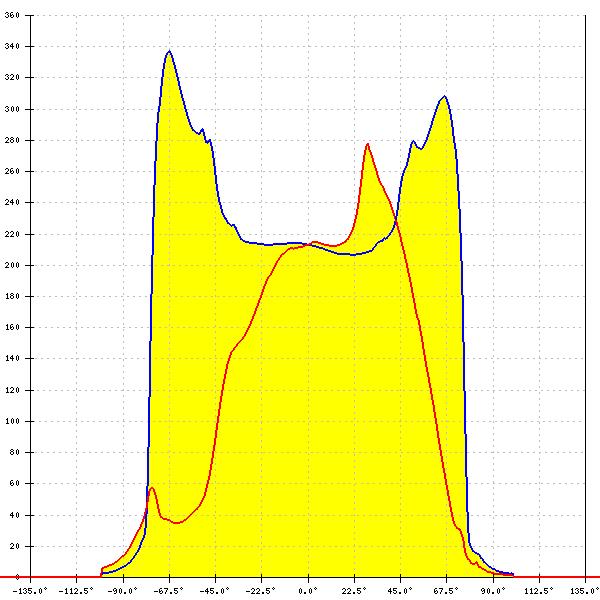

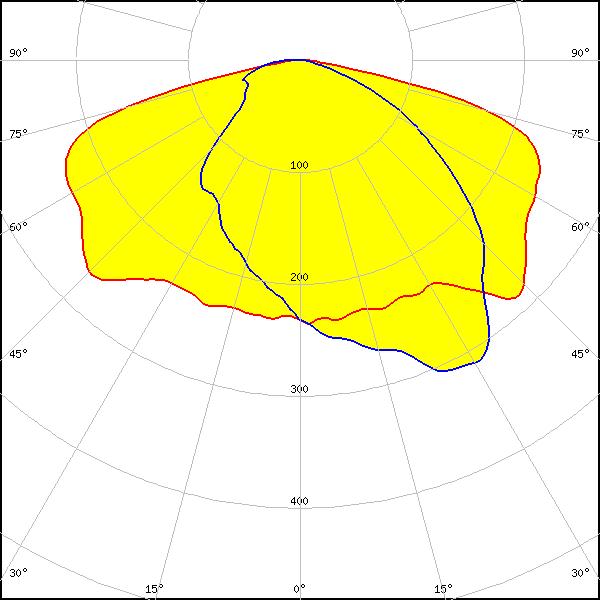

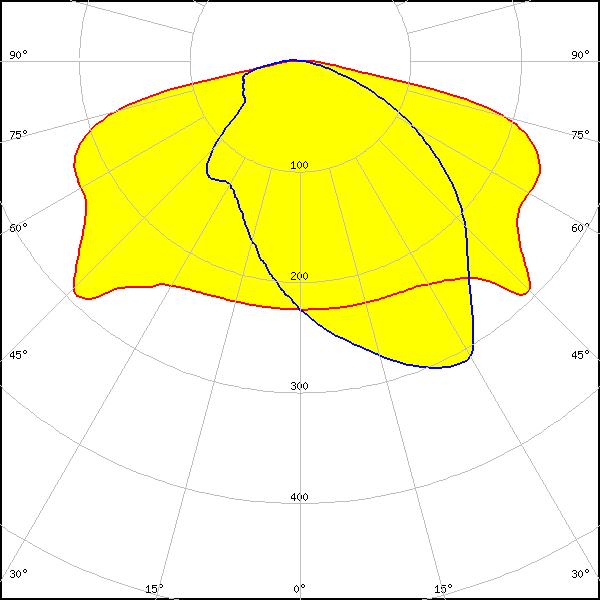

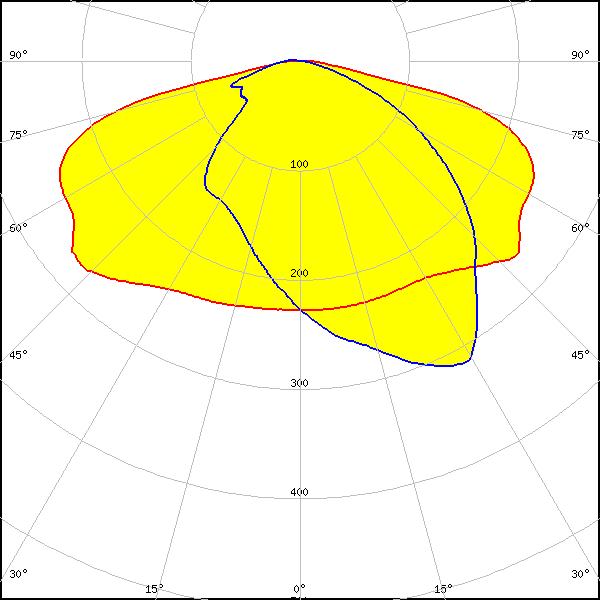

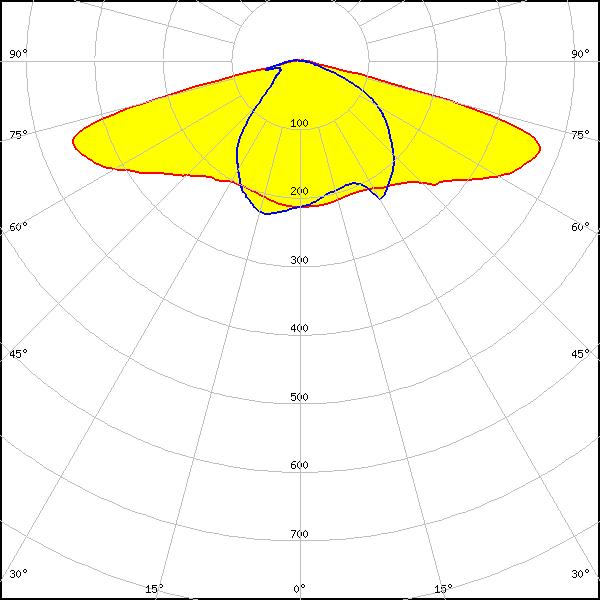

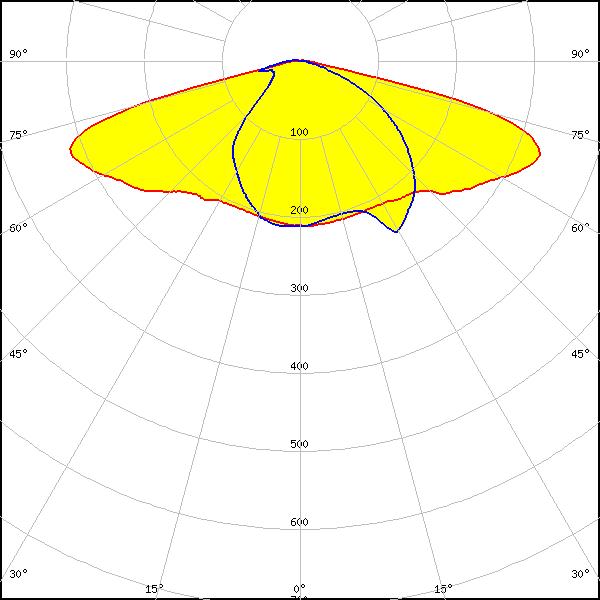

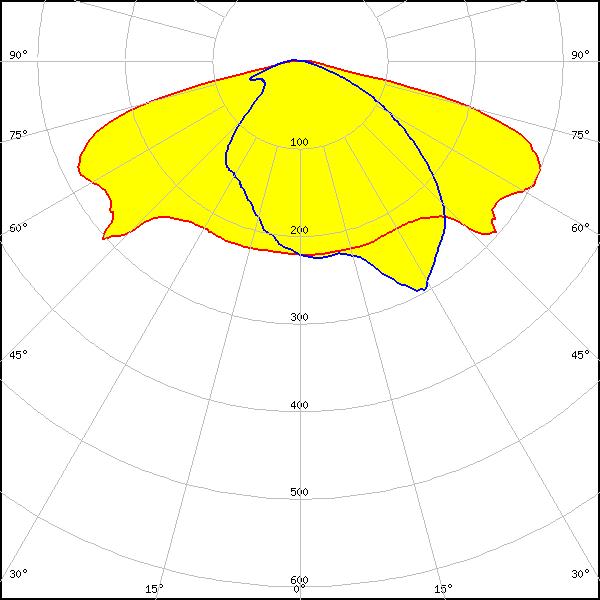

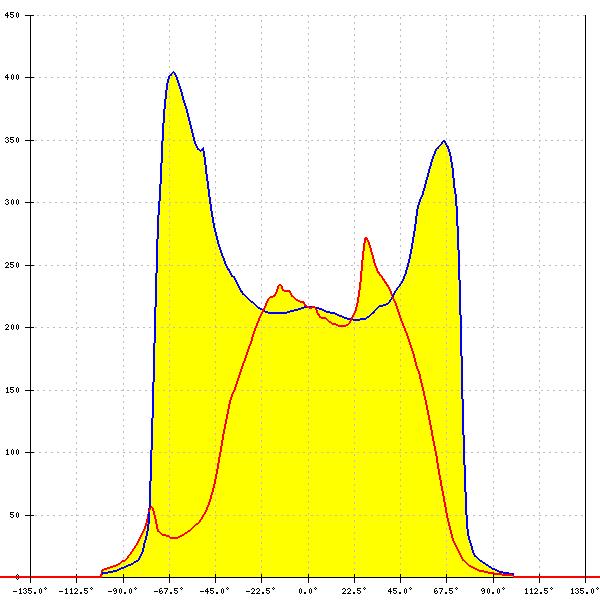

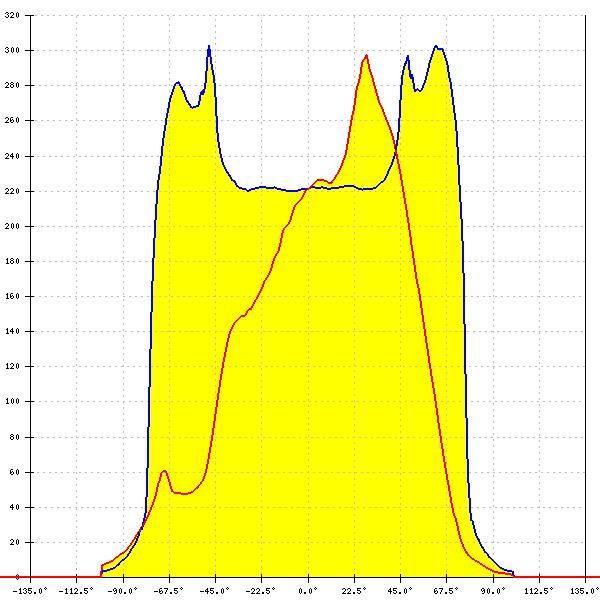

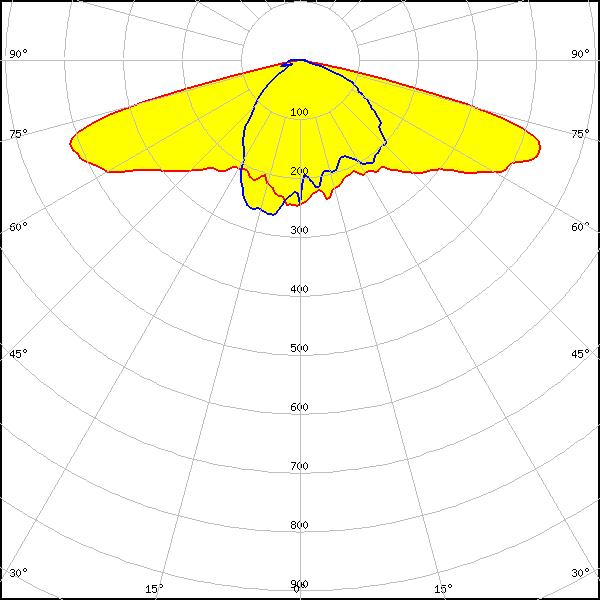

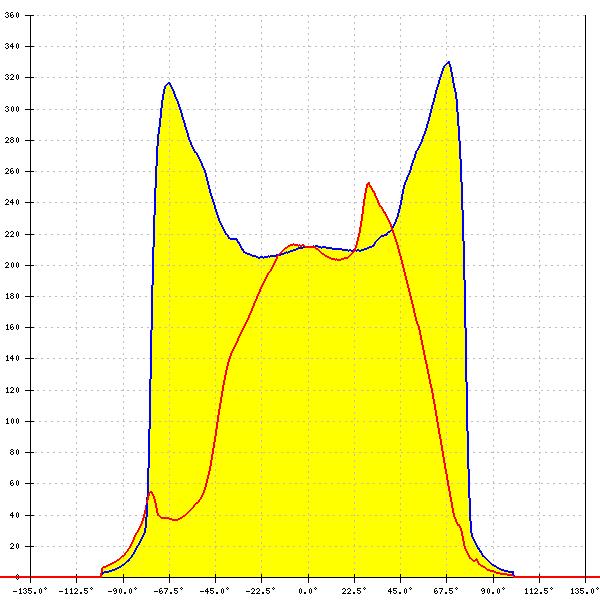

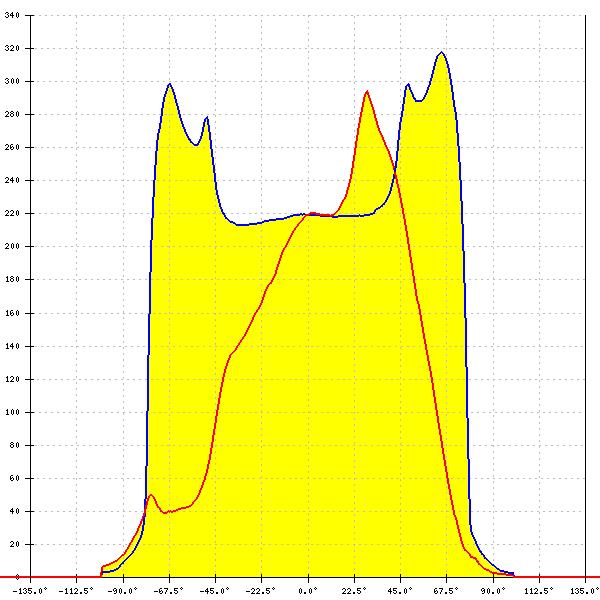

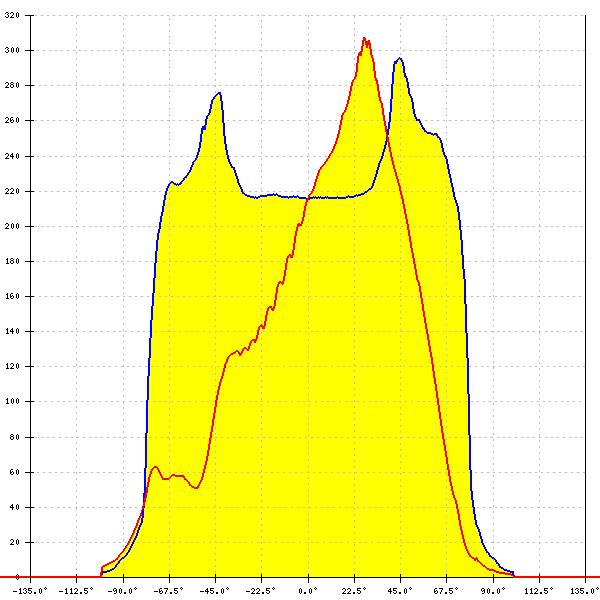

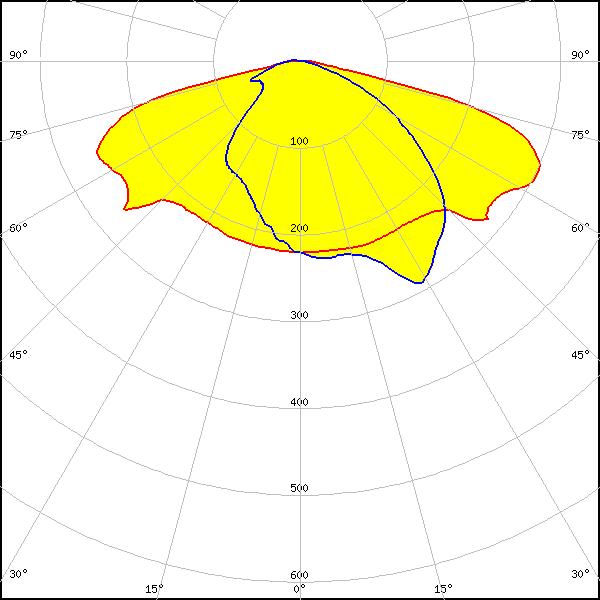

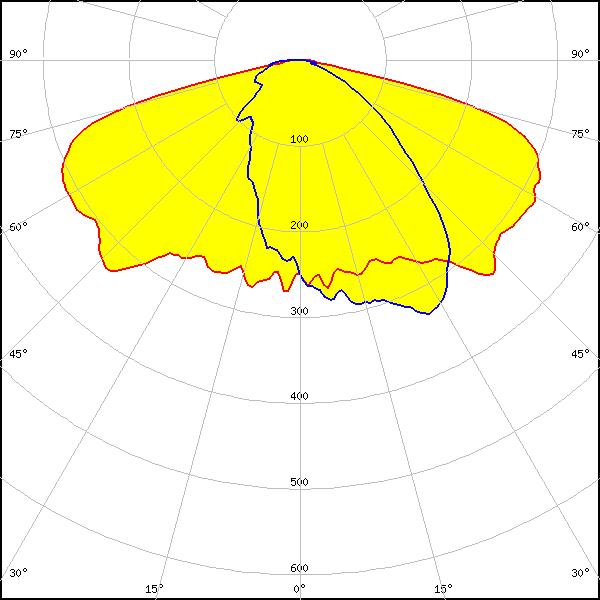

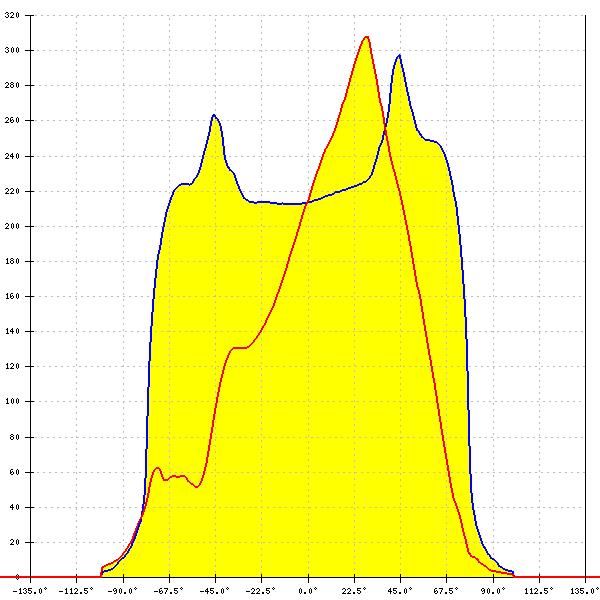

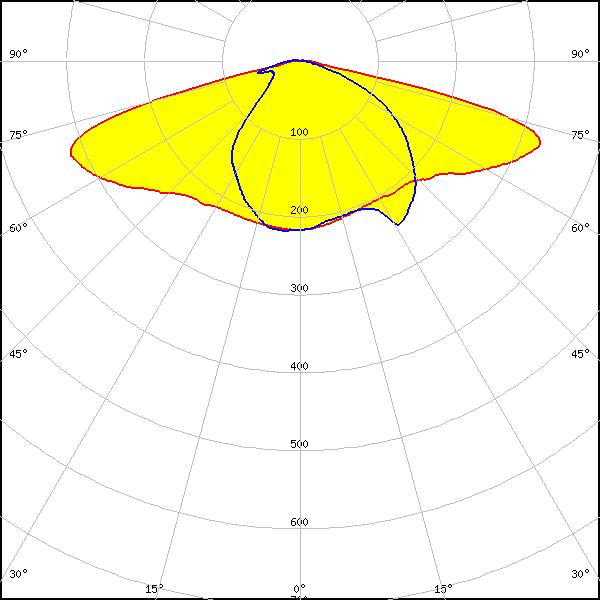

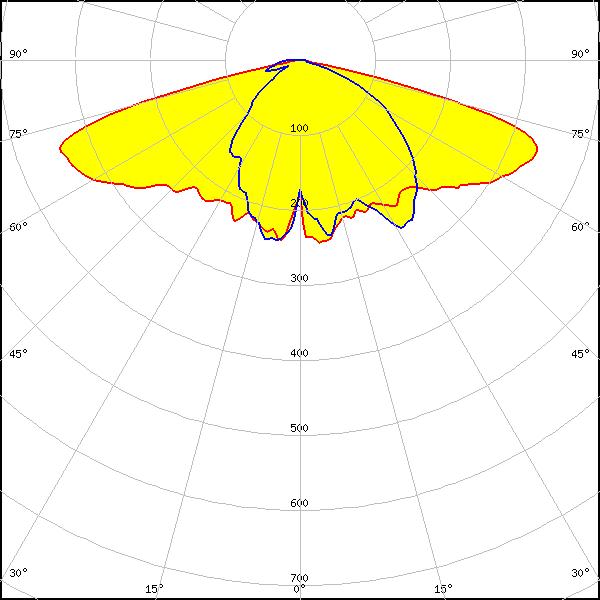

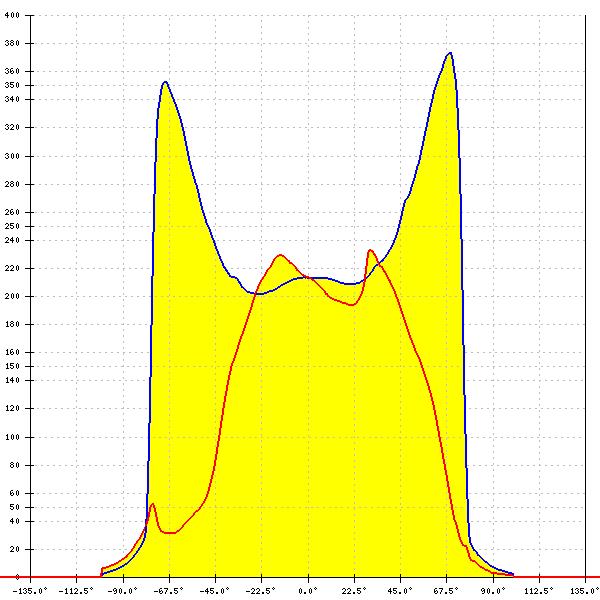

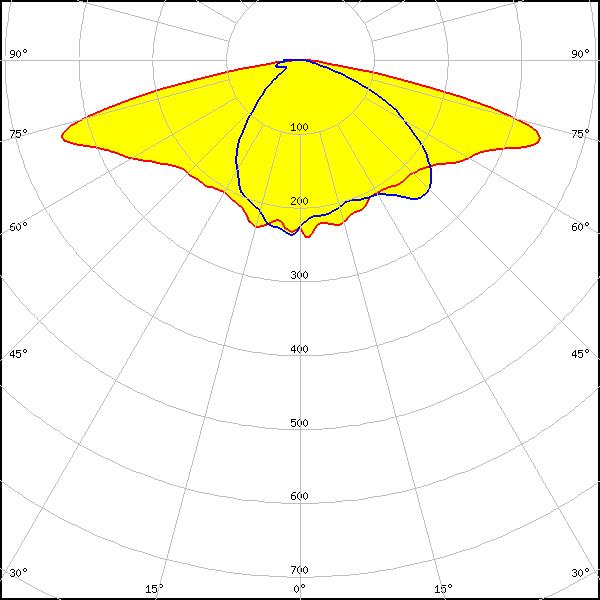

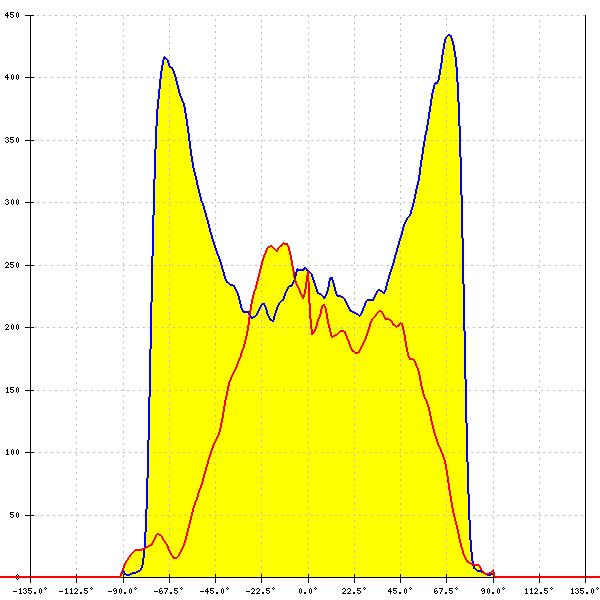

    Optical results

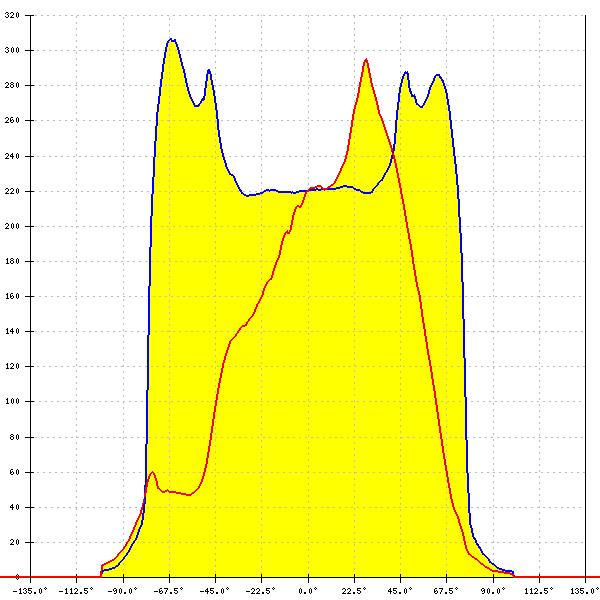

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    Bender Wirth: 486 Typ L1
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

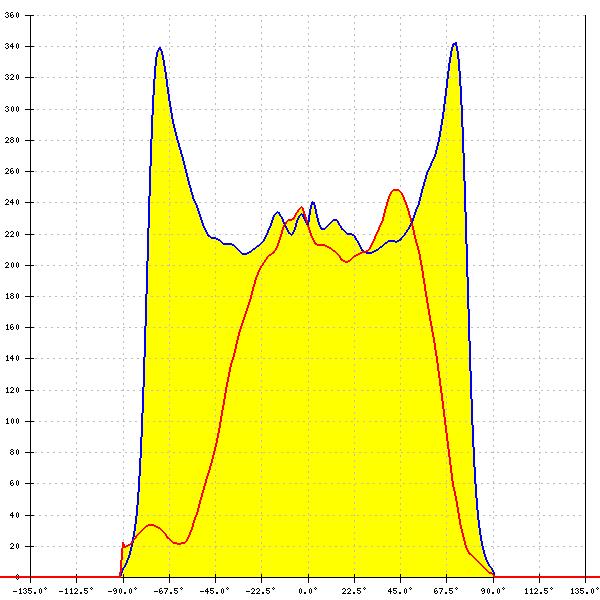

    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 477 Typ Z1
    FWHM: asymmetric
    Peak intensity: 40.494 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

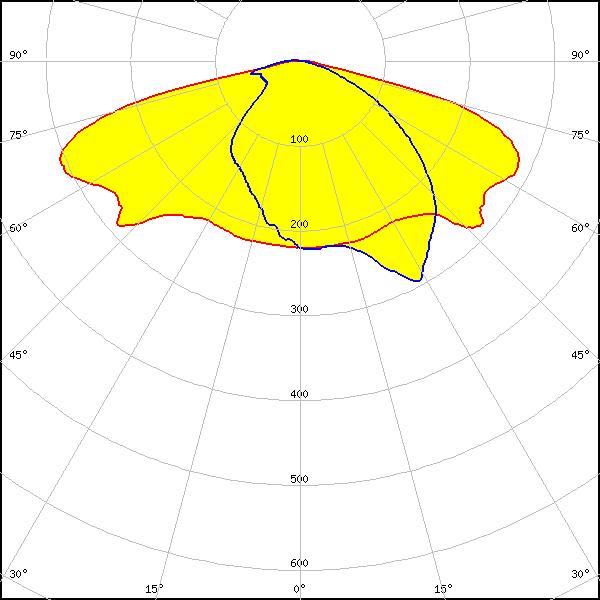

    LED: V18 Gen7
    LES size: 19.2 mm
    FWHM: asymmetric
    Peak intensity: 0.410 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen7
    LES size: 19.2 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

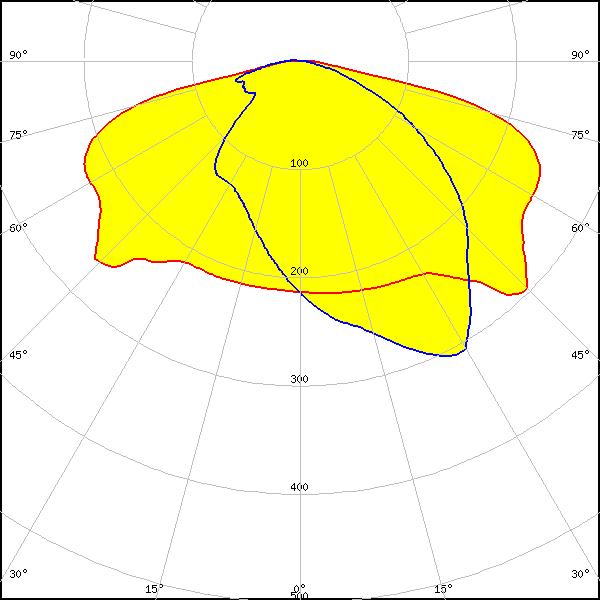

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.397 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

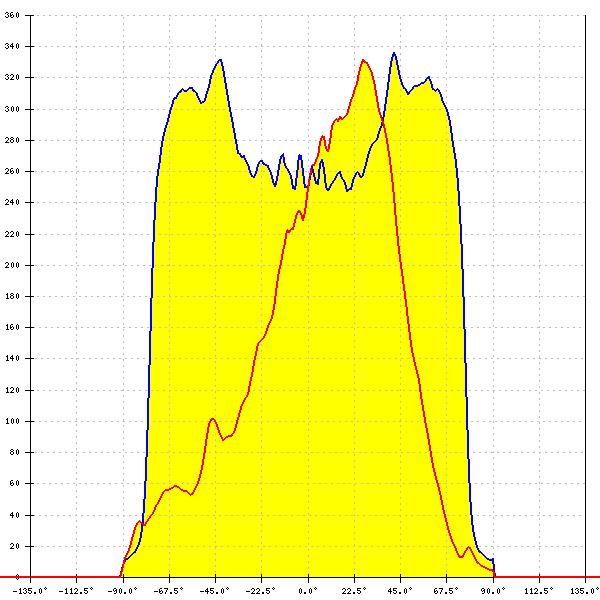

    LED: V22 Gen7
    LES size: 22.6 mm
    FWHM: asymmetric
    Peak intensity: 0.360 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

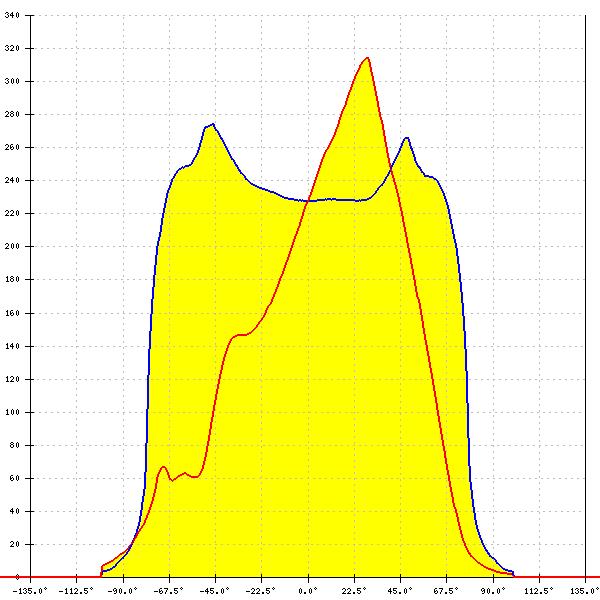

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    TE Connectivity: 2213480-1
    FWHM: asymmetric
    Peak intensity: 0.330 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

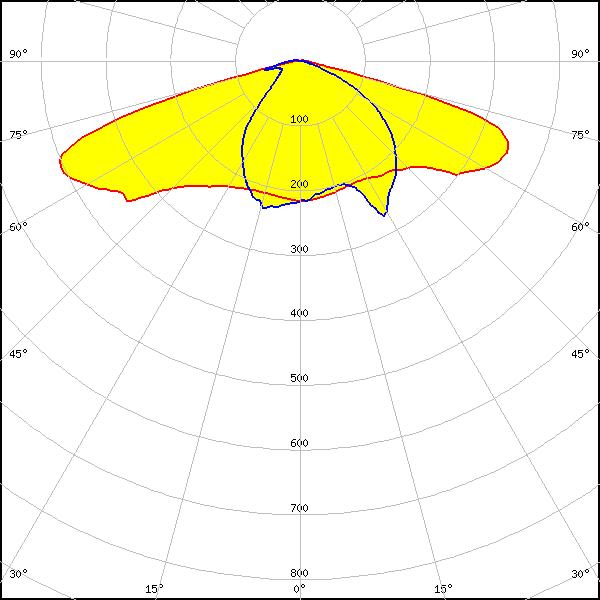

    LED: Vero SE 13
    LES size: 13.4 mm
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 18
    LES size: 18.6 mm
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

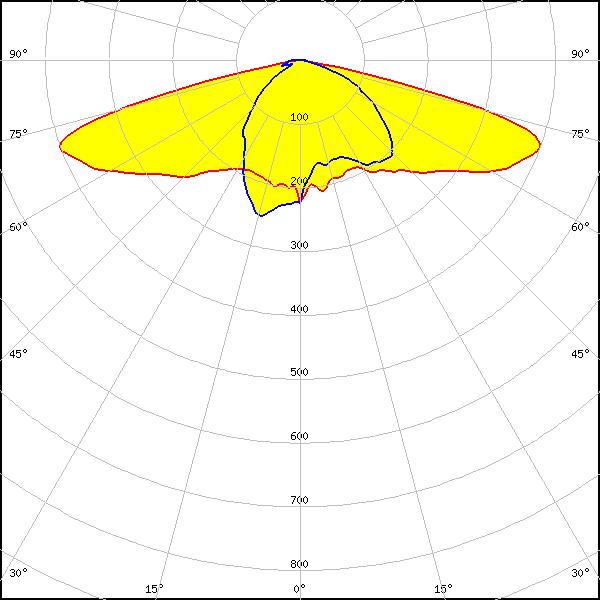

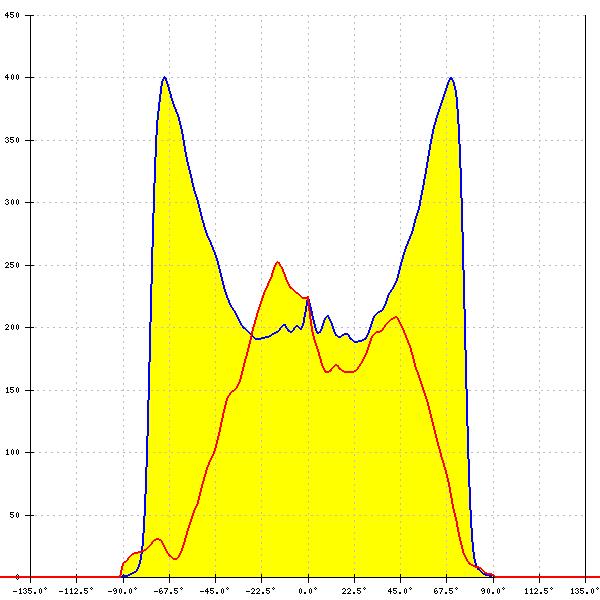

    LED: VERO10
    LES size: 9.9 mm
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    LES size: 13.4 mm
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

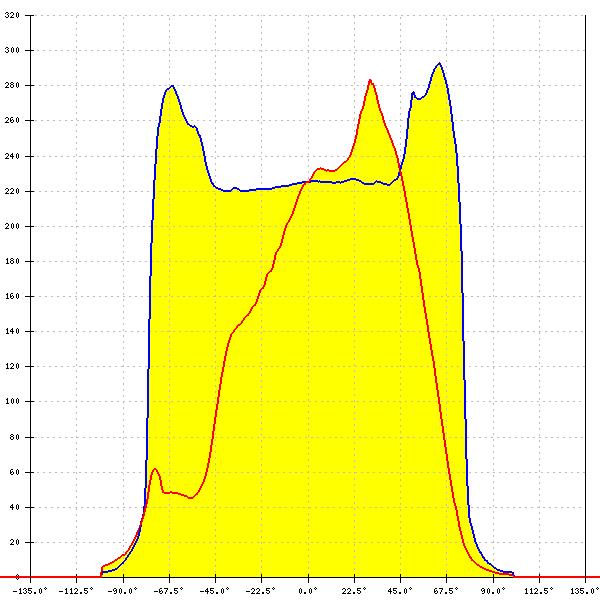

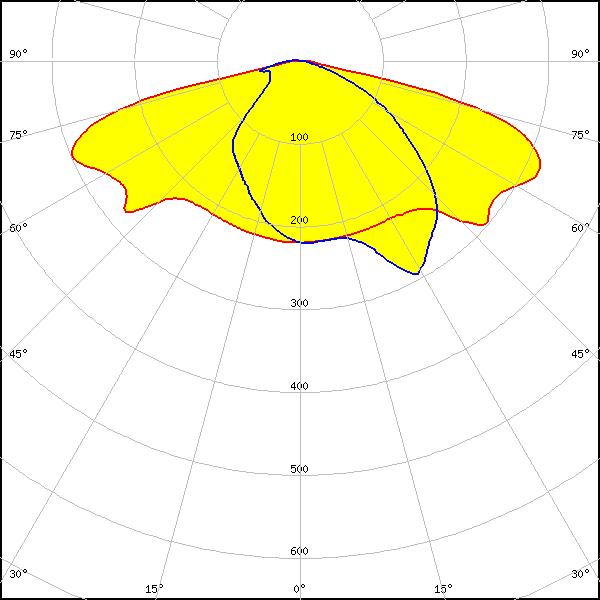

    LED: VERO18
    LES size: 18.6 mm
    FWHM: asymmetric
    Peak intensity: 0.430 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

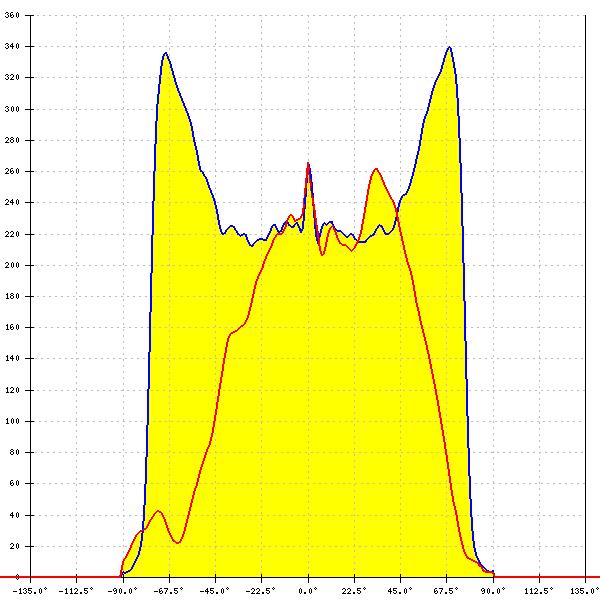

    LED: CLU03x
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU04x
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.370 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA2550
    LES size: 19.0 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

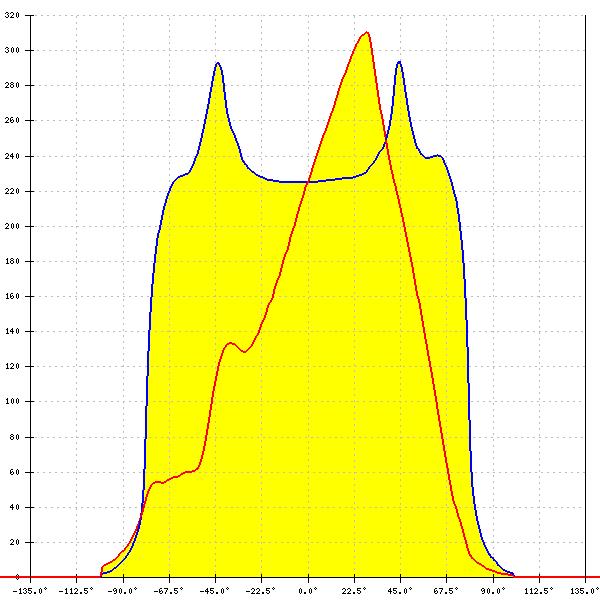

    LED: CMA3090
    LES size: 23.0 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

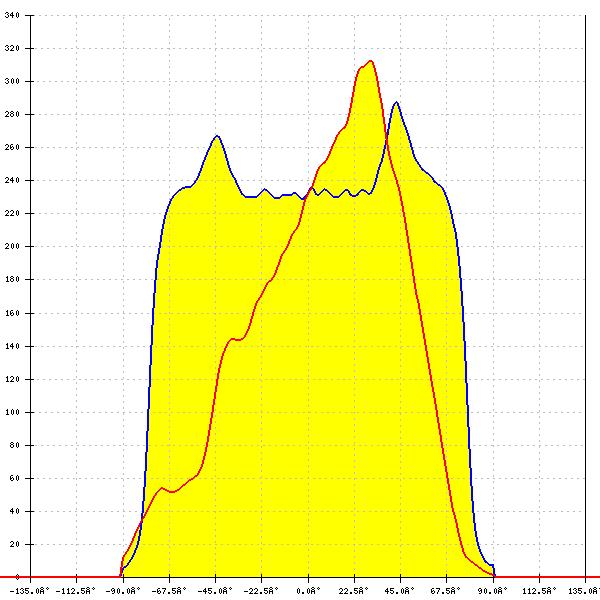

    LED: CMU22xx
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.361 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

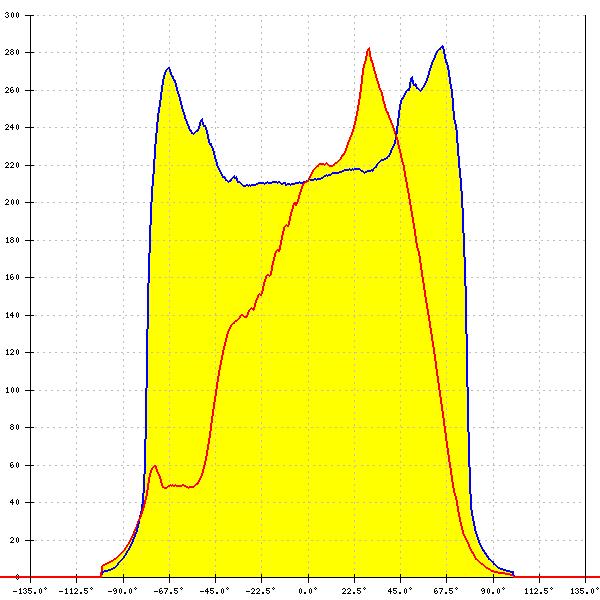

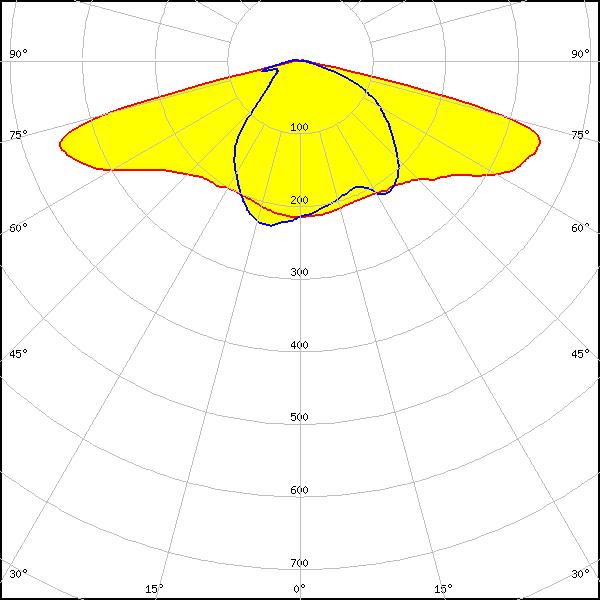

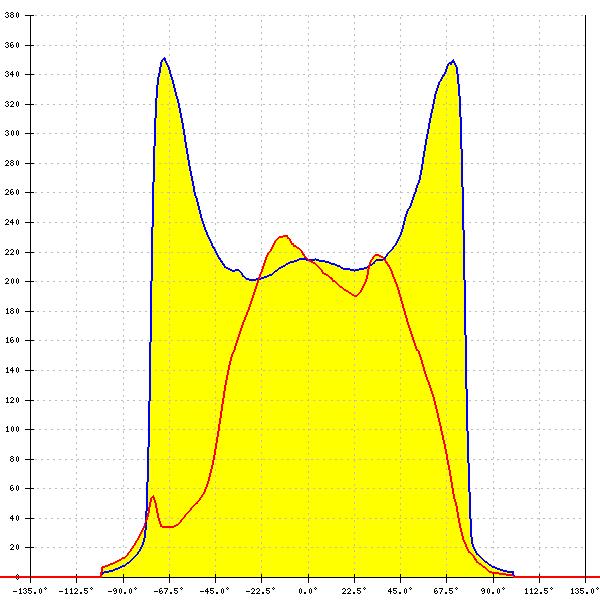

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

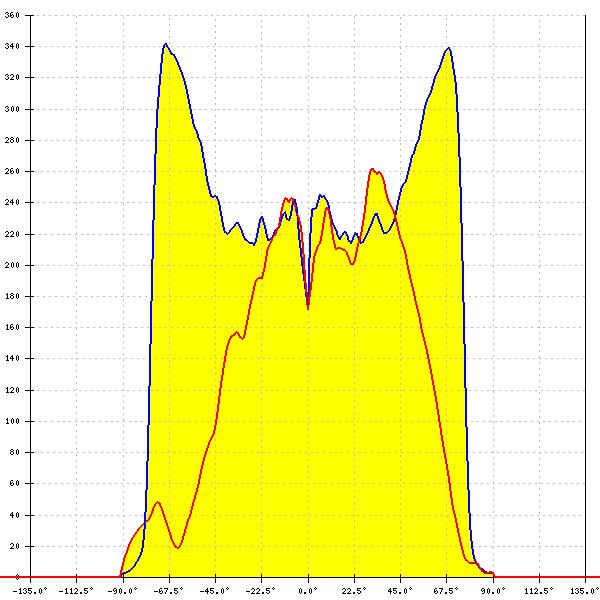

    LED: CXA/B 1830
    LES size: 14.0 mm
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

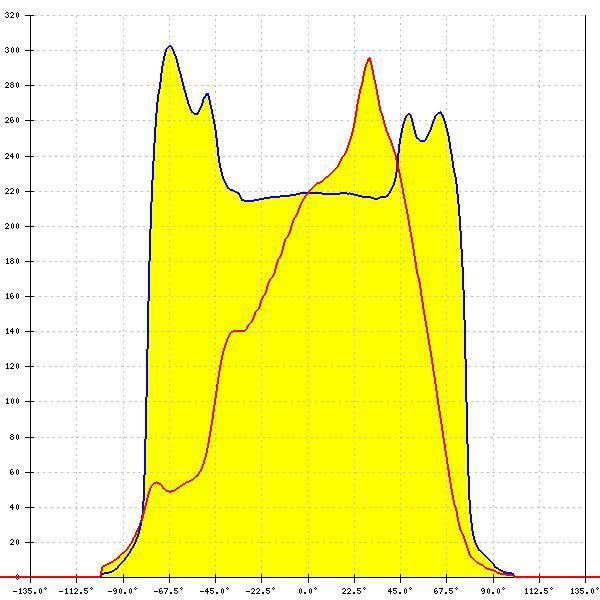

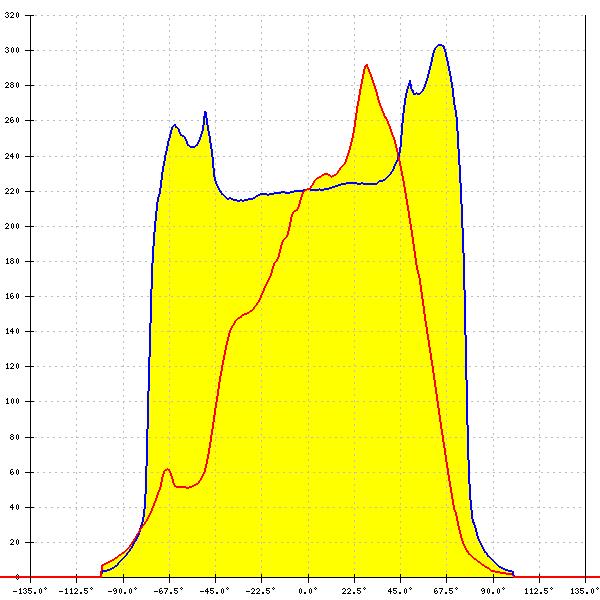

    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

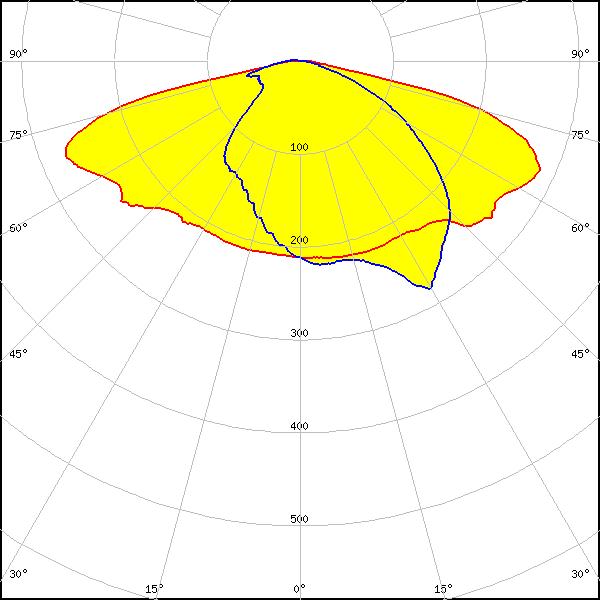

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1211
    LES size: 18.5 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.330 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.360 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13
    LES size: 13.2 mm
    Required components:
    Bender Wirth: 477 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

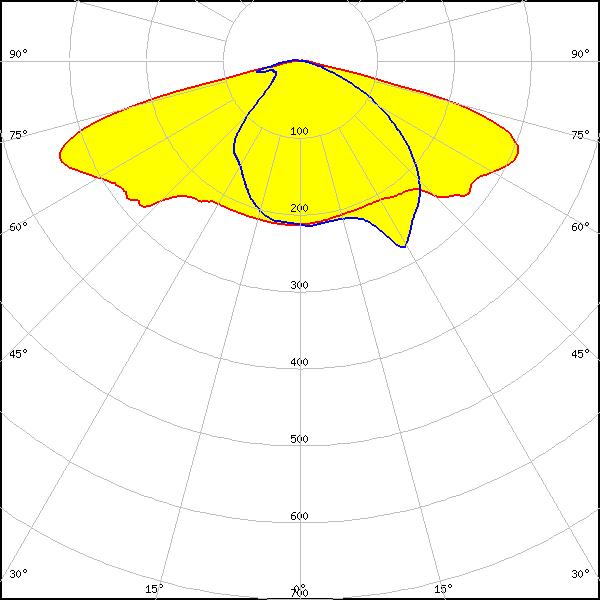

    LED: Soleriq S19
    LES size: 17.9 mm
    FWHM: asymmetric
    Peak intensity: 0.510 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L19 CoB
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 631b LowProfile
    FWHM: asymmetric
    Peak intensity: 0.395 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

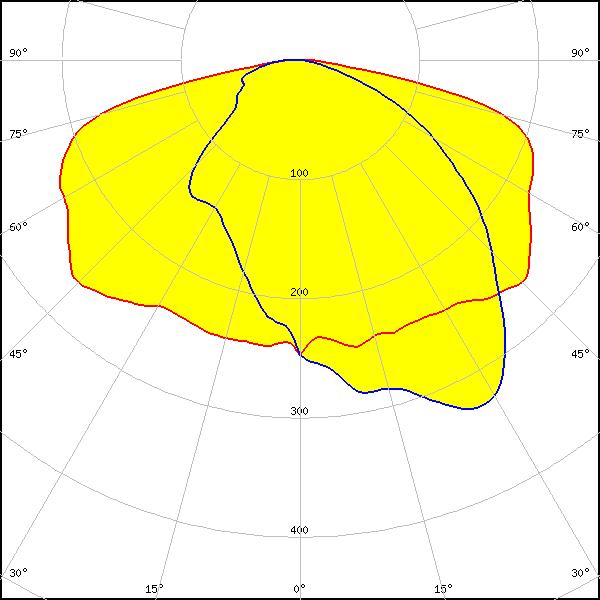

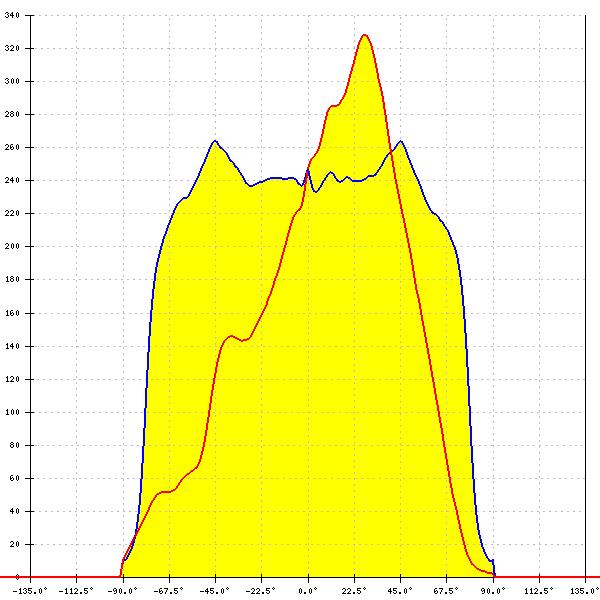

    LED: Fortimo SLM L23 + SLM holder (PI)
    LES size: 23.0 mm
    FWHM: asymmetric
    Peak intensity: 0.330 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

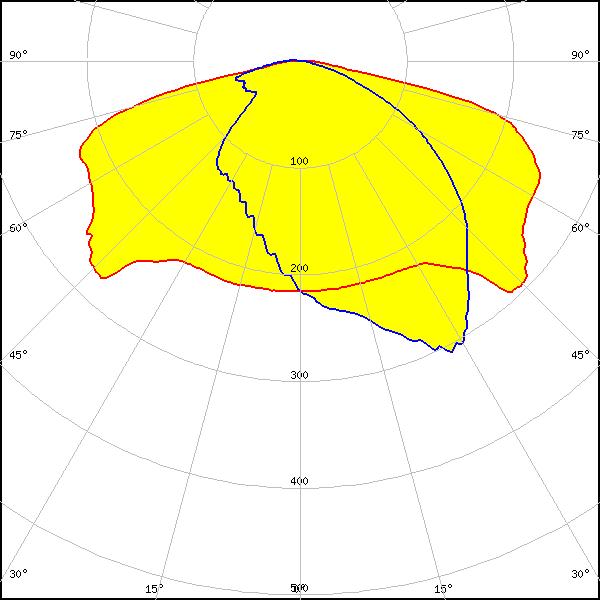

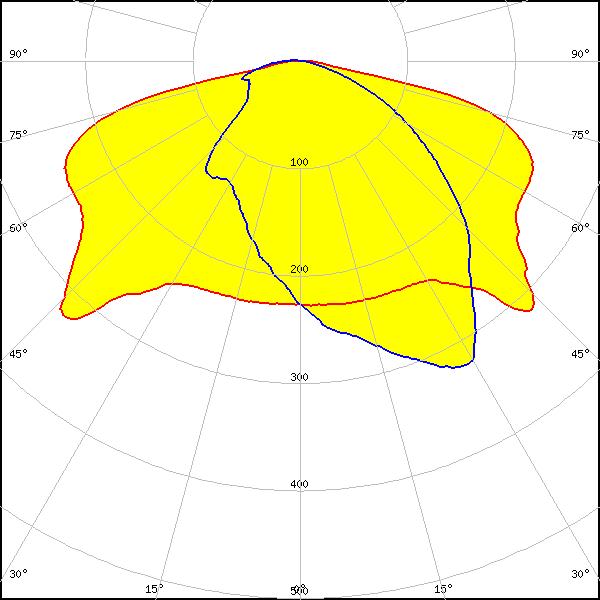

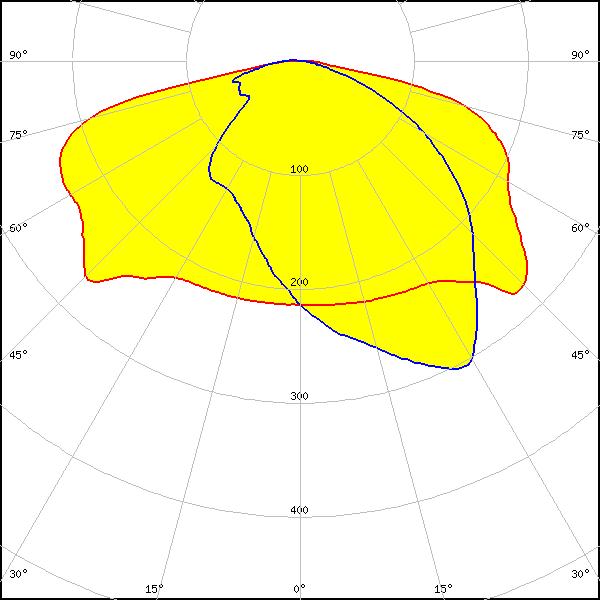

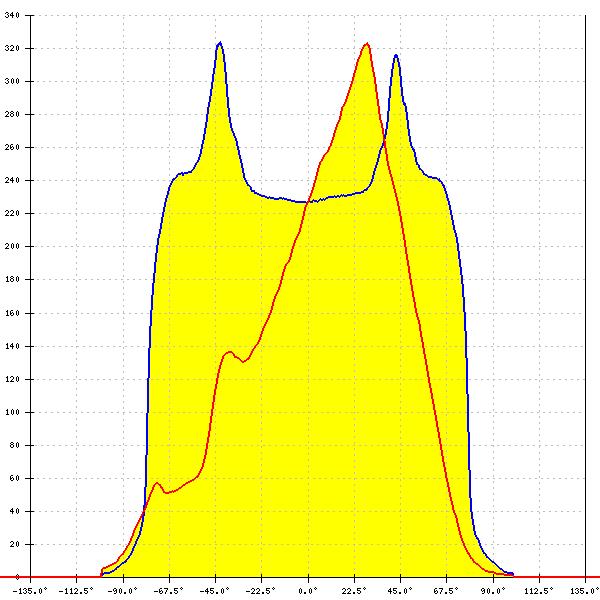

    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.383 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.340 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 433 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

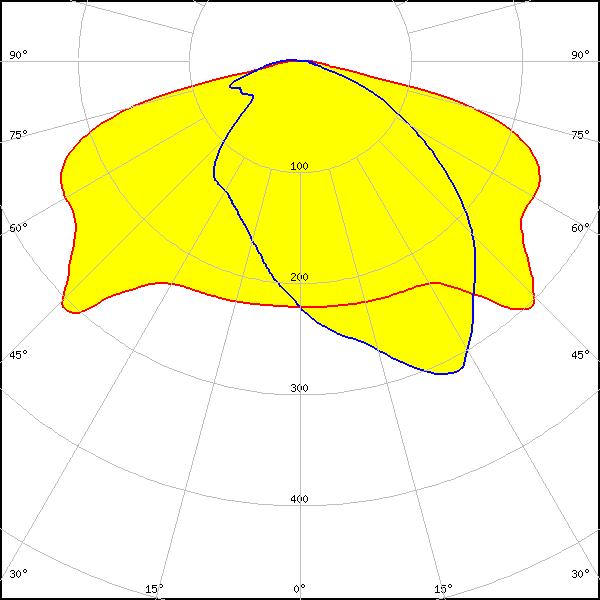

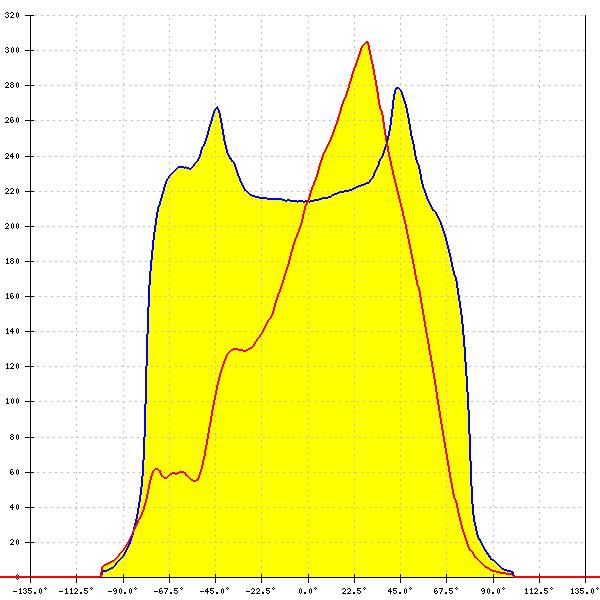

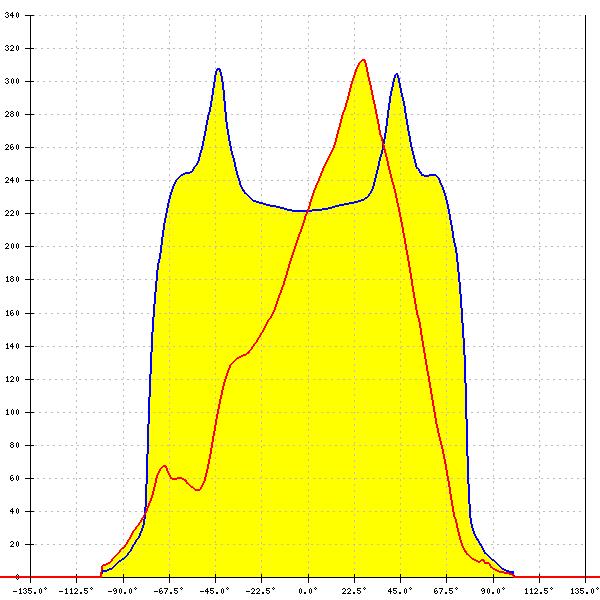

    LED: MJT COB LES 22
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.370 cd/lm
