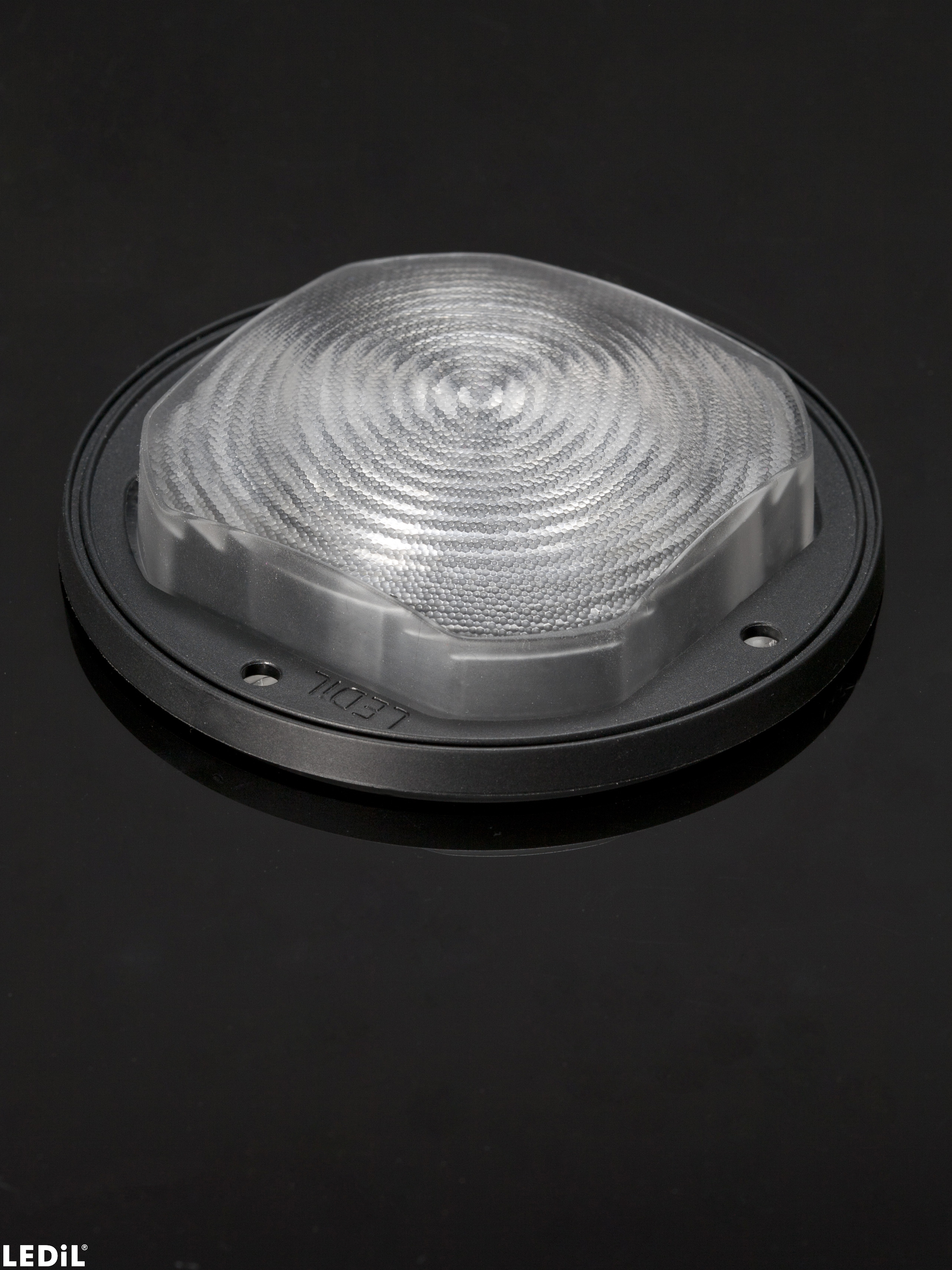

    FN14720_STELLA-FRESNEL

    Print

    ~25° beam for warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs. Variant with black frame.

    Specification
    • Dimensions:
      90 mm
    • Height:
      23.00 mm
    • Fastening:
      screw
    • Colour:
      black
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      135 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.1 kg
    • MPQ:
      15 pcs
    • MOQ:
      135 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      6.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FN14720_STELLA-FRESNEL
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Sports lighting optics

    Reference product

    OSEAN underwater floodlight

    Application area

    Sports outdoor lighting

    Application area

    SPORTS INDOOR LIGHTING

    News

    PRODUCT NEWS - STELLA-FRESNEL

    PCN

    Product change notification NR136 - Change of packaging quantities 070717

    PCN

    Product change notification NR125.a - Change of packaging quantities 050916

    PCN

    Product change notification NR115.c - Change of material 280116

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-CLAMP-CXA15-18

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

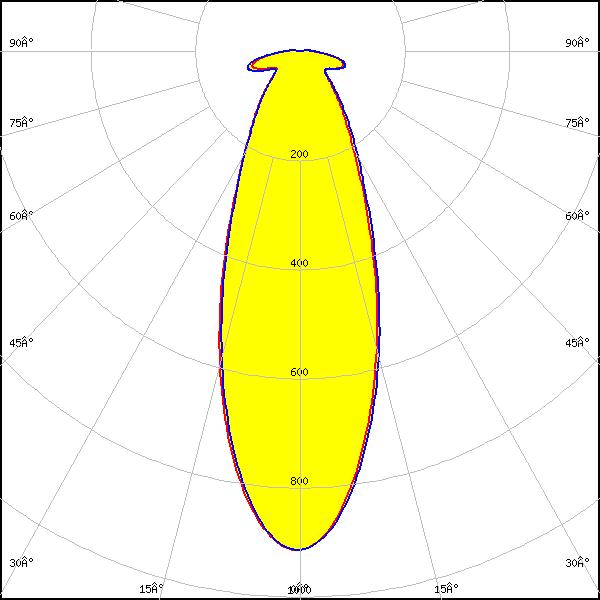

    Optical results

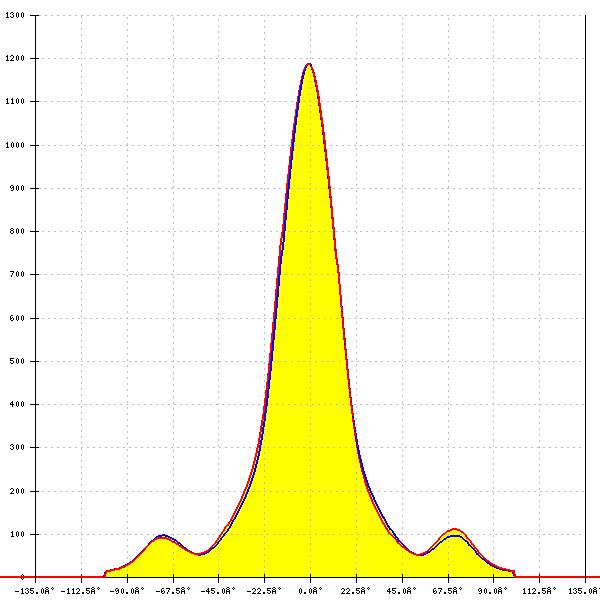

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    Bender Wirth: 486 Typ L1
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 4.010 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

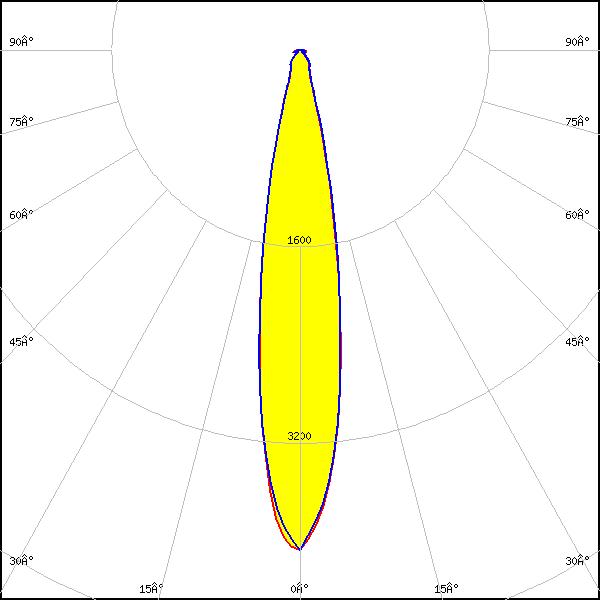

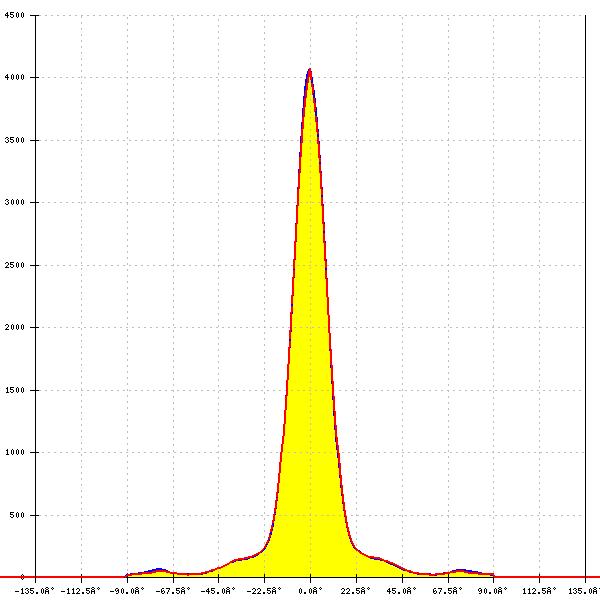

    LED: V13 Gen7
    LES size: 14.0 mm
    FWHM: 20°
    FWTM: 90°
    Peak intensity: 0.410 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

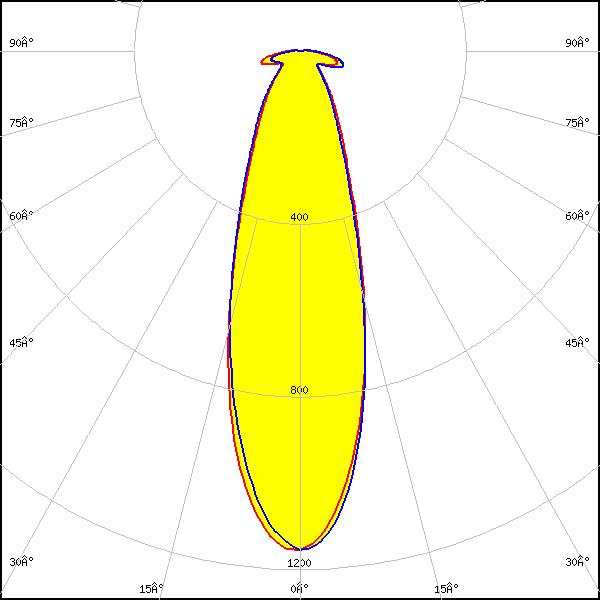

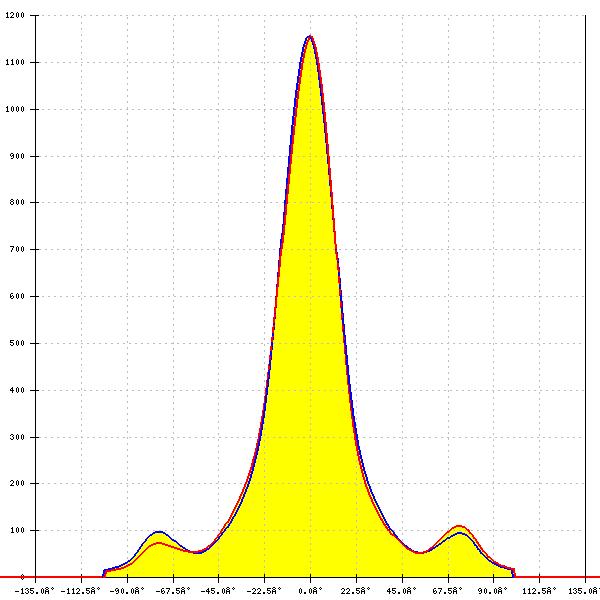

    LED: V18 Gen7
    LES size: 19.2 mm
    Required components:
    BJB: 47.319.2350
    FWHM: 32°
    FWTM: 77°
    Peak intensity: 1.200 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

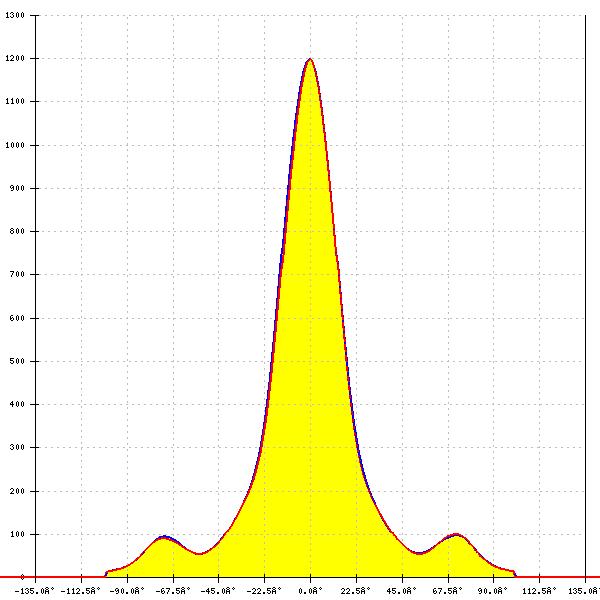

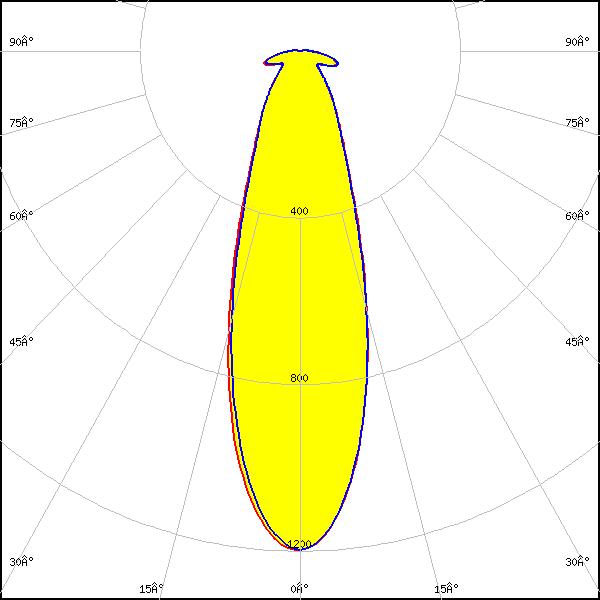

    LED: V18 Gen7
    LES size: 19.2 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: 32°
    FWTM: 77°
    Peak intensity: 1.200 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

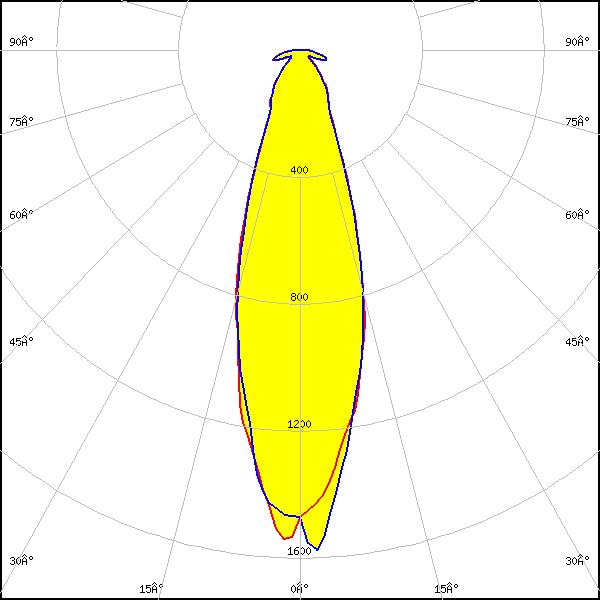

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    IDEAL: 50-2204CT
    FWHM: 30°
    FWTM: 70°
    Peak intensity: 0.457 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

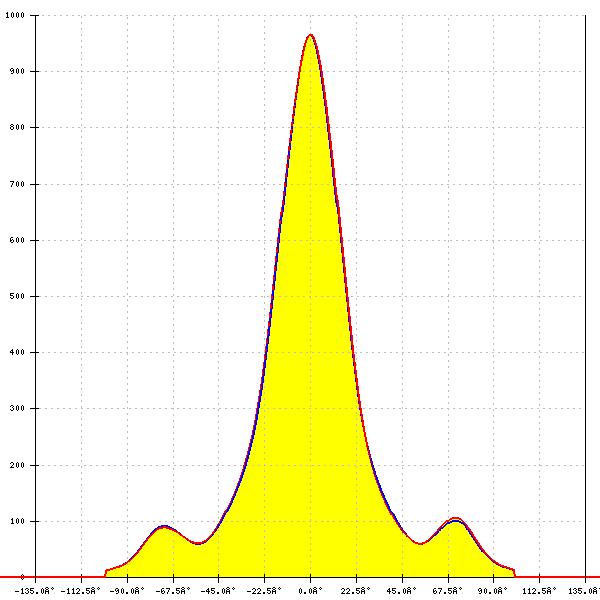

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    TE Connectivity: 2213480-1
    FWHM: 37°
    FWTM: 118°
    Peak intensity: 1.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

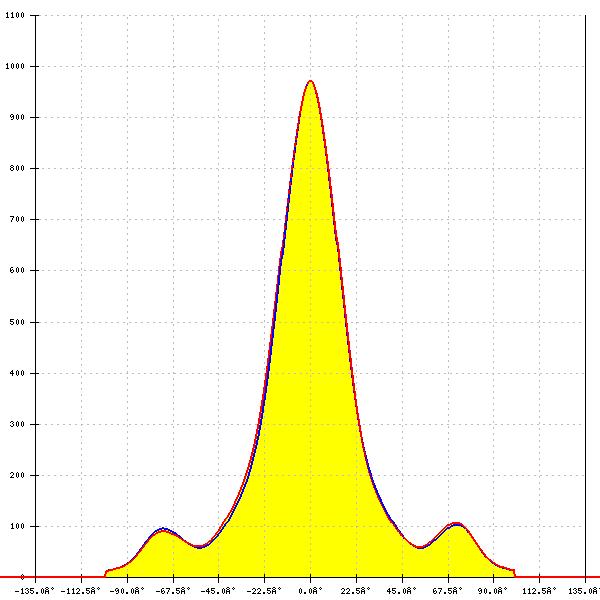

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: 36°
    FWTM: 118°
    Peak intensity: 0.970 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

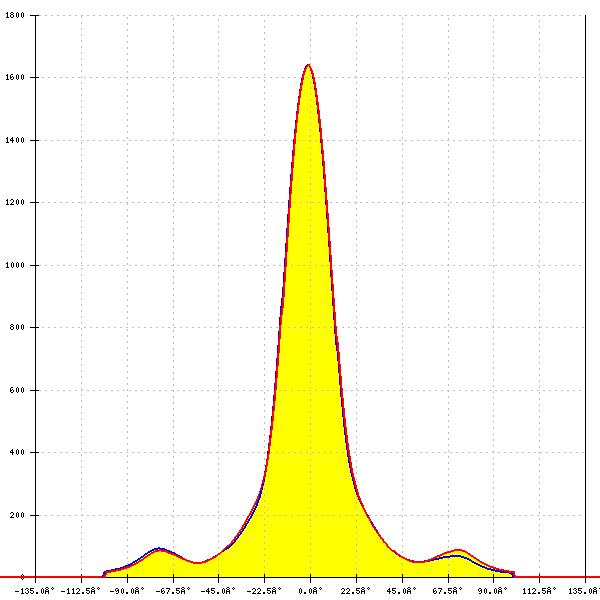

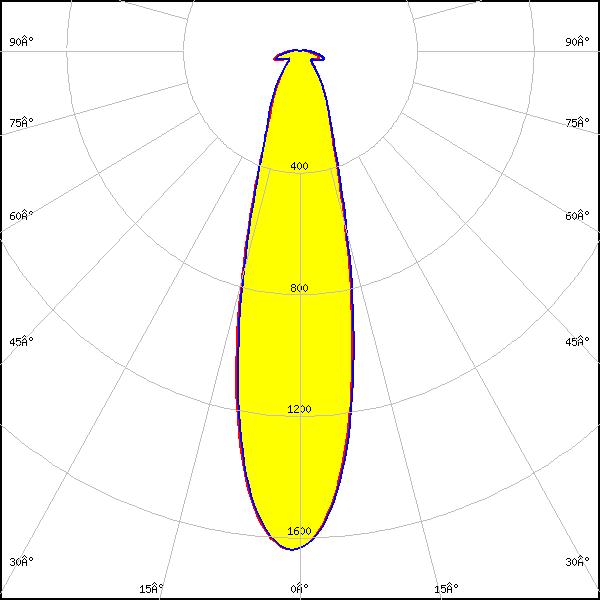

    LED: Vero SE 13
    LES size: 13.4 mm
    FWHM: 27°
    FWTM: 63°
    Peak intensity: 1.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

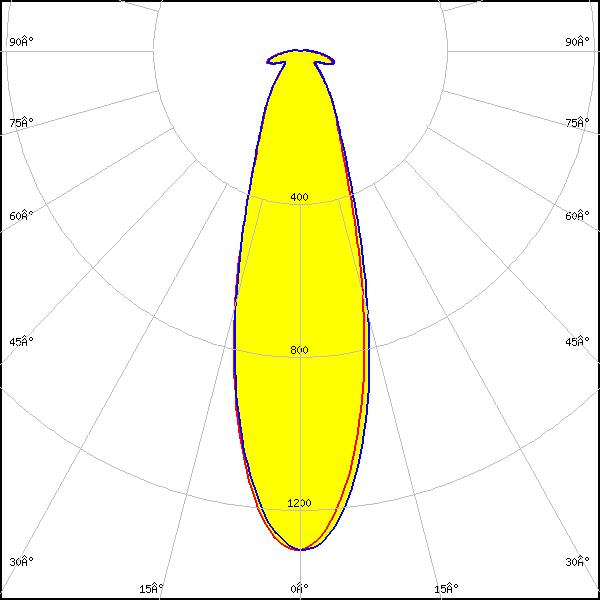

    LED: Vero SE 18
    LES size: 18.6 mm
    FWHM: 31°
    FWTM: 73°
    Peak intensity: 1.300 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

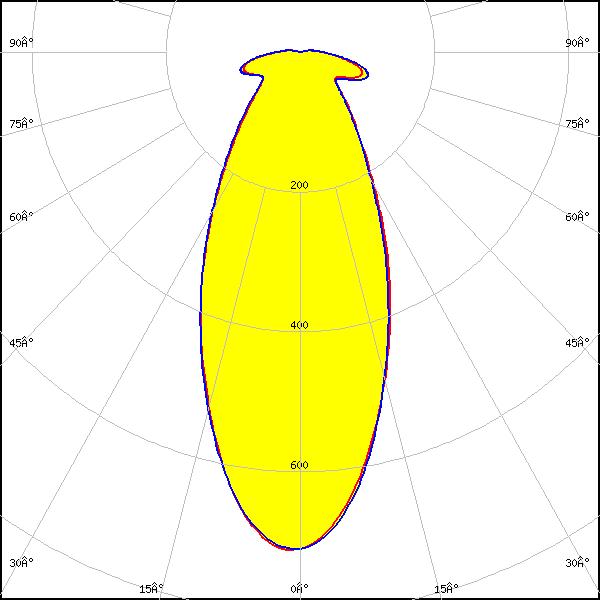

    LED: Vero SE 29
    LES size: 29.2 mm
    FWHM: 46°
    FWTM: 161°
    Peak intensity: 0.710 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

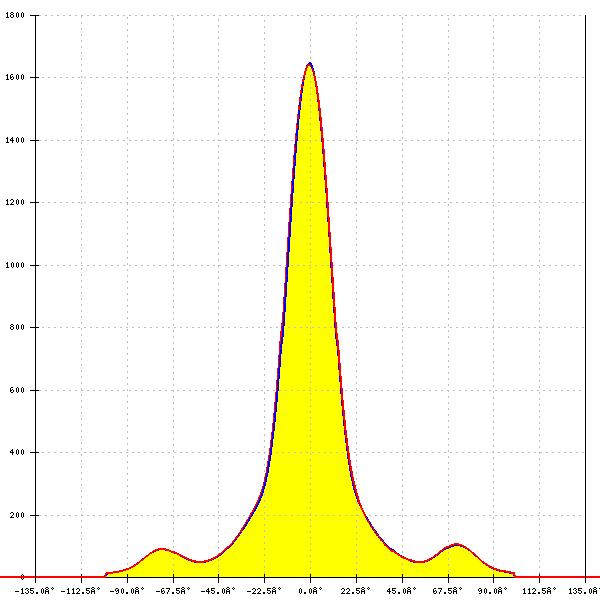

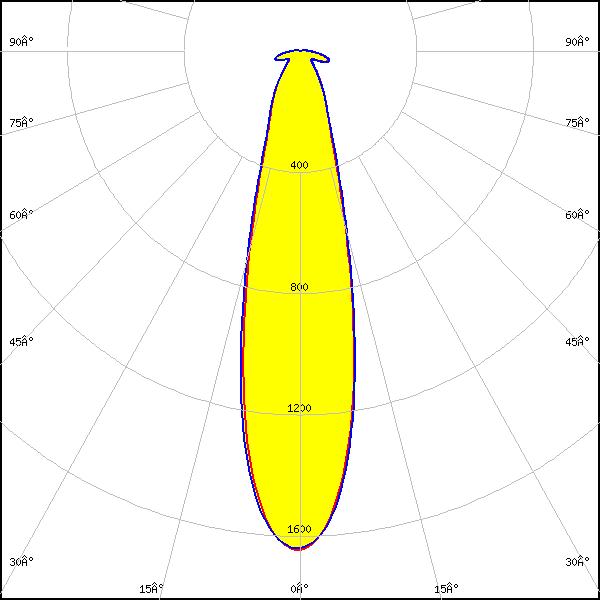

    LED: VERO13
    LES size: 13.4 mm
    FWHM: 26°
    FWTM: 62°
    Peak intensity: 1.600 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

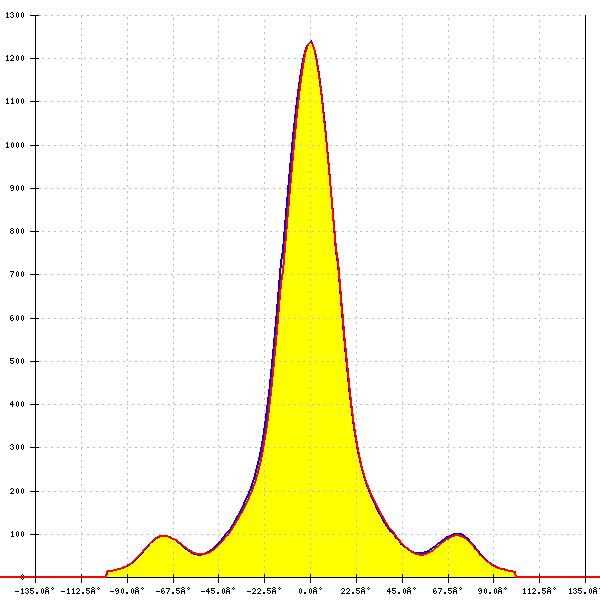

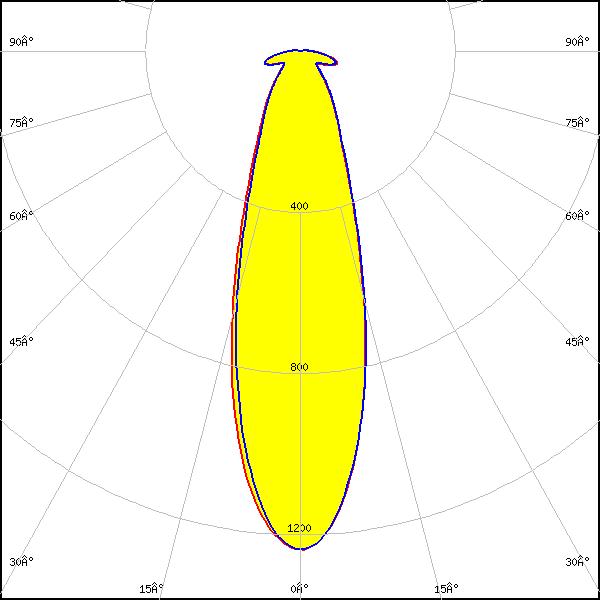

    LED: VERO18
    LES size: 18.6 mm
    FWHM: 31°
    FWTM: 75°
    Peak intensity: 1.200 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

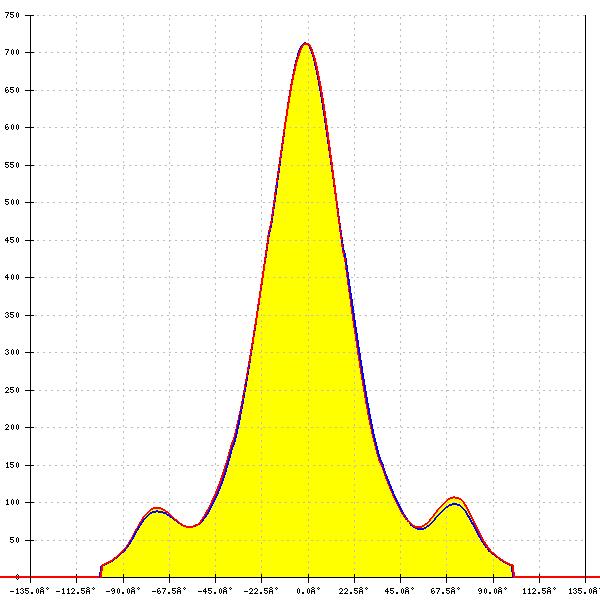

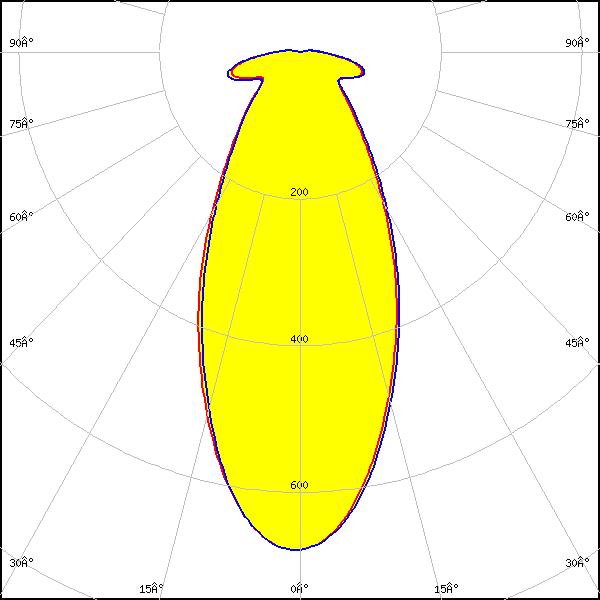

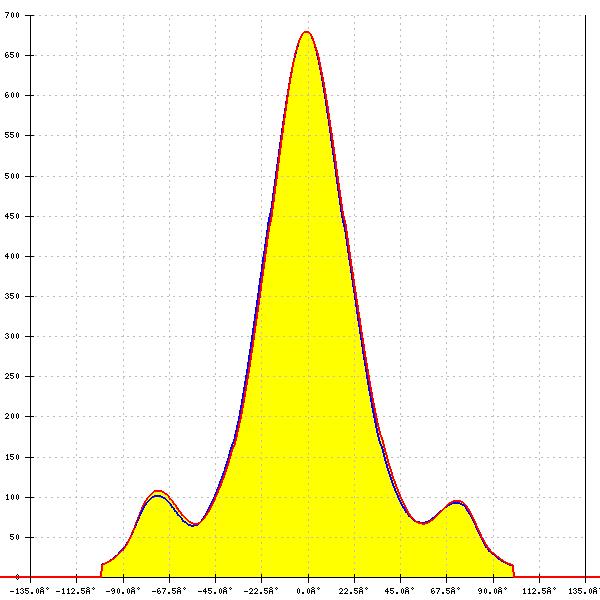

    LED: VERO29
    LES size: 29.2 mm
    FWHM: 48°
    FWTM: 165°
    Peak intensity: 0.680 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

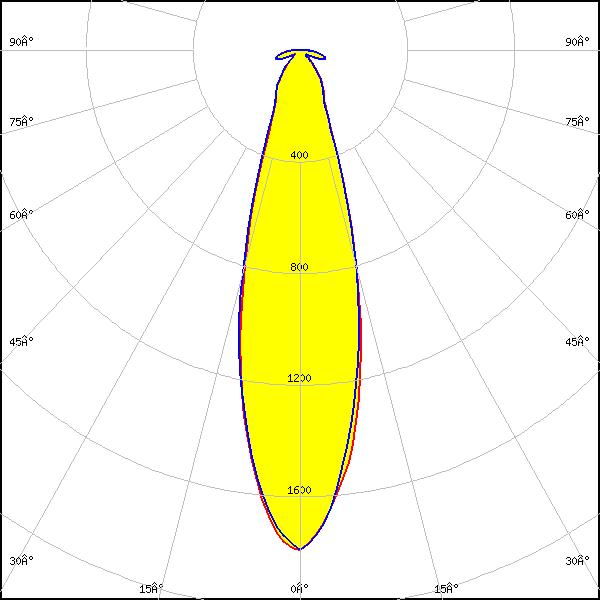

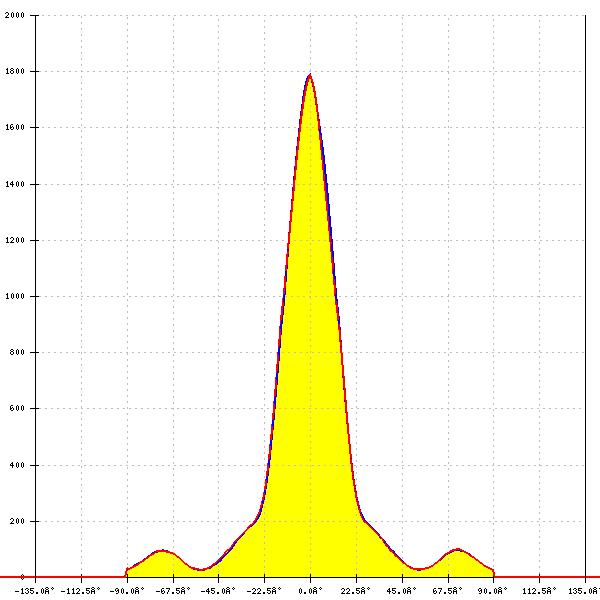

    LED: Vesta TW 18mm (31W) DP
    LES size: 19.7 mm
    Required components:
    Bender Wirth: 483 Typ Z1
    FWHM: 28°
    FWTM: 60°
    Peak intensity: 1.792 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

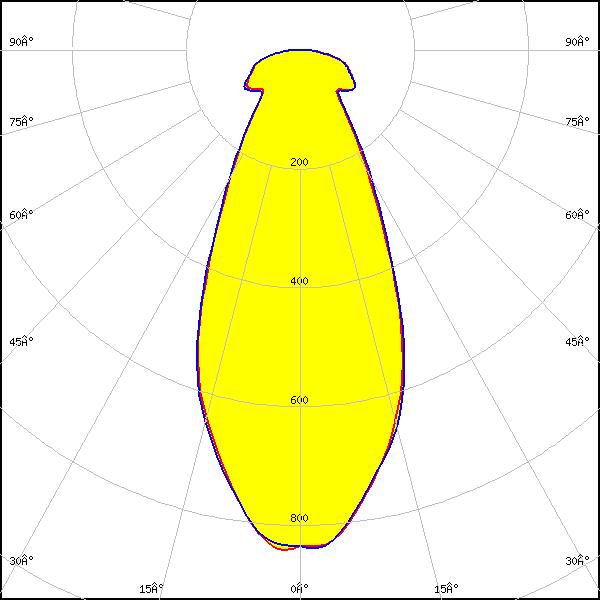

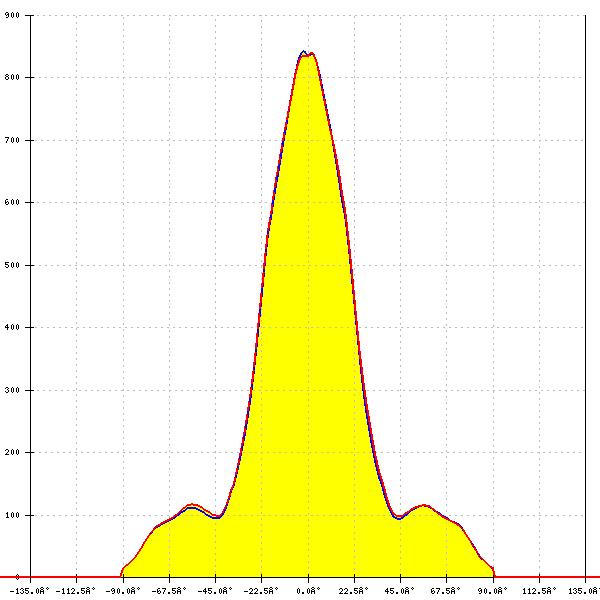

    LED: CLL05x/CLU05x
    LES size: 32.8 mm
    FWHM: 46°
    FWTM: 144°
    Peak intensity: 0.840 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

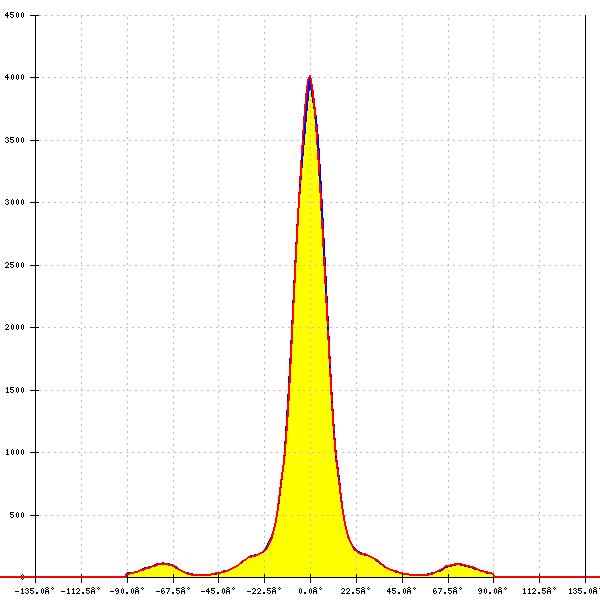

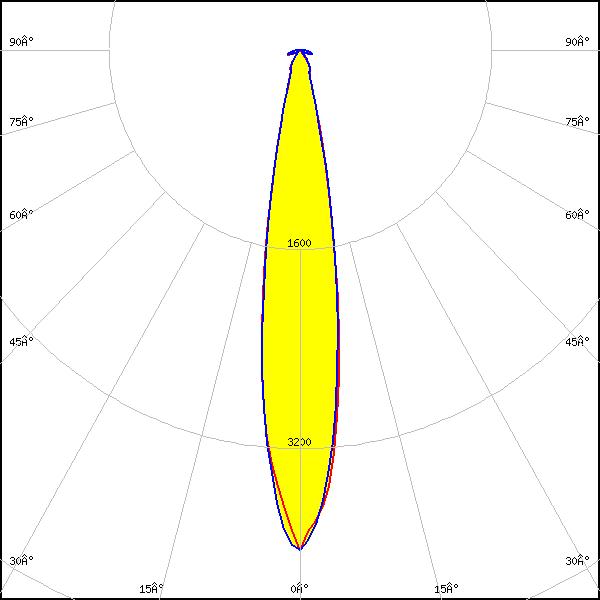

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: 17°
    FWTM: 35°
    Peak intensity: 4.020 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    LEDs/each optic: 1
    Light colour/type: White

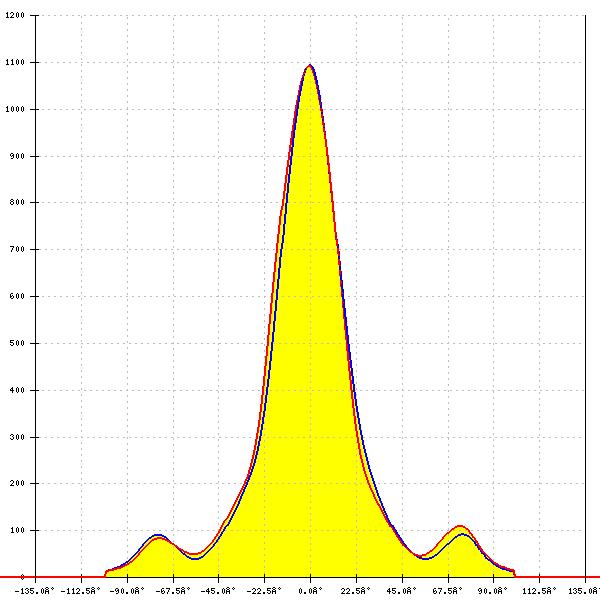

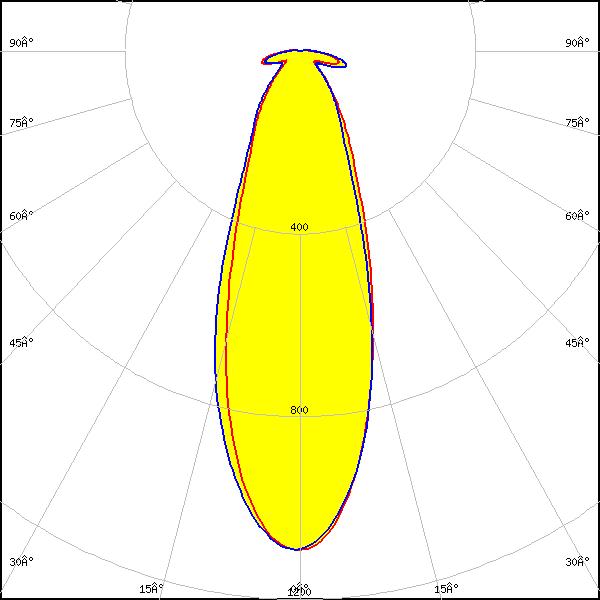

    LED: CLU04x
    LES size: 22.0 mm
    FWHM: 36°
    FWTM: 99°
    Peak intensity: 1.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

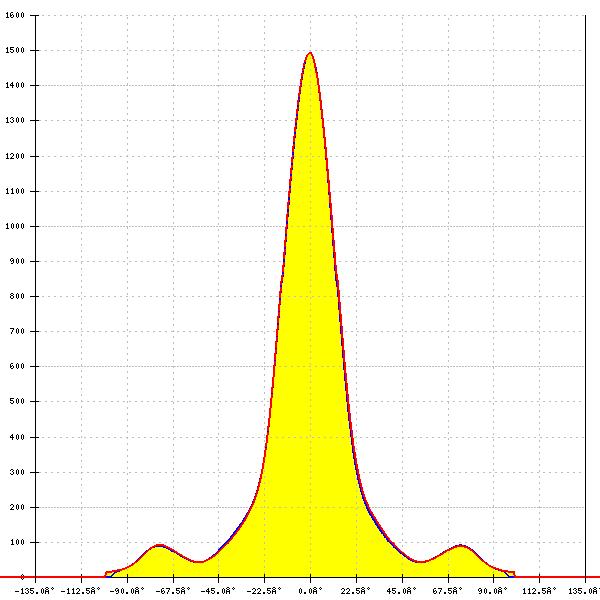

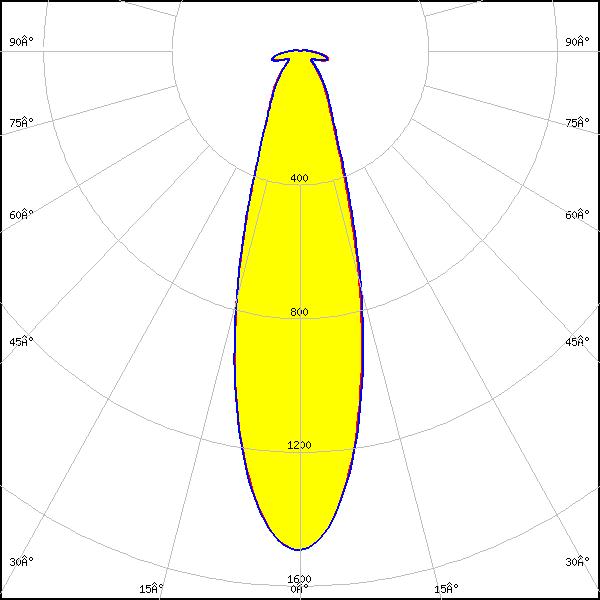

    LED: CMA2550
    LES size: 19.0 mm
    FWHM: 30°
    FWTM: 67°
    Peak intensity: 1.500 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

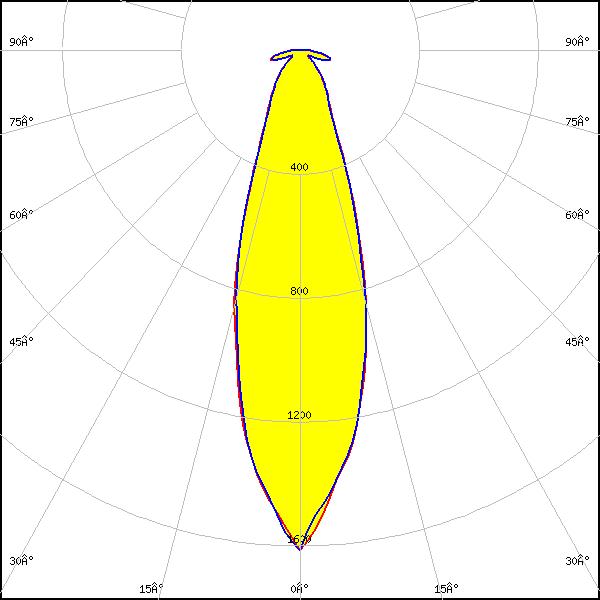

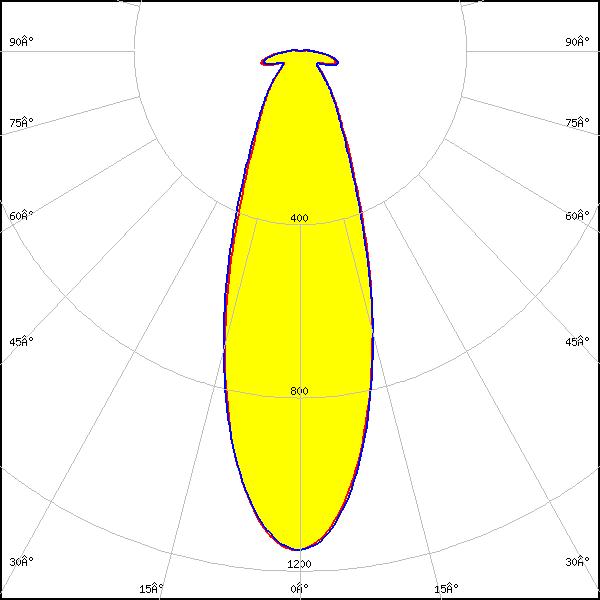

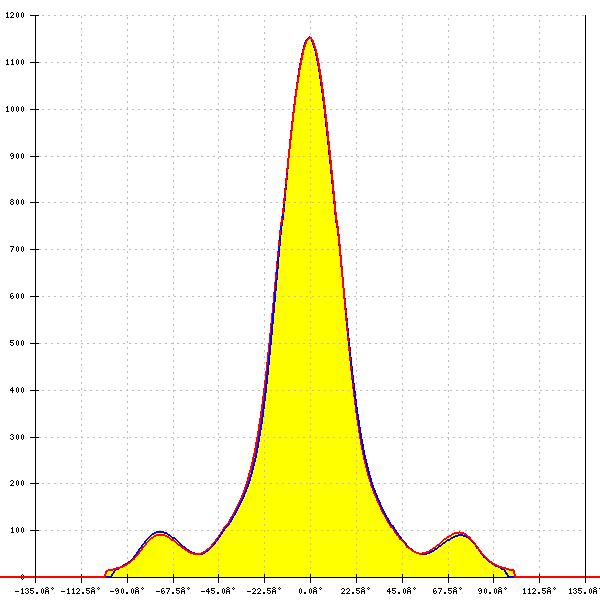

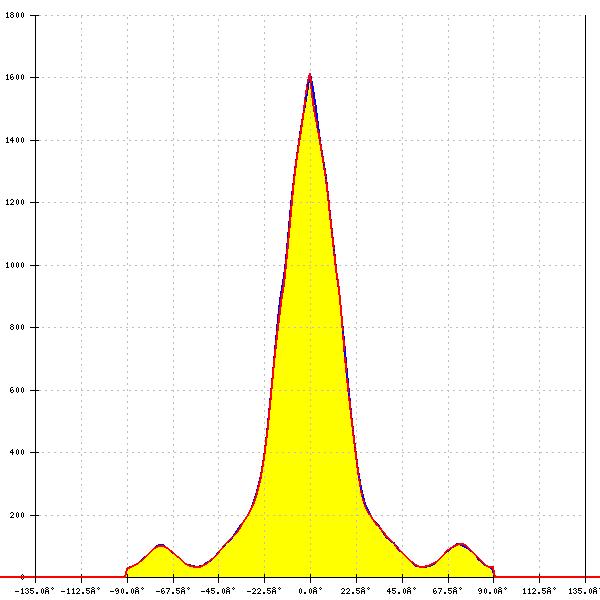

    LED: CMA3090
    LES size: 23.0 mm
    FWHM: 31°
    FWTM: 69°
    Peak intensity: 1.610 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA3090
    LES size: 23.0 mm
    FWHM: 35°
    FWTM: 79°
    Peak intensity: 1.200 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

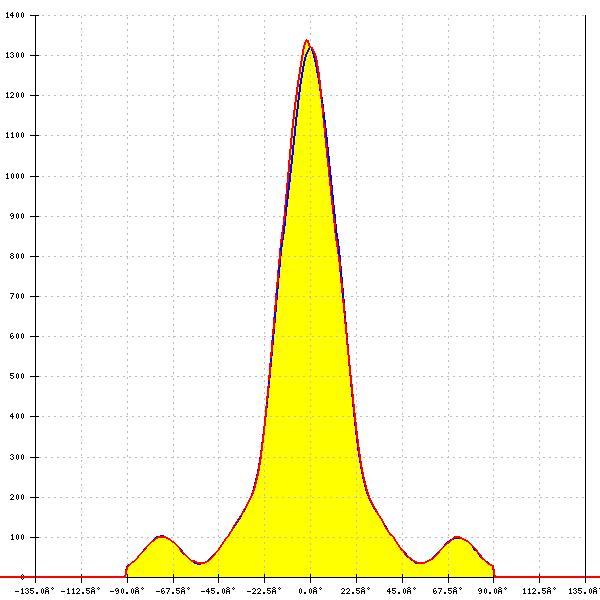

    LED: CMB3090
    LES size: 23.0 mm
    FWHM: 34°
    FWTM: 74°
    Peak intensity: 1.337 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

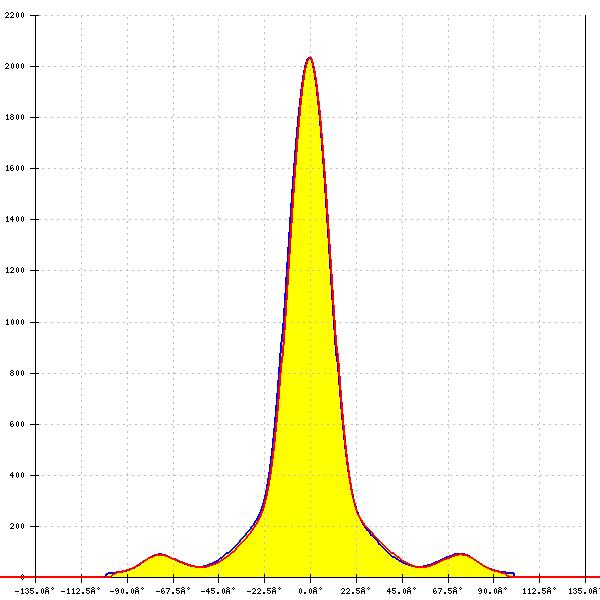

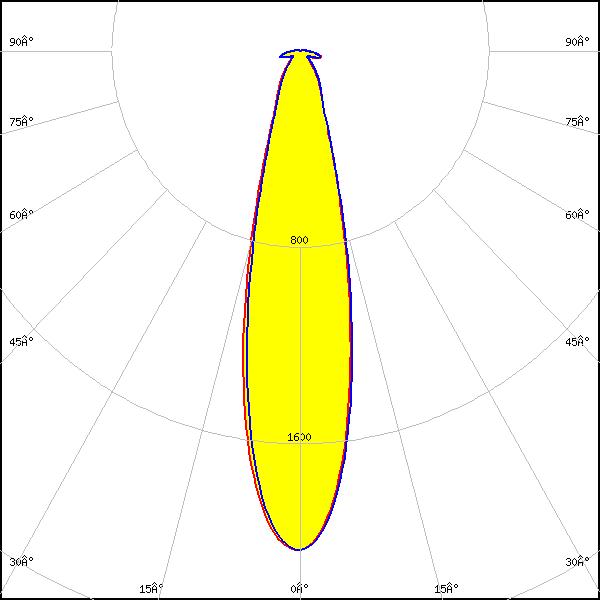

    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 477 Typ Z1
    FWHM: 25°
    FWTM: 54°
    Peak intensity: 2.034 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

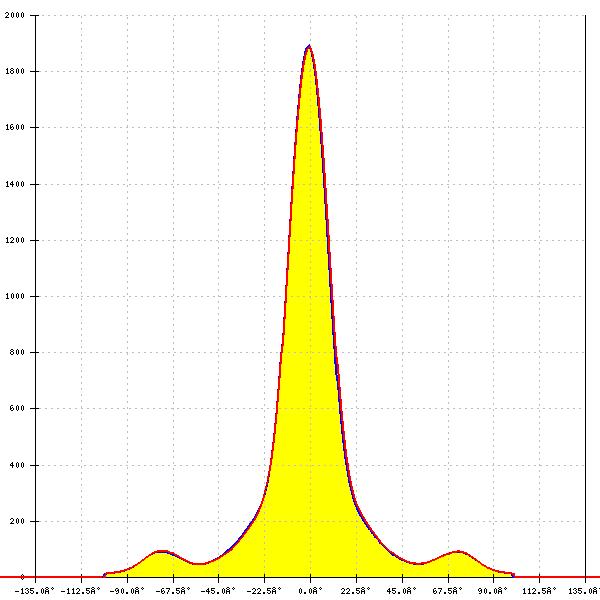

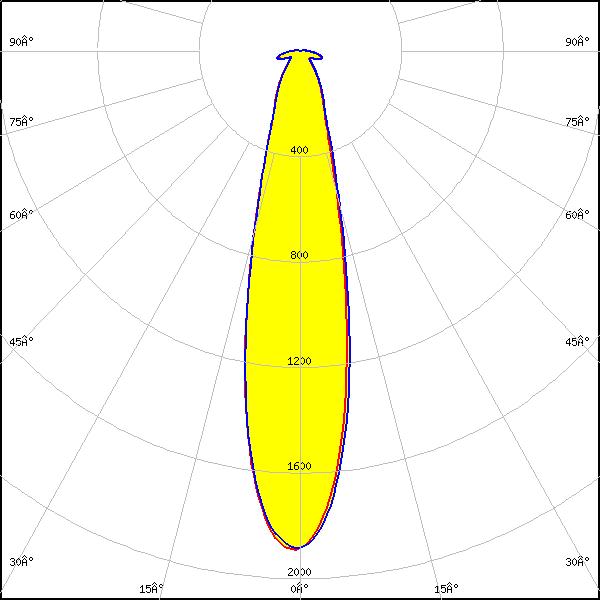

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    FWHM: 24°
    FWTM: 57°
    Peak intensity: 1.900 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

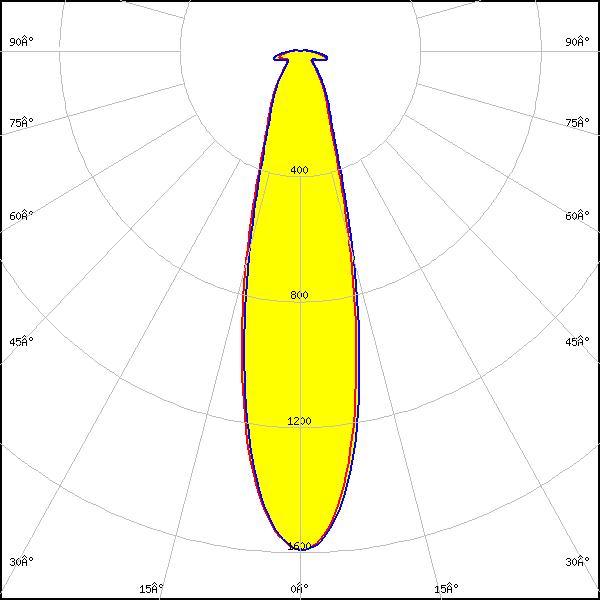

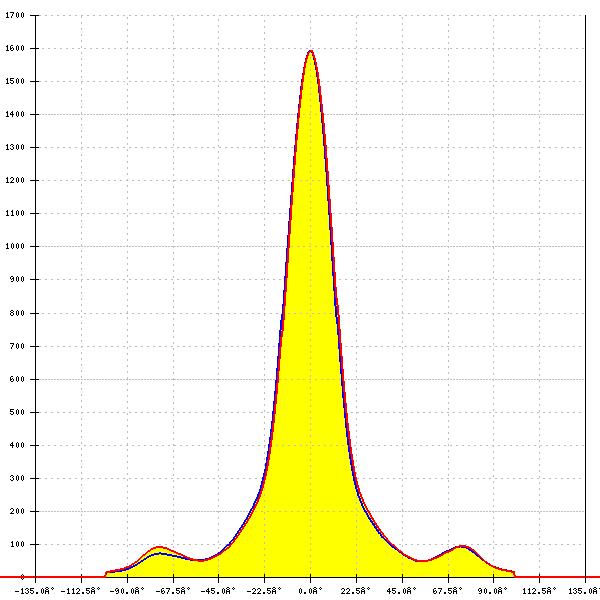

    LED: CXA/B 1830
    LES size: 14.0 mm
    Required components:
    C14305_STELLA-CLAMP-CXA15-18
    FWHM: 26°
    FWTM: 64°
    Peak intensity: 1.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

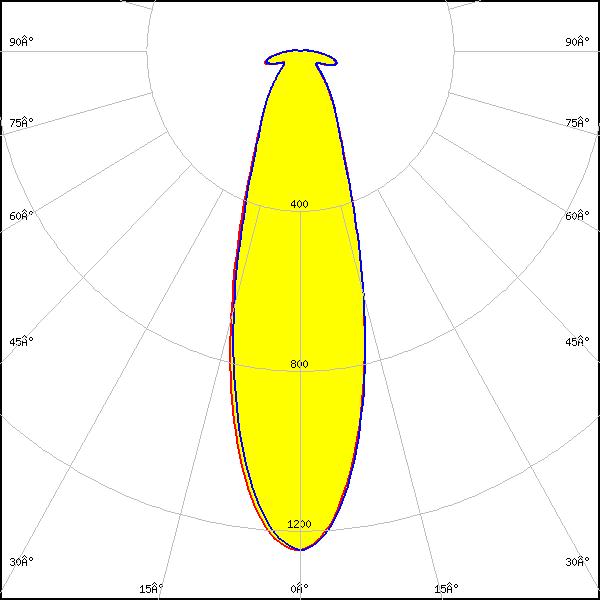

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: 33°
    FWTM: 120°
    Peak intensity: 1.000 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

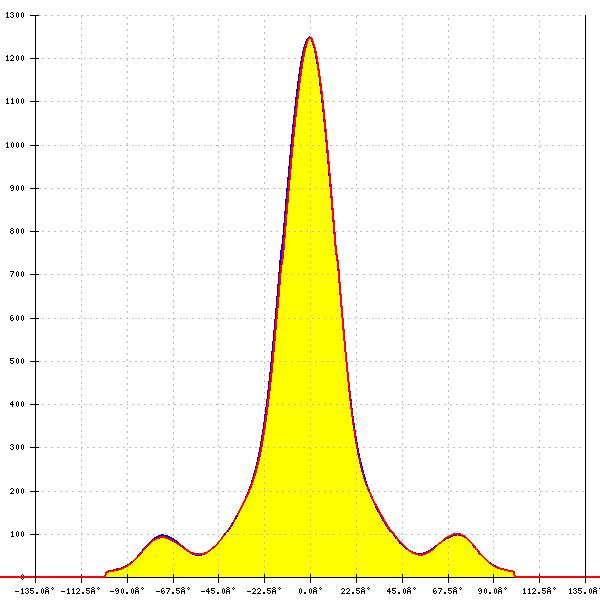

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: 31°
    FWTM: 75°
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

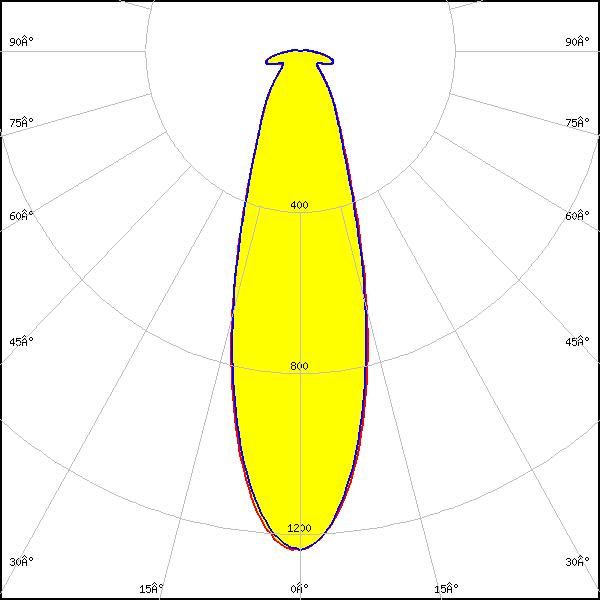

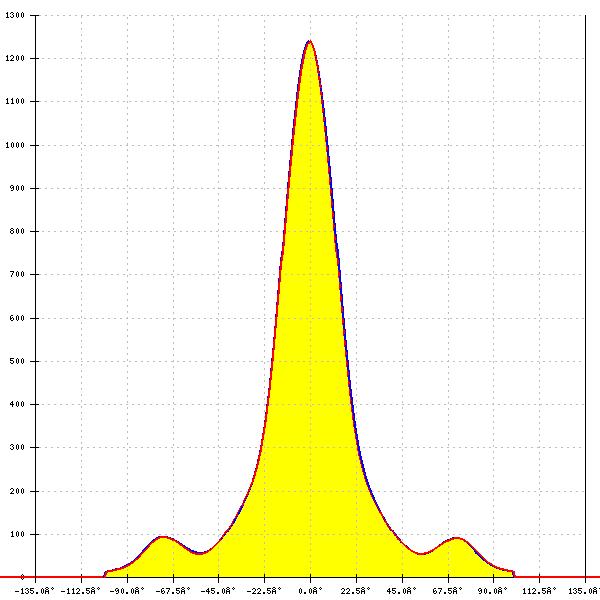

    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: 32°
    FWTM: 76°
    Peak intensity: 1.200 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

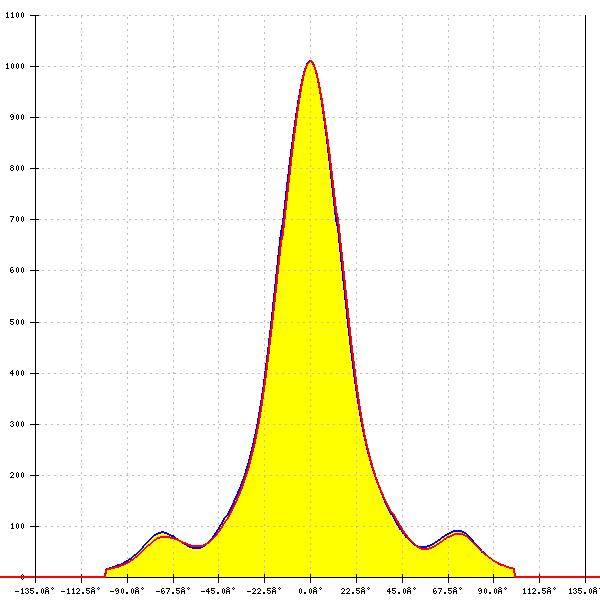

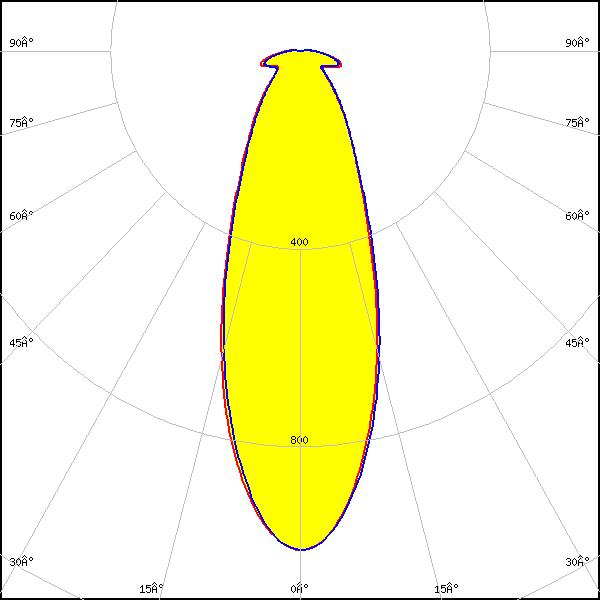

    LED: CXA/B 30xx
    LES size: 23.0 mm
    Required components:
    BJB: 47.319.2151
    FWHM: 37°
    FWTM: 87°
    Peak intensity: 1.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

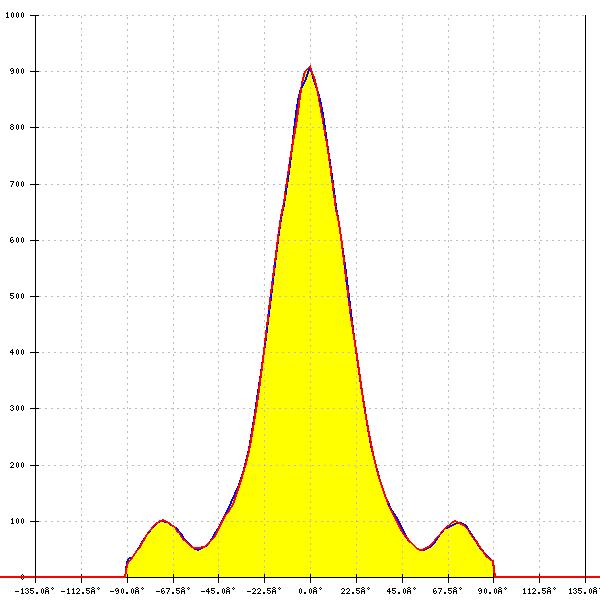

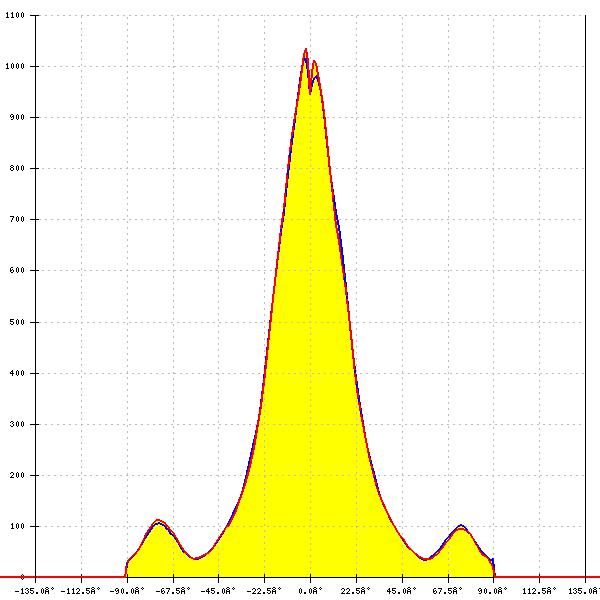

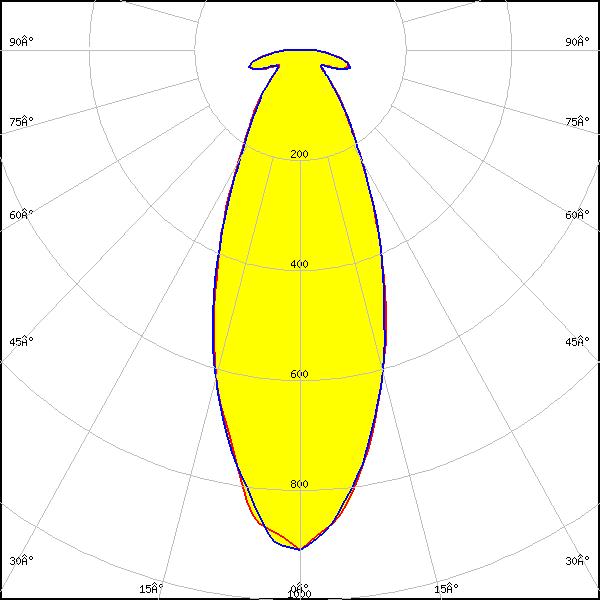

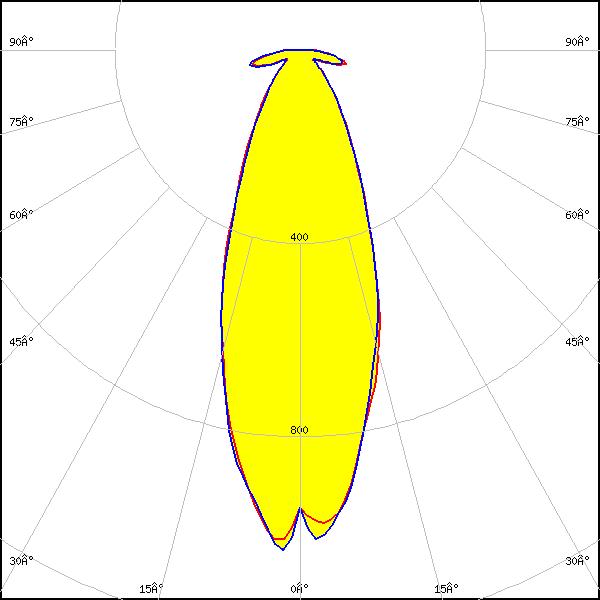

    LED: CXA/B 3590
    LES size: 30.0 mm
    FWHM: 42°
    FWTM: 153°
    Peak intensity: 0.912 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 3590
    LES size: 30.0 mm
    FWHM: 37°
    FWTM: 80°
    Peak intensity: 1.100 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

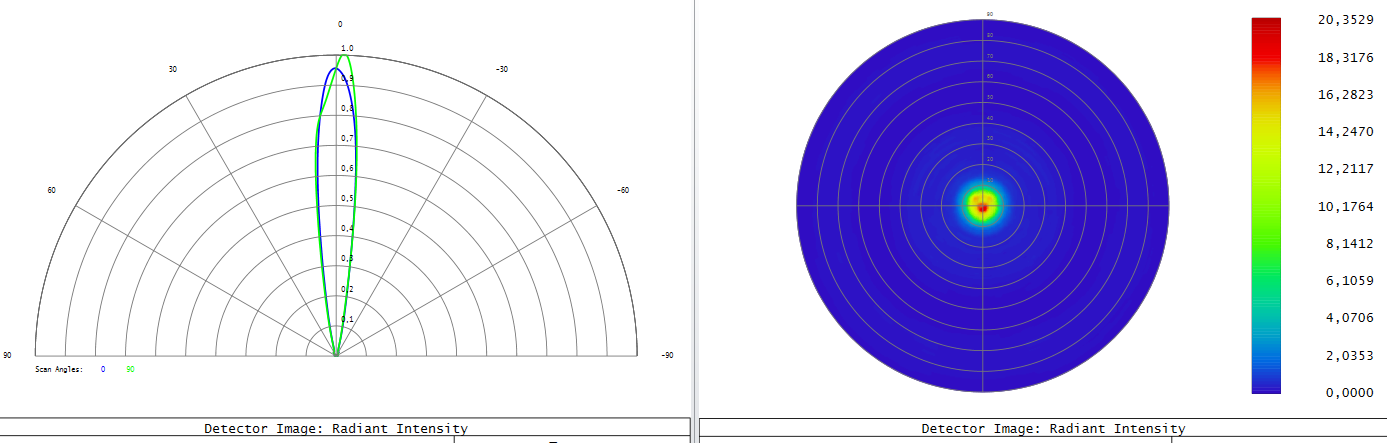

    LED: LTPL-G35UV275GR-E
    LES size: 0.0 mm
    FWHM: 14°
    FWTM: 25°
    Efficiency: 60 %
    LEDs/each optic: 3
    Light colour/type: UV-C

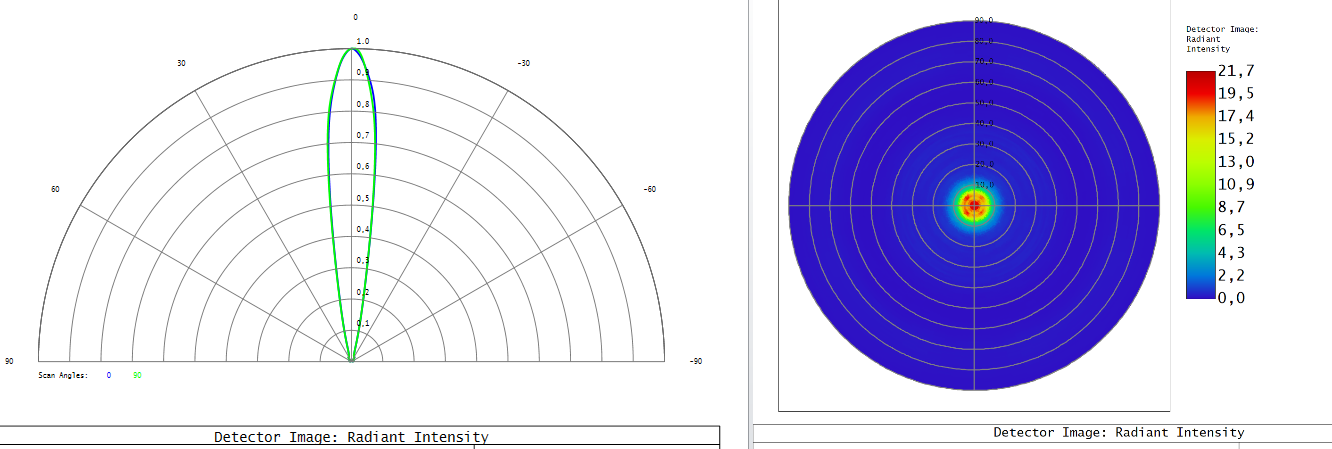

    LED: LTPL-G35UV275GR-E
    LES size: 0.0 mm
    FWHM: 16°
    FWTM: 26°
    Efficiency: 61 %
    LEDs/each optic: 4
    Light colour/type: UV-C

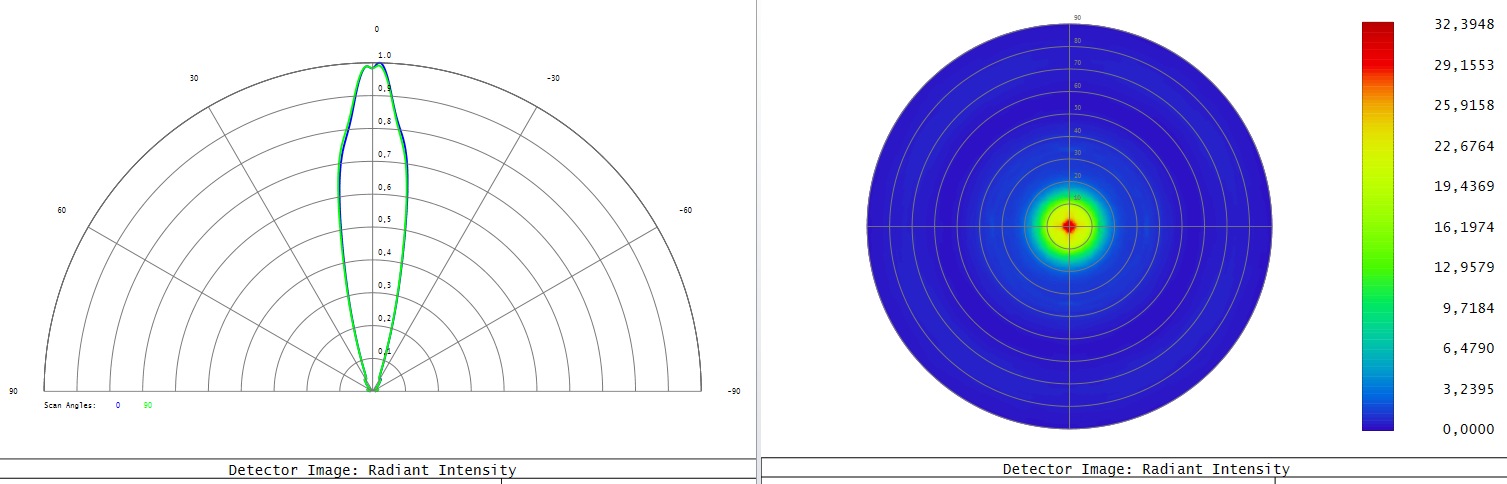

    LED: LTPL-G35UV275GR-E
    LES size: 0.0 mm
    FWHM: 23°
    FWTM: 40°
    Efficiency: 59 %
    LEDs/each optic: 13
    Light colour/type: UV-C

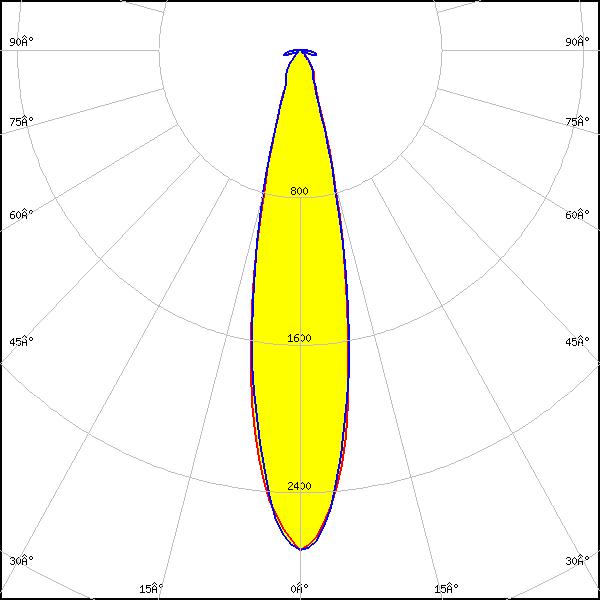

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: 23°
    FWTM: 43°
    Peak intensity: 2.800 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

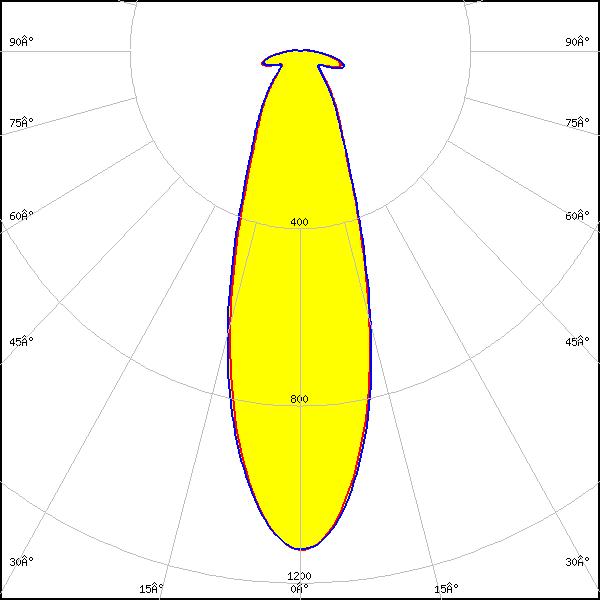

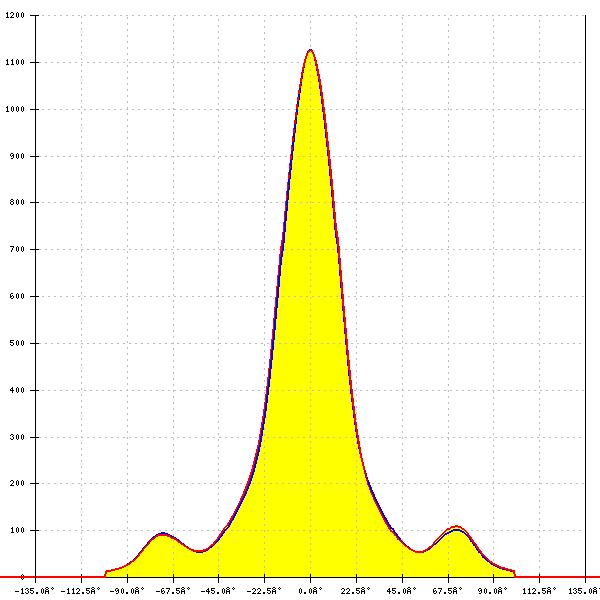

    LED: LUXEON CoB 1211
    LES size: 18.5 mm
    Required components:
    Bender Wirth: 431 Typ L3
    FWHM: 33°
    FWTM: 79°
    Peak intensity: 1.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

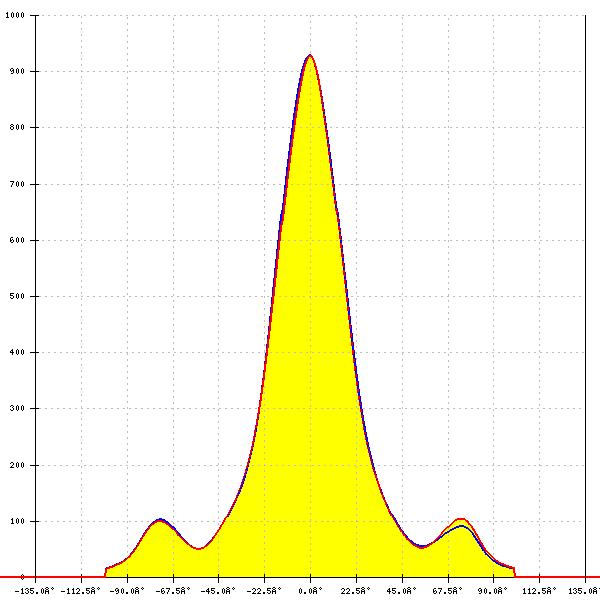

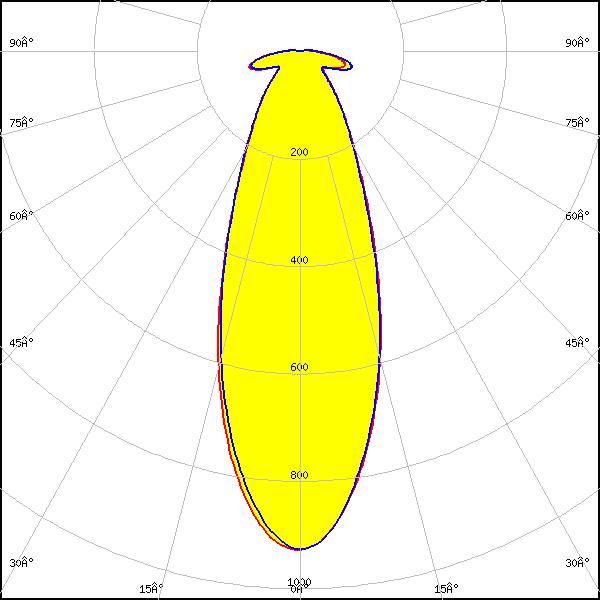

    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    FWHM: 39°
    FWTM: 139°
    Peak intensity: 0.930 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

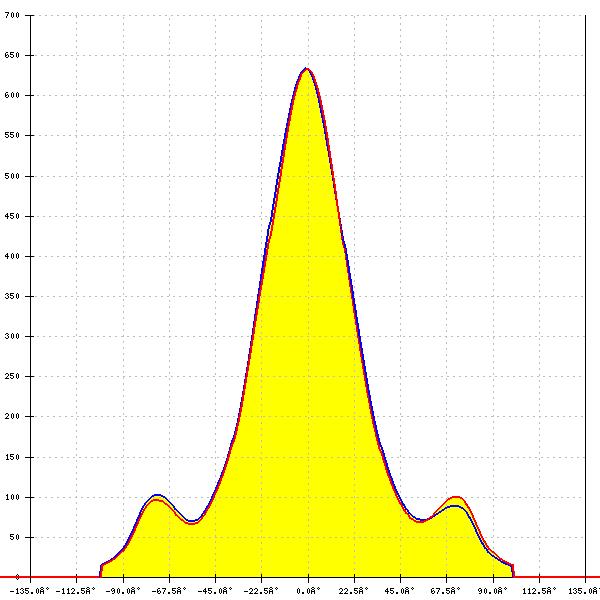

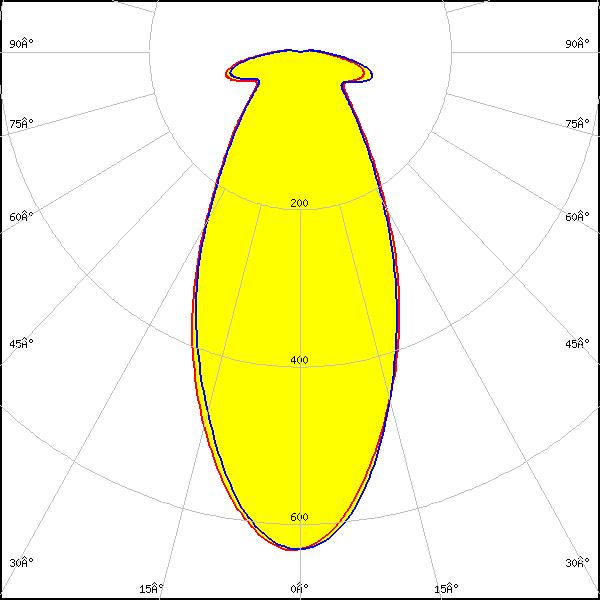

    LED: LUXEON CoB 1321
    LES size: 29.2 mm
    FWHM: 50°
    FWTM: 165°
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

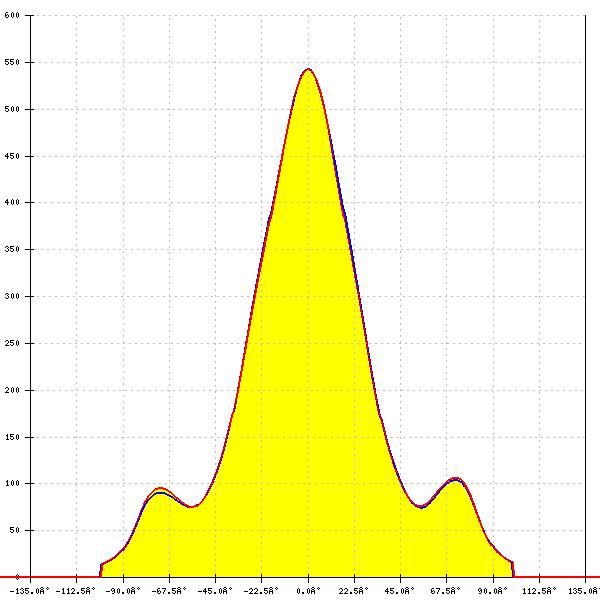

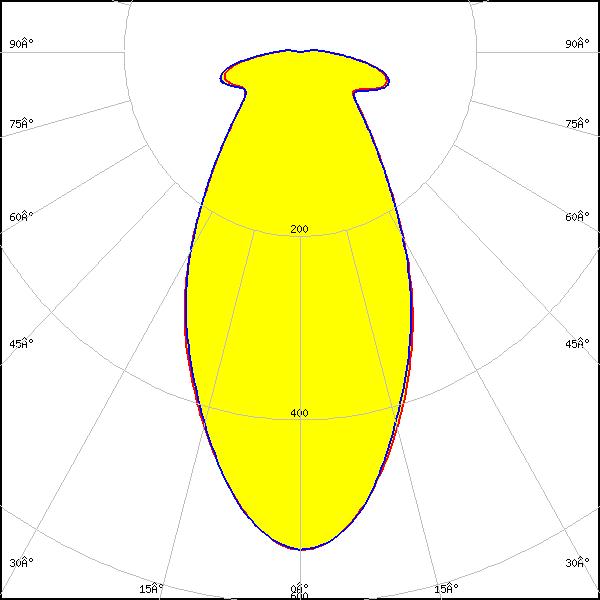

    LED: LUXEON CoB 1825
    LES size: 32.8 mm
    FWHM: 56°
    FWTM: 169°
    Peak intensity: 0.540 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

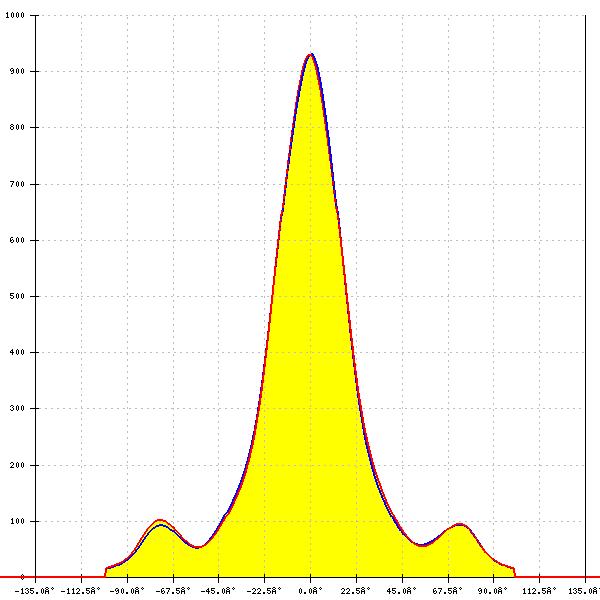

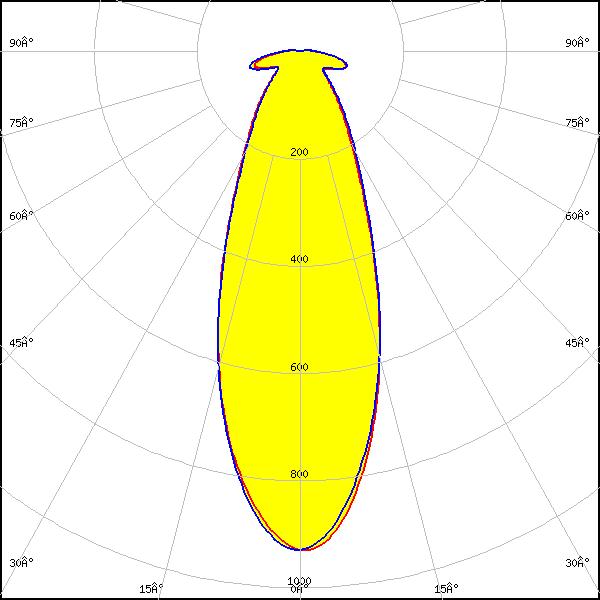

    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ L3
    FWHM: 38°
    FWTM: 136°
    Peak intensity: 0.930 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

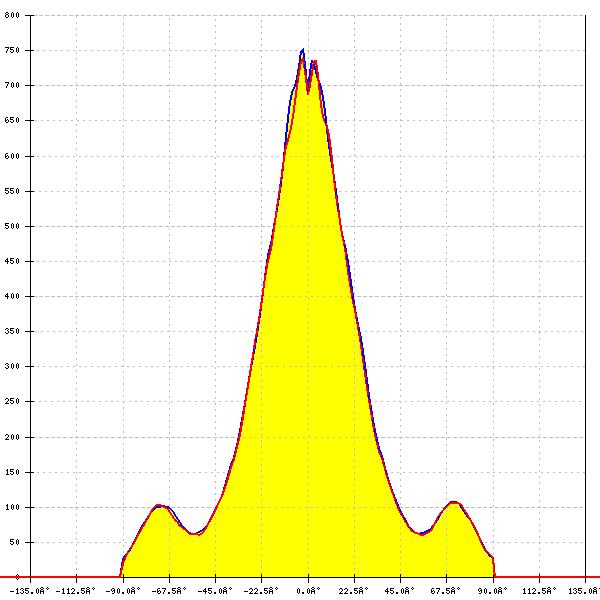

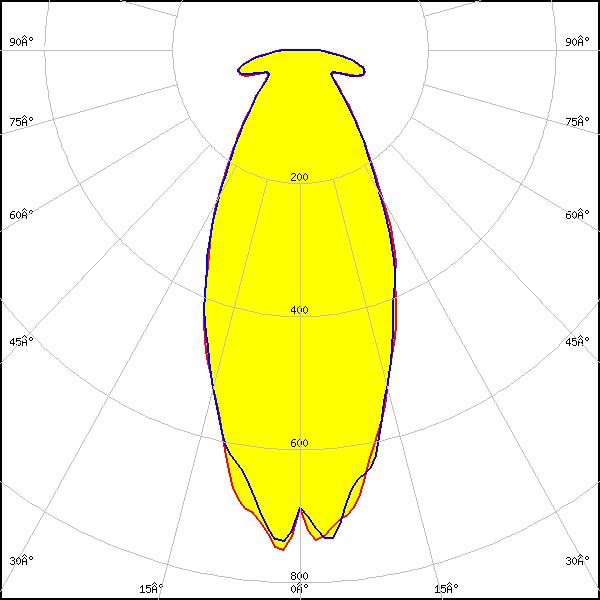

    LED: CXM-32
    LES size: 32.8 mm
    FWHM: 47°
    FWTM: 98°
    Peak intensity: 0.758 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

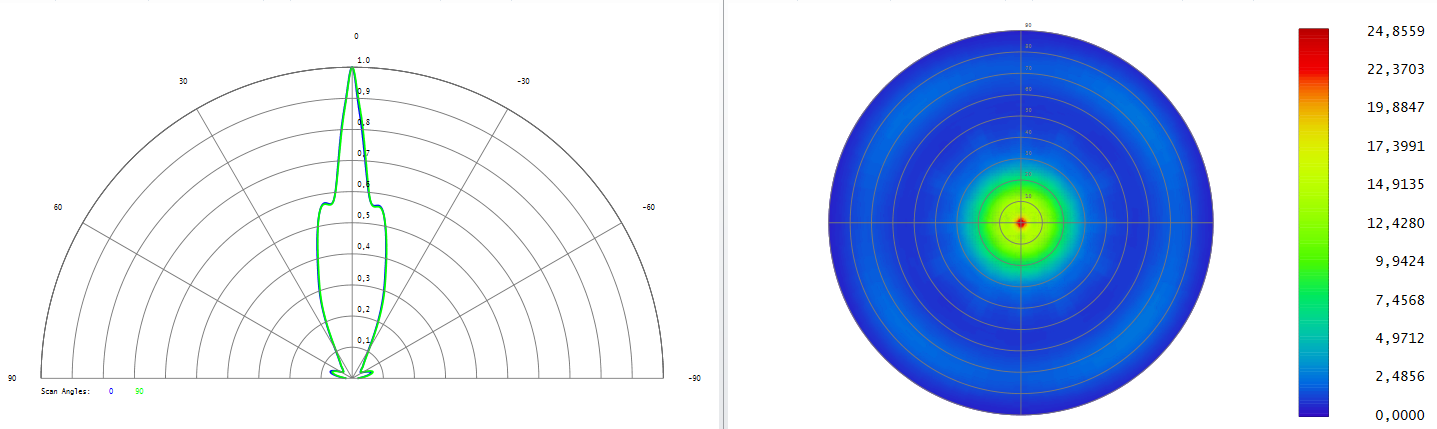

    LED: XFM-5050 3 Die
    LES size: 0.0 mm
    FWHM: 26°
    FWTM: 62°
    Efficiency: 66 %
    LEDs/each optic: 21
    Light colour/type: UV-C

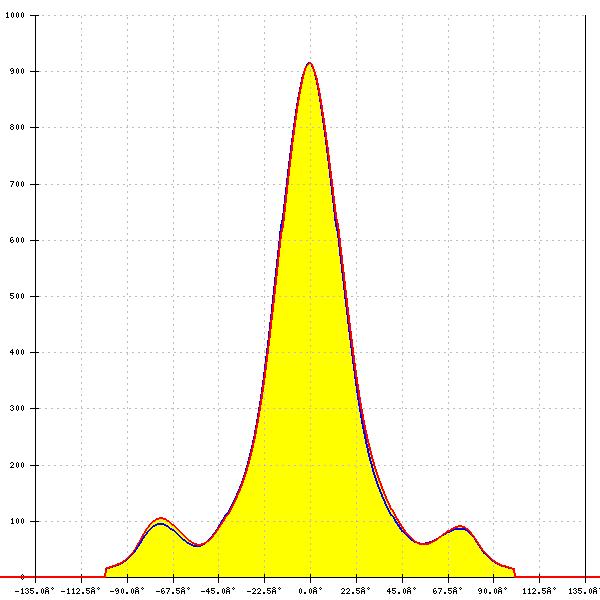

    LED: COB H-Type
    LES size: 23.0 mm
    FWHM: 38°
    FWTM: 120°
    Peak intensity: 0.920 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

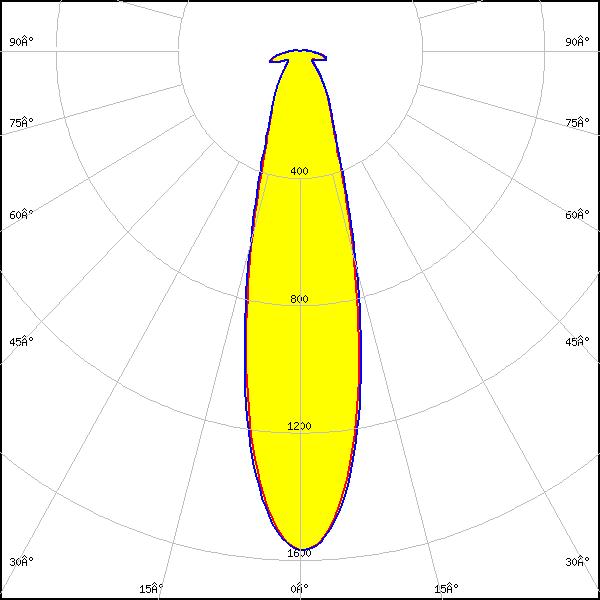

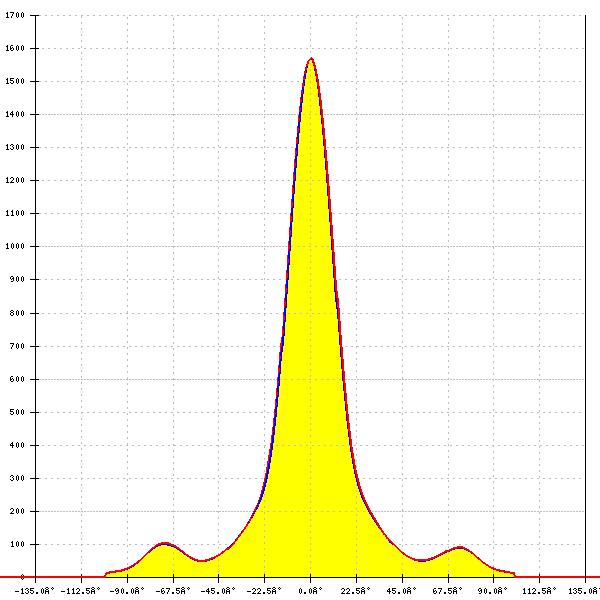

    LED: COB J-Type
    LES size: 14.6 mm
    FWHM: 26°
    FWTM: 65°
    Peak intensity: 1.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

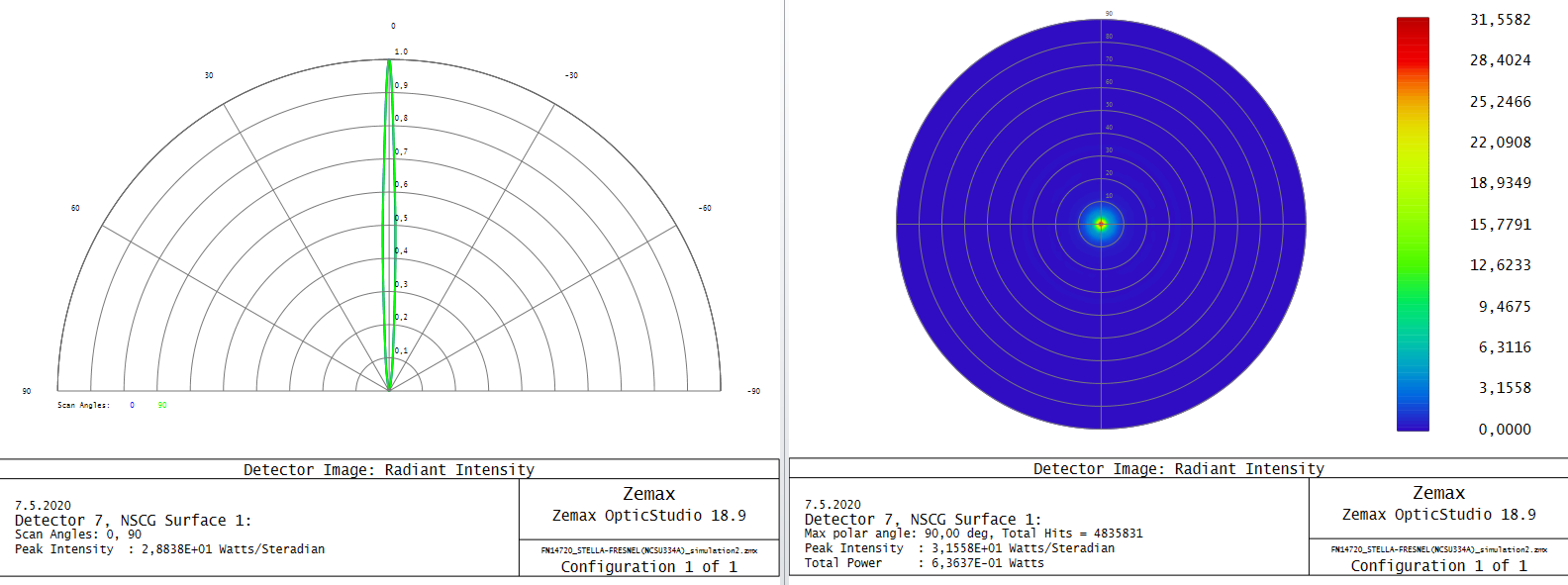

    LED: NCSU334A
    LES size: 0.0 mm
    FWHM: 4°
    FWTM: 12°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C

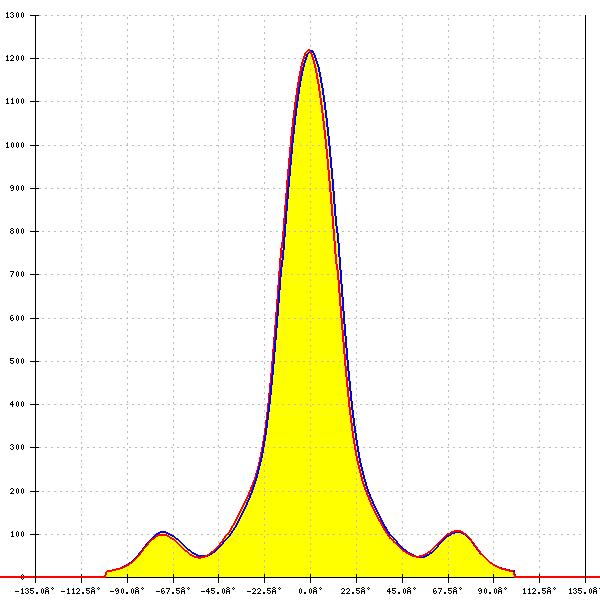

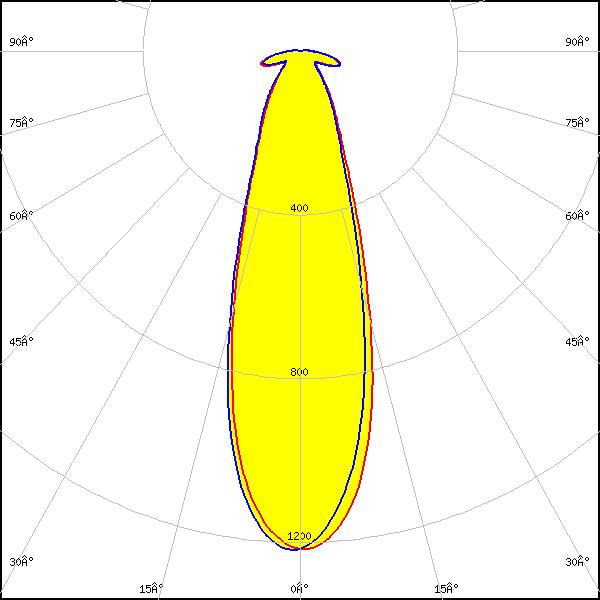

    LED: Soleriq S19
    LES size: 17.9 mm
    FWHM: 32°
    FWTM: 73°
    Peak intensity: 1.219 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

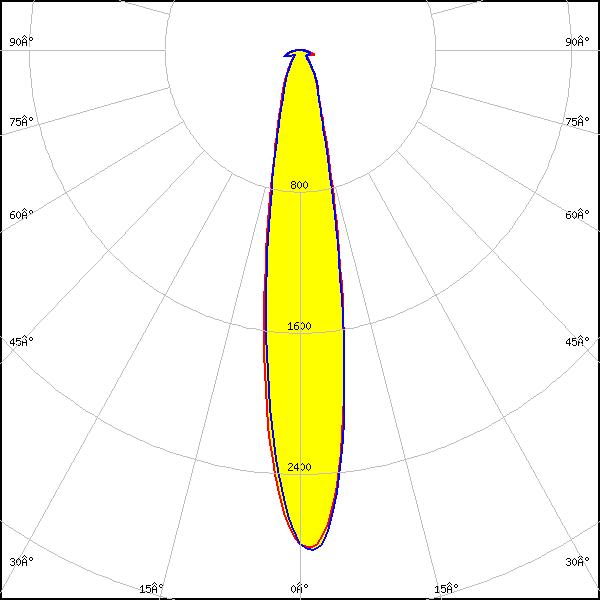

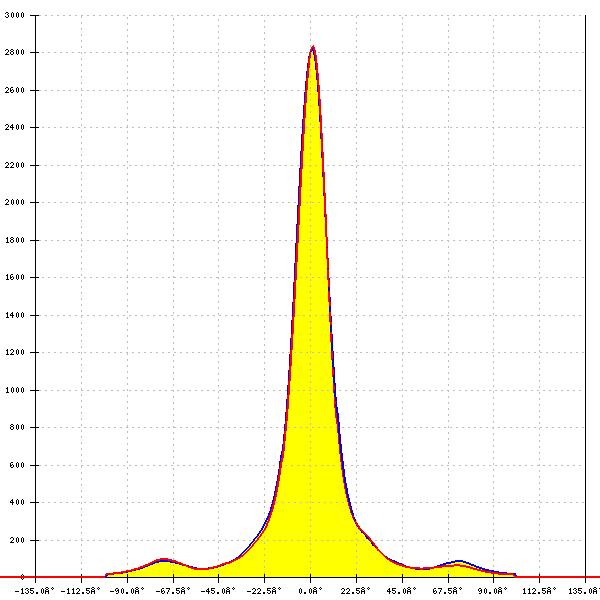

    LED: Fortimo SLM L06 CoB
    LES size: 6.5 mm
    FWHM: 18°
    FWTM: 44°
    Peak intensity: 2.900 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

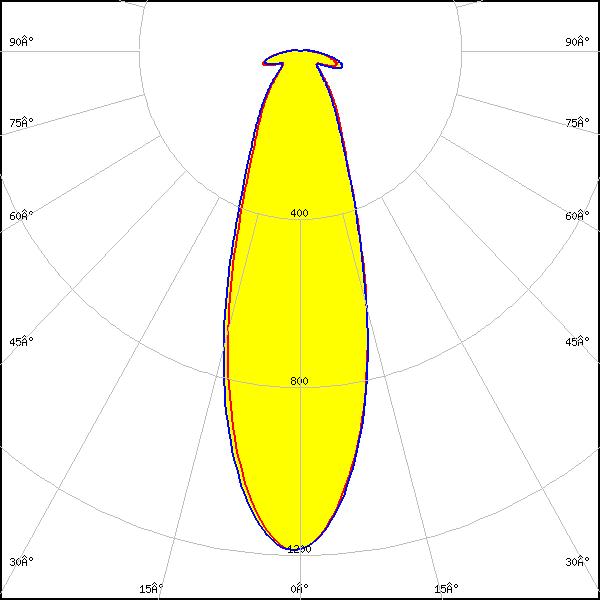

    LED: Fortimo SLM L19 + SLM holder (PI)
    LES size: 19.0 mm
    FWHM: 33°
    FWTM: 78°
    Peak intensity: 1.200 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

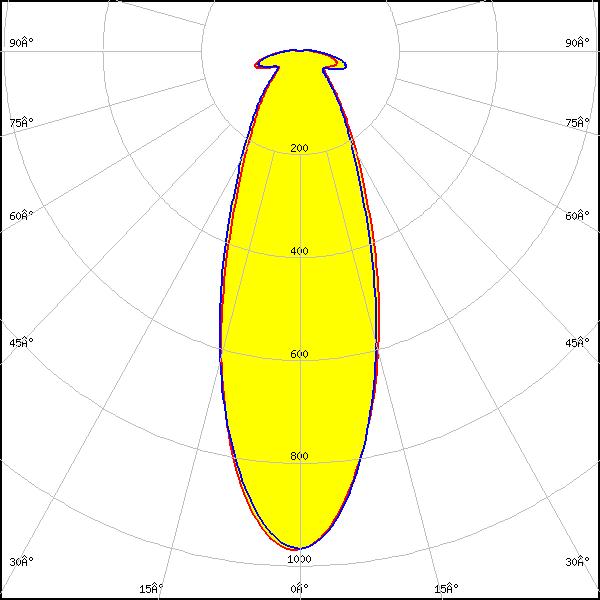

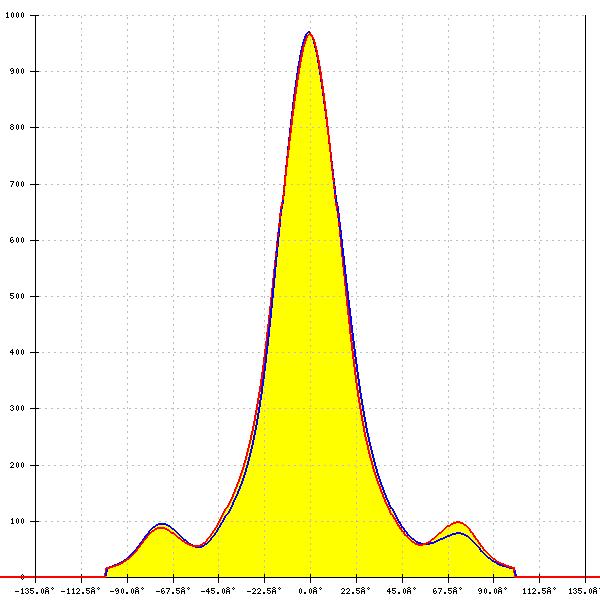

    LED: Fortimo SLM L23 CoB
    LES size: 23.0 mm
    FWHM: 38°
    FWTM: 87°
    Peak intensity: 1.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

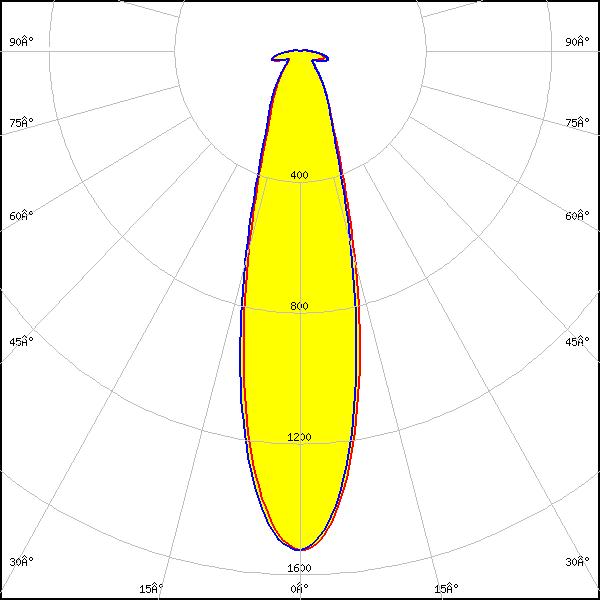

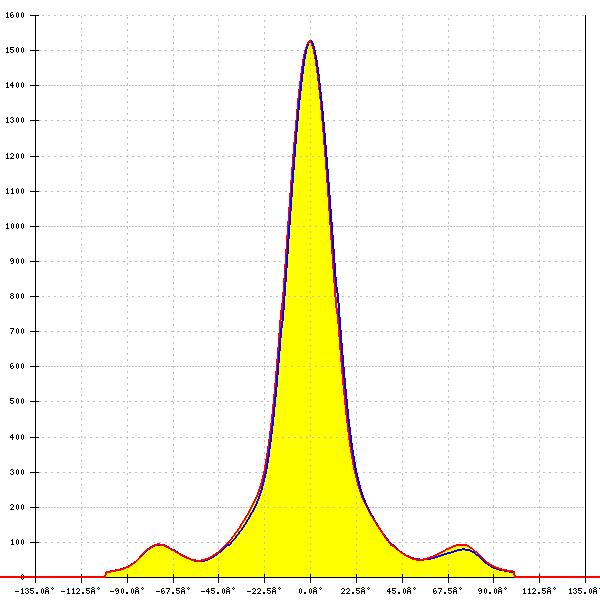

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    FWHM: 27°
    FWTM: 65°
    Peak intensity: 1.500 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

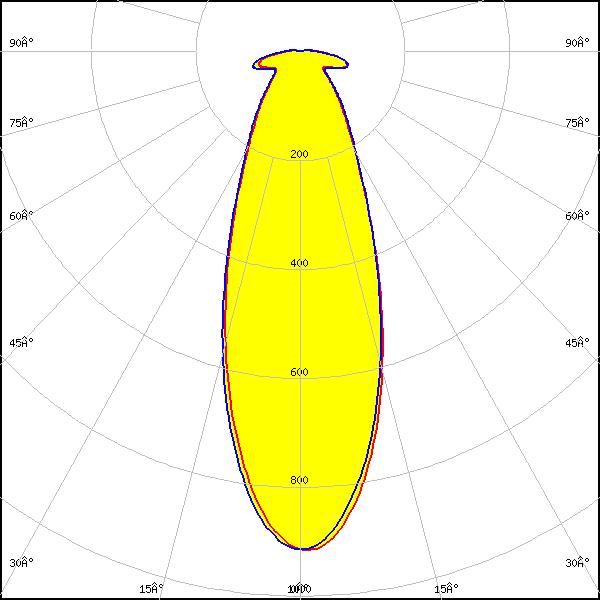

    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: 37°
    FWTM: 119°
    Peak intensity: 0.920 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

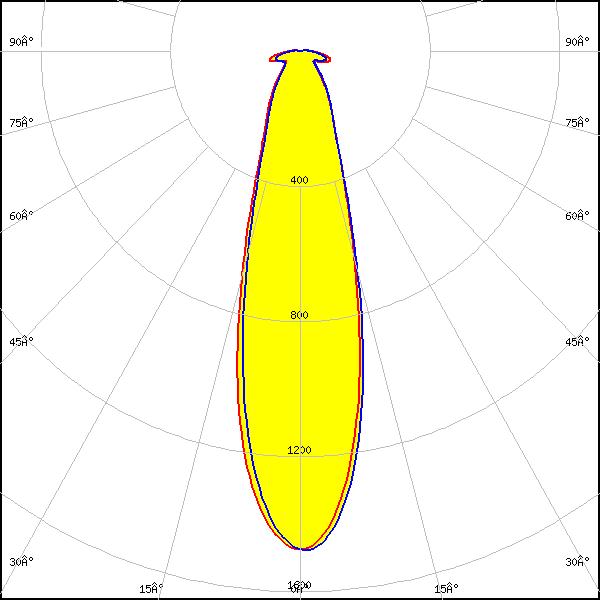

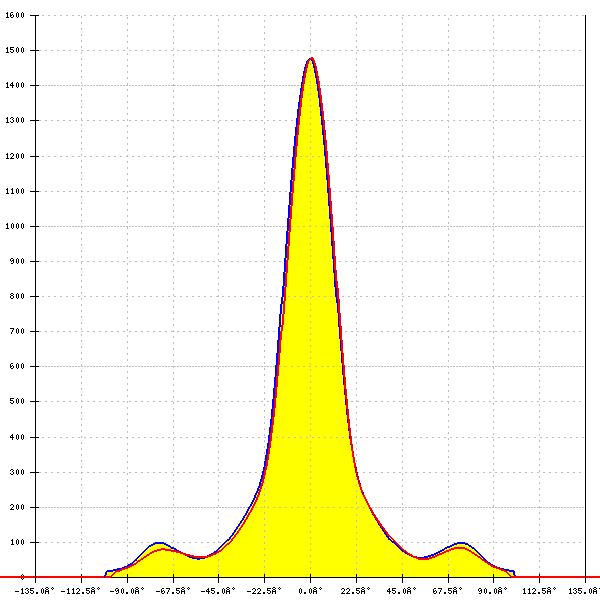

    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    IDEAL: 50-2103CT
    FWHM: 28°
    FWTM: 67°
    Peak intensity: 1.500 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

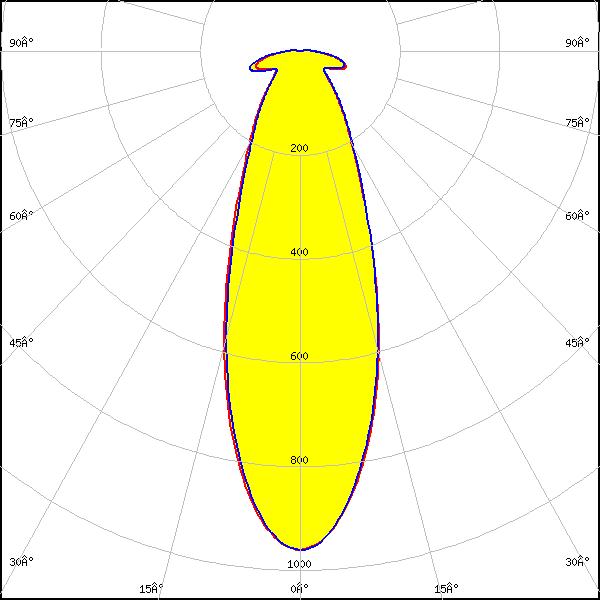

    LED: MJT COB LES 22
    LES size: 22.0 mm
    Required components:
    IDEAL: 50-2204CT
    FWHM: 36°
    FWTM: 118°
    Peak intensity: 1.000 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

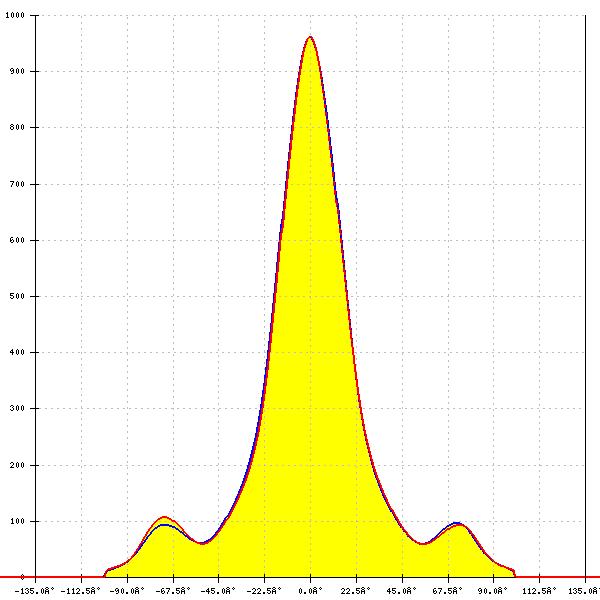

    LED: MJT COB LES 22
    LES size: 22.0 mm
    Required components:
    IDEAL: 50-2204CT
    FWHM: 36°
    FWTM: 118°
    Peak intensity: 0.960 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

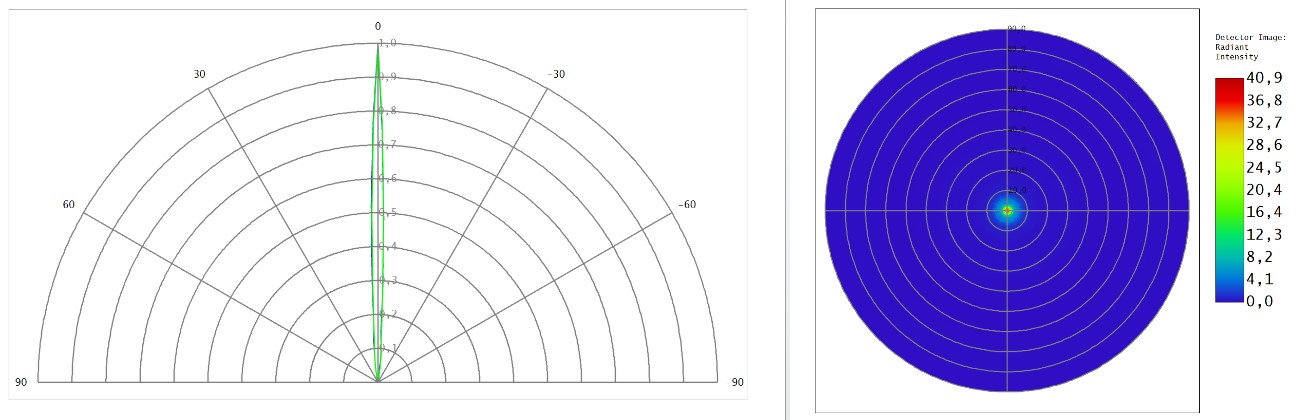

    LED: CUN66A1B
    LES size: 0.0 mm
    FWHM: 4°
    FWTM: 12°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: UV-A

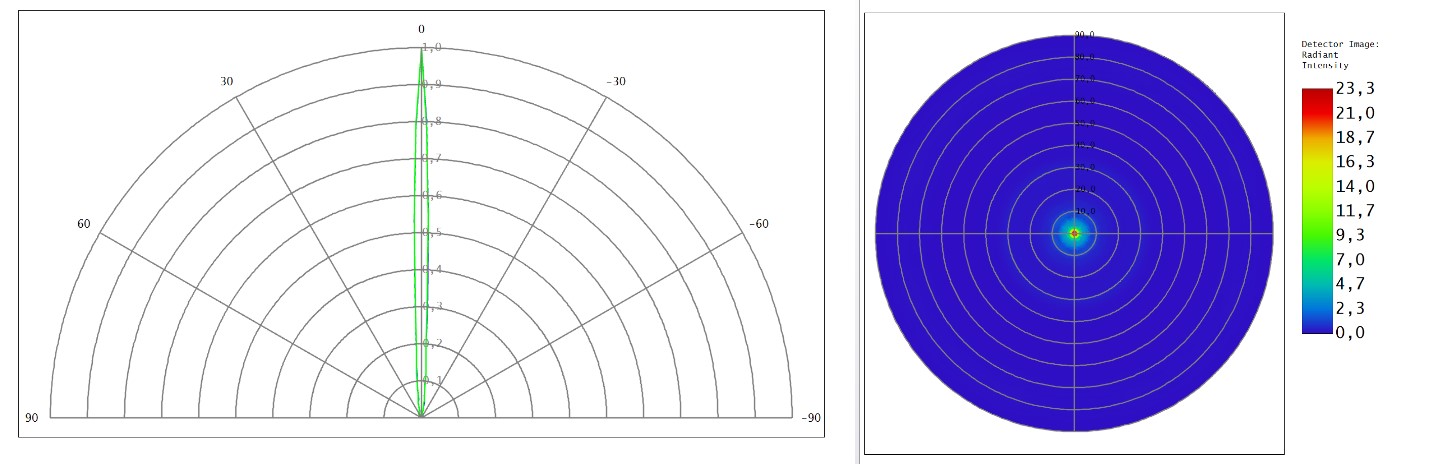

    LED: CUN66B1B
    LES size: 0.0 mm
    FWHM: 4°
    FWTM: 13°
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: WICOP DY9560-27
    LES size: 0.0 mm
    FWHM: 15°
    FWTM: 26°
    Efficiency: 63 %
    LEDs/each optic: 24
    Light colour/type: UV-C
    LED: SLE 13mm 3000lm xxx R ADV8
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 433 Typ Z1
    FWHM: 21°
    FWTM: 38°
    Peak intensity: 3.176 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 17mm 5000lm xxx R ADV8
    LES size: 16.5 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 2.159 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
