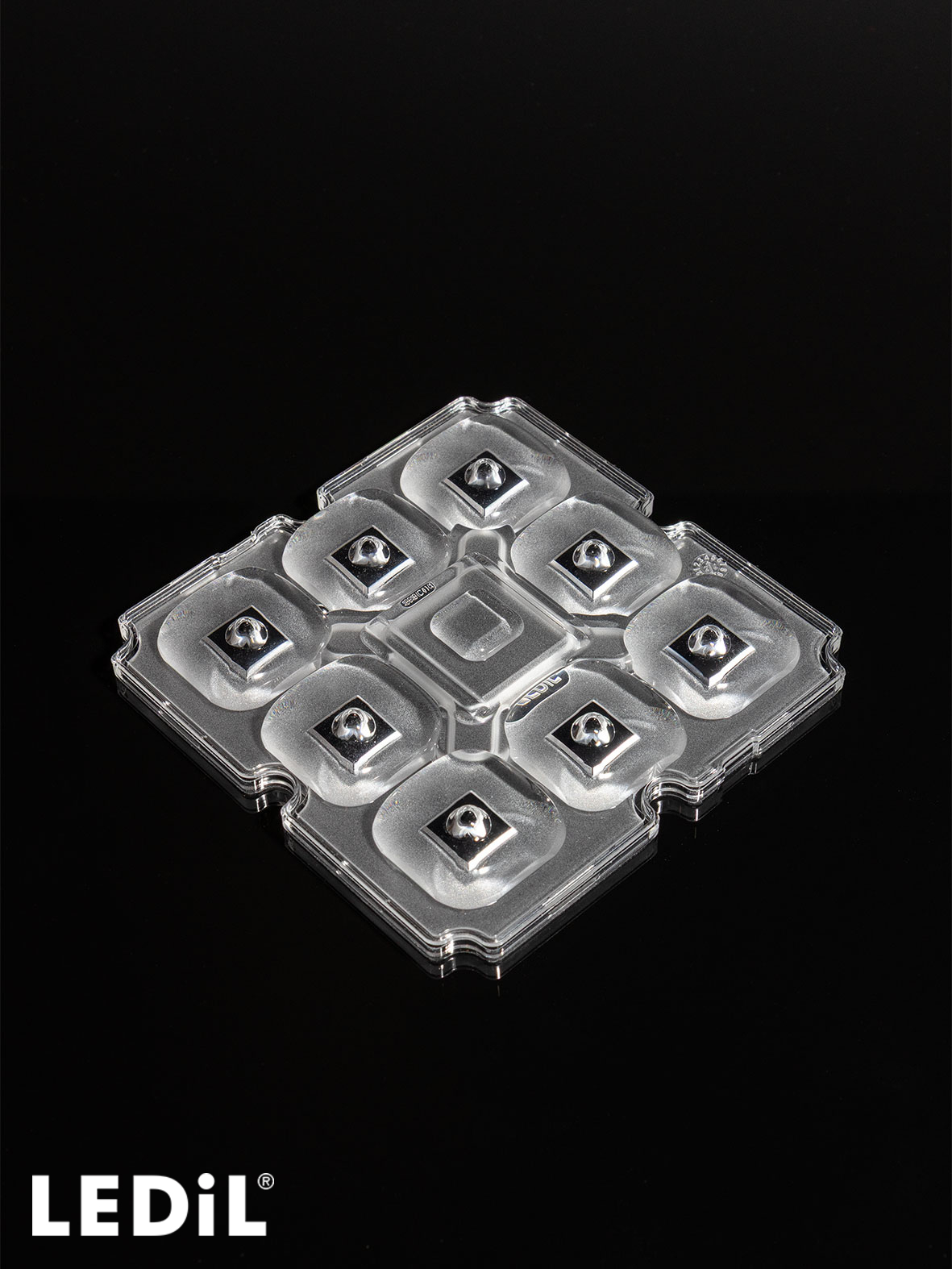

    F19919_STRADA-IP-8MXS-T5

    Print

    IESNA Type V (square) beam for wide areas lighting such as car parks.

    Specification
    • Dimensions:
      87 x  87 mm
    • Height:
      10.92 mm
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      252 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      11.6 kg
    • MPQ:
      12 pcs
    • MOQ:
      252 pcs
    • MOQ size:
      400 x 300 x 300 mm
    • MOQ weight:
      11.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F19919_STRADA-IP-8MXS-T5
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Luminaire example with STRADA-IP-8MXS

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-IP-8MXS-FRAME

    Black shade for additional backlight control.

    Optical results

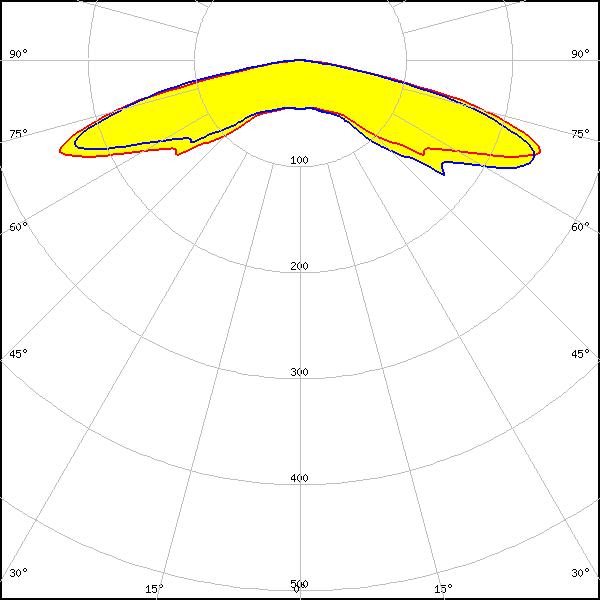

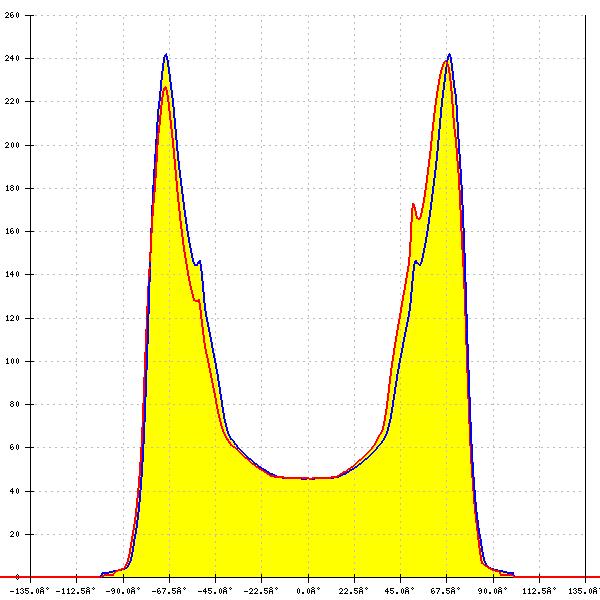

    LED: LIGHT ENGINE STRADA-IP-8-MXS 8 LEDS 70X70MM E CLASS
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.473 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

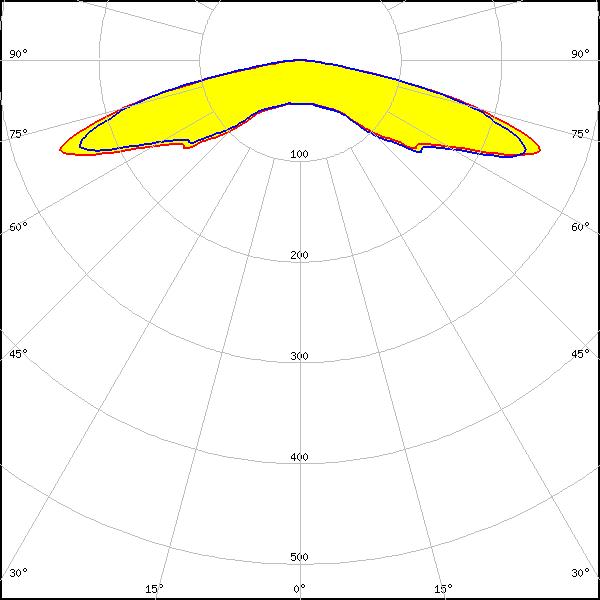

    LED: J Series 5050C 6V E Class
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.508 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

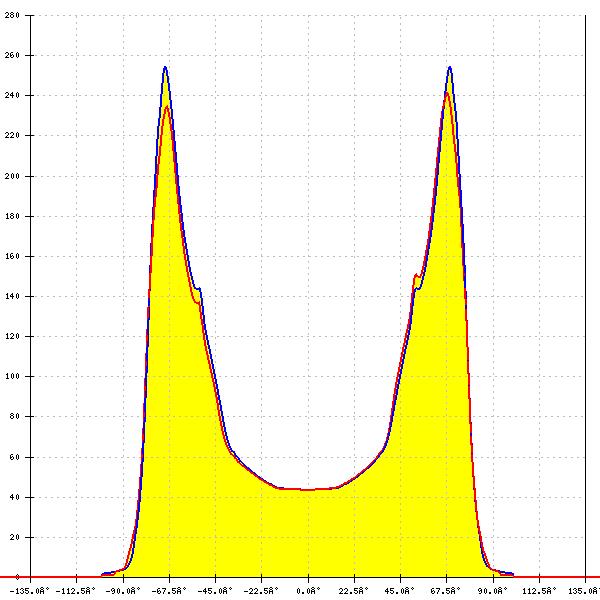

    LED: L2-406 J5050 E Class (STRADA-IP-8MXS)
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.508 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

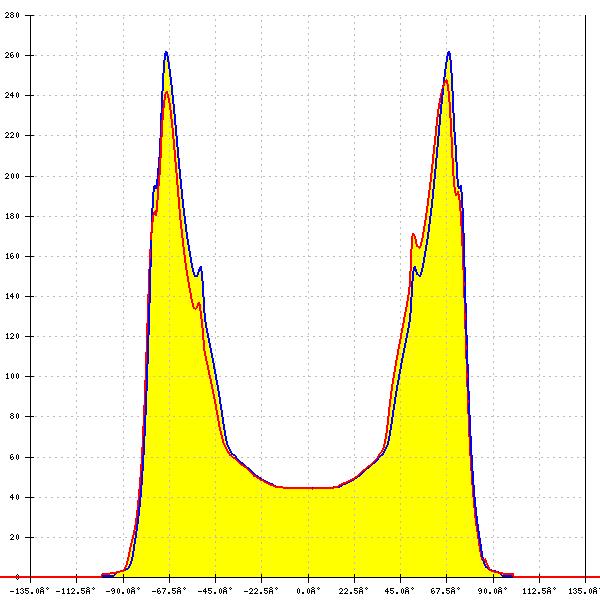

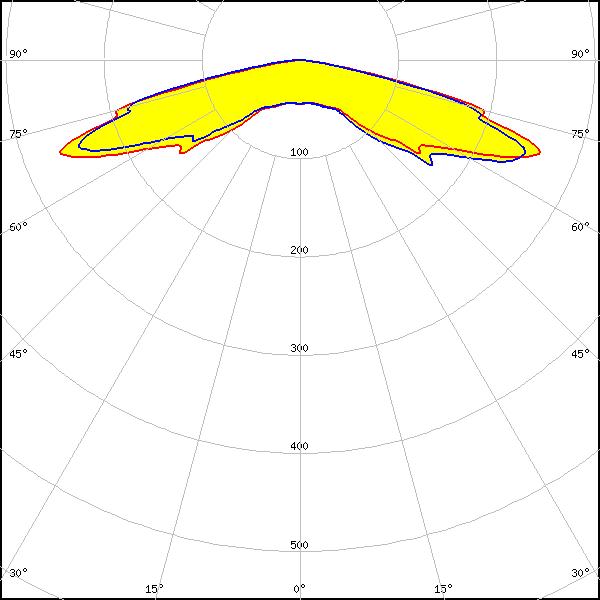

    LED: LUXEON 5050 Square LES
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.524 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

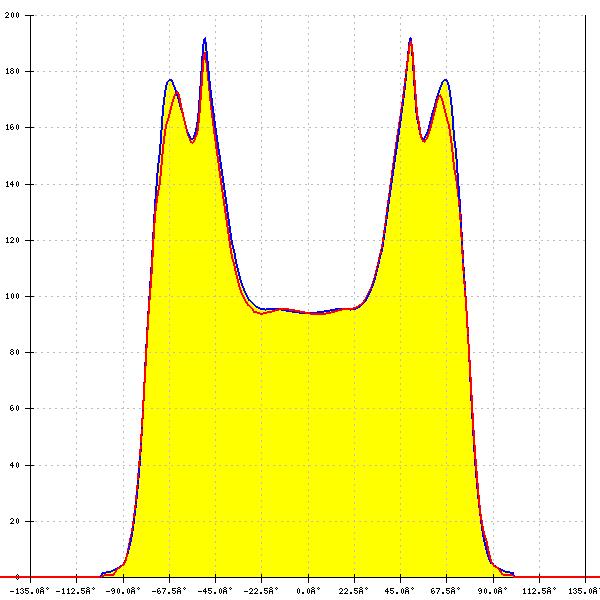

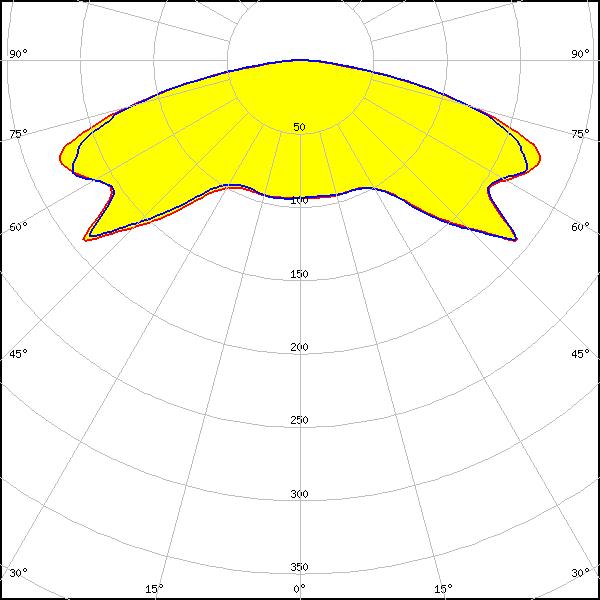

    LED: LUXEON 7070
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.302 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

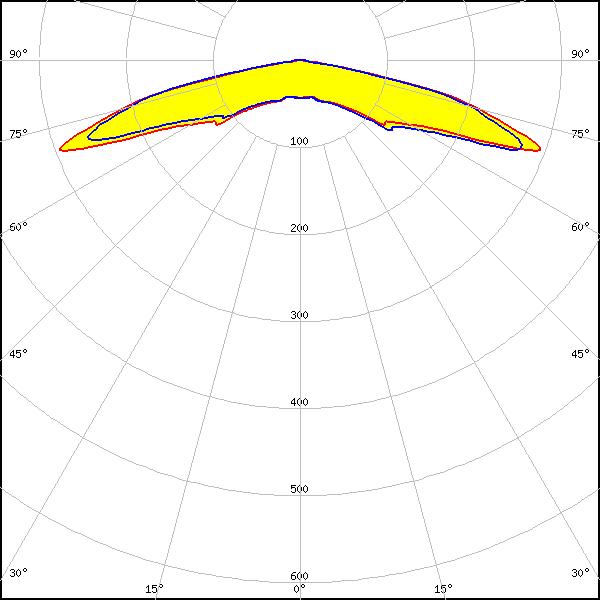

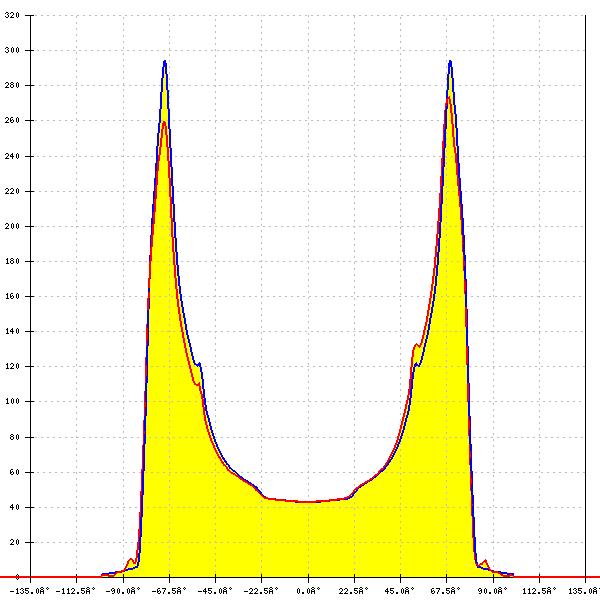

    LED: NV4WB35AM
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.668 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

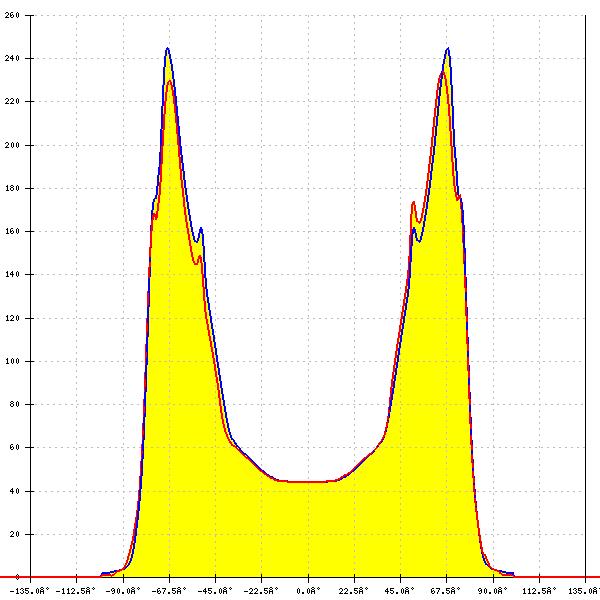

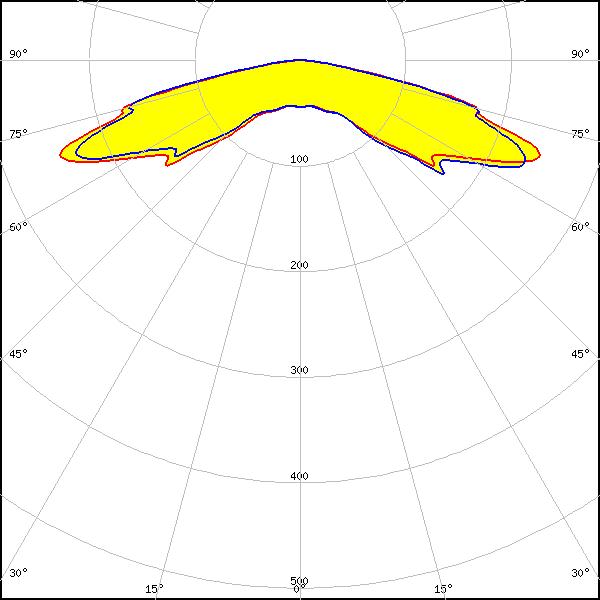

    LED: OSCONIQ S 5050 (Q9LR33)
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

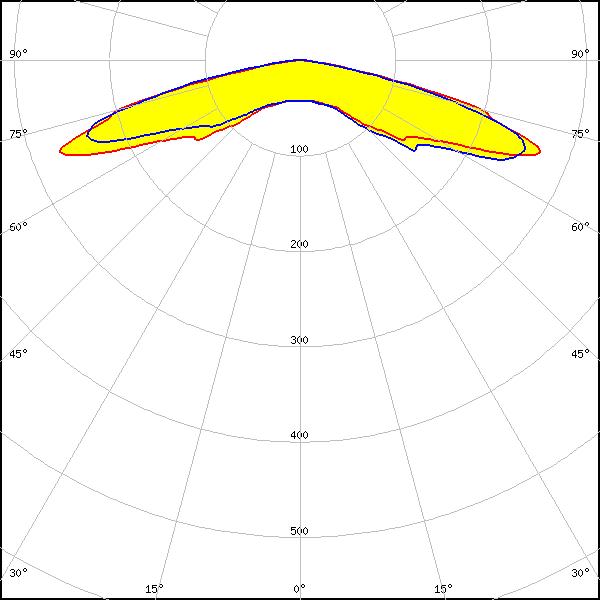

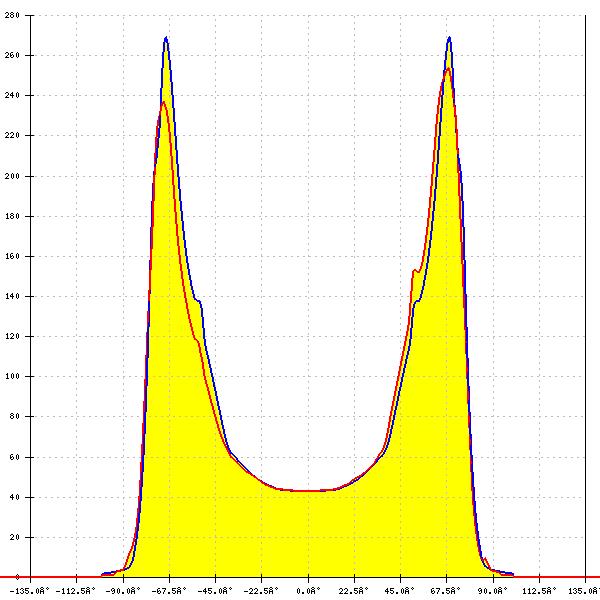

    LED: XAMAN-VP-3500-740-48
    Required components:
    F19918_STRADA-IP-8MXS-FRAME
    FWHM: asymmetric
    Peak intensity: 0.521 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
