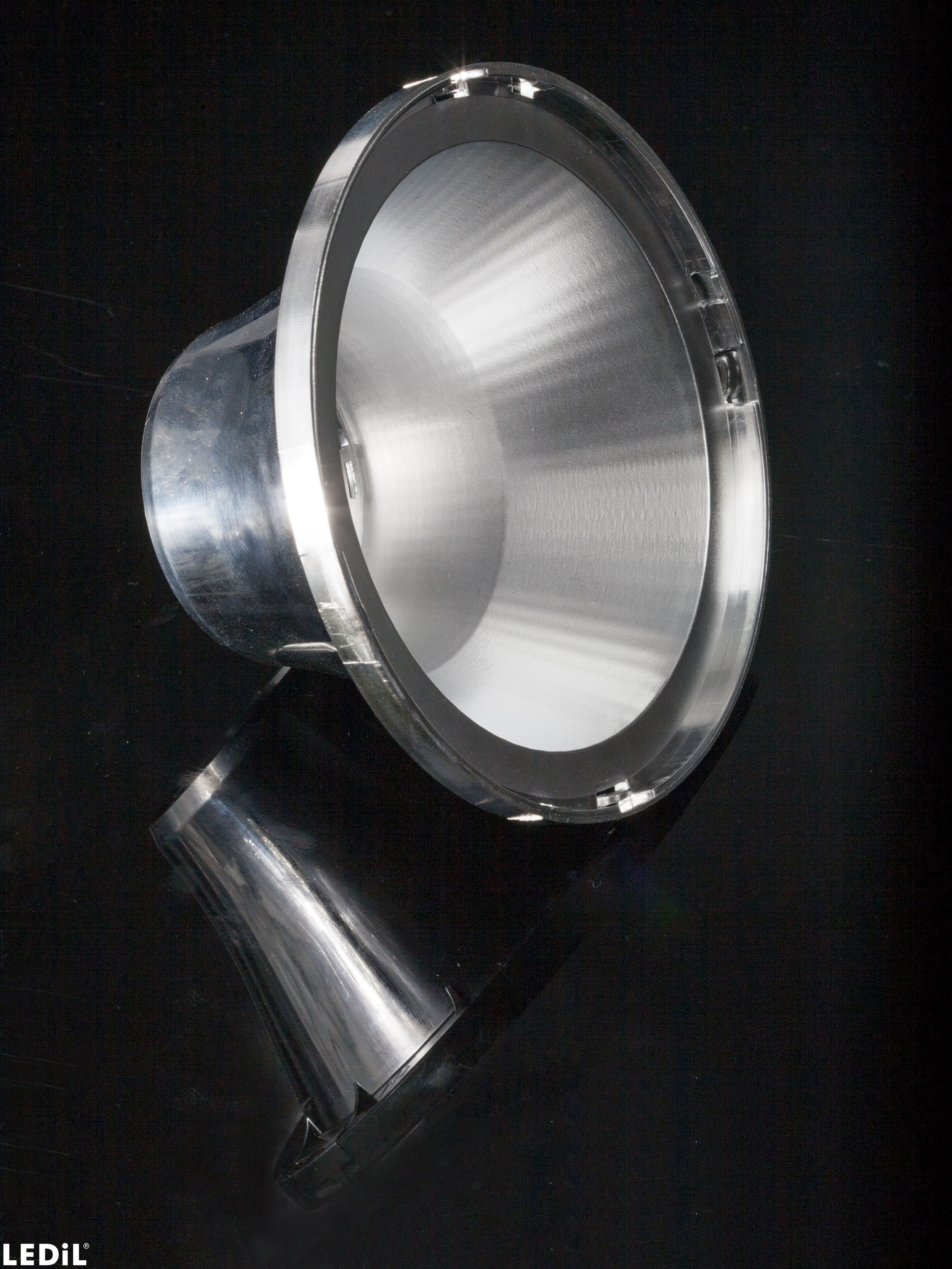

F16010_ANGELETTE-M2
Print
~35° medium beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
Vero SE 13
Required components:
FWHM:
33°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 18
Required components:
FWHM:
38°
FWTM:
81°
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
Required components:
FWHM:
37°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
Required components:
FWHM:
38°
FWTM:
82°
Peak intensity:
1.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
Required components:
FWHM:
37°
FWTM:
80°
Peak intensity:
1.368 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
Required components:
FWHM:
39°
FWTM:
83°
Peak intensity:
1.179 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 18mm (31W) DP
Required components:
FWHM:
41°
FWTM:
82°
Peak intensity:
1.251 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
Required components:
FWHM:
43°
FWTM:
84°
Peak intensity:
1.131 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
Required components:
FWHM:
44°
FWTM:
83°
Peak intensity:
1.186 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
Required components:
FWHM:
46°
FWTM:
85°
Peak intensity:
1.062 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CLL03x/CLU03x
Required components:
FWHM:
37°
FWTM:
79°
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Required components:
FWHM:
39°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1840
Required components:
FWHM:
36°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA2550
Required components:
FWHM:
39°
FWTM:
81°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
Required components:
FWHM:
33°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

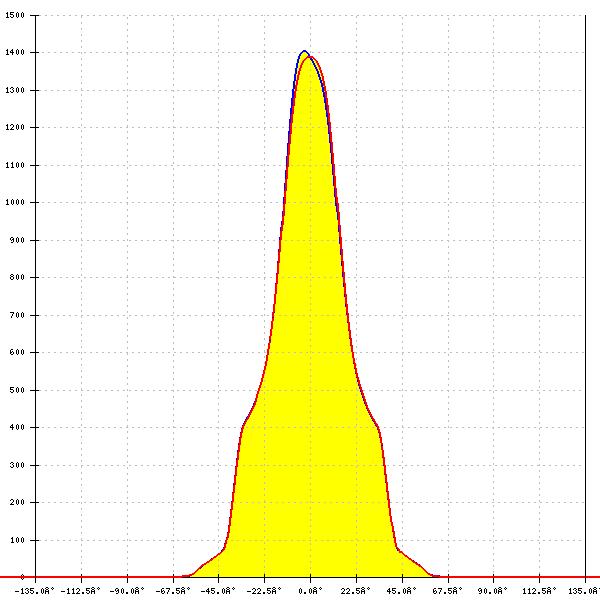

CMT19xx
Required components:
FWHM:
36°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT28xx
Required components:
FWHM:
43°
FWTM:
83°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM:
31°
FWTM:
79°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
33°
FWTM:
78°
Peak intensity:
1.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
FWHM:
33°
FWTM:
78°
Peak intensity:
1.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
FWHM:
34°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
FWHM:
35°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
33°
FWTM:
77°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Required components:
FWHM:
35°
FWTM:
78°
Peak intensity:
1.460 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
Required components:
FWHM:
35°
FWTM:
80°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
Required components:
FWHM:
38°
FWTM:
82°
Peak intensity:
1.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
Required components:
FWHM:
38°
FWTM:
81°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

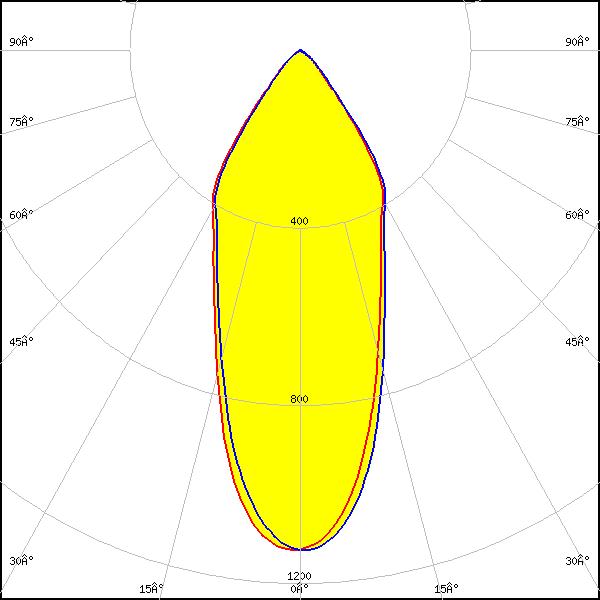

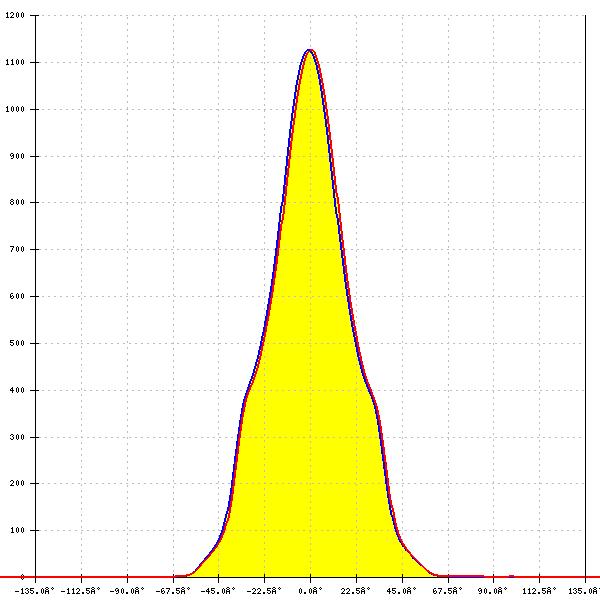

CDM-18 (Dim-To-Warm)
Required components:
FWHM:
41°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
Required components:
FWHM:
28°
FWTM:
77°
Peak intensity:
1.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
Required components:
FWHM:
32°
FWTM:
79°
Peak intensity:
1.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
Required components:
FWHM:
33°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
Required components:
FWHM:
39°
FWTM:
82°
Peak intensity:
1.200 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 RGBW
Required components:
FWHM:
36°
FWTM:
80°
Peak intensity:
1.304 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CTM-14 RGBW
Required components:
FWHM:
34°
FWTM:
78°
Peak intensity:
1.453 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CTM-22 (Tunable White)
Required components:
FWHM:
42°
FWTM:
83°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
Required components:
FWHM:
43°
FWTM:
84°
Peak intensity:
1.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM:
31°
FWTM:
78°
Peak intensity:
1.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM:
34°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
Required components:
FWHM:
38°
FWTM:
79°
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
Required components:
FWHM:
40°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
36°
FWTM:
79°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
Required components:
FWHM:
38°
FWTM:
81°
Peak intensity:
1.250 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
Required components:
FWHM:
39°
FWTM:
82°
Peak intensity:
1.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
38°
FWTM:
80°
Peak intensity:
1.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC035T (Tunable white)
Required components:
FWHM:
44°
FWTM:
83°
Peak intensity:
1.176 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC035T (Tunable white)
Required components:
FWHM:
47°
FWTM:
86°
Peak intensity:
1.028 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
XTM - 19mm LES
Required components:
FWHM:
37°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
