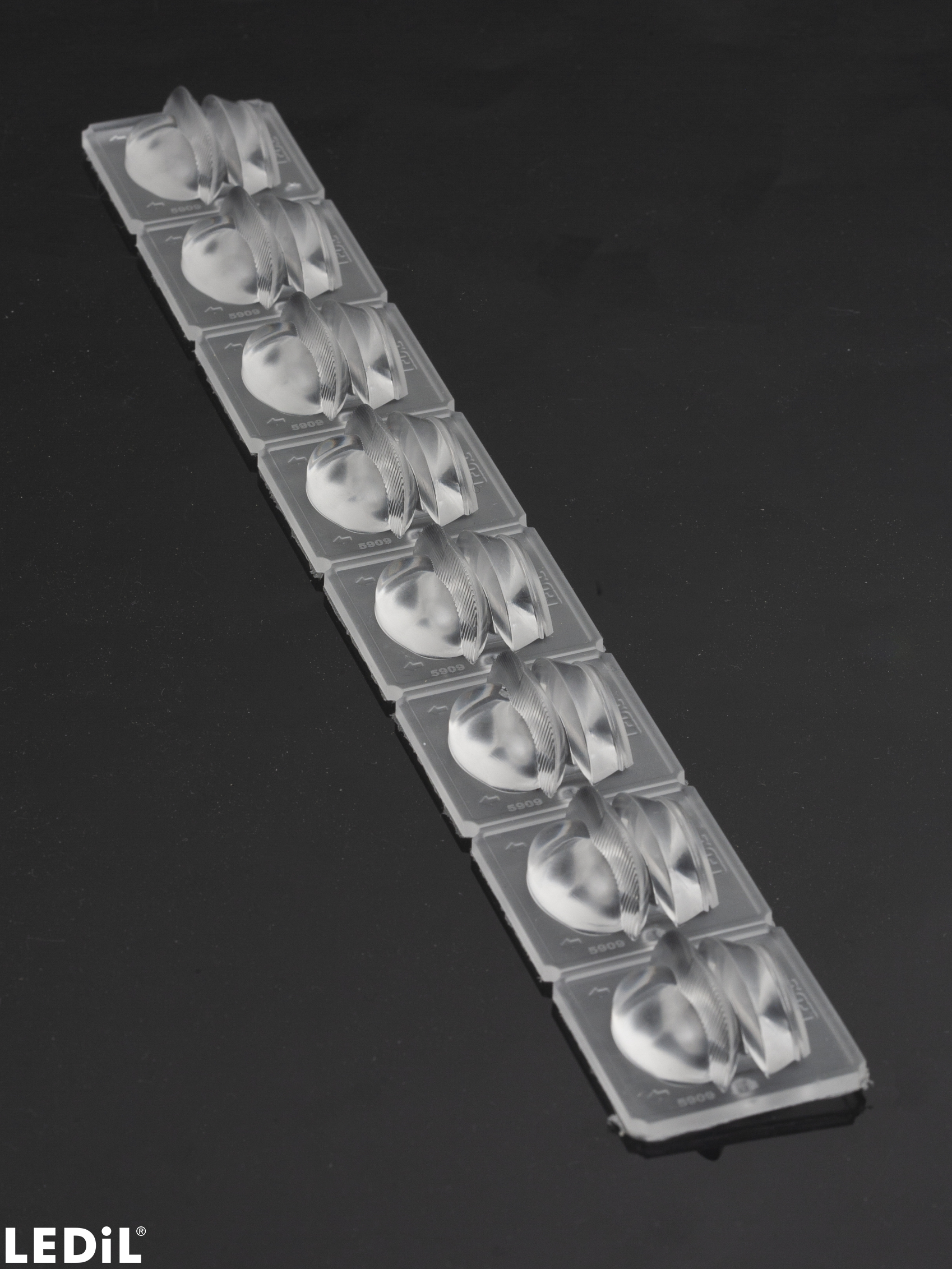

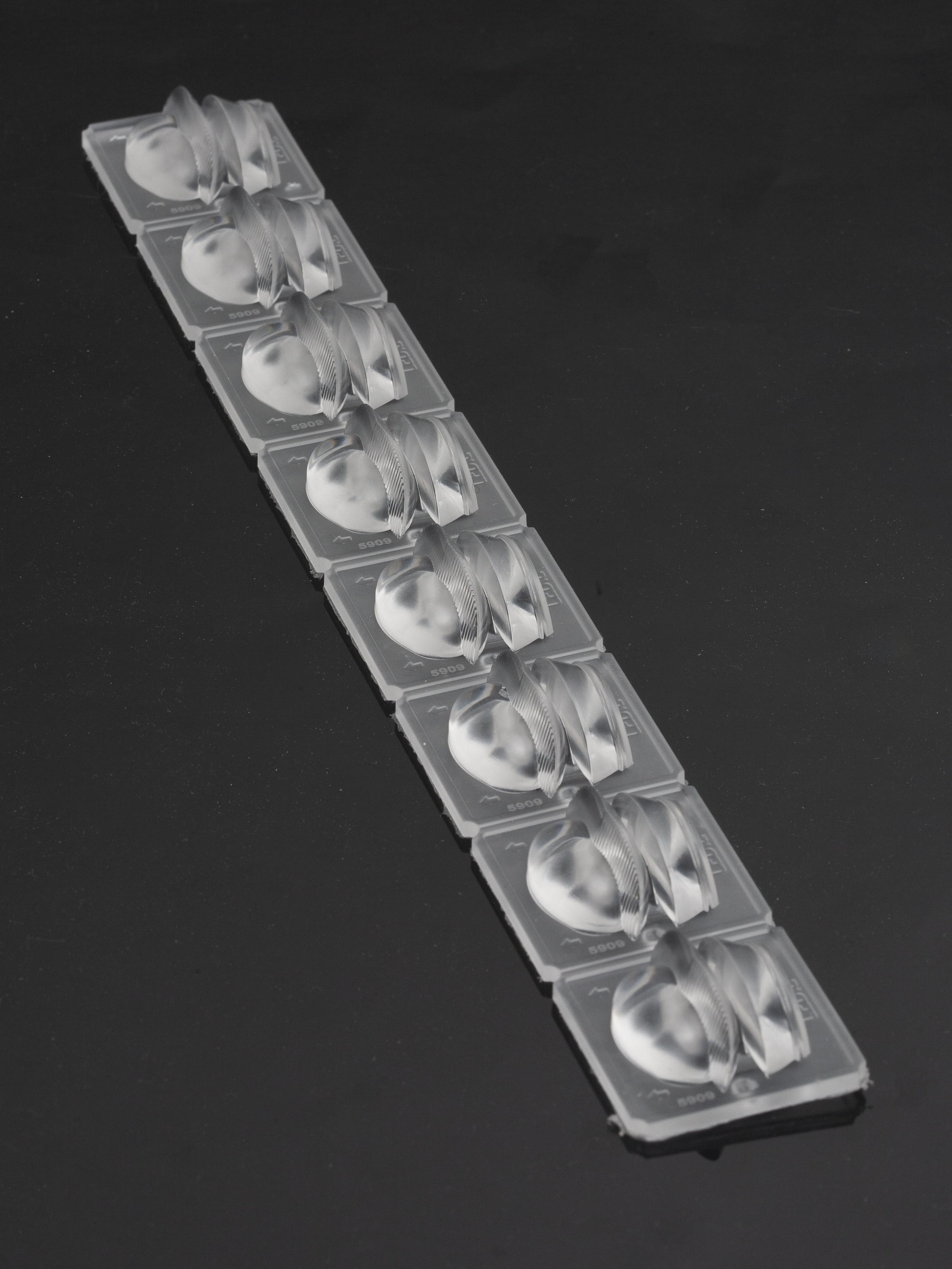

F15910_JENNY-8X1-FT65

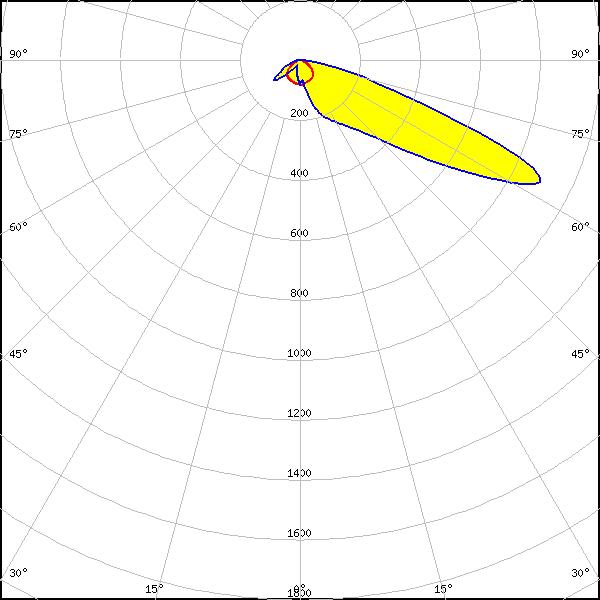

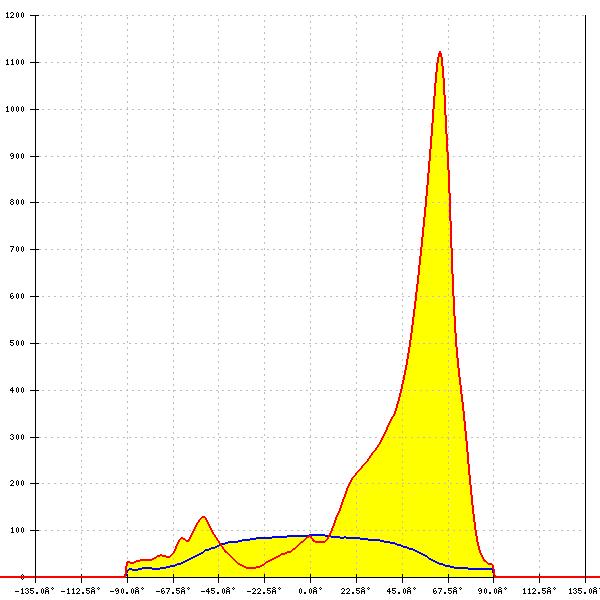

Forward throwing beam with peak in 65°. 8X1 variant.

Dimensions:

280 x 35 mm
Height:

15.35 mm
Fastening:

pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

140 pcs
Box size:

398 x 298 x 265 mm
Box weight:

7.9 kg
MPQ:

10 pcs
MOQ:

20 pcs
MOQ size:

380 x 300 x 50 mm
MOQ weight:

1.4 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

JENNY-HLD-A-BLK

Black frame for JENNY optics

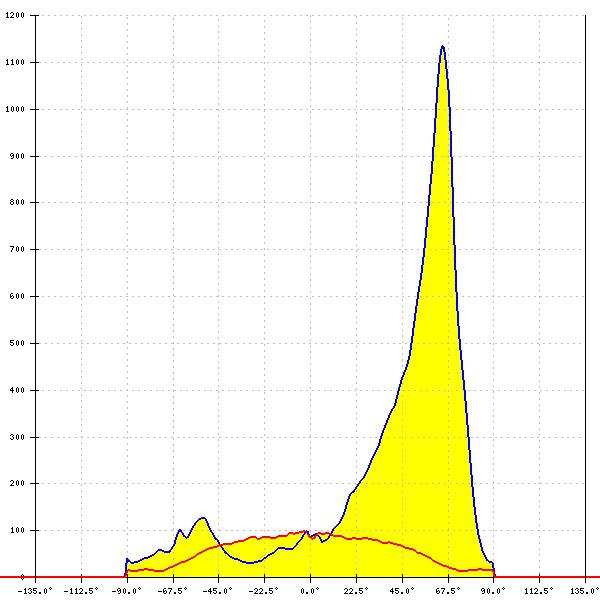

LED: XHP50.2

FWHM: asymmetric

Peak intensity: 1.158 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

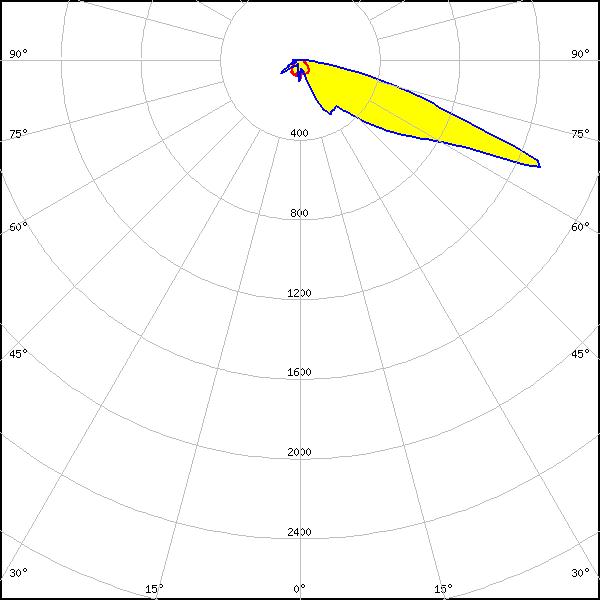

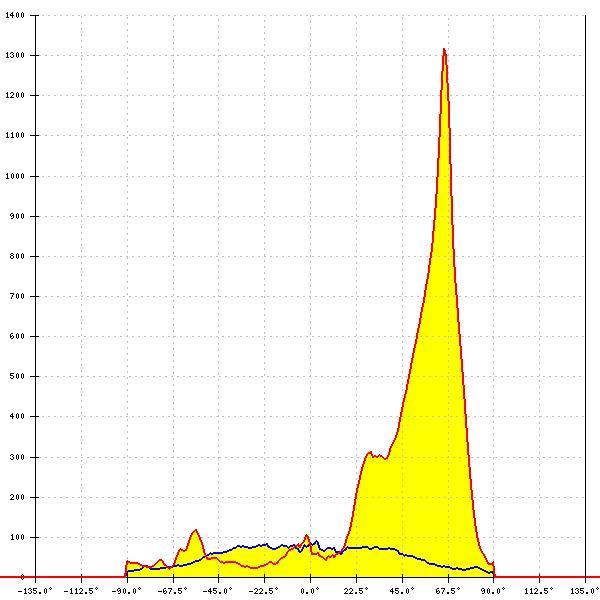

LED: XP-G3

FWHM: asymmetric

Peak intensity: 1.393 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

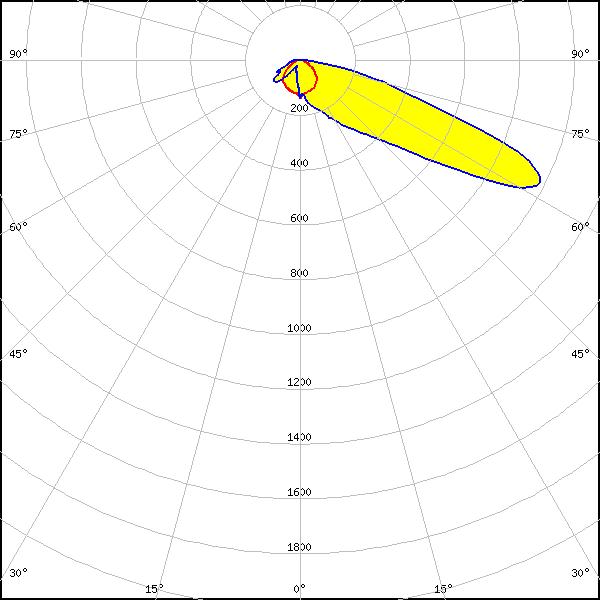

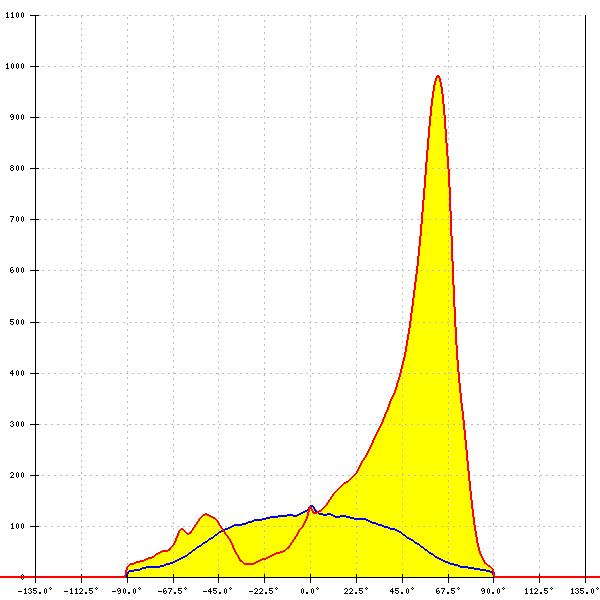

LED: LUXEON 7070

FWHM: asymmetric

Peak intensity: 0.982 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

LED: LUXEON M/MX

FWHM: asymmetric

Peak intensity: 1.010 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET

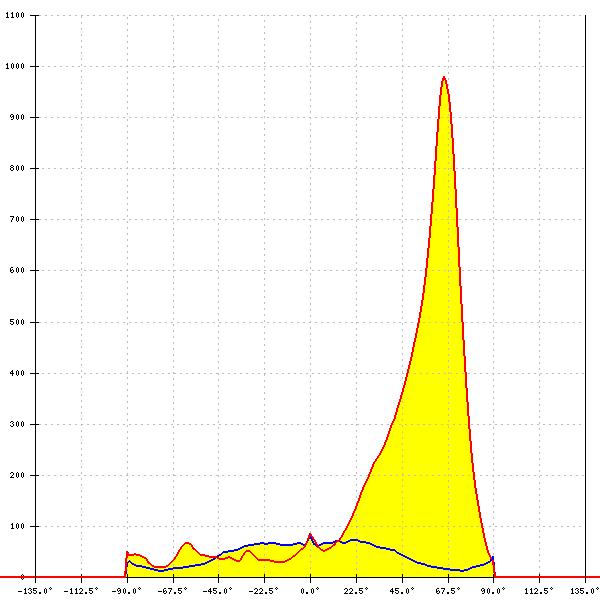

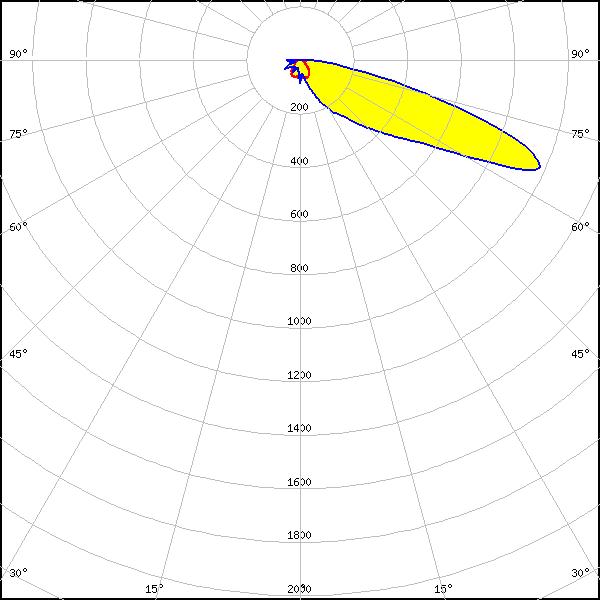

LED: NV4x144A

FWHM: asymmetric

Peak intensity: 1.000 cd/lm

Efficiency: 73 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files
