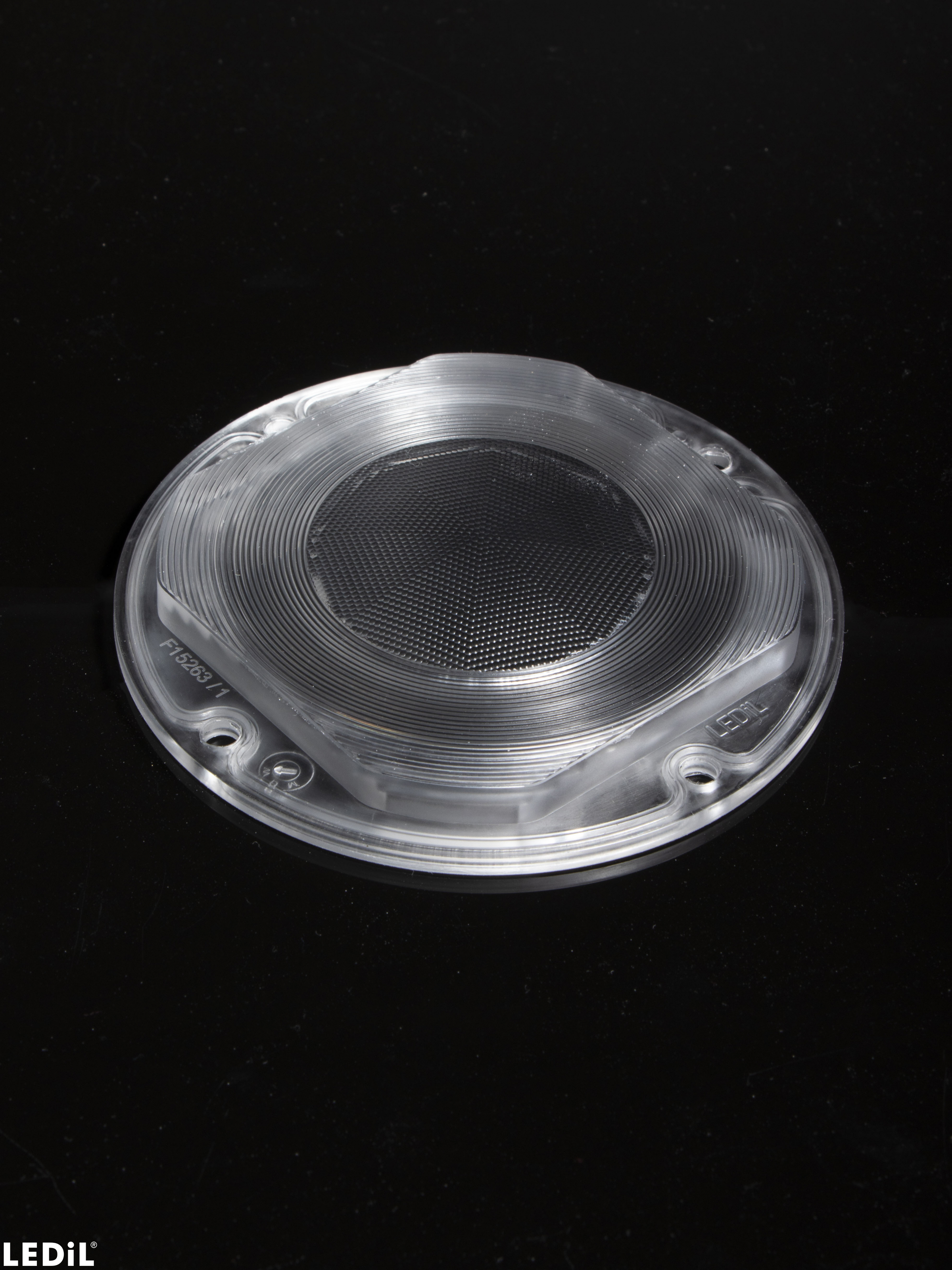

    F15263_STELLA-HB-WWW

    Print

    ~100° very wide beam for UV-C, warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs.

    Specification
    • Dimensions:
      85 mm
    • Height:
      11.30 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      90 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      3.1 kg
    • MPQ:
      10 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15263_STELLA-HB-WWW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    UV-C LIGHTING

    Application area

    Architectural Outdoor Lighting

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-AL-FRAME

    Aluminium installation frame for STELLA lenses

    Optical results

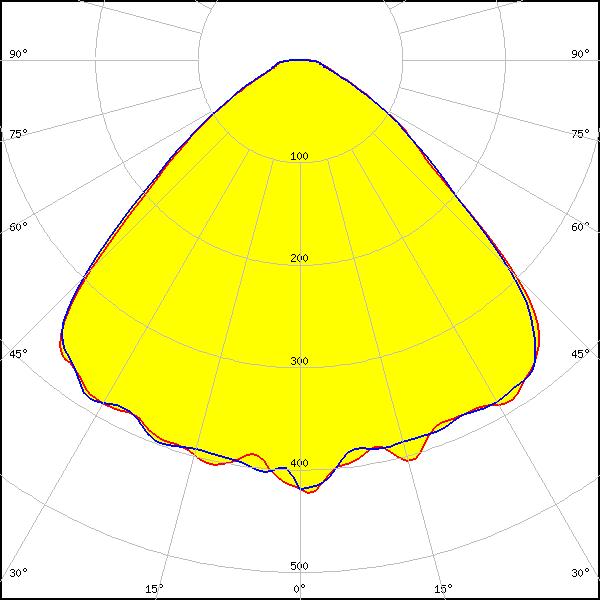

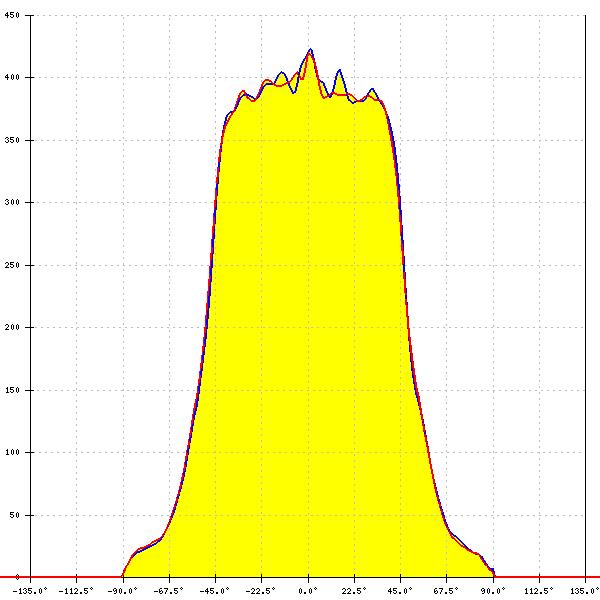

    LED: VERO29
    LES size: 29.2 mm
    FWHM: 97°
    FWTM: -
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

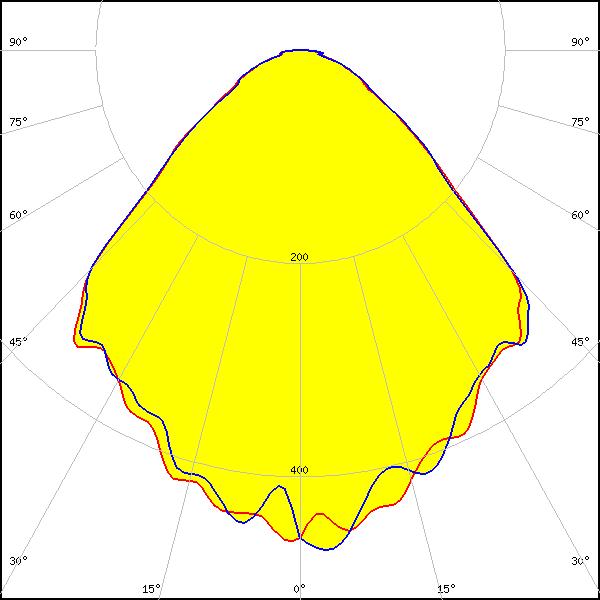

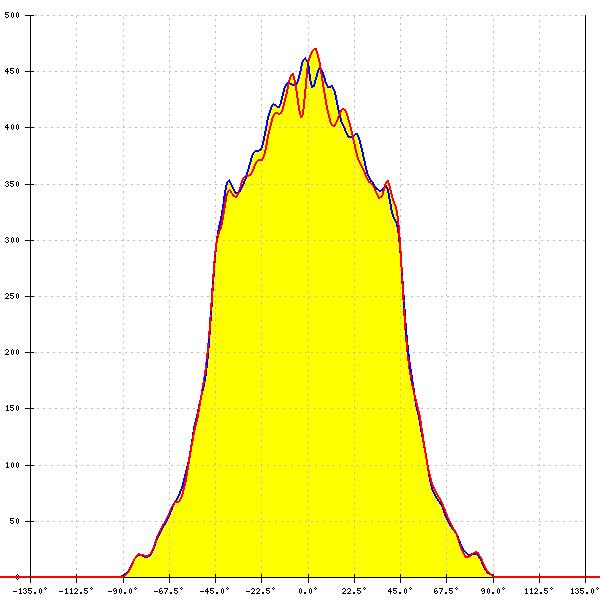

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: 97°
    FWTM: -
    Peak intensity: 0.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

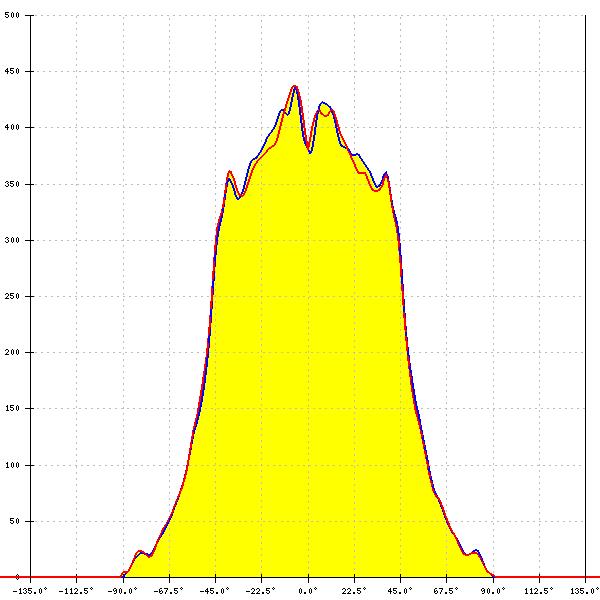

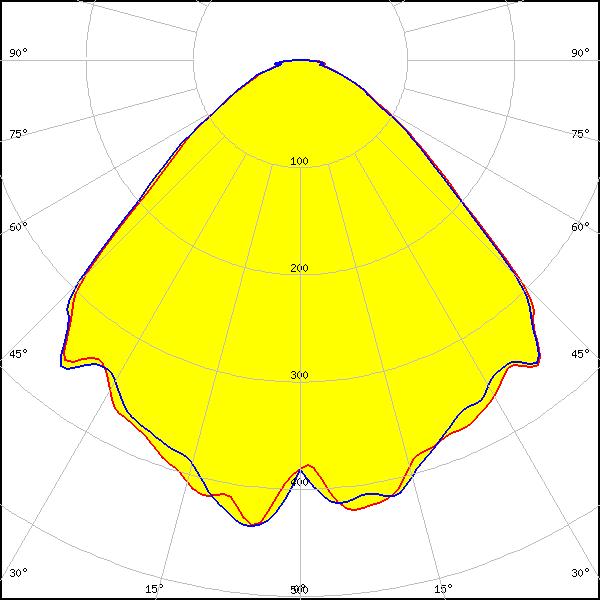

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    LEDs/each optic: 1
    Light colour/type: White

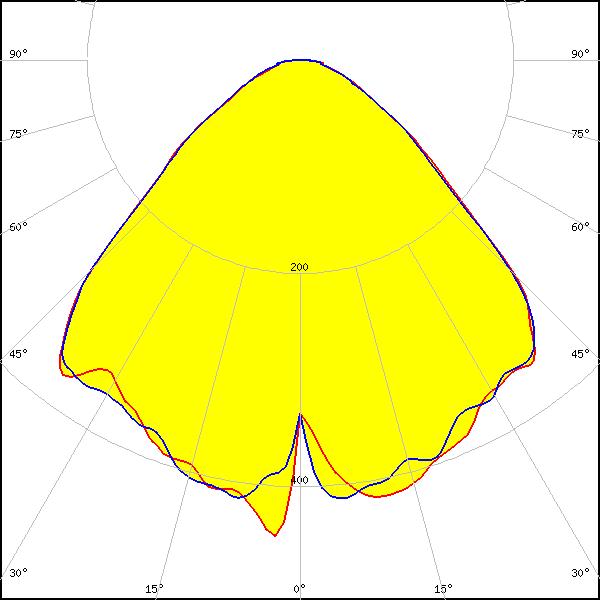

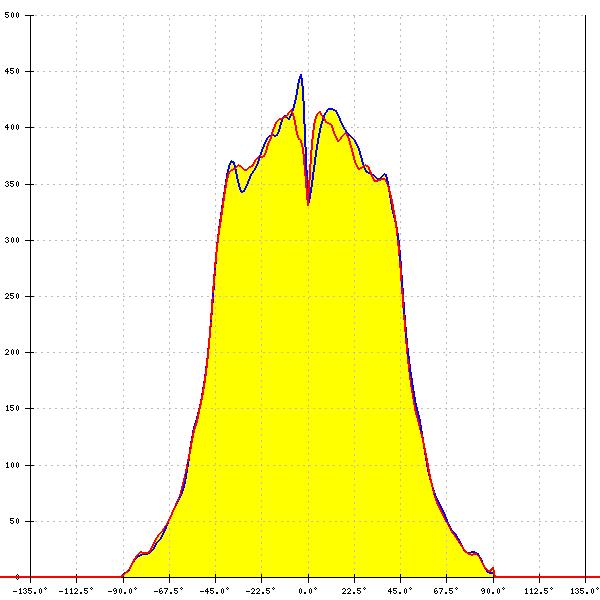

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: 97°
    FWTM: -
    Peak intensity: 0.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

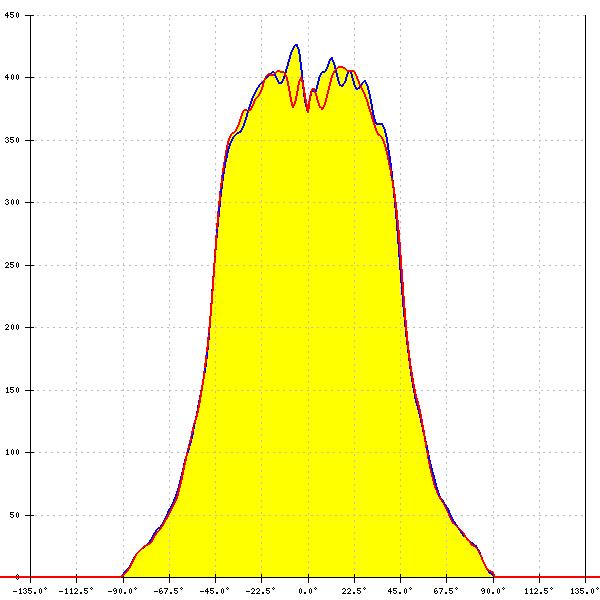

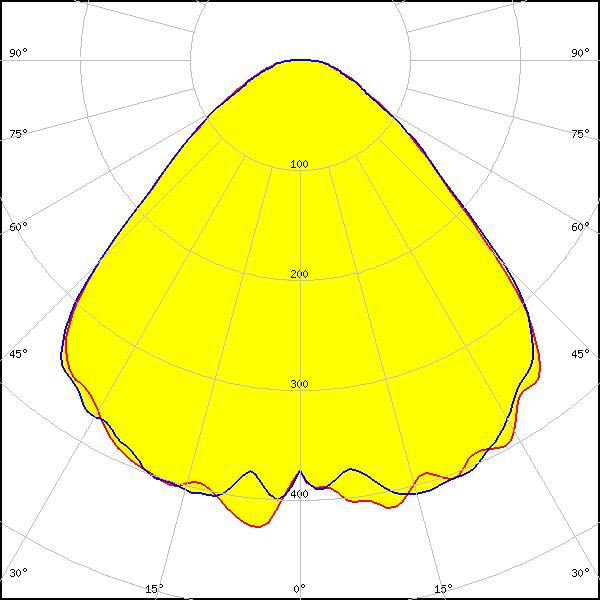

    LED: CLL05x/CLU05x
    LES size: 32.8 mm
    FWHM: 97°
    FWTM: -
    Peak intensity: 0.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

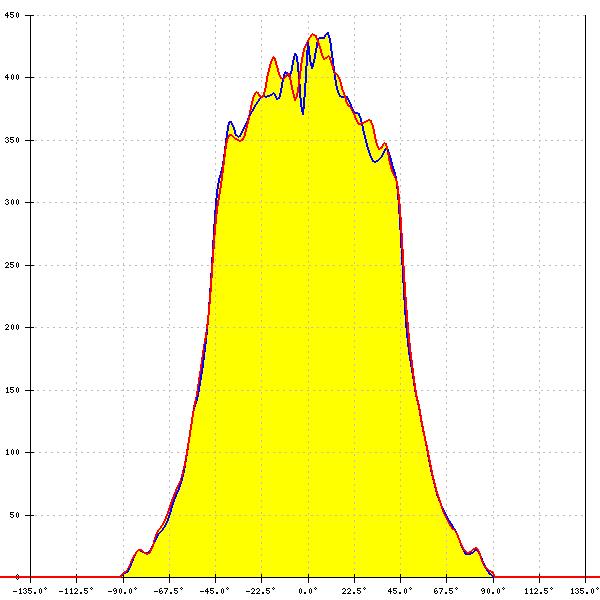

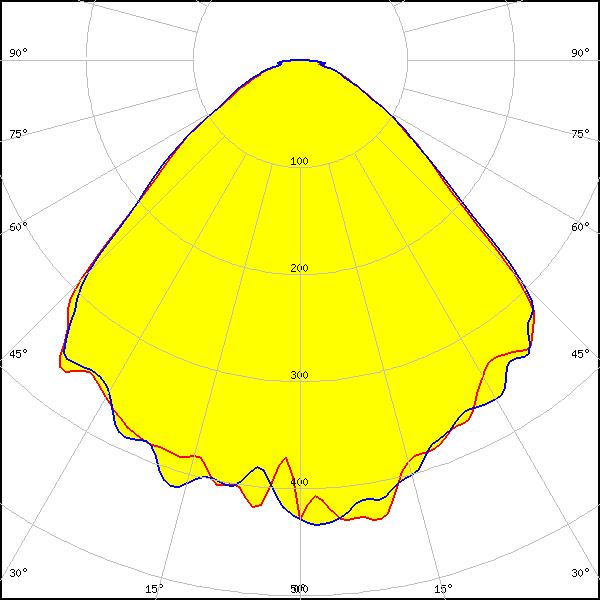

    LED: Soleriq S19
    LES size: 17.9 mm
    LEDs/each optic: 1
    Light colour/type: White
