    F13838_ANGELINA-XW

    Print

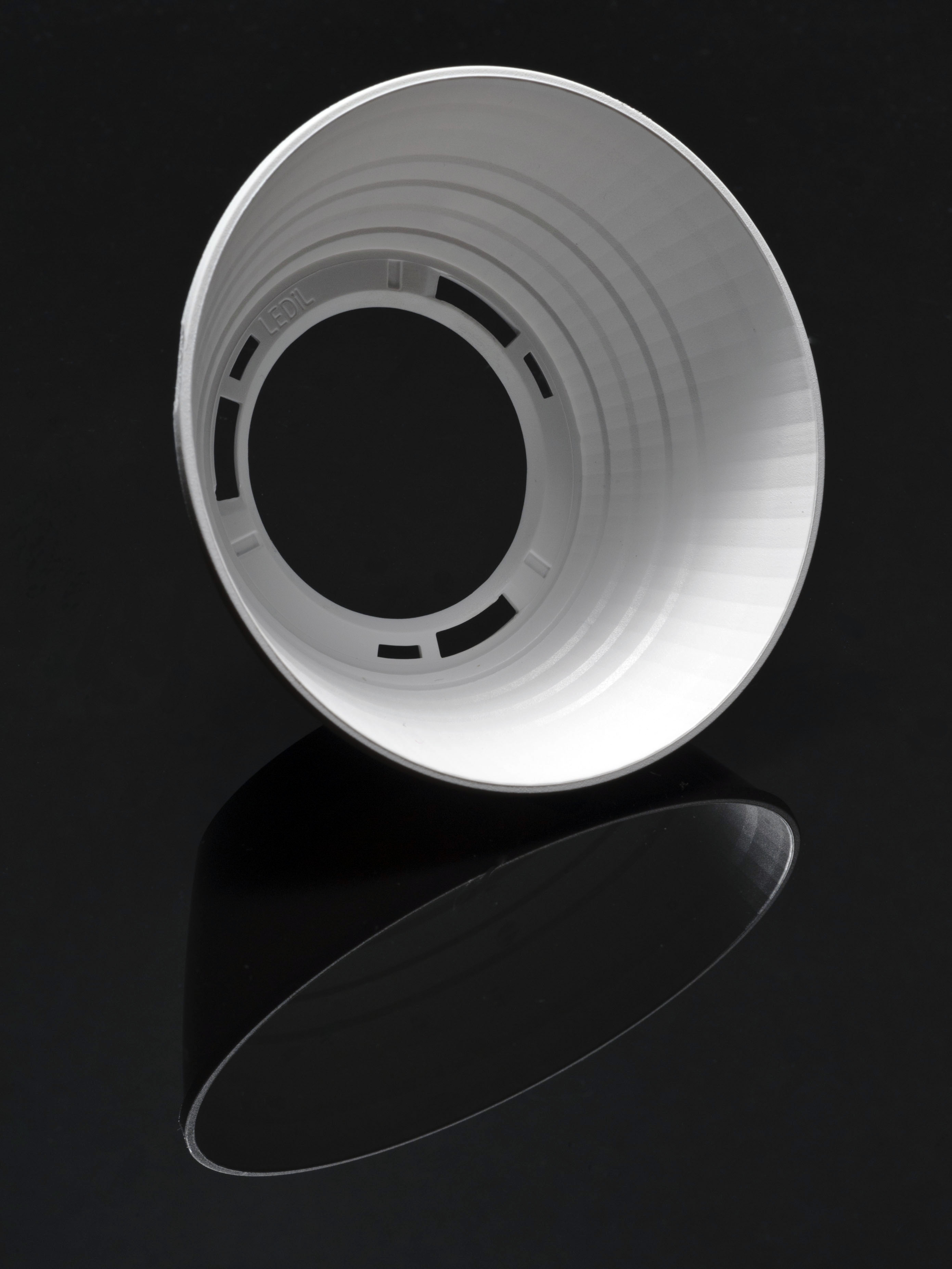

    White version with ~91° wide beam

    Specification
    • Dimensions:
      82 mm
    • Height:
      31.00 mm
    • Fastening:
      socket
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      900 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      12.3 kg
    • MPQ:
      60 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      320 x 230 x 150 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F13838_ANGELINA-XW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR128.e - Change of packaging quantities 241016

    Application guide

    LEDiL guide for retail lighting optics

    Case story

    Machang bridge

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - SYSTEM REFLECTORS

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    LEDiL System Reflector Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ANGE-RZ-LENS

    Colour mixing sublens for ANGELA, ANGELINA and ANGELETTE

    CLAMP-VEROSE-13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux Vero 13 SE and Vero 18 SE COBs.

    CLAMP-VERO29

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO29. Improved version.

    CLAMP-CXA15-18

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B 15xx and CXA/B 18xx.

    CLAMP

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B25xx and CXA/B30xx.

    CLAMP-VERO13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO13 and VERO18.

    CLAMP-VERO29

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO29.

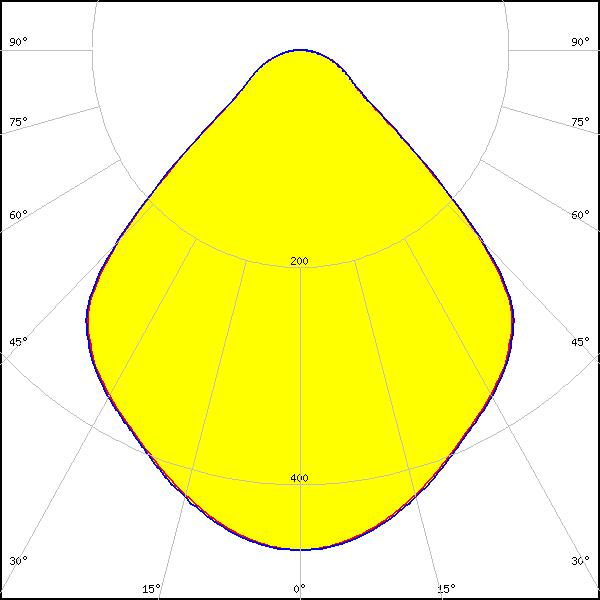

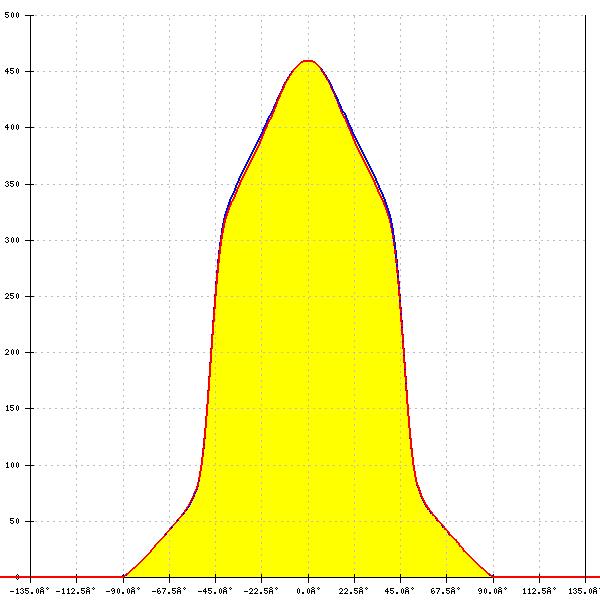

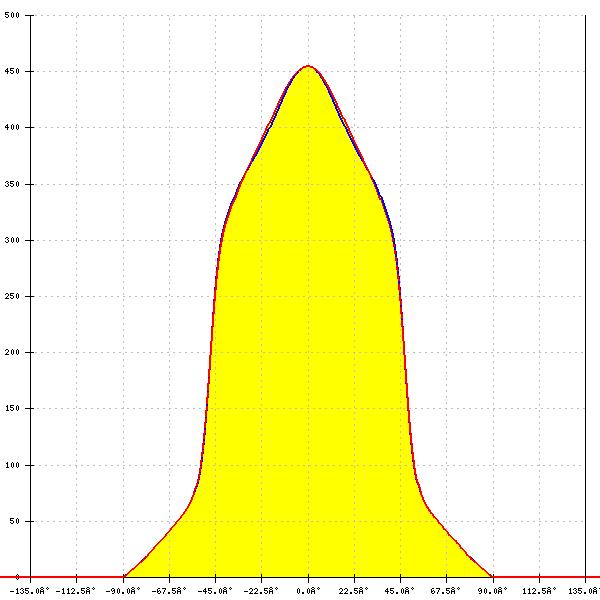

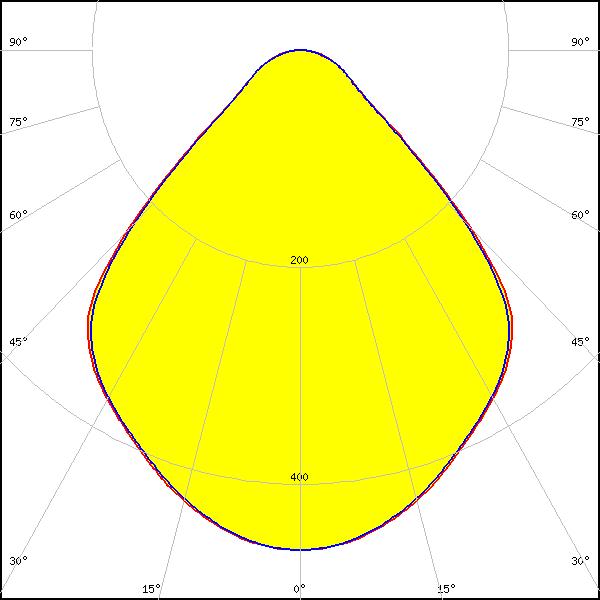

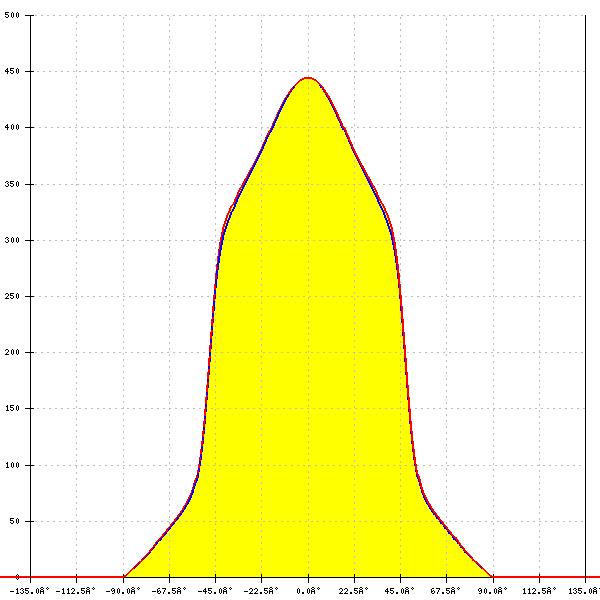

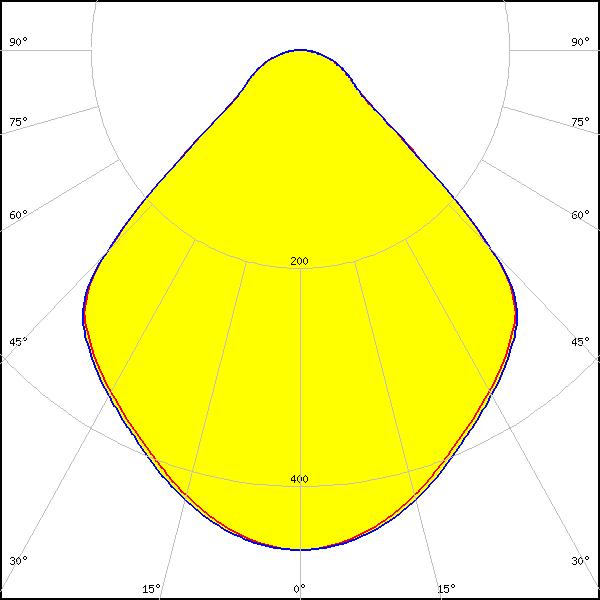

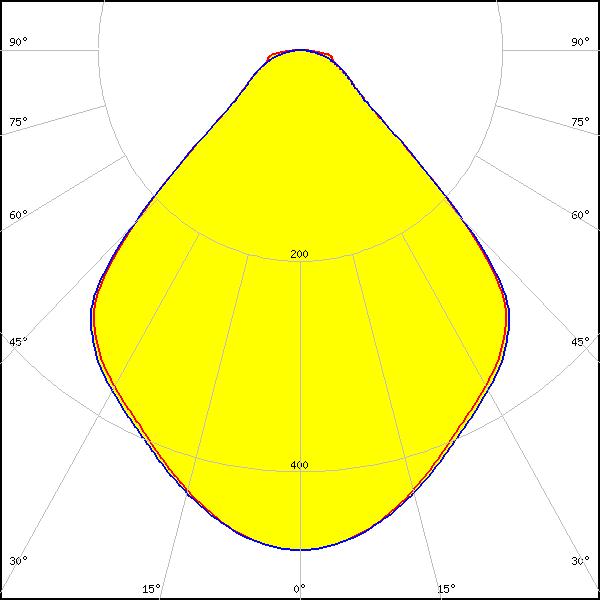

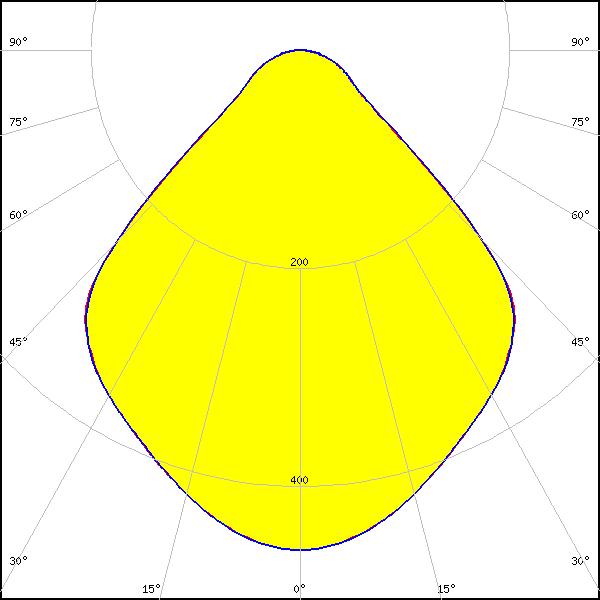

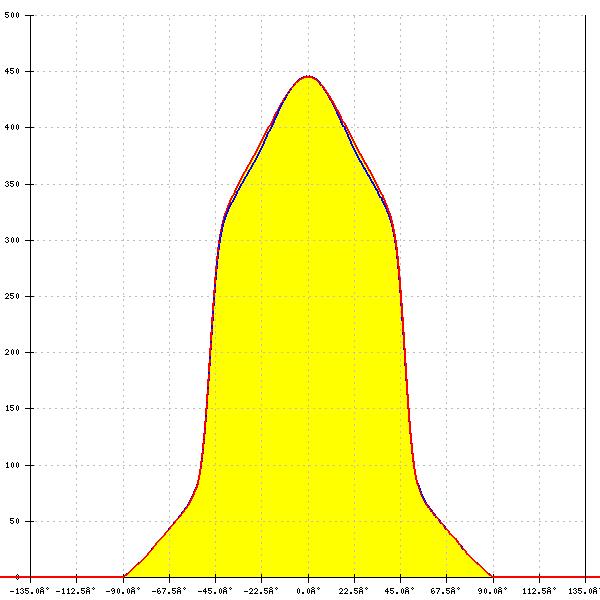

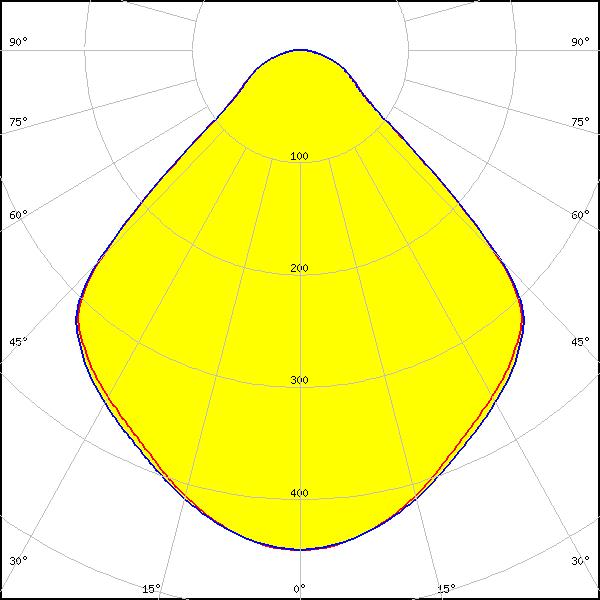

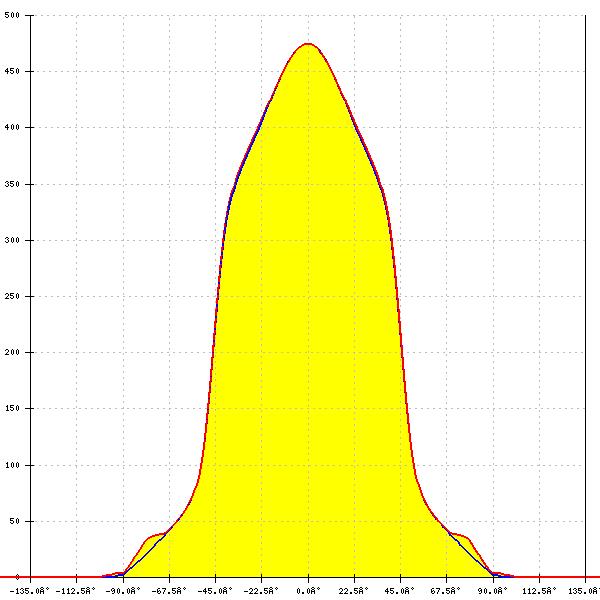

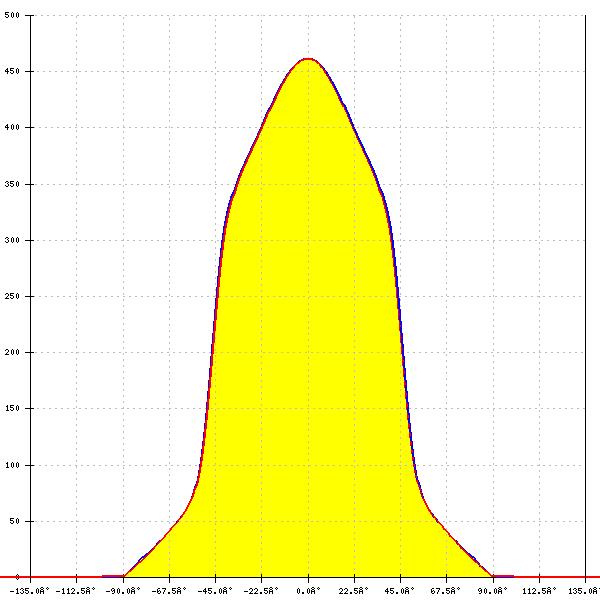

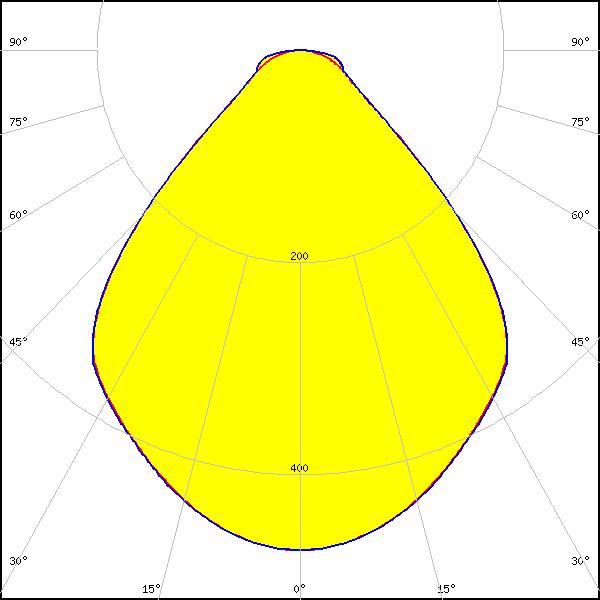

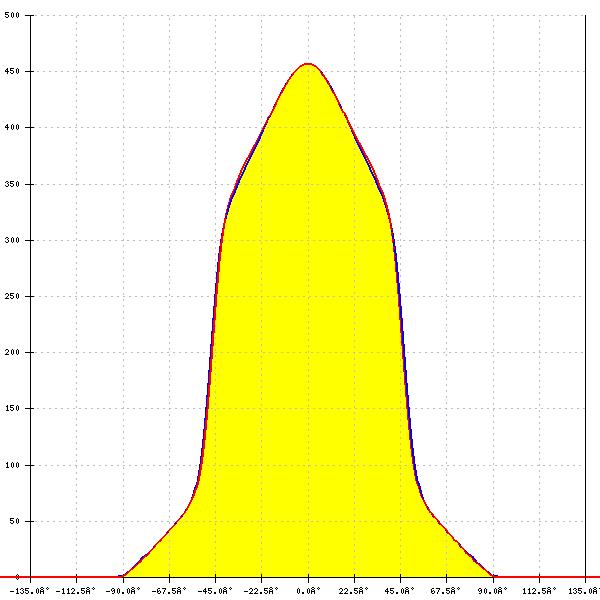

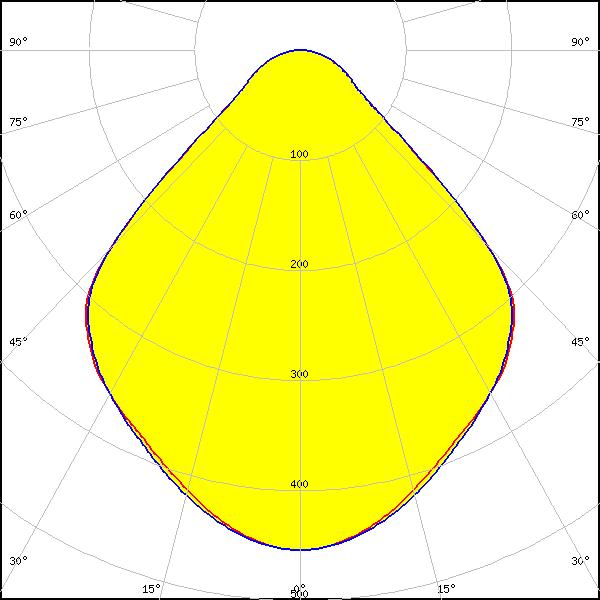

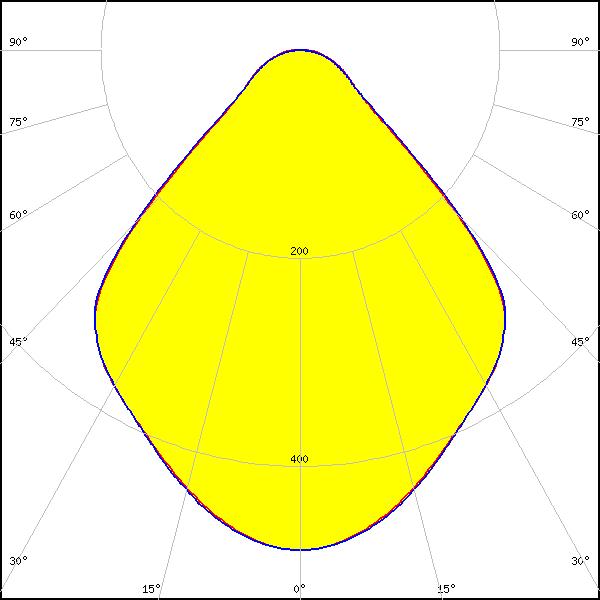

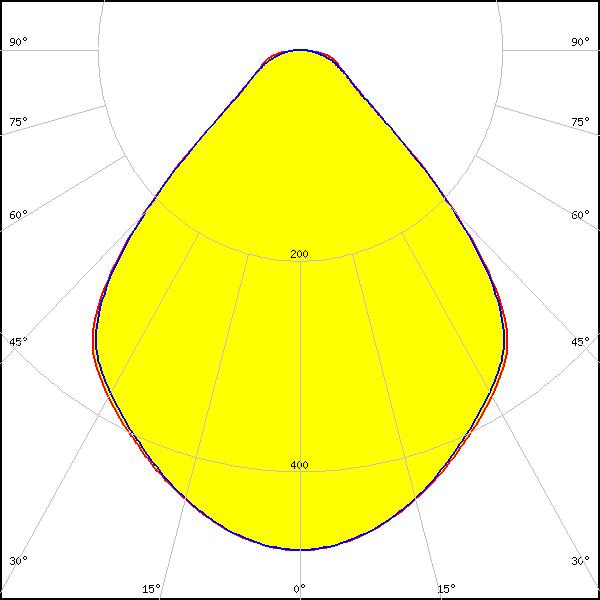

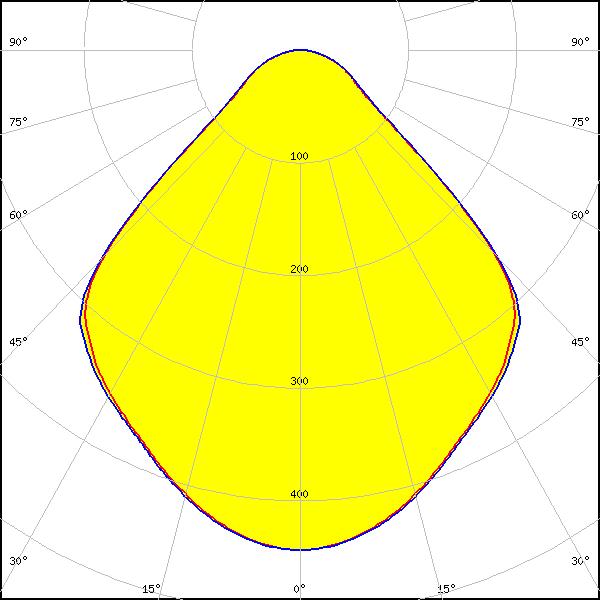

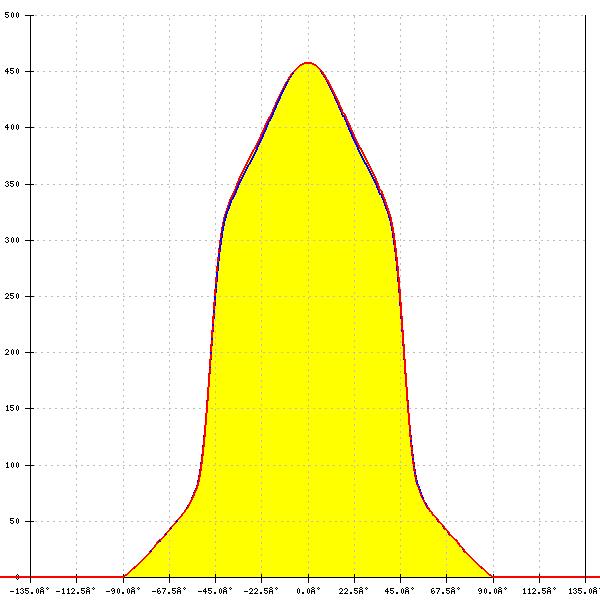

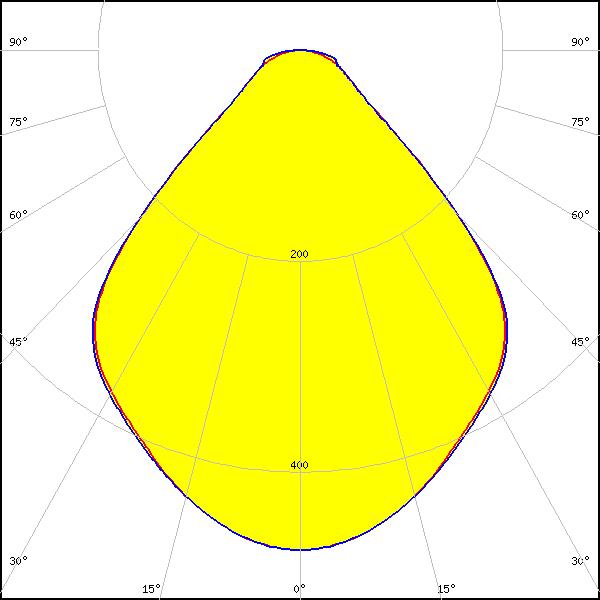

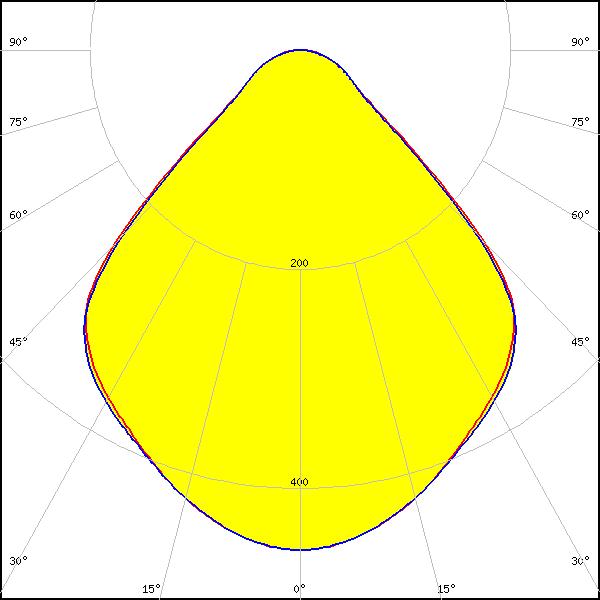

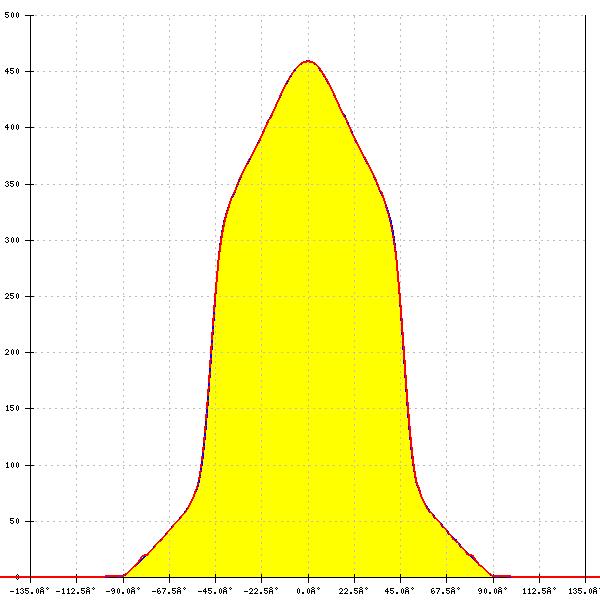

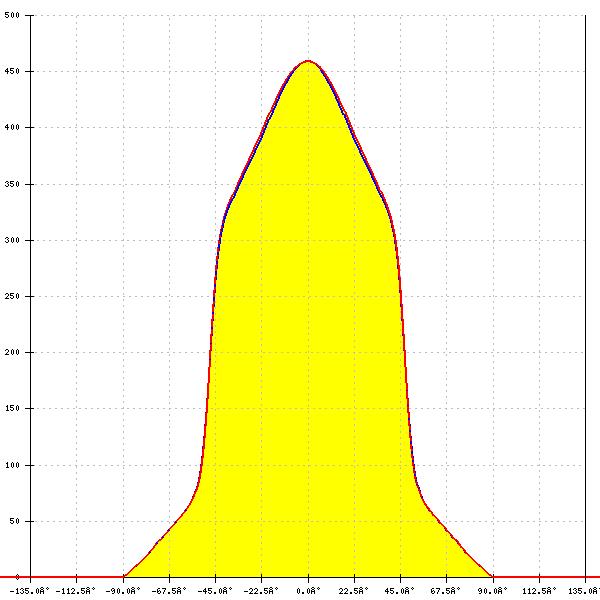

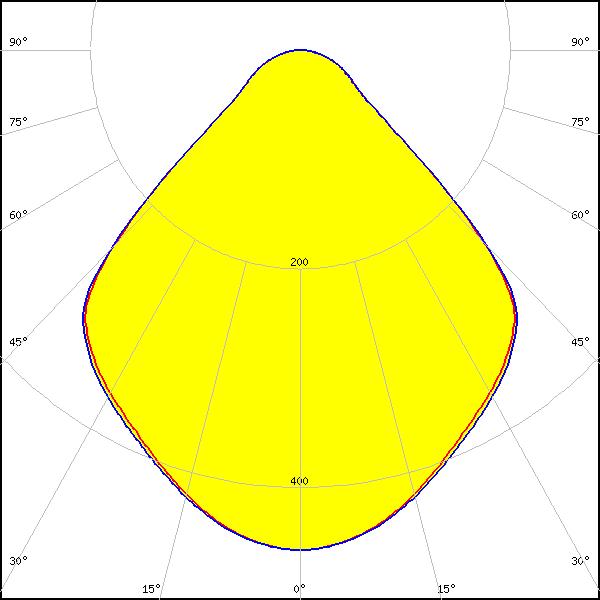

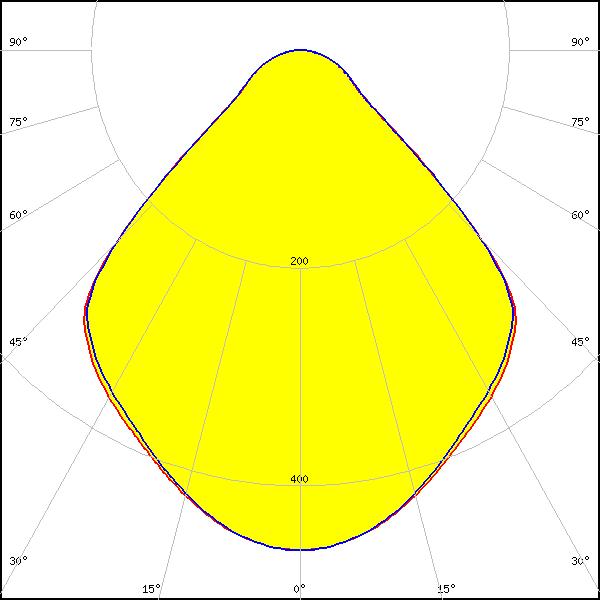

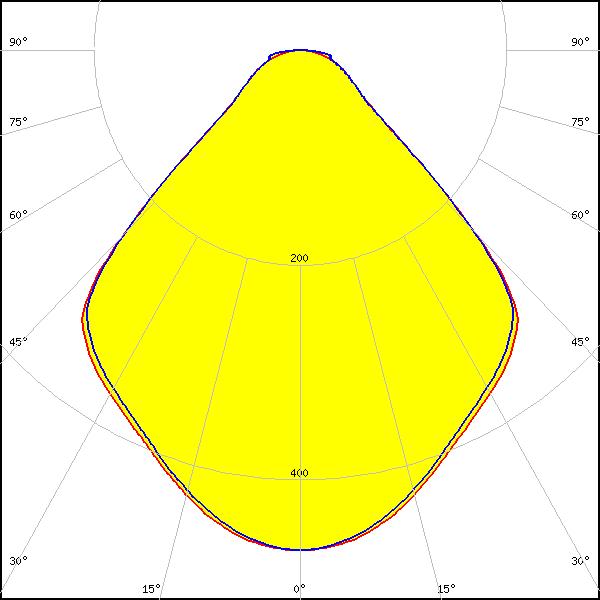

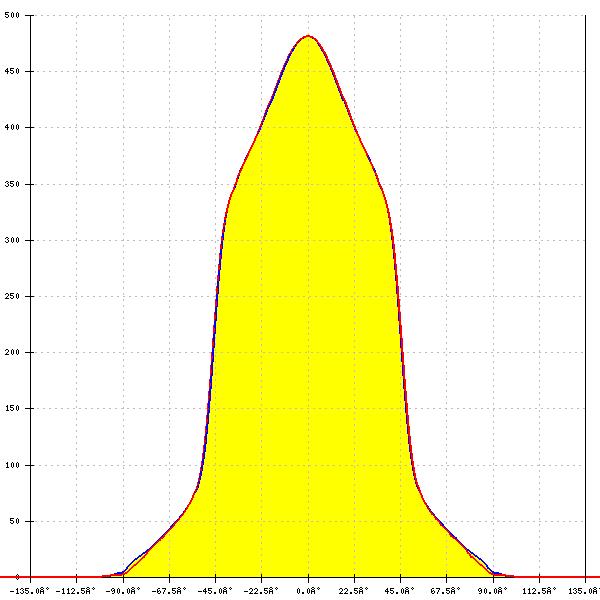

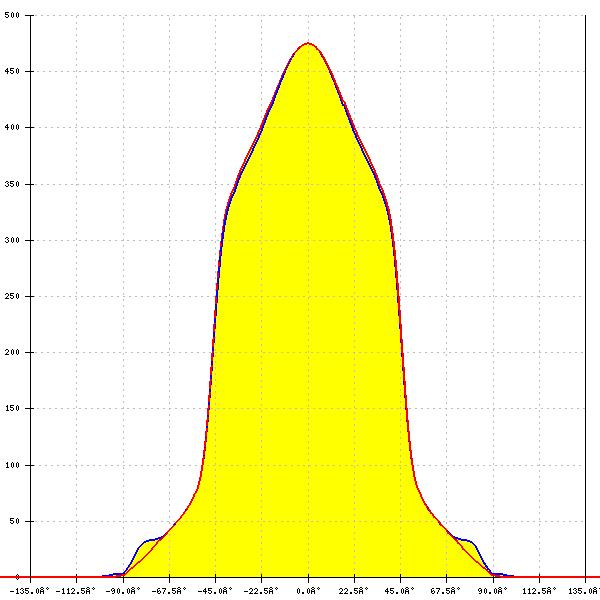

    Optical results

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 486 Typ L1
    FWHM: 93°
    FWTM: 123°
    Peak intensity: 0.490 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    F13671_ANGE-RZ-LENS
    FWHM: 93°
    FWTM: 132°
    Peak intensity: 0.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 86°
    FWTM: 112°
    Peak intensity: 0.595 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

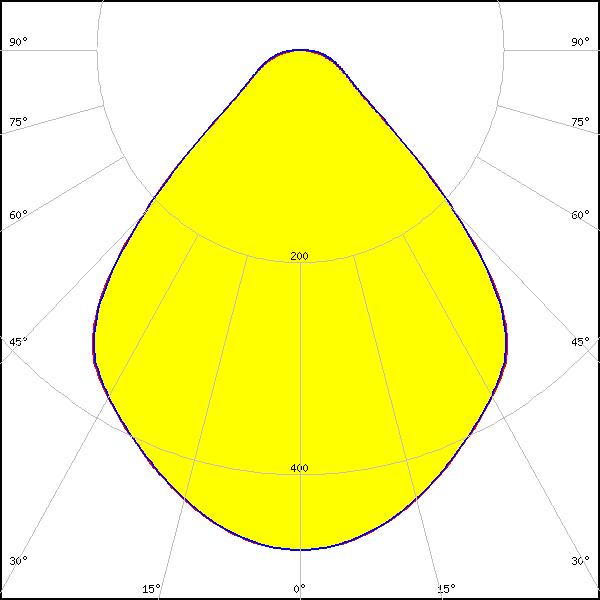

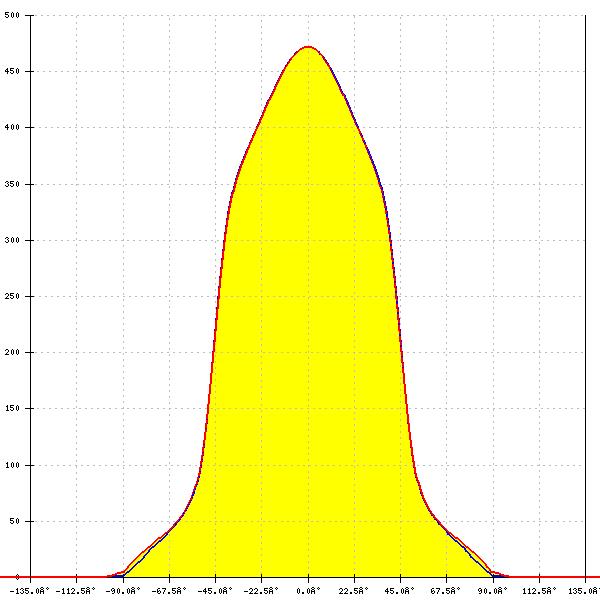

    LED: V22 Gen6
    LES size: 22.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 88°
    FWTM: 126°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 82°
    FWTM: 110°
    Peak intensity: 0.603 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 13
    LES size: 13.4 mm
    Required components:
    C16402_CLAMP-VEROSE-13-18
    FWHM: 94°
    FWTM: 131°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 18
    LES size: 18.6 mm
    Required components:
    C16402_CLAMP-VEROSE-13-18
    FWHM: 93°
    FWTM: 131°
    Peak intensity: 0.490 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO18
    LES size: 18.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: 90°
    FWTM: 106°
    Peak intensity: 0.580 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO29
    LES size: 29.2 mm
    Required components:
    C13584_CLAMP-VERO29
    FWHM: 91°
    FWTM: 134°
    Peak intensity: 0.460 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO29
    LES size: 29.2 mm
    Required components:
    C13584_CLAMP-VERO29
    F13671_ANGE-RZ-LENS
    FWHM: 90°
    FWTM: 133°
    Peak intensity: 0.450 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 15mm DP
    LES size: 16.3 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 482 Typ L2
    FWHM: 92°
    FWTM: 129°
    Peak intensity: 0.517 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 15mm DP
    LES size: 16.3 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 482 Typ L2
    F13671_ANGE-RZ-LENS
    FWHM: 92°
    FWTM: 130°
    Peak intensity: 0.476 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    LES size: 19.7 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 483 Typ L3
    FWHM: 91°
    FWTM: 128°
    Peak intensity: 0.512 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 18mm (31W) DP
    LES size: 19.7 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 483 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 90°
    FWTM: 130°
    Peak intensity: 0.473 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 22mm DP
    LES size: 23.1 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    FWHM: 90°
    FWTM: 127°
    Peak intensity: 0.516 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 22mm DP
    LES size: 23.1 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 90°
    FWTM: 129°
    Peak intensity: 0.477 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 94°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    C16791_CLAMP-Z45-A
    TE Connectivity: 2325807-3
    FWHM: 90°
    FWTM: 124°
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    C16791_CLAMP-Z45-A
    TE Connectivity: 2325807-3
    F13671_ANGE-RZ-LENS
    FWHM: 91°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 89°
    FWTM: 125°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 91°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 88°
    FWTM: 126°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 431 Typ L3
    FWHM: 88°
    FWTM: 125°
    Peak intensity: 0.510 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 95°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU720/721/723
    LES size: 11.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 89°
    FWTM: 125°
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU720/721/723
    LES size: 11.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 137°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

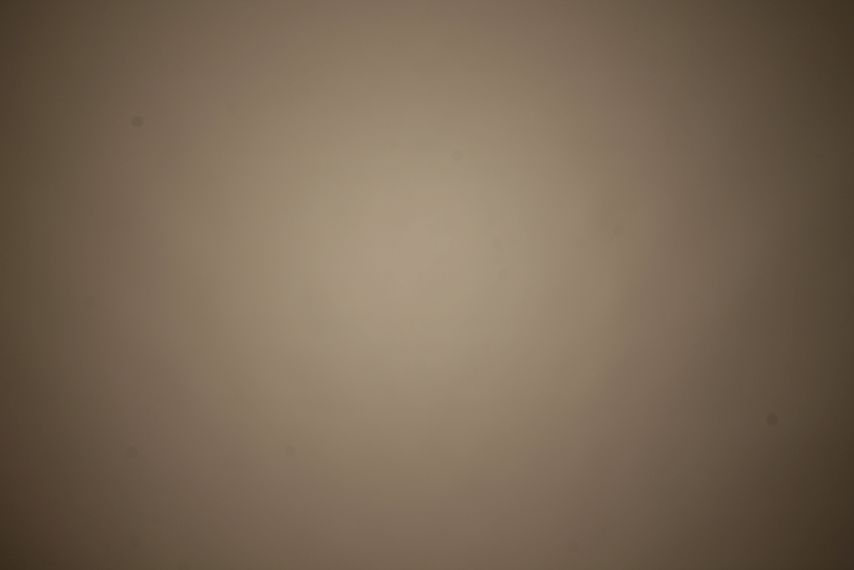

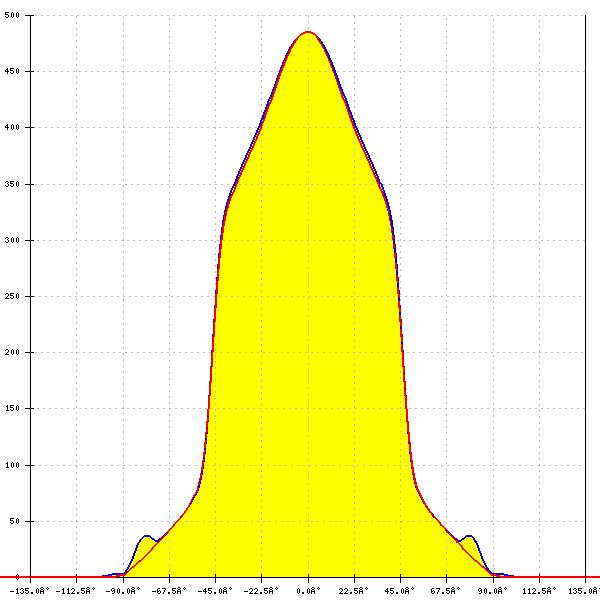

    LED: CLU730/731/733
    LES size: 13.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 90°
    FWTM: 126°
    Peak intensity: 0.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1840
    LES size: 14.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 93°
    FWTM: 129°
    Peak intensity: 0.500 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA2550
    LES size: 19.0 mm
    Required components:
    C14036_CLAMP_CXA25-30
    FWHM: 92°
    FWTM: 130°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA3090
    LES size: 23.0 mm
    Required components:
    C14036_CLAMP_CXA25-30
    FWHM: 90°
    FWTM: 129°
    Peak intensity: 0.500 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 93°
    FWTM: 127°
    Peak intensity: 0.550 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 477 Typ L1
    FWHM: 92°
    FWTM: 130°
    Peak intensity: 0.520 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT28xx
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 471 Typ L3
    FWHM: 89°
    FWTM: 127°
    Peak intensity: 0.500 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 94°
    FWTM: 115°
    Peak intensity: 0.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 441 Typ L1
    FWHM: 94°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    TE Connectivity: 2213401-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 132°
    Peak intensity: 0.490 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C14123_CLAMP-CXA15-18
    FWHM: 94°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 437 Typ L1
    FWHM: 94°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 30xx
    LES size: 23.0 mm
    Required components:
    C14036_CLAMP_CXA25-30
    FWHM: 91°
    FWTM: 131°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 3590
    LES size: 30.0 mm
    Required components:
    IDEAL: 50-2303CR
    IDEAL: 50-2300AN
    FWHM: 90°
    FWTM: 131°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHI3030 19W
    LES size: 20.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 468 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 88°
    FWTM: 132°
    Peak intensity: 0.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHI3030 29W
    LES size: 26.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 468 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 89°
    FWTM: 132°
    Peak intensity: 0.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 438 Typ L1
    FWHM: 95°
    FWTM: 131°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    LES size: 9.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 124°
    Peak intensity: 0.560 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    LES size: 11.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 125°
    Peak intensity: 0.550 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 131°
    Peak intensity: 0.490 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1211
    LES size: 18.5 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 89°
    FWTM: 127°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1211
    LES size: 18.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 431 Typ L3
    FWHM: 91°
    FWTM: 129°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    Required components:
    IDEAL: 50-2204-CT
    IDEAL: 50-2100AN
    FWHM: 88°
    FWTM: 127°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON K12
    LES size: 13.5 mm
    Required components:
    TE Connectivity: 2213134-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON K12
    LES size: 13.5 mm
    Required components:
    TE Connectivity: 2213134-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 110°
    Peak intensity: 0.520 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON K16
    LES size: 17.0 mm
    Required components:
    TE Connectivity: 2213134-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON K16
    LES size: 17.0 mm
    Required components:
    BJB: 47.319.2070
    FWHM: 90°
    FWTM: 107°
    Peak intensity: 0.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-14 (Dim-To-Warm)
    LES size: 15.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 491 Typ L2
    FWHM: 94°
    FWTM: 136°
    Peak intensity: 0.480 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-14 (Dim-To-Warm)
    LES size: 15.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 491 Typ L2
    F13671_ANGE-RZ-LENS
    FWHM: 94°
    FWTM: 135°
    Peak intensity: 0.450 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-18 (Dim-To-Warm)
    LES size: 16.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 491 Typ L2
    FWHM: 93°
    FWTM: 137°
    Peak intensity: 0.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-18 (Dim-To-Warm)
    LES size: 16.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 491 Typ L2
    F13671_ANGE-RZ-LENS
    FWHM: 93°
    FWTM: 135°
    Peak intensity: 0.460 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-9 (Dim-To-Warm)
    LES size: 9.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 490 Typ L1
    FWHM: 95°
    FWTM: 138°
    Peak intensity: 0.460 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CDM-9 (Dim-To-Warm)
    LES size: 9.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 490 Typ L1
    F13671_ANGE-RZ-LENS
    FWHM: 95°
    FWTM: 136°
    Peak intensity: 0.430 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White)
    LES size: 14.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 442 Typ L3
    FWHM: 94°
    FWTM: 137°
    Peak intensity: 0.460 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 (Tunable White)
    LES size: 14.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 442 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 94°
    FWTM: 136°
    Peak intensity: 0.430 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-14 RGBW
    LES size: 14.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 500 Typ L3-1
    F13671_ANGE-RZ-LENS
    FWHM: 92°
    FWTM: 132°
    Peak intensity: 0.487 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: CTM-14 RGBW
    LES size: 14.5 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 500 Typ L3-1
    FWHM: 93°
    FWTM: 132°
    Peak intensity: 0.522 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: CTM-22 (Tunable White)
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    FWHM: 93°
    FWTM: 137°
    Peak intensity: 0.450 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-22 (Tunable White)
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 494 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 92°
    FWTM: 136°
    Peak intensity: 0.430 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-14 (19x19)
    LES size: 14.5 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 134°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    LES size: 9.8 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 94°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    Required components:
    IDEAL: 50-2103NC
    IDEAL: 50-2100AN
    FWHM: 88°
    FWTM: 124°
    Peak intensity: 0.530 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    Required components:
    IDEAL: 50-2103NC
    IDEAL: 50-2100AN
    F13671_ANGE-RZ-LENS
    FWHM: 89°
    FWTM: 129°
    Peak intensity: 0.480 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 463 Typ L2
    FWHM: 93°
    FWTM: 132°
    Peak intensity: 0.480 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 126°
    Peak intensity: 0.520 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    Molex: 180580-0005
    FWHM: 94°
    FWTM: 130°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    IDEAL: 50-2100NC
    IDEAL: 50-2100AN
    FWHM: 90°
    FWTM: 125°
    Peak intensity: 0.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 438 Typ L1
    FWHM: 94°
    FWTM: 132°
    Peak intensity: 0.490 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 498 Typ L2
    FWHM: 94°
    FWTM: 131°
    Peak intensity: 0.490 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 498 Typ L2
    F13671_ANGE-RZ-LENS
    FWHM: 94°
    FWTM: 132°
    Peak intensity: 0.450 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core AC (LEP-2000)
    LES size: 19.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 89°
    FWTM: 125°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core AC (LEP-800)
    LES size: 13.5 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 90°
    FWTM: 126°
    Peak intensity: 0.520 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core G7 L15 H1
    LES size: 15.0 mm
    Required components:
    C16685_CLAMP-PRV-A
    FWHM: 90°
    FWTM: 125°
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core G7 L15 H1
    LES size: 15.0 mm
    Required components:
    C16685_CLAMP-PRV-A
    F13671_ANGE-RZ-LENS
    FWHM: 90°
    FWTM: 127°
    Peak intensity: 0.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core Z4 LES19
    LES size: 19.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 90°
    FWTM: 129°
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Core Z4 LES19
    LES size: 19.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    FWHM: 90°
    FWTM: 129°
    Peak intensity: 0.480 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13
    LES size: 13.2 mm
    Required components:
    TE Connectivity: 2213401-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13
    LES size: 13.2 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 437 Typ L1
    FWHM: 93°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    Required components:
    IDEAL: 50-2103CT
    IDEAL: 50-2100AN
    FWHM: 91°
    FWTM: 131°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S13 19x19
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 134°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S19
    LES size: 17.9 mm
    Required components:
    TE Connectivity: 2213407-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 91°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Soleriq S19
    LES size: 17.9 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 462 Typ L3
    FWHM: 90°
    FWTM: 127°
    Peak intensity: 0.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L09 + SLM holder
    LES size: 9.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 + SLM holder
    LES size: 13.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 131°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    FWHM: 91°
    FWTM: 128°
    Peak intensity: 0.480 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 127°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 + SLM holder
    LES size: 15.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 91°
    FWTM: 129°
    Peak intensity: 0.490 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 + SLM holder
    LES size: 15.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    FWHM: 91°
    FWTM: 131°
    Peak intensity: 0.460 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    FWHM: 91°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 91°
    FWTM: 127°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L19 + SLM holder
    LES size: 19.0 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 90°
    FWTM: 130°
    Peak intensity: 0.480 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC026B / 033B / 040B
    LES size: 17.0 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 450 Typ L2
    FWHM: 91°
    FWTM: 130°
    Peak intensity: 0.490 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC035T (Tunable white)
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 502 Typ L3
    FWHM: 91°
    FWTM: 130°
    Peak intensity: 0.505 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC035T (Tunable white)
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 502 Typ L3
    F13671_ANGE-RZ-LENS
    FWHM: 90°
    FWTM: 131°
    Peak intensity: 0.473 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

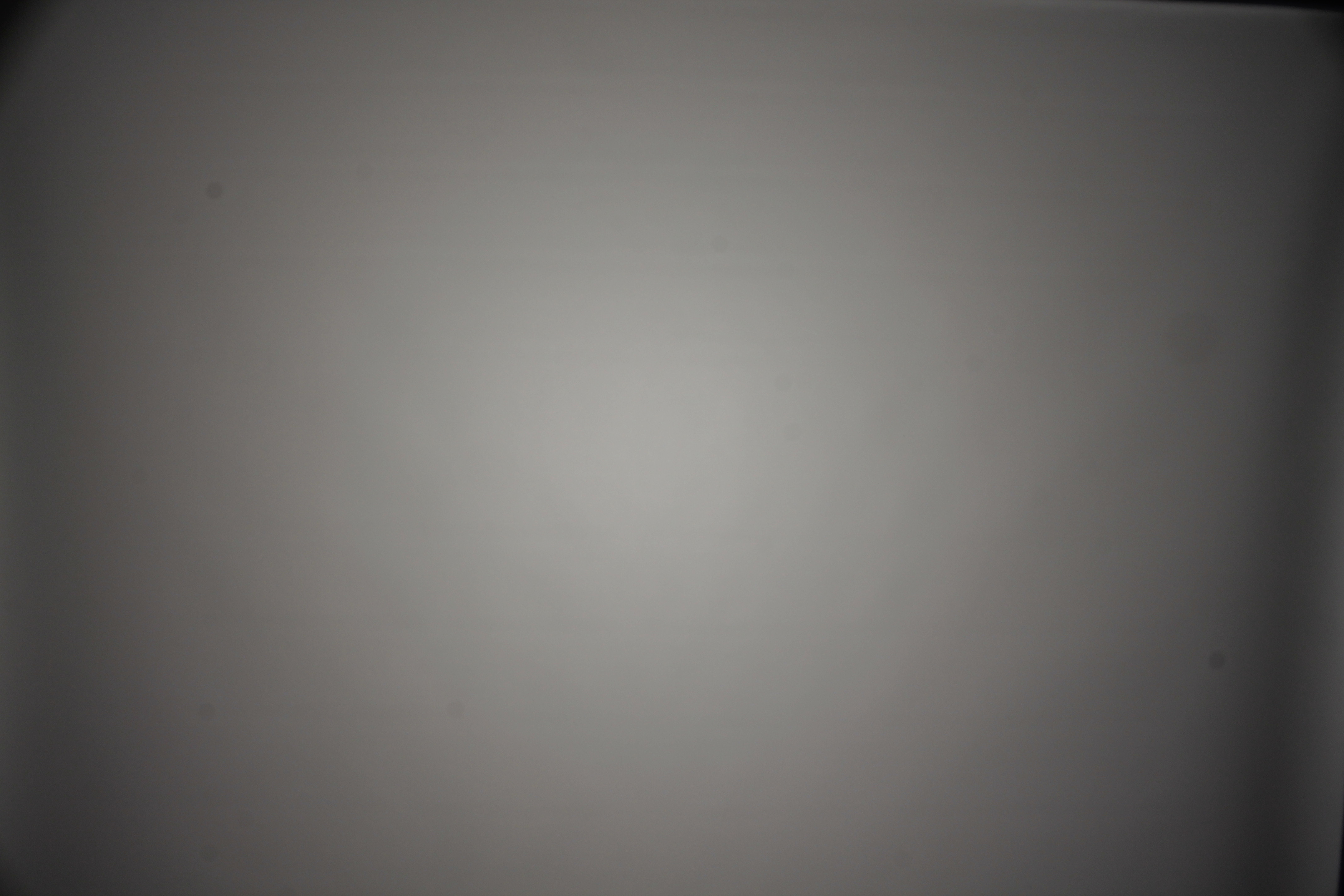

    LED: LC040C
    LES size: 11.0 mm
    Required components:
    TE Connectivity: 2213382-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 132°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: AC Zhaga COB
    LES size: 14.5 mm
    Required components:
    F13671_ANGE-RZ-LENS
    FWHM: 93°
    FWTM: 130°
    Peak intensity: 0.460 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    TE Connectivity: 2213254-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 131°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 22
    LES size: 22.0 mm
    Required components:
    C13584_CLAMP-VERO29
    Bender Wirth: 431 Typ L3
    FWHM: 89°
    FWTM: 128°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: ZC12/18
    LES size: 14.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 433 Typ L1
    FWHM: 92°
    FWTM: 130°
    Peak intensity: 0.490 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: ZC4/6
    LES size: 8.6 mm
    Required components:
    C13658_CLAMP-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 94°
    FWTM: 130°
    Peak intensity: 0.500 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Mega Zenigata (GW6DME)
    LES size: 16.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 131°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Mega Zenigata (GW6DME)
    LES size: 16.0 mm
    Required components:
    TE Connectivity: 2213130-2
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    F13671_ANGE-RZ-LENS
    FWHM: 92°
    FWTM: 130°
    Peak intensity: 0.470 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: WU-M-464
    LES size: 20.6 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 136°
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: WU-M-484
    LES size: 14.9 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 137°
    Peak intensity: 0.476 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: WU-M-485
    LES size: 20.6 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 93°
    FWTM: 137°
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: WU-M-486
    LES size: 20.6 mm
    Required components:
    TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
    FWHM: 92°
    FWTM: 136°
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
