CP18419_LISA3-S-PIN
Print
~16° spot beam with location pin installation
Component Materials
- LISA3-SSingle lensPMMA
- LISA3-HLD-PINHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
CSP 2323 (BXCP)
FWHM:
18°
FWTM:
41°
Peak intensity:
4.875 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

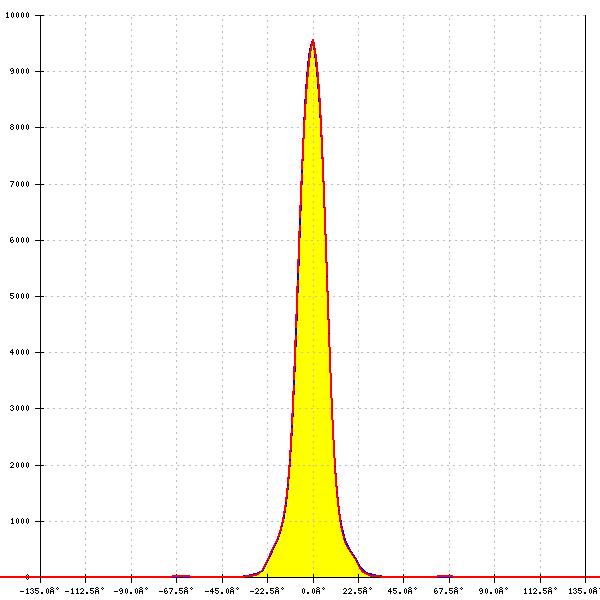

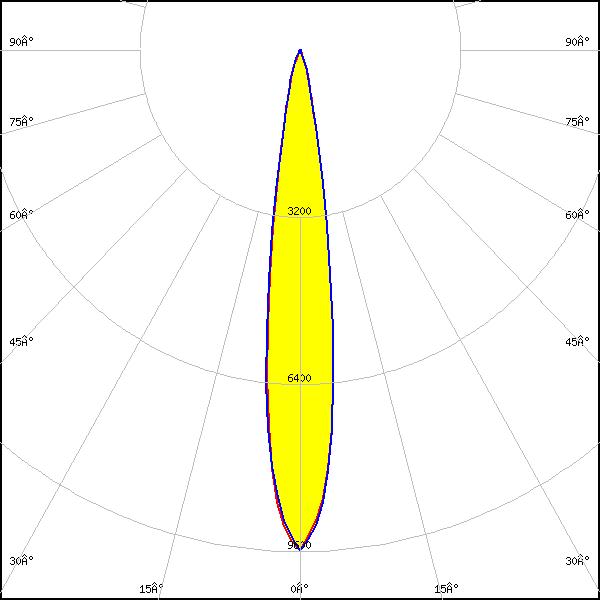

LED:
XP-E2
FWHM:
16°
FWTM:
29°
Peak intensity:
9.576 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

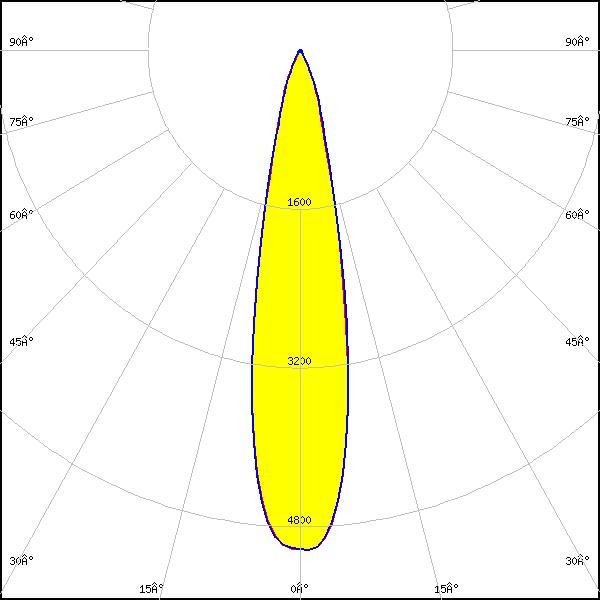

LED:
XP-G2
FWHM:
22°
FWTM:
42°
Peak intensity:
5.061 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

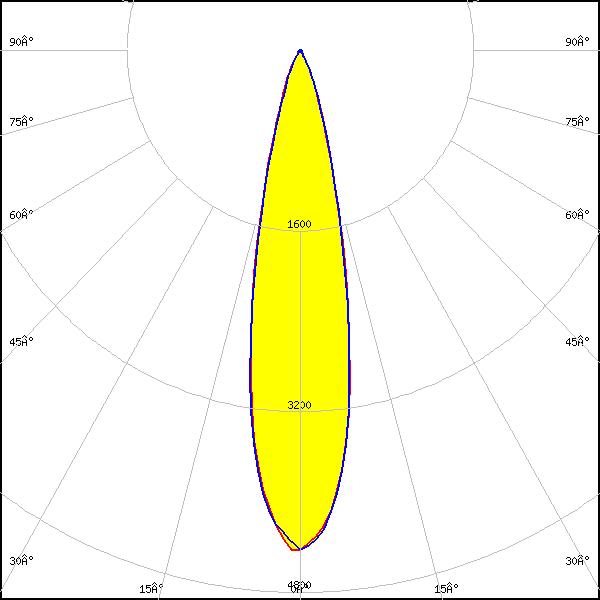

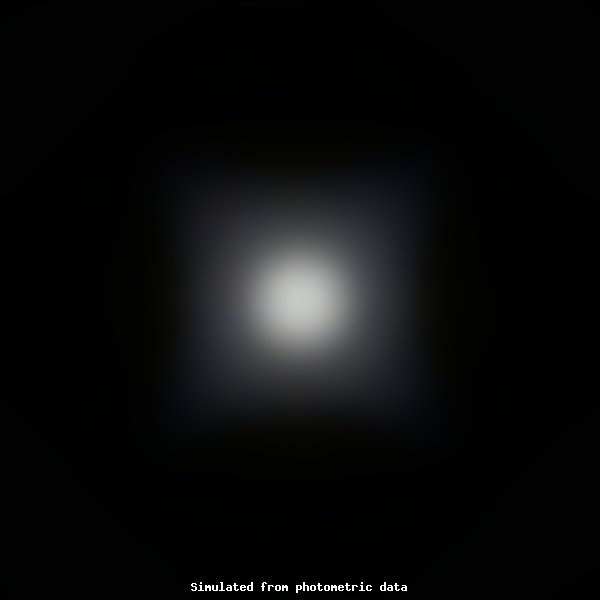

LED:
XP-G4
FWHM:
22°
FWTM:
43°
Peak intensity:
4.511 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

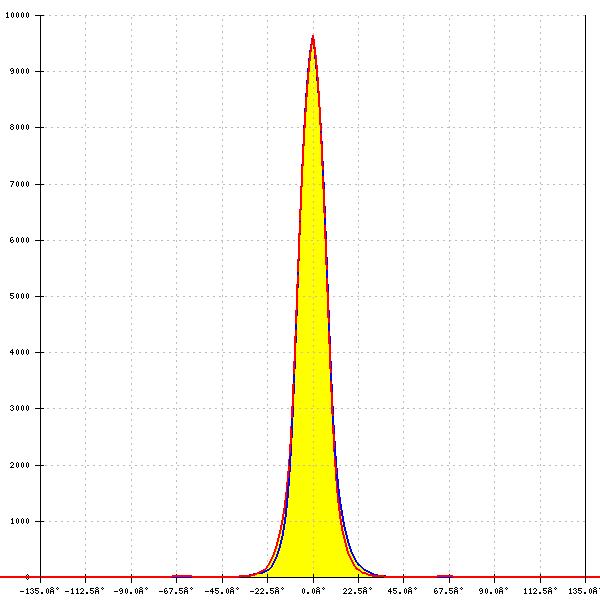

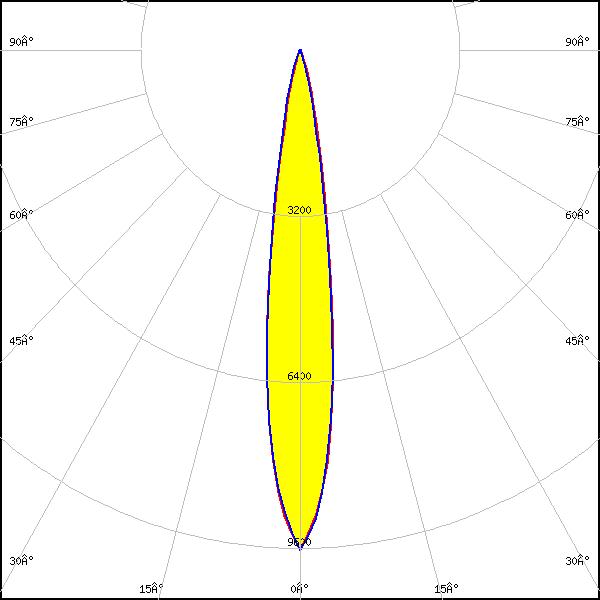

LED:
XQ-E HD
FWHM:
16°
FWTM:
29°
Peak intensity:
9.638 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

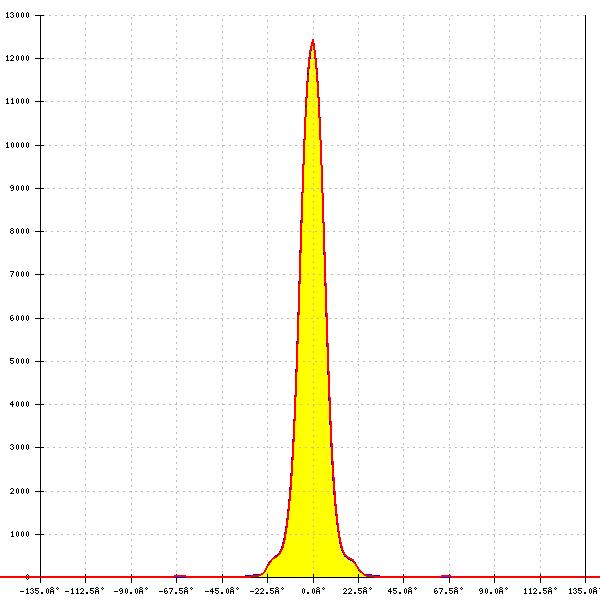

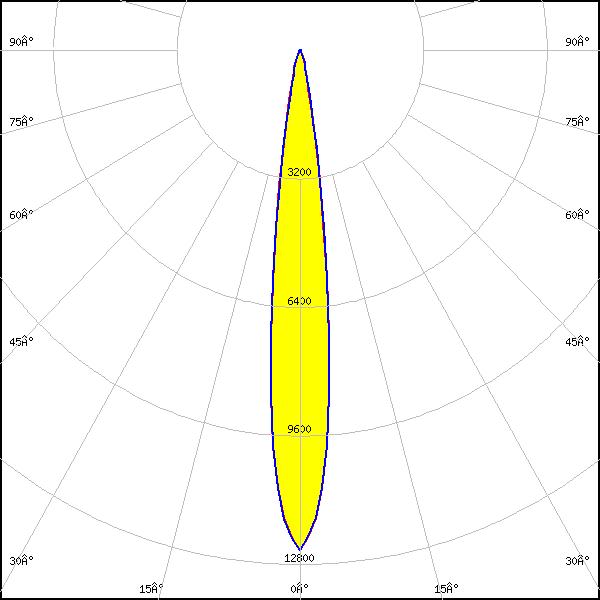

LED:
LUXEON Rubix
FWHM:
14°
FWTM:
25°
Peak intensity:
12.447 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

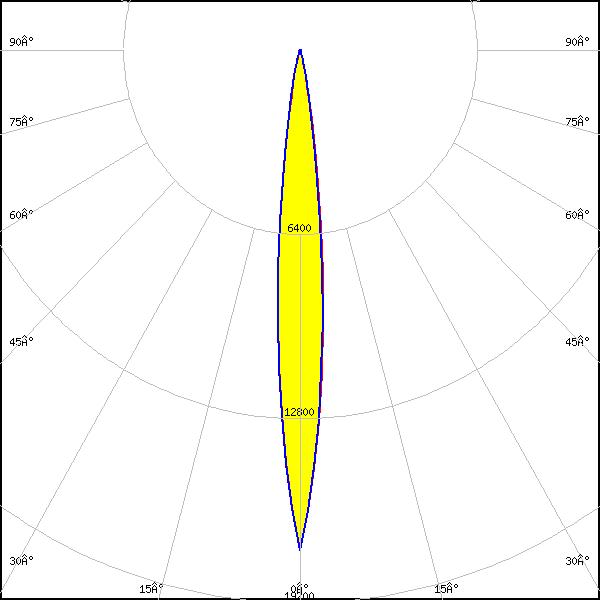

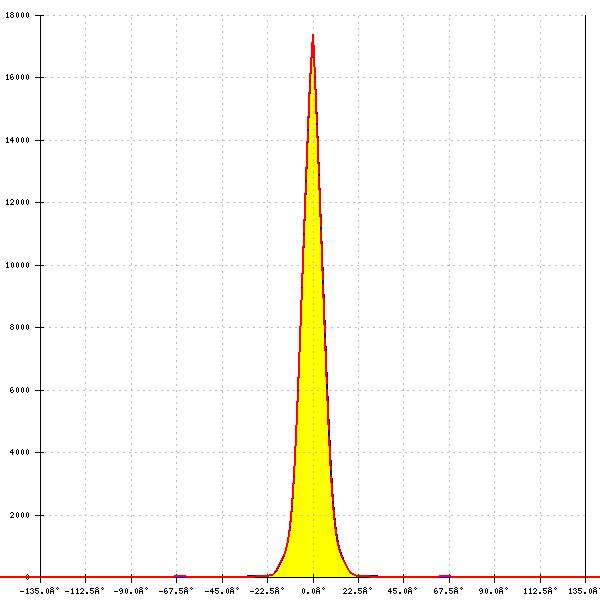

LED:
LUXEON Z
FWHM:
10°
FWTM:
22°
Peak intensity:
17.378 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

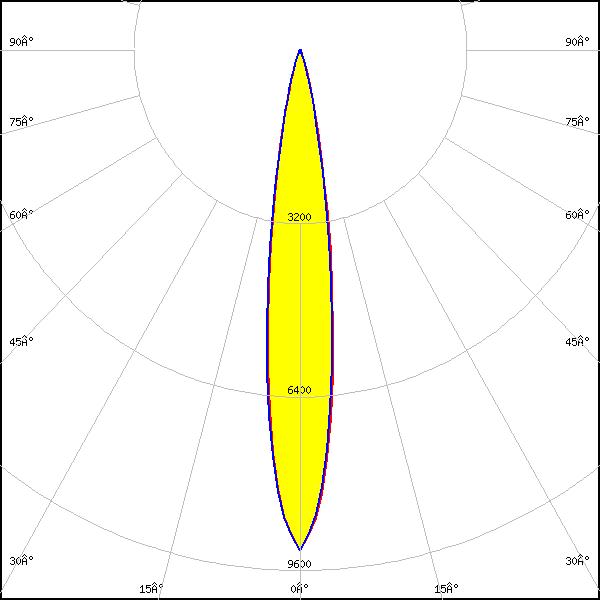

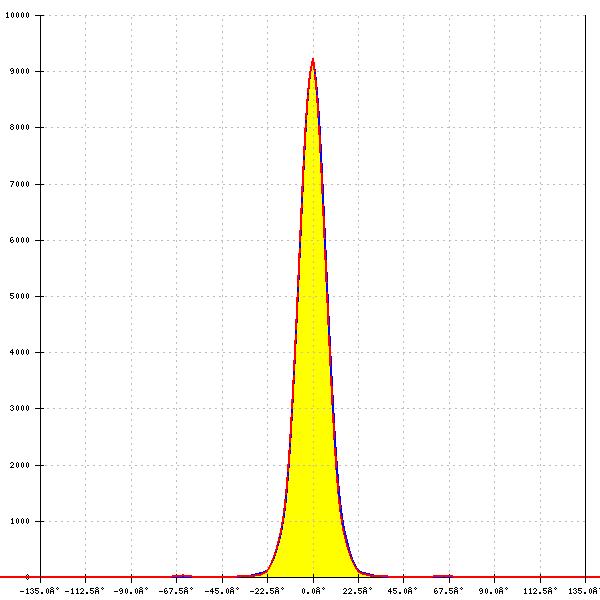

LED:
LUXEON Z ES
FWHM:
16°
FWTM:
30°
Peak intensity:
9.229 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
19°
FWTM:
37°
Peak intensity:
5.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
20°
FWTM:
36°
Peak intensity:
5.393 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Blue

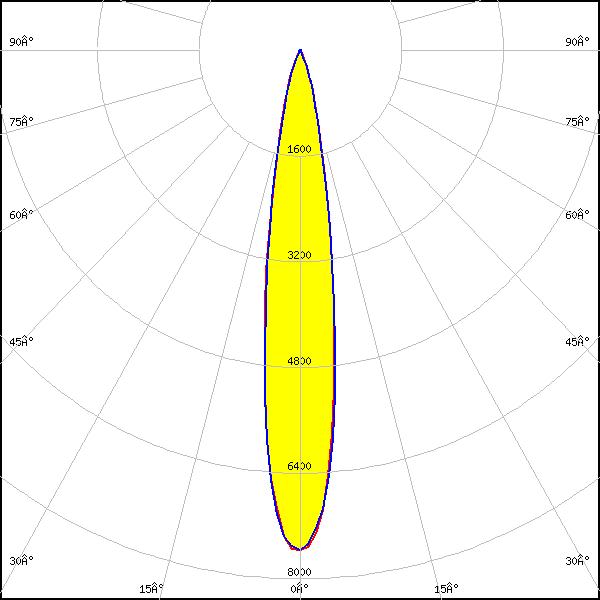

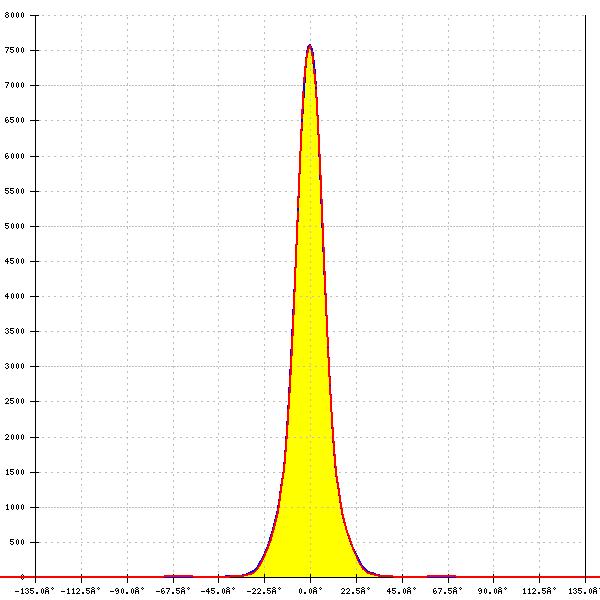

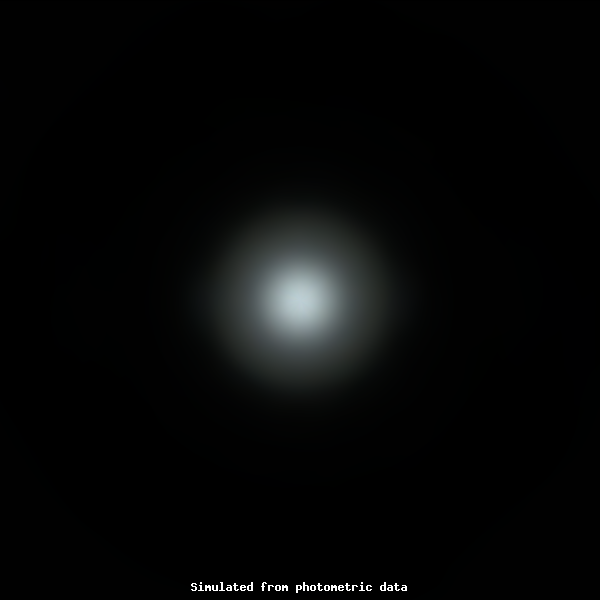

LED:
SST-12 Gen1
FWHM:
16°
FWTM:
34°
Peak intensity:
7.632 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

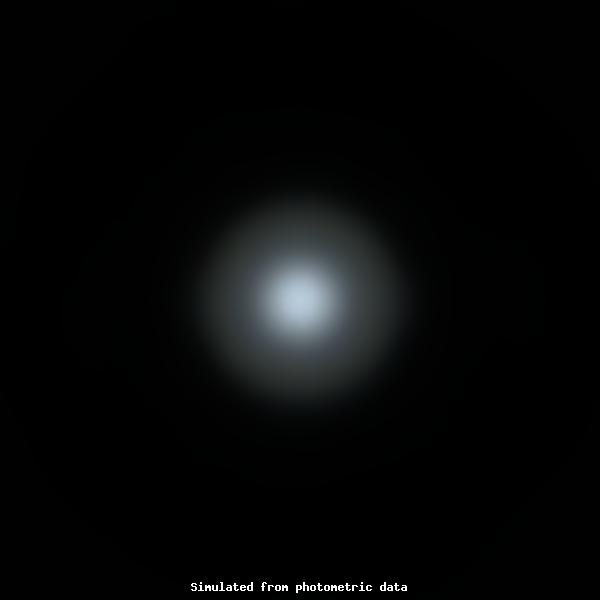

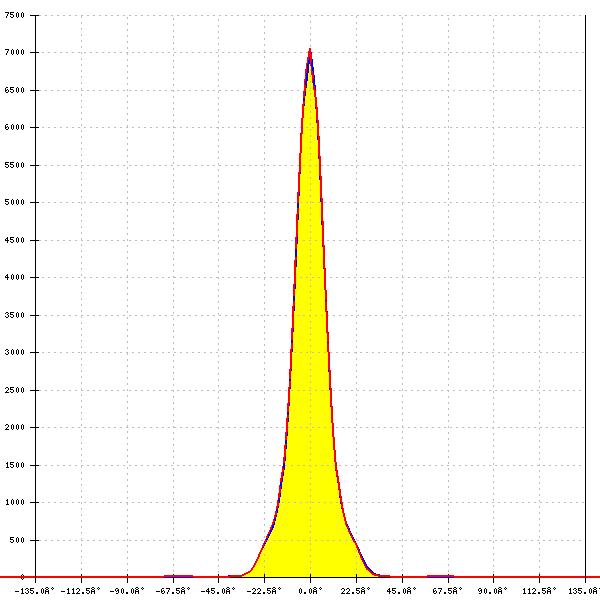

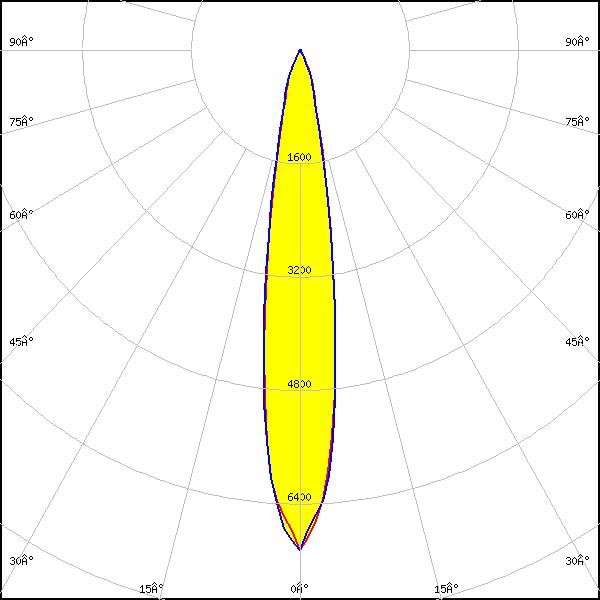

LED:
SST-12 Gen2
FWHM:
16°
FWTM:
36°
Peak intensity:
7.054 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

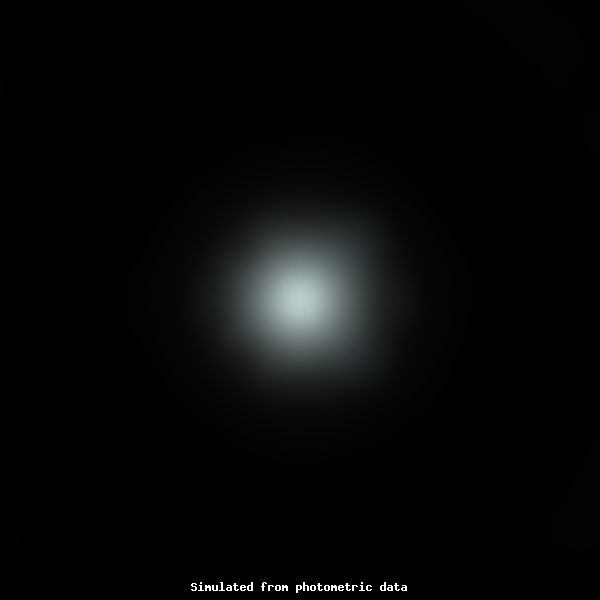

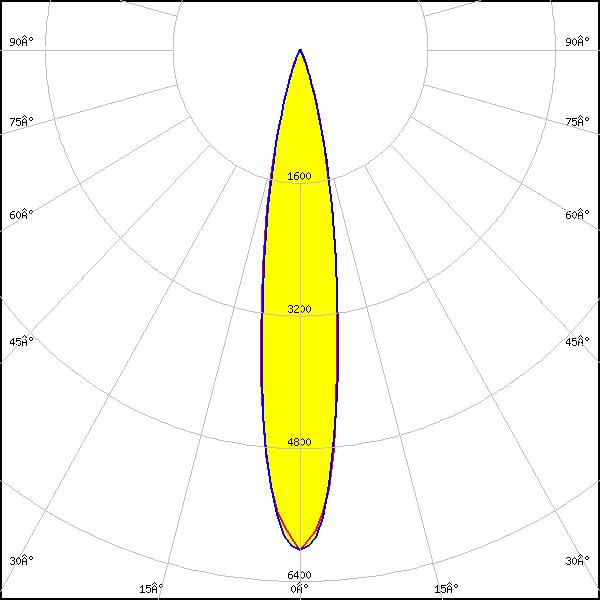

LED:
SST-20 Gen1
FWHM:
18°
FWTM:
36°
Peak intensity:
6.159 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

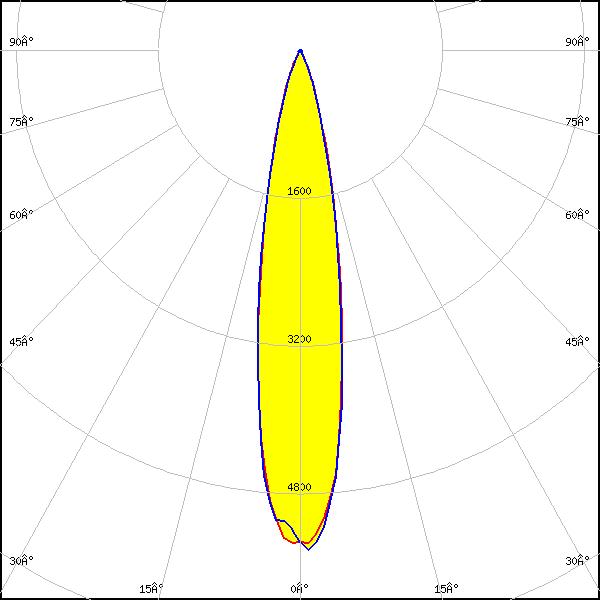

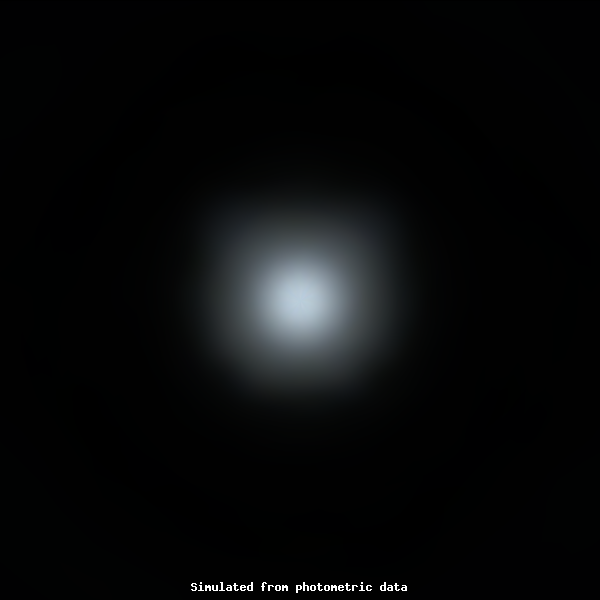

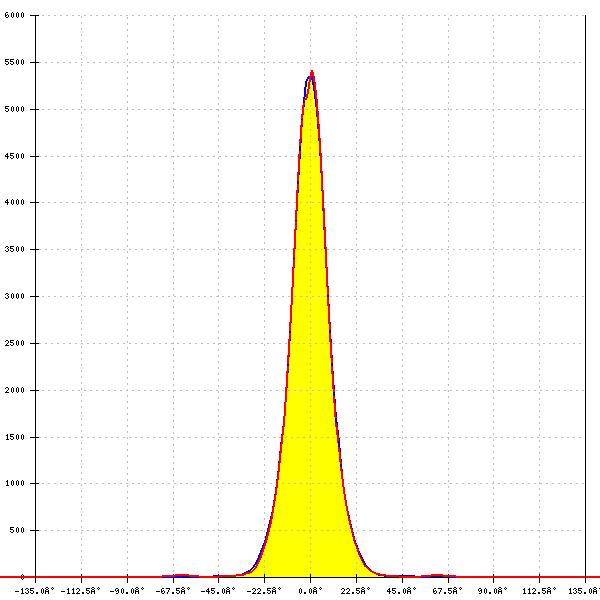

LED:
SST-20 Gen2
FWHM:
20°
FWTM:
40°
Peak intensity:
5.431 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM:
32°
FWTM:
66°
Peak intensity:
1.883 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

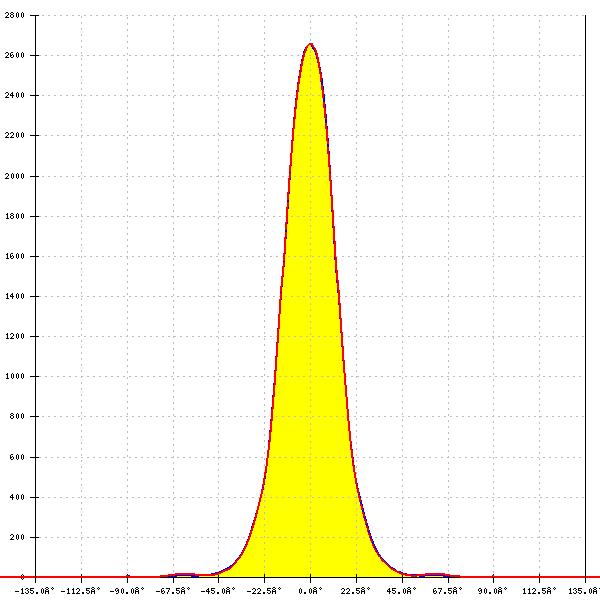

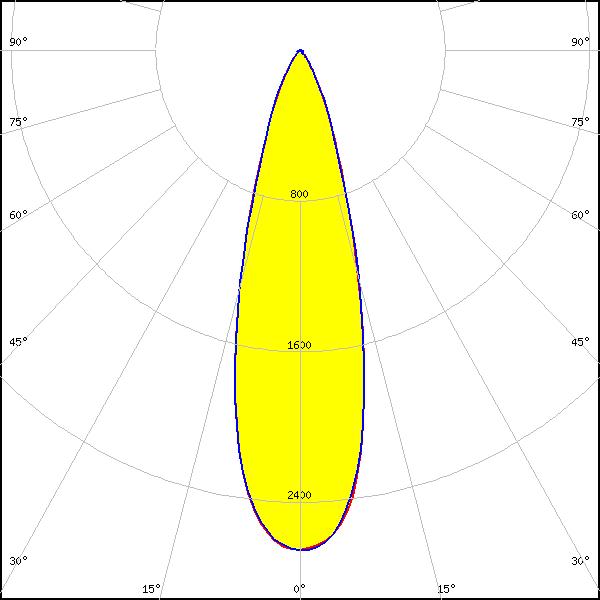

LED:
NVSW3x9A
FWHM:
30°
FWTM:
56°
Peak intensity:
2.660 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
14°
FWTM:
29°
Peak intensity:
9.739 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

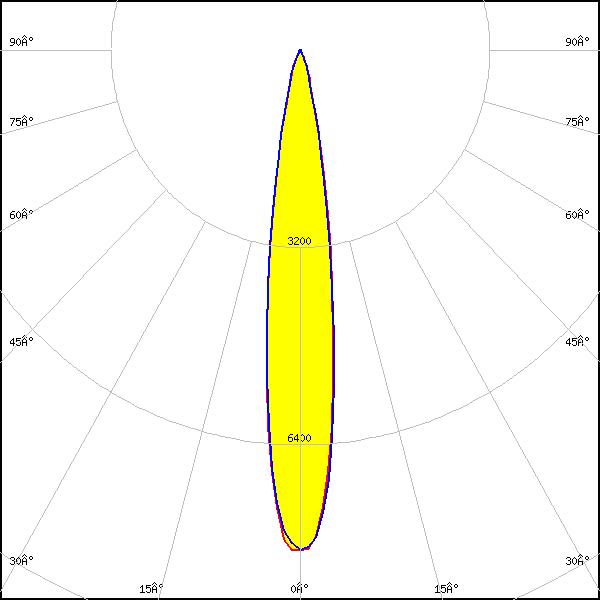

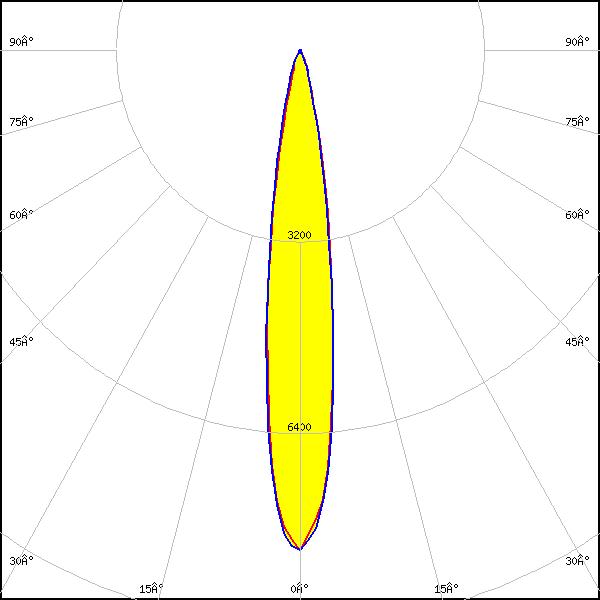

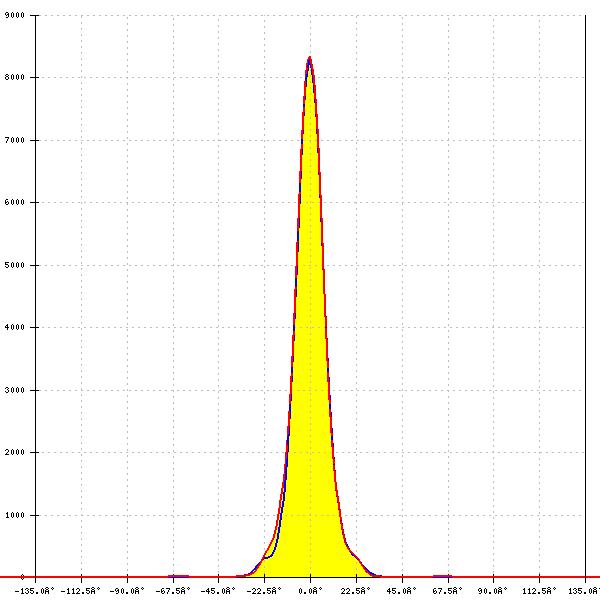

LED:
OSLON Signal
FWHM:
16°
FWTM:
30°
Peak intensity:
8.351 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red

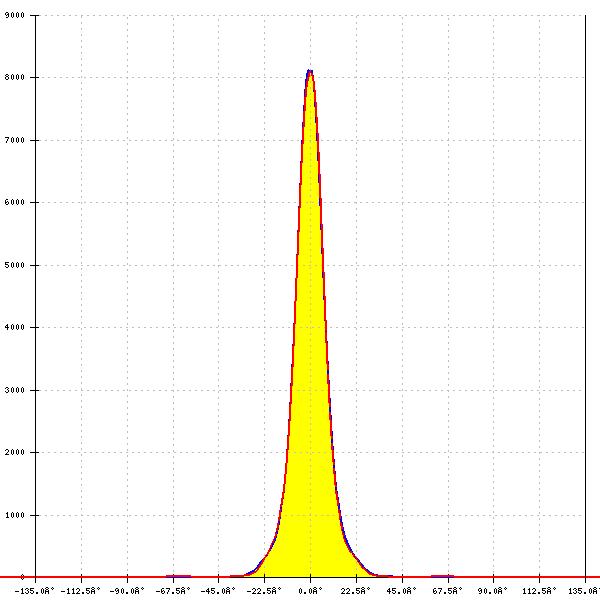

LED:
OSLON Signal
FWHM:
16°
FWTM:
31°
Peak intensity:
8.162 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square Flat
FWHM:
16°
FWTM:
32°
Peak intensity:
8.152 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4716S
FWHM:
15°
FWTM:
31°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
LH351B
FWHM:
24°
FWTM:
46°
Peak intensity:
3.716 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
