CP15313_CARMEN-W-B
Print

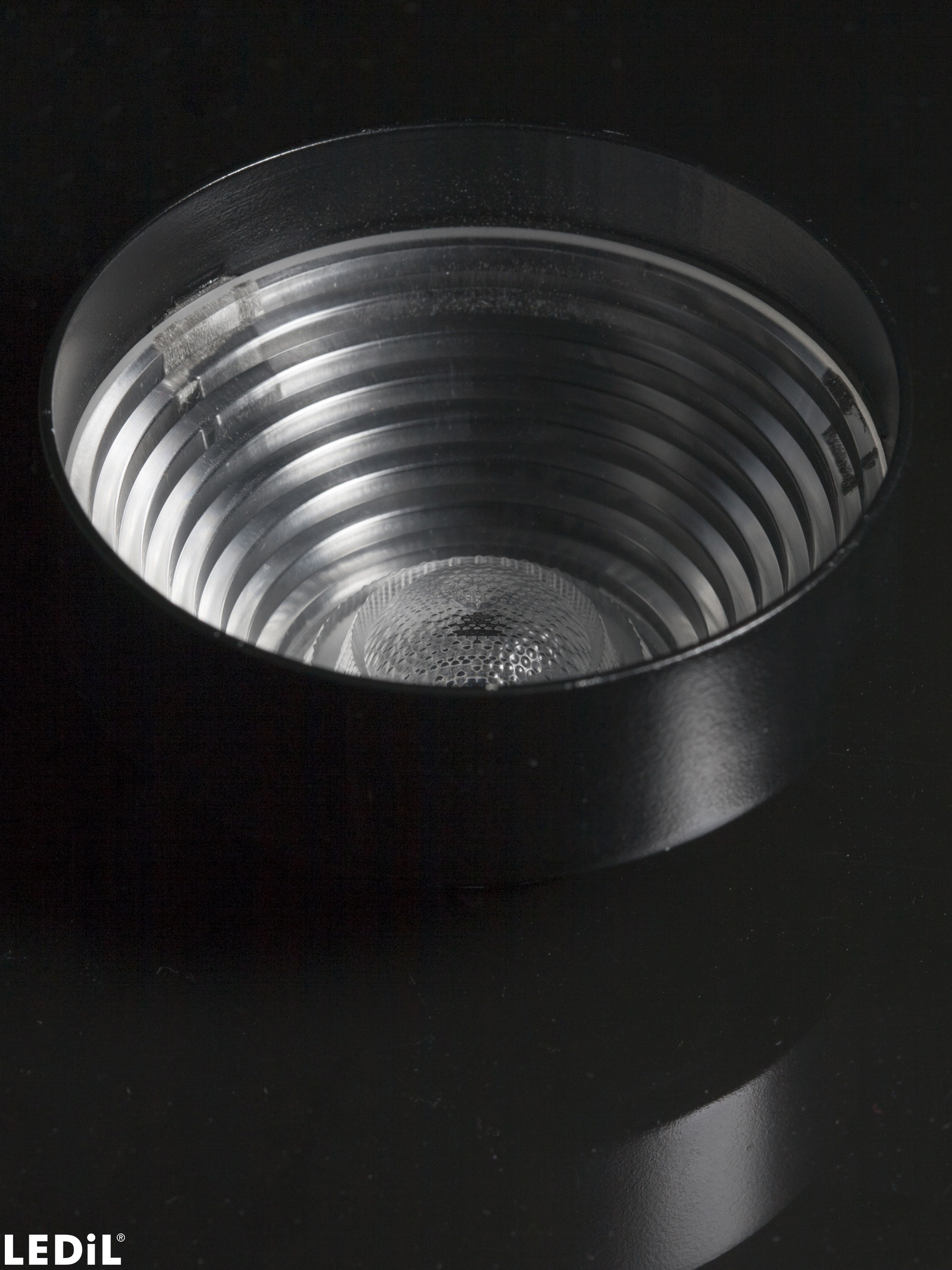

~55° wide beam. Assembly with holder B compatible with ∅40 mm BJB and B+W connectors.
Materials
- CARMEN-W, Single lens, PMMA
- CARMEN-HLD-B, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

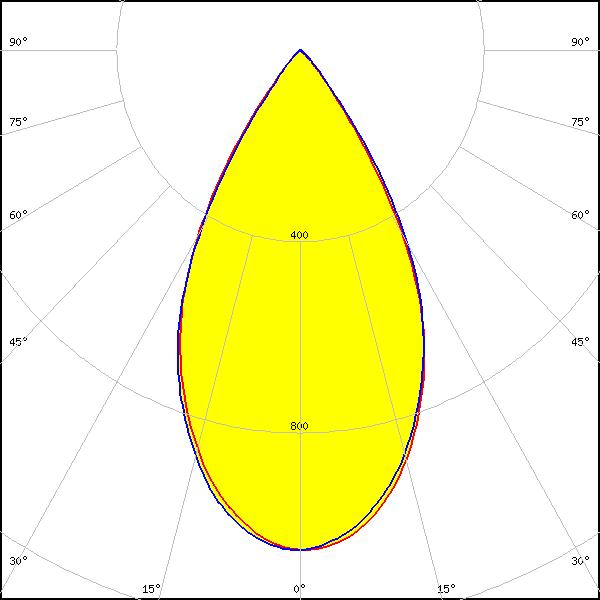

Optical results
LED:
V10 Gen6
LES size: 9.9 mm
LEDs/each optic:
1
Light colour/type:
White

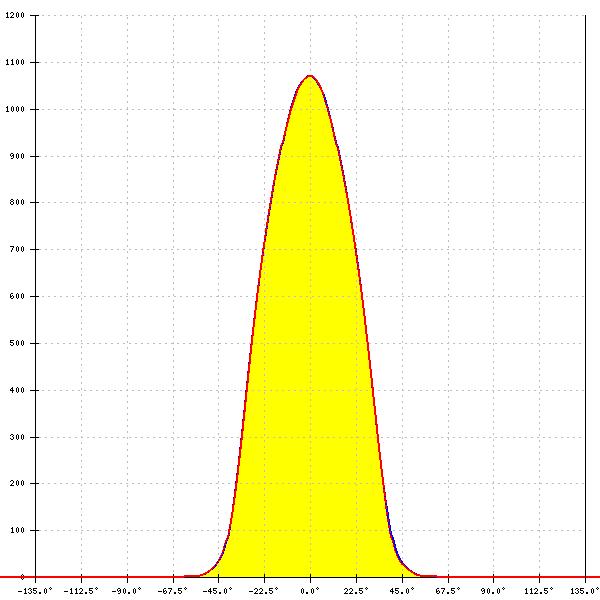

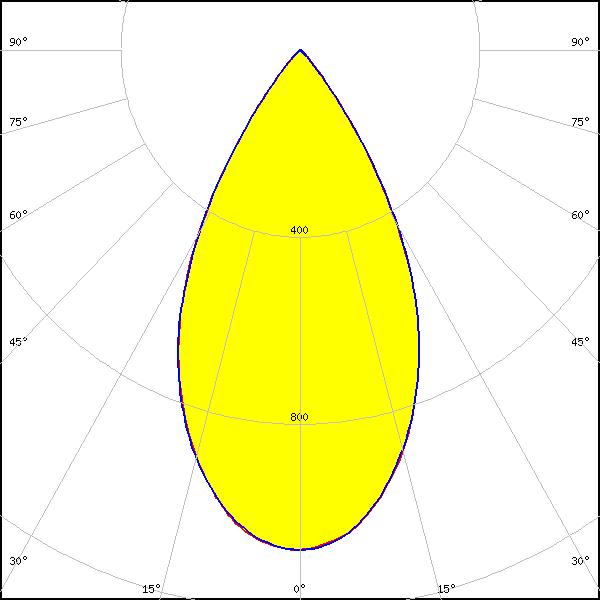

LED:
V10 Gen7
LES size: 10.2 mm
Required components:
BJB: 47.319.6060
FWHM:
55°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen6
LES size: 13.4 mm
LEDs/each optic:
1
Light colour/type:
White

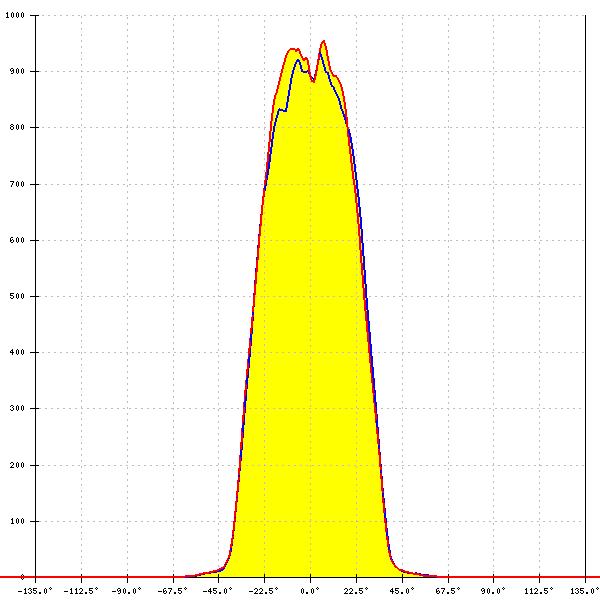

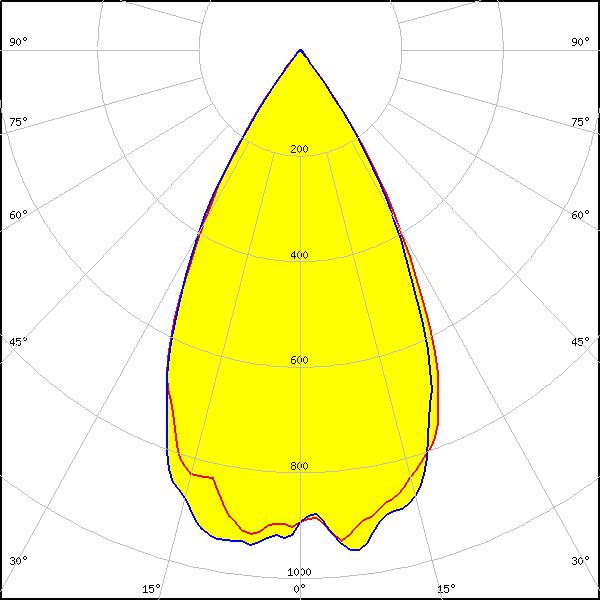

LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM:
55°
FWTM:
75°
Peak intensity:
0.960 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

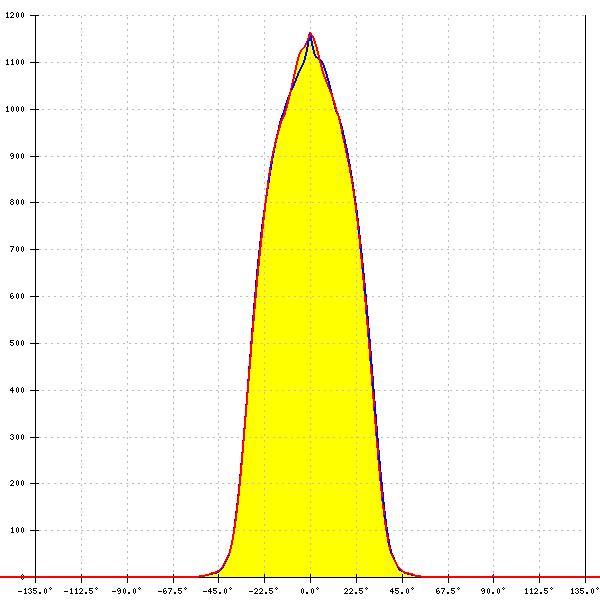

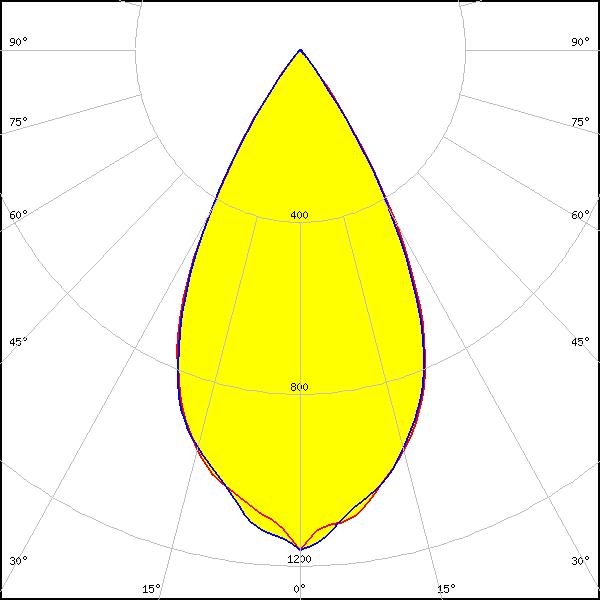

LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
BJB: 47.319.6060
FWHM:
55°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

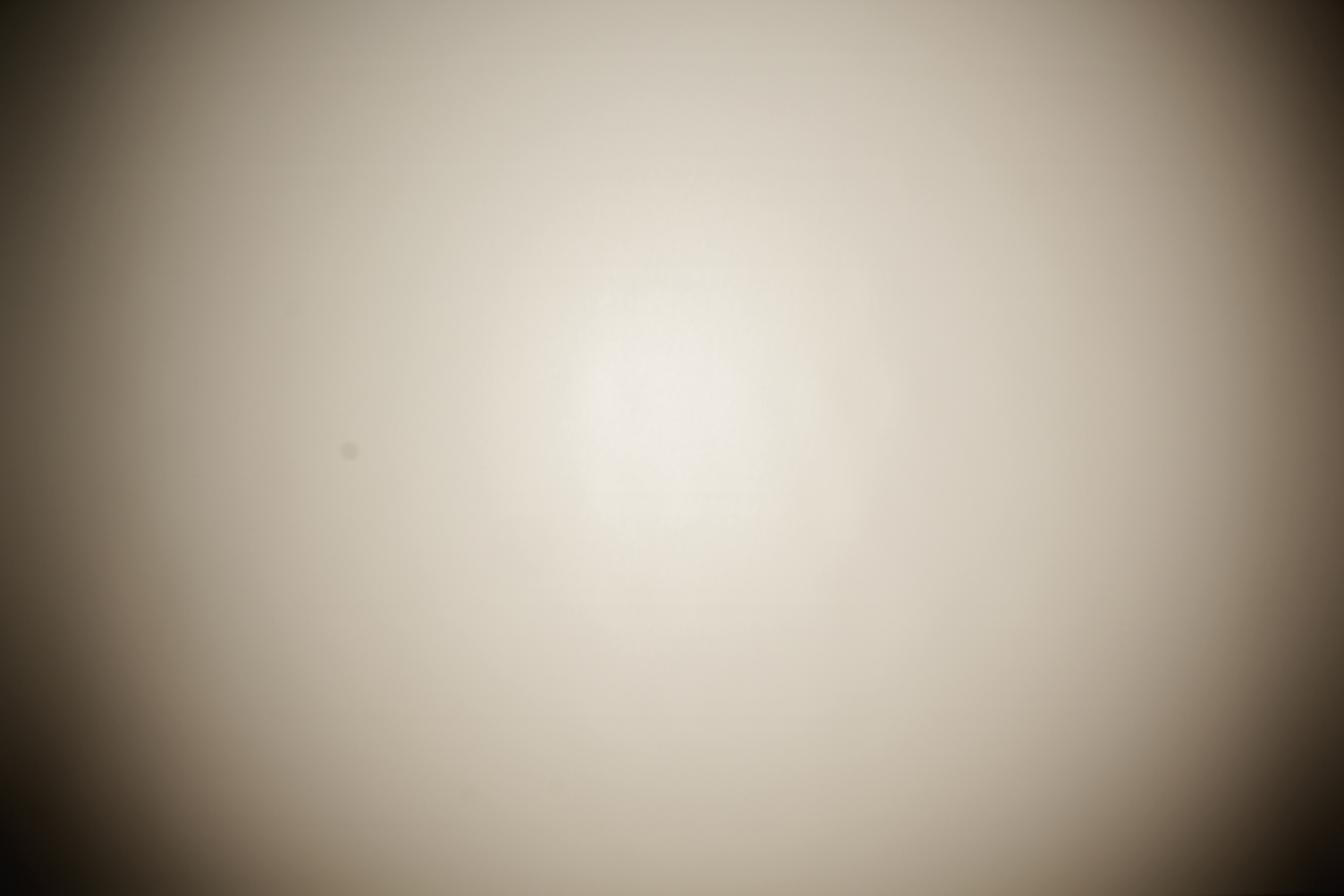

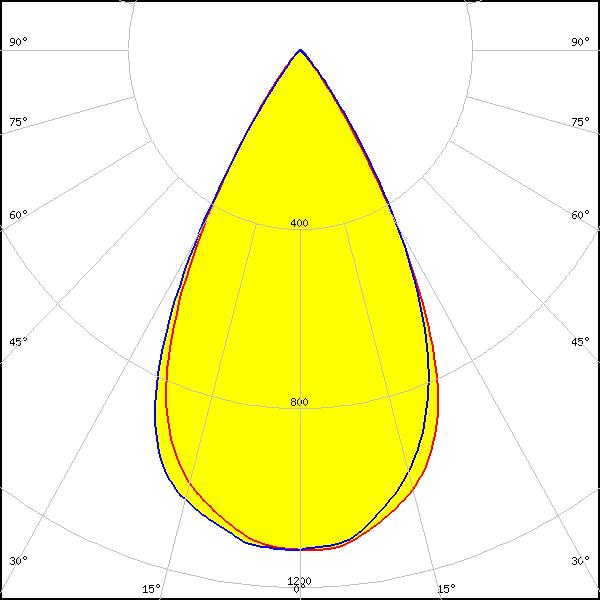

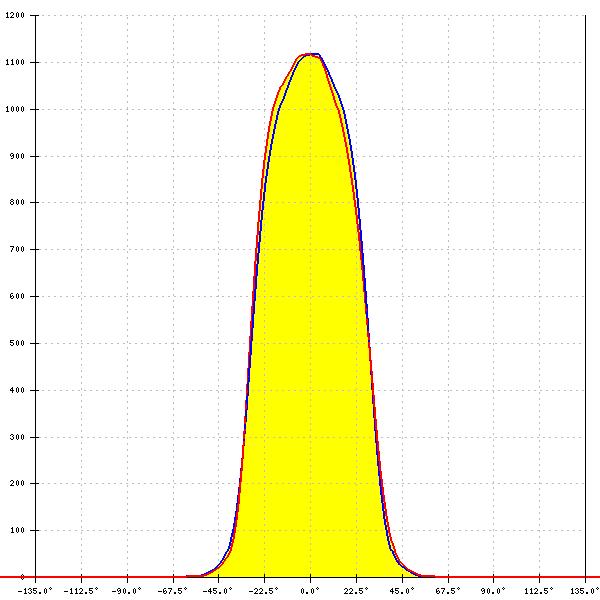

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
BJB: 47.319.6060
FWHM:
56°
FWTM:
75°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

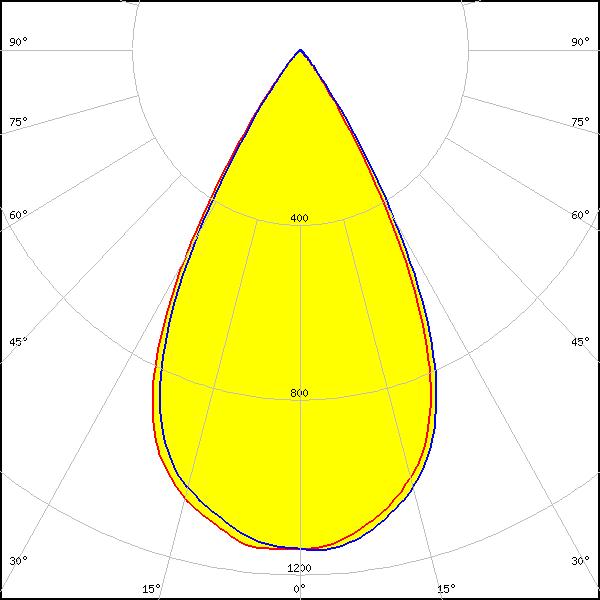

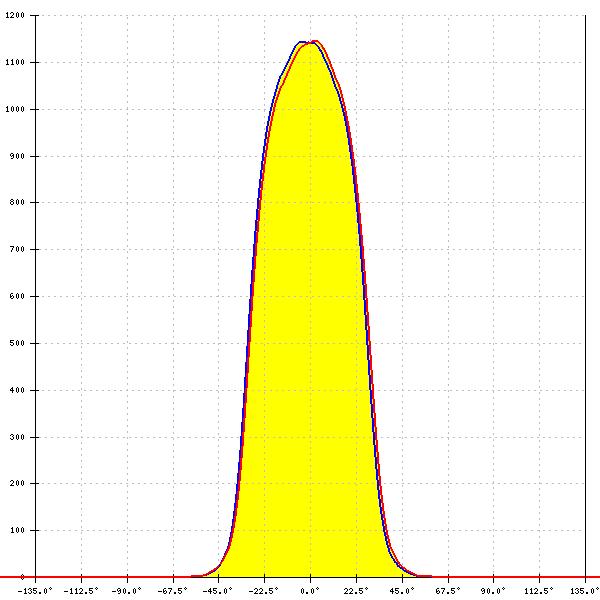

LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
57°
FWTM:
74°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

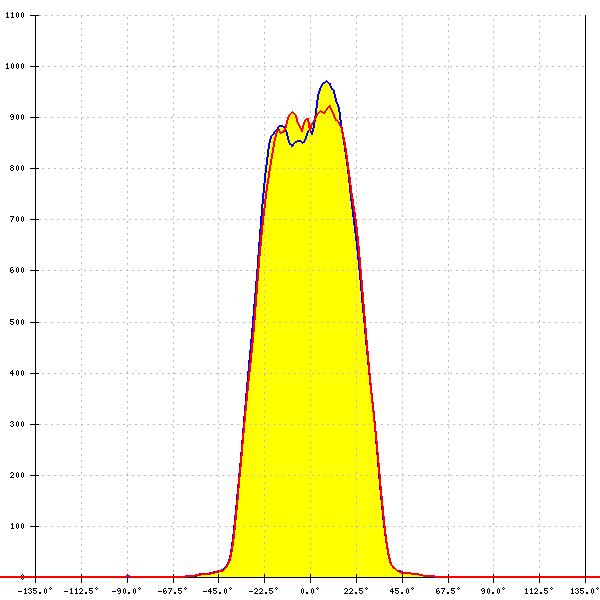

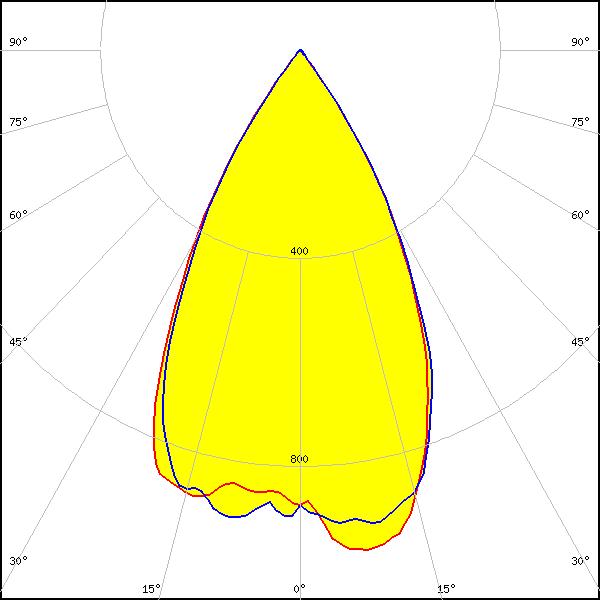

LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
53°
FWTM:
73°
Peak intensity:
0.969 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
LEDs/each optic:
1
Light colour/type:
White

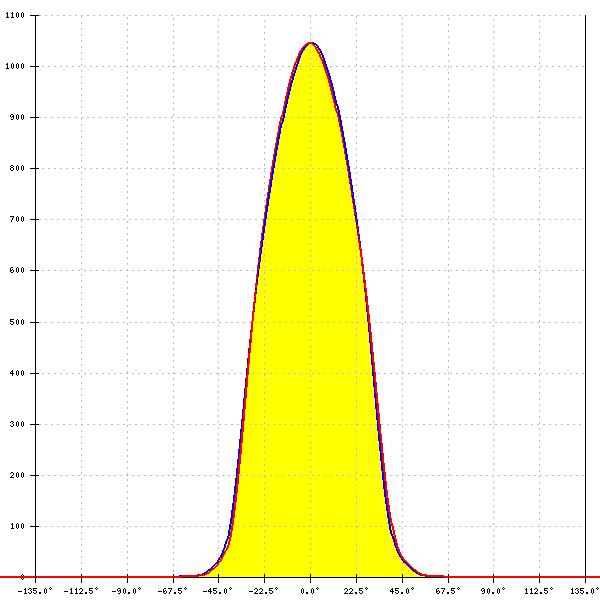

LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
BJB: 47.319.6060
FWHM:
56°
FWTM:
78°
Peak intensity:
1.040 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
A.A.G. STUCCHI: 8100-G2
FWHM:
56°
FWTM:
78°
Peak intensity:
1.040 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

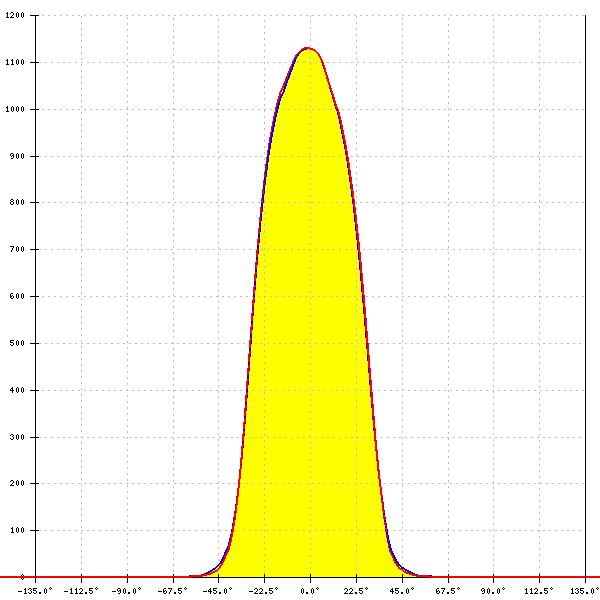

LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
BJB: 47.319.6060
FWHM:
55°
FWTM:
75°
Peak intensity:
1.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
LEDs/each optic:
1
Light colour/type:
White
