    CA18063_OLGA-WW

    Print

    ~60° wide beam with flange. Assembly with holder and installation tape.

    Specification
    • Dimensions:
      32 mm
    • Height:
      19.05 mm
    • Fastening:
      tape, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      10.2 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA18063_OLGA-WW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – December 2, 2021

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

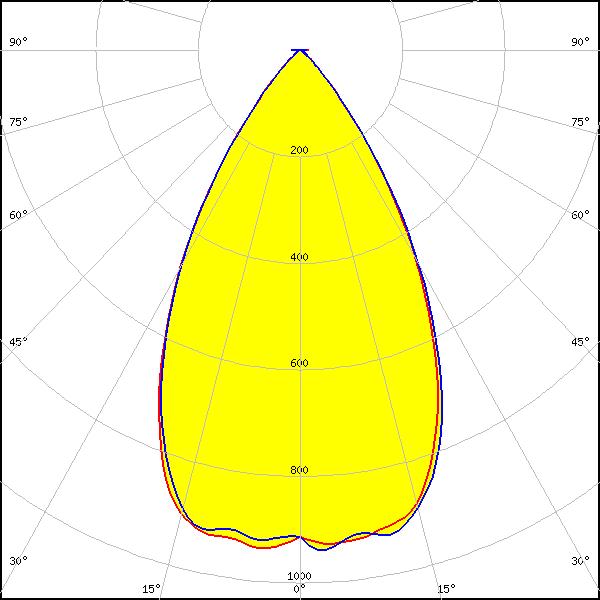

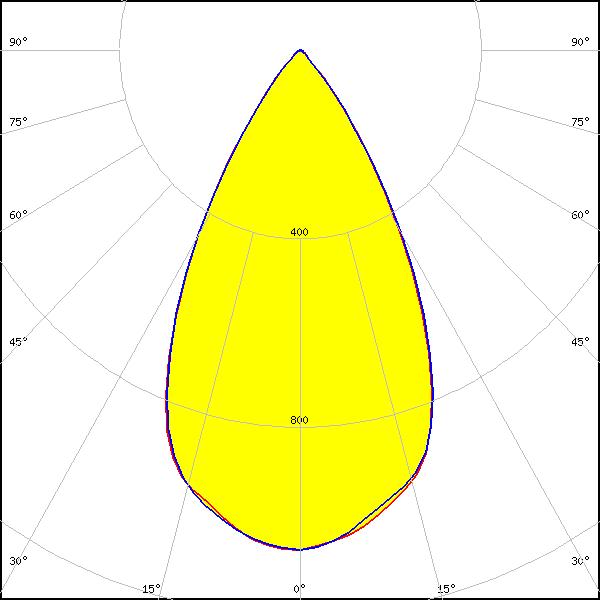

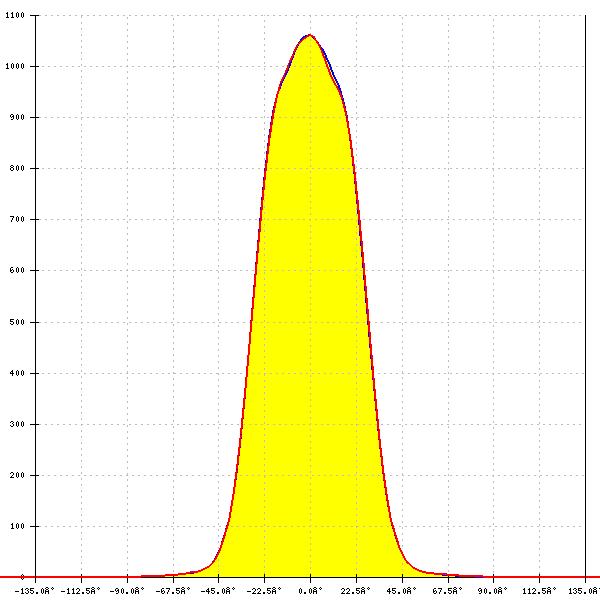

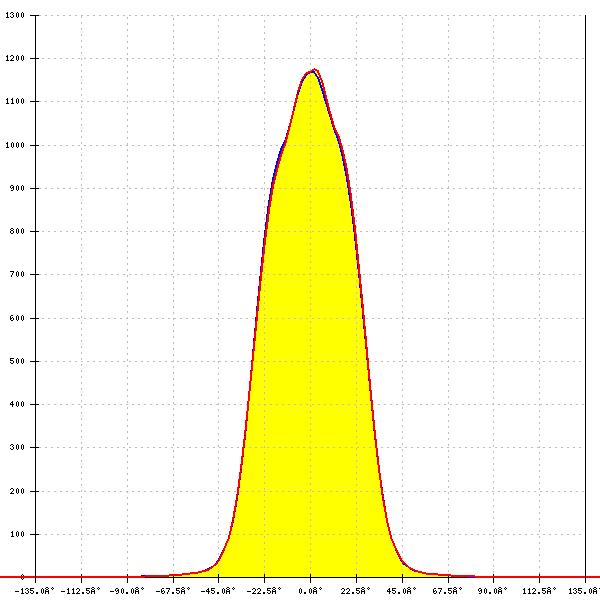

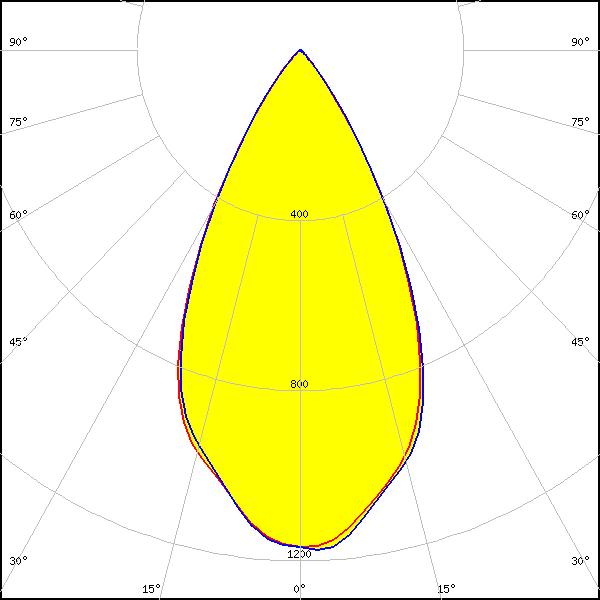

    Optical results

    LED: XHP35.2 HI
    FWHM: 60°
    FWTM: 84°
    Peak intensity: 0.953 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: 63°
    FWTM: 91°
    Peak intensity: 0.747 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.3 HD
    FWHM: 65°
    FWTM: 90°
    Peak intensity: 0.801 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 54°
    FWTM: 74°
    LEDs/each optic: 1
    Light colour/type: White

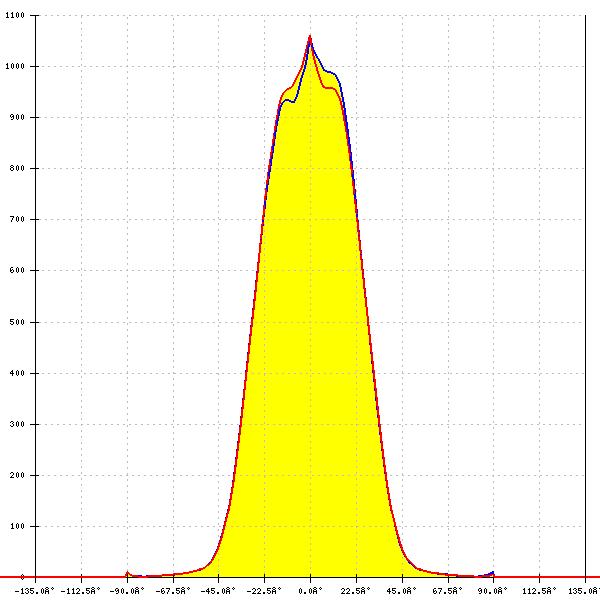

    LED: XQ-E HI
    FWHM: 56°
    FWTM: 83°
    Peak intensity: 1.061 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 60°
    FWTM: 86°
    Peak intensity: 0.862 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-3
    FWHM: 60°
    FWTM: 82°
    LEDs/each optic: 1
    Light colour/type: White

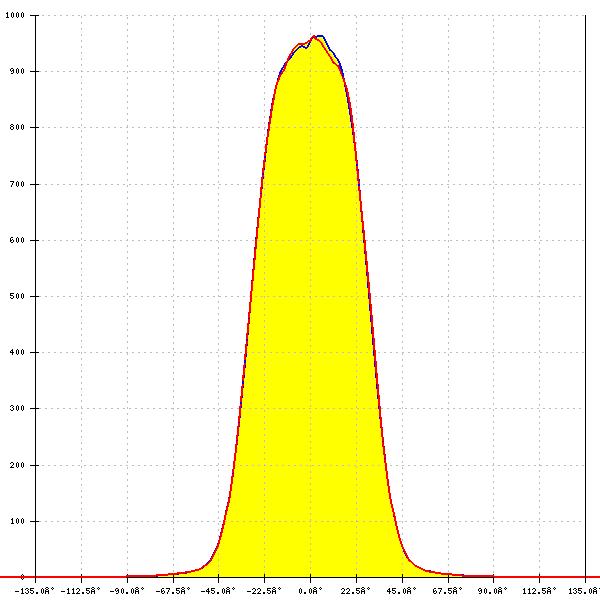

    LED: NV4WB35AM
    FWHM: 60°
    FWTM: 84°
    Peak intensity: 0.986 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

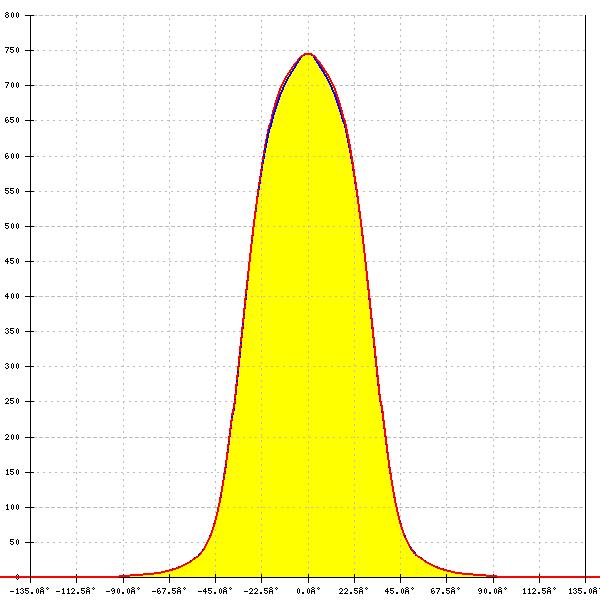

    LED: WICOP 5050
    FWHM: 62°
    FWTM: 91°
    Peak intensity: 0.746 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
