    CA16308_OLGA-WAS

    Print

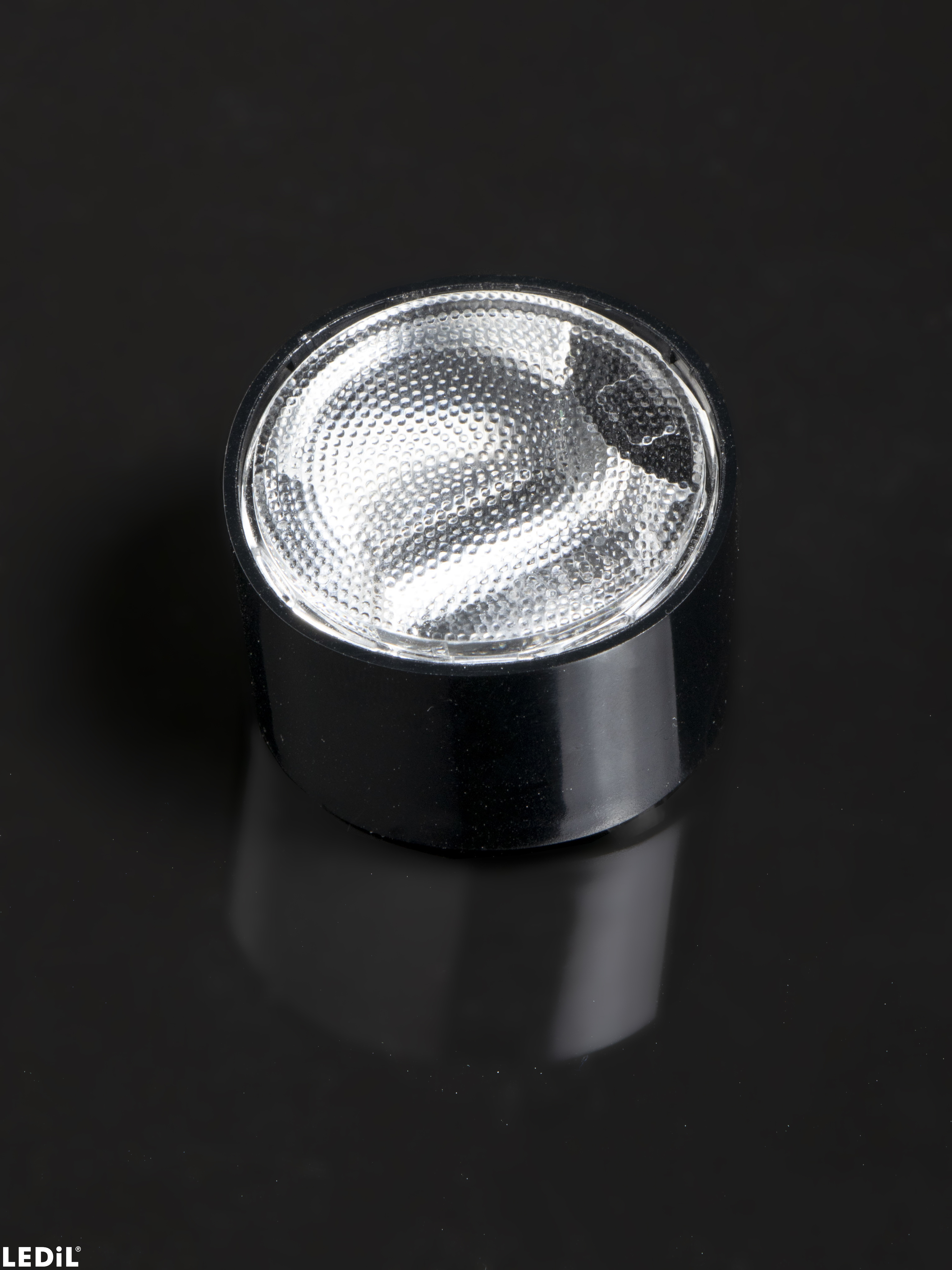

    Asymmetric beam for wall-washing. Assembly with holder and installation tape.

    Specification
    • Dimensions:
      32 mm
    • Height:
      20.75 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      9.0 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA16308_OLGA-WAS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Track module luminaire with OLGA-WAS

    News

    New Products - 2019-01-31

    Application example

    Wall-washing with OLGA-WAS

    Application guide

    LEDiL Guide for Retail Lighting Optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

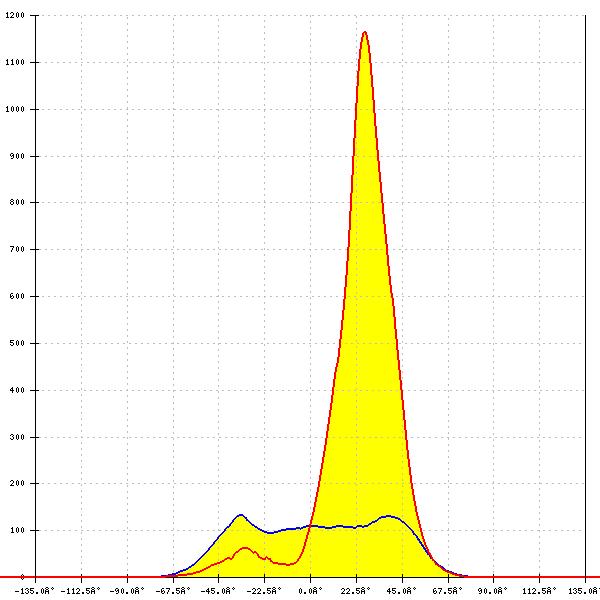

    Optical results

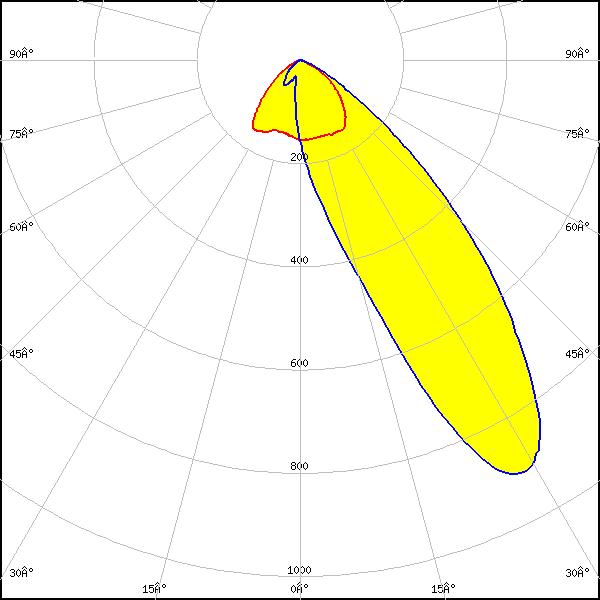

    LED: XHP35 HD
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

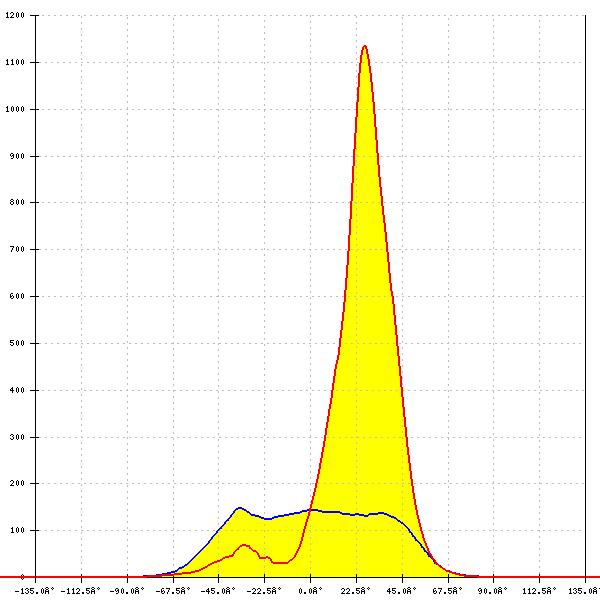

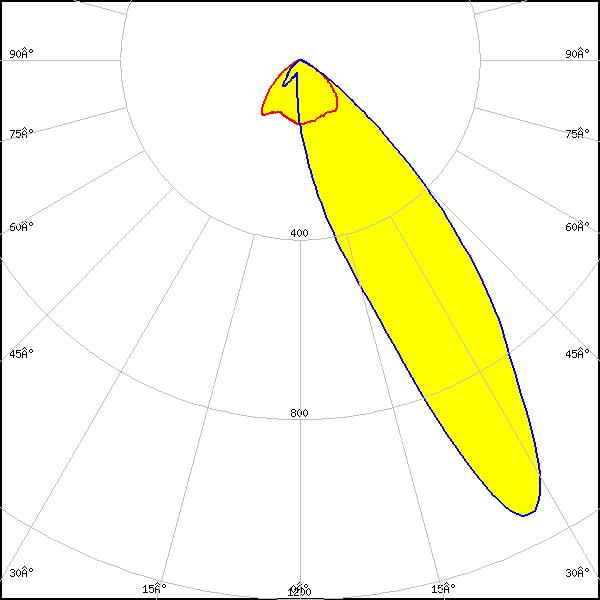

    LED: XHP35 HI
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

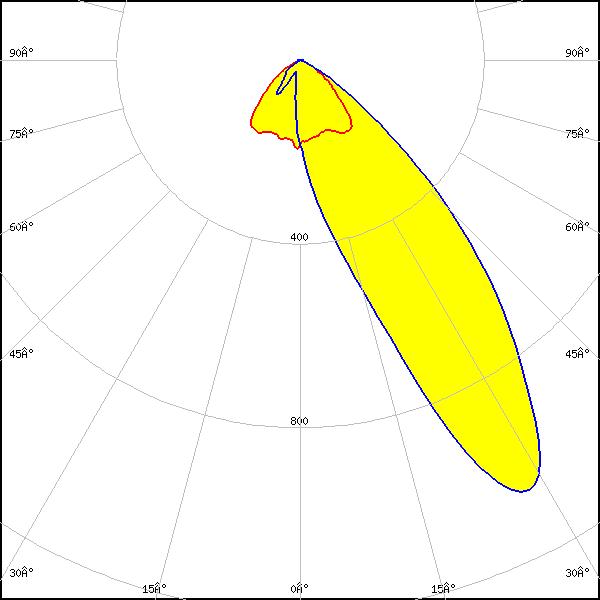

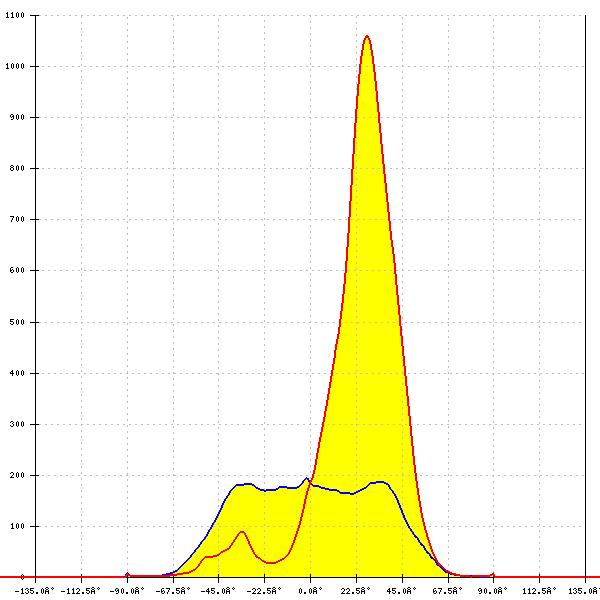

    LED: XHP35.2 HI
    FWHM: asymmetric
    Peak intensity: 1.061 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

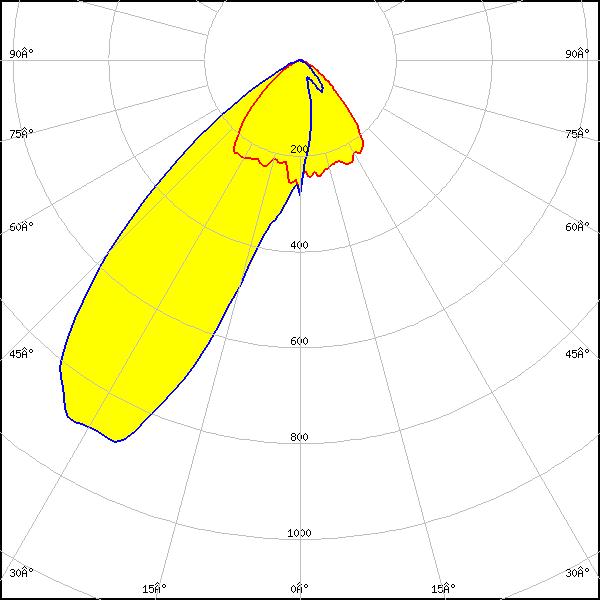

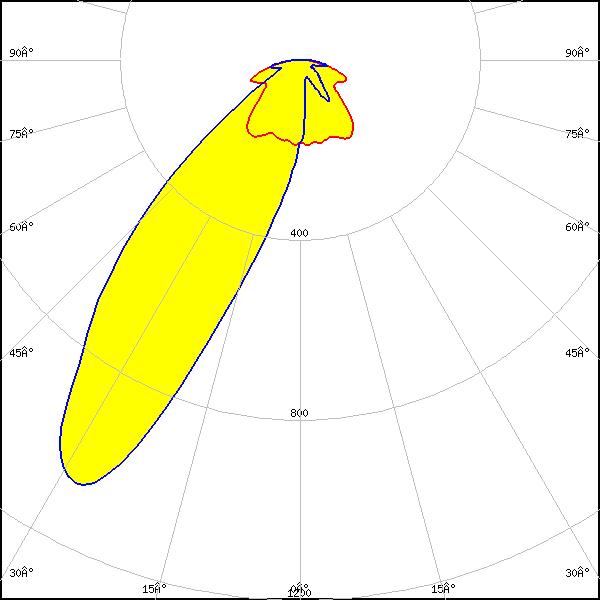

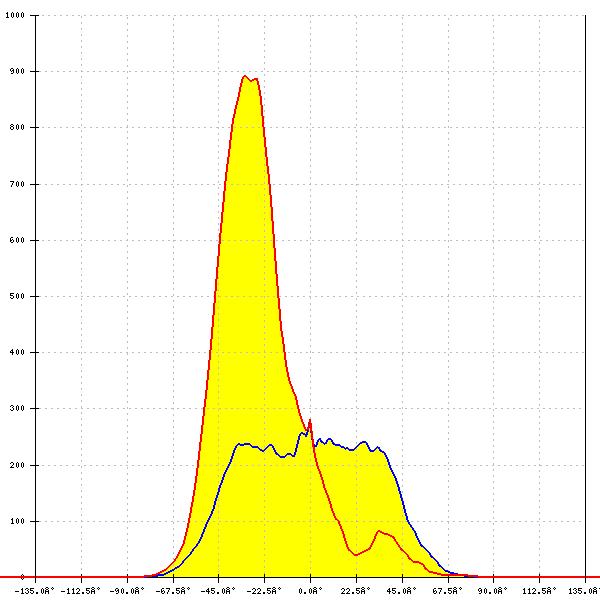

    LED: XHP50
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

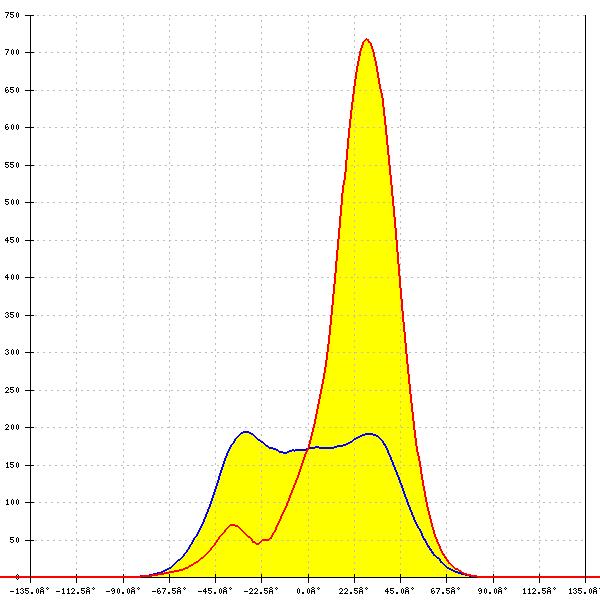

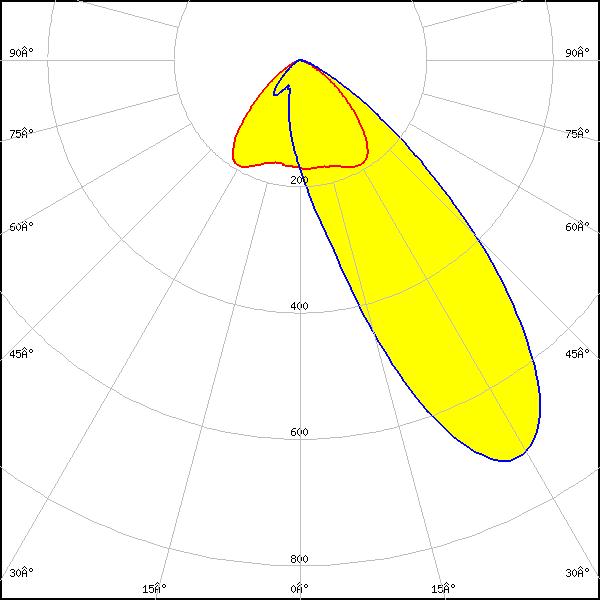

    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 0.720 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White

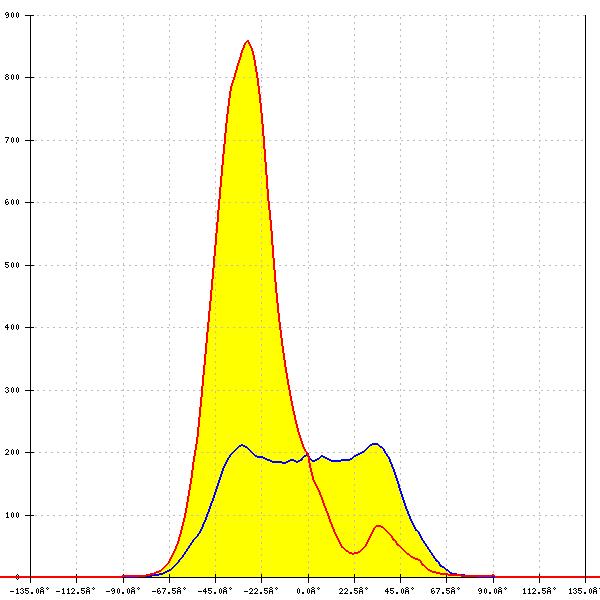

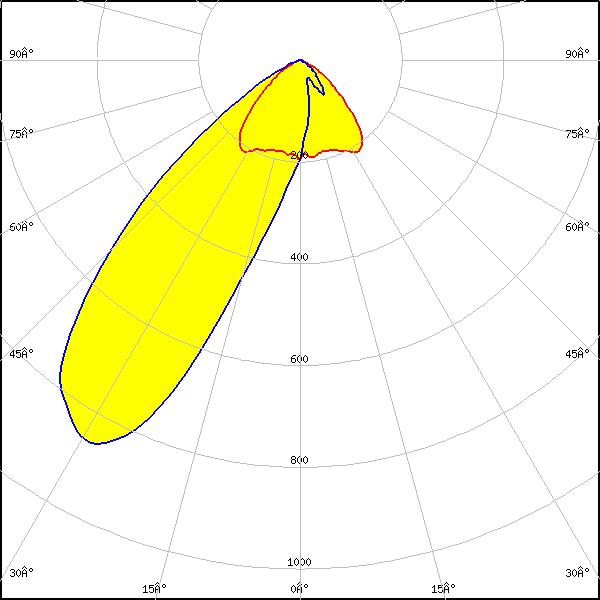

    LED: XHP50.3 HD
    FWHM: asymmetric
    Peak intensity: 0.861 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

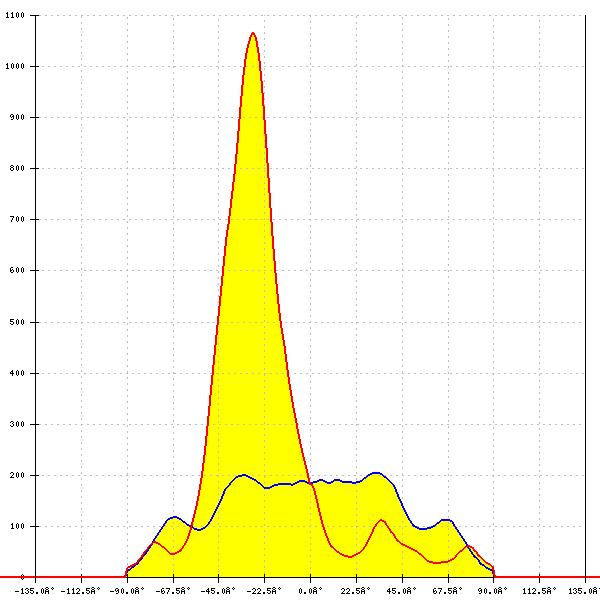

    LED: XHP50.3 HI
    FWHM: asymmetric
    Peak intensity: 1.066 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

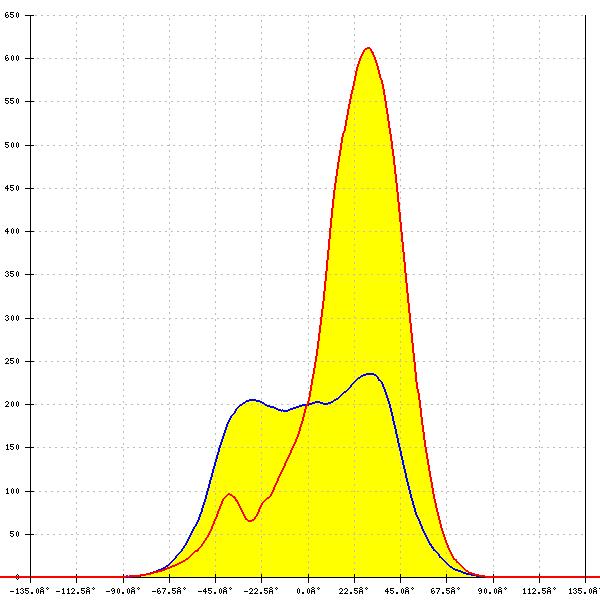

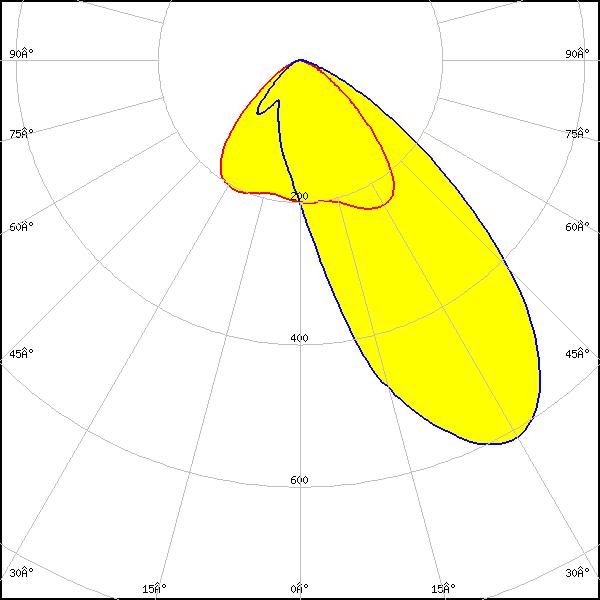

    LED: XHP70.2
    FWHM: asymmetric
    Peak intensity: 0.617 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

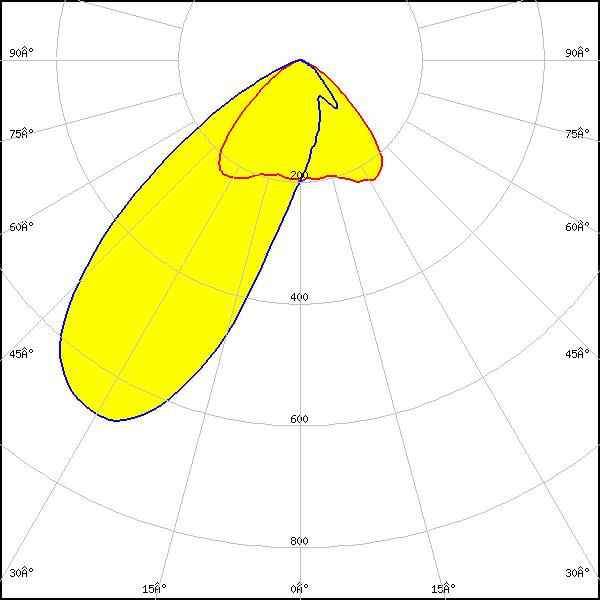

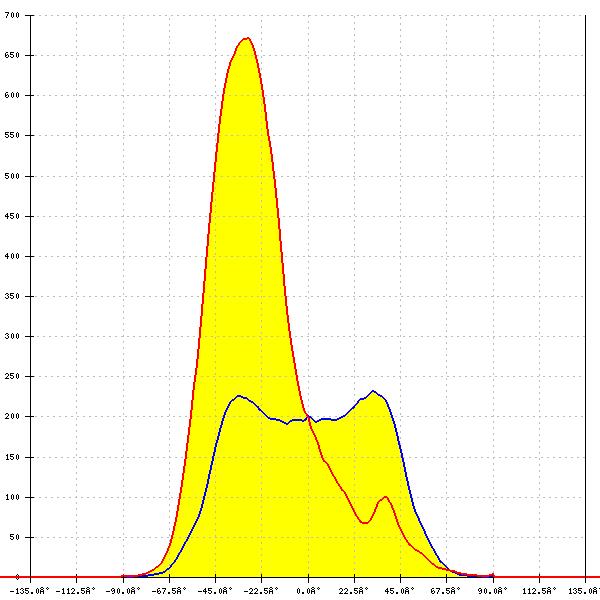

    LED: XHP70.3 HD
    FWHM: asymmetric
    Peak intensity: 0.673 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

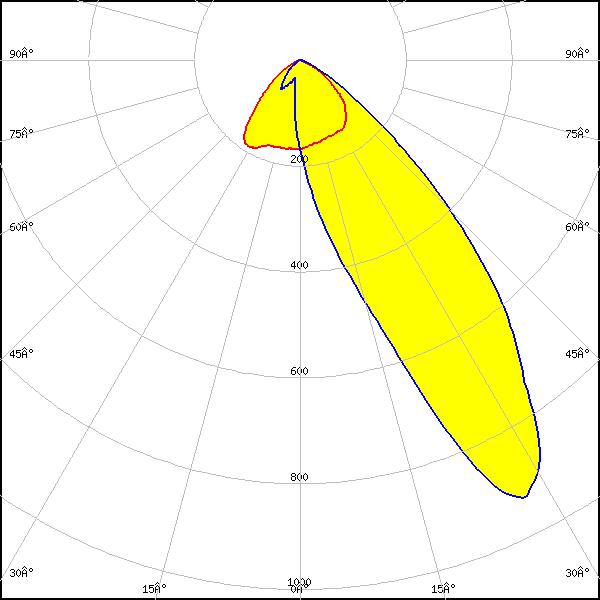

    LED: XM-L3
    FWHM: asymmetric
    Peak intensity: 0.932 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

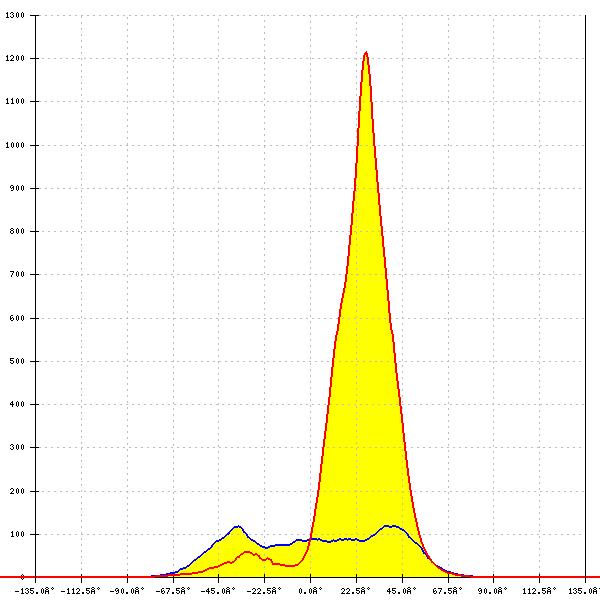

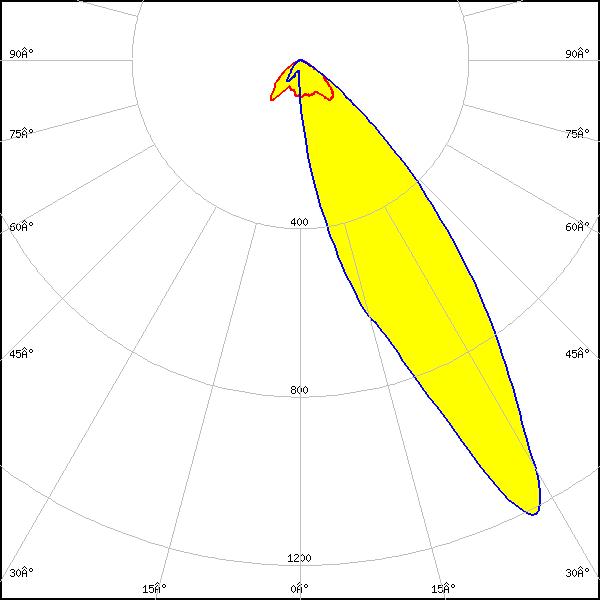

    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

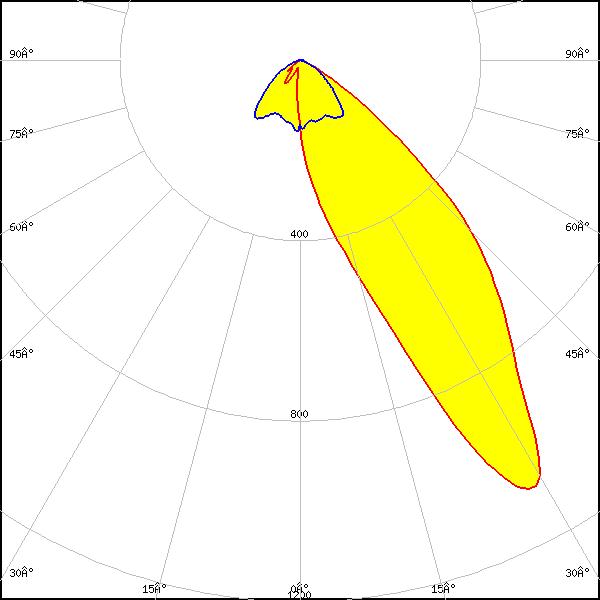

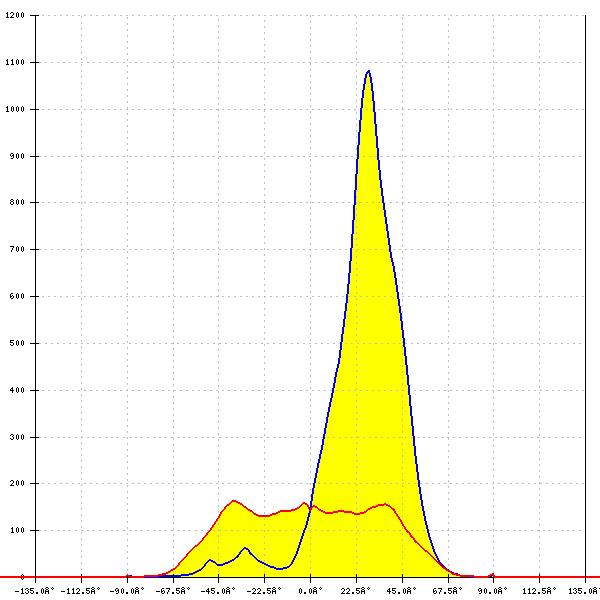

    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 1.080 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

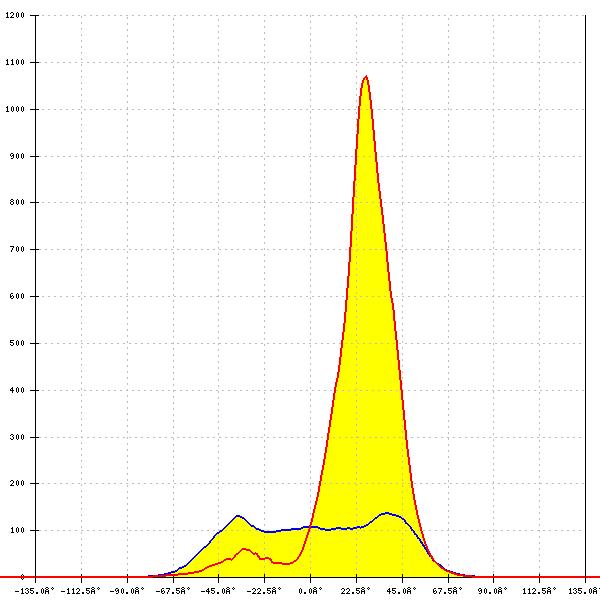

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

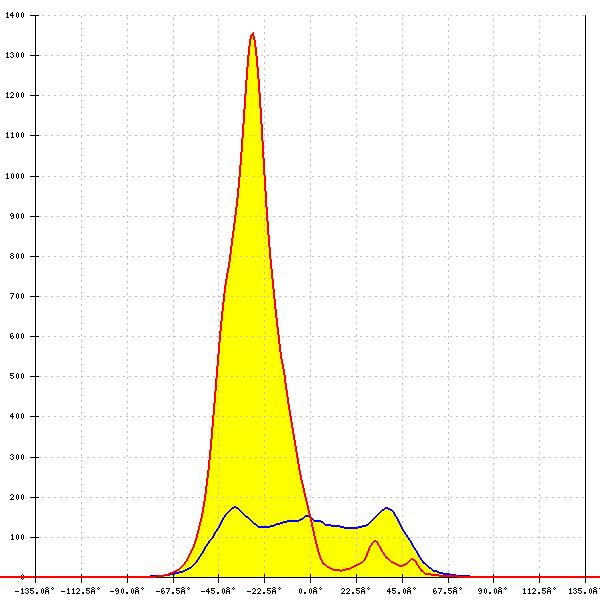

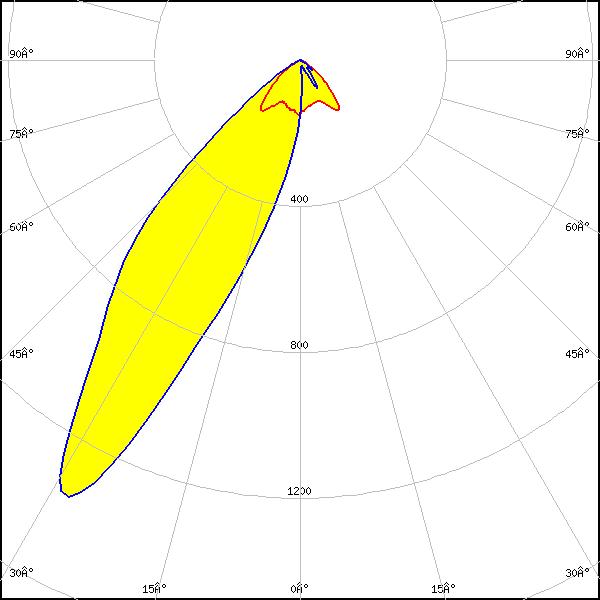

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 1.356 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

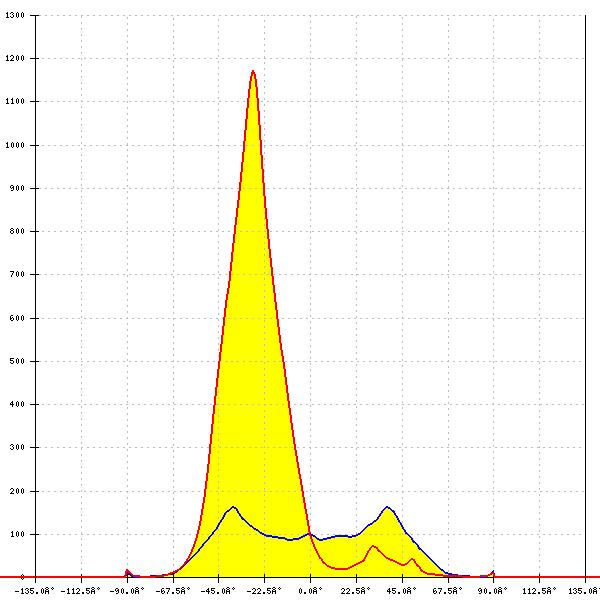

    LED: XP-G4 HI
    FWHM: asymmetric
    Peak intensity: 1.173 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

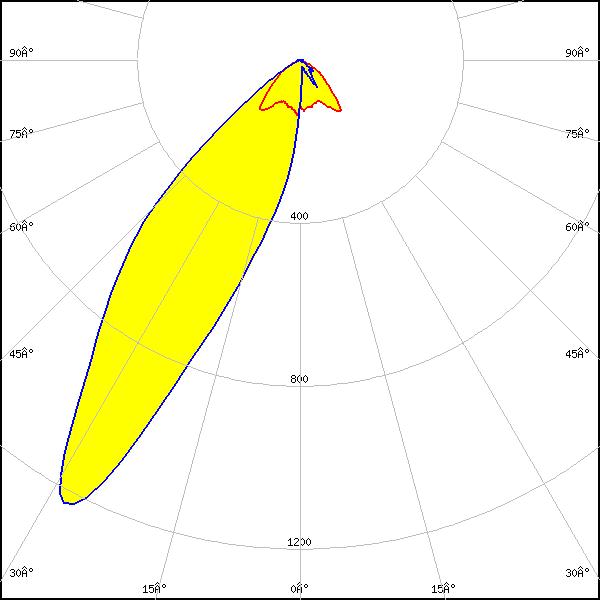

    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 1.232 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

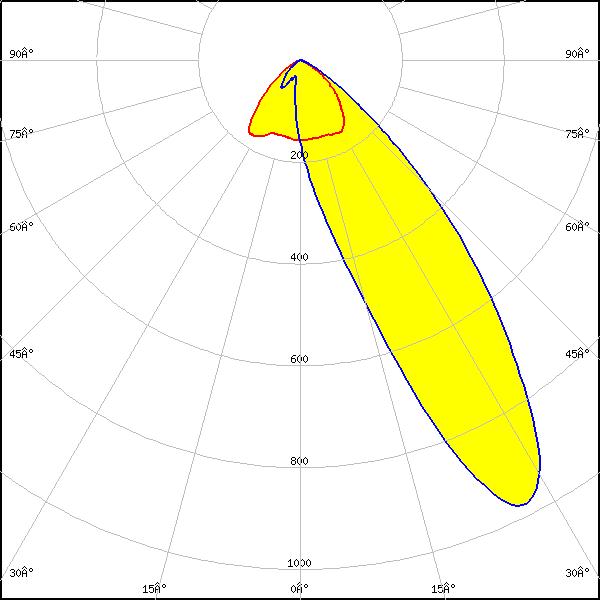

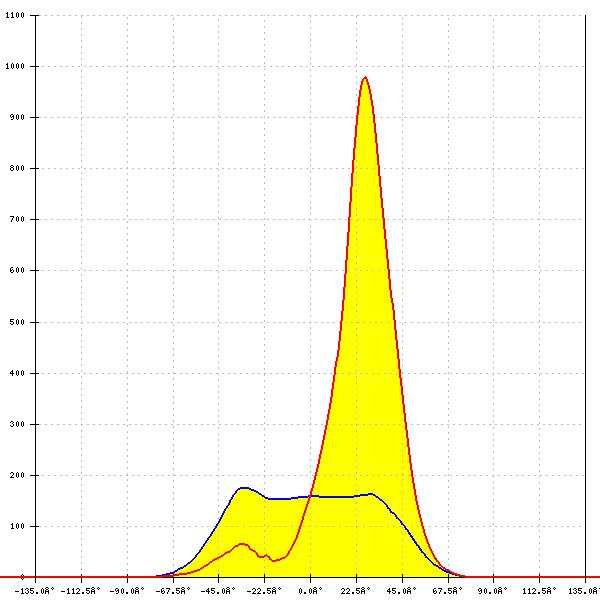

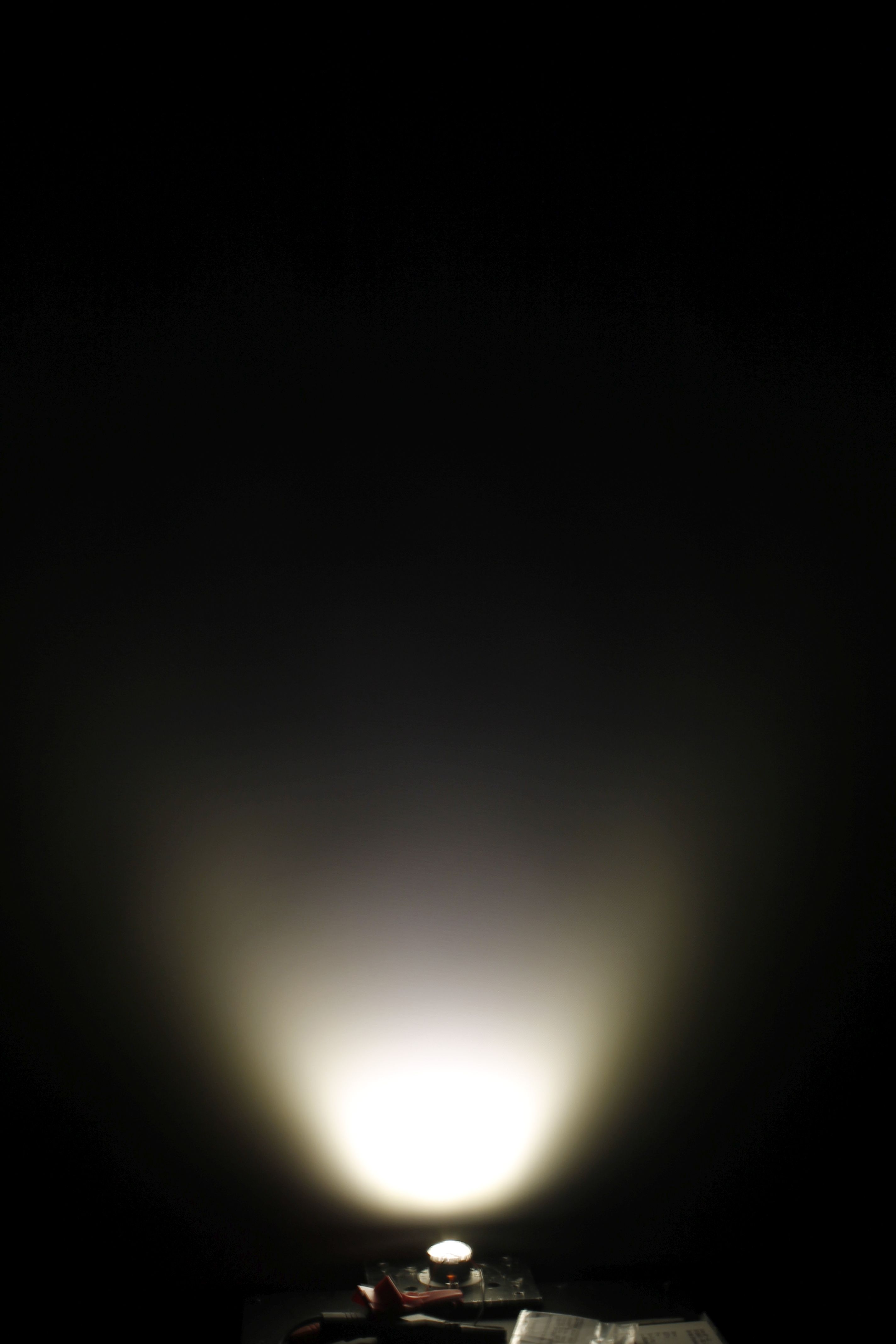

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.990 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

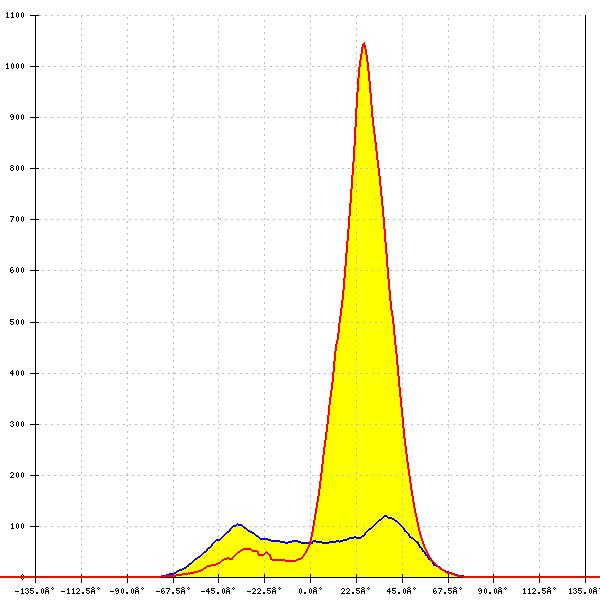

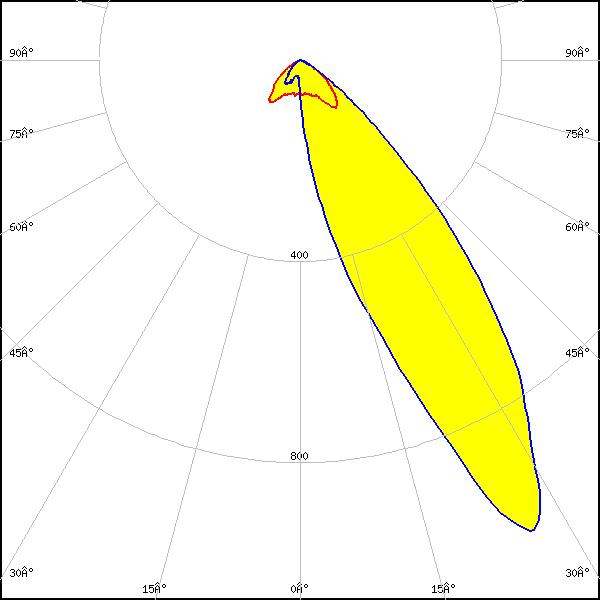

    LED: XQ-E HD
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White

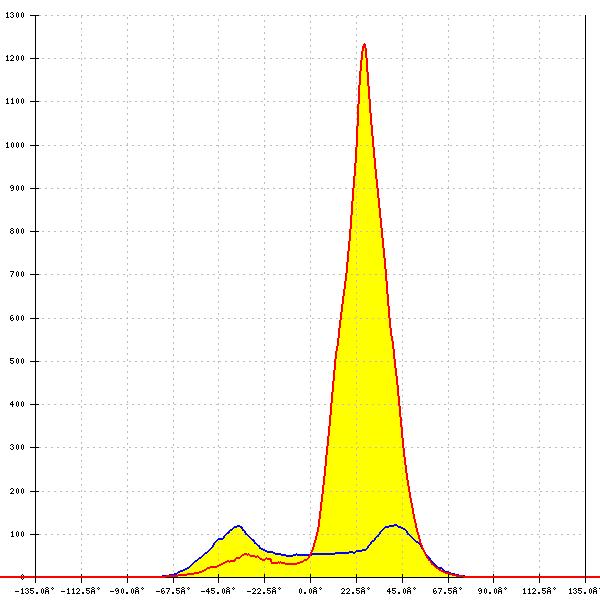

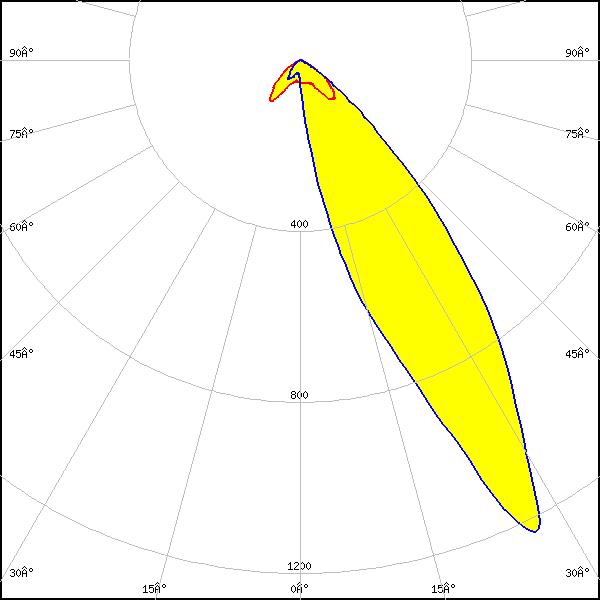

    LED: XQ-E HI
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

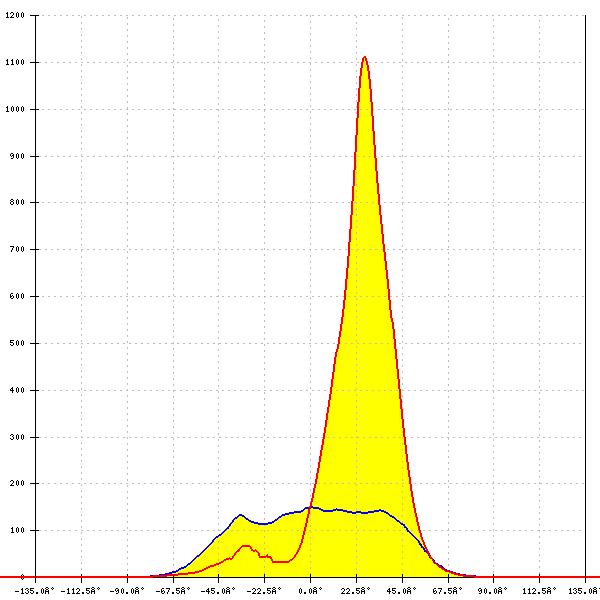

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

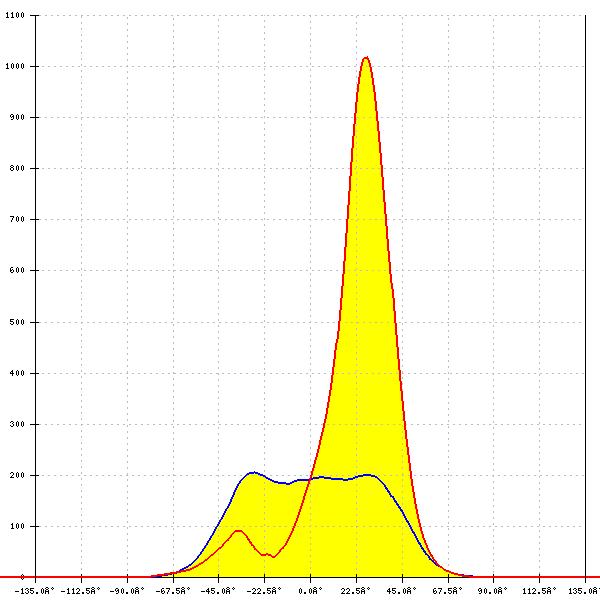

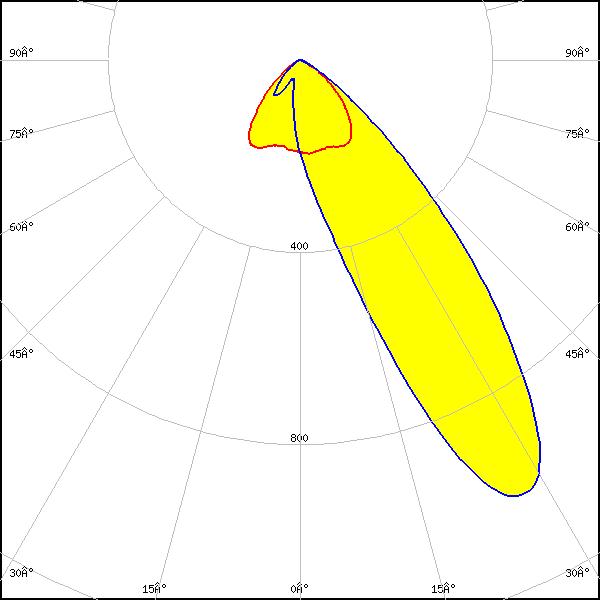

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

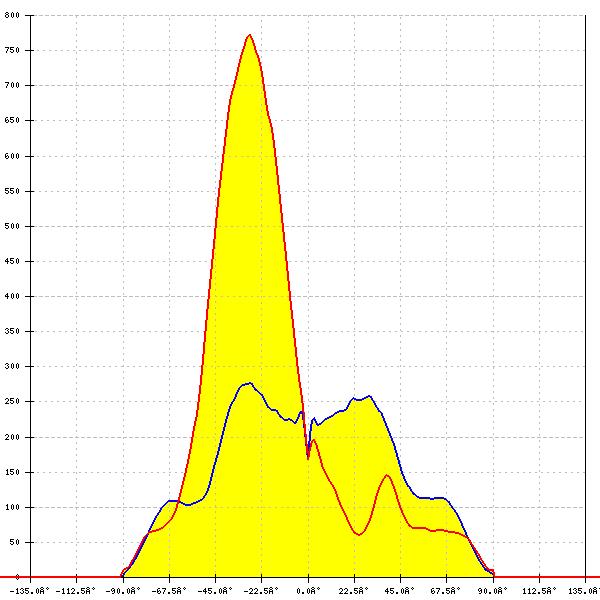

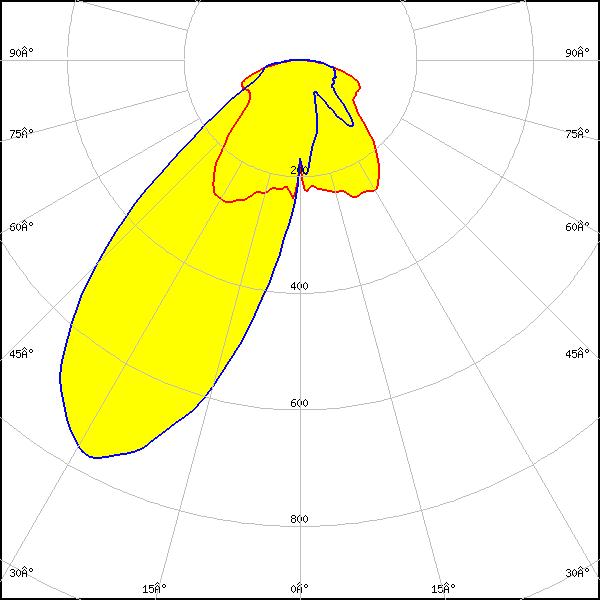

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.777 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

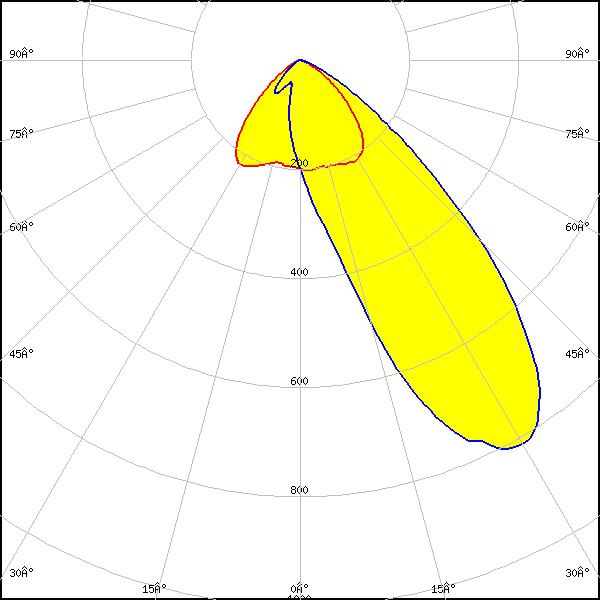

    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 0.820 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

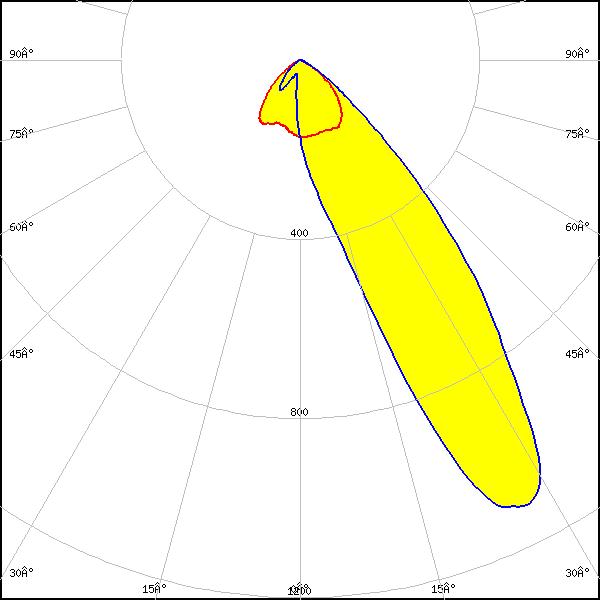

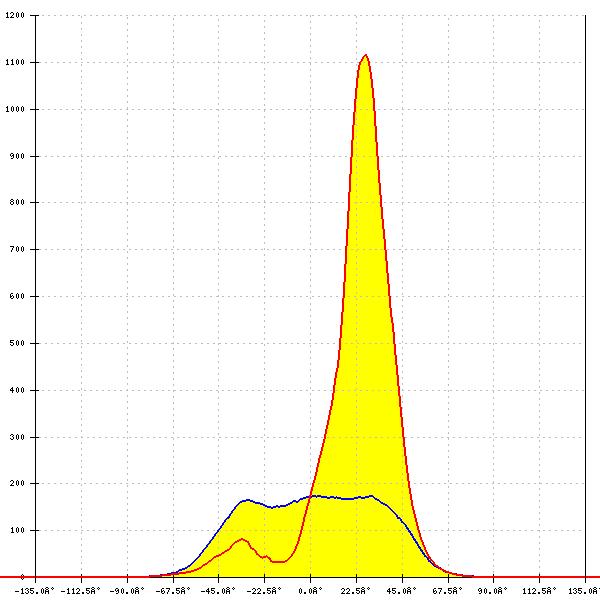

    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

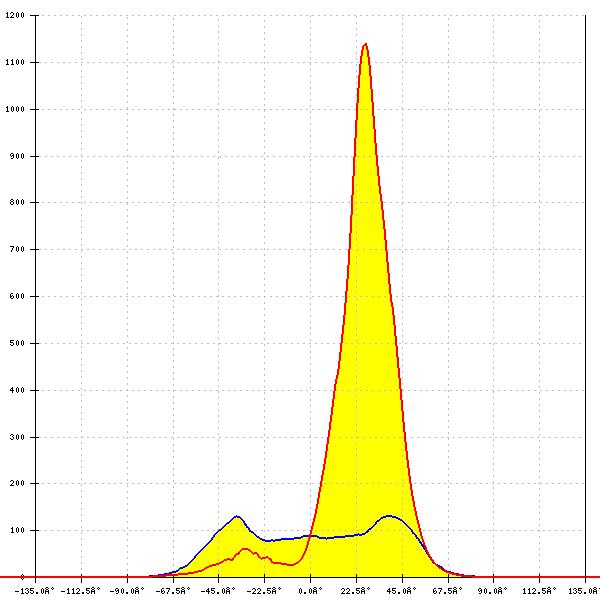

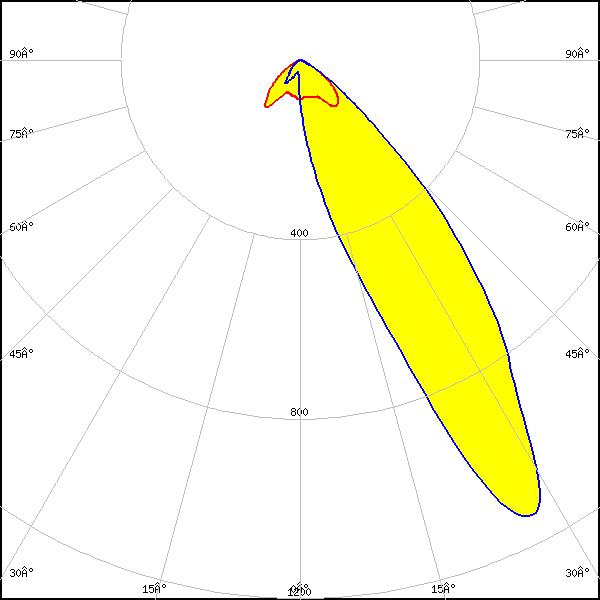

    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

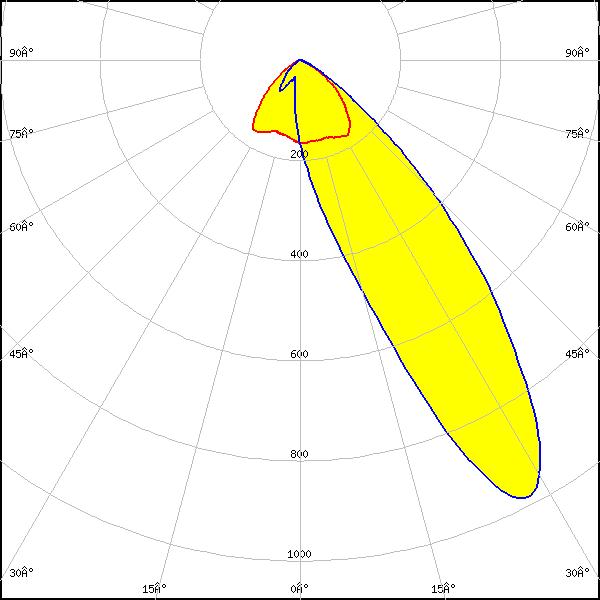

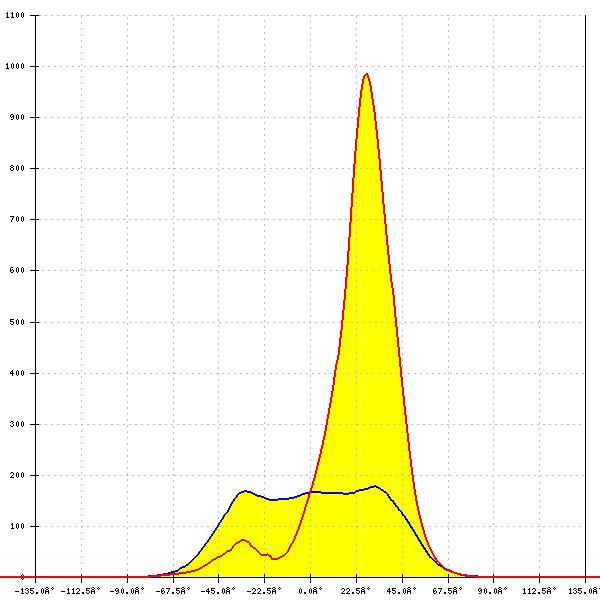

    LED: LUXEON V
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

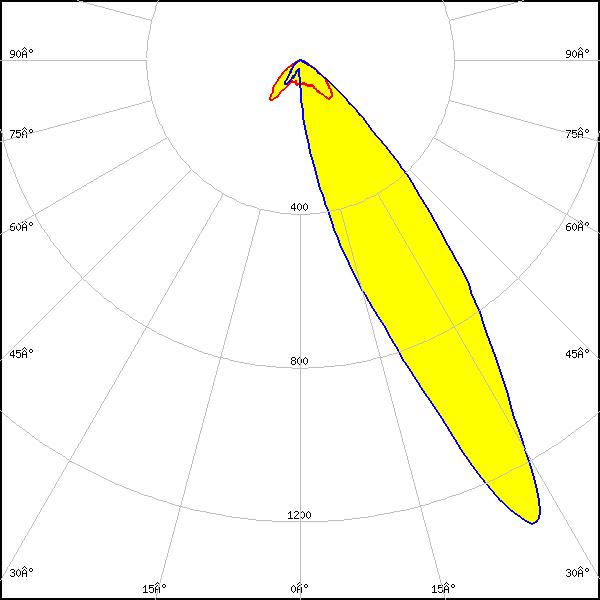

    LED: LUXEON Z ES
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

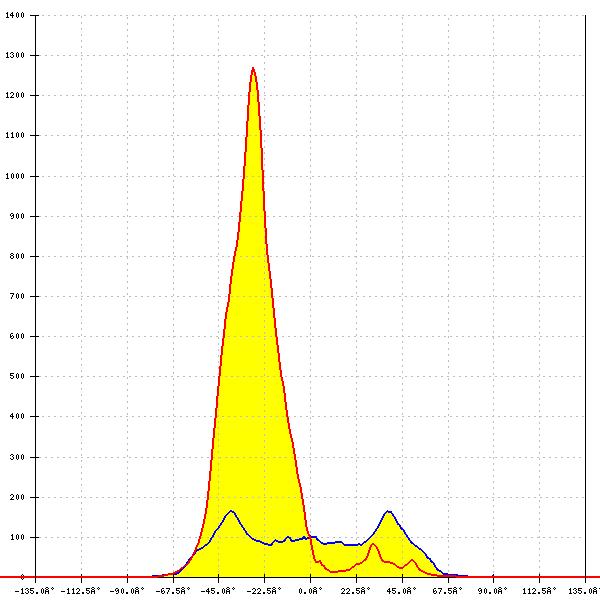

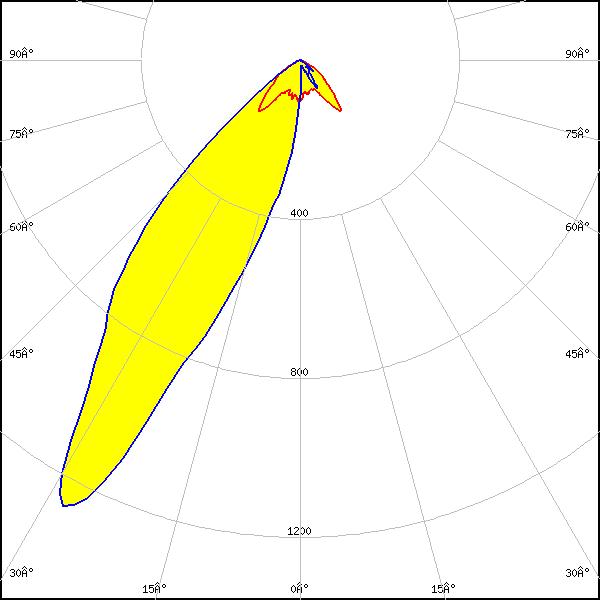

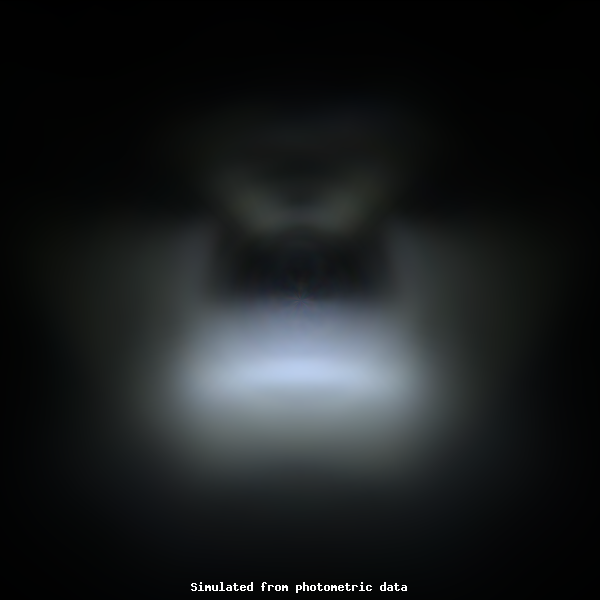

    LED: SST-20 Gen2
    FWHM: asymmetric
    Peak intensity: 1.272 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

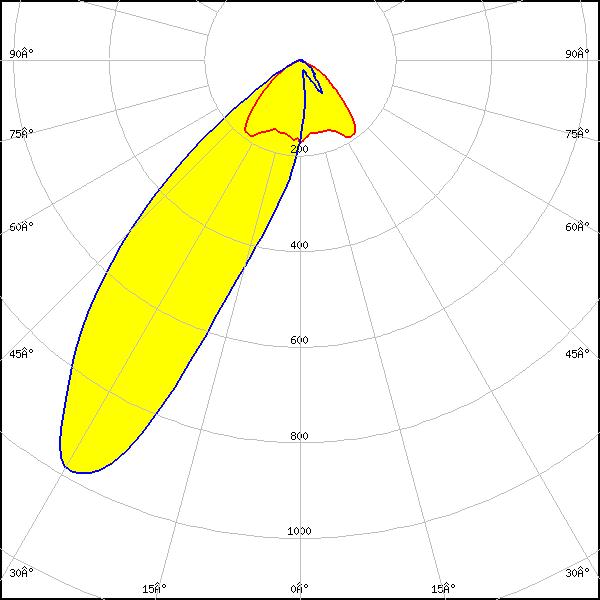

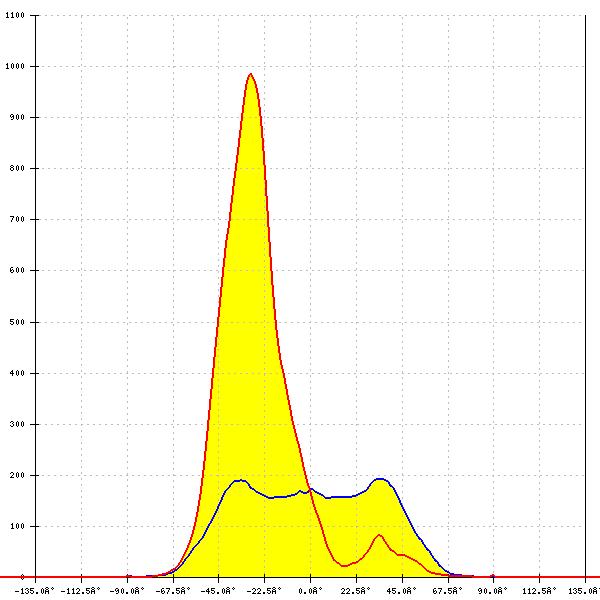

    LED: SST-70X-WCS
    FWHM: asymmetric
    Peak intensity: 0.989 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

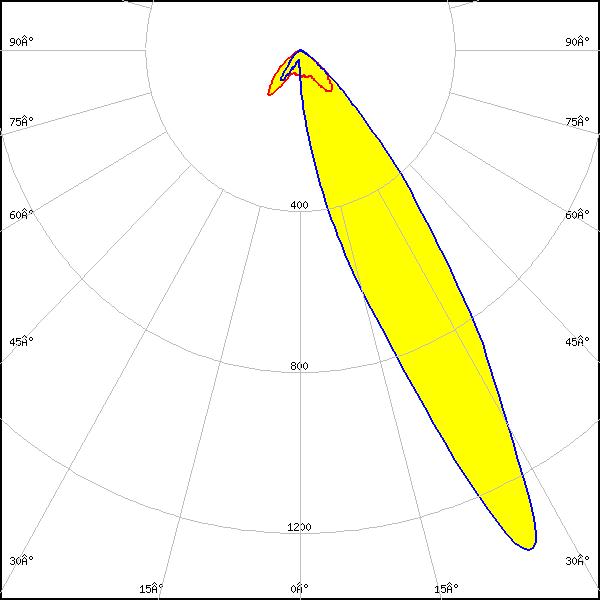

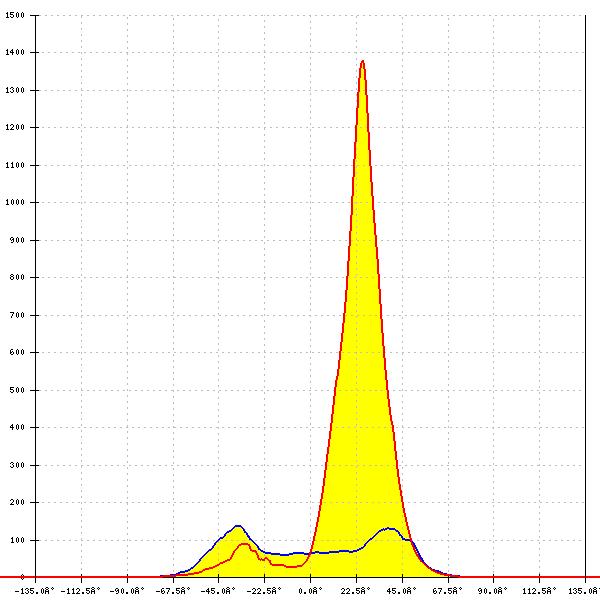

    LED: NCSxE17A
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

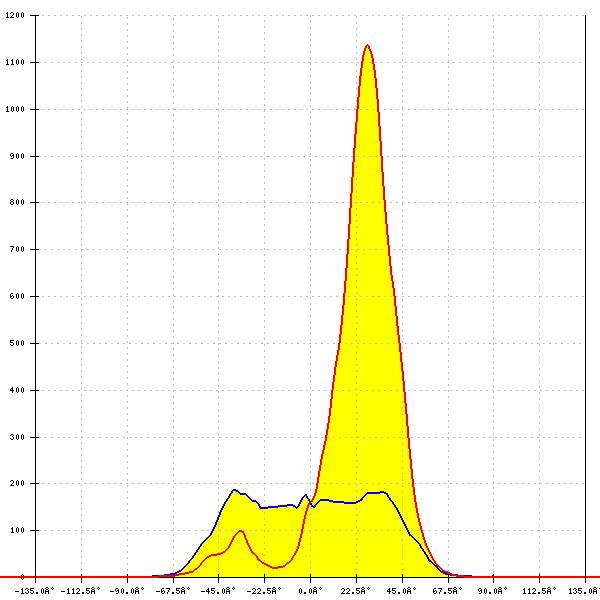

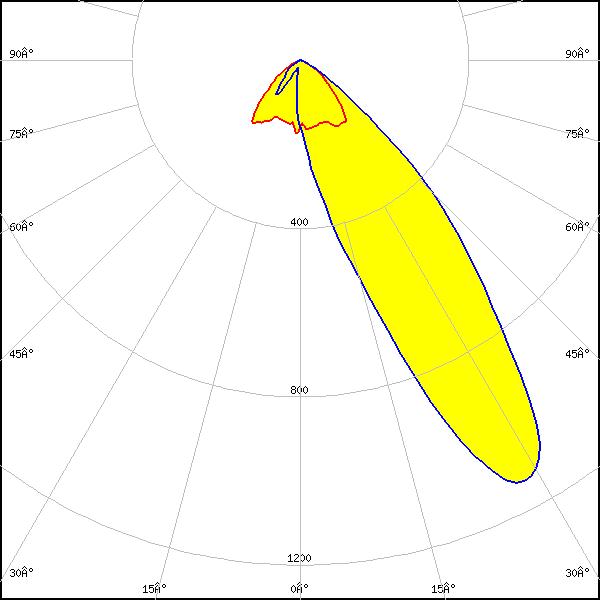

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.135 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

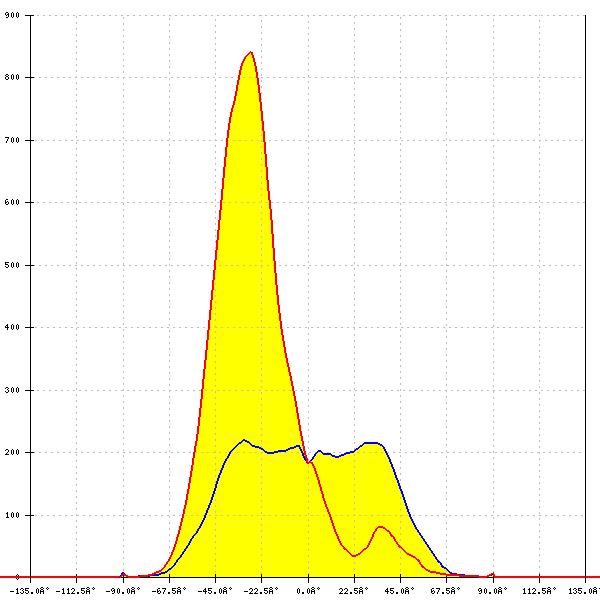

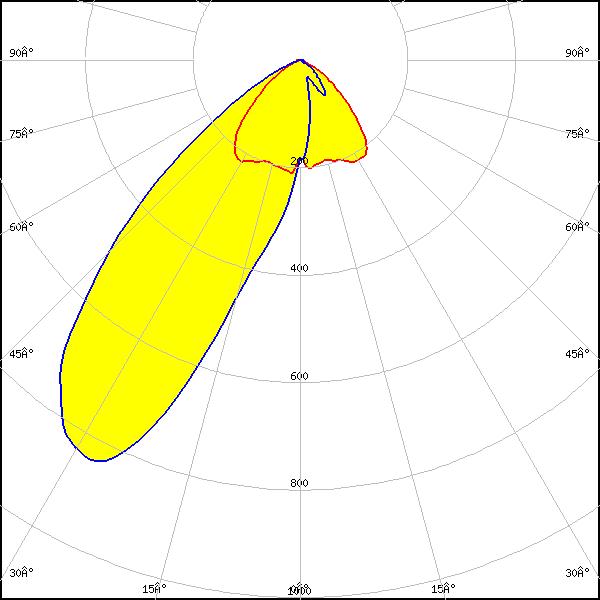

    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 0.842 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

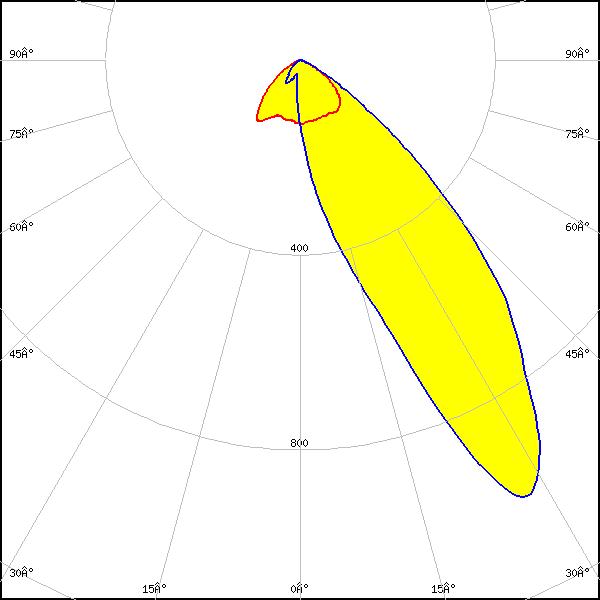

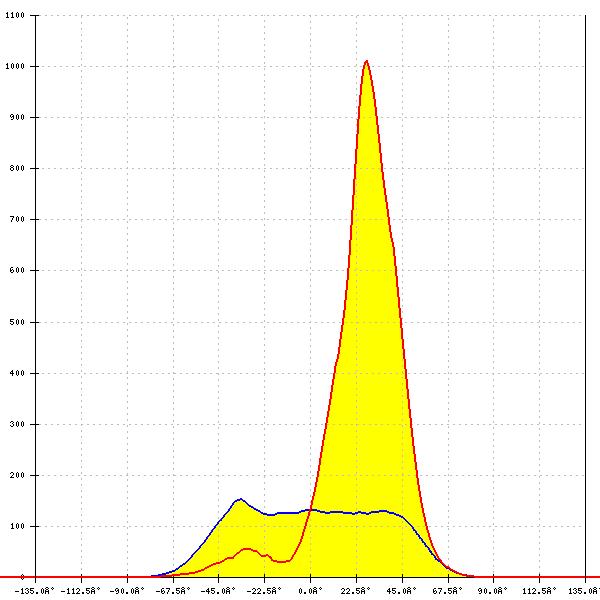

    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

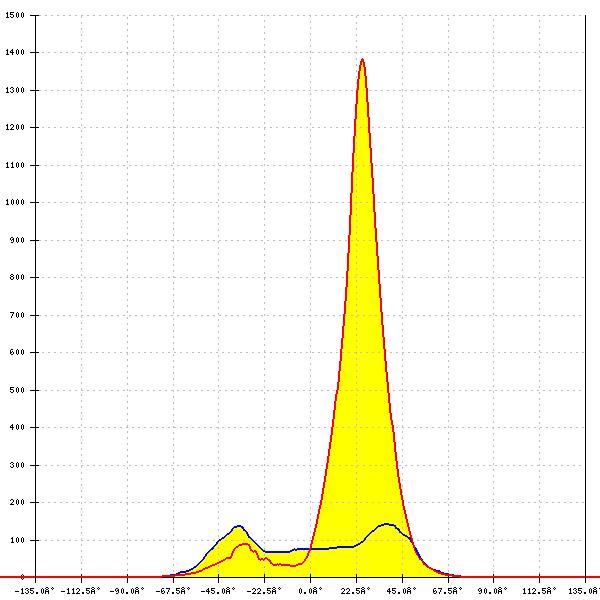

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

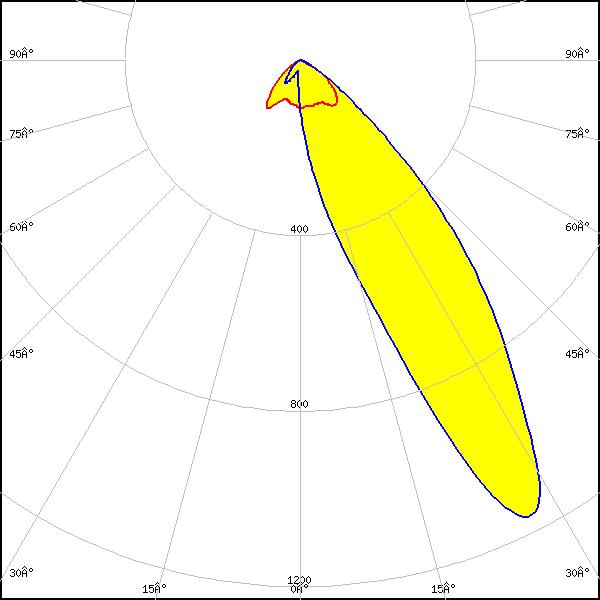

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

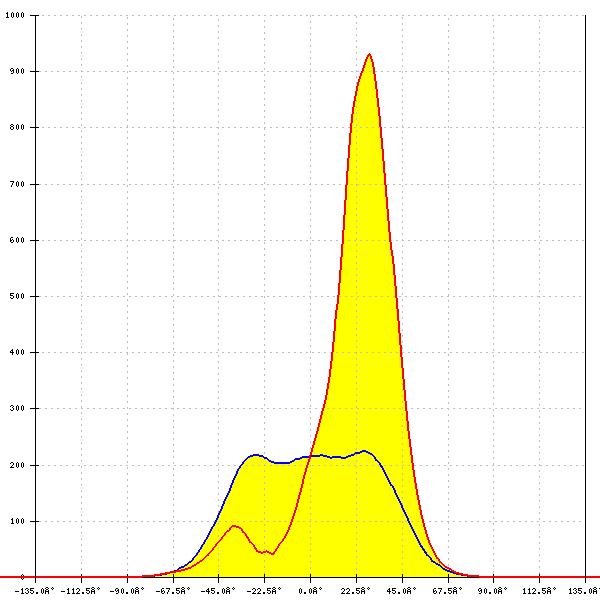

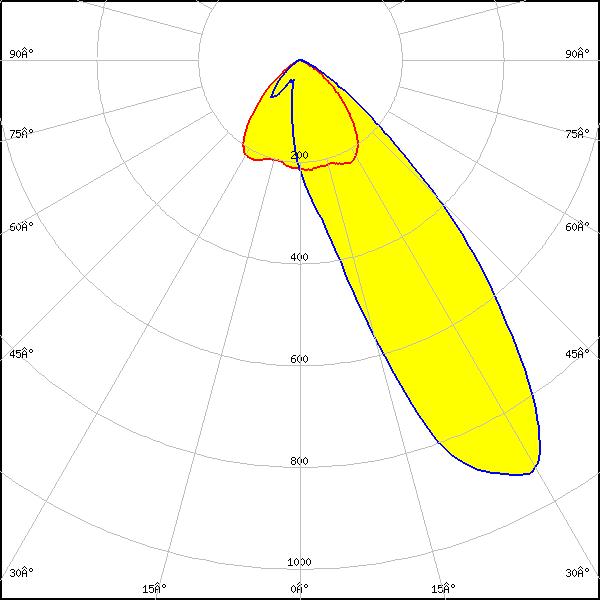

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

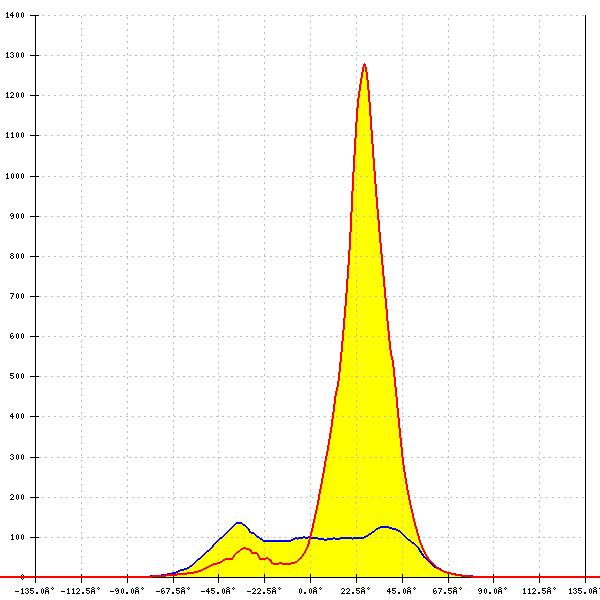

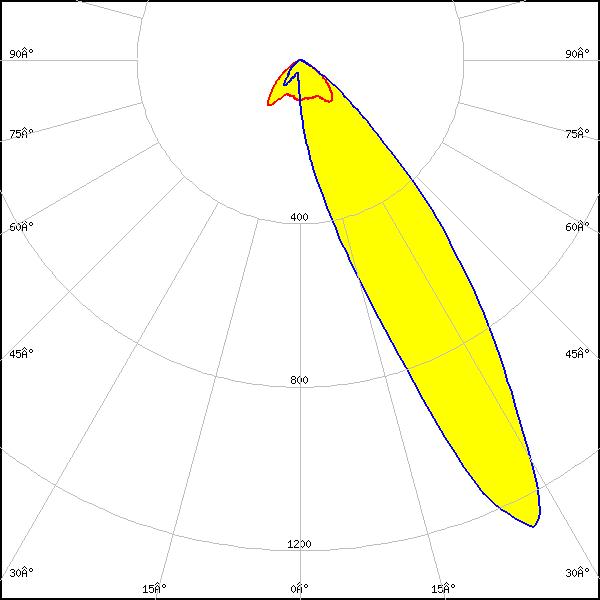

    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

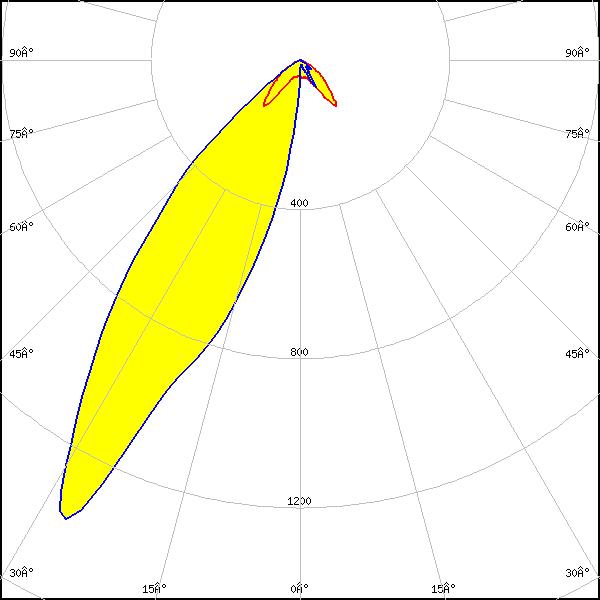

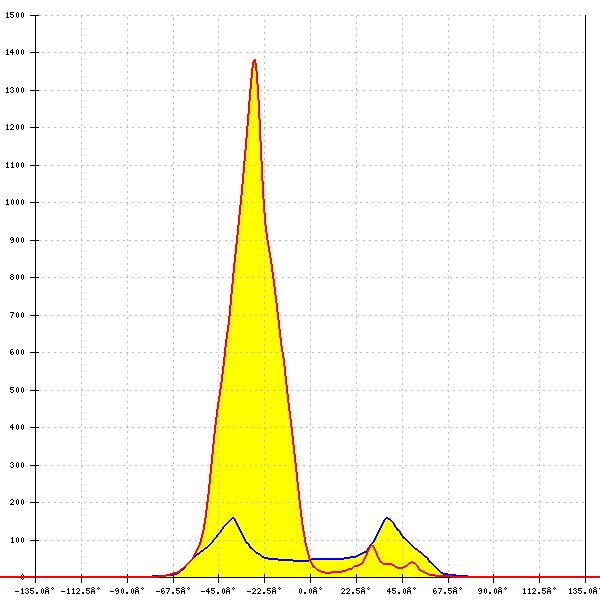

    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 1.382 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 1.425 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.180 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

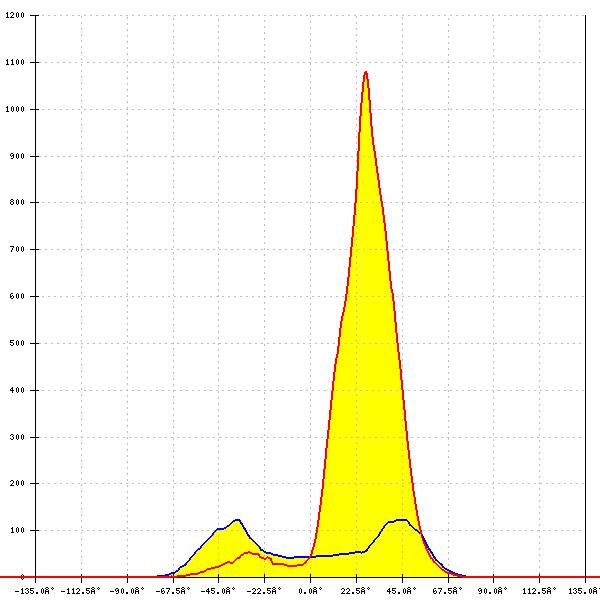

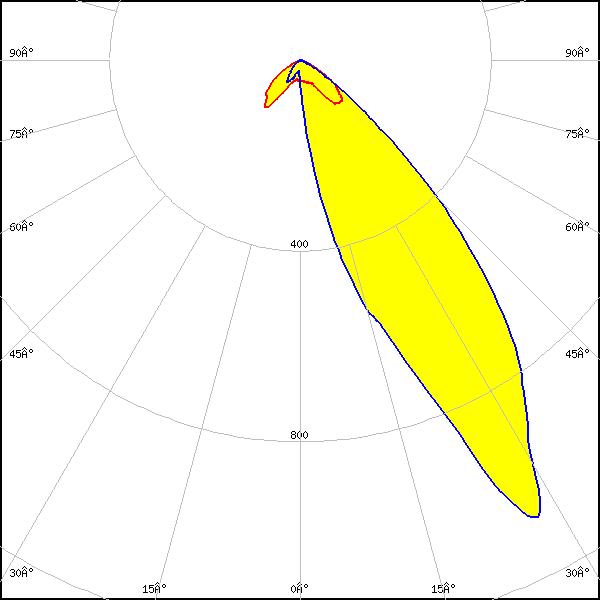

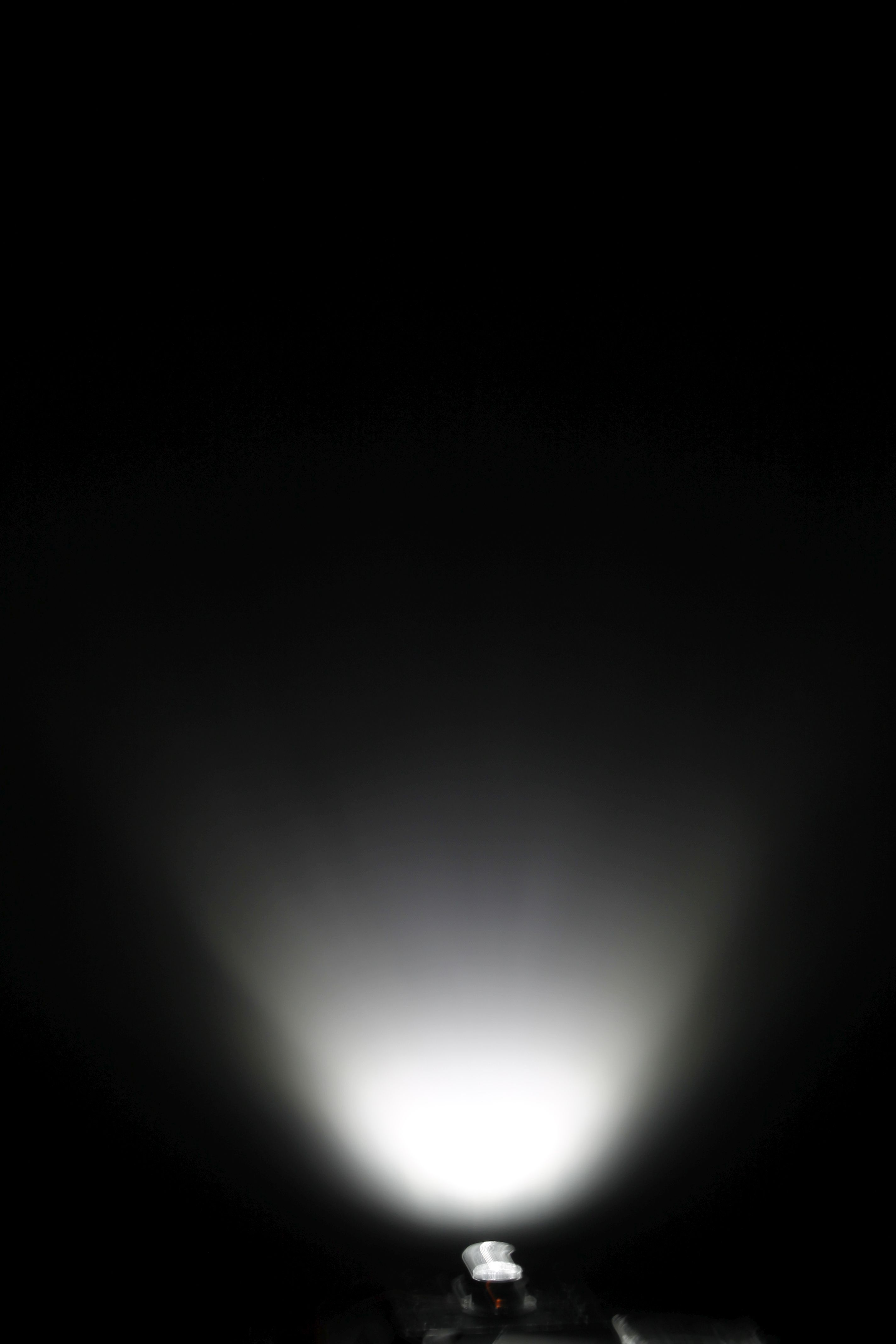

    LED: OSLON SSL 150
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Stage (S2WN)
    FWHM: asymmetric
    Peak intensity: 1.178 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: RGBW

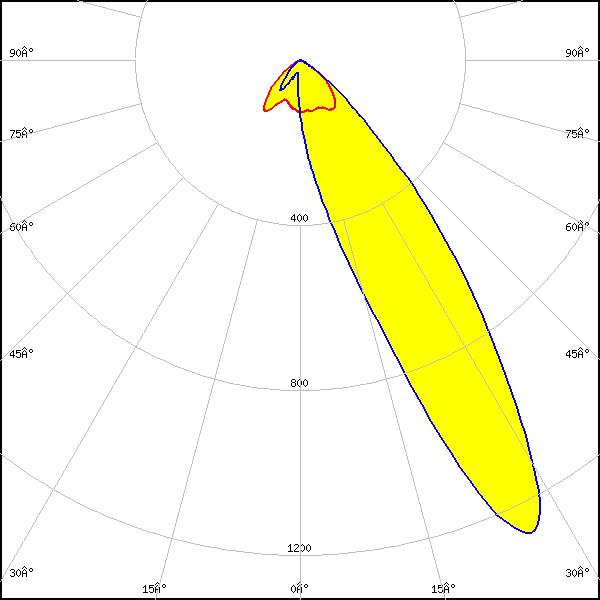

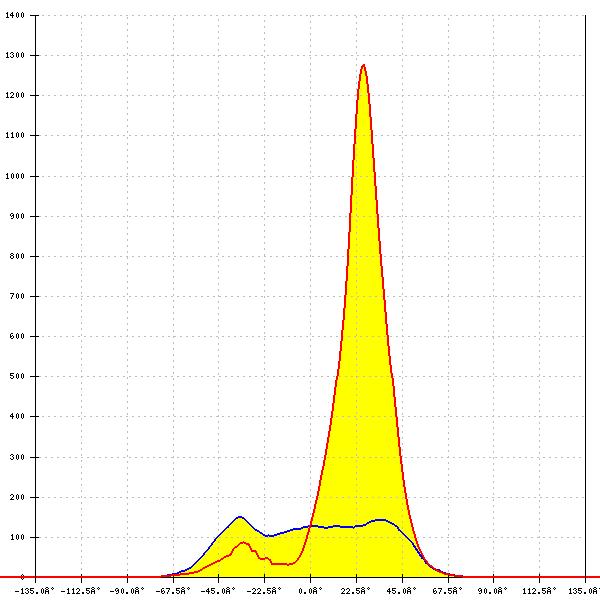

    LED: LH231B
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

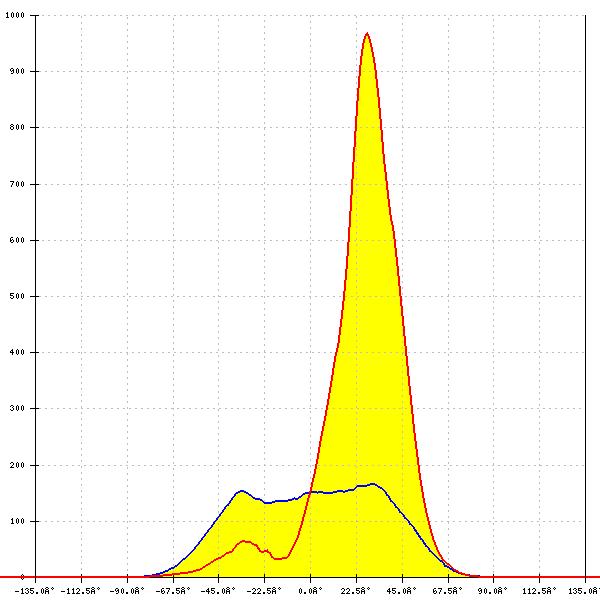

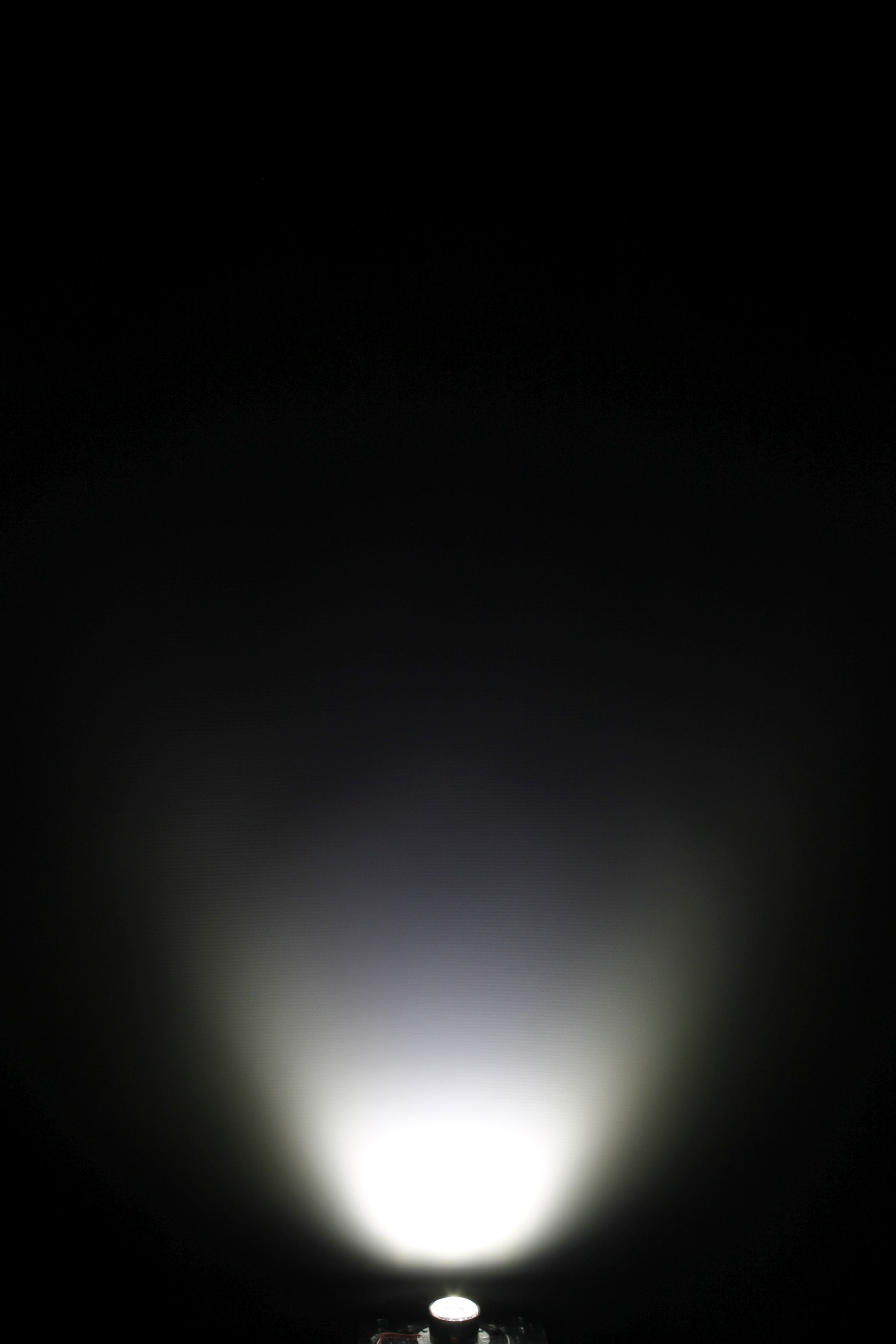

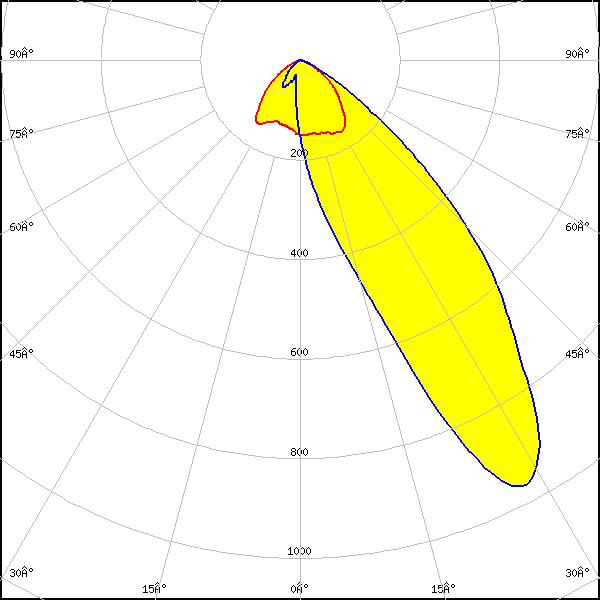

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.980 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

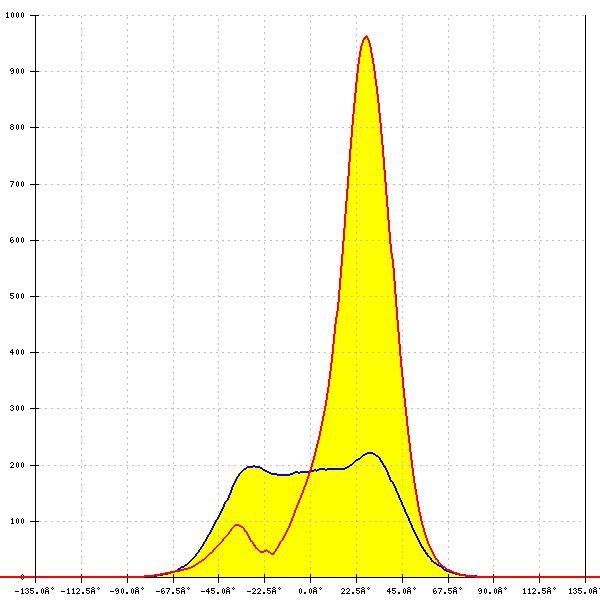

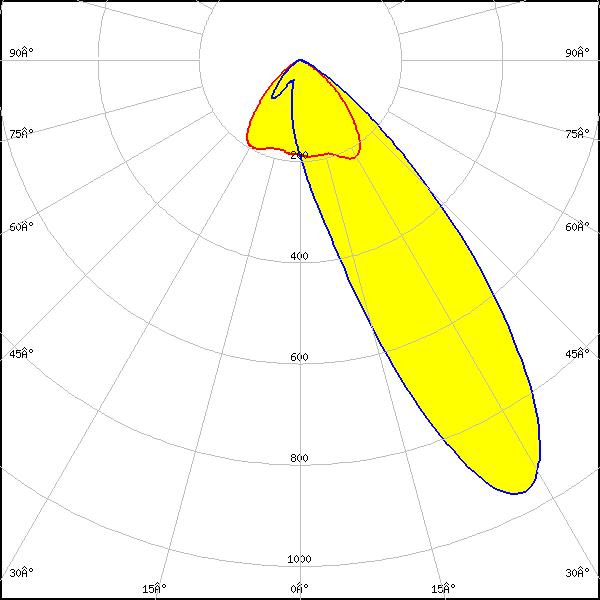

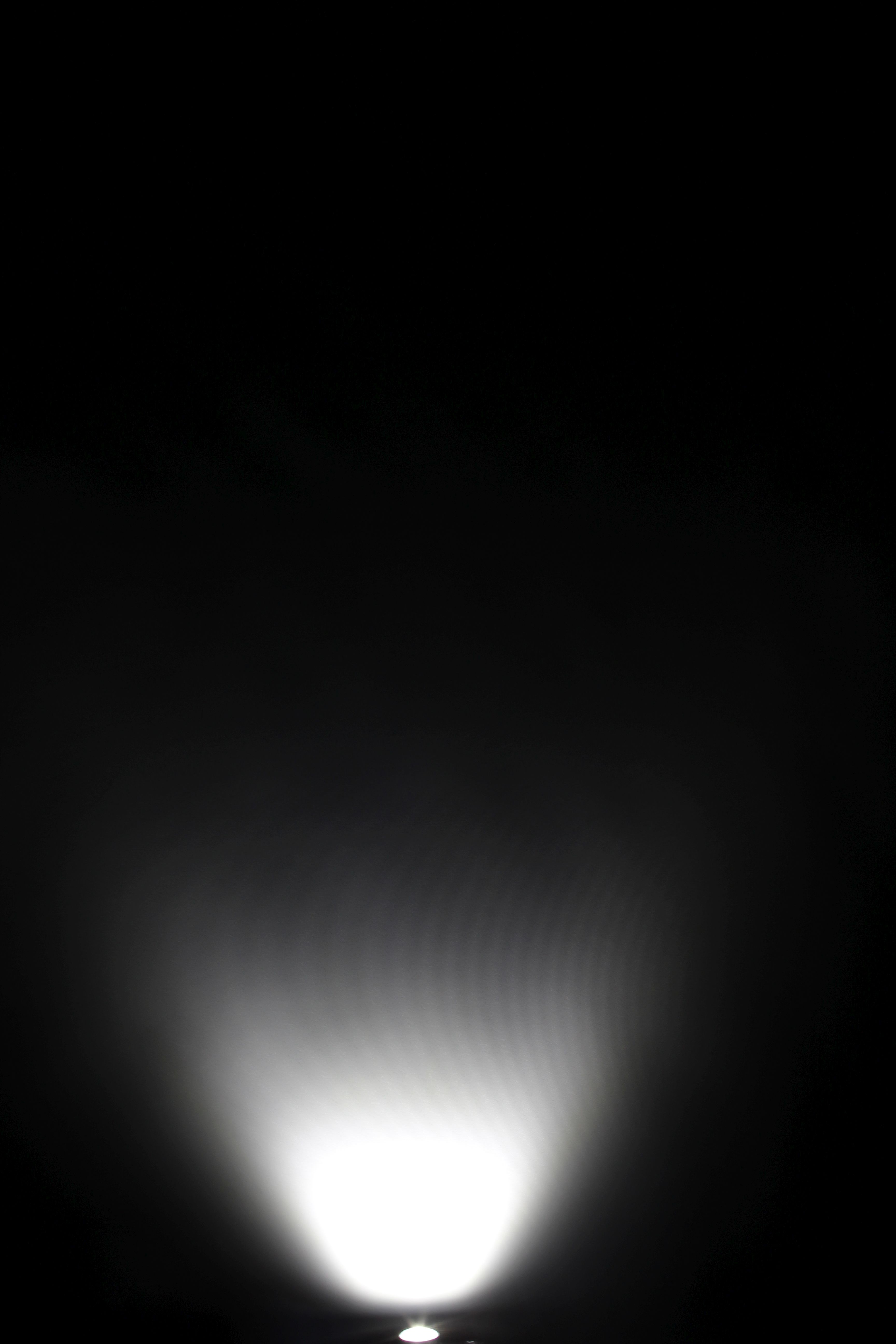

    LED: LH508A
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

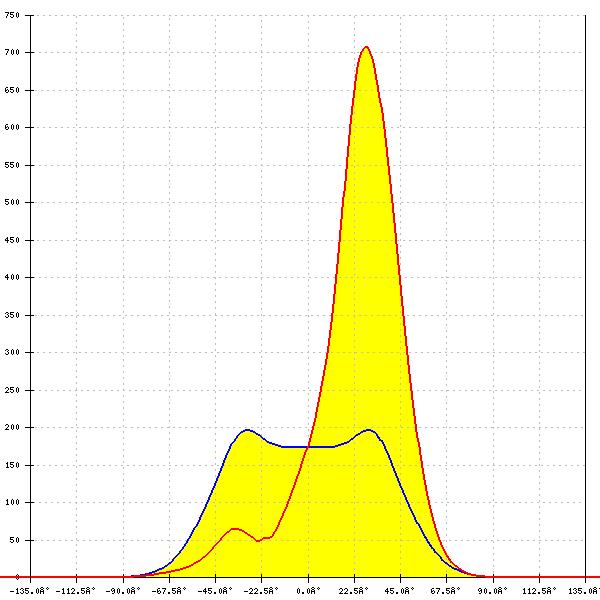

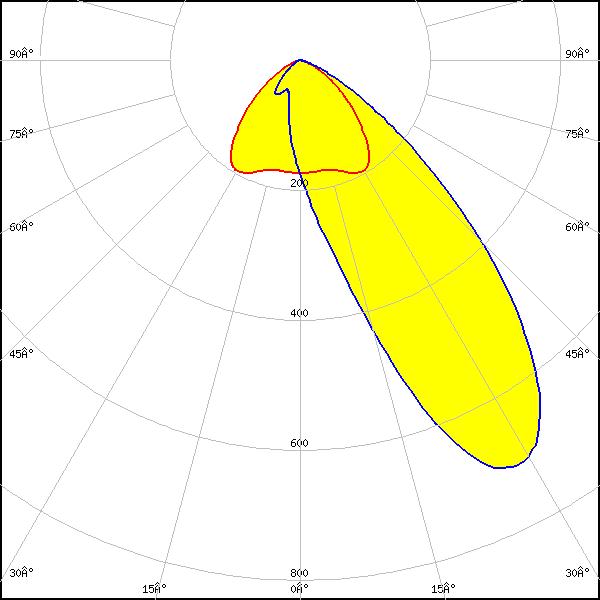

    LED: WICOP 5050
    FWHM: asymmetric
    Peak intensity: 0.716 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

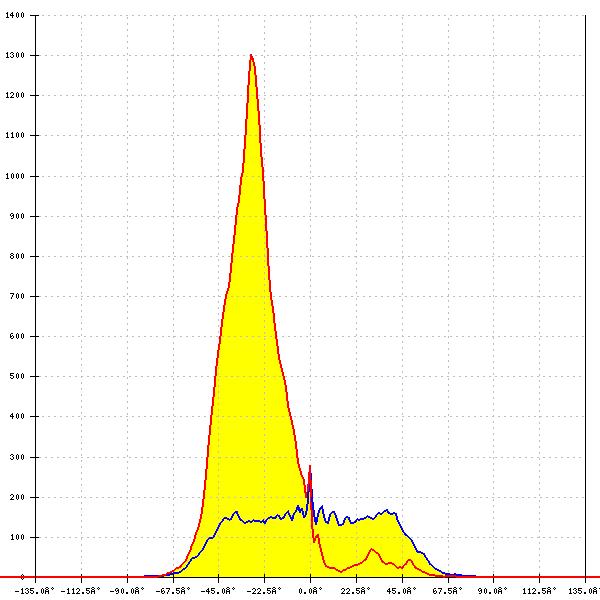

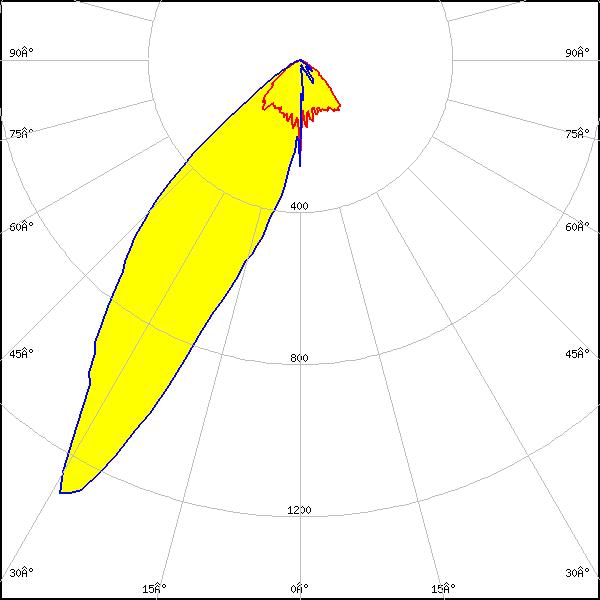

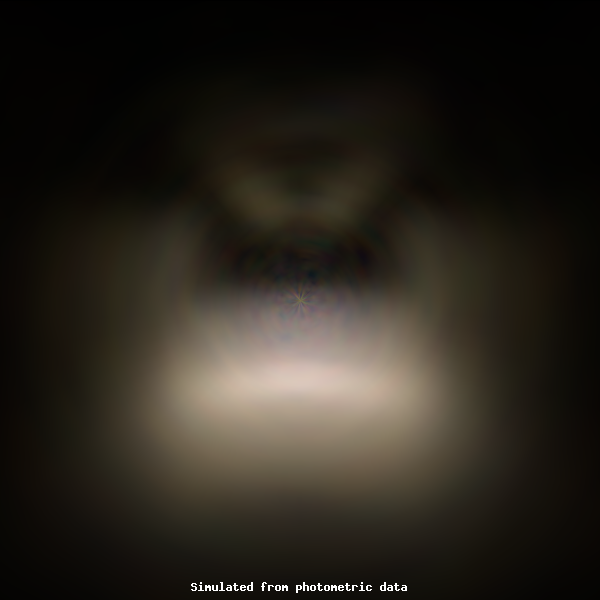

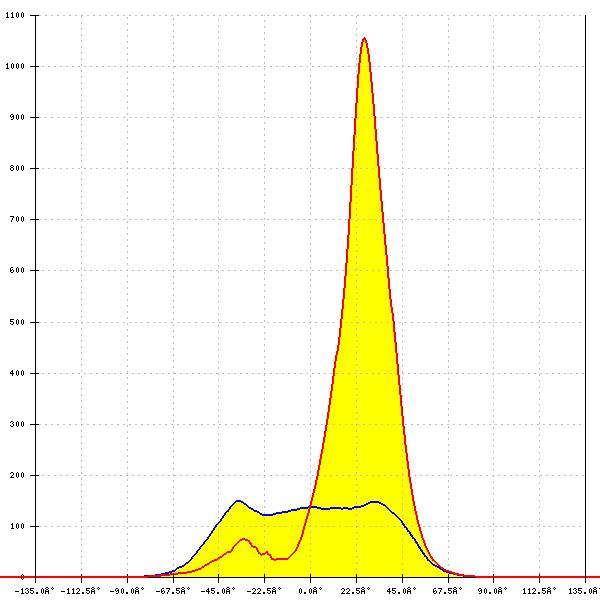

    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 1.306 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
