    CA13747_KIKI-A

    Print

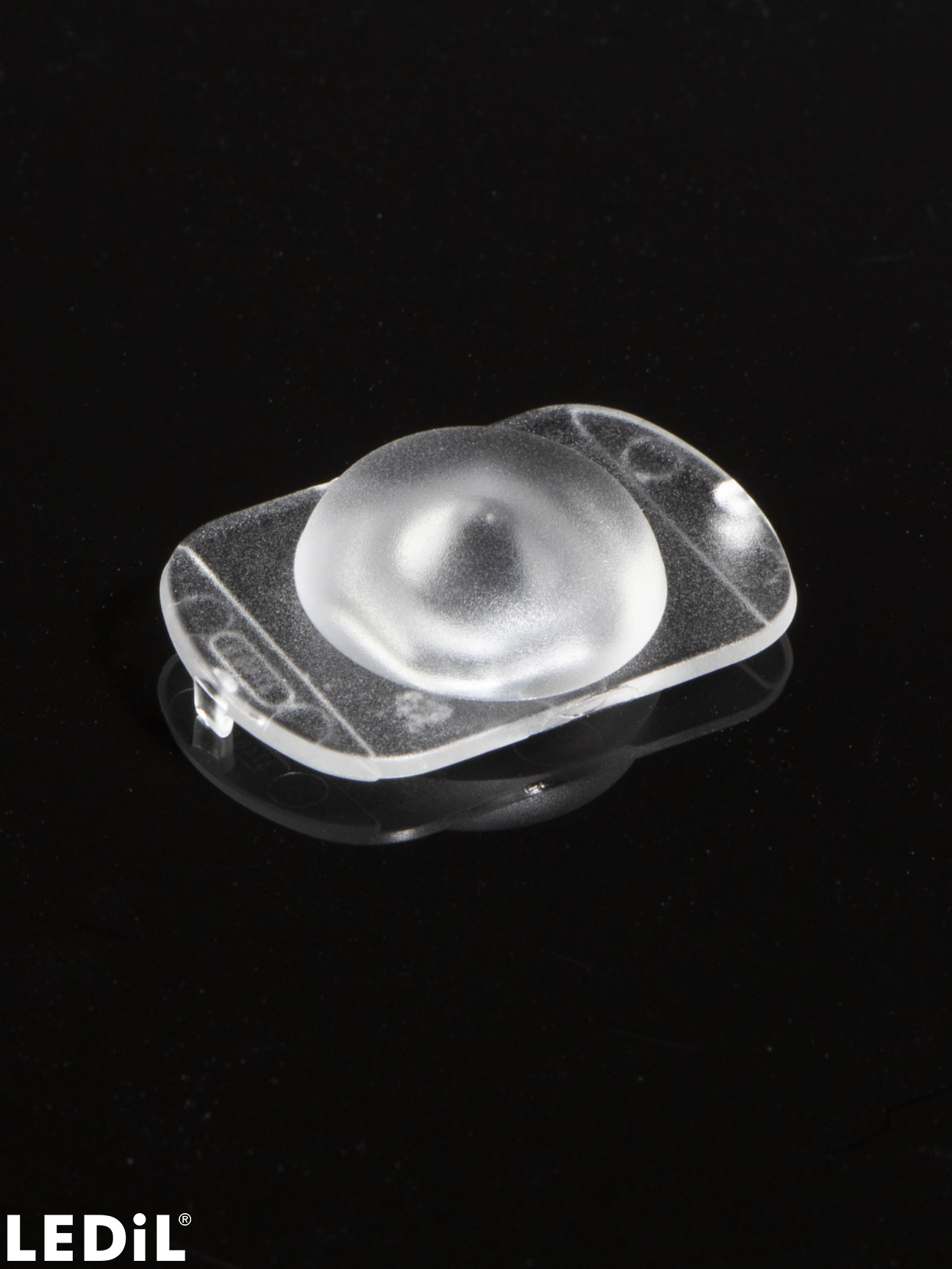

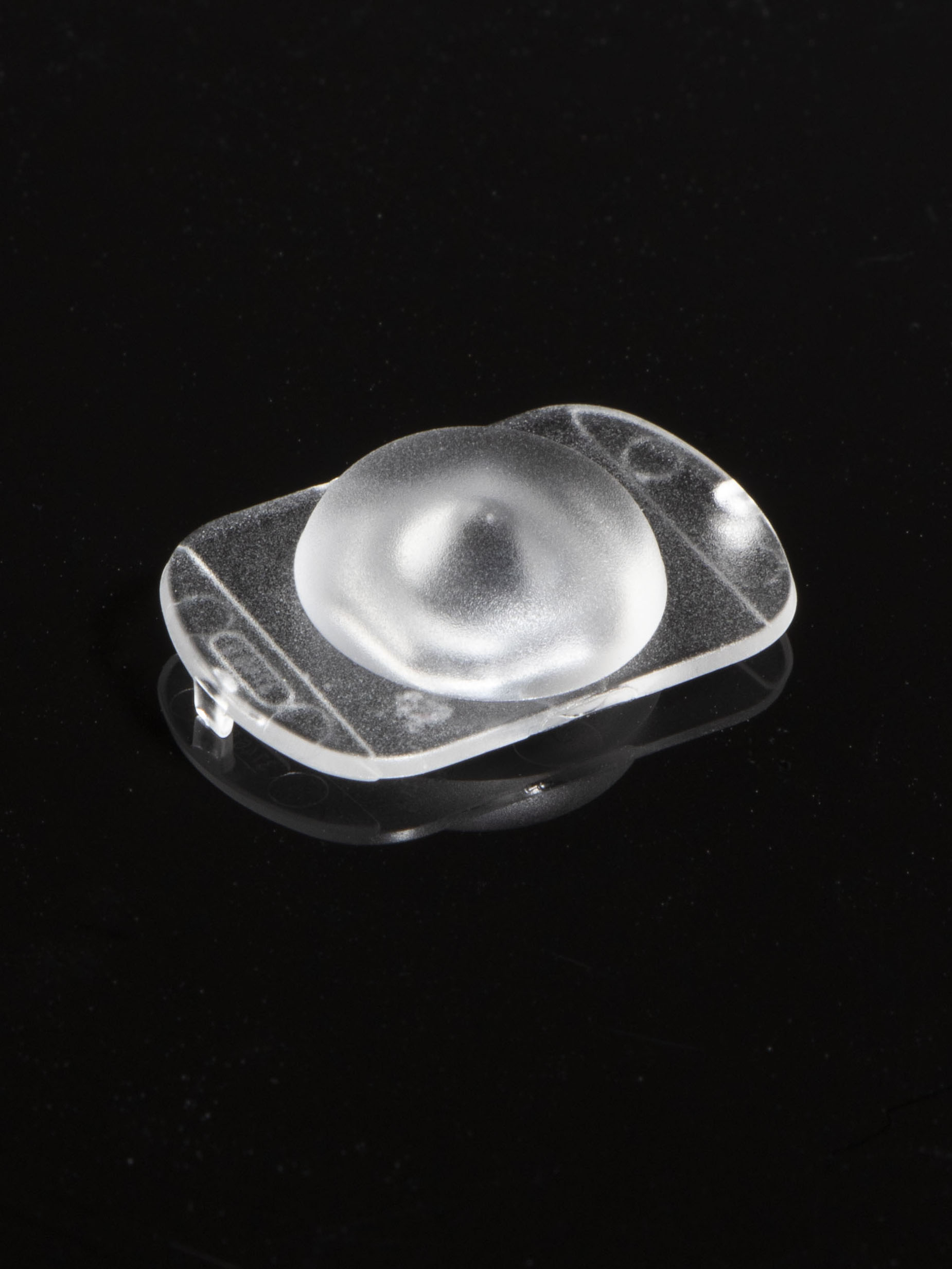

    ~165° wide beam. Assembly with installation tape.

    Specification
    • Dimensions:
      22 x  14 mm
    • Height:
      5.90 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      4032 pcs
    • Box size:
      451 x 254 x 152 mm
    • Box weight:
      3.5 kg
    • MPQ:
      126 pcs
    • MOQ:
      378 pcs
    • MOQ size:
      480 x 280 x 30 mm
    • MOQ weight:
      0.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13747_KIKI-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - KIKI-A

    PCN

    Product change notification NR106.a - Change of packaging quantities 260815

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

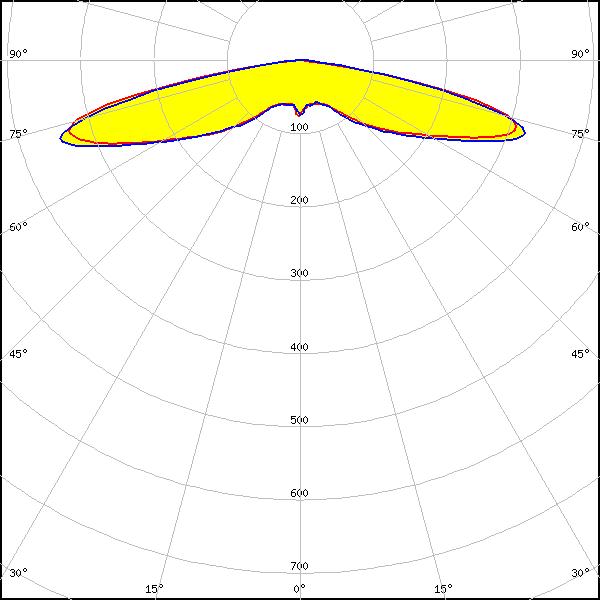

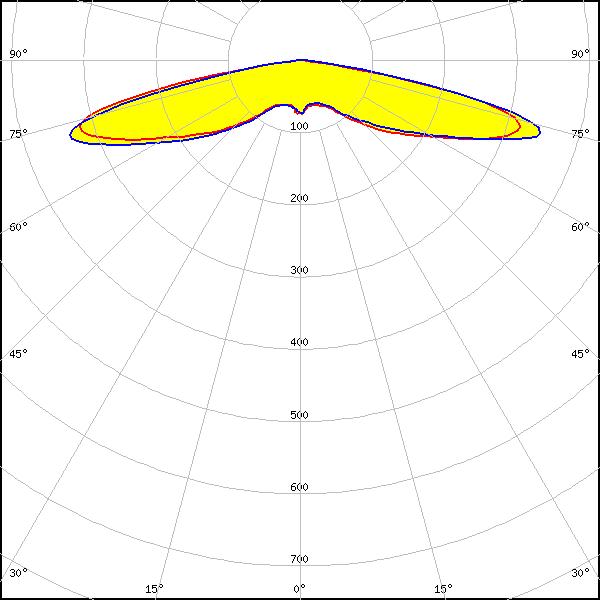

    Optical results

    LED: J Series 2835
    FWHM: 158°
    FWTM: 171°
    Peak intensity: 0.303 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

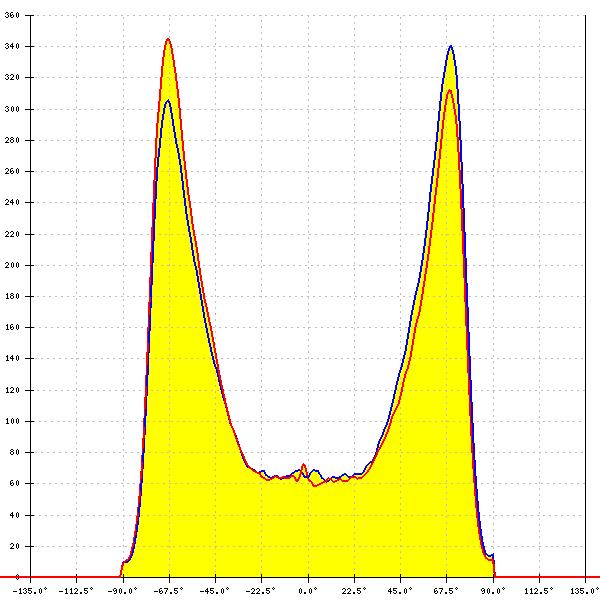

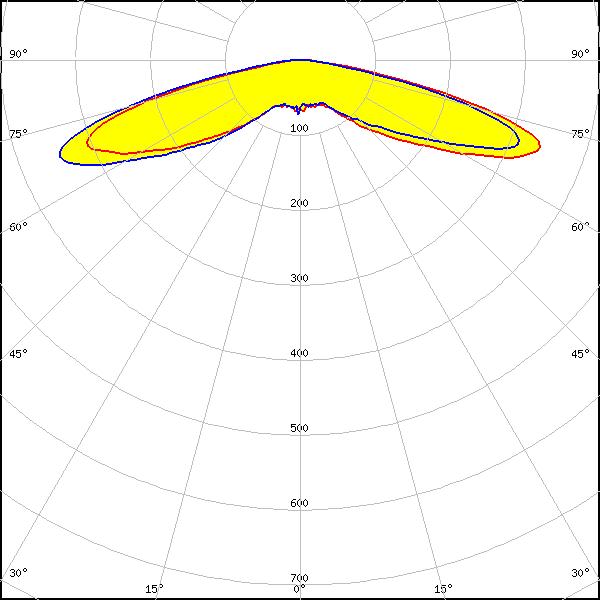

    LED: J Series 3030
    FWHM: 155°
    FWTM: 167°
    Peak intensity: 0.350 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

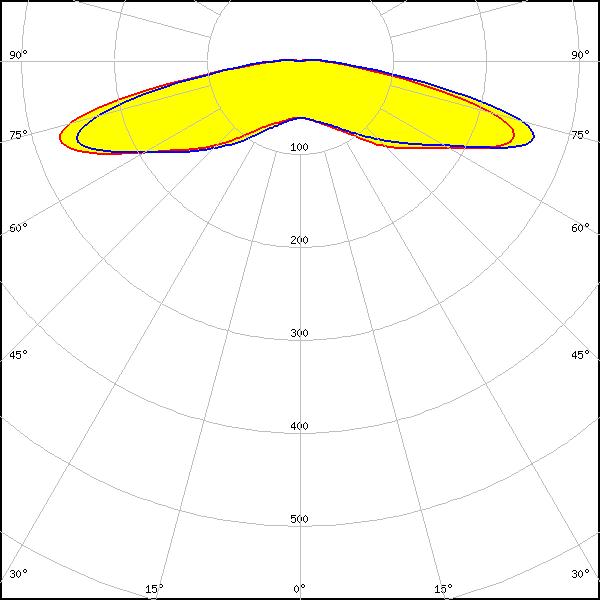

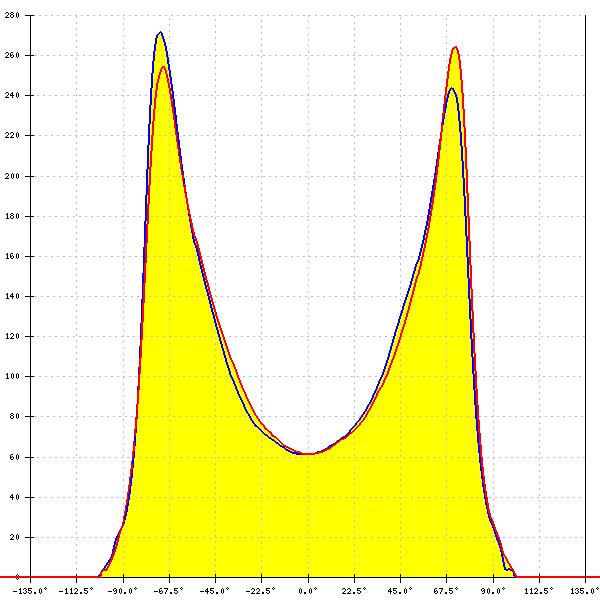

    LED: LUXEON T
    FWHM: 162°
    FWTM: 183°
    Peak intensity: 0.280 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

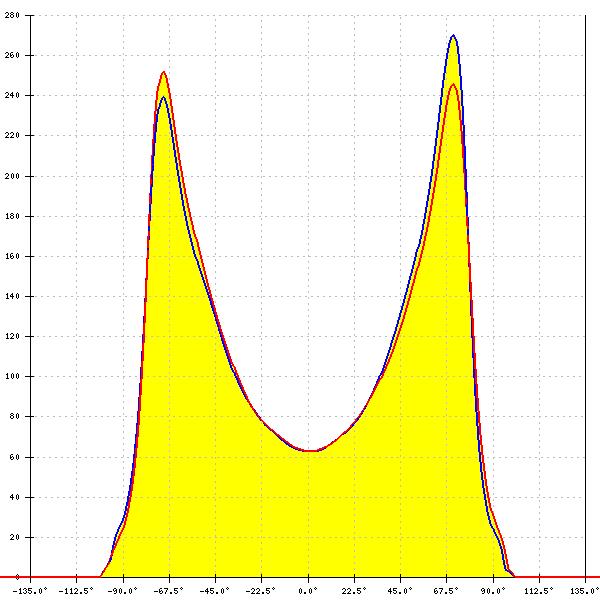

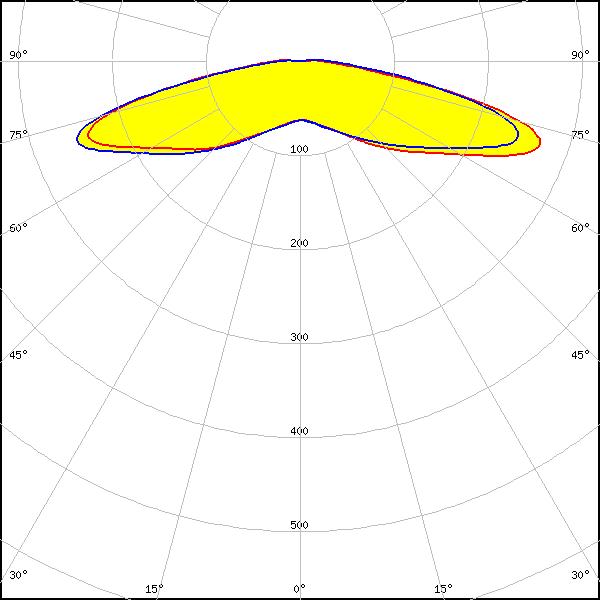

    LED: LUXEON TX
    FWHM: 162°
    FWTM: 185°
    Peak intensity: 0.270 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

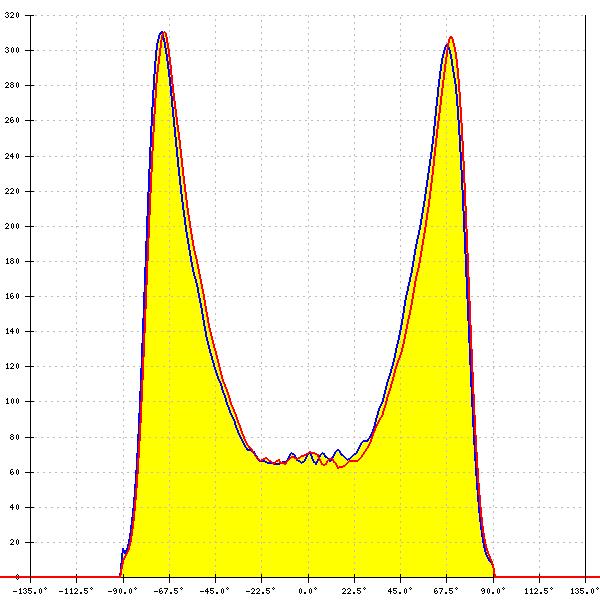

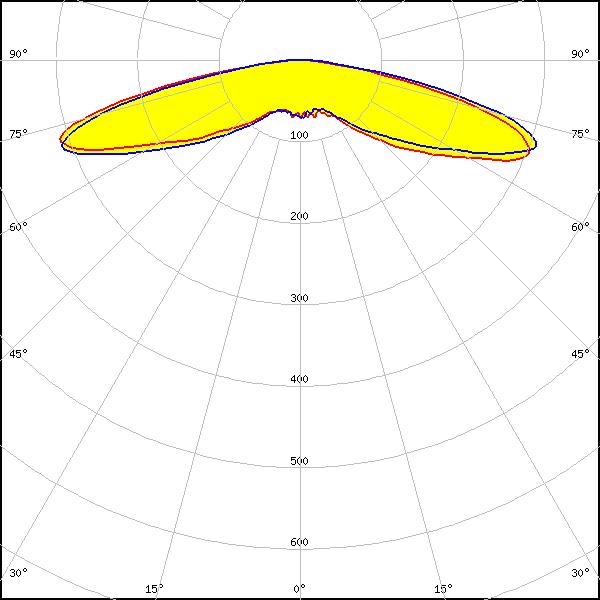

    LED: NFSx757G
    FWHM: 158°
    FWTM: 170°
    Peak intensity: 0.311 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

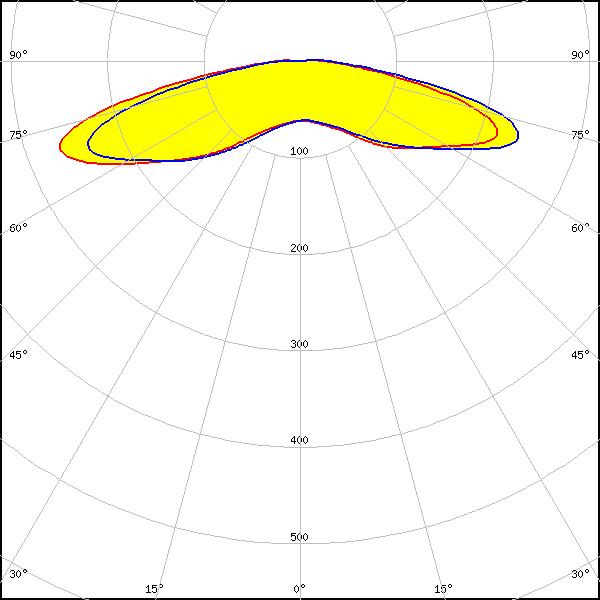

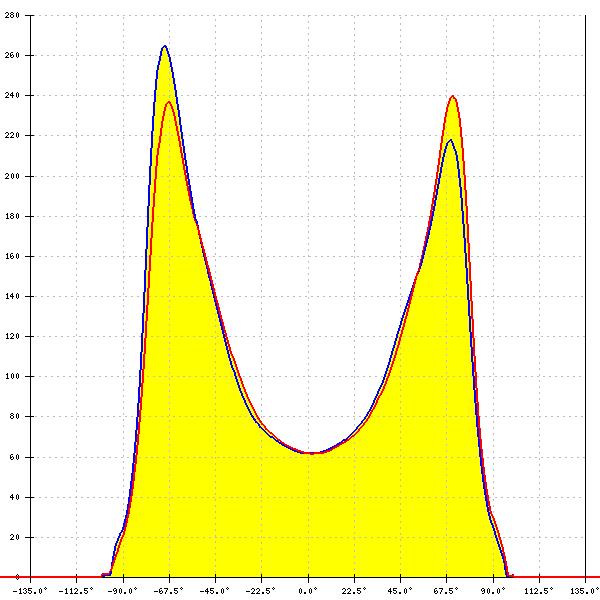

    LED: NVSxx19B/NVSxx19C
    FWHM: 161°
    FWTM: 181°
    Peak intensity: 0.260 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

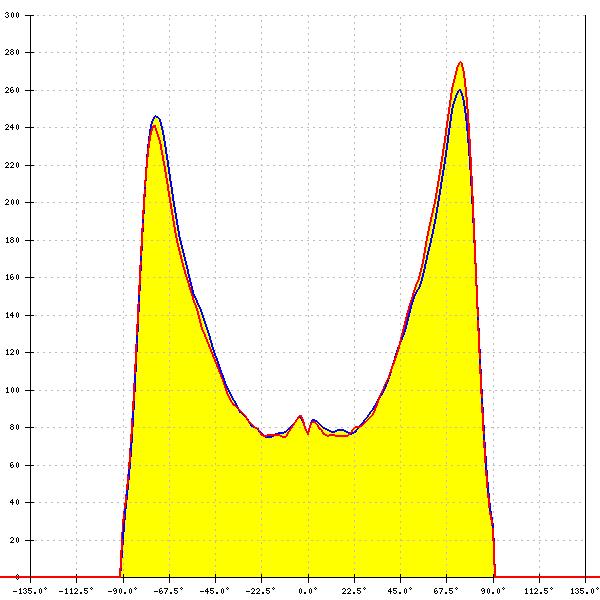

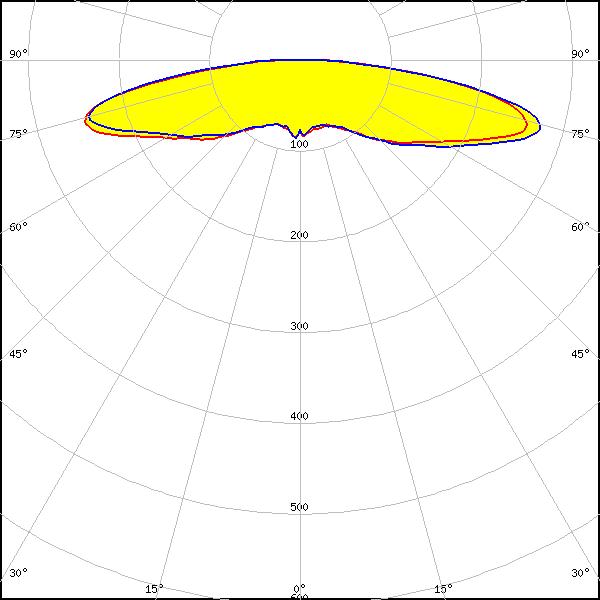

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 166°
    FWTM: 180°
    Peak intensity: 0.275 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

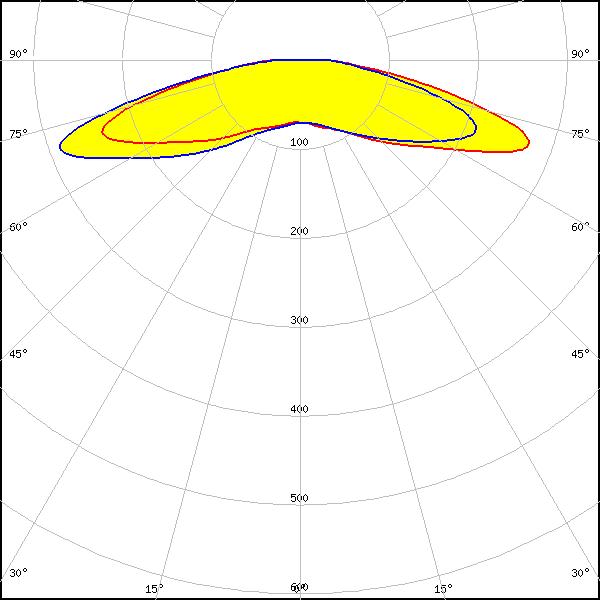

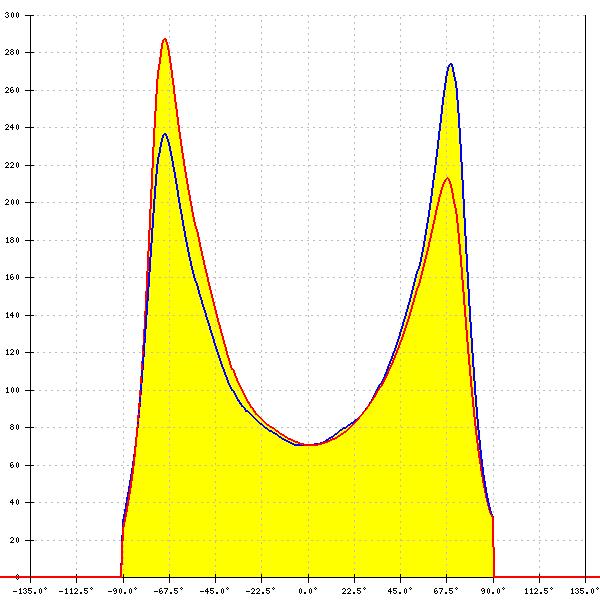

    LED: OSLON Square PC
    FWHM: 161°
    FWTM: 180°
    Peak intensity: 0.290 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

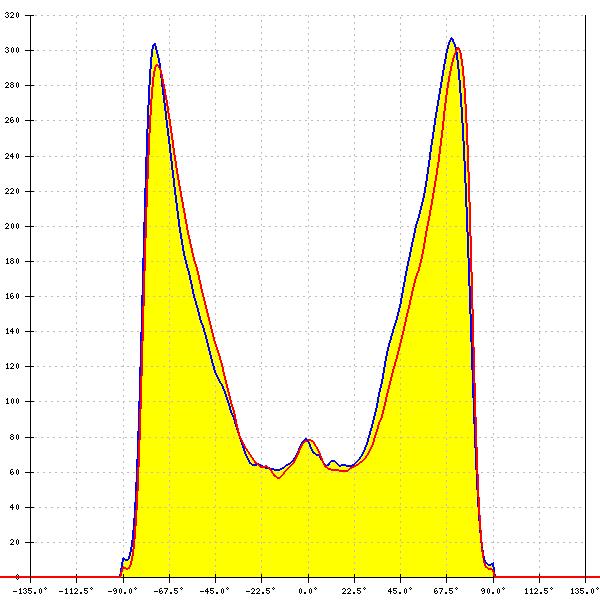

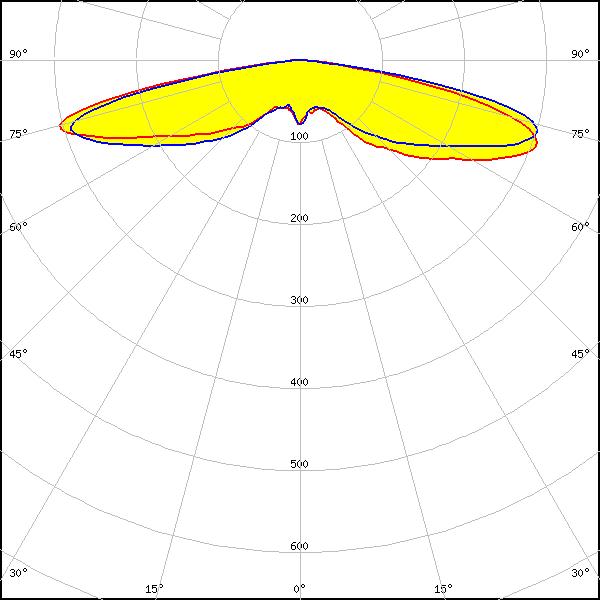

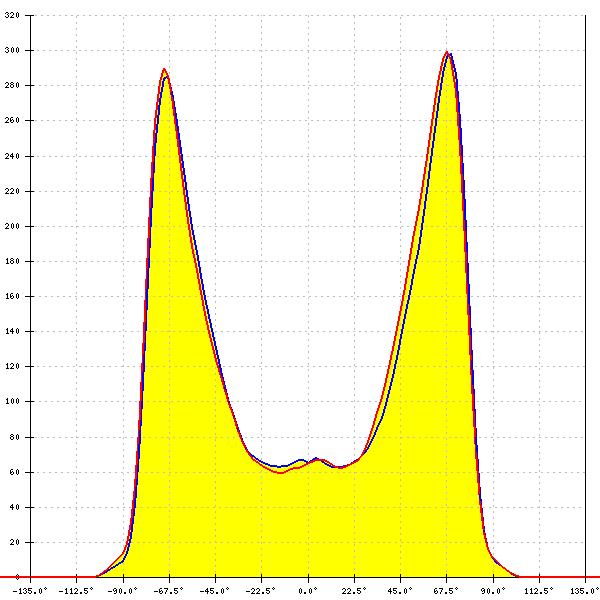

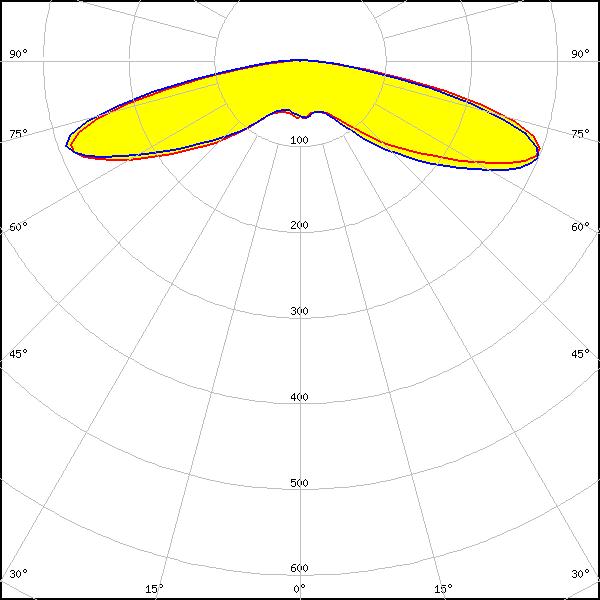

    LED: LM28xB Series
    FWHM: 159°
    FWTM: 168°
    Peak intensity: 0.310 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    FWHM: 157°
    FWTM: 172°
    Peak intensity: 0.301 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

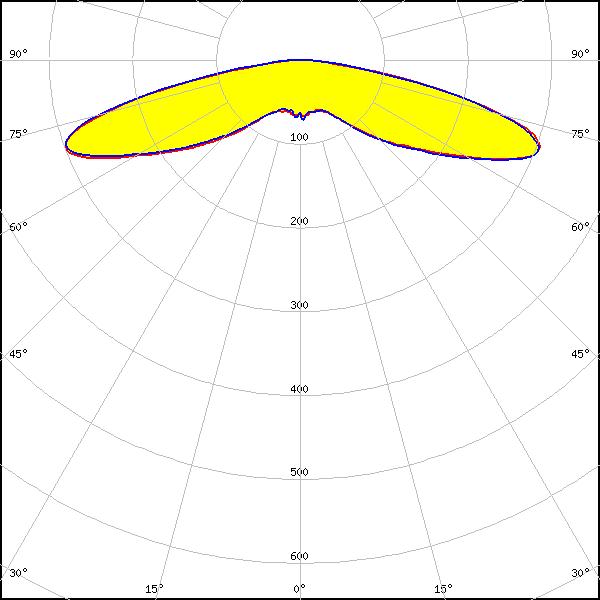

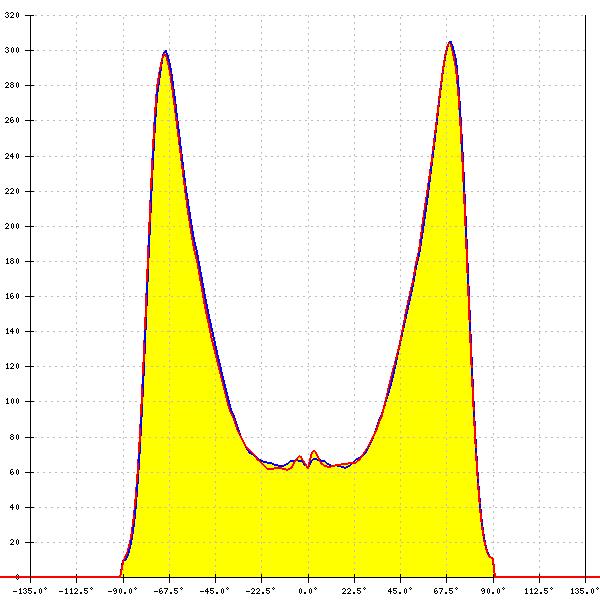

    LED: LM301B
    FWHM: 158°
    FWTM: 170°
    Peak intensity: 0.308 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

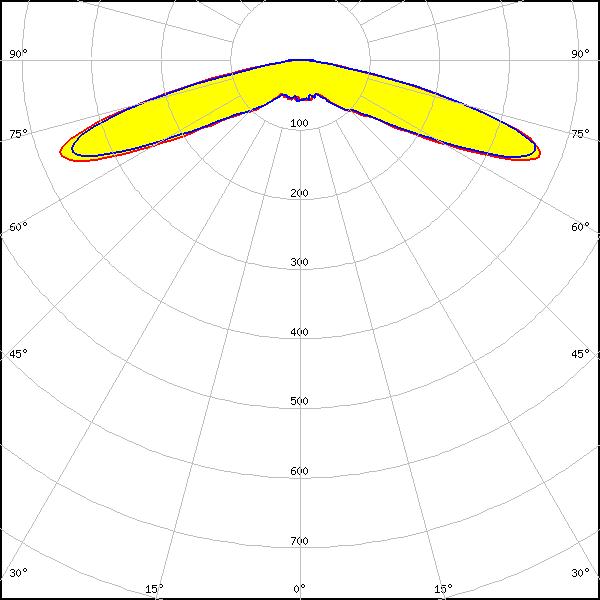

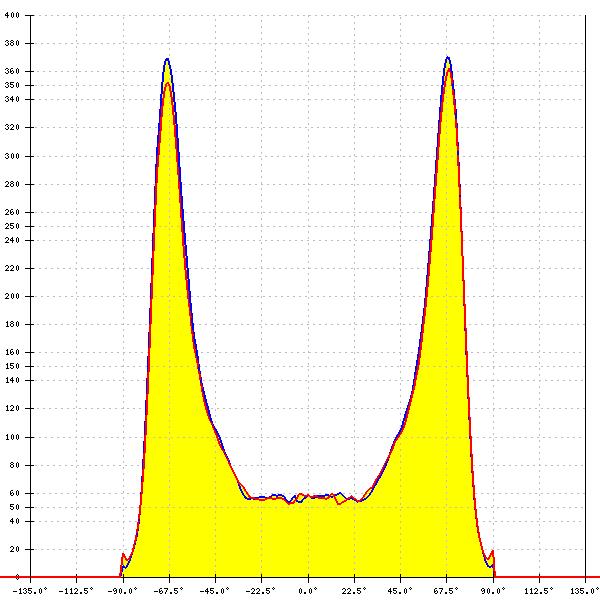

    LED: Z8Y11
    FWHM: 152°
    FWTM: 165°
    Peak intensity: 0.397 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
