CA12000_EMILY-O-WAS
Print

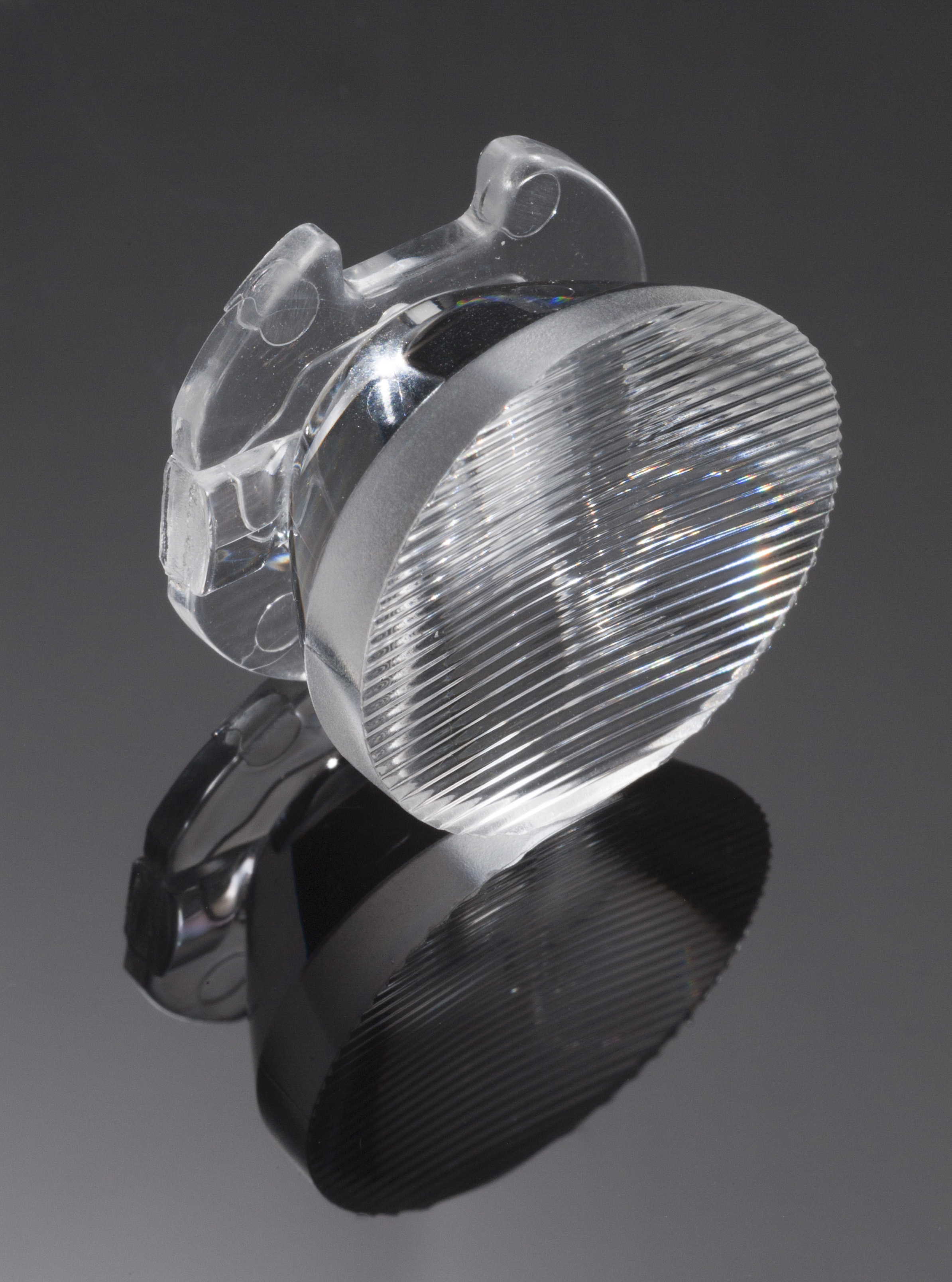

~45° x 10° oval beam for wall washing. 14.95 mm high lens.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

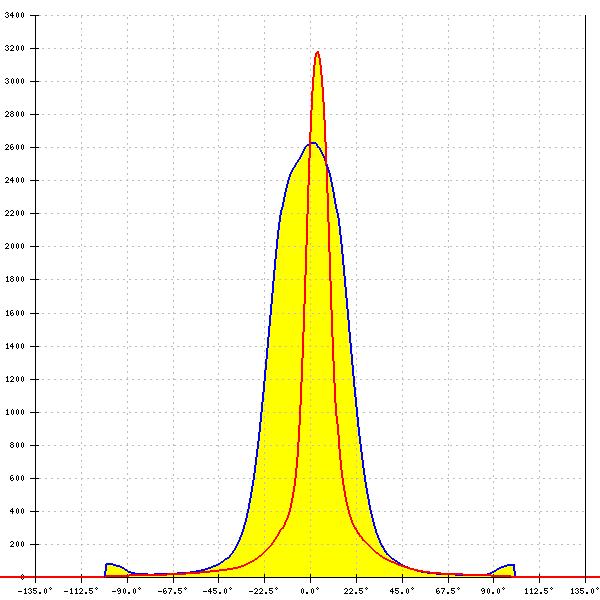

LED:

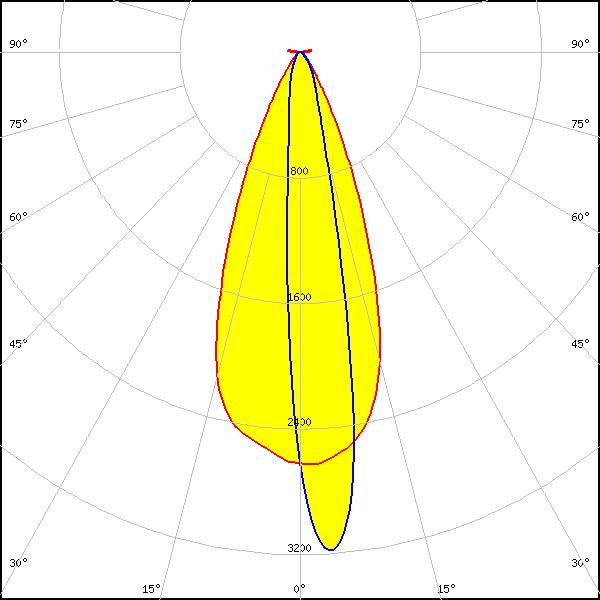

XHP35 HD
FWHM: asymmetric
Peak intensity:
3.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM: asymmetric
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM: asymmetric
Peak intensity:
6.805 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

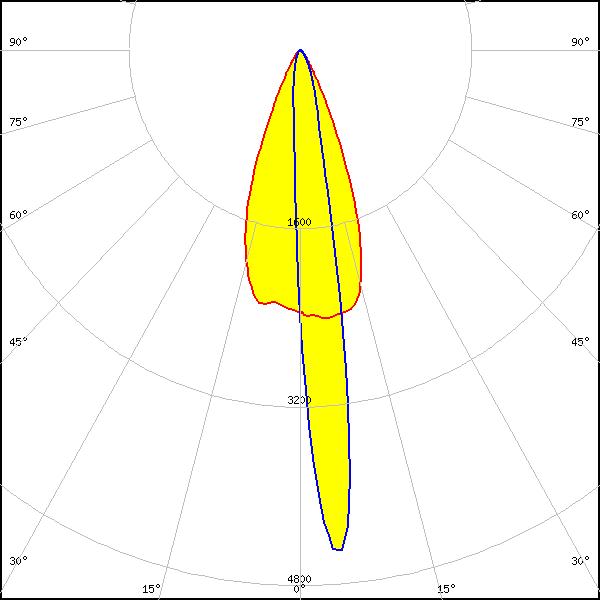

XP-G
FWHM: asymmetric
Peak intensity:
4.190 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

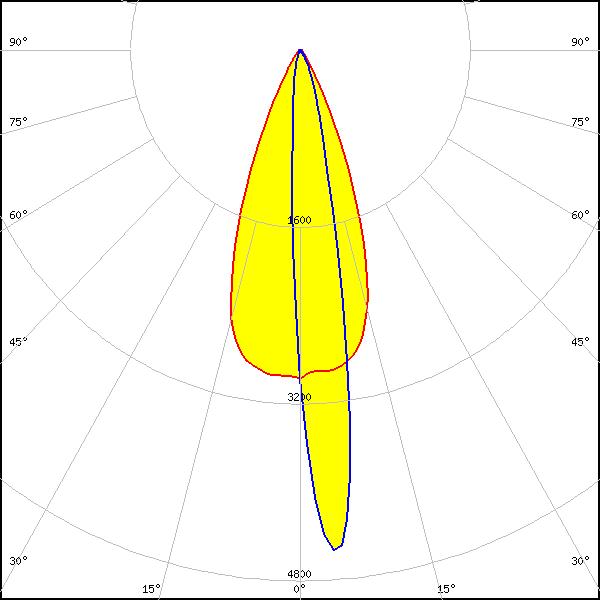

XP-G3
FWHM: asymmetric
Peak intensity:
4.642 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HD
FWHM: asymmetric
Peak intensity:
4.050 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

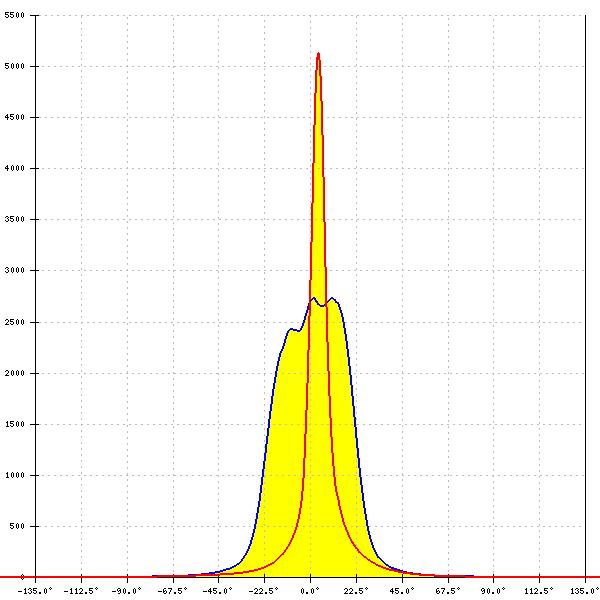

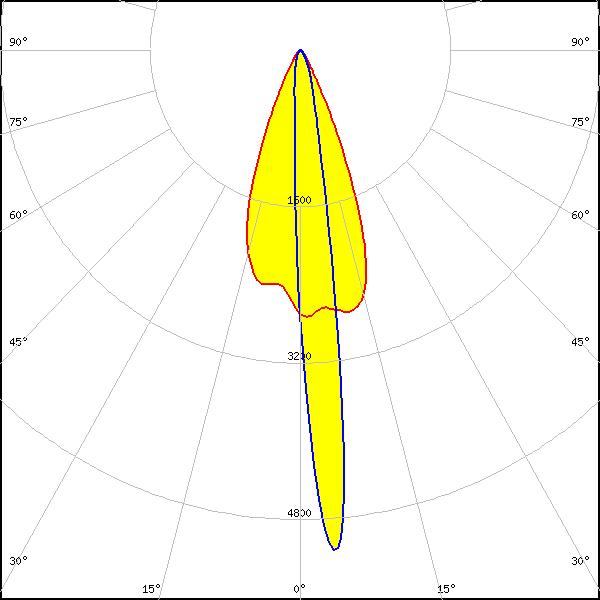

LED:
XP-L HI
FWHM: asymmetric
Peak intensity:
5.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

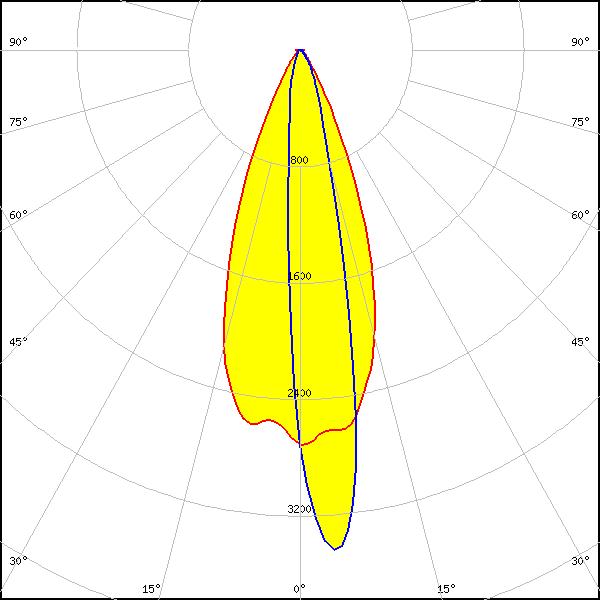

XP-L2
FWHM: asymmetric
Peak intensity:
3.480 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM: asymmetric
Peak intensity:
5.387 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
43° + 10°
FWTM:
60° + 28°
Peak intensity:
3.760 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

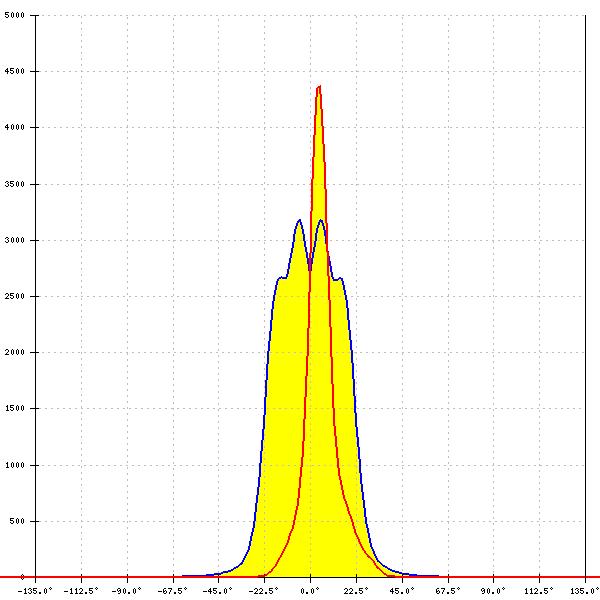

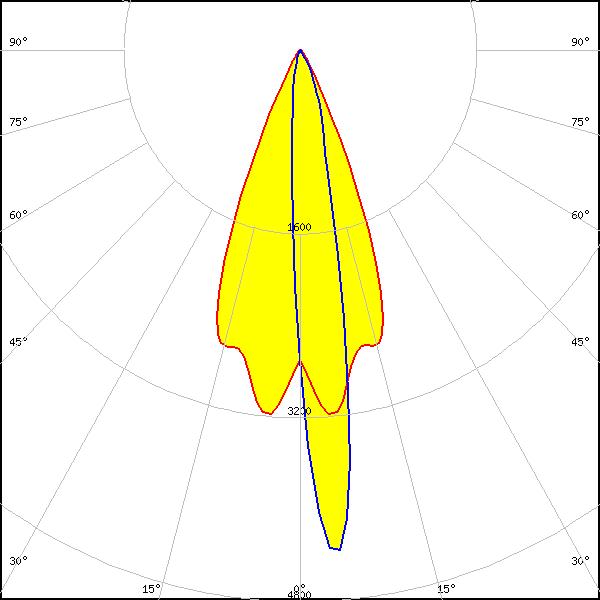

LUXEON H50-2
FWHM: asymmetric
Peak intensity:
5.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
8° + 47°
FWTM:
68° + 68°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
43° + 10°
FWTM:
60° + 28°
Peak intensity:
3.720 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

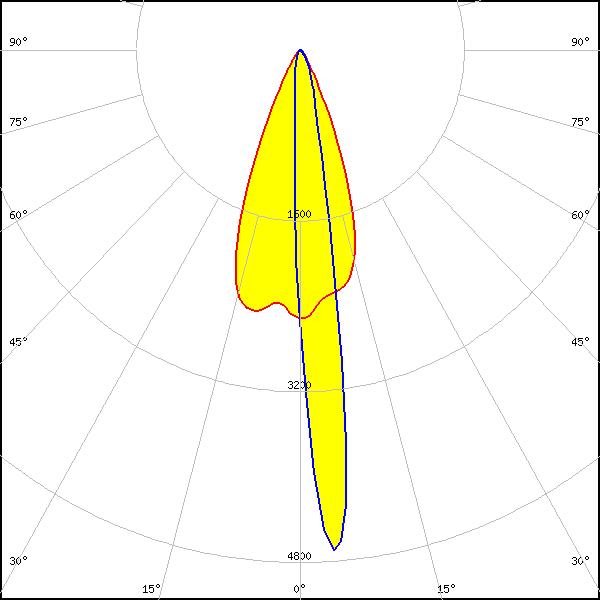

LED:

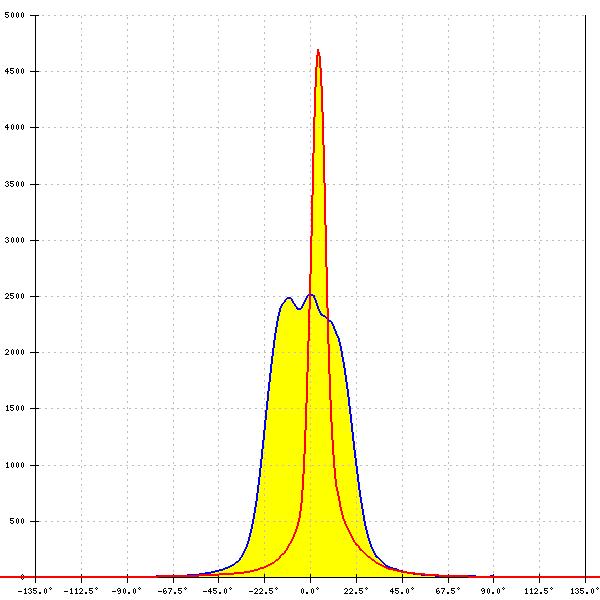

LUXEON T
FWHM:
43° + 9°
FWTM:
63° + 24°
Peak intensity:
4.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

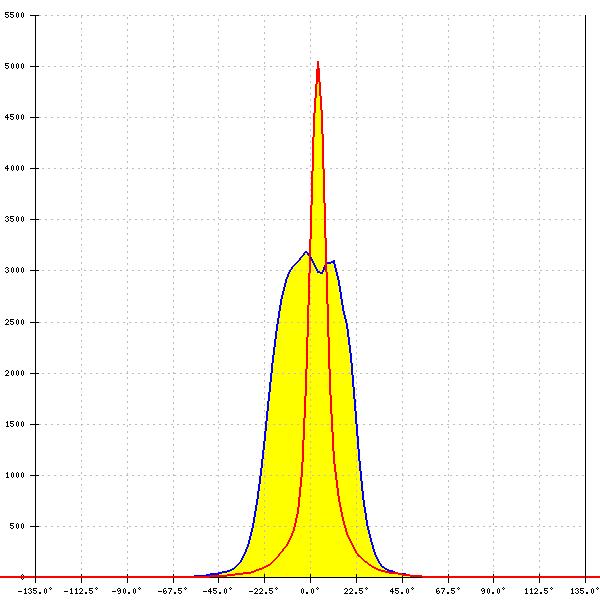

LED:

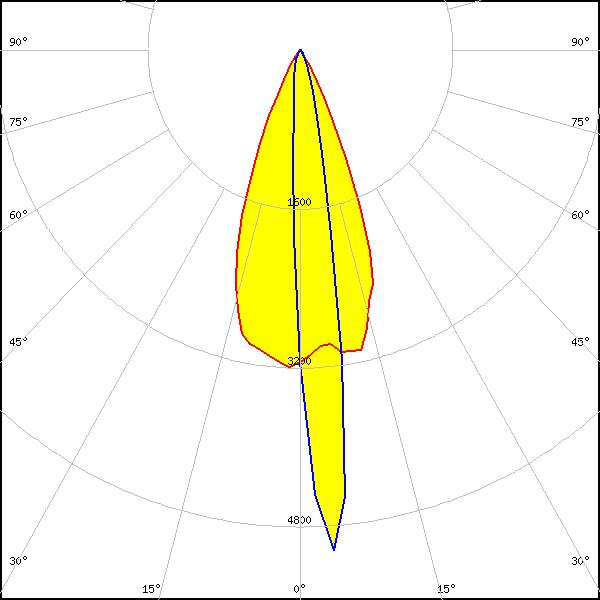

LUXEON TX
FWHM: asymmetric
Peak intensity:
5.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

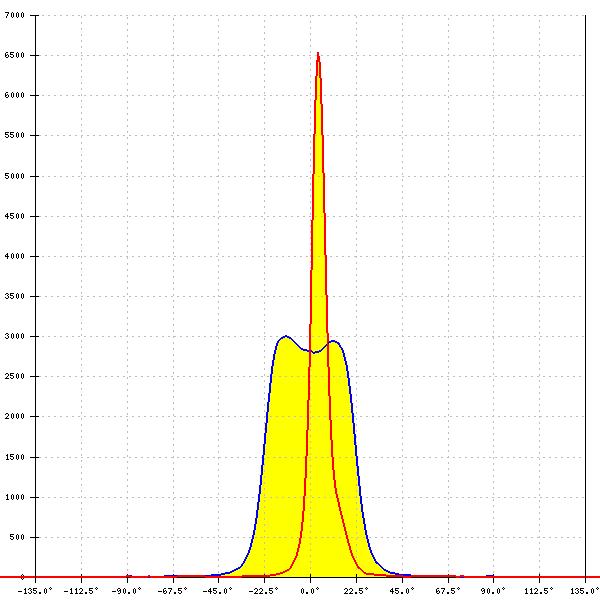

LED:
LUXEON Z ES
FWHM: asymmetric
Peak intensity:
6.792 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

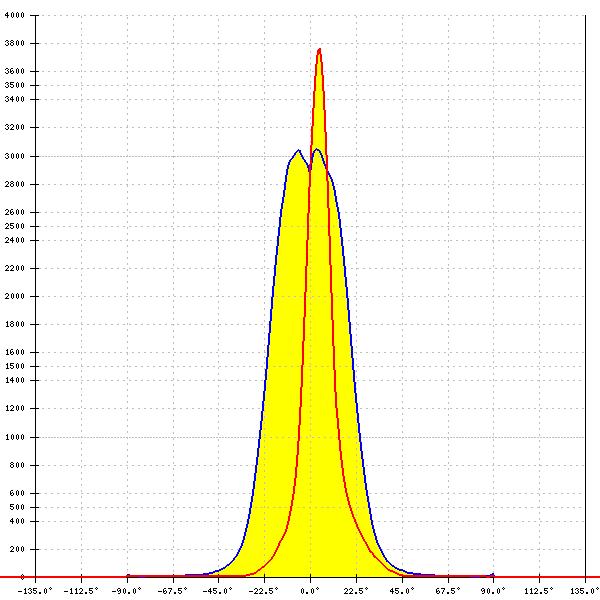

LED:

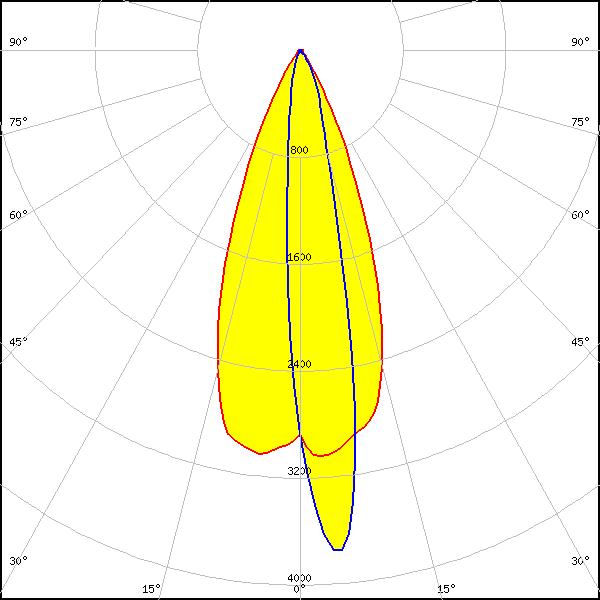

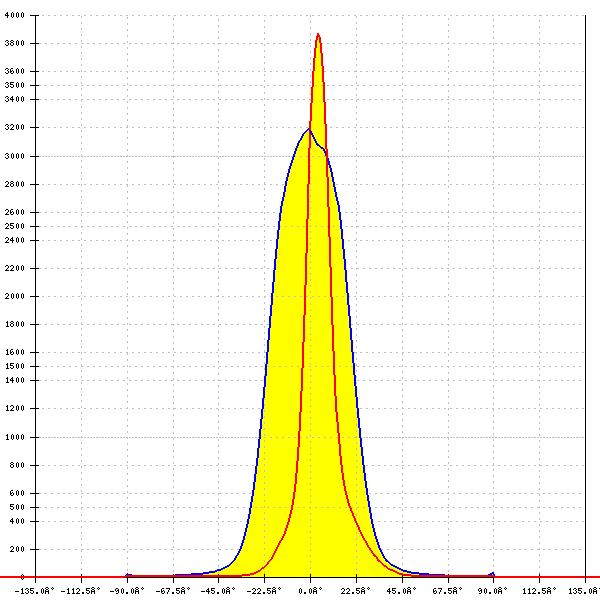

NV4WB35AM
FWHM: asymmetric
Peak intensity:
3.887 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

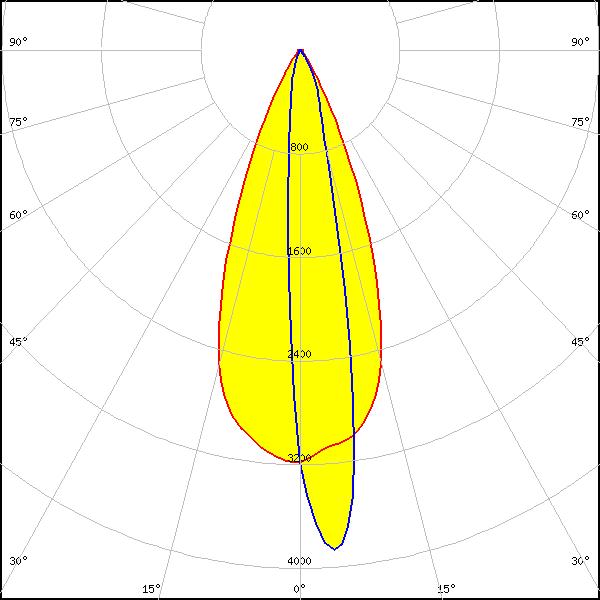

NV4WB35AM
FWHM: asymmetric
Peak intensity:
3.898 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW319B
FWHM: asymmetric
Peak intensity:
4.530 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

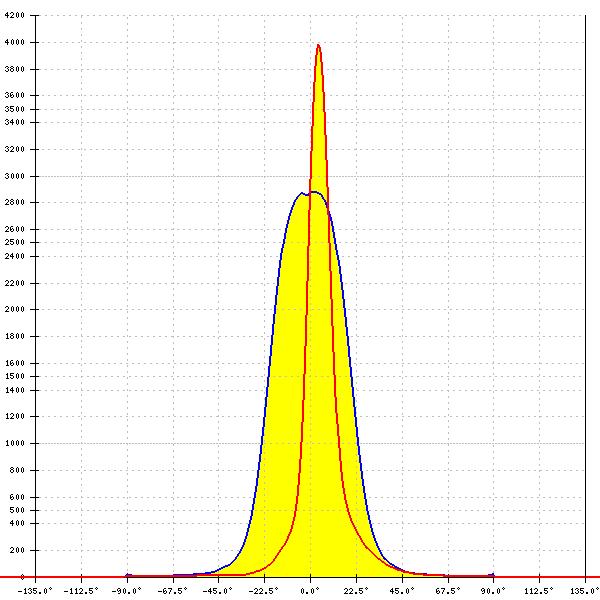

LED:

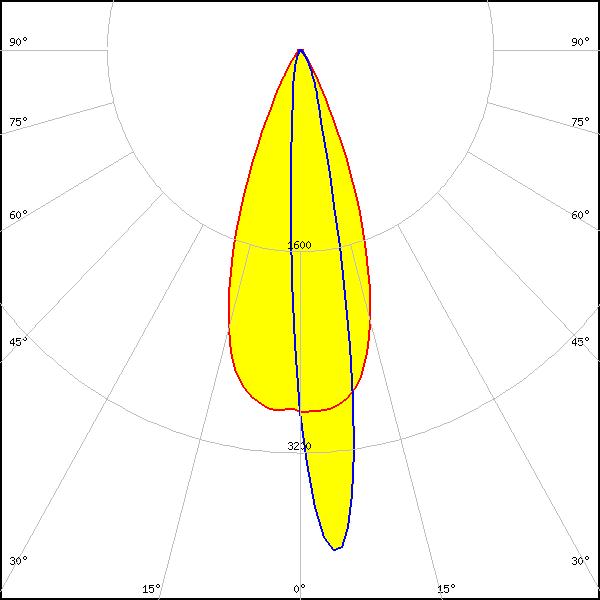

NVSW519A
FWHM: asymmetric
Peak intensity:
4.046 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

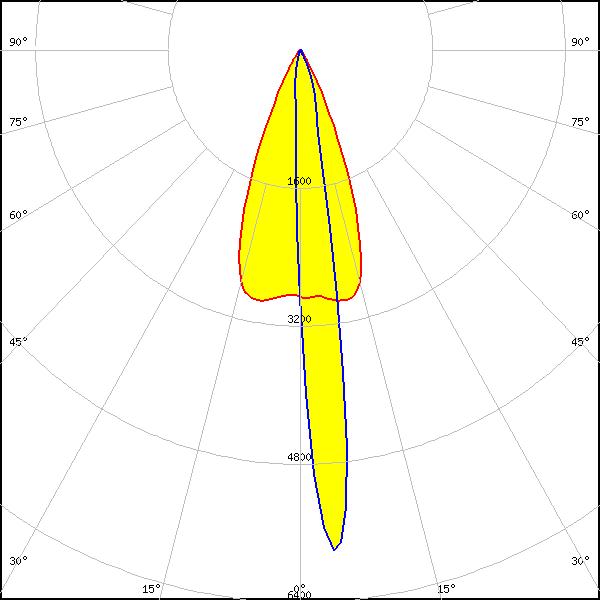

NVSW719AC
FWHM: asymmetric
Peak intensity:
5.986 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

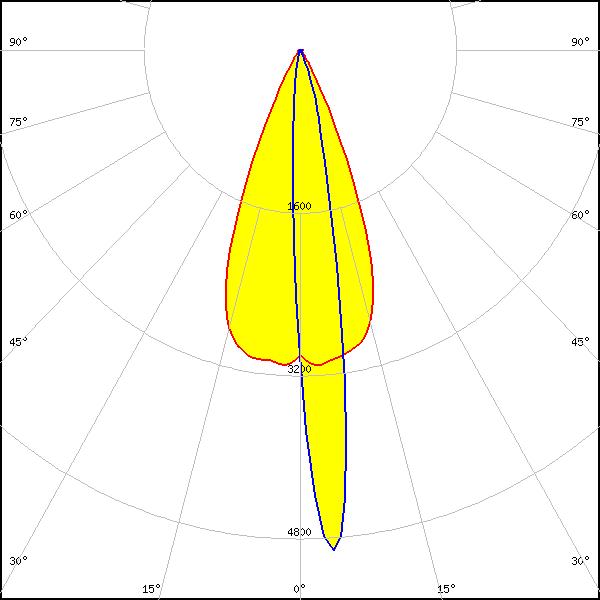

NVSxE21A
FWHM: asymmetric
Peak intensity:
4.986 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
43° + 12°
FWTM:
61° + 34°
Peak intensity:
3.110 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
4.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

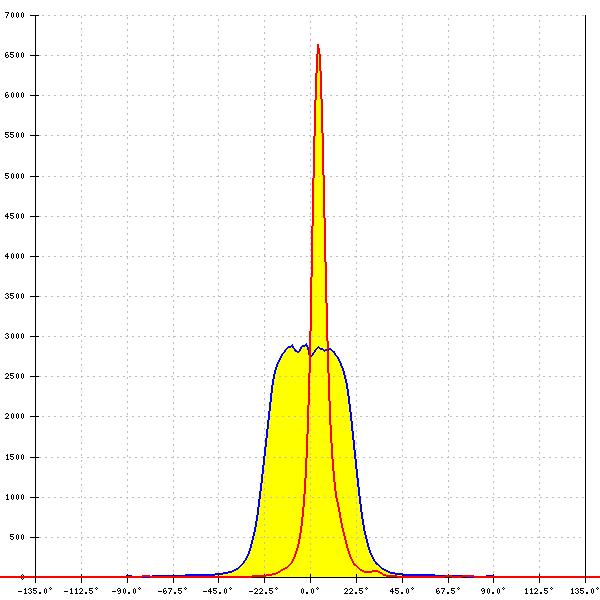

LED:

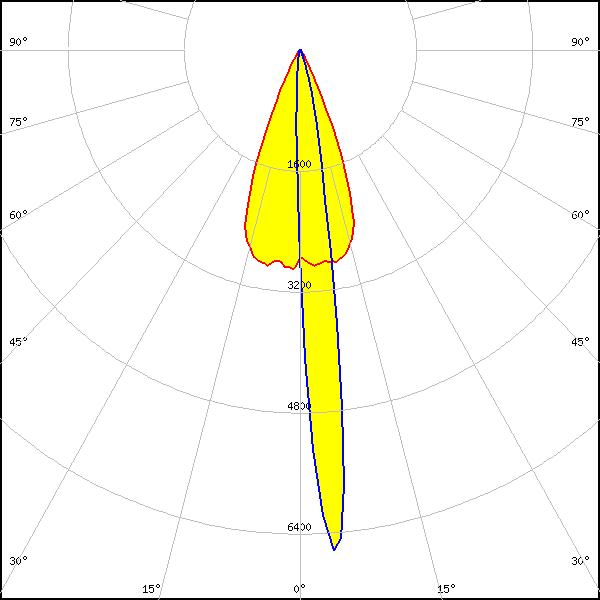

OSCONIQ P 3030
FWHM: asymmetric
Peak intensity:
6.728 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

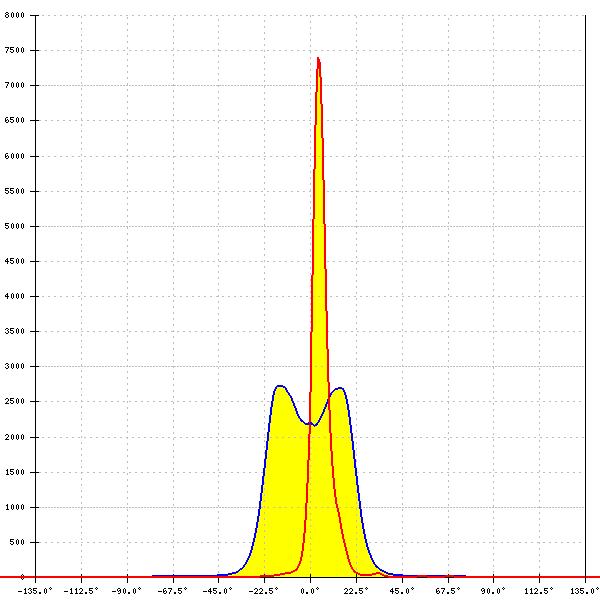

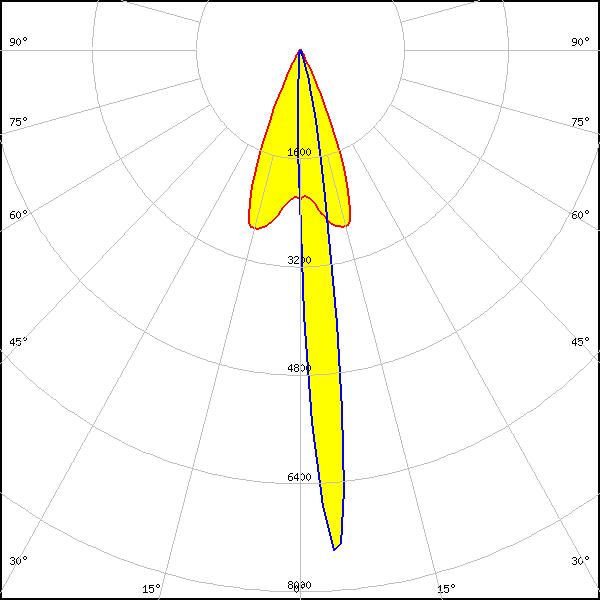

OSLON Pure 1414
FWHM:
46° + 7°
FWTM:
60° + 17°
Peak intensity:
7.827 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
44° + 9°
FWTM:
62° + 25°
Peak intensity:
5.641 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

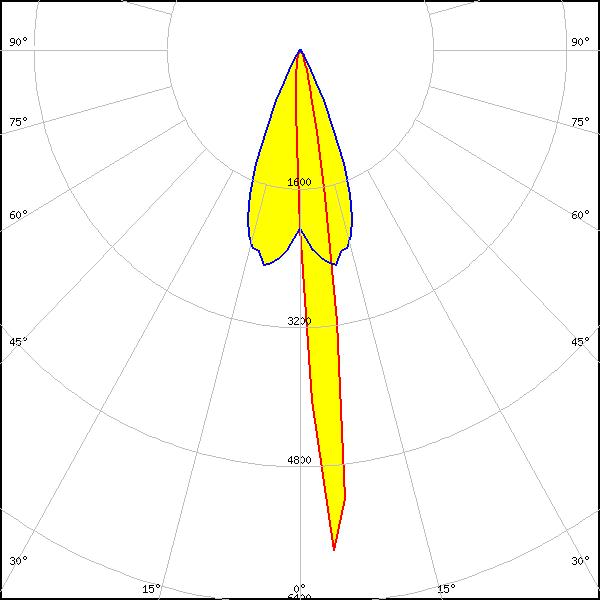

OSLON SSL 150
FWHM:
42° + 8°
FWTM:
55° + 21°
Peak intensity:
5.030 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
42° + 9°
FWTM:
59° + 28°
Peak intensity:
3.860 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

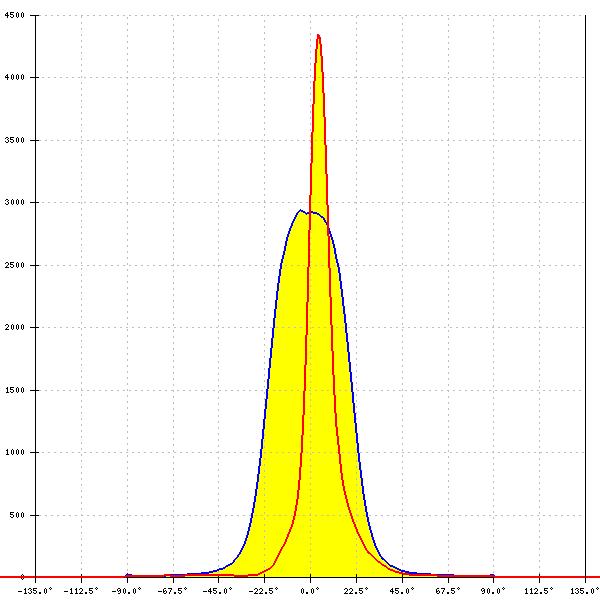

LH351C
FWHM: asymmetric
Peak intensity:
4.430 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

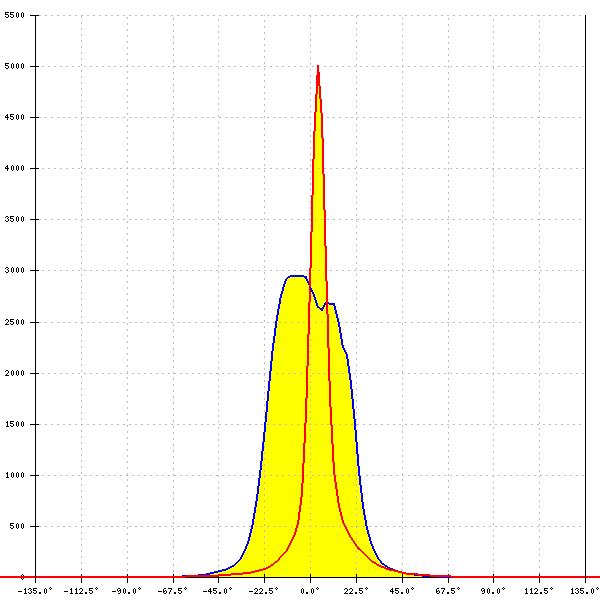

LED:
Z5M1/Z5M2
FWHM: asymmetric
Peak intensity:
5.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
